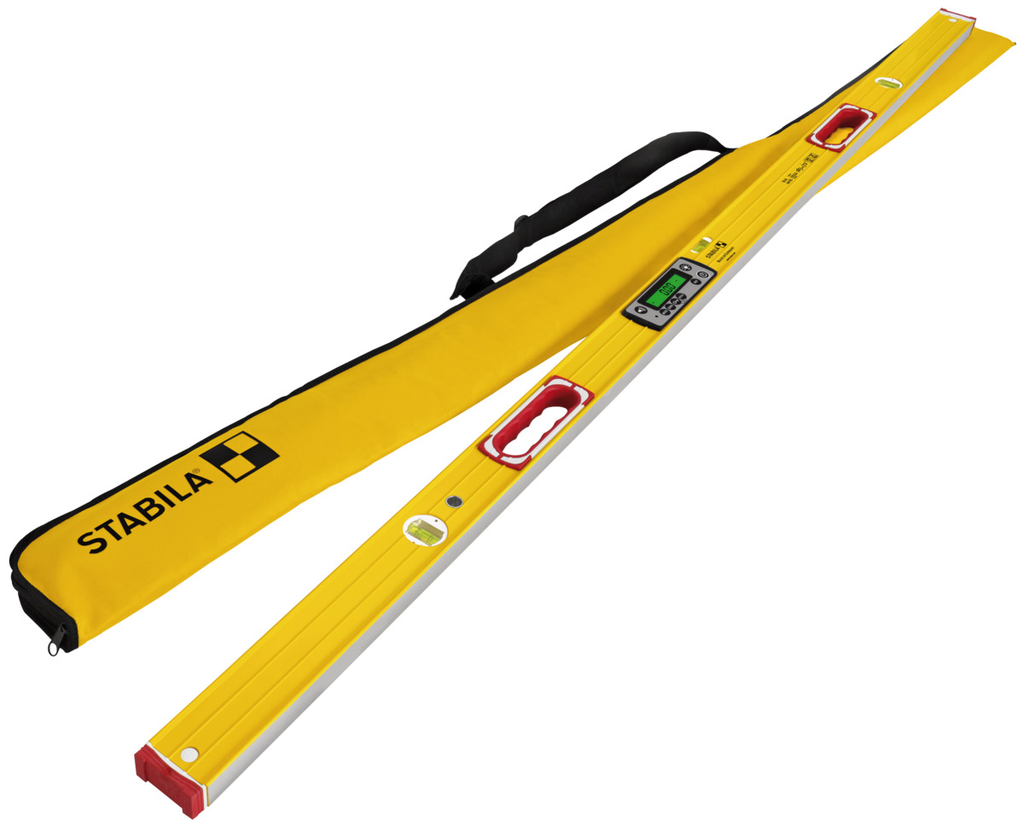

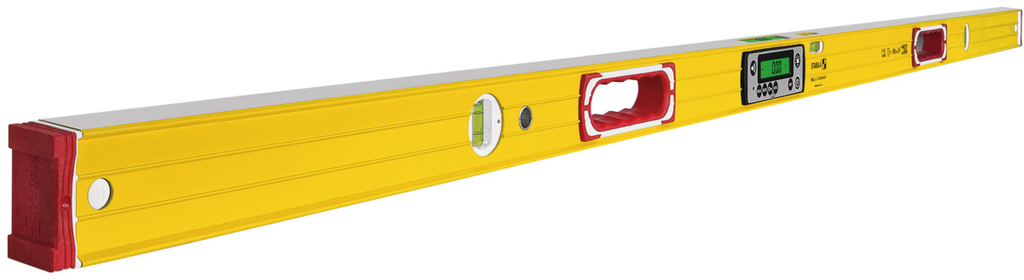

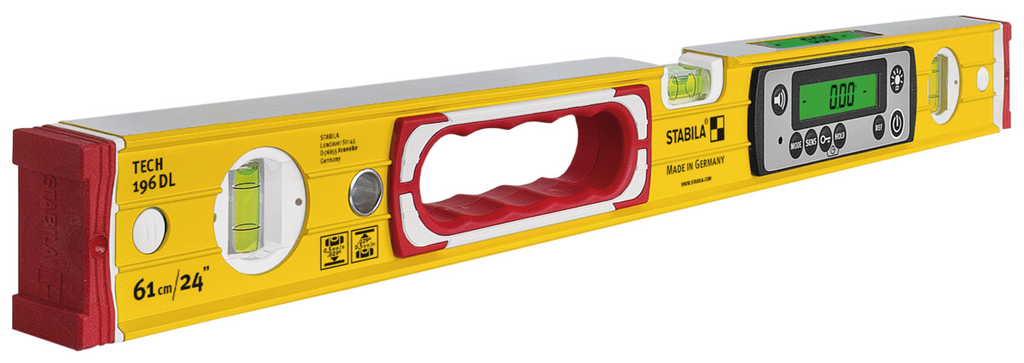

Stabila, 39577, Digital Spirit Level, 72 in, Aluminium, IP 67, Calibration-Free, Acoustic Guidance

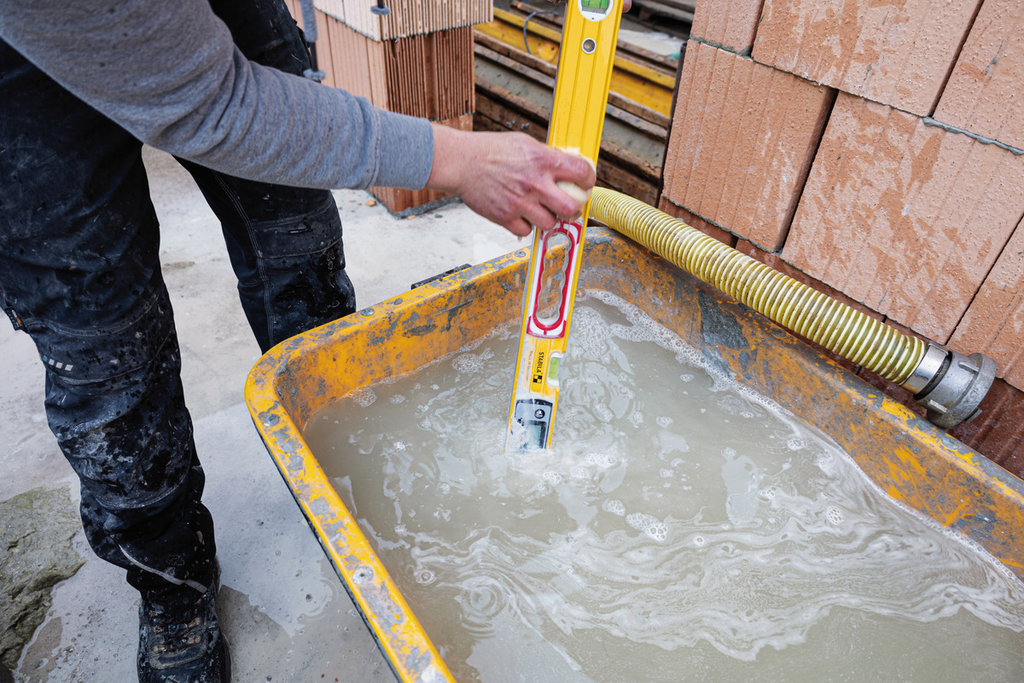

Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.

Features

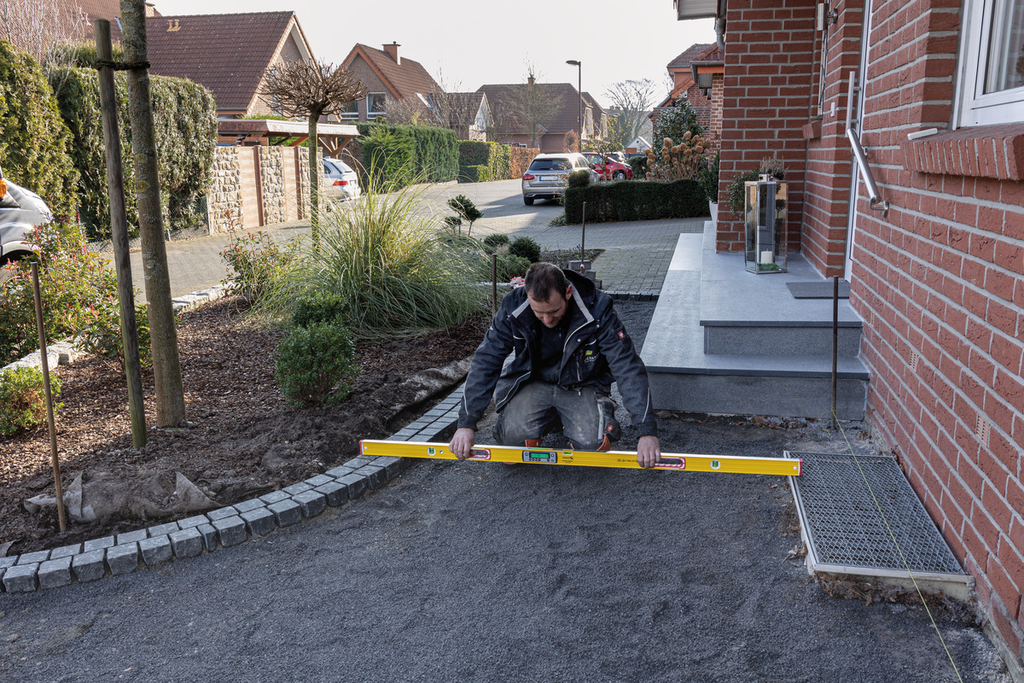

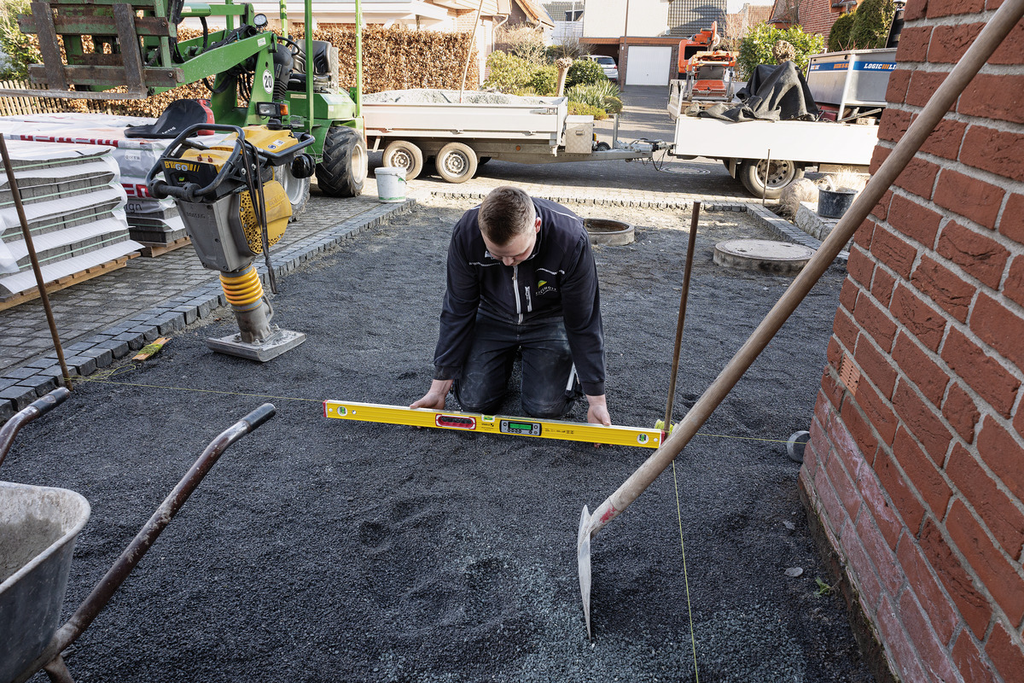

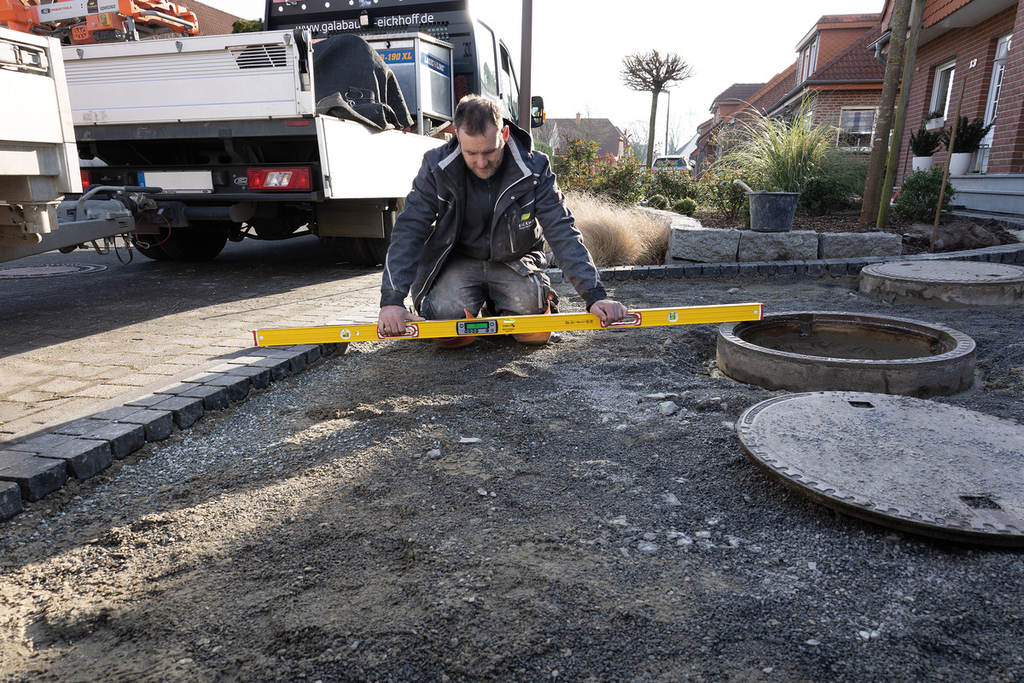

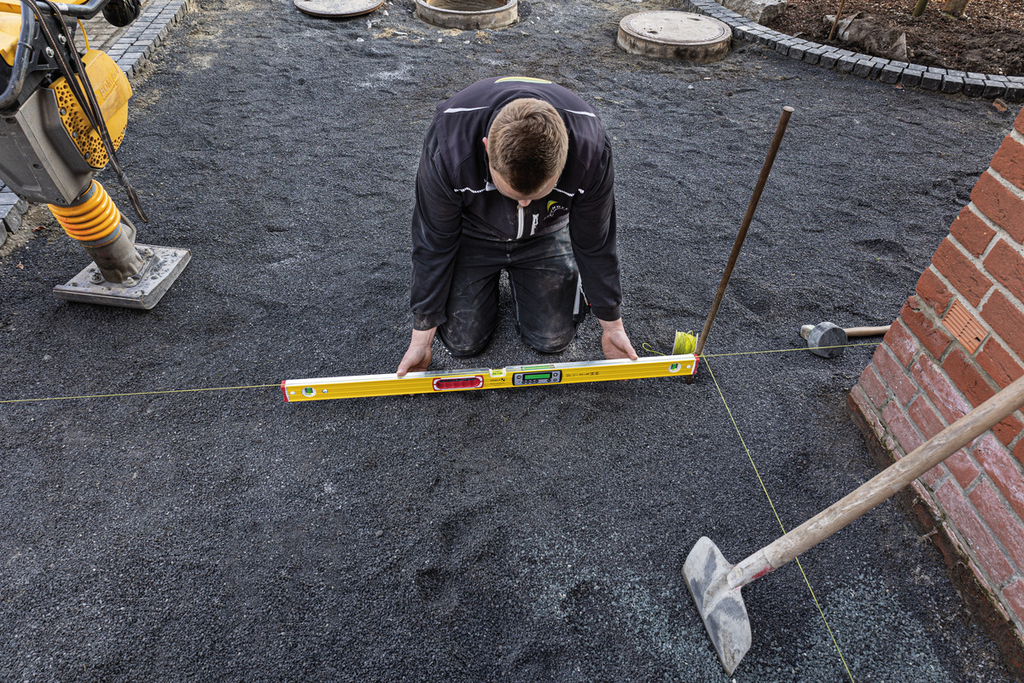

• The perfect assistant in gardening and landscaping when creating a garden path with a slope
• Made for extreme challenges

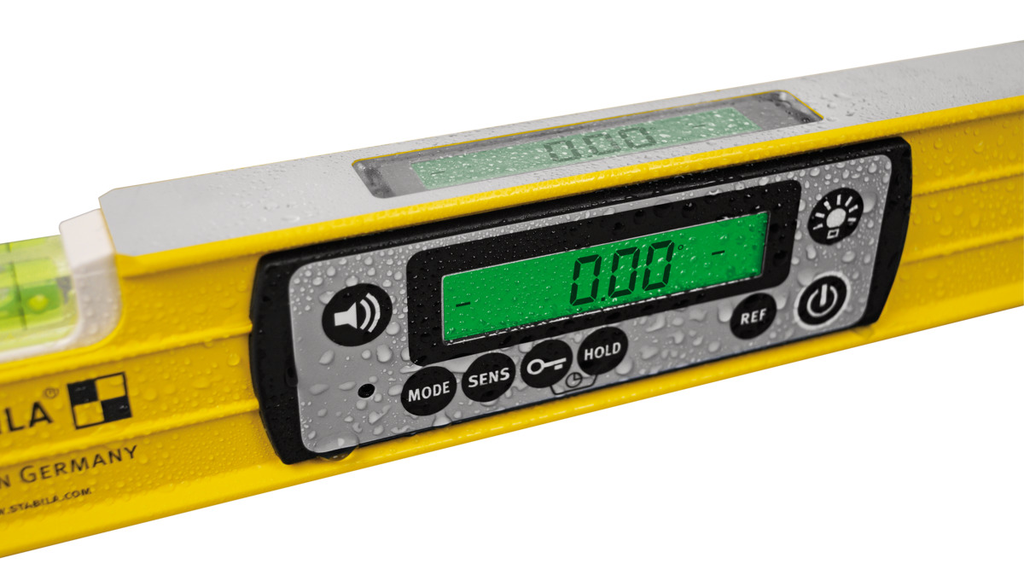

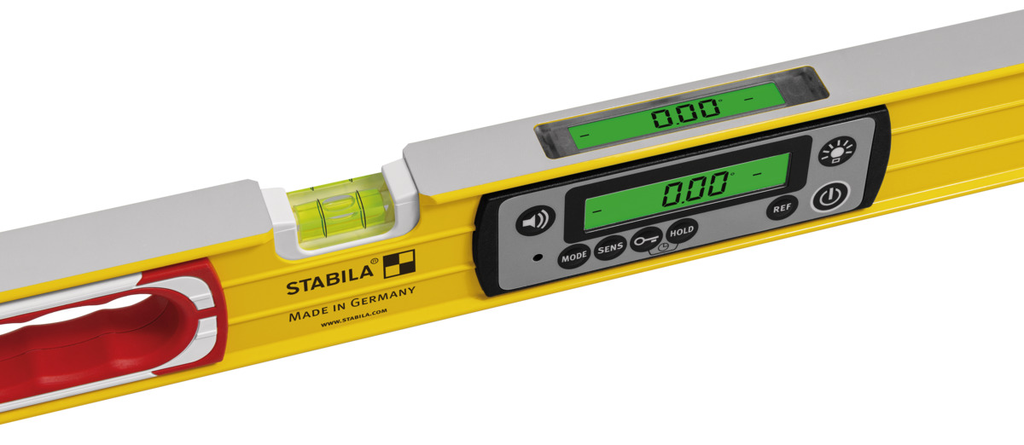

• Two digital displays with optimal read-out in any application situation

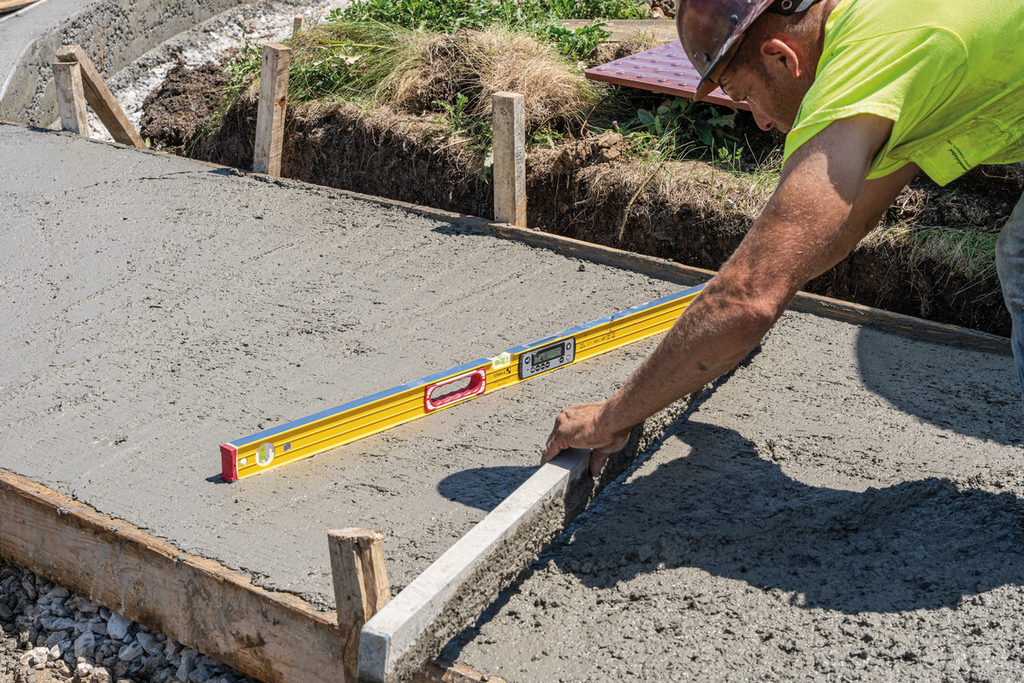

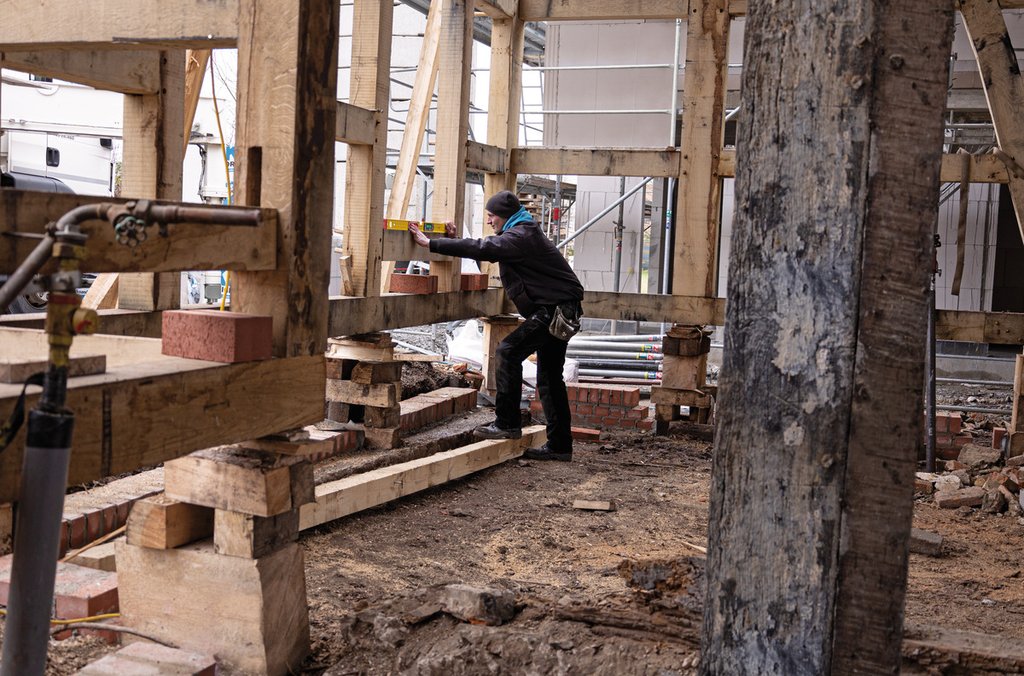

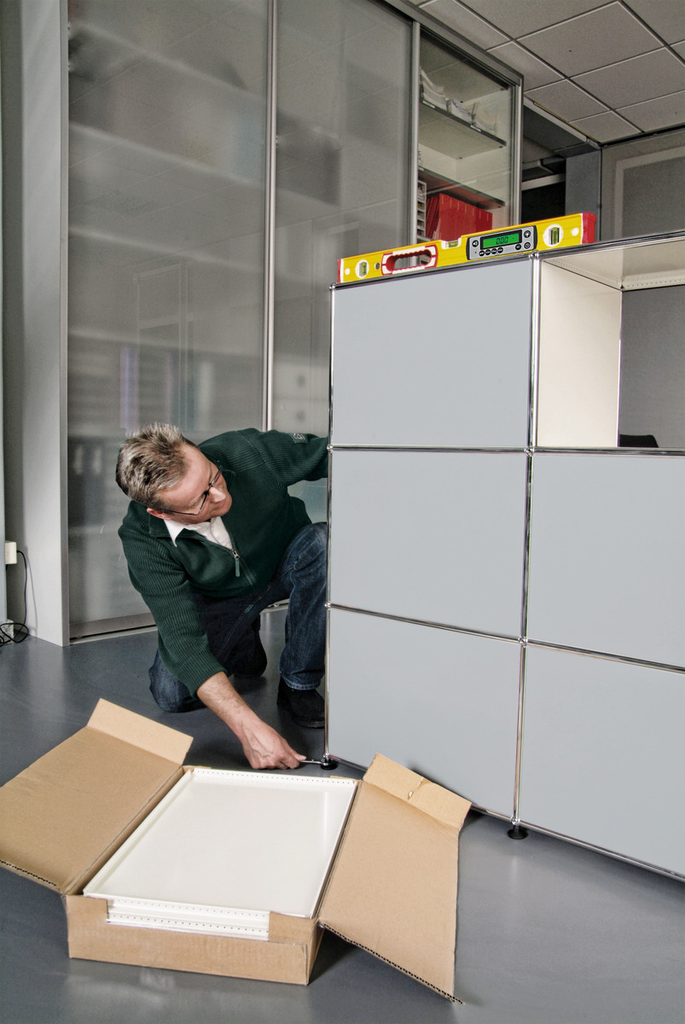

• Particularly suitable for precise measurements in concrete work (ie; ADA Plates), joinery and carpentry work as well as kitchens, staircase construction and excavation work
• ULTRA-PROTECT – optimum protection against dust and water in accordance with IP 67
• Rugged
• How true pro's measure
• Calibration-free
• Instant measurement
• Acoustic guidance with two different audible signals
• CAL-FREE – calibration-free electronics, even after falling or being exposed to temperature fluctuations
• Ideal for contractors to check completed work: for example, to check the slope of a balcony

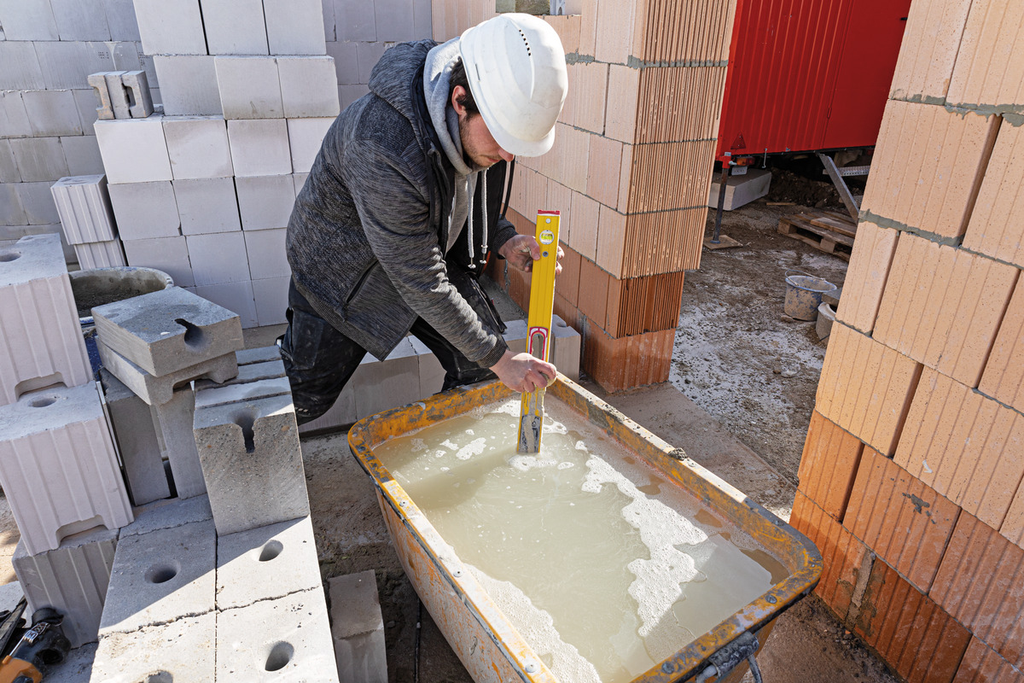

• Waterproof

Specifications

• Height Incl. Sales Packaging: 60 millimeter
• Accuracy with electronic inclination measurement at 1° to 89° +/-: 0.1 °
• Weight Incl. Sales Packaging: 1840 grams
• Finger-grip opening: Yes
• Material: Aluminium
• Width Incl. Sales Packaging: 30 millimeter
• Length: 72,00 cm
• Reverse measurement: Yes
• Min. operating temperature (Fahrenheit): 14 °F
• Profile: Rectangular profile with ribs
• Number of vials: 3
• Max. storage temperature: 65 °C
• Number of vertical vials: 2 pc.
• Number of measuring surfaces: 2 pc.
• Weight Sheets: 9,0 grams
• Min. storage temperature (Fahrenheit): -4 °F

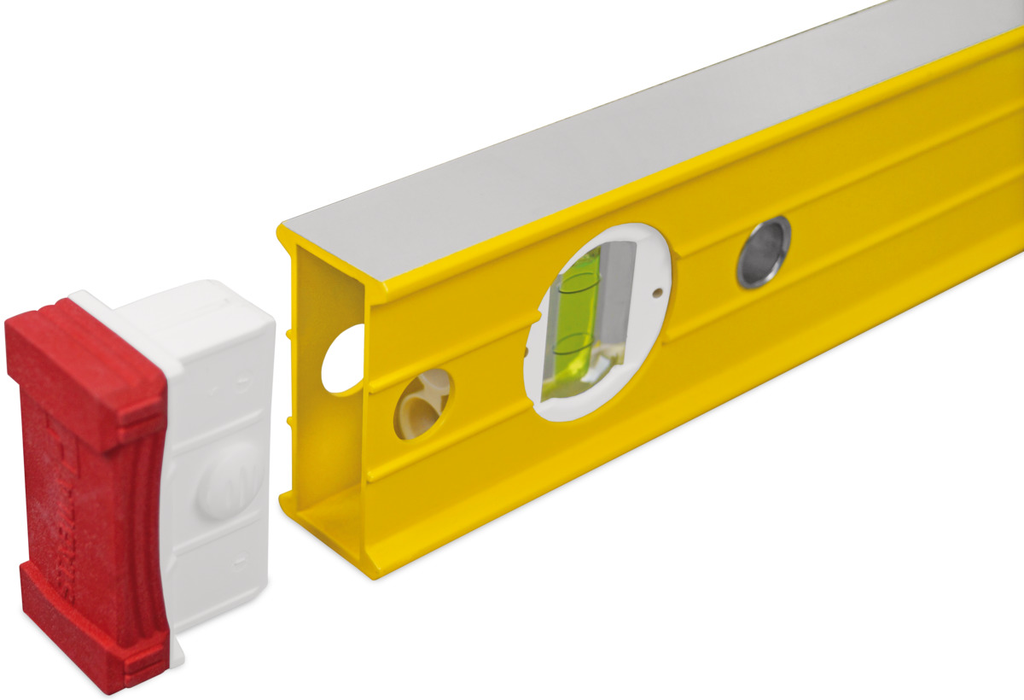

• End caps: Removable / Wall Grips / Shock Absorbing
• Colour: Yellow
• Country of Origin: Germany
• Weight Paper/Cardboard: 45,0 grams
• Width: 3,00 cm
• Length Incl. Sales Packaging: 1830 millimeter
• Measurement accuracy in reverse position: ±1/32in @ 72in
• Number of batteries: 2 pc.
• Max. operating temperature (Fahrenheit): 122 °F
• Min. storage temperature: -20 °C
• Dimensions Including Sales Packaging: 1830*30*60 millimeters
• Height: 6,00 cm
• Operating life: 400 h
• Weight: 1,760 kg
• Accuracy with electronic inclination measurement at 0° and 90° +/-: 0.05 °
• Max. operating temperature: 50 °C
• order: 3,010,095
• Min. operating temperature: -10 °C
• Measuring modes: °, %, mm/m, inch/ft
• Number of horizontal vials: 1 pc.
• Number of finger-grip openings: 2 pc.
• Measuring surface, milled: Yes
• Battery type: AA
• Protection class: IP 67
• Max. storage temperature (Fahrenheit): 149 °F
• Measurement accuracy in normal position: ±1/32in @ 72in
