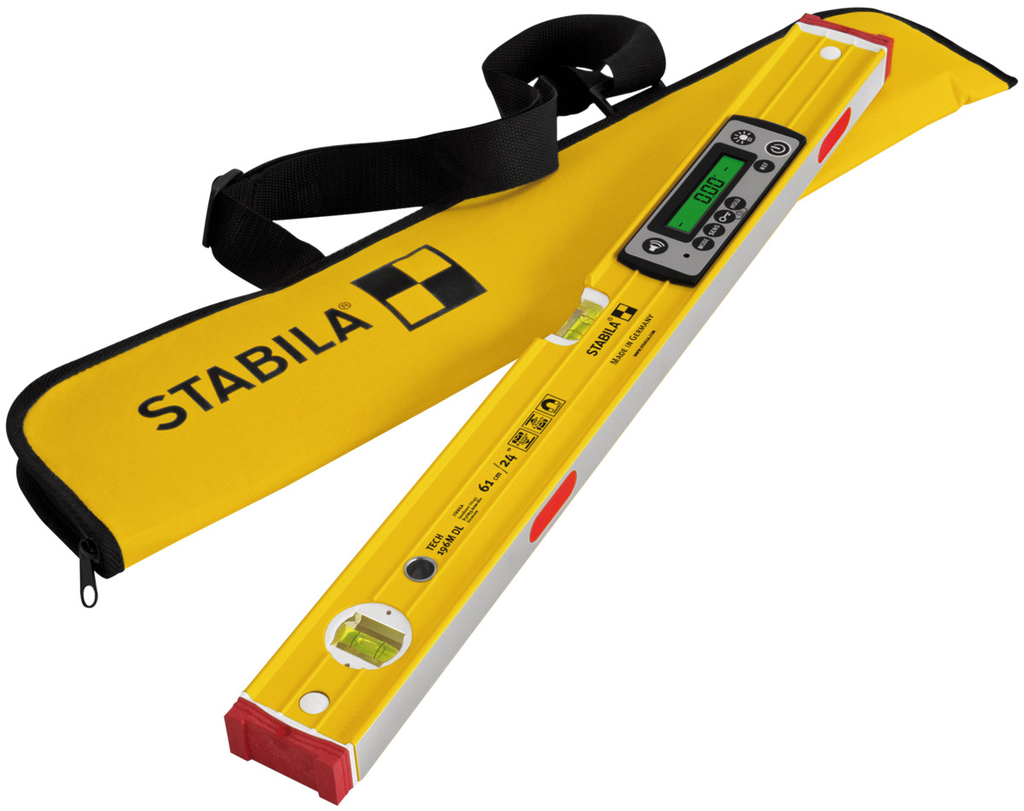

Stabila, 39520, Digital Spirit Level, 670 mm; Aluminium, IP 67, Rare-earth Magnet, Milled Surface

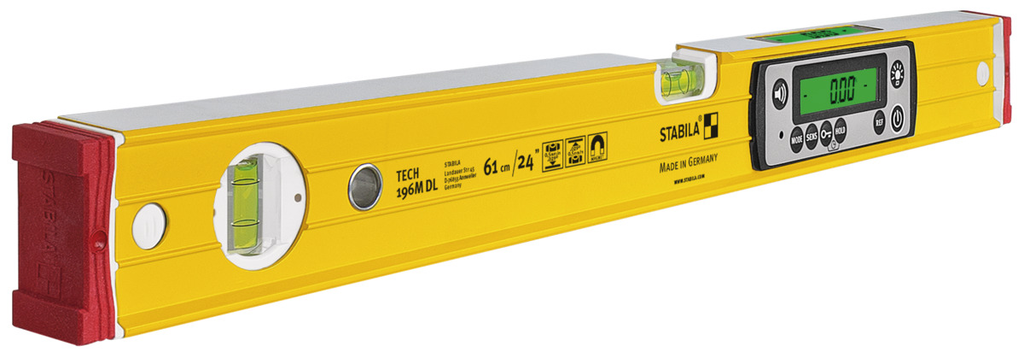

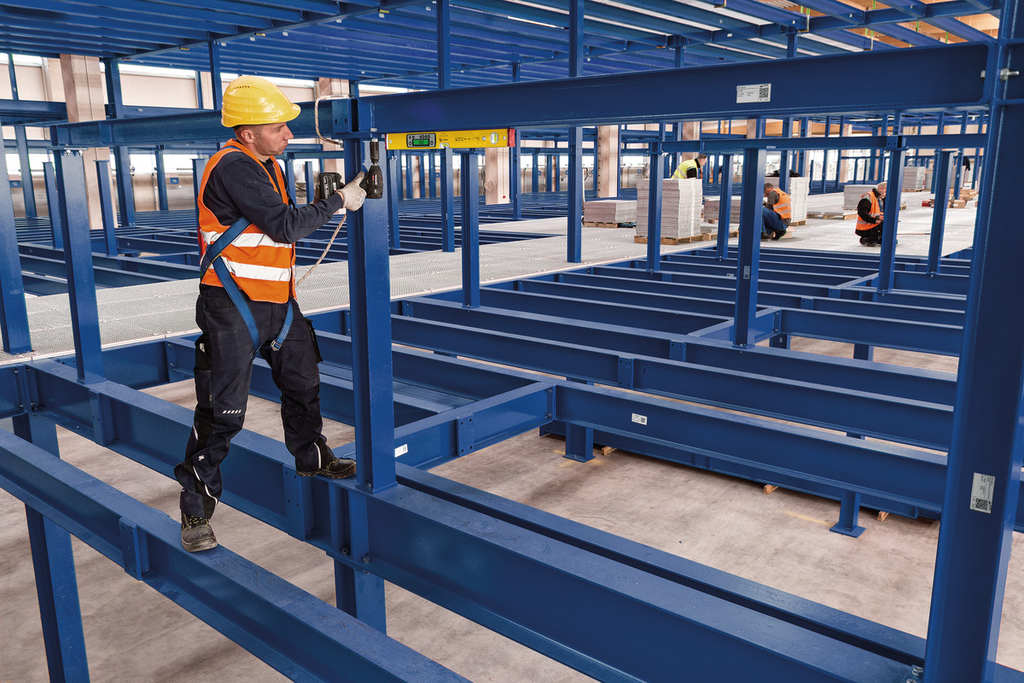

Water, dust, dirt and impacts – tools have to take a lot. The TECH 196 M DL electronic spirit level from STABILA is ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with adjustable illumination, acoustic guidance, extra-strong rare earth magnets and numerous display modes.

Features

• Extra-strong rare-earth magnet system
• CAL-FREE – calibration-free electronics, even after falling or being exposed to temperature fluctuations
• Instant measurement

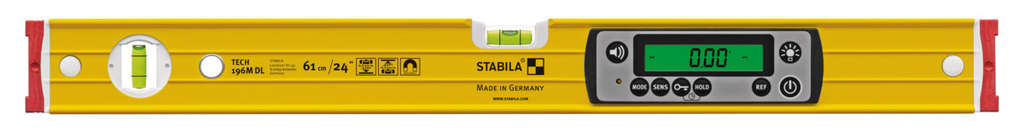

• Two digital displays with optimal read-out in any application situation
• ULTRA-PROTECT – optimum protection against dust and water in accordance with IP 67
• Acoustic guidance with two different audible signals

Specifications

• Measuring surface, milled: Yes
• Length Incl. Sales Packaging: 670 millimeter
• Accuracy with electronic inclination measurement at 0° and 90° +/-: 0.05 °
• Weight Incl. Sales Packaging: 1123 grams
• Weight Paper/Cardboard: 120,0 grams
• End caps: Removable / Wall Grips / Shock Absorbing
• Measurement accuracy in reverse position: ±1/32in @ 72in
• Colour: Yellow
• Max. operating temperature: 50 °C
• Dimensions Including Sales Packaging: 670*123*52 millimeters
• Max. storage temperature: 65 °C
• Profile: Rectangular profile with ribs
• Material: Aluminium
• Length: 24,00 cm
• Accuracy with electronic inclination measurement at 1° to 89° +/-: 0.1 °
• Number of measuring surfaces: 2 pc.
• Height Incl. Sales Packaging: 52 millimeter
• Height: 6,00 cm
• Number of vials: 2
• Number of batteries: 2 pc.
• Min. operating temperature: -10 °C
• Country of Origin: Germany
• Measuring modes: °, %, mm/m, inch/ft
• Max. storage temperature (Fahrenheit): 149 °F
• Protection class: IP 67
• Min. operating temperature (Fahrenheit): 14 °F
• Min. storage temperature (Fahrenheit): -4 °F
• Magnet system: Rare-earth magnet
• Reverse measurement: Yes
• Width: 3,00 cm
• Number of vertical vials: 1 pc.
• Max. operating temperature (Fahrenheit): 122 °F
• Battery type: AA
• Measurement accuracy in normal position: ±1/32in @ 72in
• Width Incl. Sales Packaging: 123 millimeter
• Number of horizontal vials: 1 pc.
• Min. storage temperature: -20 °C
• Weight: 0,776 kg
• Operating life: 400 h
