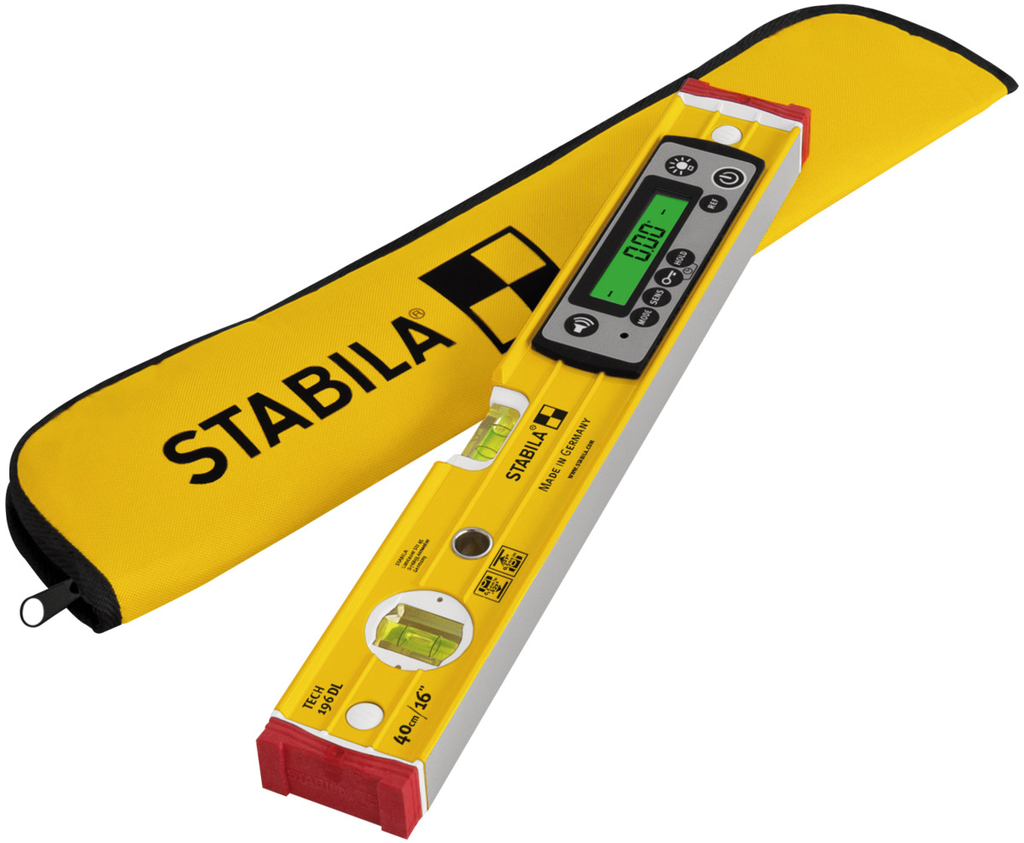

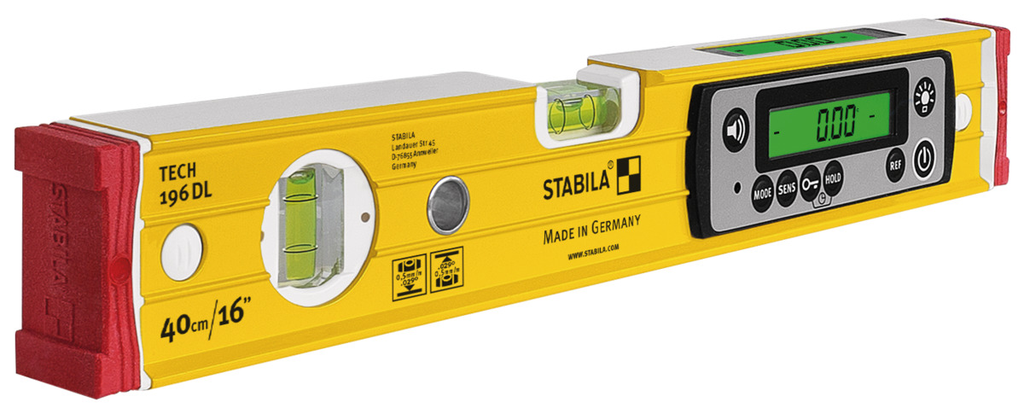

Stabila, 39516, Digital Spirit Level, 16 in, Aluminium, IP 67, Reverse Measurement, Acoustic Guidance

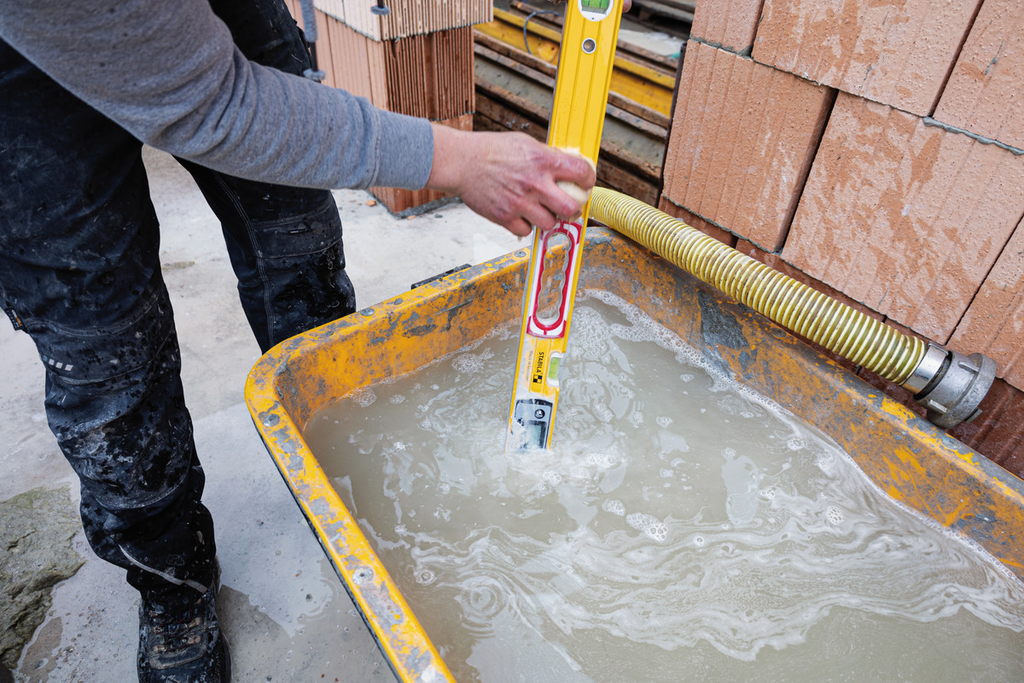

Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.

Features

• CAL-FREE – calibration-free electronics, even after falling or being exposed to temperature fluctuations
• Instant measurement
• ULTRA-PROTECT – optimum protection against dust and water in accordance with IP 67

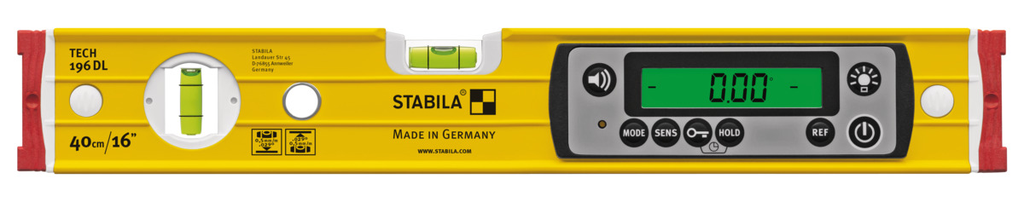

• Two digital displays with optimal read-out in any application situation
• Acoustic guidance with two different audible signals

Specifications

• Reverse measurement: Yes
• End caps: Removable / Wall Grips / Shock Absorbing
• Measurement accuracy in normal position: ±1/32in @ 72in
• Max. storage temperature (Fahrenheit): 149 °F
• Number of horizontal vials: 1 pc.
• Height: 6,00 cm
• Protection class: IP 67
• Country of Origin: Germany
• Weight Incl. Sales Packaging: 776 grams
• Width Incl. Sales Packaging: 123 millimeter
• Min. storage temperature (Fahrenheit): -4 °F
• Accuracy with electronic inclination measurement at 1° to 89° +/-: 0.1 °
• Number of vials: 2
• Operating life: 400 h
• Profile: Rectangular profile with ribs
• Min. operating temperature: -10 °C
• Max. storage temperature: 65 °C
• Min. operating temperature (Fahrenheit): 14 °F
• Number of measuring surfaces: 2 pc.
• Number of vertical vials: 1 pc.
• Max. operating temperature (Fahrenheit): 122 °F
• Length: 16,00 cm
• Max. operating temperature: 50 °C
• Number of batteries: 2 pc.
• Accuracy with electronic inclination measurement at 0° and 90° +/-: 0.05 °
• Measuring modes: °, %, mm/m, inch/ft
• Dimensions Including Sales Packaging: 472*123*52 millimeters
• Material: Aluminium
• Min. storage temperature: -20 °C
• Measurement accuracy in reverse position: ±1/32in @ 72in
• Weight: 0,550 kg
• Height Incl. Sales Packaging: 52 millimeter
• Weight Electronic Waste: 550,0 grams
• Colour: Yellow
• Width: 3,00 cm
• Length Incl. Sales Packaging: 472 millimeter
• Measuring surface, milled: Yes
• Battery type: AA
• Weight Paper/Cardboard: 100,0 grams
