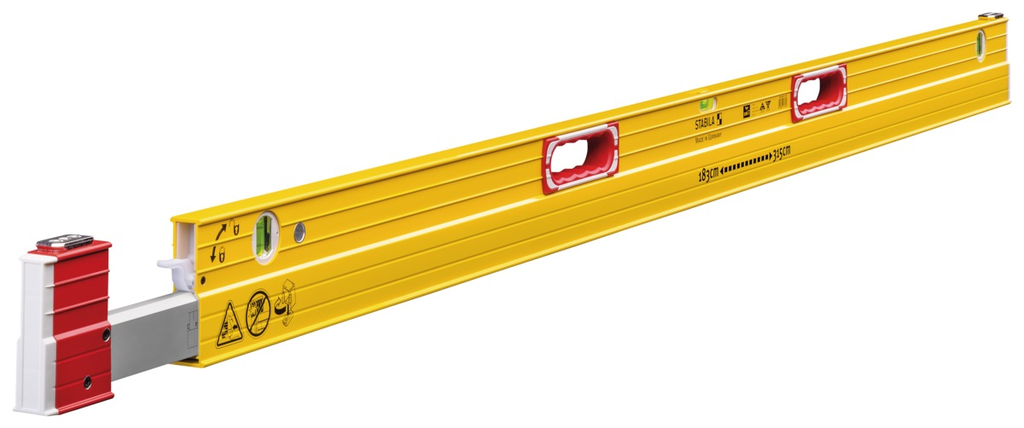

Stabila, 35610, Plate Level, 6 ft to 10 ft, Telescopic System, Aluminum, Measurement Accuracy ±1/8 in @ 120 in, 3 Vials, Yellow

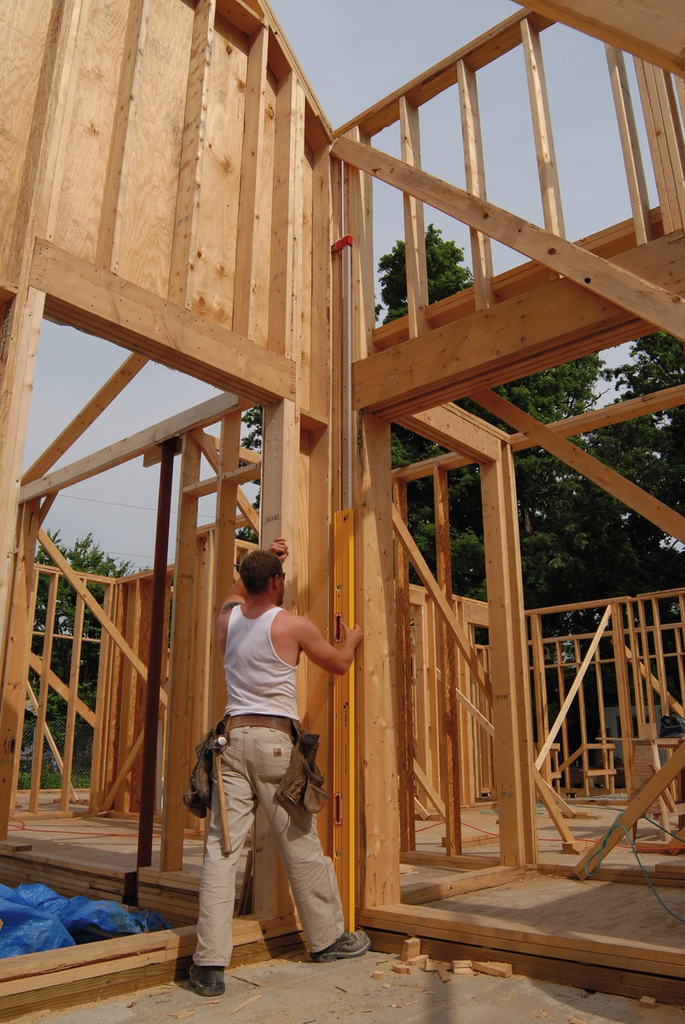

STABILA Plate Levels are designed for precisely positioning top and bottom wall plates plumb quickly. In addition, they are the best installation tools for tall doors, floor to ceiling sliding glass windows and high risk custom kitchen cabinet installations.

Features

• Plumb vial always at eye level
• These levels extend so tall walls, tall doors and big windows can be installed properly and quickly
• Opposite side is a measuring surface and straight edge
• Strong reinforced frame
• Positioning scale on both sides of the extension rail for FAST set-ups: 9ft 1in, 10ft 1in, etc
• Removable stand-offs included

Specifications

• Height Incl. Sales Packaging: 112 millimeter
• Features: Telescopic system
• Reverse measurement: Yes
• Measurement accuracy in normal position: ±1/32in @ 72in
• Number of horizontal vials: 1 pc.
• Finger-grip opening: Yes
• End caps: Standard
• Profile: Reinforced 2 chamber profile
• Length: 72,00 cm
• Width Incl. Sales Packaging: 33 millimeter
• Measurement accuracy in extended normal position: ±1/8in @ 120in
• Number of measuring surfaces: 2 pc.
• Number of vertical vials: 2 pc.
• Material: Aluminium
• Measuring surface with spacers: Yes
• Measuring surface, coated: Yes
• Number of vials: 3 pc.
• Country of Origin: Germany
• Length Incl. Sales Packaging: 1830 millimeter
• Manufacturer's guarantee: Lifetime accuracy guarantee
• Weight Incl. Sales Packaging: 4812 grams
• Measuring surface, milled: No
• Measurement accuracy in reverse position: ±3/64in @ 72in
• Spacer: Yes
• Length (from–to): 72-123,75 in
• Dimensions Including Sales Packaging: 1830*33*112 millimeters
• Colour: Yellow
