Stabila, 03410, Multi-line Laser, Green 3 x 360° Lines, Self-Leveling, IP 65, 130 ft Measuring Range

Are you looking for a powerful line laser with modern rechargeable battery technology for precise layout work in interior construction? The STABILA LAX 600 G combines all aspects of a professional laser. Work quickly and precisely: Innovative STABILA GREENBEAM technology with razor-sharp 3 x 360° lines that let you transfer heights, create right angles and align axes. With sturdy aluminum and glass frames to protect the laser optics, the IP 65-certified water- and dustproof laser proves its ruggedness. For everyone who wants to work efficiently.

Features

• CAS 12 V LI-POWER 2
• GREENBEAM technology for work on optimally visible lines up to 130 ft
• 0 Ah rechargeable battery for a long life of up to 15 hours
• Fast self-leveling thanks to a pendulum mechanism that is rugged enough for construction sites
• Extremely rugged, water- and dustproof in accordance with IP 65

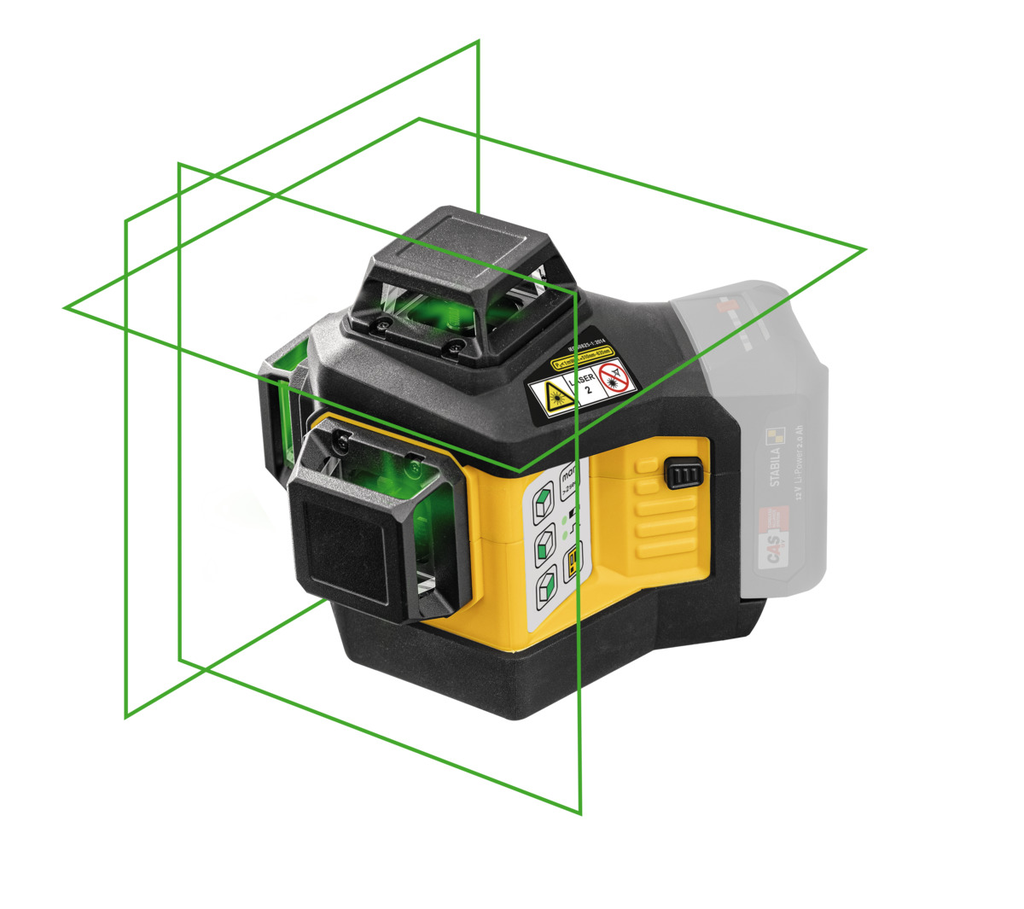

• Green 3 x 360° lines for exact layout work

Specifications

• Battery type: ions
• Tripod connection: 1/4" + 5/8"
• Output: < 1 mW
• Min. operating temperature (Fahrenheit): 14 °F
• Self-levelling range +/-: 4 °
• Operating life: 15 h
• Min. operating temperature: -10 °C
• Measuring range of visible line: 130 ft
• Levelling accuracy +/-: 1/8 in @ 30 ft
• Min. storage temperature (Fahrenheit): -4 °F
• Max. storage temperature: 63 °C
• Voltage supply: Rechargeable battery
• Max. operating temperature (Fahrenheit): 104 °F
• Laser class: 2
• Min. storage temperature: -20 °C
• Beam direction: Vertical/horizontal
• Weight Electronic Waste: 0,1 grams
• Self-levelling: Yes
• Max. operating temperature: 40 °C
• Manufacturer's guarantee: 2 Years
• Laser wavelength: 510 - 530 nm
• Protection class: IP 65
• With tripod holder: Yes
• Max. storage temperature (Fahrenheit): 145 °F
