Stabila, 02180, Multi-Line Laser, Self-Leveling, 300 ft Range, 1/8 in Accuracy, Green Dot

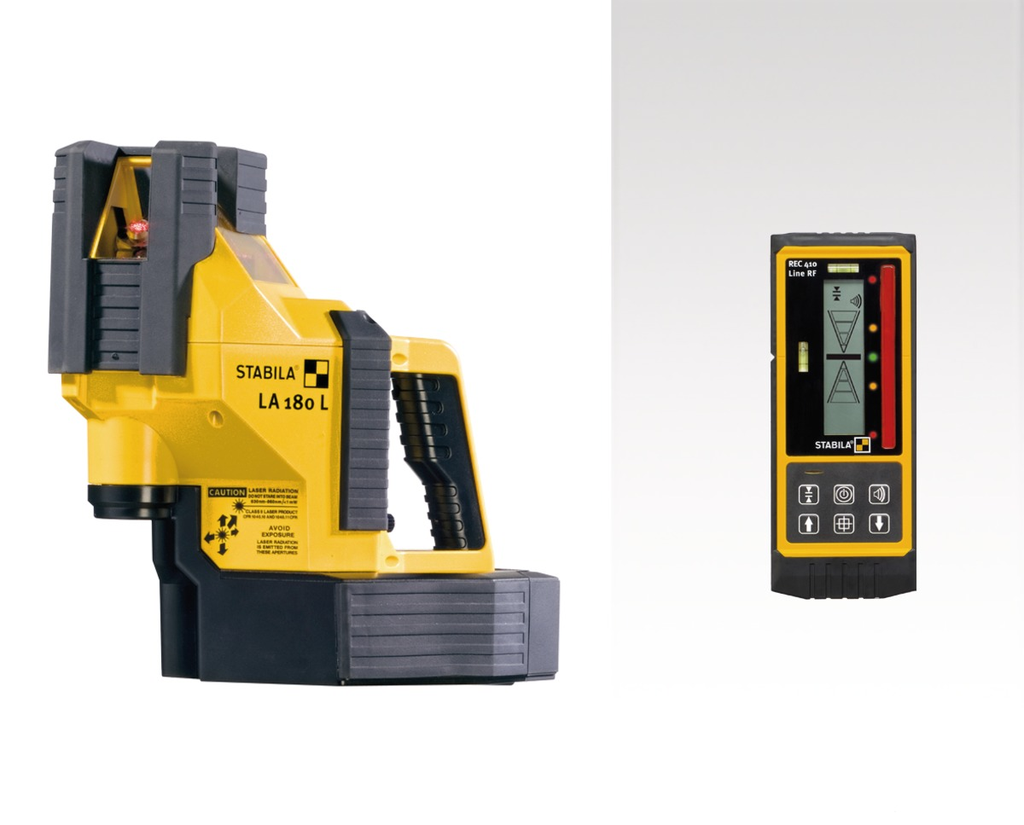

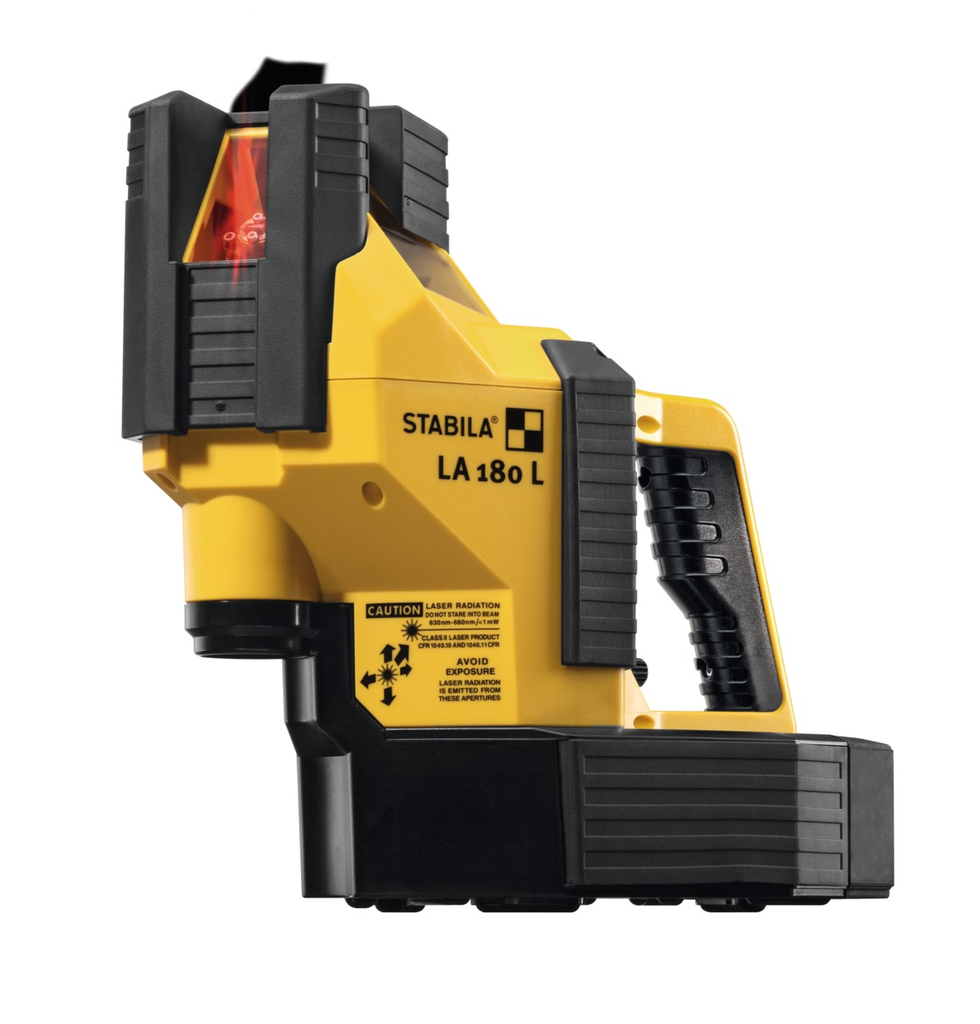

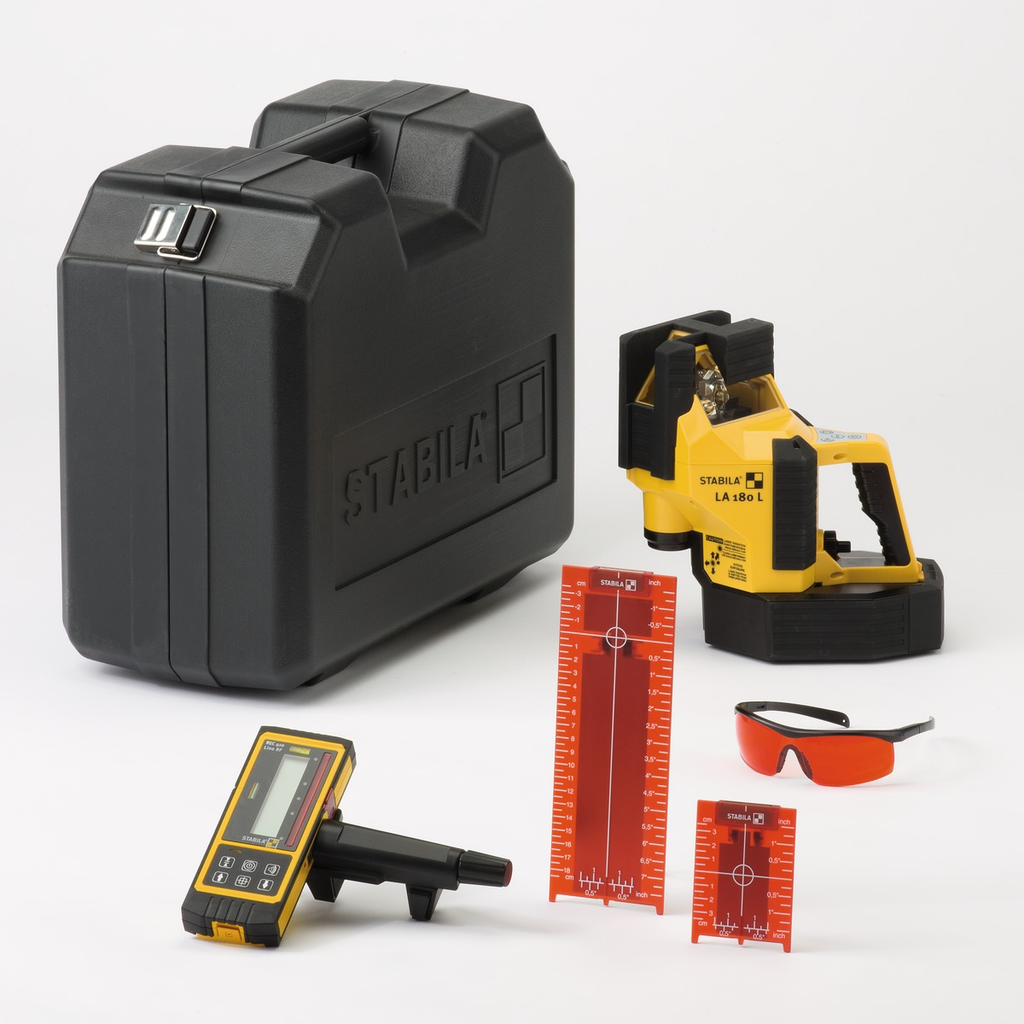

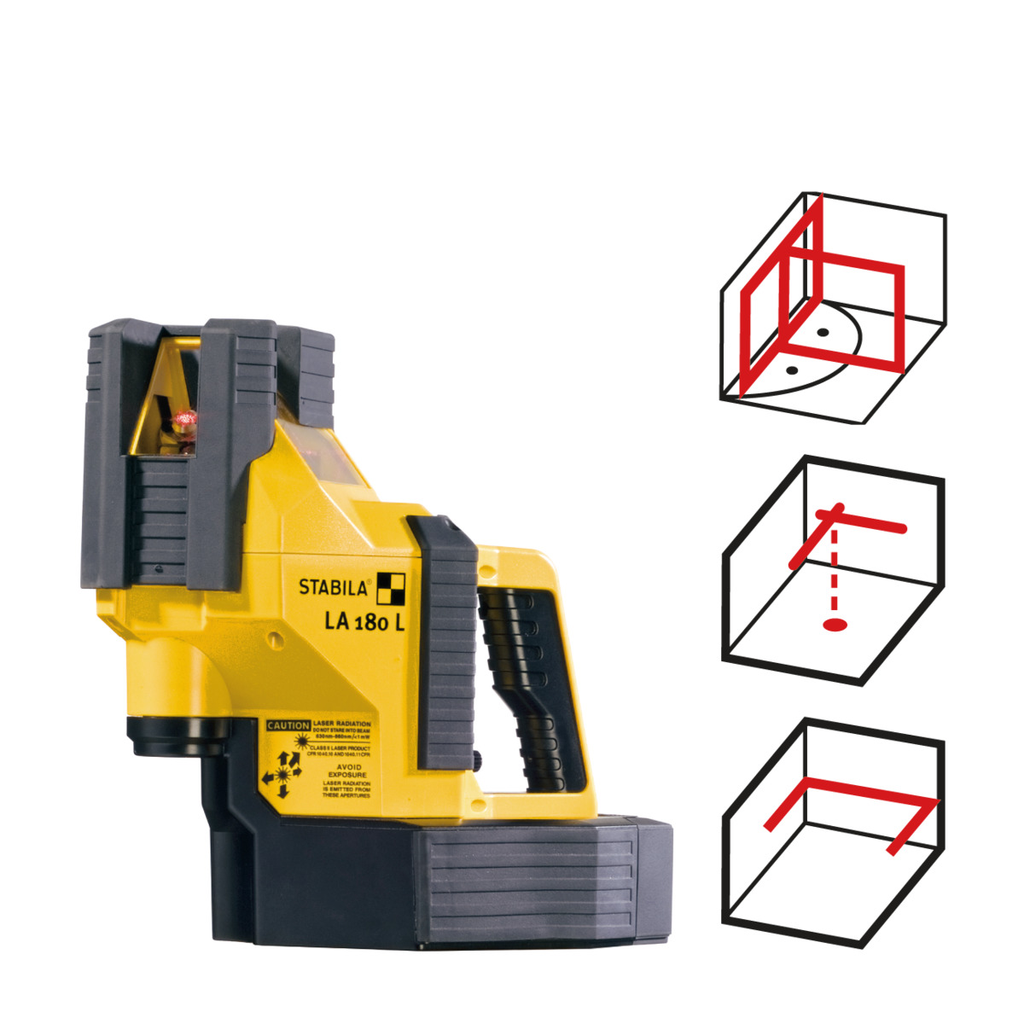

Fully automatic, long range layout. Auto alignment allows you to layout square with only one person in just seconds. Layout over ranges above 50ft is a time-consuming and high risk job. When layout errors occur high follow-up costs will be the result. The LA 180 L self-leveling multi-line laser allows you to layout greater than 20ft up to 300ft fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver.

Features

• How true pro's measure
• Working range with receiver: 300ft

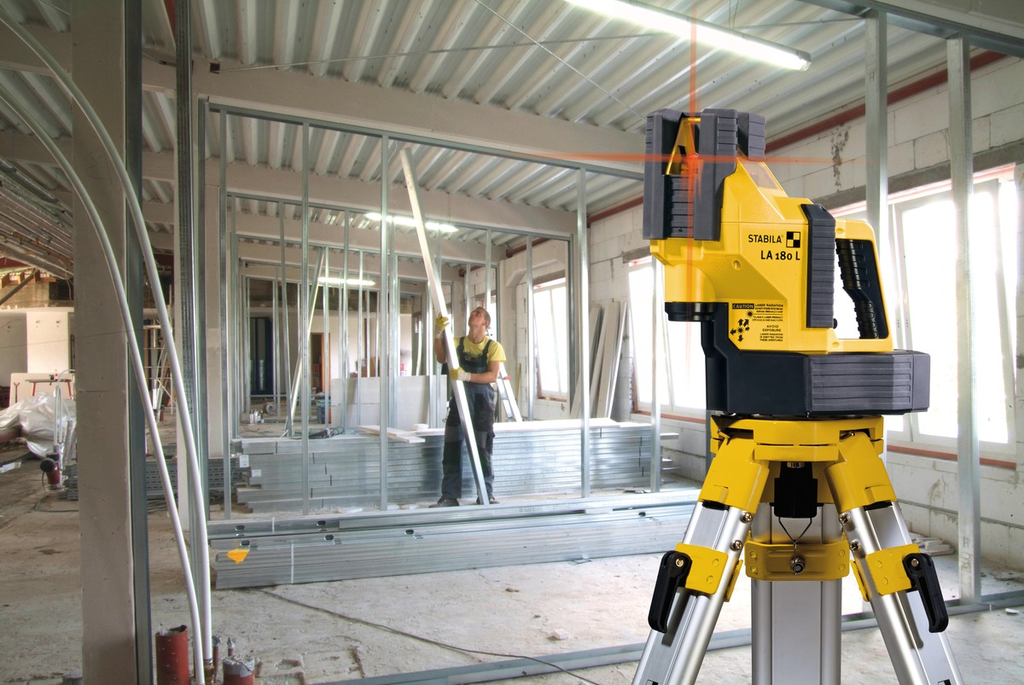

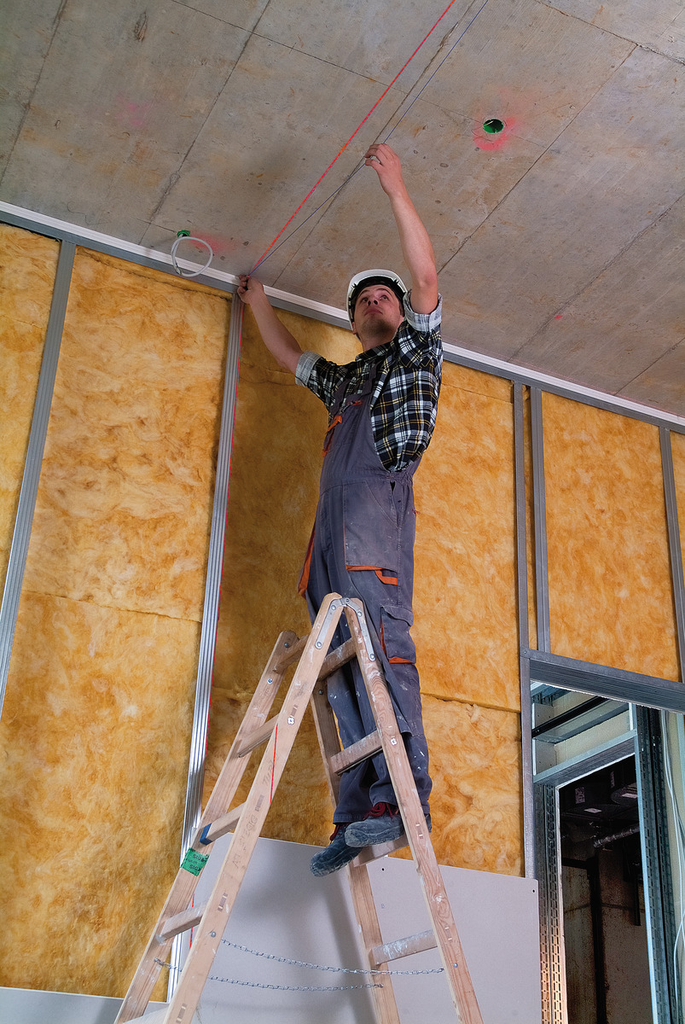

• Drywall construction – suspending ceilings, positioning interior and partition walls within a range of 300ft
• It is designed for applications >20ft up to 300ft

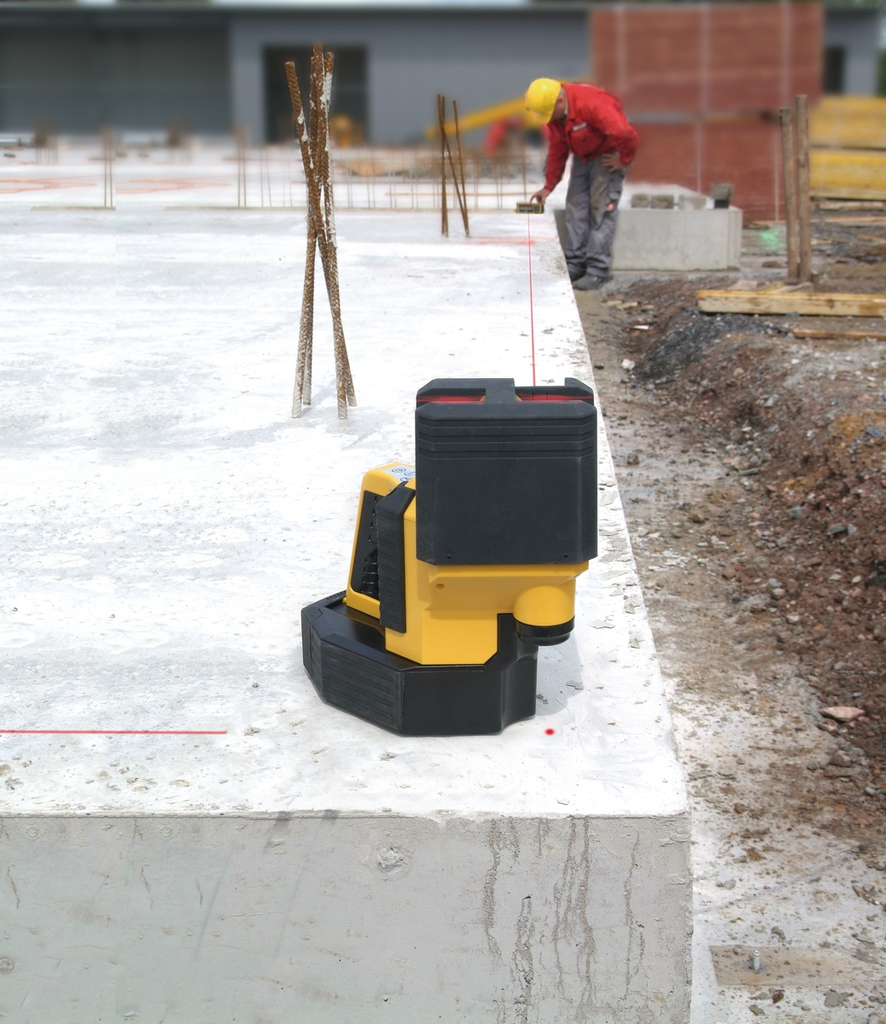

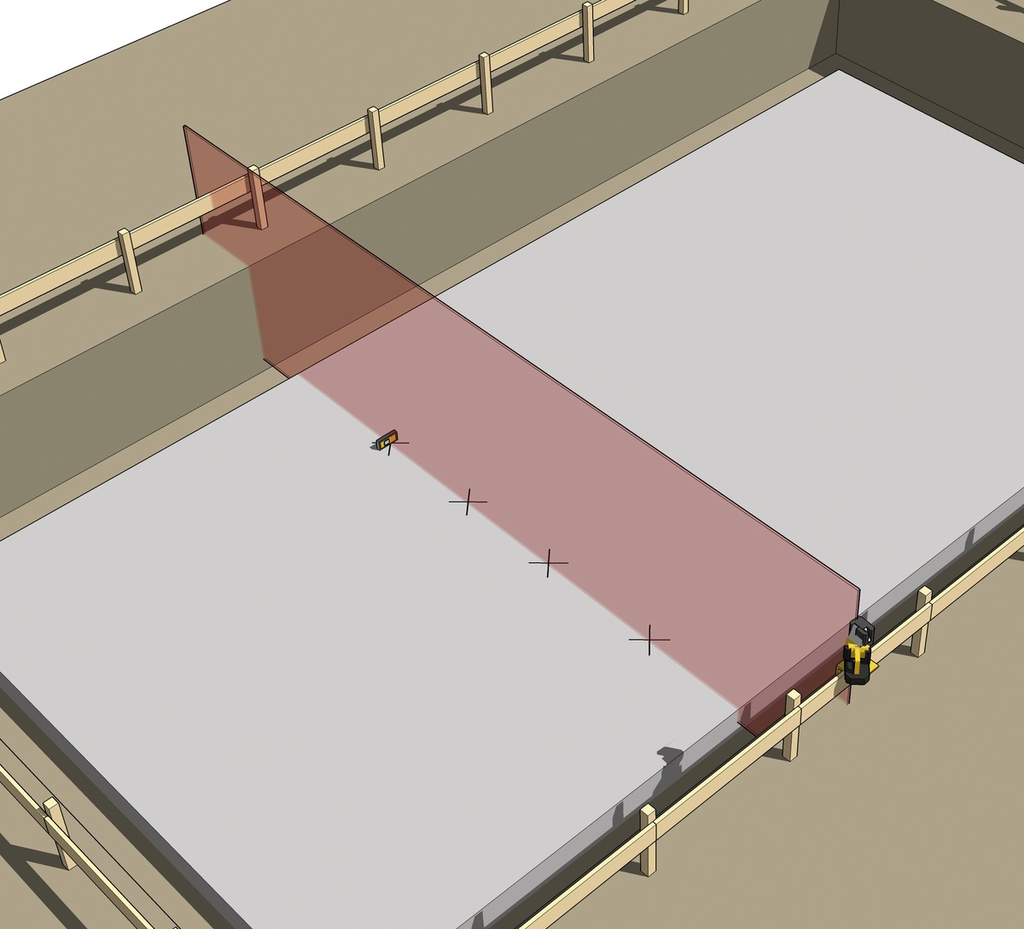

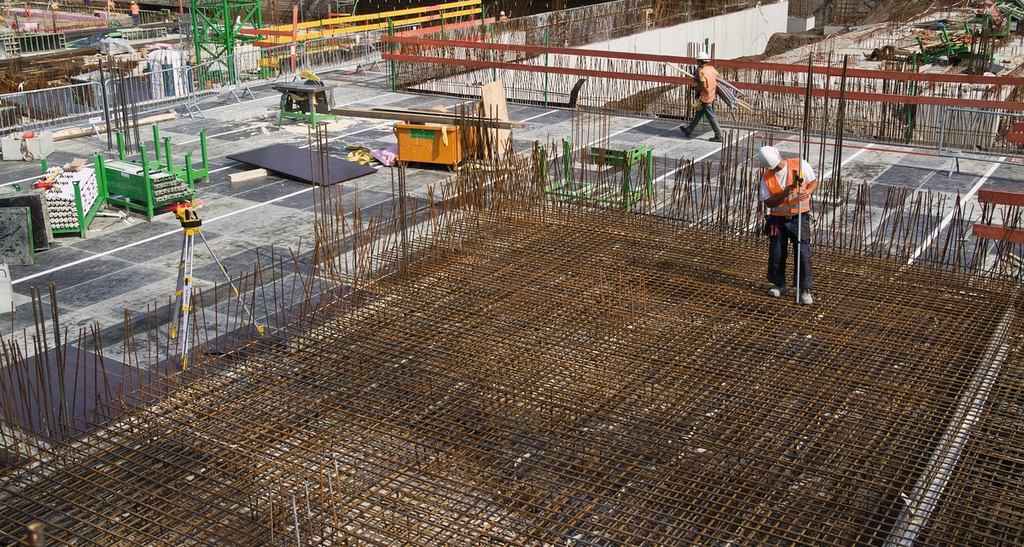

• Concrete – Layout forms perfectly straight and square
• Accuracy tolerance: will not exceed 1/8in at 100ft

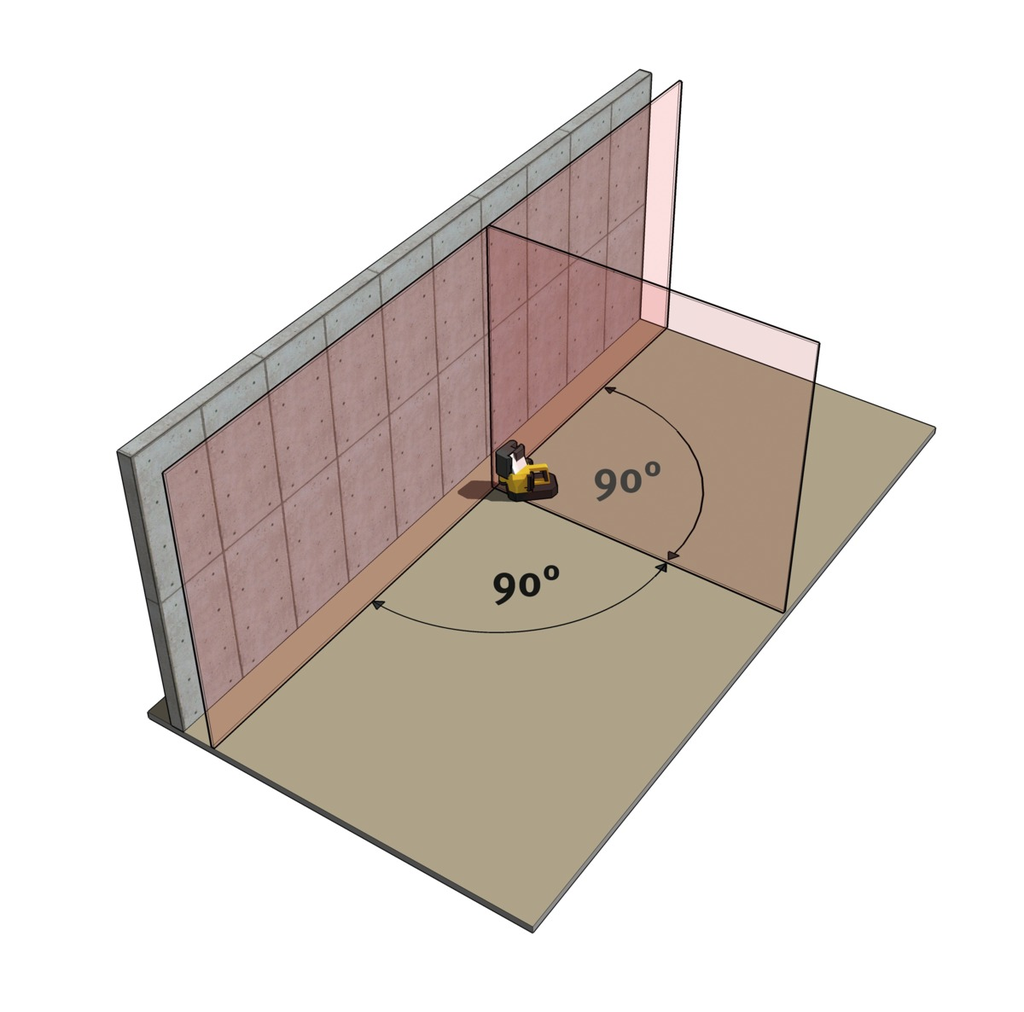

• Designed to set up over corners
• Use the Layout Station for laying out to 300ft Cut your labor costs by 50%

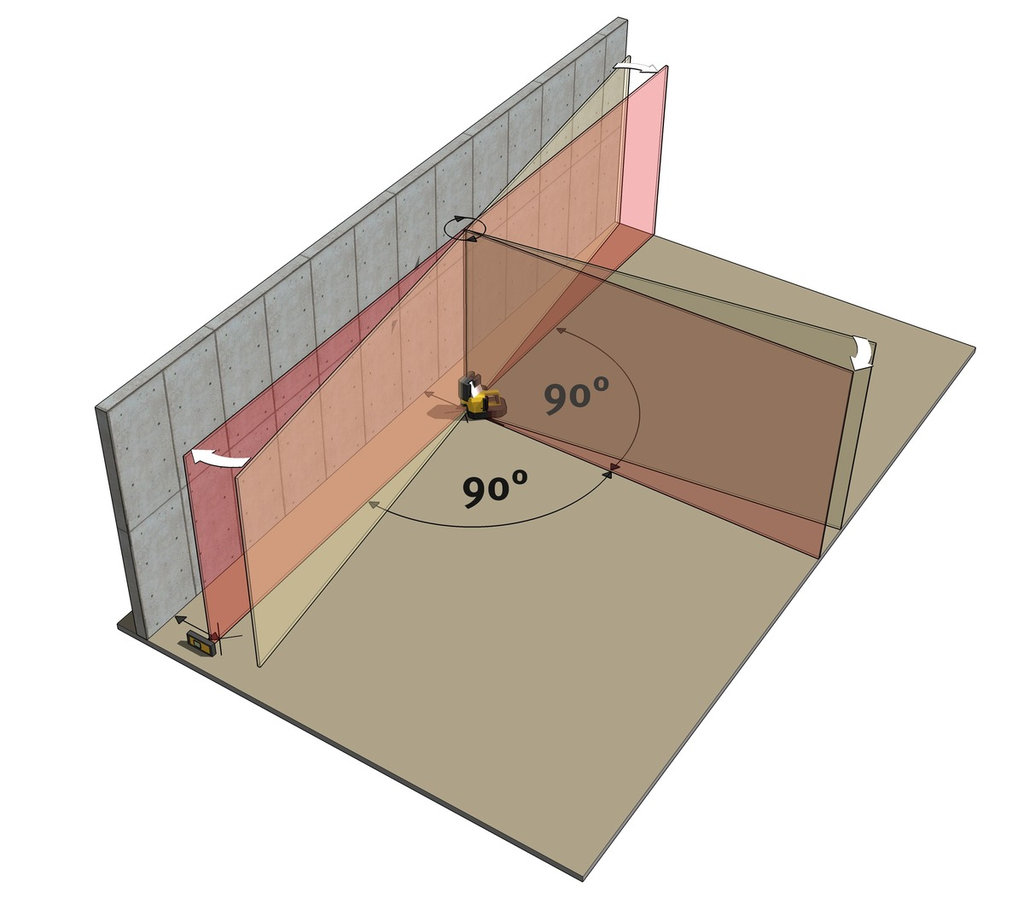

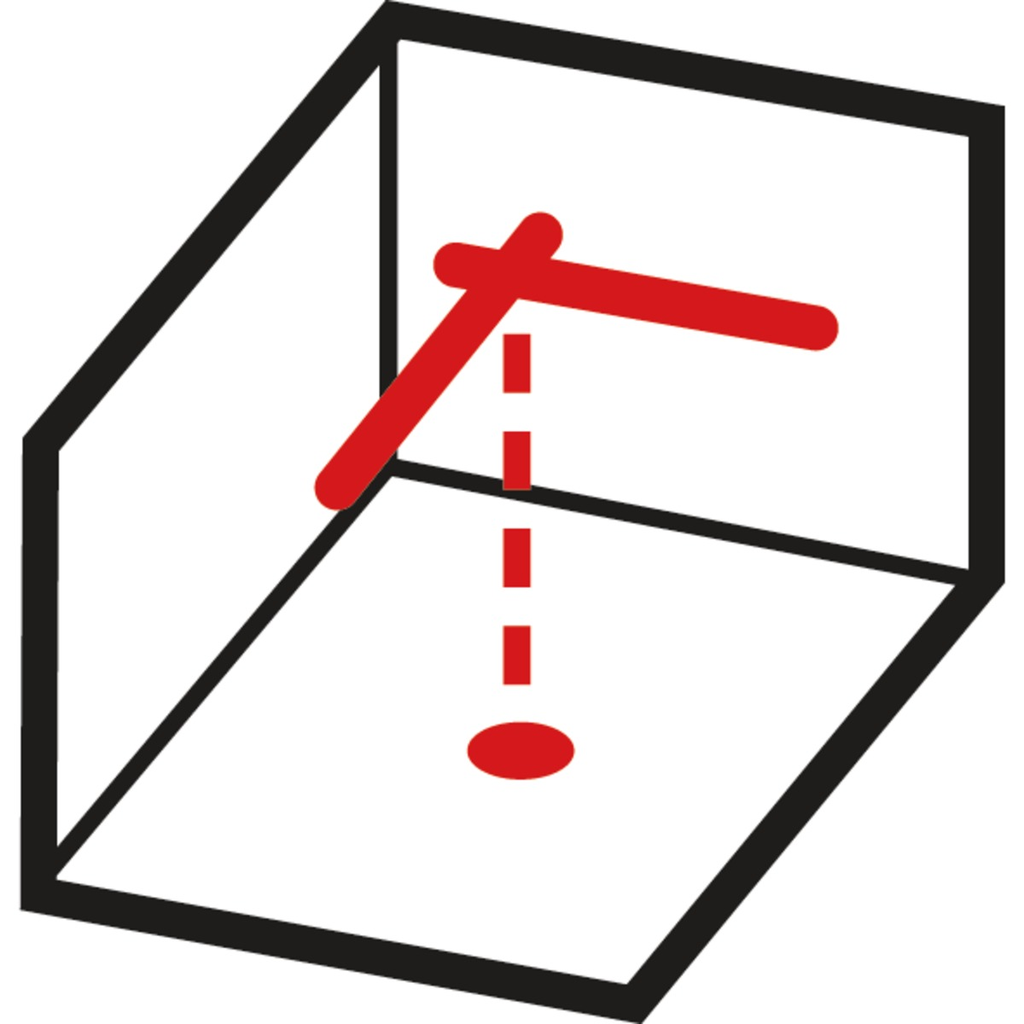

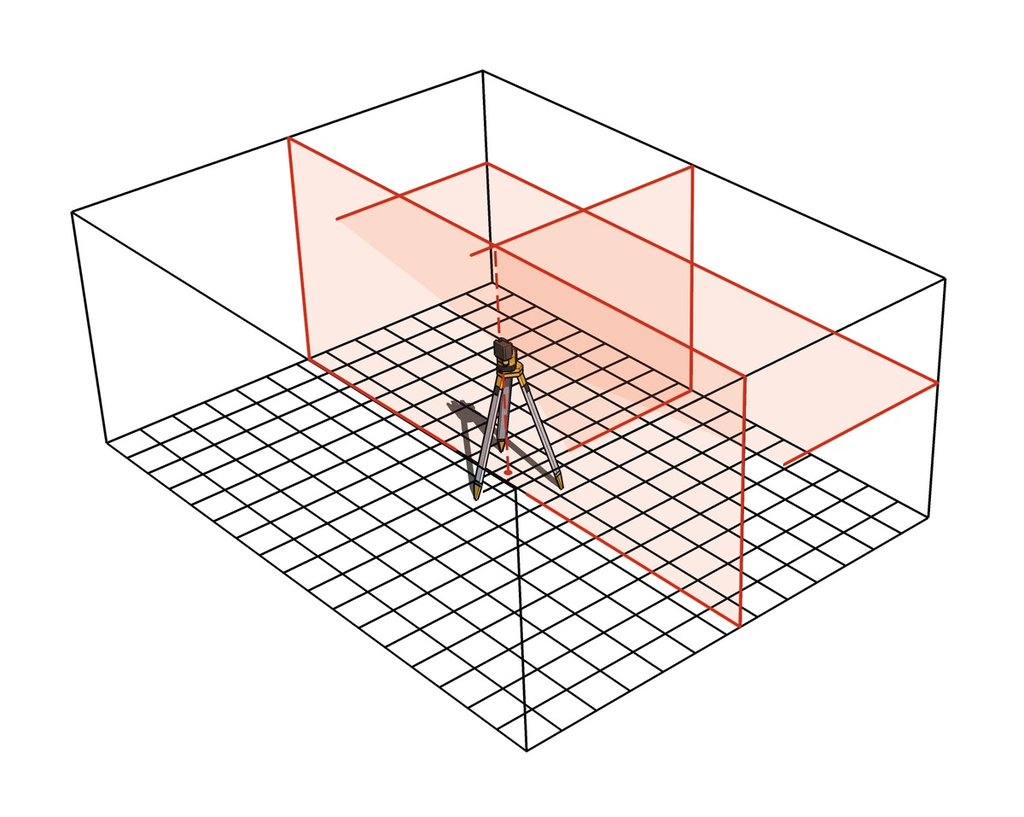

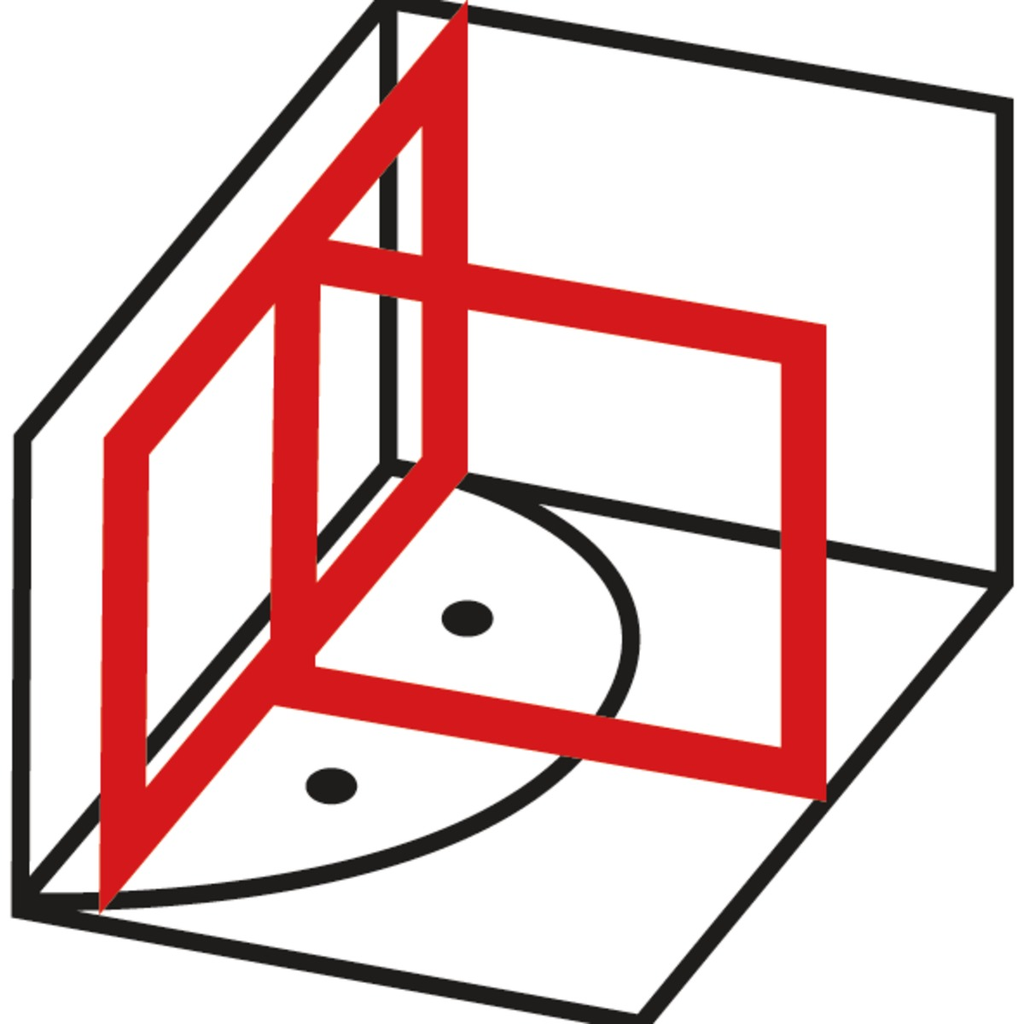

• Projects two right angles, three vertical lines, and one horizontal/level line

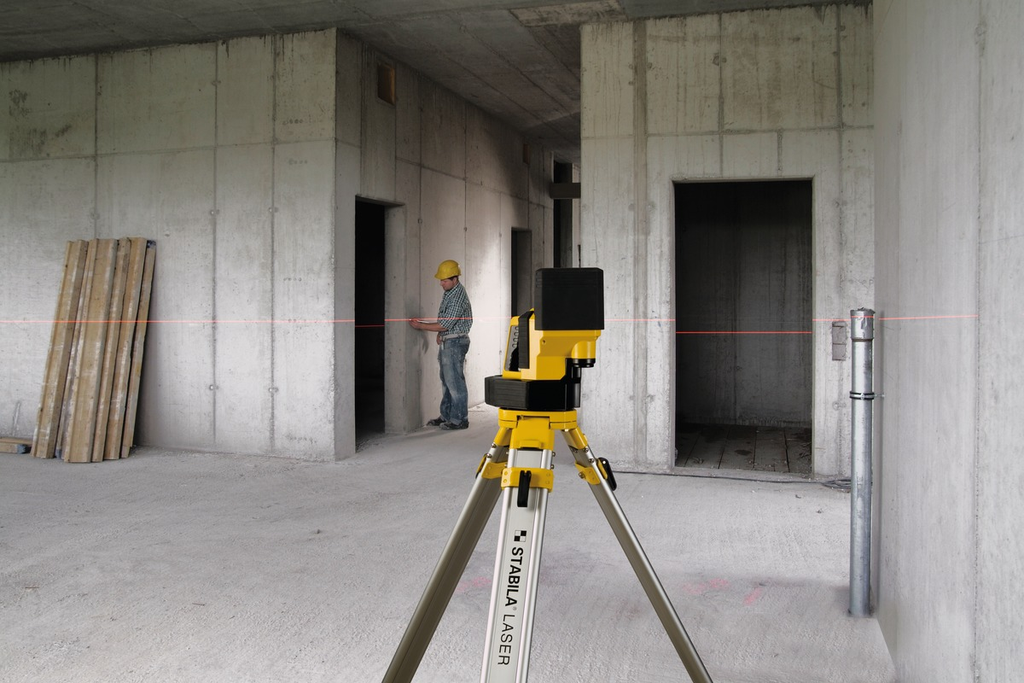

• Indoor/Outdoor use
• Quickly establish square, even when the slab or foundation you're working on is out of square
• Auto Alignment: Push -button operation to align axis and layout rectangular spaces over long distances

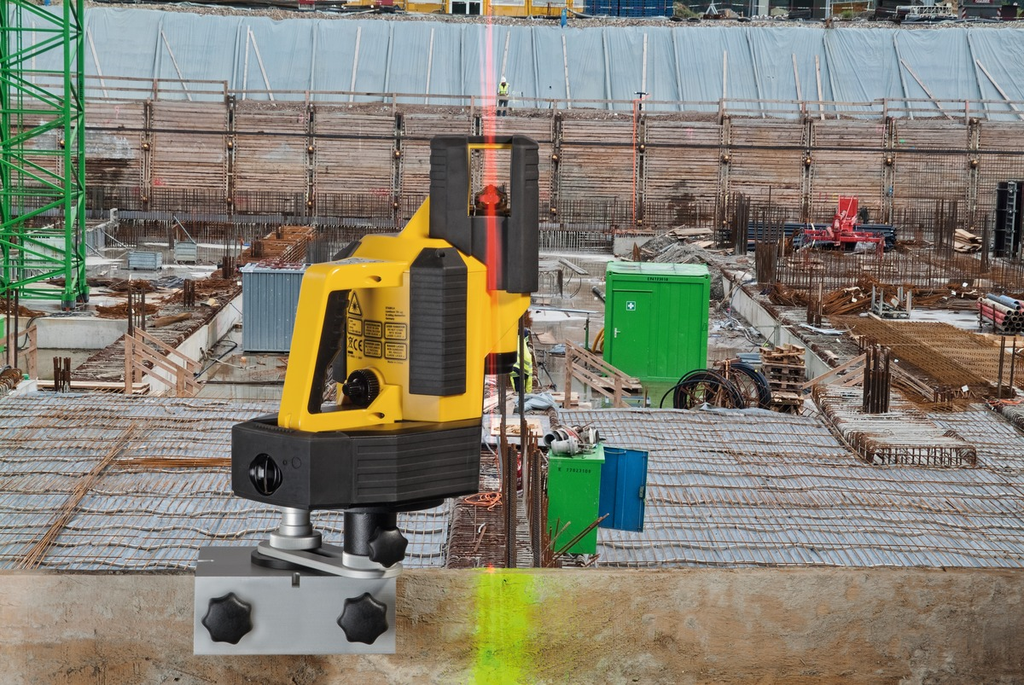

• Optional laser and receiver mounts available for most re-usable forming systems
• Commercial construction, HVAC, masonry, concrete and top end landscape jobs
• This is a fast and precise layout tool

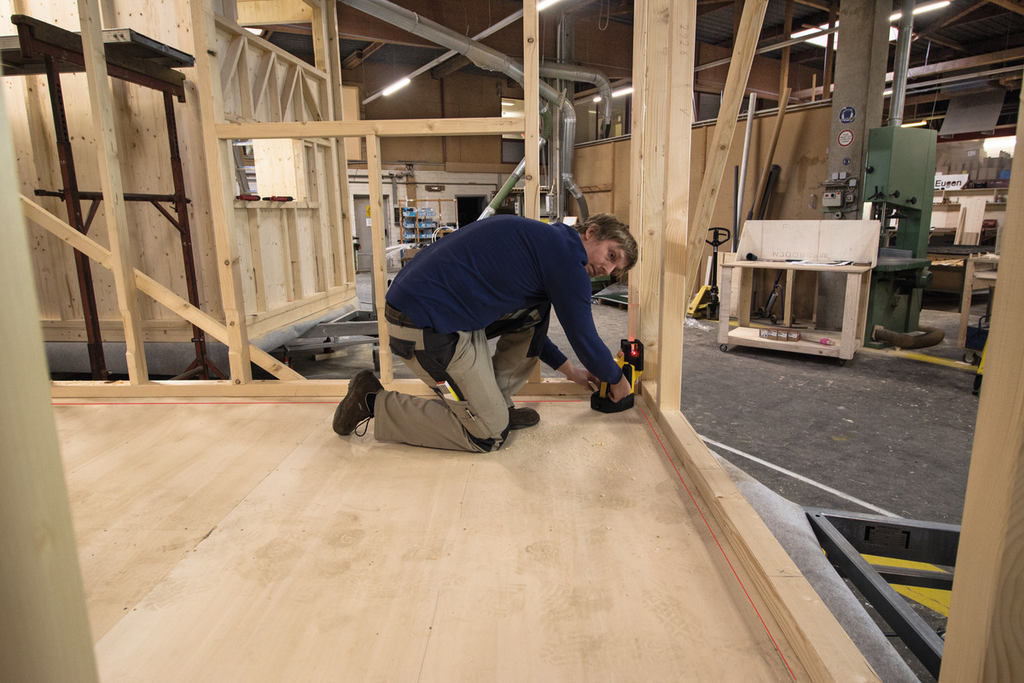

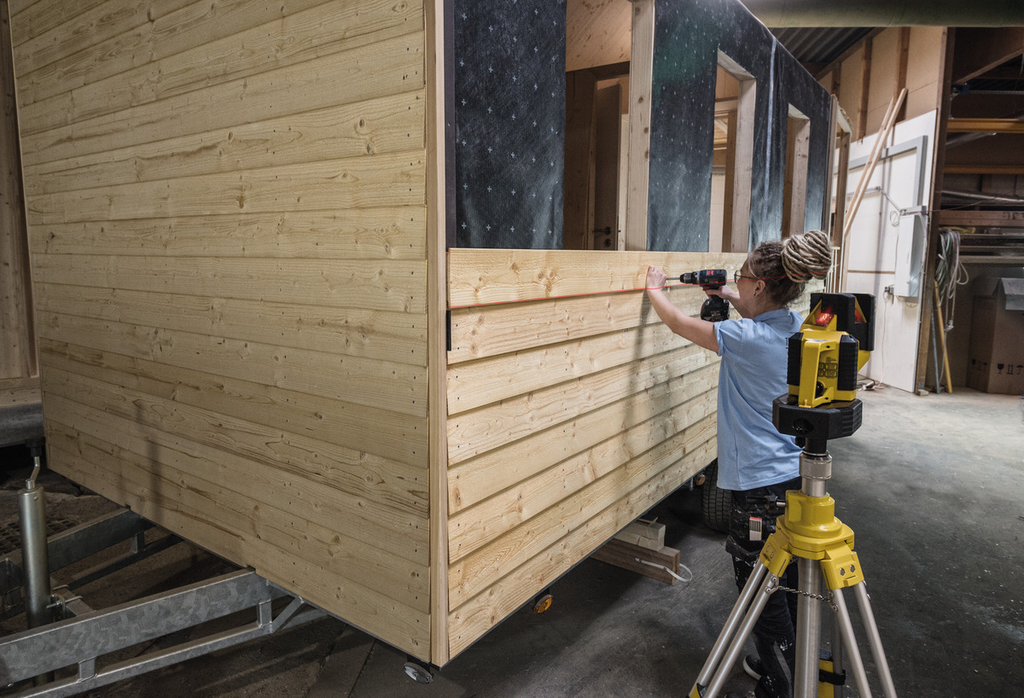

• Framing - layout wall positions at the push of a button
• Self-Leveling, servo controlled, fully automatic levelling

Specifications

• Min. operating temperature: -10 °C
• Min. storage temperature (Fahrenheit): -13 °F
• 90° angle accuracy +/-: 1/4 in @ 100 ft
• Battery type: D
• Max. storage temperature (Fahrenheit): 158 °F
• Self-levelling: Yes
• Self-levelling range +/-: 5 °
• Green Dot: Yes
• Line straightness +/-: 1/8 in @ 100 ft
• Number of batteries: 4 pc.
• Operating life: 20 h
• CE marking: Yes
• Measuring range of visible line: 65 ft
• Laser beam accuracy (down) +/-: 3/32 in @ 100 ft
• Output: < 1 mW
• Measuring range of visible point: 65 ft
• Levelling accuracy +/-: 3/32 in @ 100 ft
• order: 4010100
• Measuring range of set receiver: 328 ft
• Max. operating temperature: 50 °C
• Battery weight: 570 g
• Colour: Yellow
• Voltage supply: Battery
• Beam direction: Vertical/horizontal
• Manufacturer's guarantee: 2 Years
• Min. operating temperature (Fahrenheit): 14 °F
• Tripod connection: 5/8"-11
• Laser class: 2
• Max. storage temperature: 70 °C
• With tripod holder: Yes
• Protection class: IP 54
• Min. storage temperature: -25 °C
• Laser wavelength: 635 nm
• Max. operating temperature (Fahrenheit): 122 °F
