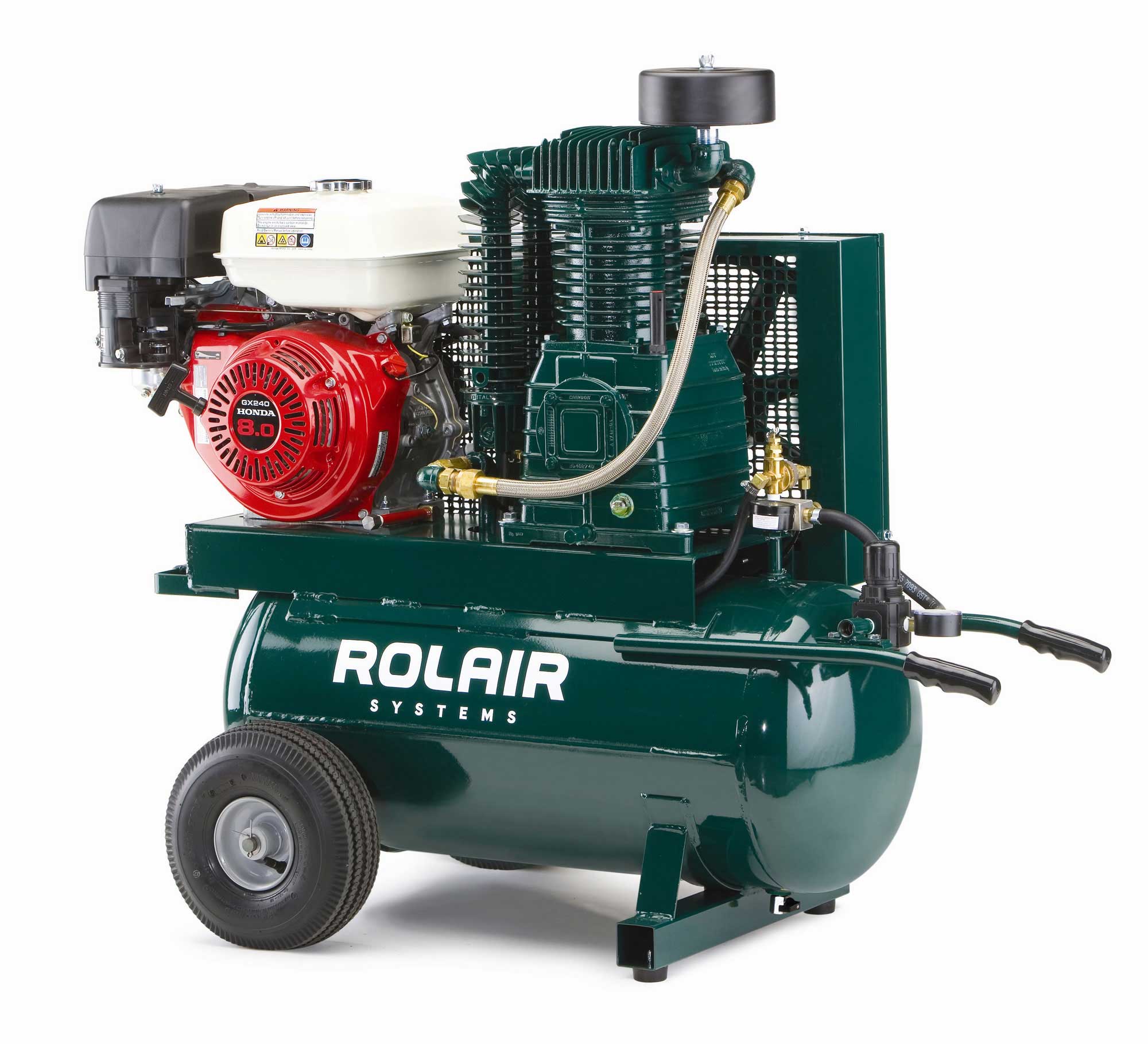

Rolair 8230HK30-0001, 270 cc (9 HP) Honda Gas Portable Belt Drive Air Compressor

Rolair 8230HK30-0001, 270 cc (9 HP) Honda Gas Portable Belt Drive Air Compressor

$2,751.00
$2,751.00
Free Shipping on orders over $150
Description
Description
x

8230HK30Wheeled Gas Air Compressors

Model 8230HK30 steps it up a notch with the addition of a 20 Gallon ASME Tank providing more reserve air. It produces 20.1 CFM at 90 PSI and utilizes the popular 270 cc (GX270) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.

ABOUT THE PUMP

  • Heavy-Duty
  • Two Stage
  • Cast-Iron Twin Cylinders
  • Ball Bearings
  • Splash Lubricated
  • Cast-Iron Valve Plates with Swedish Lamellar Reed Valves
  • Aluminum Alloy Connecting Rods with Automotive-Style Inserts
  • Multi-Finned 15.16" Flywheel
  • Oil Sight Gauge

ABOUT THE ENGINE

  • 270 cc (9 HP) Honda 4 Cycle
  • Complete Die Cast Aluminum Alloy with Cast-Iron Sleeve
  • Overheard Valves
  • Retractable Starter
  • On/Off Switch
  • Splash Lubricated
  • Low Oil Shutdown

STANDARD EQUIPMENT

  • Pressure Gauge 0-300 in 5 lb. Graduations
  • Automatic Pilot Valve Operation
  • Industrial Flexible Discharge Hose
  • Automatic Idle Control for Economy and Long Service Life
  • Intake Filter with Silencer and Replaceable Element
  • Schmidt Belt Tightening Device
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Safety Relief Valve

Specifications

Horse Power 270 cc (9 HP)
CFM Displaced 24.4 CFM
CFM Delivered 20.1 CFM @ 90 PSI
Overload Protection No
Lubrication Type Splash Lubrication
Pump Oil Capacity 47 oz.
Reed Valve System Yes (Standard)
Number of Cylinders 2
Tank Capacity 20 Gallons
L X W X H 49"x23"x40"
Decibel Rating Unavailable
Country Of Origin Compressor Origin.pdf
Shipping Weight 320 lb.
Shipping Dimensions (L X W X H) 51" x 25" x 50"

Documents

Document Icon

8230HK30 Owner's Manual

Document Icon

8230HK30 Schematic
