Rolair 6820K17D-0001, 2 HP Electric Portable Belt Drive Air Compressor.

Rolair 6820K17D-0001, 2 HP Electric Portable Belt Drive Air Compressor.

$1,564.00
$1,564.00
Free Shipping on orders over $150
Description
Description
x

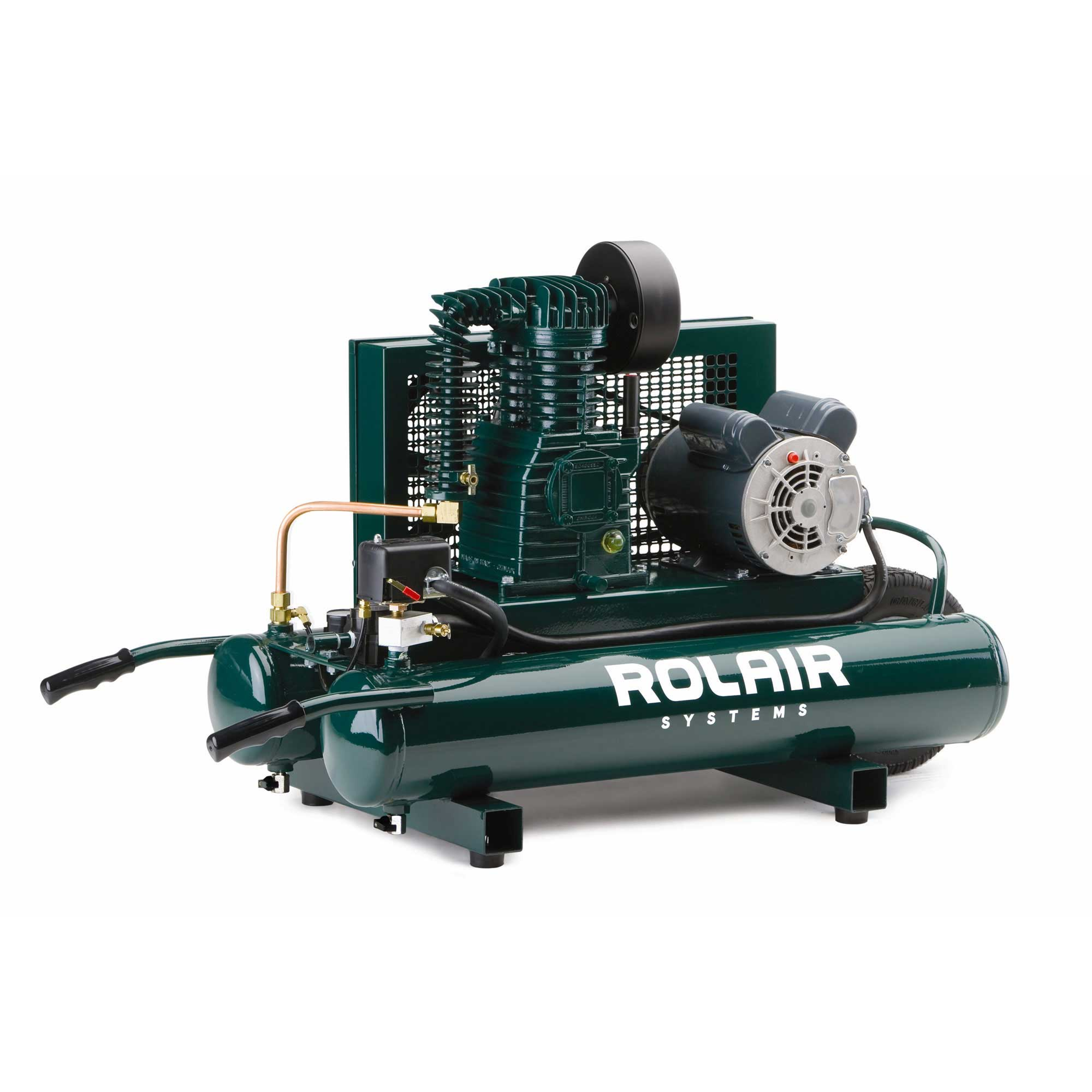

6820K17D Wheeled Electric Air Compressor

Model 6820K17D includes a dual-control feature, which allows it to run start/stop or constant-speed operation. This model provides the most air available on a 110 Volt electric compressor, yet is equipped with a dual-voltage switch allowing you to run off 220 Volt when needed.

ABOUT THE PUMP

  • Heavy-Duty
  • Single Stage
  • Cast-Iron Twin Cylinders
  • Ball Bearings
  • Splash Lubricated
  • Hardened Steel Valve Plates with Swedish Lamellar Reed Valves
  • Aluminum Alloy Connecting Rods with Automotive-Style Inserts
  • Multi-Finned 11" Flywheel
  • Oil Sight Gauge

ABOUT THE MOTOR

  • 2 HP
  • 1740 RPM
  • Open Drip Proof
  • 115/230 Volt – 60 Hz
  • Ball Bearings
  • Overload Protection with Manual Reset

STANDARD EQUIPMENT

  • Dual Control Operation
  • Pressure Gauge 0-200 in 5 lb. Graduations
  • Square D Pressure Switch with Unloader
  • Accessory Support Clip
  • Intake Filter with Silencer and Replaceable Element
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Safety Relief Valve
  • Dual Voltage Switch

Specifications

Horse Power 2 HP
CFM Displaced 12.5 CFM
CFM Delivered 8.8 CFM @ 90 PSI
Pump/Motor RPM 1740 RPM
Overload Protection Yes (Manual Reset Standard)
Lubrication Type Splash Lubrication
Pump Oil Capacity 34 oz.
Reed Valve System Yes (Standard)
Number of Cylinders 2
Tank Capacity 9 Gallons
L X W X H 46"x19"x28"
Decibel Rating Unavailable
Country Of Origin Compressor Origin.pdf
Shipping Weight 185 lb.
Shipping Dimensions (L X W X H) 47" x 22" x 36"



Documents

Document Icon

6820K17 Owner's Manual

Document Icon

6820K17 Schematic

Document Icon

6820K17 Spec Sheet
