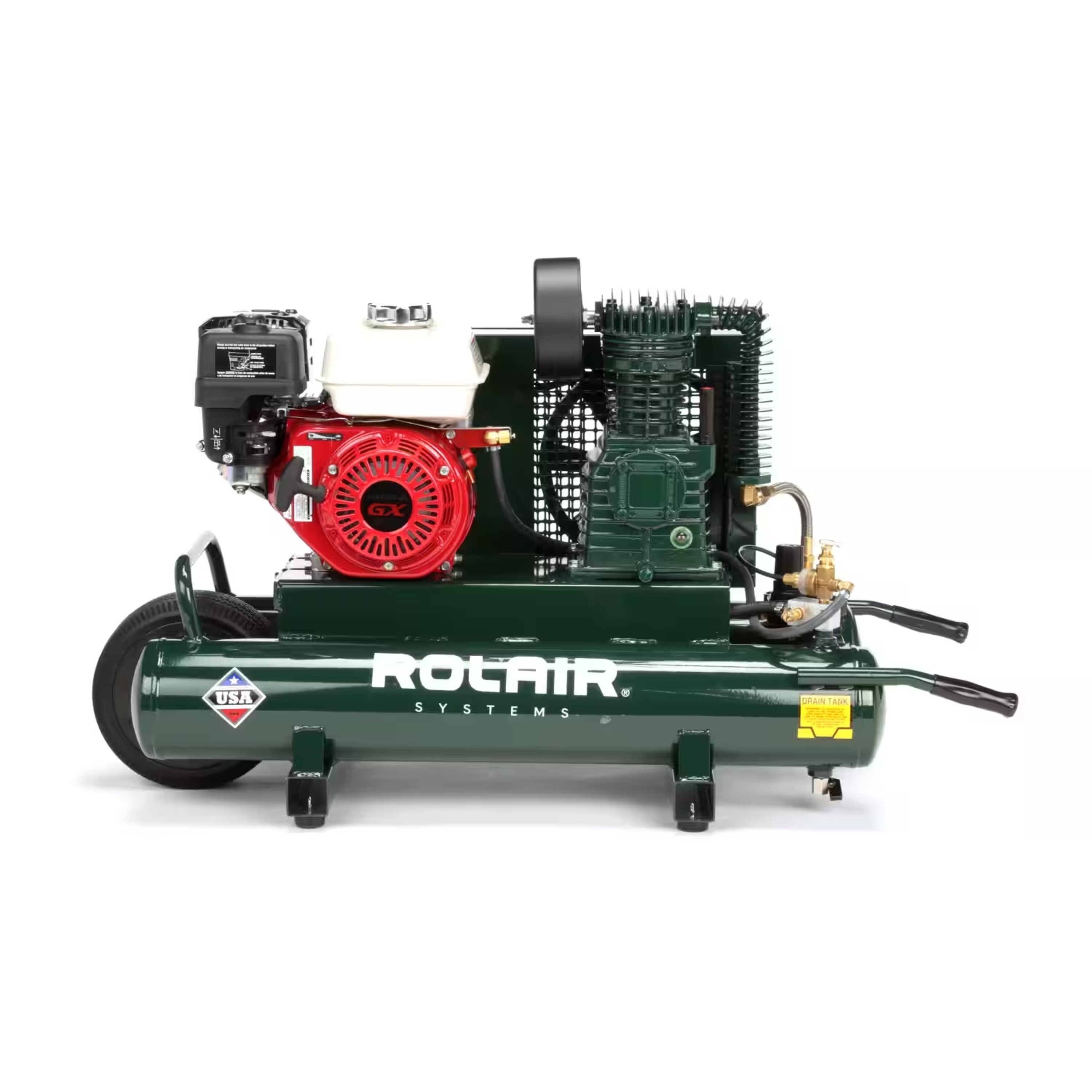

Rolair 6590HK18-0001, 196 cc (6.5 HP) Honda Gas Portable Belt Drive Air Compressor

Rolair 6.5 HP Honda 13.8 CFM@90PSI 9 Gall Twin Tank Compressor

Get more power with the ROLAIR® 6.5-HP Honda® 13.8-CFM at 90-PSI 9-Gallon Twin-Tank Compressor. This Rolair model moves up to 16 CFM at 40 PSI or 13.8 CFM at 90 PSI. The Rolair compressor's automatic idle feature helps conserve fuel. Its multi-finned flywheel and air-cooled aftercooler increases the motor's lifespan. This Rolair twin-tank compressor can run up to nine roofing guns or seven framing nail guns at once. Its cast iron cylinders and automotive bearings decrease long-term wear and tear. The glass oil gauge makes it simple to verify safe oil levels. Rolair compressor'ssteel belt guard is completely enclosed to protect it during transport. A low-oil shutdown mechanism protects the engine from overheating.

STANDARD EQUIPMENT

---

• Pressure Gauge 0-200 in 5 lb. Graduations
• Automatic Pilot Valve Operation
• Industrial Flexible Discharge Hose
• Automatic Idle Control for Economy and Long Service Life
• Intake Filter with Silencer and Replaceable Element
• Schmidt Belt Tightening Device
• Air-Cooled Aftercooler
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve

Specifications

---

Horse Power	196 cc (6.5 HP)
CFM Displaced	17.9 CFM
CFM Delivered	13.8 CFM @ 90 PSI
Lubrication Type	Splash Lubrication
Pump Oil Capacity	34 oz.
Reed Valve System	Yes (Standard)
Number of Cylinders	2
Tank Capacity	9 Gallons
L X W X H	46"x19"x28"
Decibel Rating	Unavailable
Country Of Origin	Compressor Origin.pdf
Shipping Weight	190 lb.
Shipping Dimensions (L X W X H)	47" x 22" x 36"

Documents

---

6590HK18 Owner's Manual

6590HK18 Schematic

6590HK18 Showroom Sheet
