KNIPEX, 86 01 250 SBA, Pliers Wrench, Chrome Vanadium Electric Steel; Forged, Oil-Hardened, 19 Adjustment Positions, Max Jaw Opening 2 in

Replaces a full set of inch and metric open end wrenches. Smooth jaws for damage free installation of plated fittings - working directly on chrome. Adjustable tightening tool. Excellent for gripping, holding, pressing and bending applications. Zero backlash jaw surface pressure prevents damage to edges of sensitive components. 19 adjustment positions at the touch of a button directly on the workpiece. Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size. Reliable catching of the hinge bolt: no unintentional shifting. The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle. Lever transmission greater than 10-1 for strong gripping power. With adjustment scale for presetting the adjustment position. Chrome vanadium electric steel; forged, oil-hardened.

Features

• 19 adjustment positions at the touch of a button directly on the workpiece
• Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size

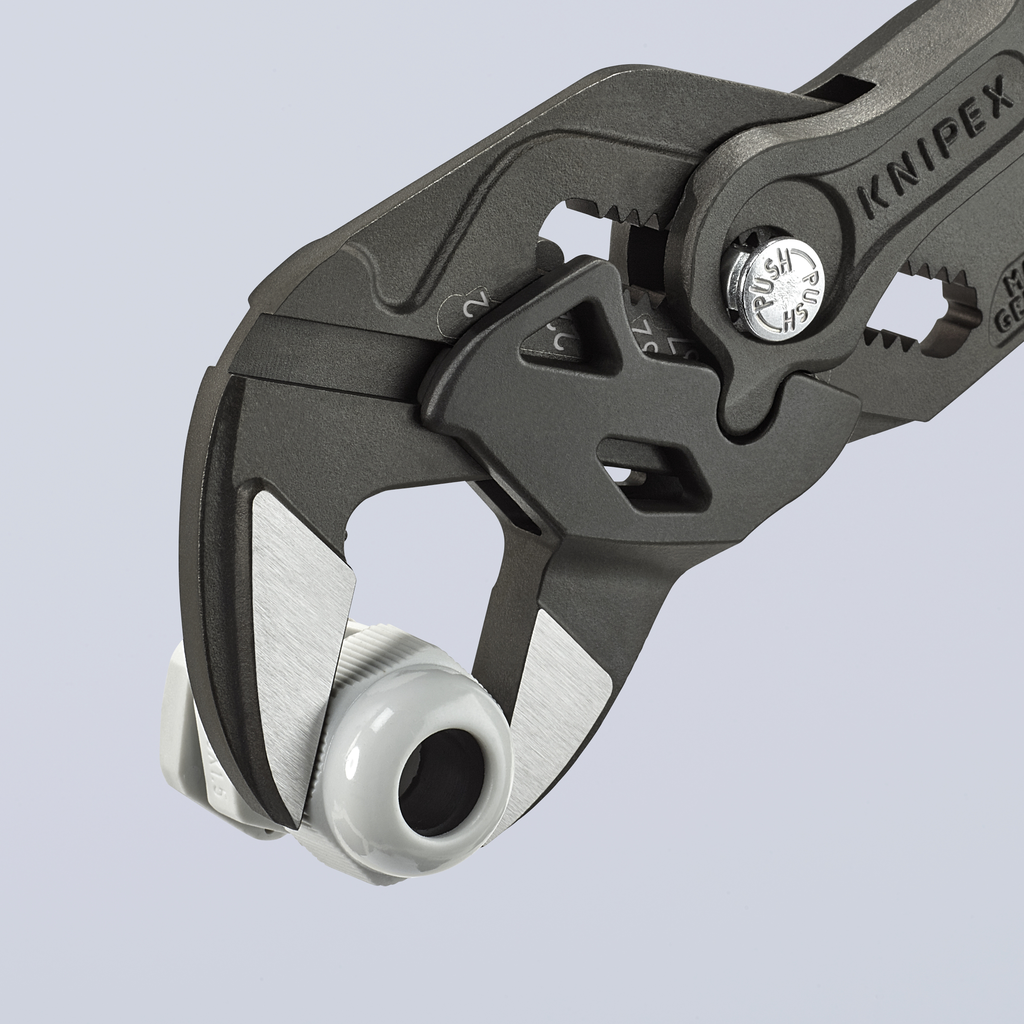

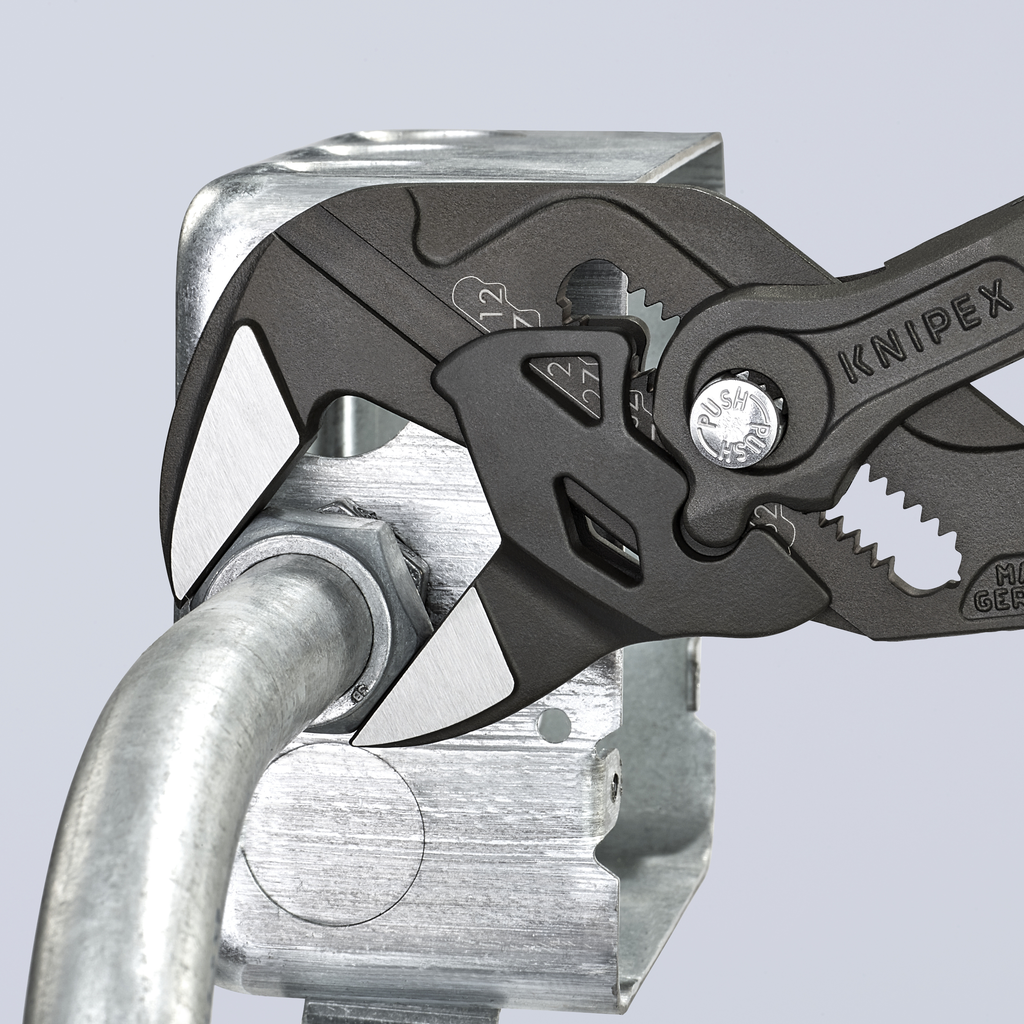

• Smooth jaws for damage free installation of plated fittings - working directly on chrome
• Excellent for gripping, holding, pressing and bending applications

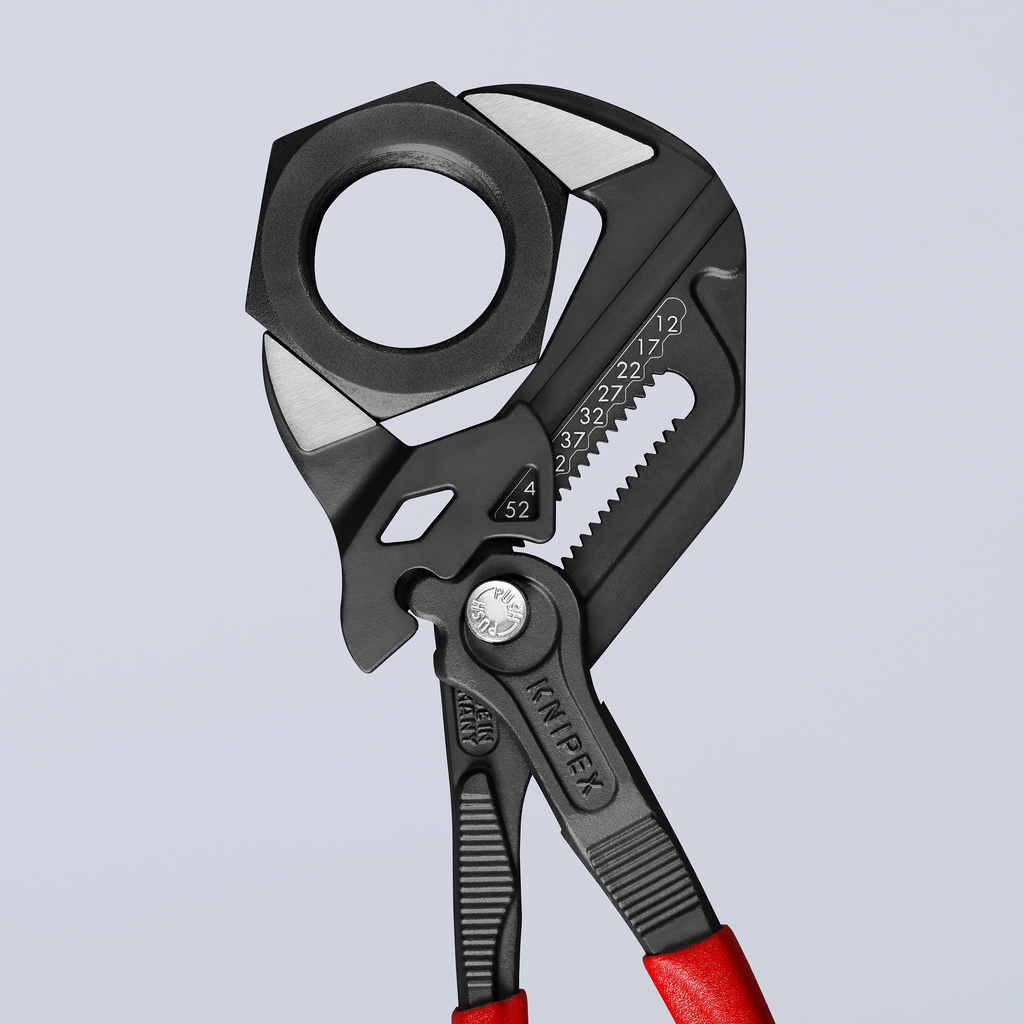

• Laser-etched scale allows the wrench opening to be set before gripping onto workpiece. Laser marked adjustment scale to set the opening width before use - metric and inch markings
• Reliable catching of the hinge bolt - no unintentional shifting
• Replaces a full set of inch and metric open end wrenches up to 2" (52 mm)
• Adjustable tightening tool
• Zero backlash jaw surface pressure prevents damage to edges of sensitive components

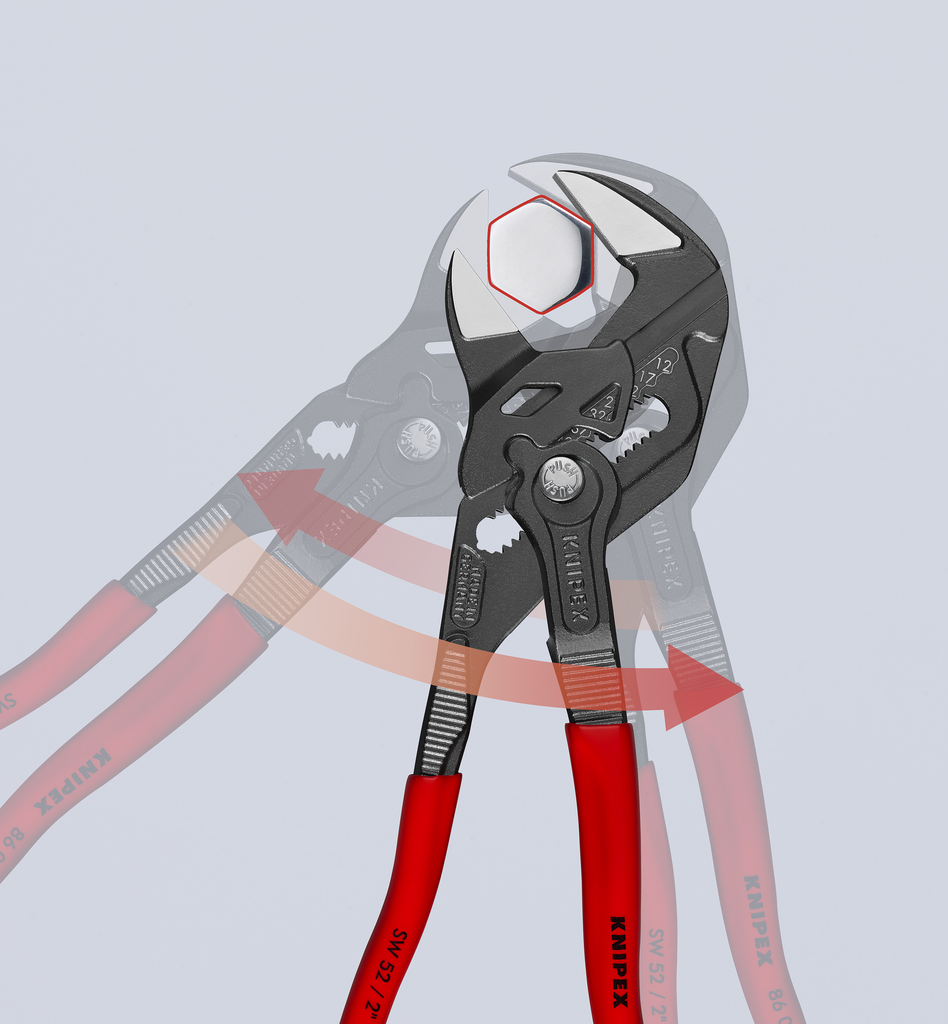

• The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
• Chrome vanadium electric steel; forged, oil-hardened
• Lever transmission greater than 10-1 for strong gripping power

• Number of Adjustment Positions: 19
• Max Jaw Opening - Working Capacity: 2 in.
• Material: Chrome Vanadium Electric Steel; Forged, Oil-Hardened
• Surface Finish: Polished
• Gripping Surface: Smooth
• Handle Type: Non-slip Plastic Coated
• Joint Type: Box Joint
• Lever Transmission Ratio: Greater than 10:1
• Jaw Surface Pressure: Zero backlash
• Jaw Type: Smooth, parallel jaws
• Adjustment Method: Button directly on workpiece
• Scale: Laser-etched metric and inch markings
• Function: Adjustable tightening tool, ratchet principle
• Product Length: Varies (5 in, 6 in, 7 1/4 in, 10 in)
• Handle Coating: Black atramentized non-slip plastic coating, multi-component grips, or chrome plated plastic coated (varies by model)
• Weight: Ranges from 0.23 lbs to 1.61 lbs depending on size and model
