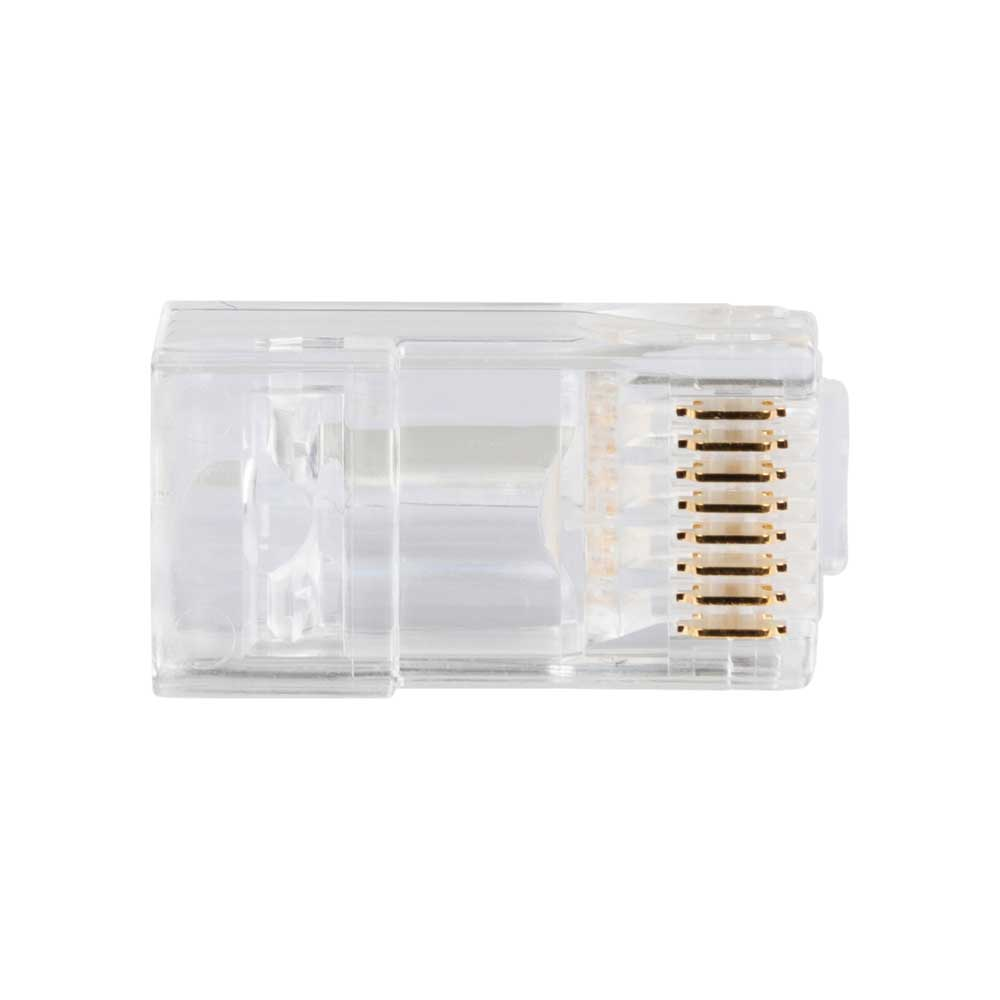

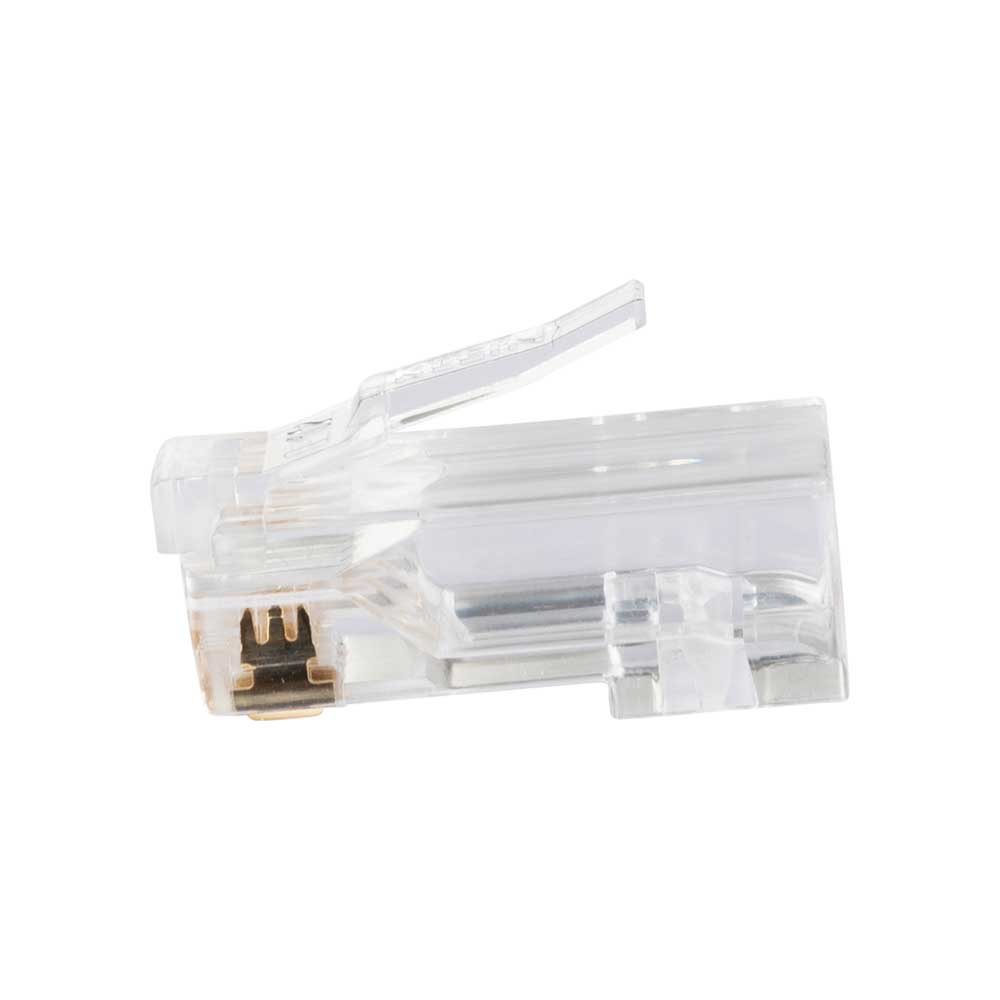

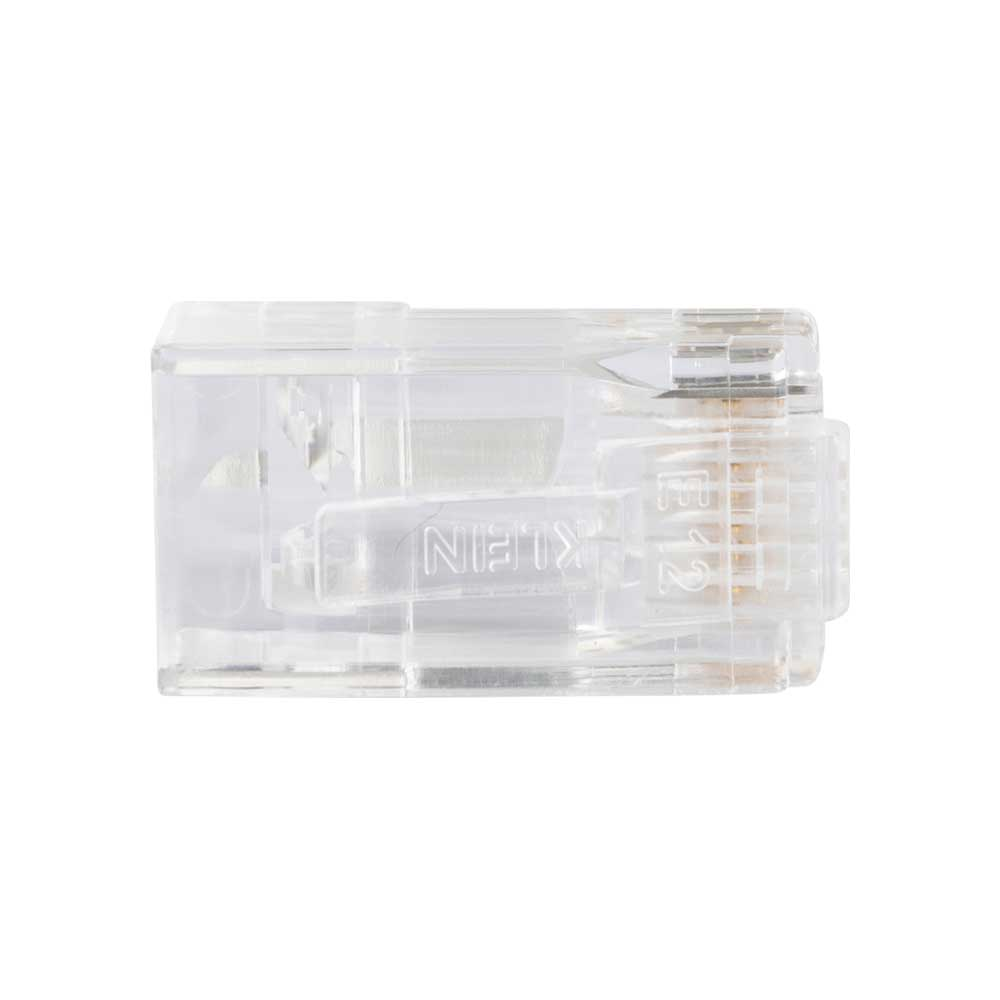

Klein Tools, VDV826-764, Pass-Thru™ Modular Data Plugs, RJ45, CAT6A, 200-Pack, Clear, Gold Plated Contacts

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Features

• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)

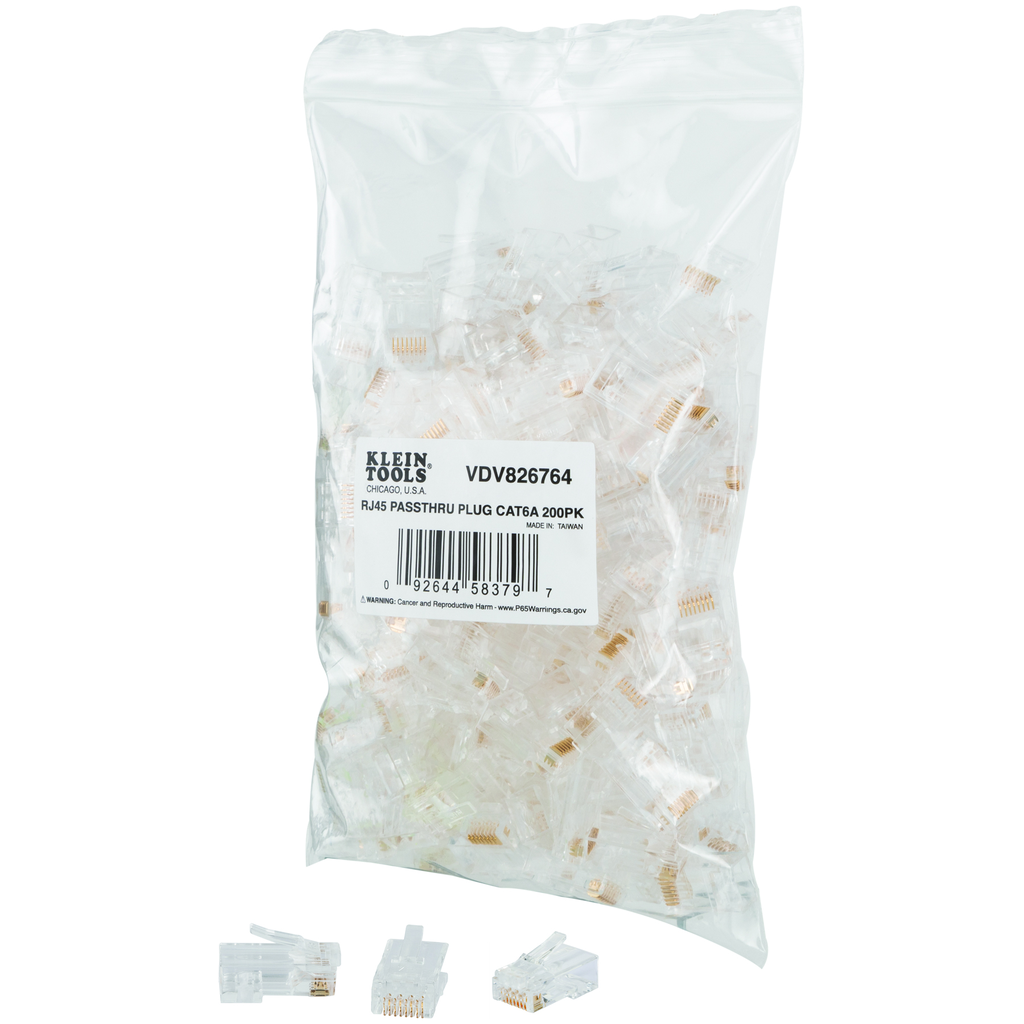

• 200-Pack
• 50 µ-inch gold plating on all contact surfaces
• For CAT6A cable and larger diameter/thicker jacket CAT6 cable
• Pass-Thru™ Technology; Meets All PoE+ Standards
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• 8 position, 8 contact pass through type data plugs for solid or stranded wire
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

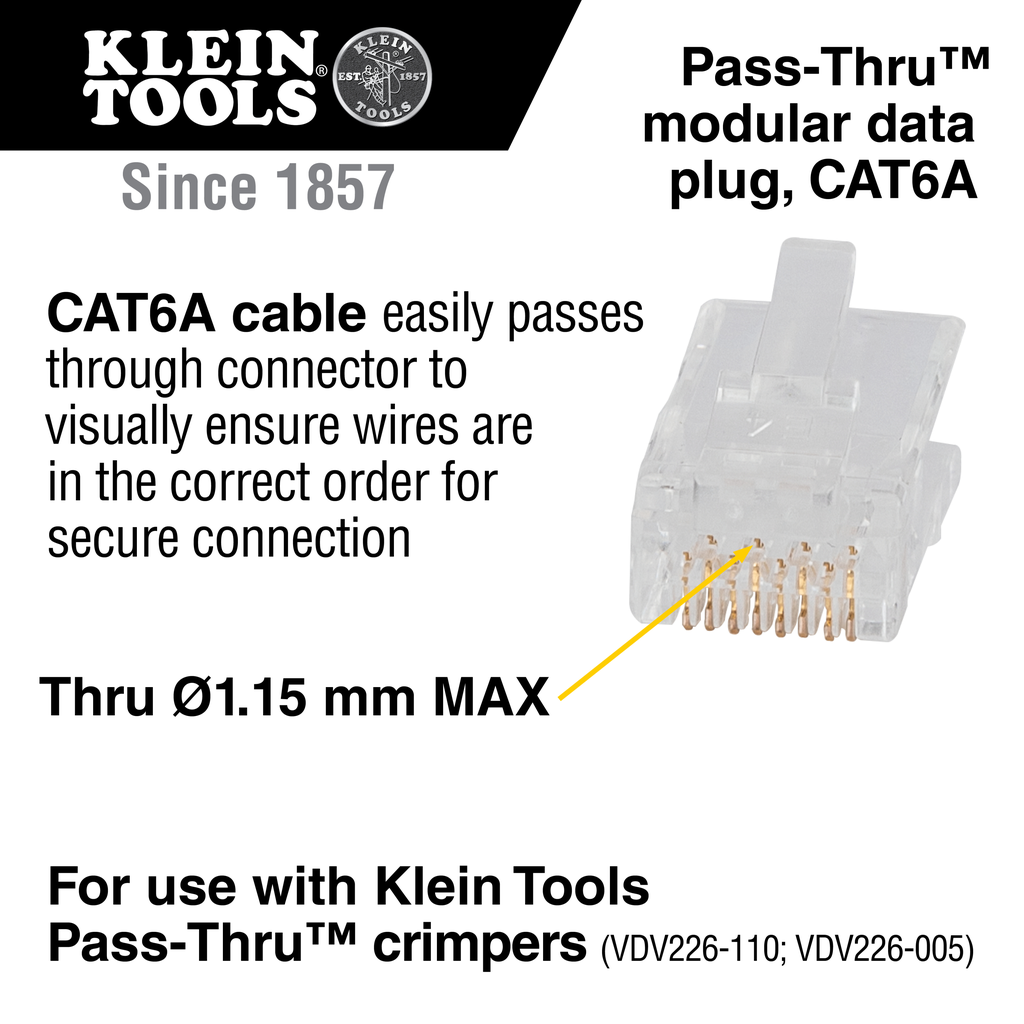

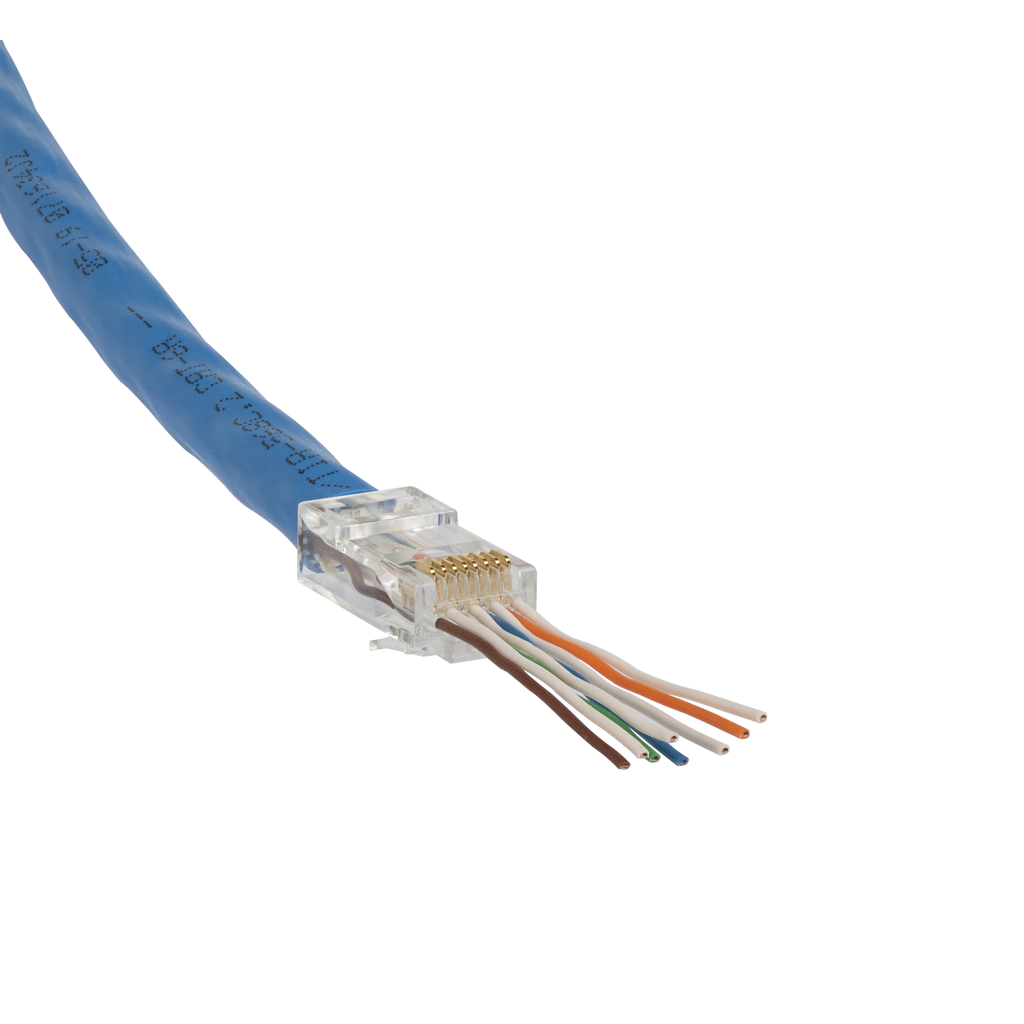

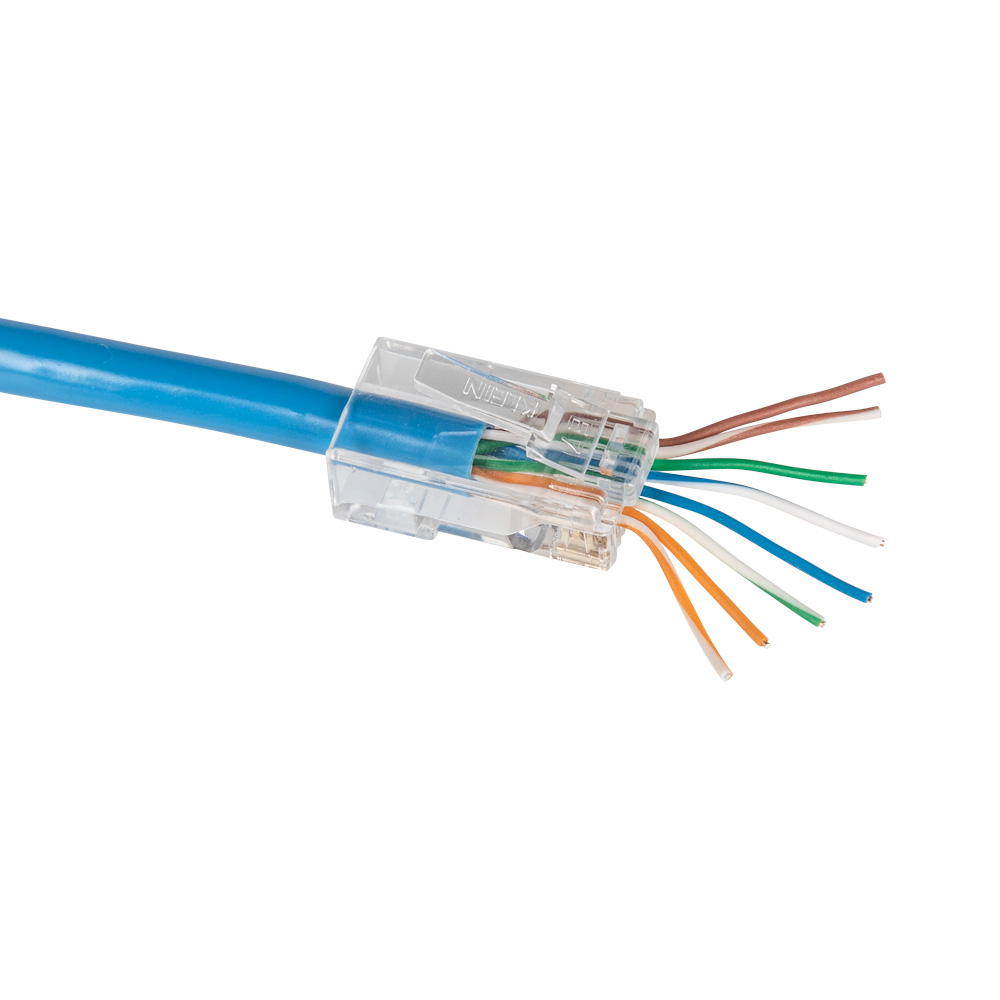

• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

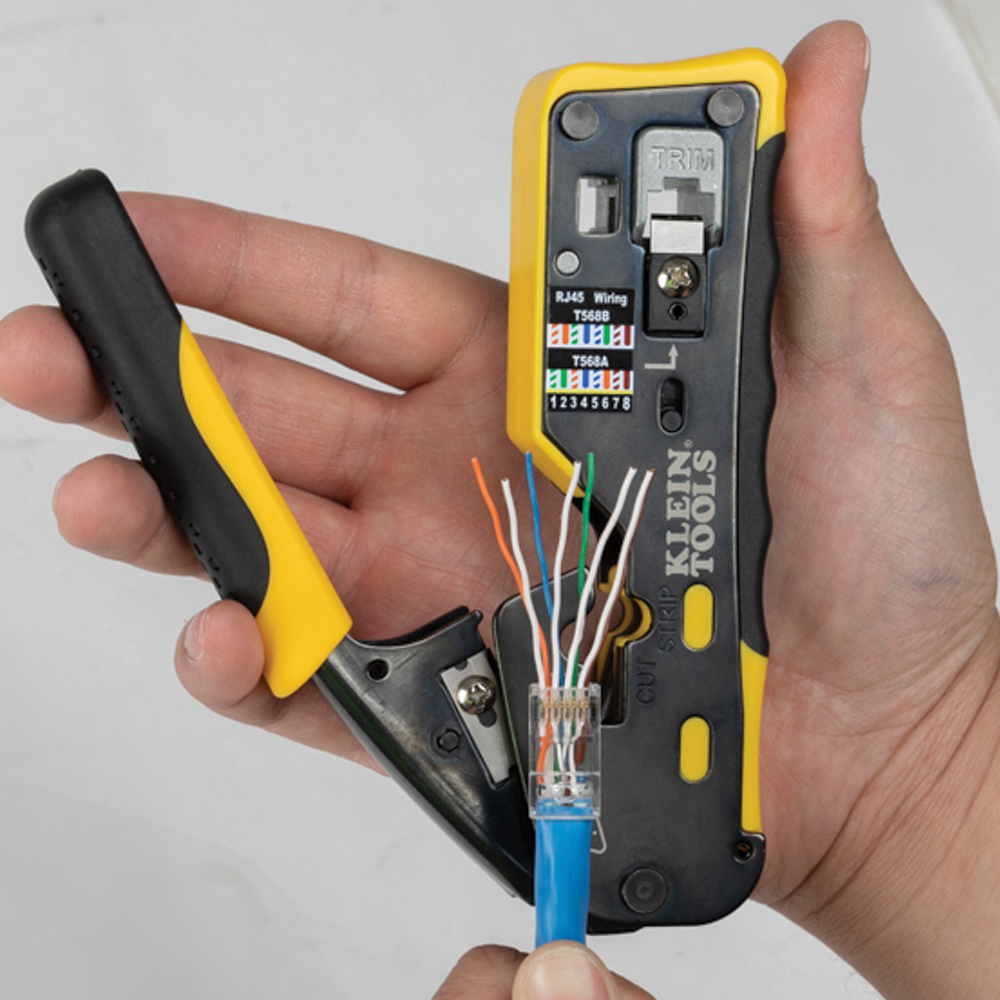

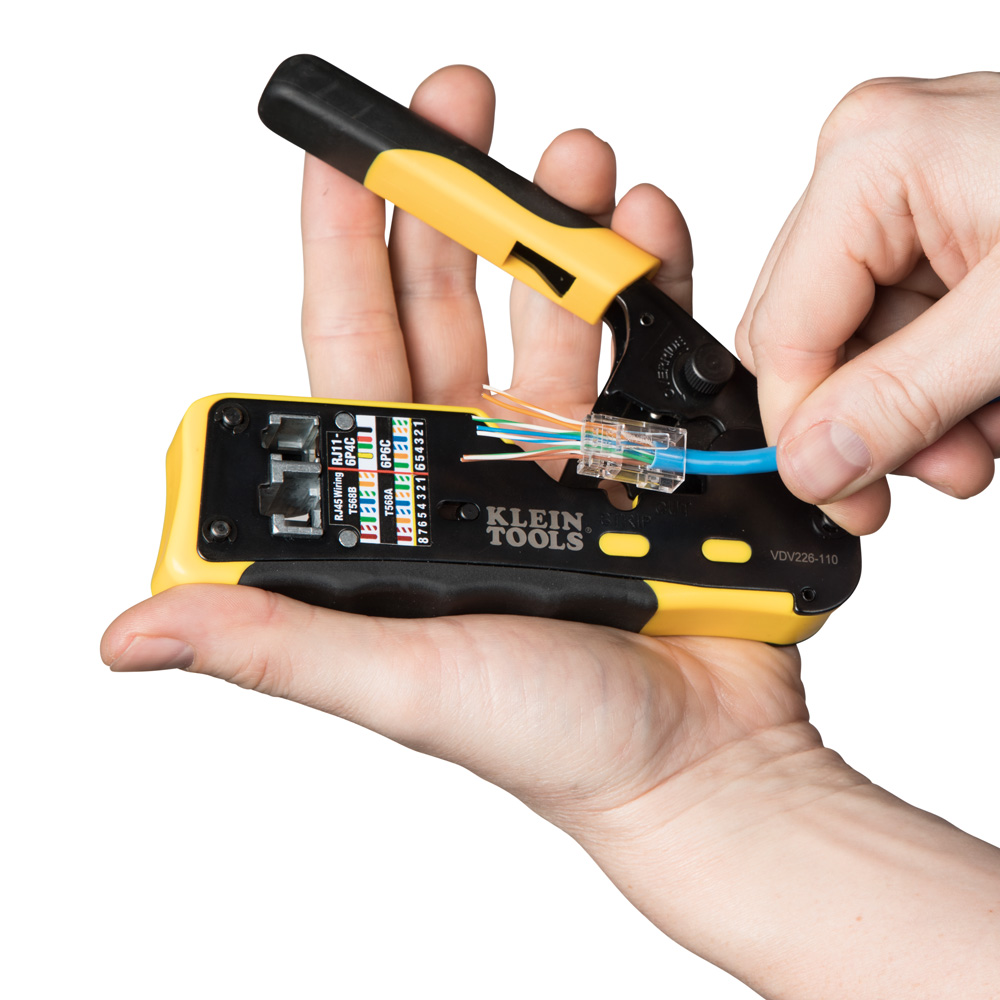

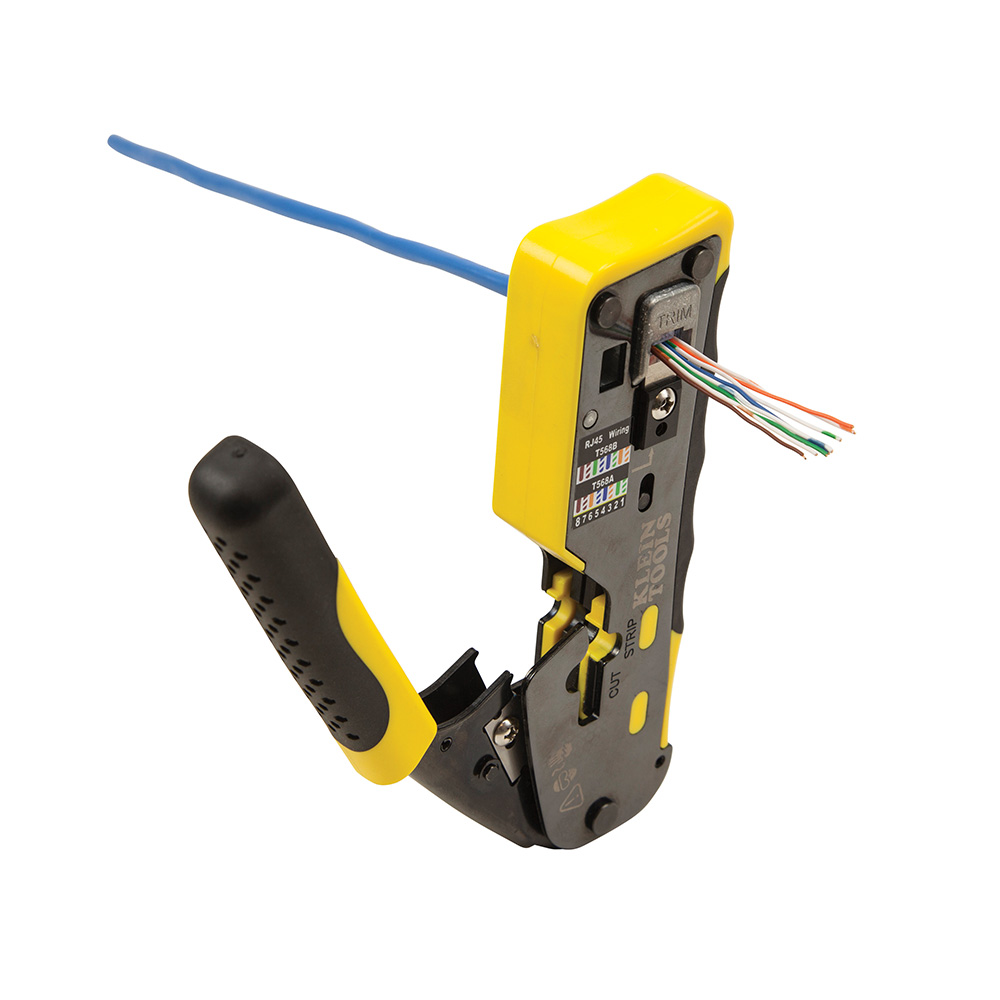

• Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)
• Category 6A performance per TIA/EIA-568-B.2

Warnings

• Do NOT use on energized circuits or cabling systems.

• Category: 6A
• Cable Type: CAT6A UTP and Larger Diameter CAT6
• Contact Positions: 8

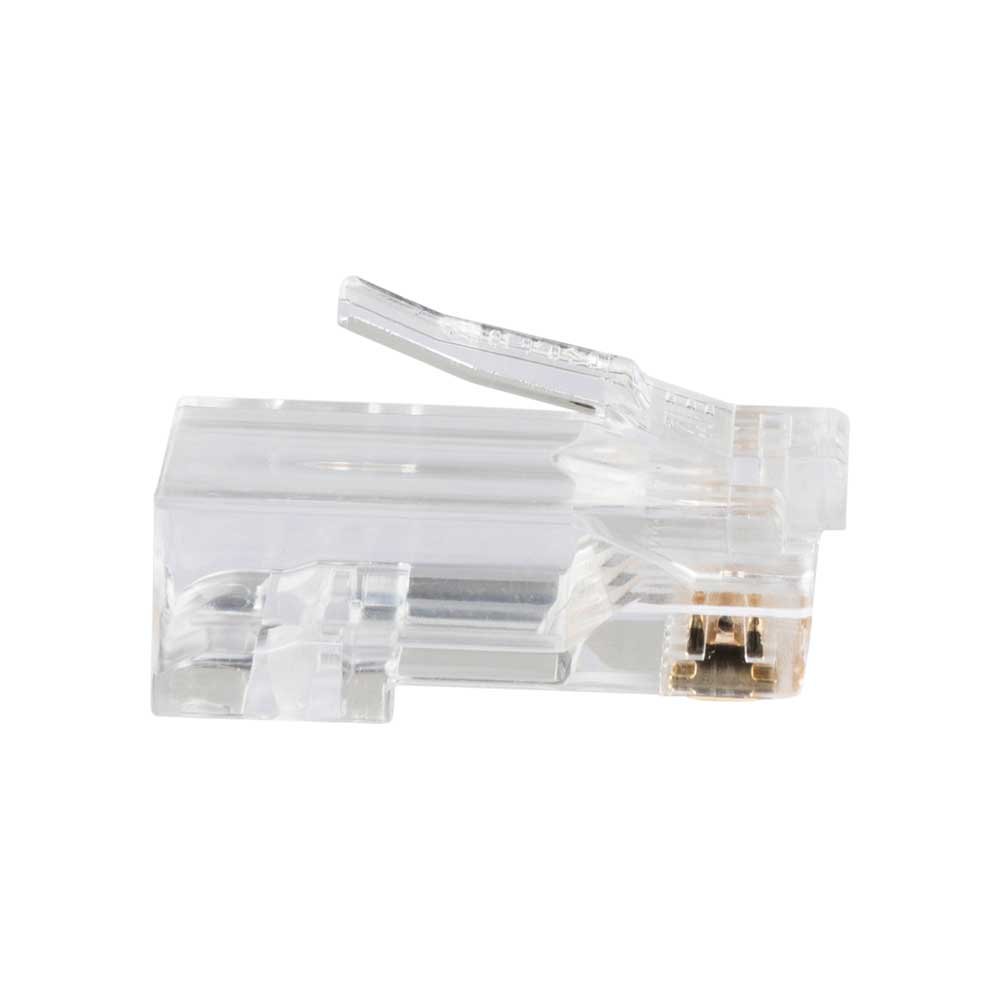

• Connector Type: RJ45 Modular Pass-Thru™ Plug
• Maximum Cable Diameter: 0.043 in (1.1 mm)
• Gold Plating Thickness: 50 µin
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Overall Length: 0.875 in (2.2 cm)
• Overall Height: 0.453 in (1.2 cm)
• Overall Width: 0.094 in (0.2 cm)
• Height: 0.600 in
• Width: 0.400 in
• Depth: 0.800 in
• Weight: 0.0010 lbs
• Material: PVC Plastic; Gold Plated Contacts
• Connector Color: Clear
• Position & Contacts: 8P 8C
• Application: Voice and Data
• Country of Origin: Taiwan
• Compliance: PoE and PoE+ Standards, TIA/EIA-568-B.2
