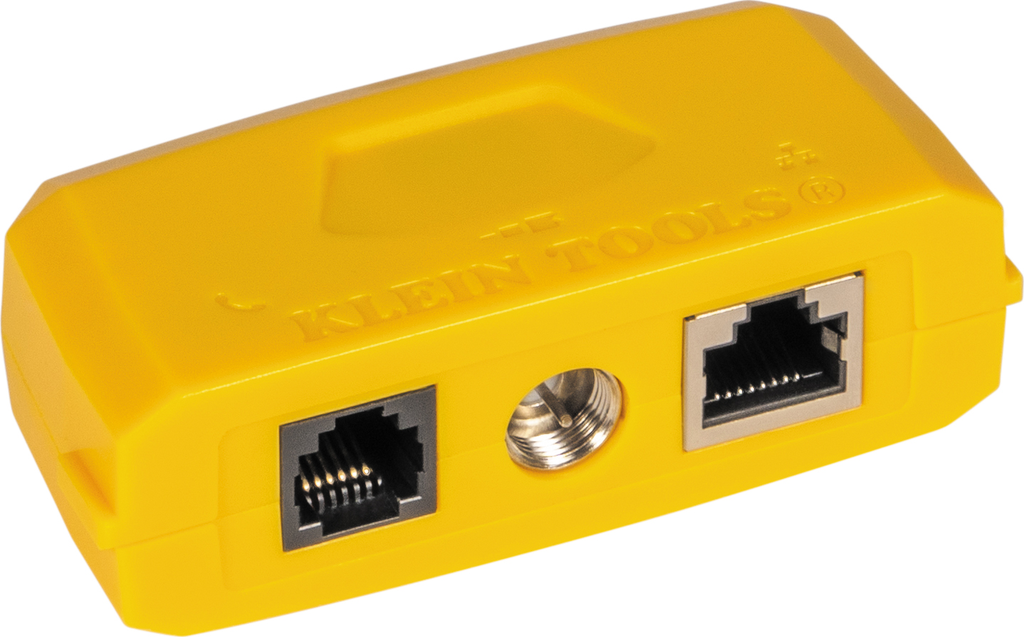

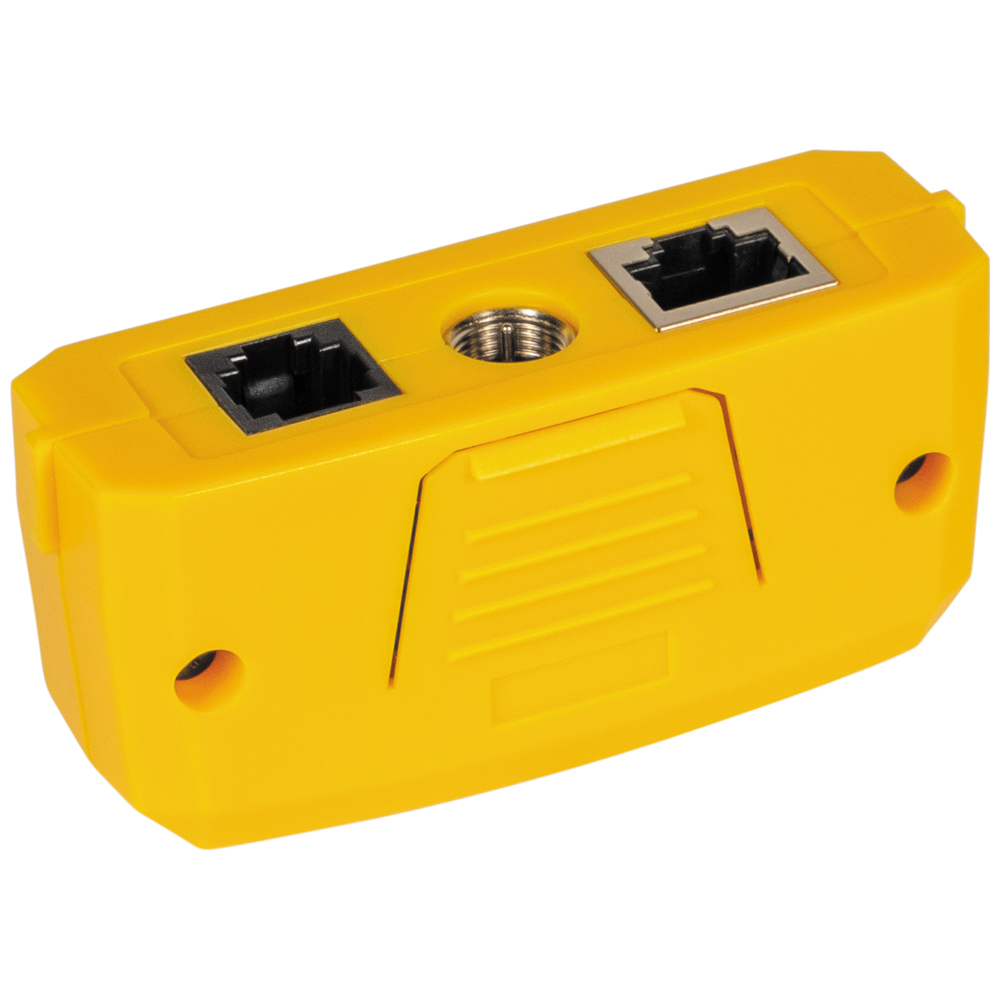

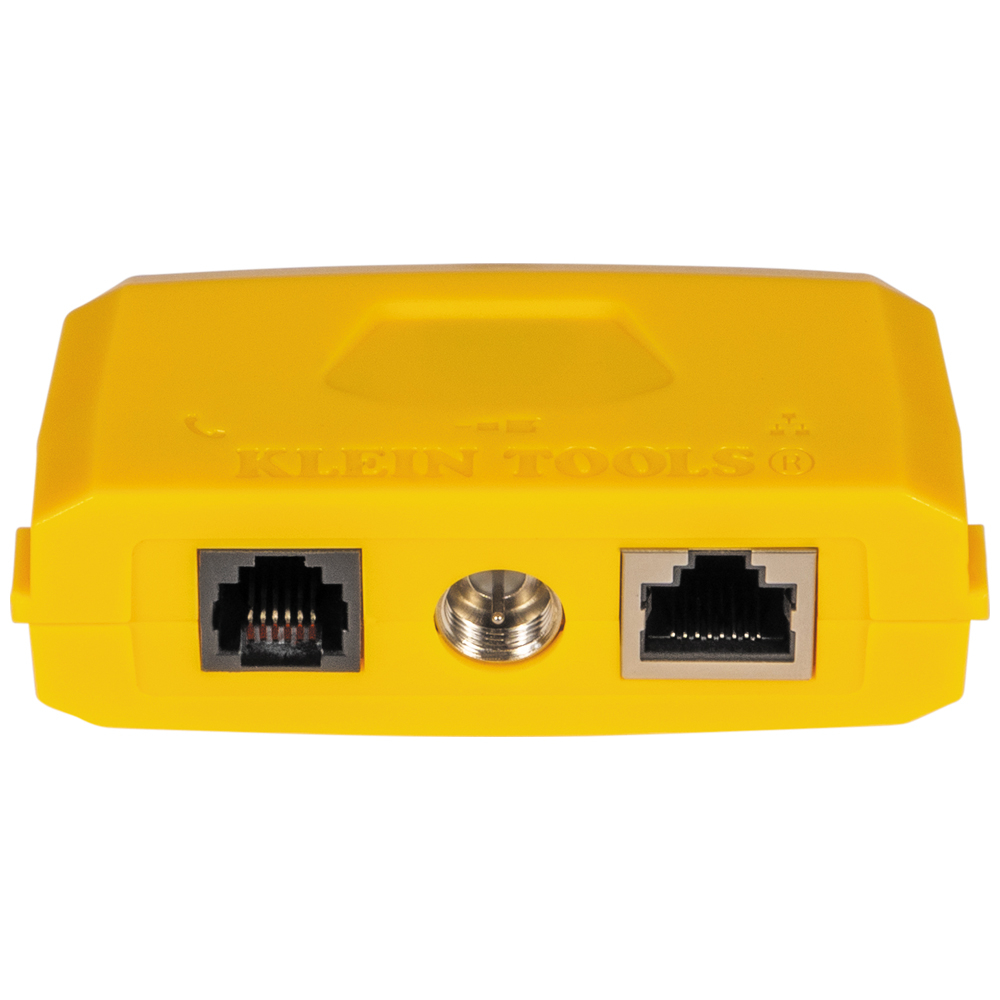

Klein Tools, VDV770-770, Self-Storing Remote, RJ11; RJ12; RJ45; Coax F, Plastic, 4.84 in

This replacement remote tests, maps and identifies a location in a single step. Use with Klein's Scout® Pro Max Tester (Cat. No. VDV501-770) to test voice, data and video coax cable connections.

Features

• RJ11/12 jack tests voice cables
• Overmold Grip, RJ11/R12, RJ45 and Coax F Connectors
• Male F-Connector interface tests Female F terminated coax cables

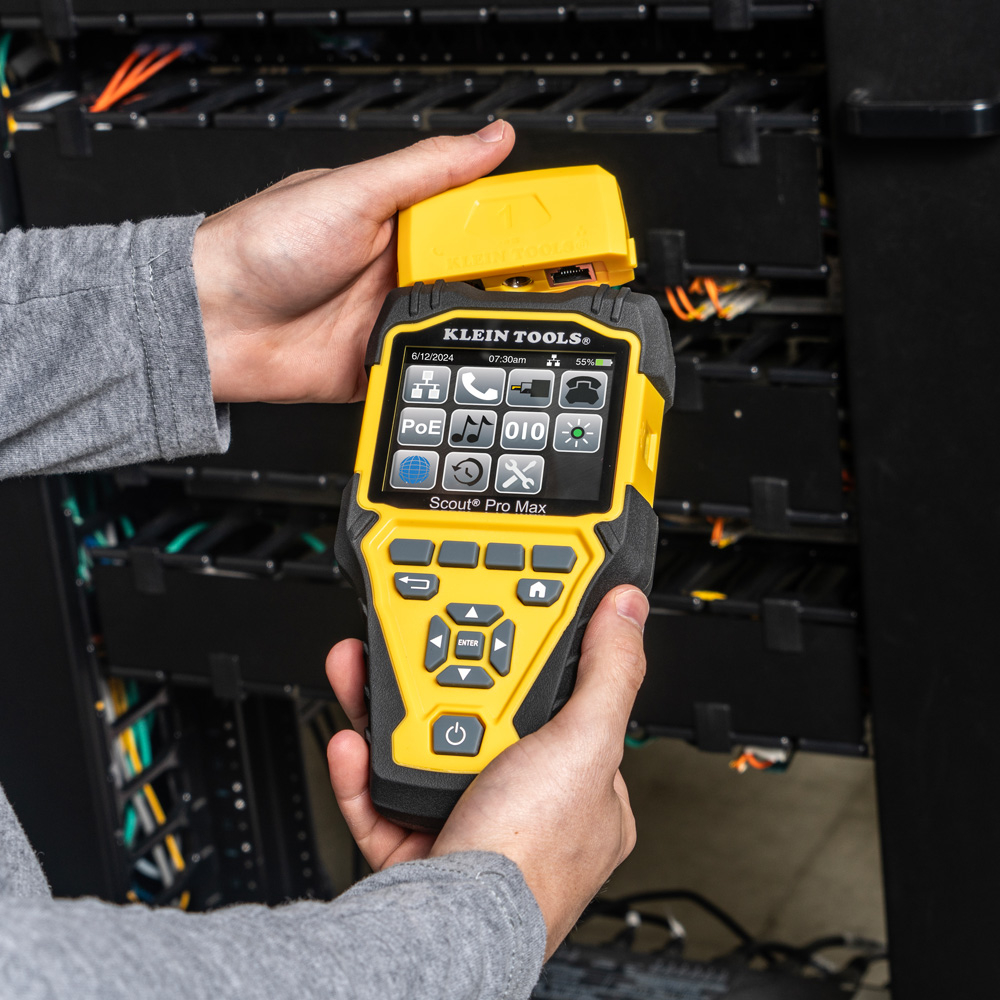

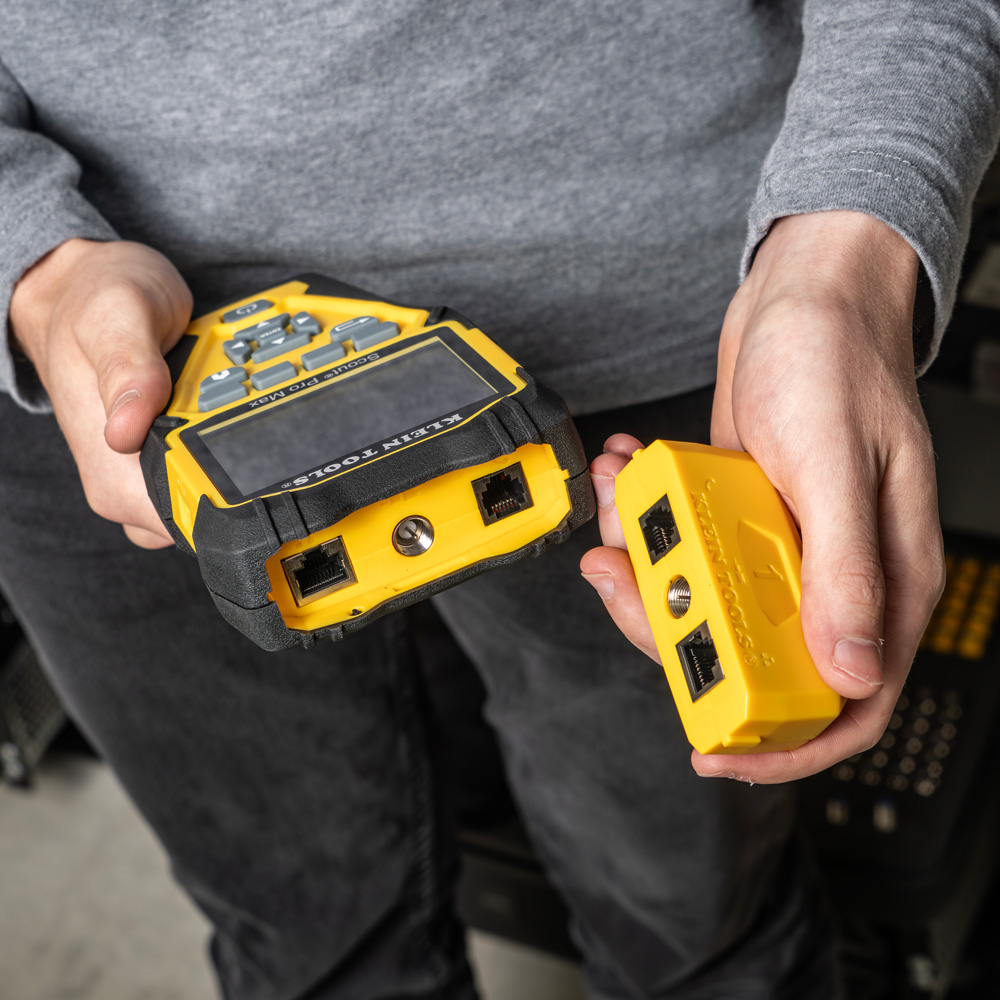

• Replacement remote identifies, tests and maps a location in one step when used with the Scout® Pro Max Network Cable Tester With Remote Set (Cat. No. VDV501-770), sold separately
• Remote is clearly marked for easy identification
• Test voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables
• RJ45 jack tests data cables
• Use with the Scout® Pro Max Network Cable Tester (Cat. No. VDV501-770), sold separately

Warnings

• Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout® Pro Max. Visually inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic housing of the plug.
• The RJ45 port is the only jack designed for PoE energized cables. Connecting AC energized cables to any port may damage it and pose a safety hazard to the user.
• Always wear approved eye protection.

• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Application: Cable Testing
• Overall Length: 4.84 in (12.3 cm)
• Overall Width: 3.15 in (8 cm)
• Overall Height: 1.05 in (2.7 cm)
• Weight: 0.10 lbs (1.6 oz)
• Material: Plastic
• Type: Self-Storing Remote
• For Use With: VDV501-770 Scout® Pro Max Network Cable Tester With Remote Set
• Depth: 3.17 in
• Height: 1.06 in
• Width: 1.59 in
• Country of Origin: China
