Klein Tools, VDV501-770, Network Cable Tester, RJ11/RJ12/RJ45/F-Connector, Backlit LCD, 20 Remote Locators, TDR, PoE

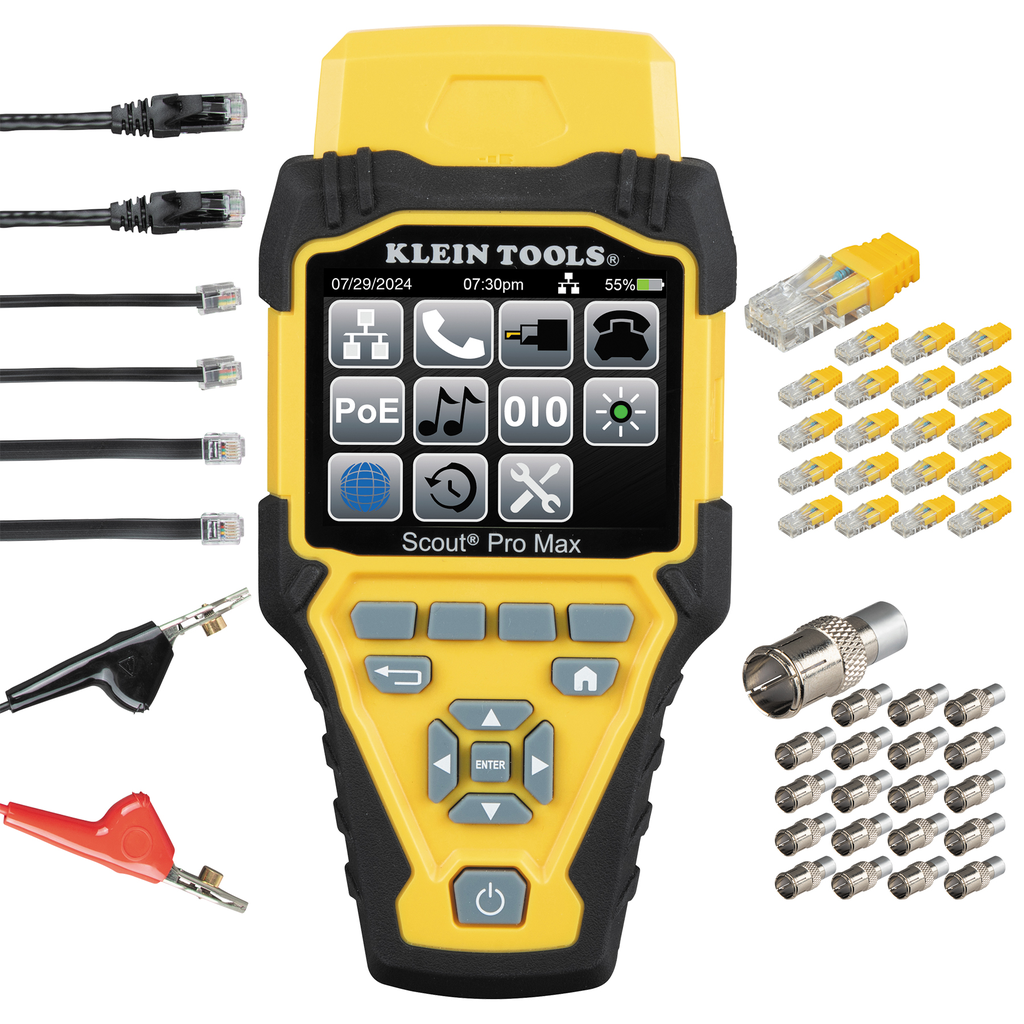

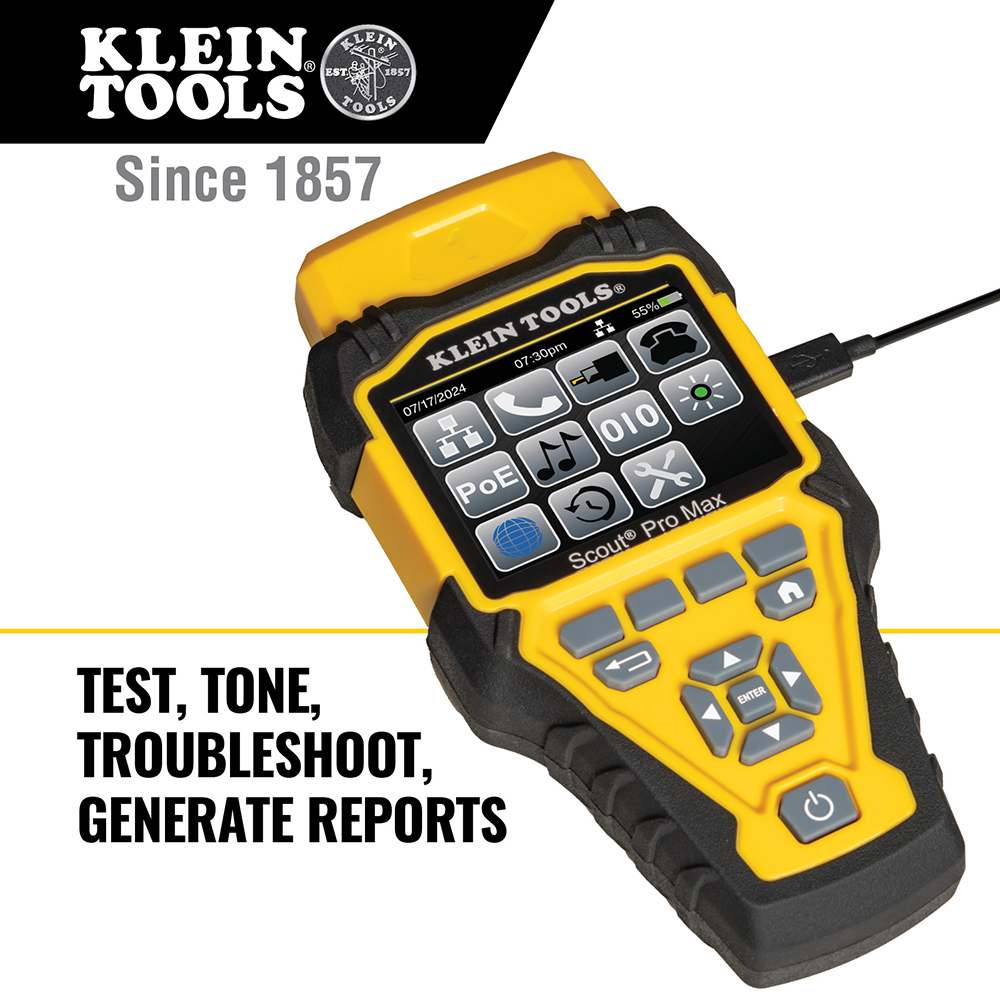

Scout® Pro Max tests and troubleshoots RJ11, RJ12, RJ45, and F-connector terminated cables and provides analog and digital tone generation for cable tracing. It measures cable lengths (via TDR) and detects distance to faults. Generate reports to show custom test history. Tests shielded and unshielded cables. Trace up to 20 locations at a time with included remotes. Perform hub blink testing, measure active and passive Power over Ethernet (PoE). Test POTS, and detect active network capabilities.

Features

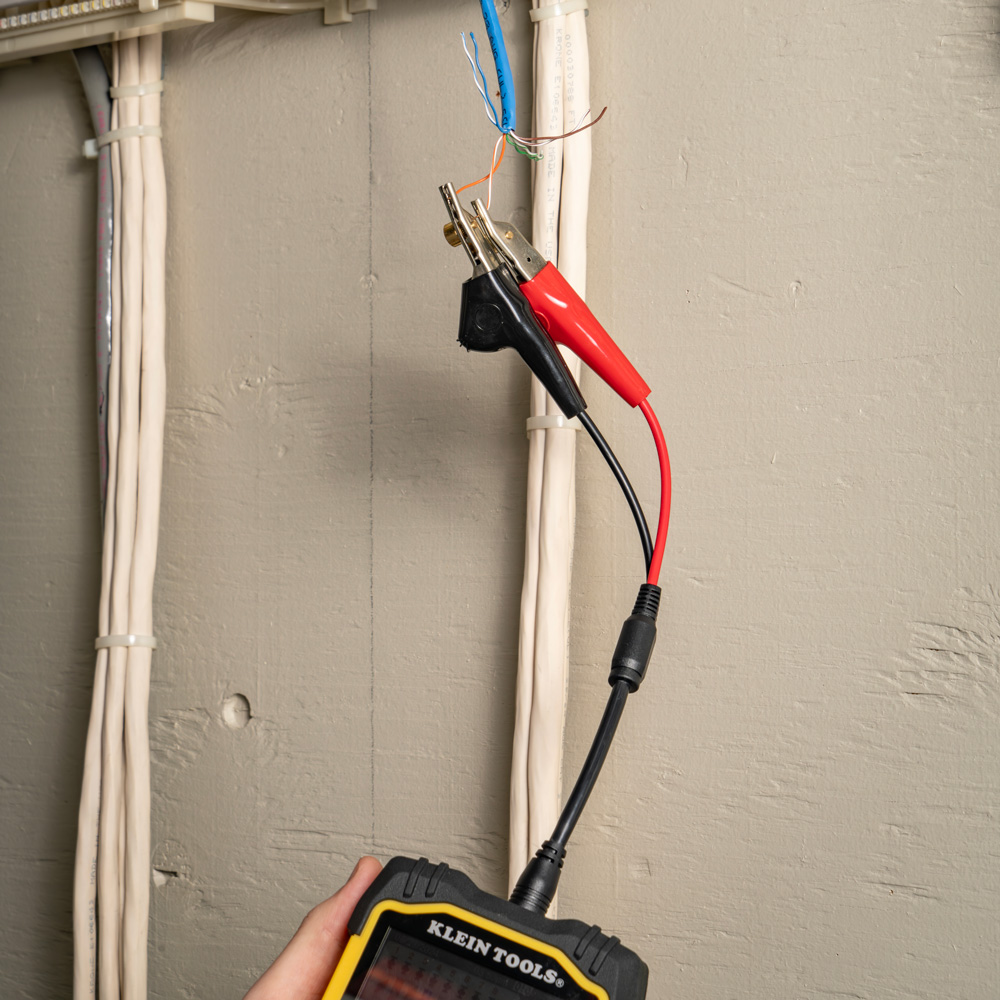

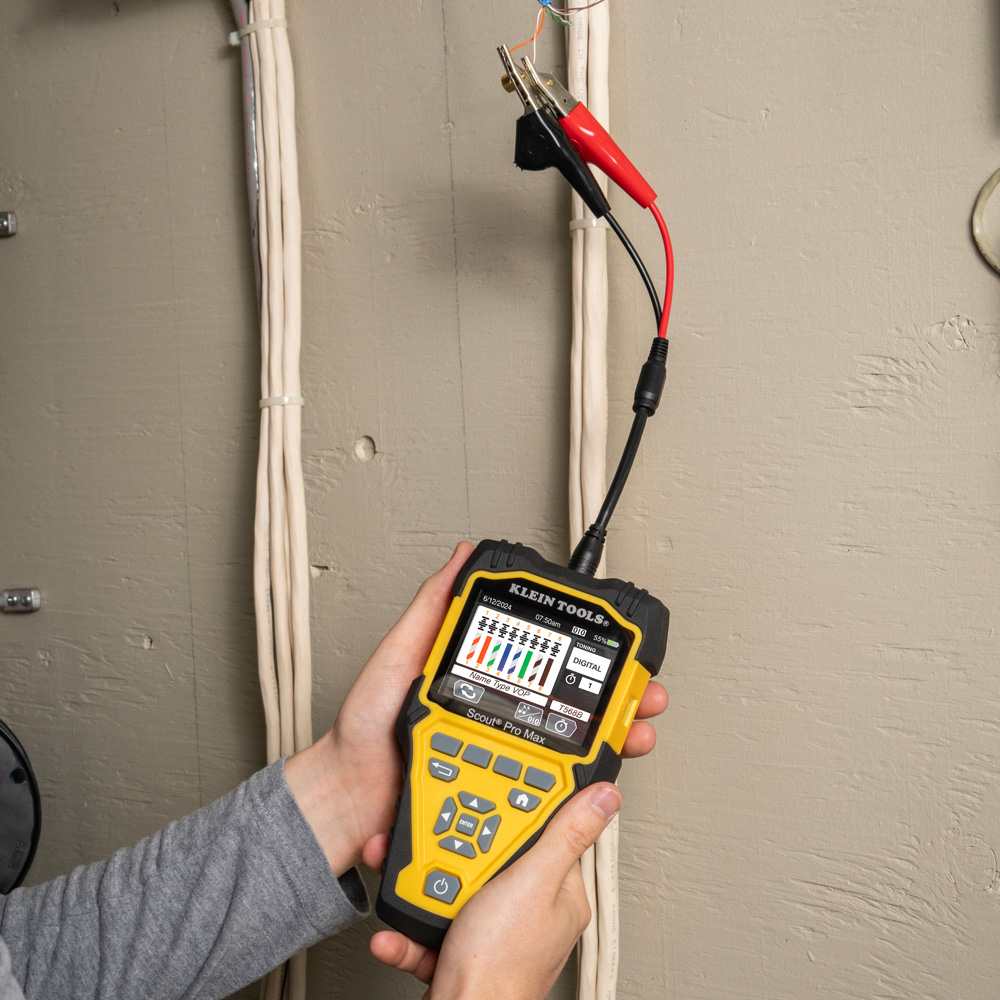

• Digital / Analog tone generation to easily probe cables (requires Cat. No. VDV500-223, sold separately)

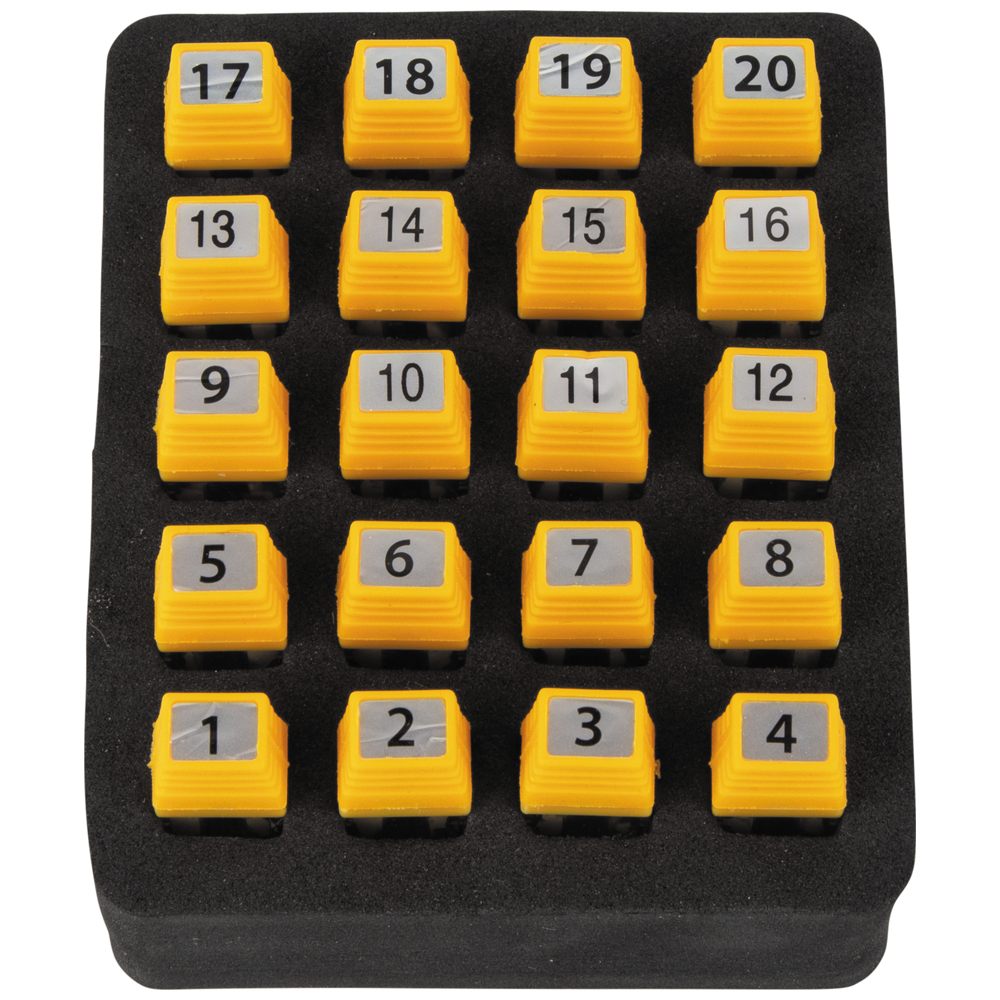

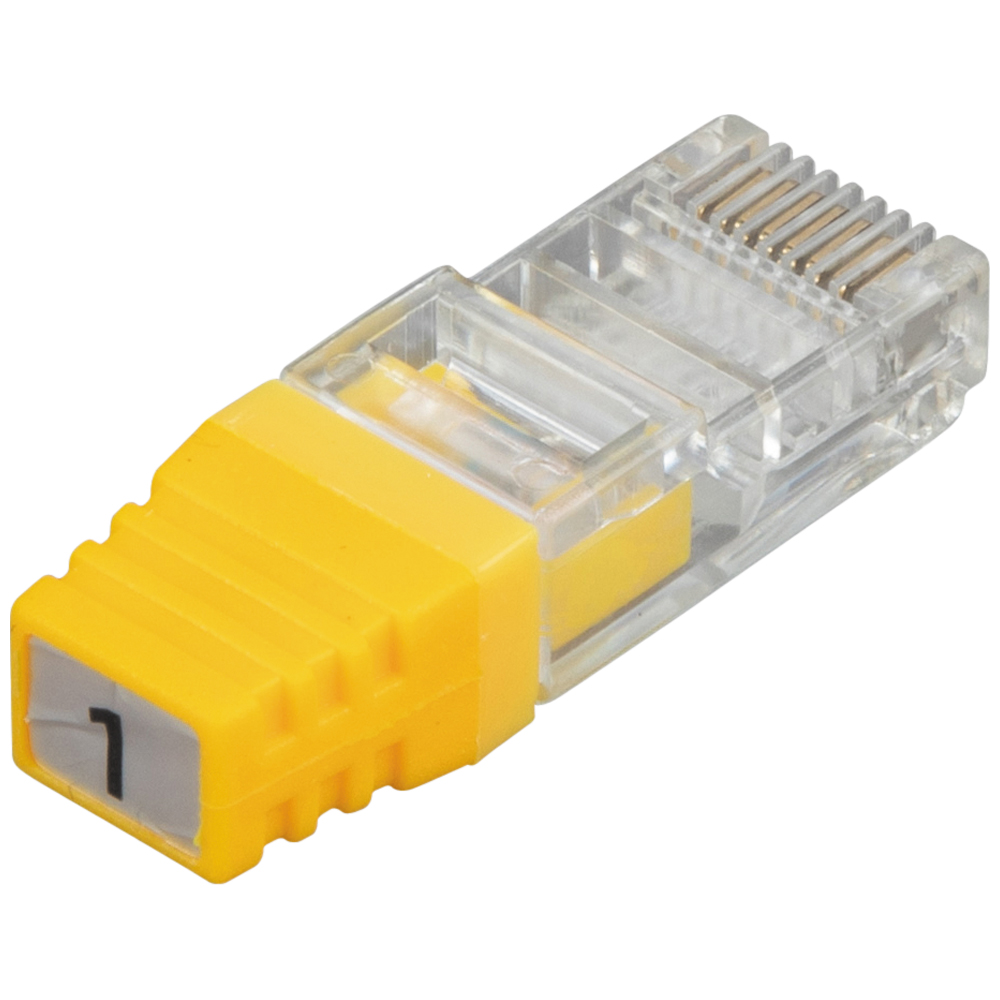

• Locate and identify up to 20 locations with ID remotes for greater cable management and organization
• Detect network capabilities and connection speeds up to 10G bps

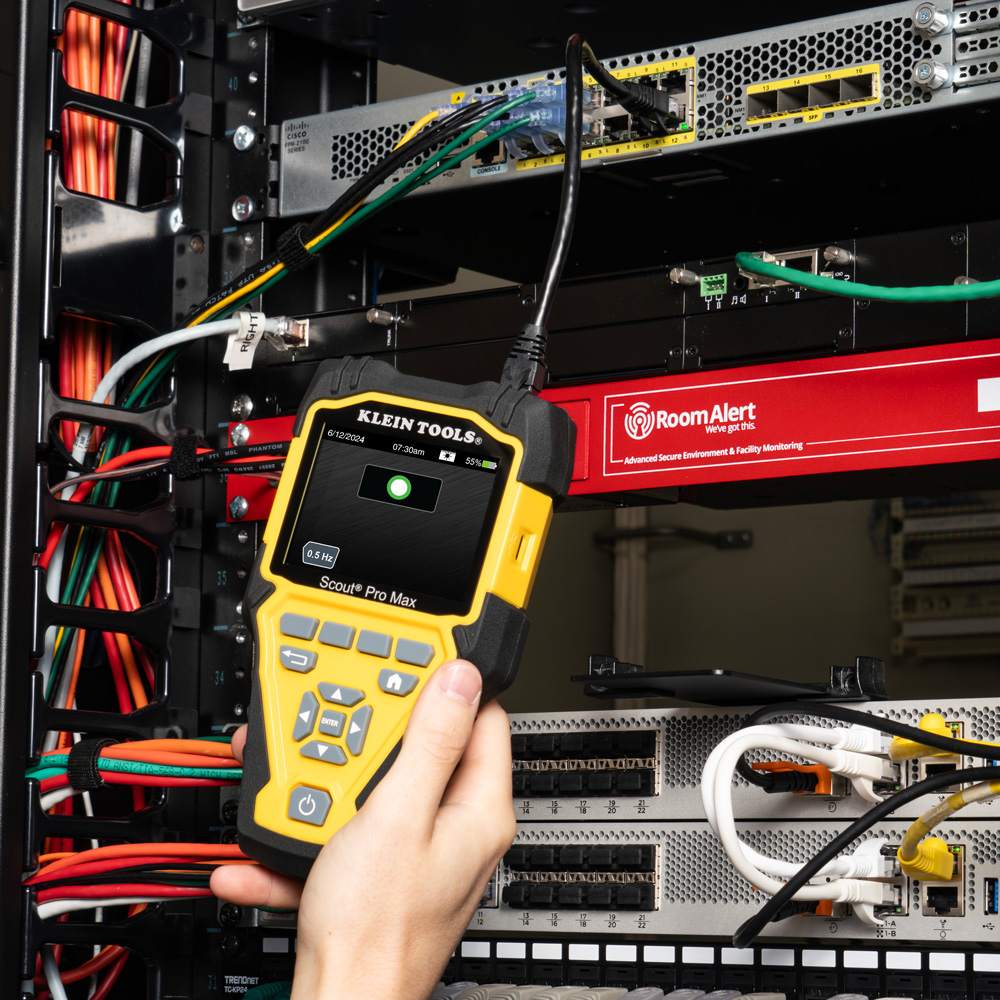

• Initiate hub blink to easily identify and locate cables on device and POTS testing

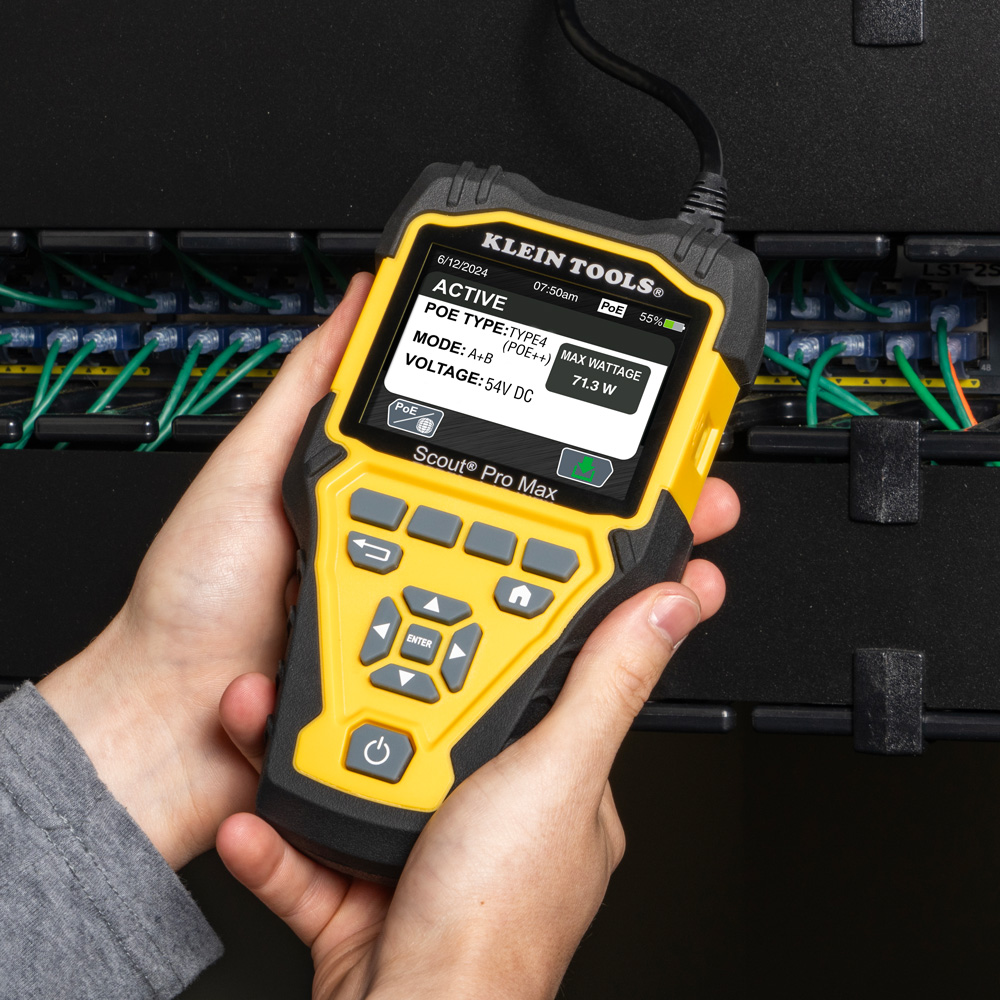

• Full color back-lit screen and internal memory to store, download, and output up to 200 test results for easy report management

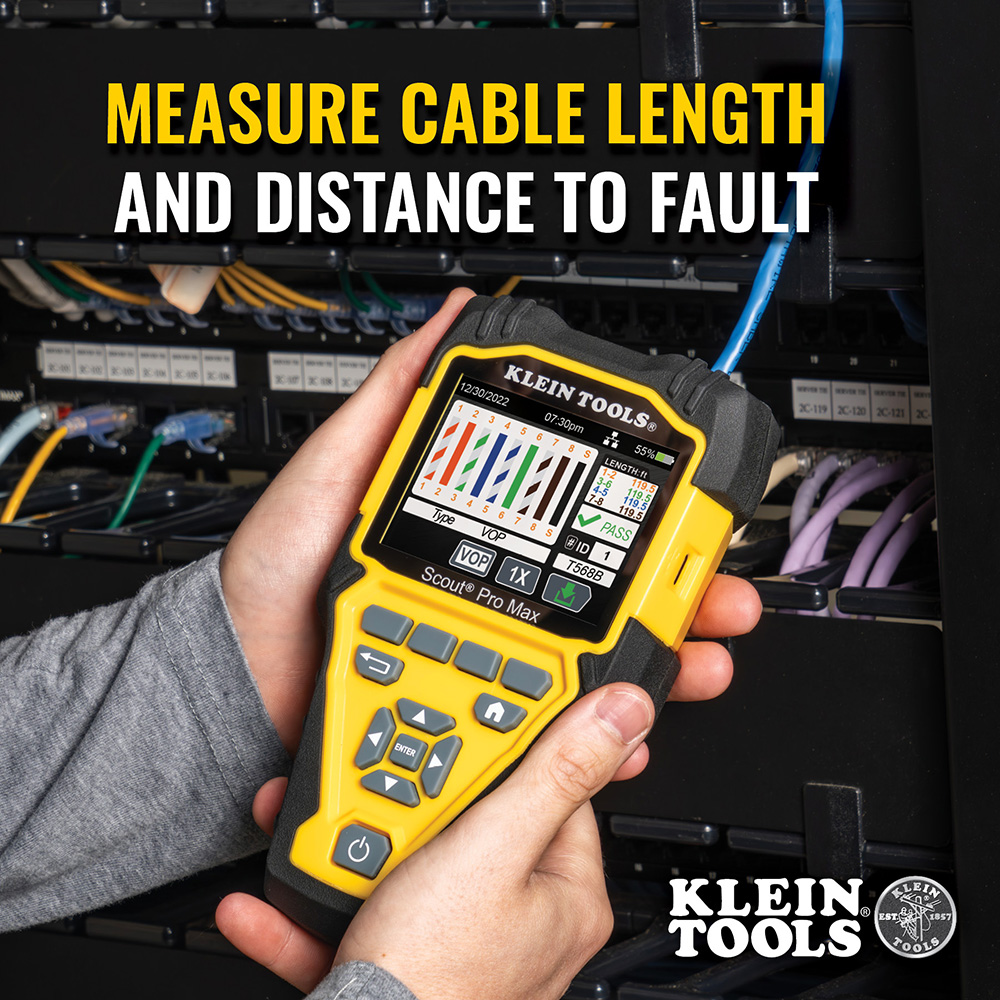

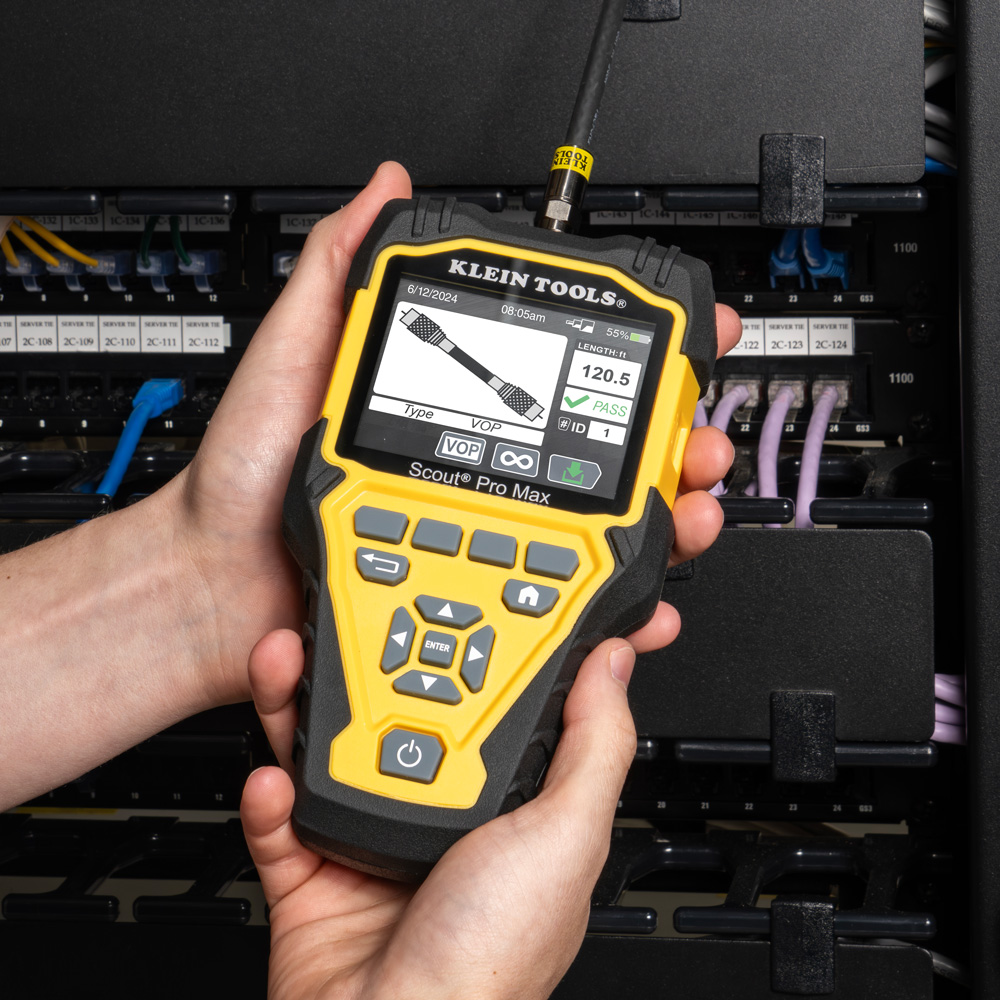

• Measure cable length up to 2000 feet (610 m) and distance to fault with TDR
• Measures Cable Length; Backlit LCD; Hub Blink
• Network cable tester locates, tests, and measures data, phone, and coax cables to ensure fast and accurate installations and troubleshoot faults

Warnings

• Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout® Pro Max. Visually inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic housing of the plug.
• Always wear approved eye protection.
• The RJ45 port is the only jack designed for PoE energized cables. Connecting AC energized cables to any port may damage it and pose a safety hazard to the user.
• Plugging 6-position plugs into the 8-position jack on the tester has the potential to damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.

• Cable Types Tested: Twisted Pair, DATA, Voice, LAN, Coaxial, RJ11, RJ12, RJ45, F-connector, CAT6, Shielded or Unshielded
• Connection Speeds Detected: Up to 10 Gbps
• Maximum Cable Length Measurement: 2000 ft (610 m)
• Accuracy: ± (2% + 3 ft or 1 m) with Known VoP and Consistent Cable Parameters
• Power Source: 3× AA alkaline, 1× CR2032 battery
• Battery Life: Active - 15 hr; Standby - 1 yr
• Overall Dimensions: 8" (20.3 cm) L × 4" (10.2 cm) W × 1.5" (3.8 cm) H
• Weight: 3.7 lbs
• Material: Plastic and Metal
• Display: Full color backlit LCD screen
• Drop Protection: 6.6 ft (2 m)

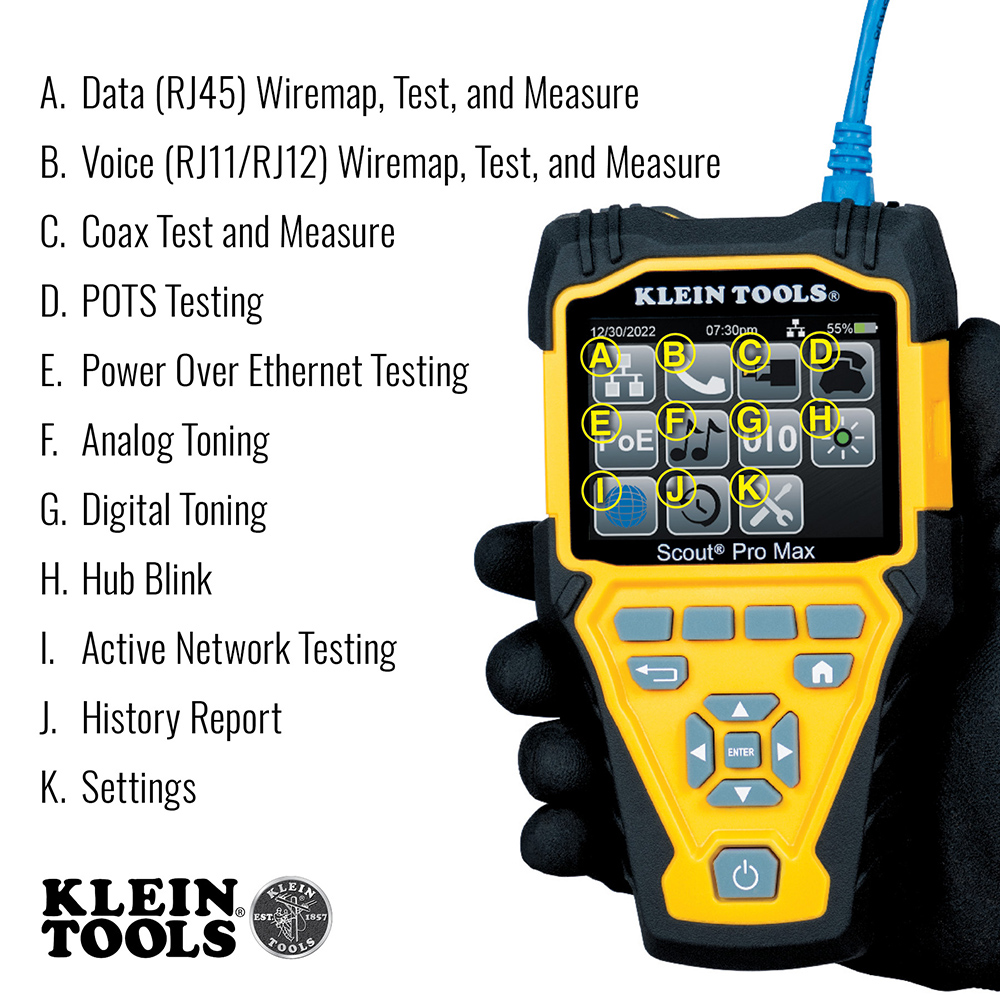

• Testing Functions: Hub blink, POTS, network detection, distance to fault (TDR), Active and Passive PoE
• Cable Identification: Includes 20 Location ID Remotes, Supports up to 41 remotes
