Klein Tools, VDV500-920, Tone Generator and Tracing Probe Set, 8 x AAA, ABS, Wire Toning and Tracing, 6.75 in Width, 13.3 in Height

Trace and locate network cables more effectively within bundles, at switches, patch panels or termination blocks. The Klein Tools Digital Tone and Probe Set offers digital and analog signaling all in one toner and probe. Designed with powerful cable tracing and locations technology for any work environment. Use the digital mode to trace and locate data cables on active networks. Use the analog mode to isolate individual wire pairs and trace voice, data, video and audio cables.

Features

• Wire mapping capabilities to check Pin-to-Pin connections with shield detection

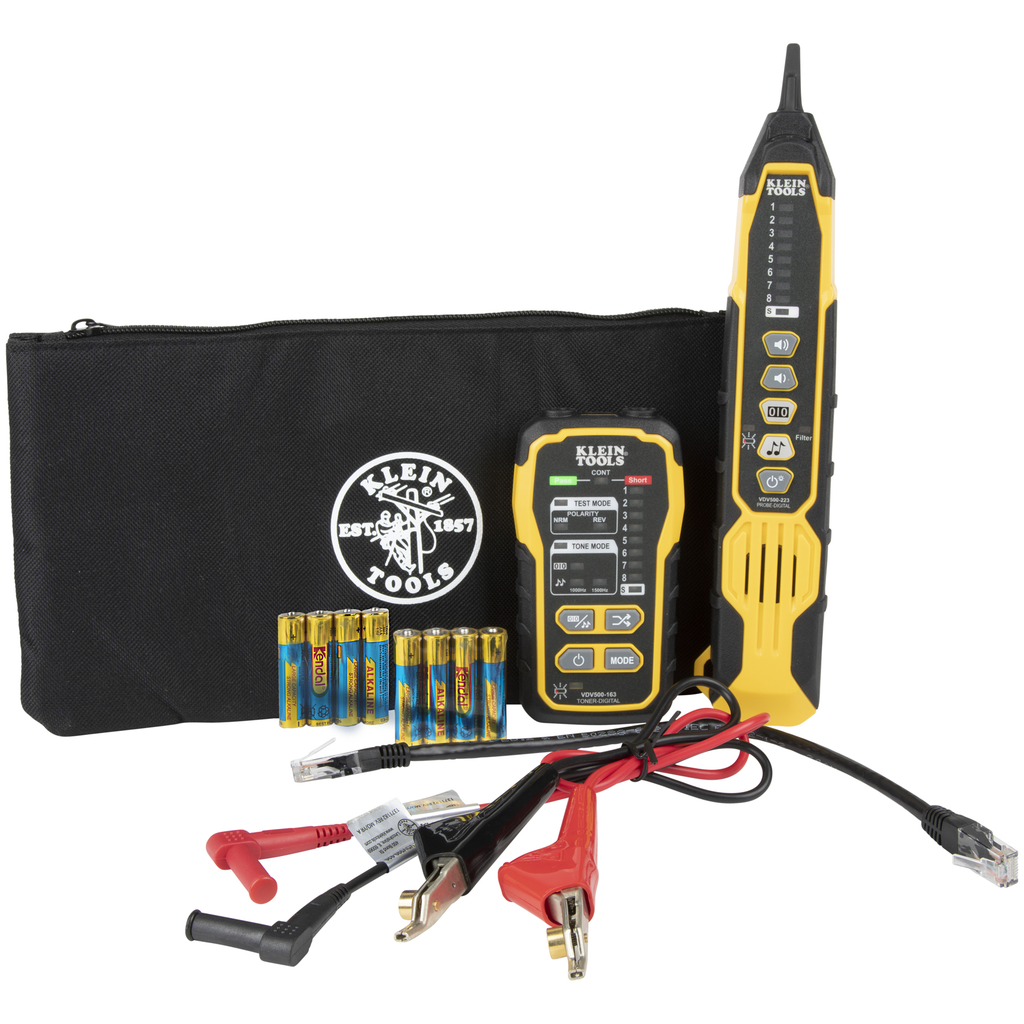

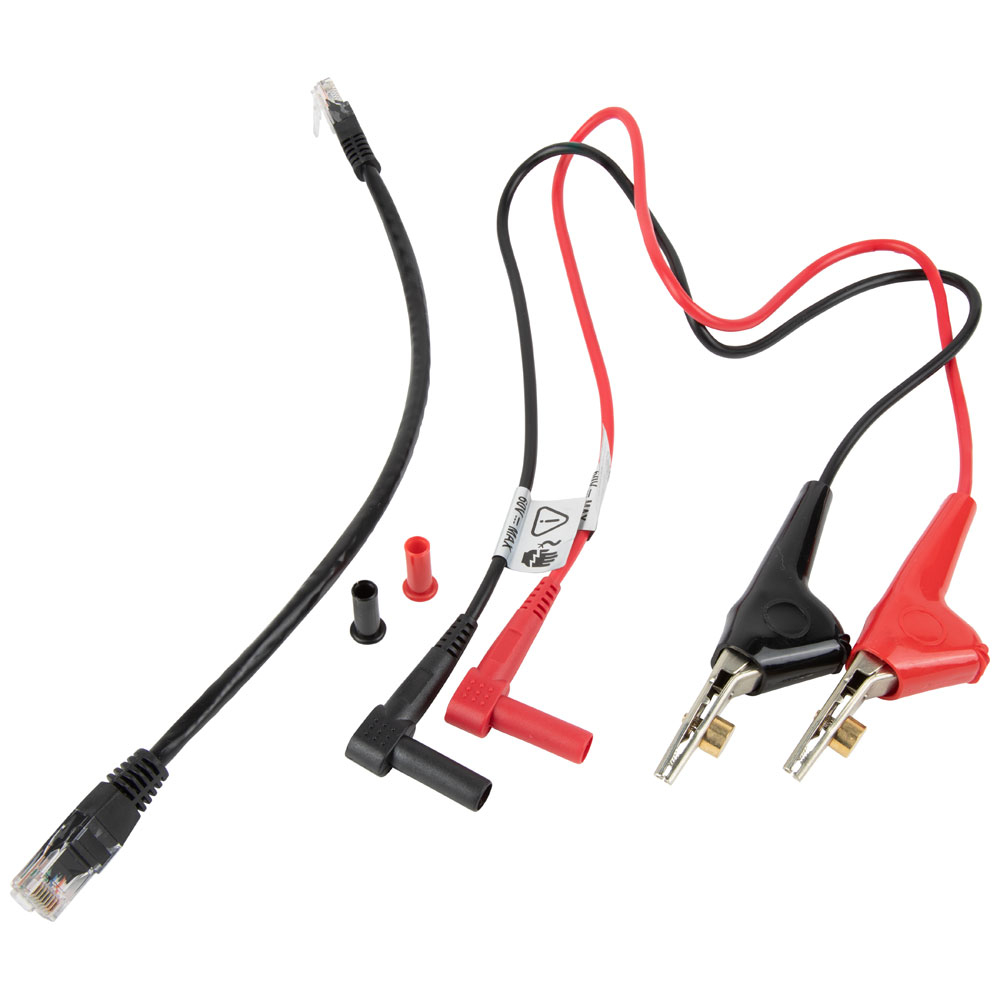

• Includes tone generator, tracing probe, various leads for testing, batteries, and instruction manual

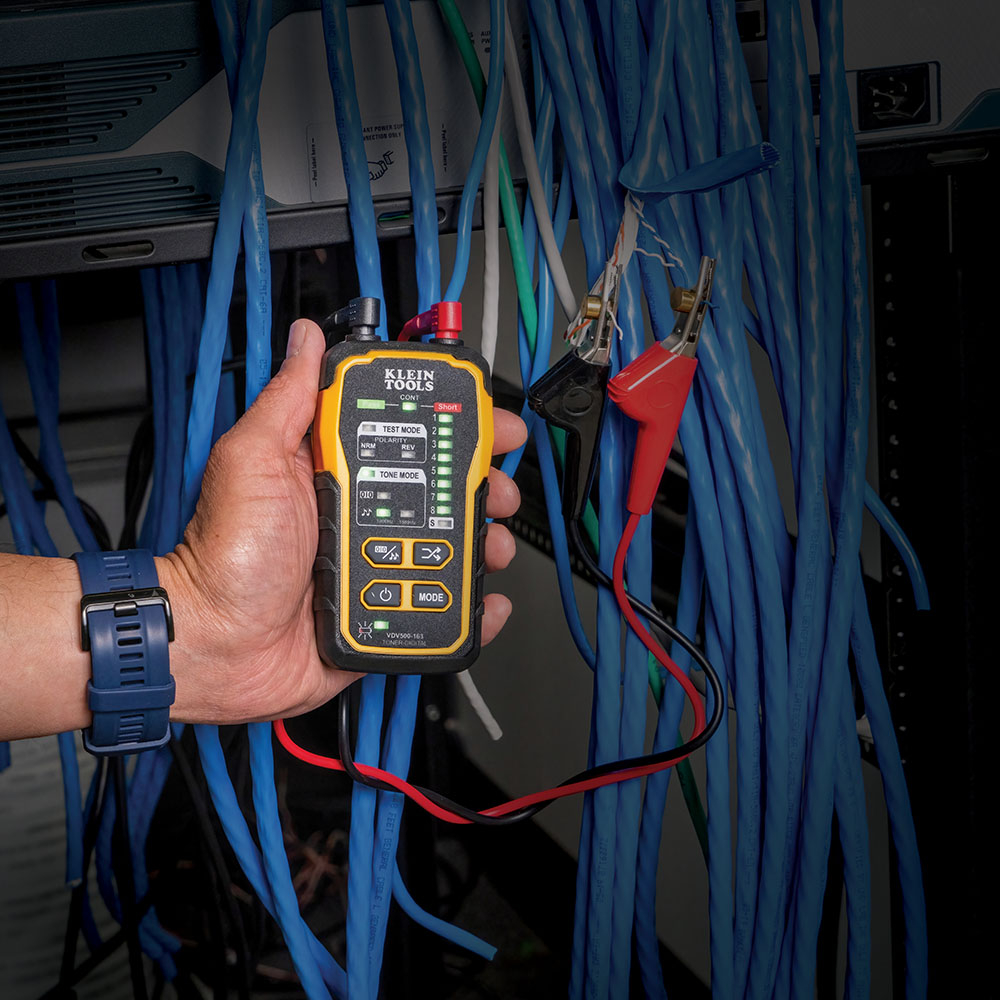

• Tone on cables connected to a switch or router without disconnecting cables

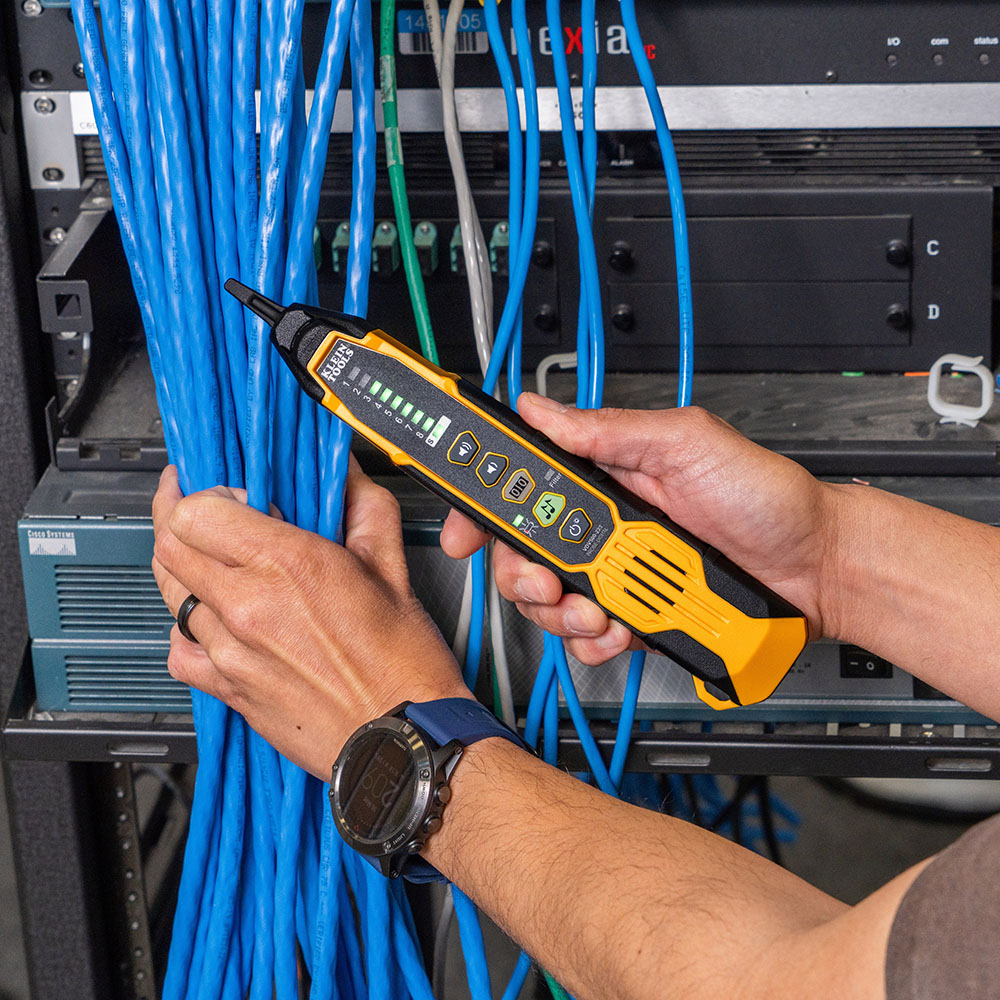

• Trace and locate cables on an active network

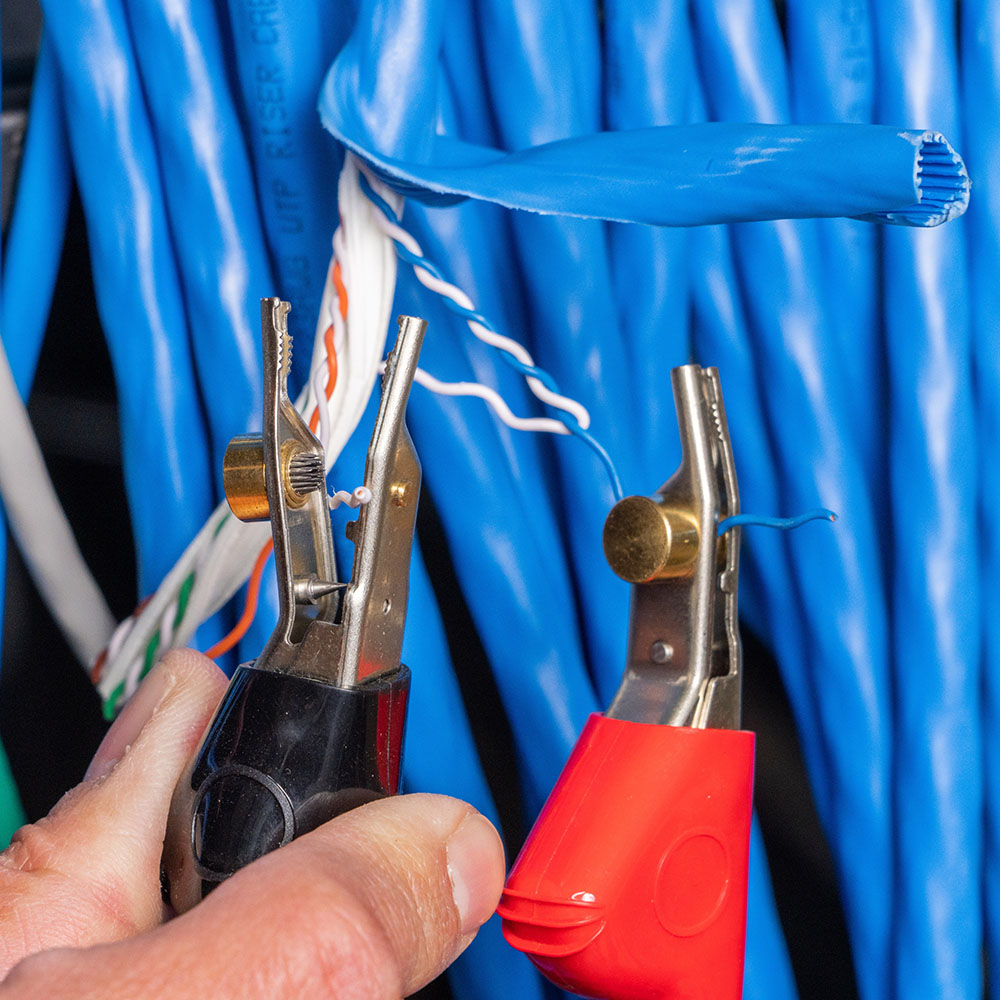

• Rugged Angled Bed of Nails (ABN) to trace on unstripped wires
• 60Hz filter for accurate tracing
• Angled Bed of Nails with (ABN) Clips, RJ45 Port, 3 Distinct Cadences, Worklight

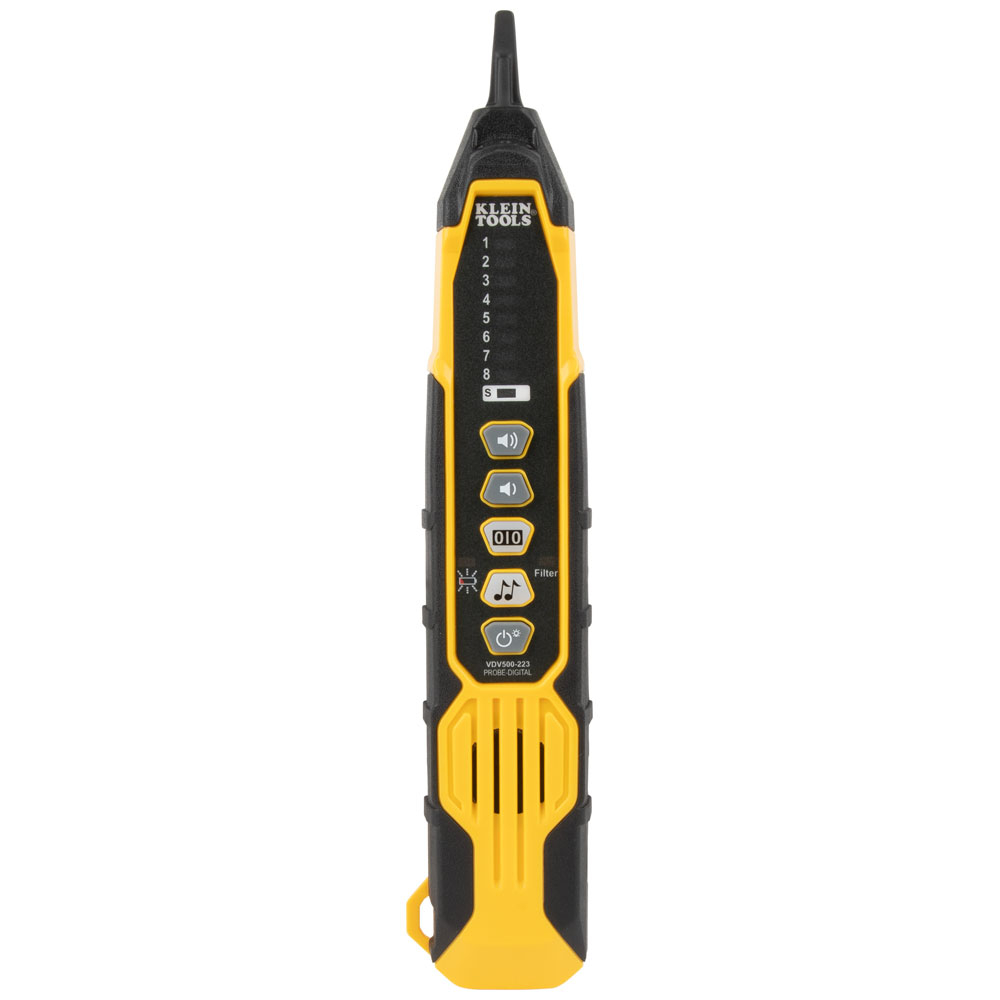

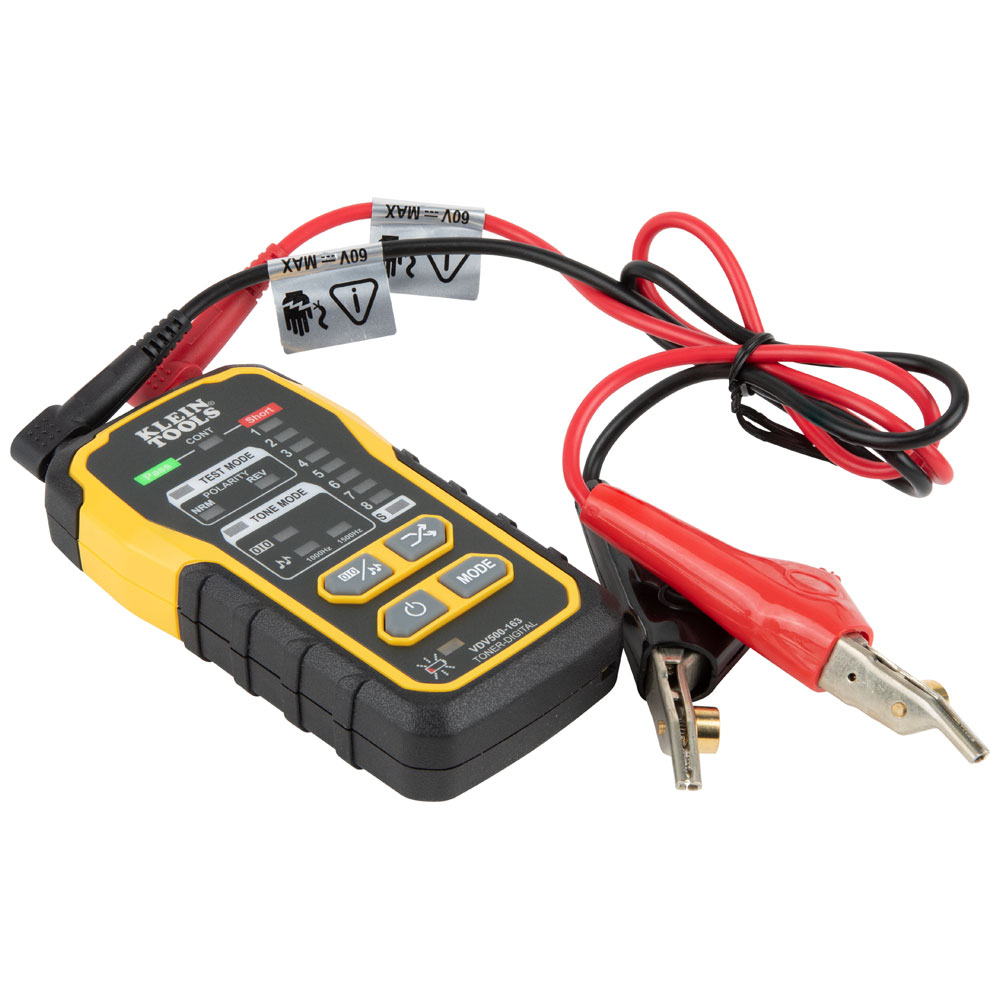

• Digital Tone Generator (Cat. No. VDV500-163) and Digital Wire Tracing Probe (Cat. No. VDV500-223) Set

Warnings

• Read instructions and safety information before using.
• Do not use instruments if they are wet, as it could pose a shock hazard.
• Do not use instruments if they are damaged in any way.

• Batteries: 8 x AAA
• Type: Tone Generator, Tracing Probe
• Functions: Tone generation, cable tracing, continuity and polarity testing, wire mapping

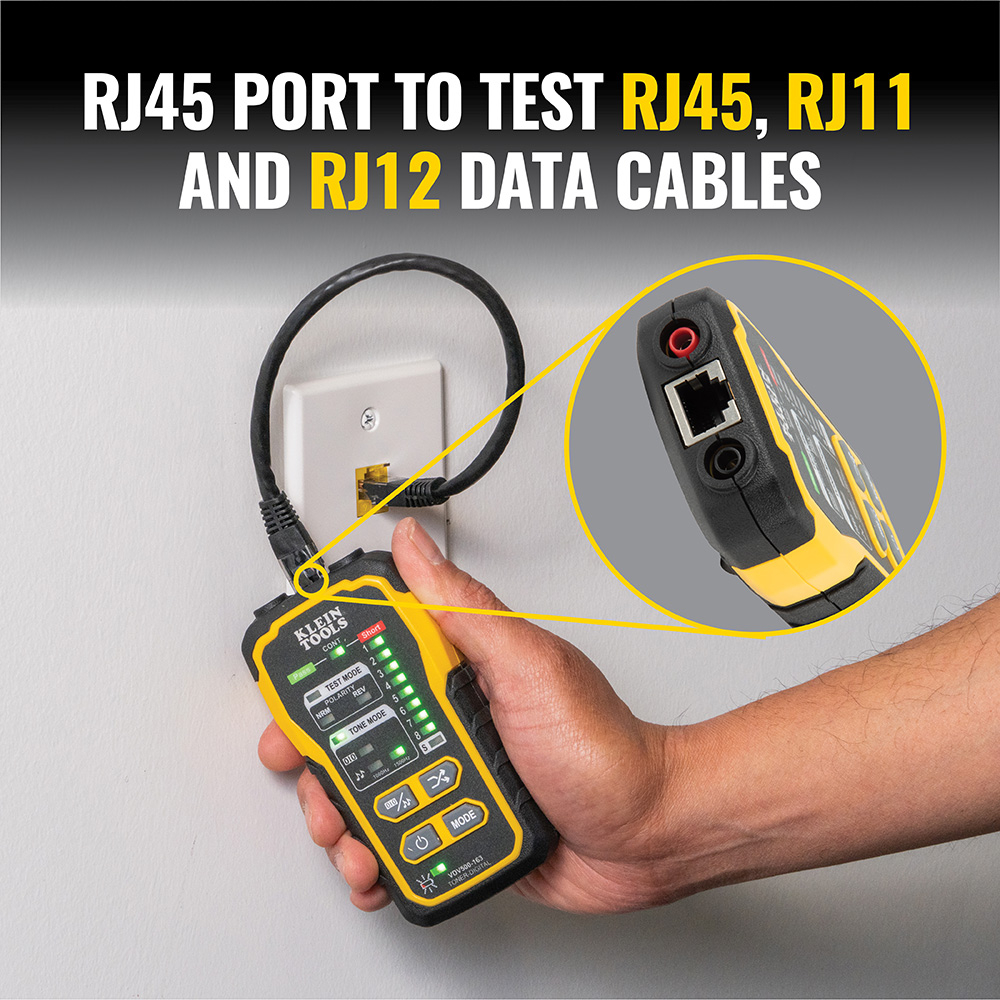

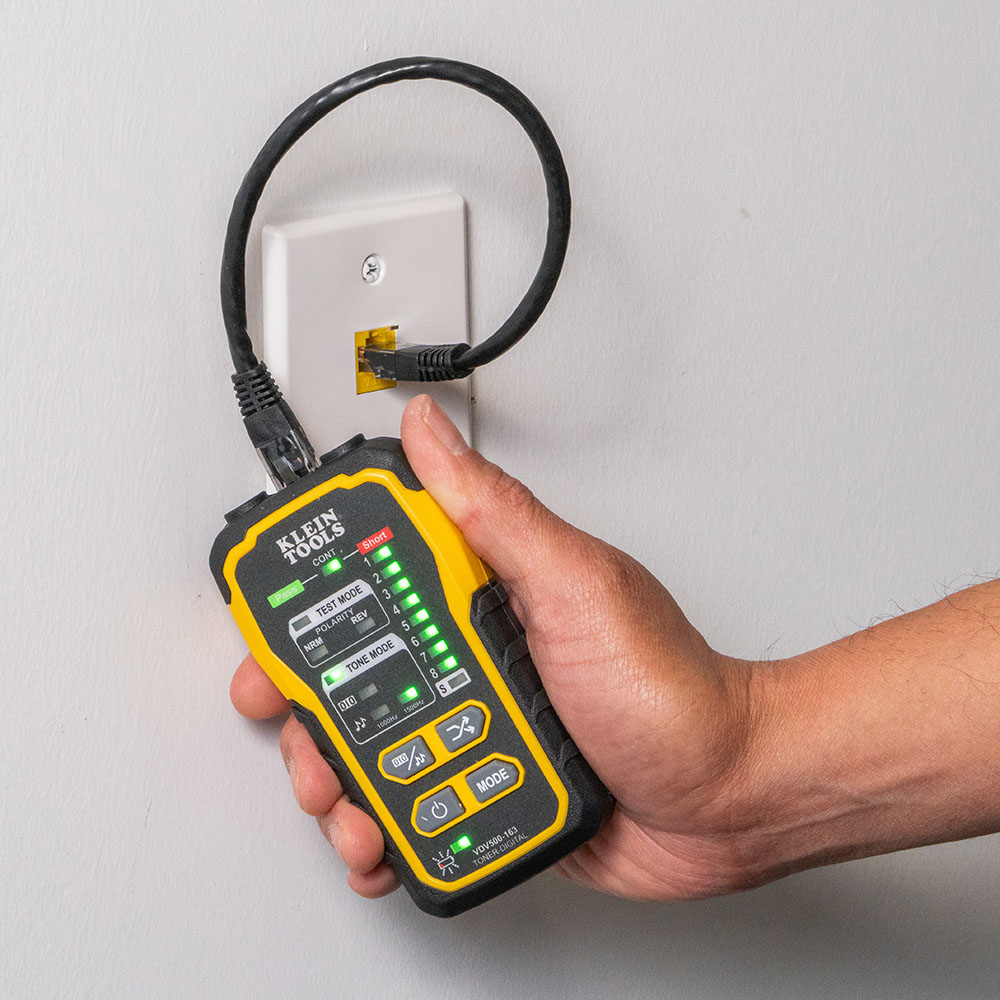

• Ports: RJ45 (RJ45, RJ11, RJ12 compatible)
• Continuity and Polarity Testing: Yes
• Tone Cadences: 3 distinct cadences
• Trace Frequency Filter: 60 Hz

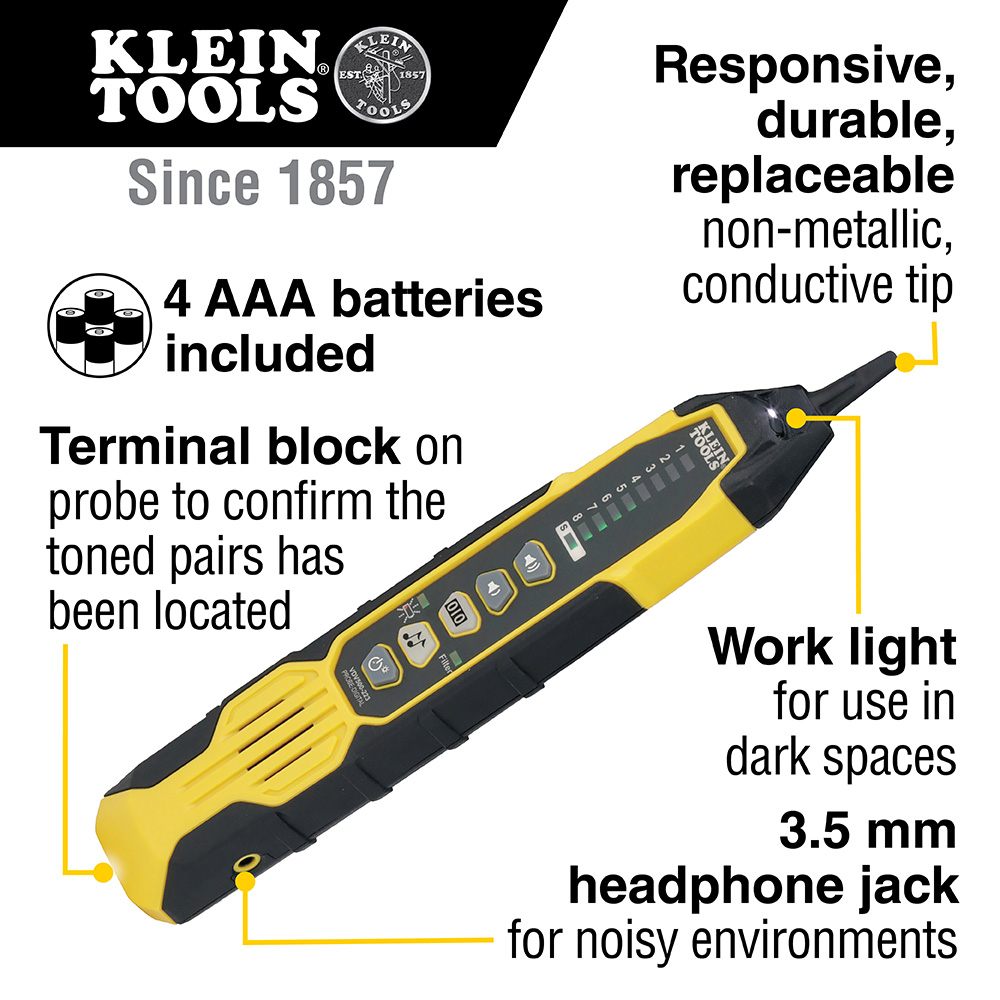

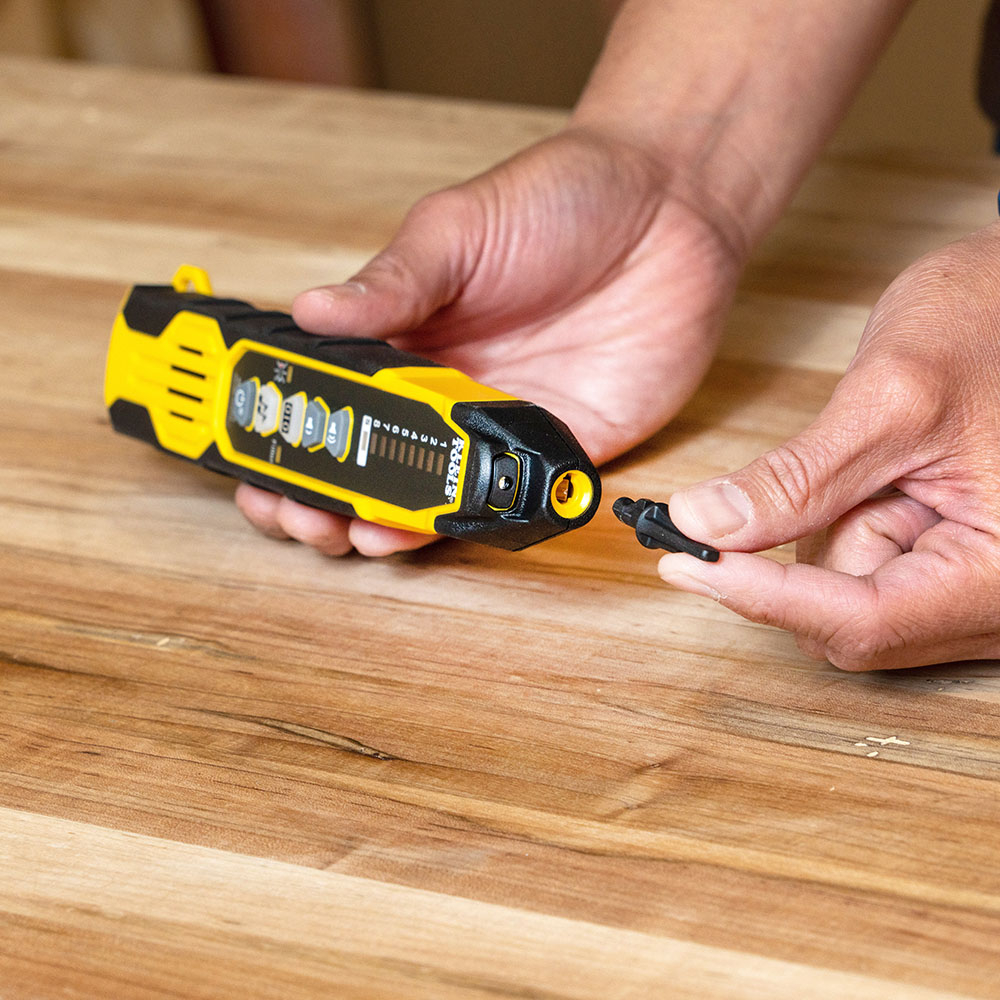

• Probe Tip: Non-metallic, replaceable conductive tip
• Clips: Rugged Angled Bed of Nails (ABN)
• Work Light: On probe tip
• Headphone Jack: 3.5 mm
• Application: Wire Toning and Tracing
• Material: ABS
• Overall Length: 6.8 in (17.3 cm)
• Overall Height: 13.3 in (33.8 cm)
• Height: 3 in
• Overall Width: 3 in (7.6 cm)
• Width: 6.75 in
• Depth: 13.25 in
• Weight: 1.4 lbs
