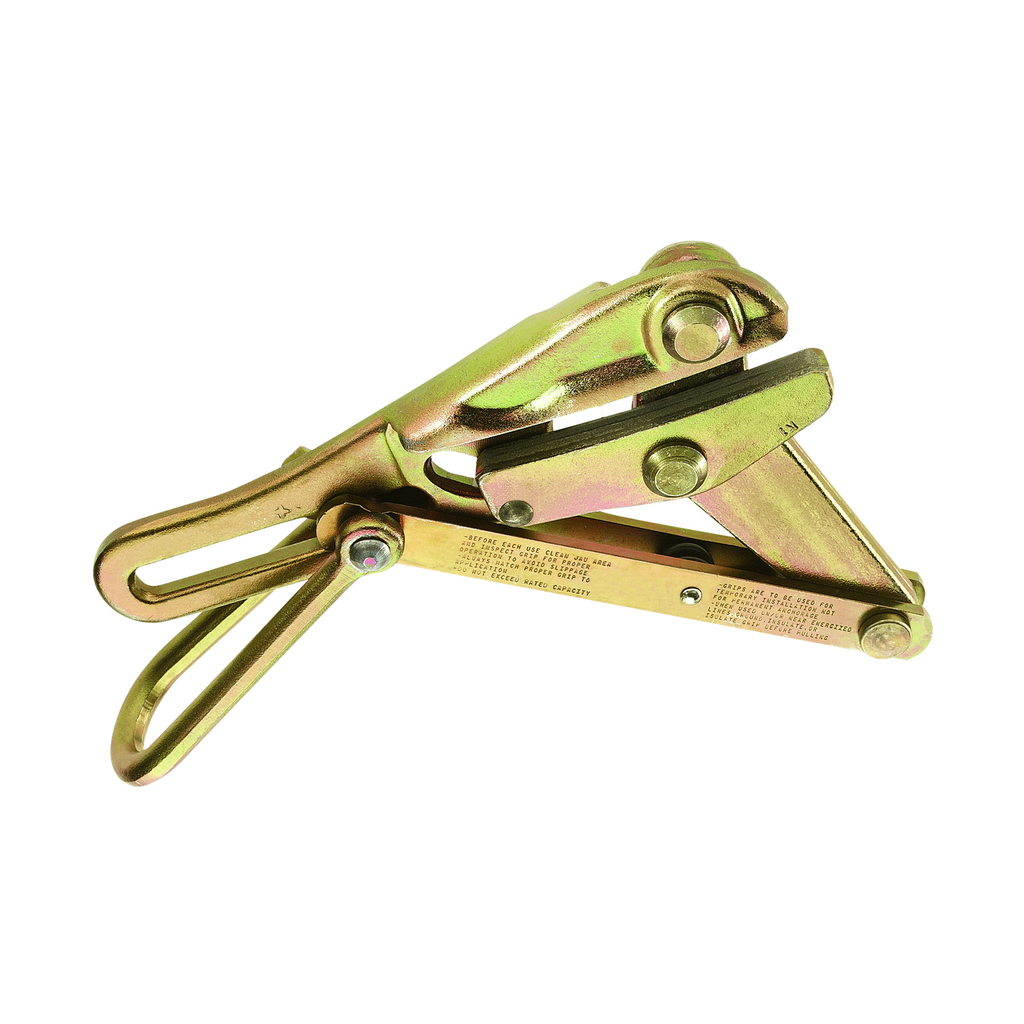

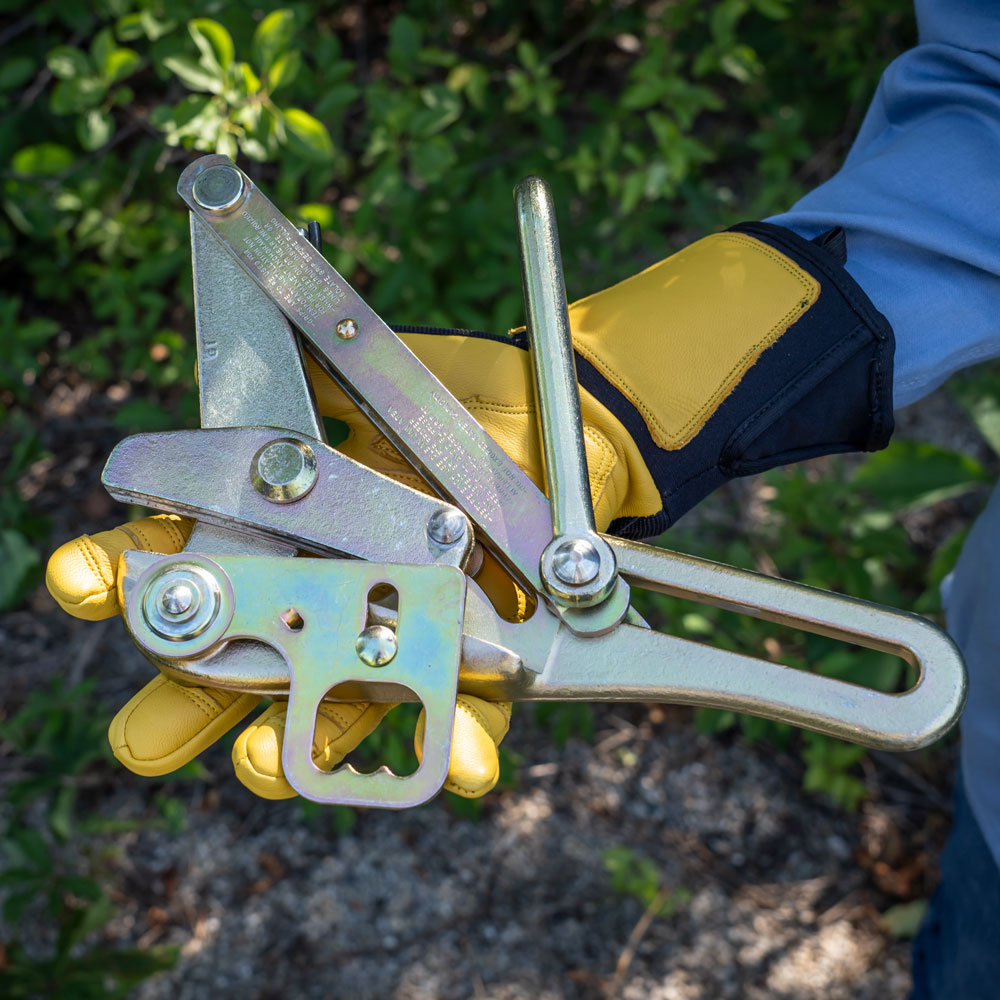

Klein Tools, S1684-74H, Chicago Grip, Steel, 9 in Length, 0.218 to 0.55 in Cable Diameter, 8000 lb Max Load

Designed for use on EHS (extra-high-strength) galvanized-steel cable. Double ''V'' contour reduces the possibility of slippage and damage to the cable. Manufactured in the United States to provide line workers with maximum strength and durability.

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Features

• To reduce the possibility of slippage and damage to the cable, the jaws of this grip are milled on a curve with a double ''V'' contour
• Available with hot-line latch and spring
• Made in USA to provide line workers with maximum strength and durability

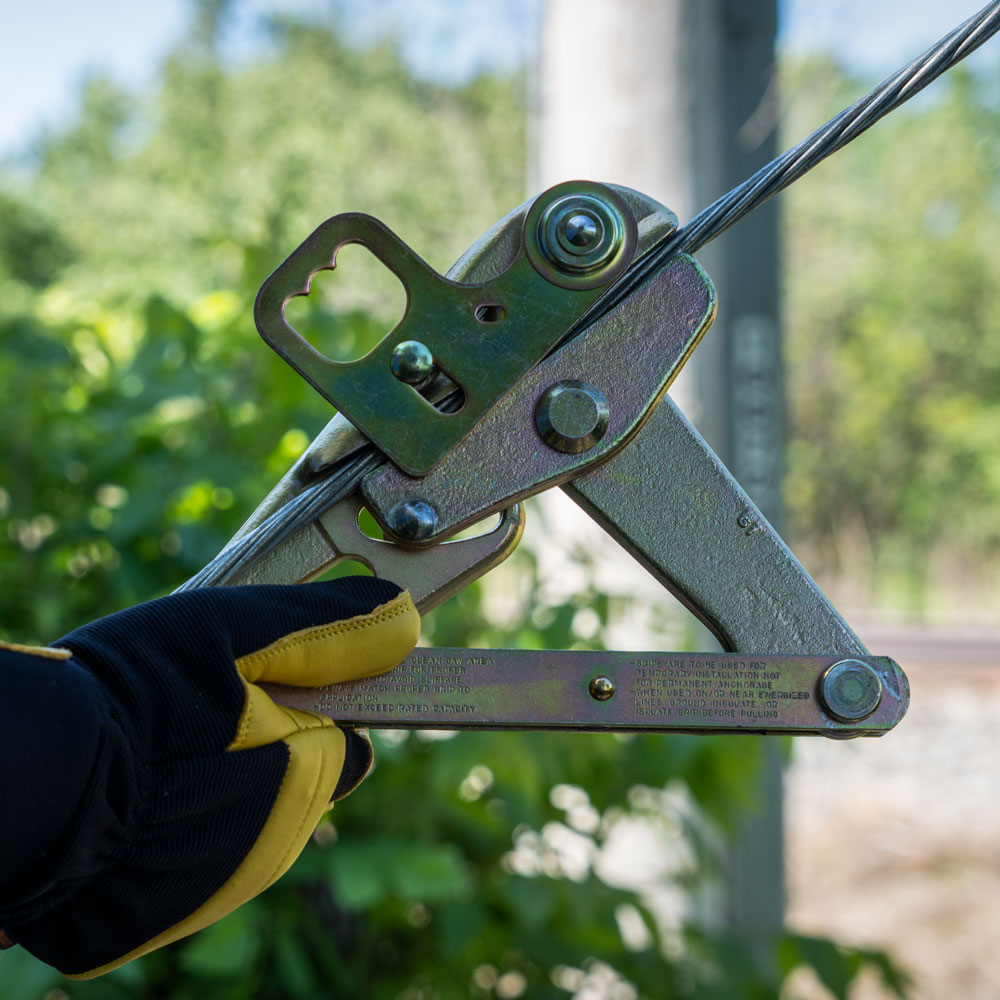

• When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip

• Maximum Safe Load: 8000 lb (3629 kg)
• Application: Wire Pulling
• Cable Diameter: 0.218 in to 0.55 in (5.54 to 13.97 mm)
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Overall Length: 9 in (22.9 cm)
• Overall Width: 7.203 in (18.3 cm)
• Overall Height: 2.25 in (5.7 cm)
• Width: 7.2 in
• Height: 2.25 in
• Depth: 9 in
• Jaw Length: 5 in (12.7 cm)
• Jaw Type: Double V
• Teeth Type: Milled, Curved
• Spring: Yes
• Locking Handle: Yes
• Hot Latch: Yes
• Swing Latch: No
• Material: Steel
• Weight: 5.85 lb
• Type: Chicago Grip
• Country of Origin: United States
