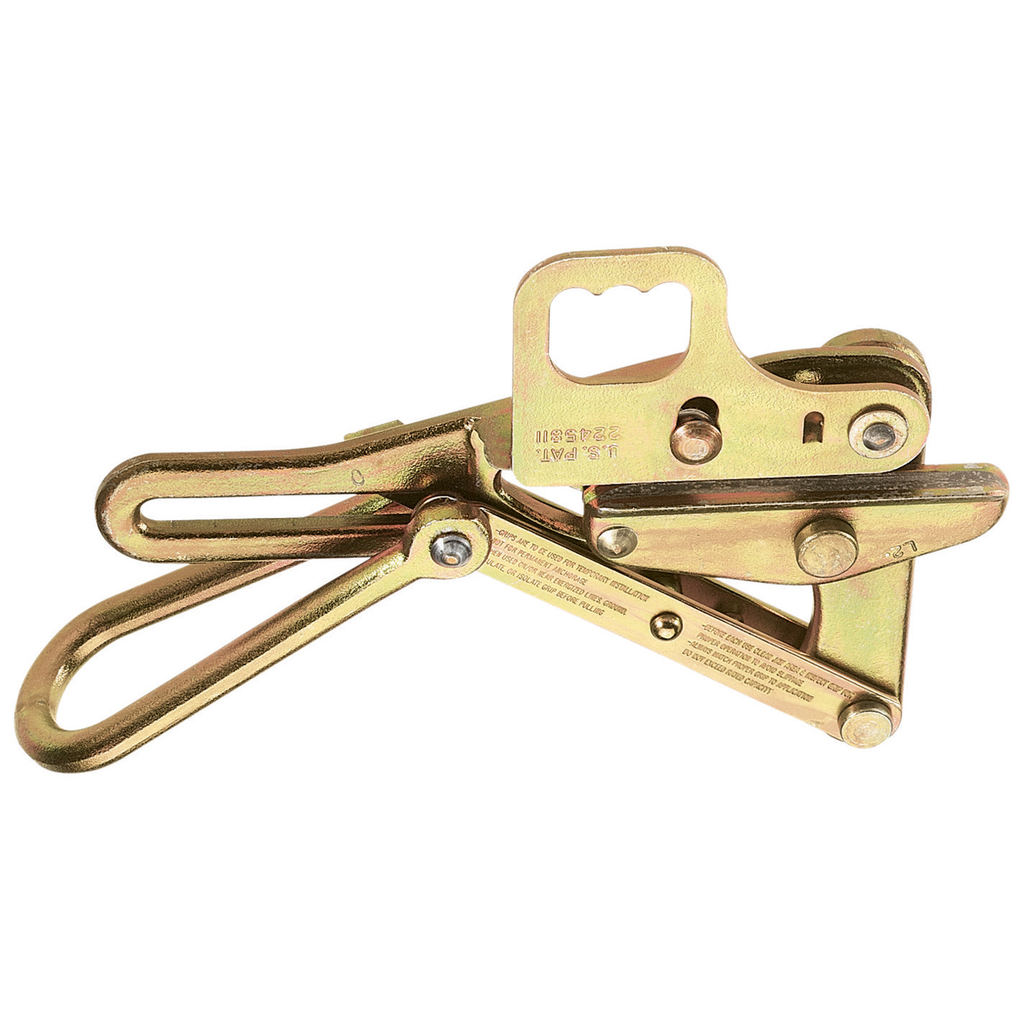

Klein Tools, S1684-5H, Chicago Grip, Hot-Line; Double V Jaw, Max Load 8000 lb, Cable Dia 0.218 to 0.55 in

The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors are for both bare and insulated conductors . The Klein S1684-5H Chicago Grip-with Hot-Line Latch for Bare Conductors grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Features

• Made in USA
• Jaw length: 5-Inch
• Standard hot-line grips are not supplied with springs or lock-open features
• Double V inside-jaw contour
• Maximum Safe Load: 8000-Pound (3629 kg)
• Works with Aircraft, EHS, Messenger, Guy Strand cable
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.218 in to 0.55 in (5.54 to 13.97 mm)
• Overall Length: 14.75 in (37.5 cm)
• Overall Height: 8.63 in (21.9 cm)
• Overall Width: 2.38 in (6 cm)
• Jaw Length: 5 in (12.7 cm)
• Height: 3 in
• Width: 8 in
• Depth: 10 in
• Material: Steel
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Type: Chicago Grip
• Application: Wire Pulling
• Teeth Type: Smooth
• Locking Handle: Yes
• Spring: Yes
• Hot Latch: Yes
• Swing Latch: No
