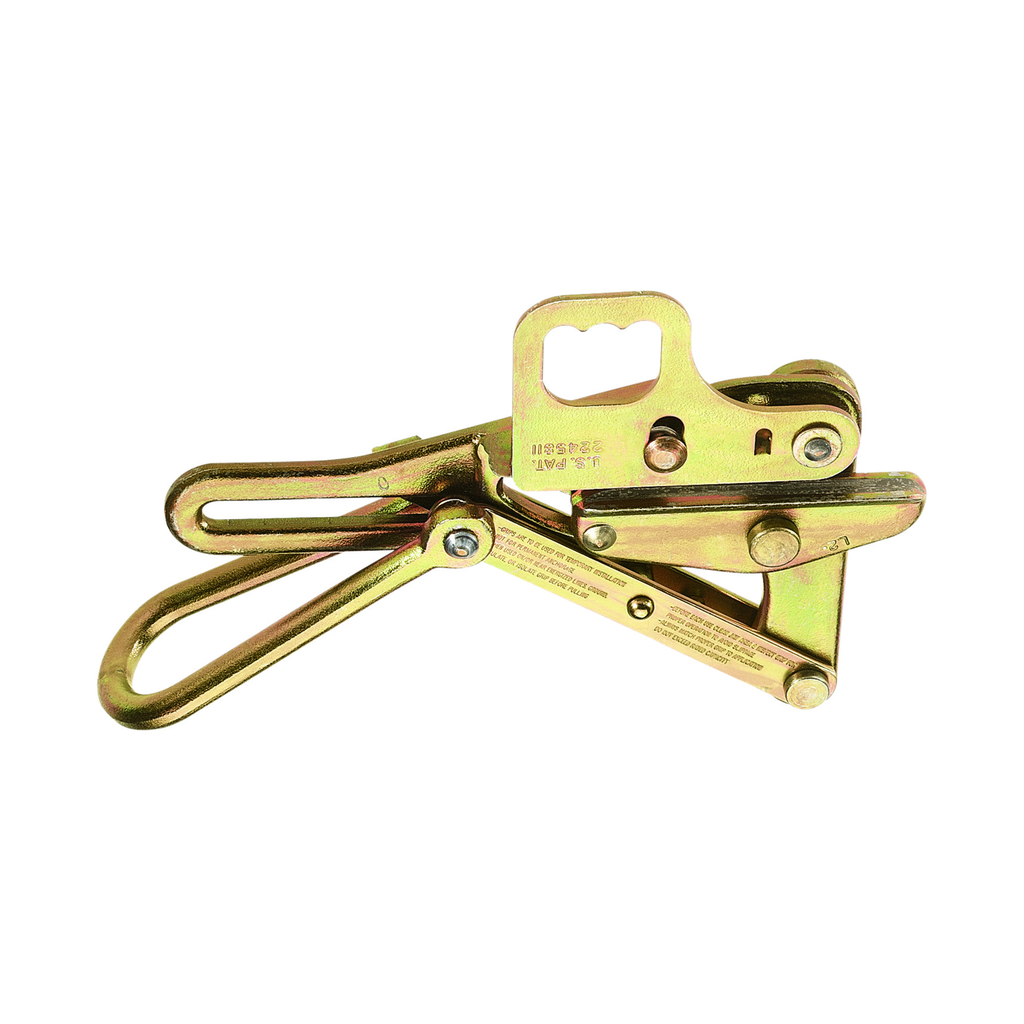

Klein Tools, S1656-30H, Chicago Grip, 4-7/8 in Jaw Length, 4500 lb Maximum Safe Load, Round Jaw Type, Copper/ACSR/AAC Cable

The Klein S1656-30H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-30H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Features

• Jaw length: 4-7/8-Inch
• Maximum safe load of 4,500 pounds
• Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
• Standard hot-line grips are not supplied with springs or lock-open features
• Made in USA
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.1 to 0.53 in (7.87 to 13.46 mm)
• Jaw Length: 4.75 in (12.1 cm)
• Weight: 4 lb
• Material: Steel
• Locking Handle: Yes
• Spring: Yes
• Jaw Type: Round
• Teeth Type: Smooth
• Hot Latch: Yes
• Application: Wire Pulling
• Type: Chicago Grip
• Cable Type: Copper, ACSR, AAC
• Swing Latch: No
• Country of Origin: USA
