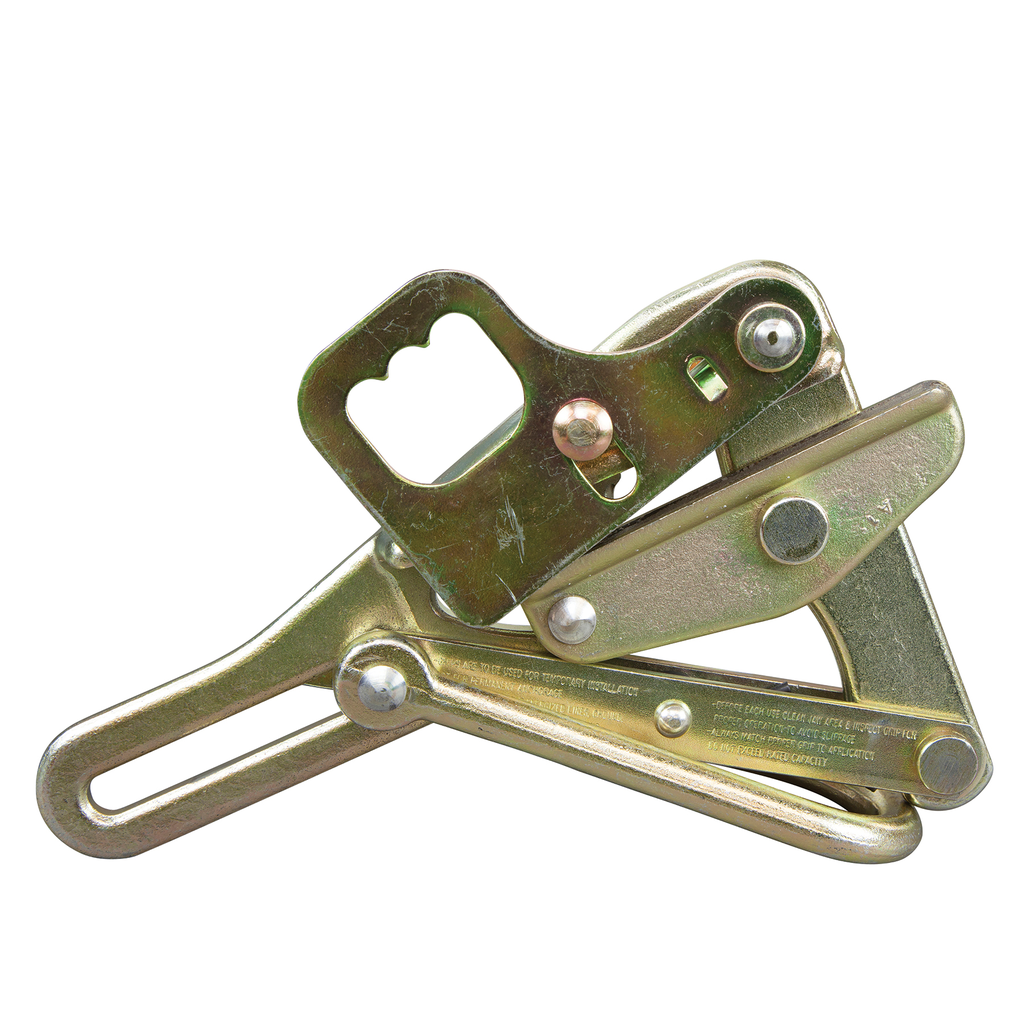

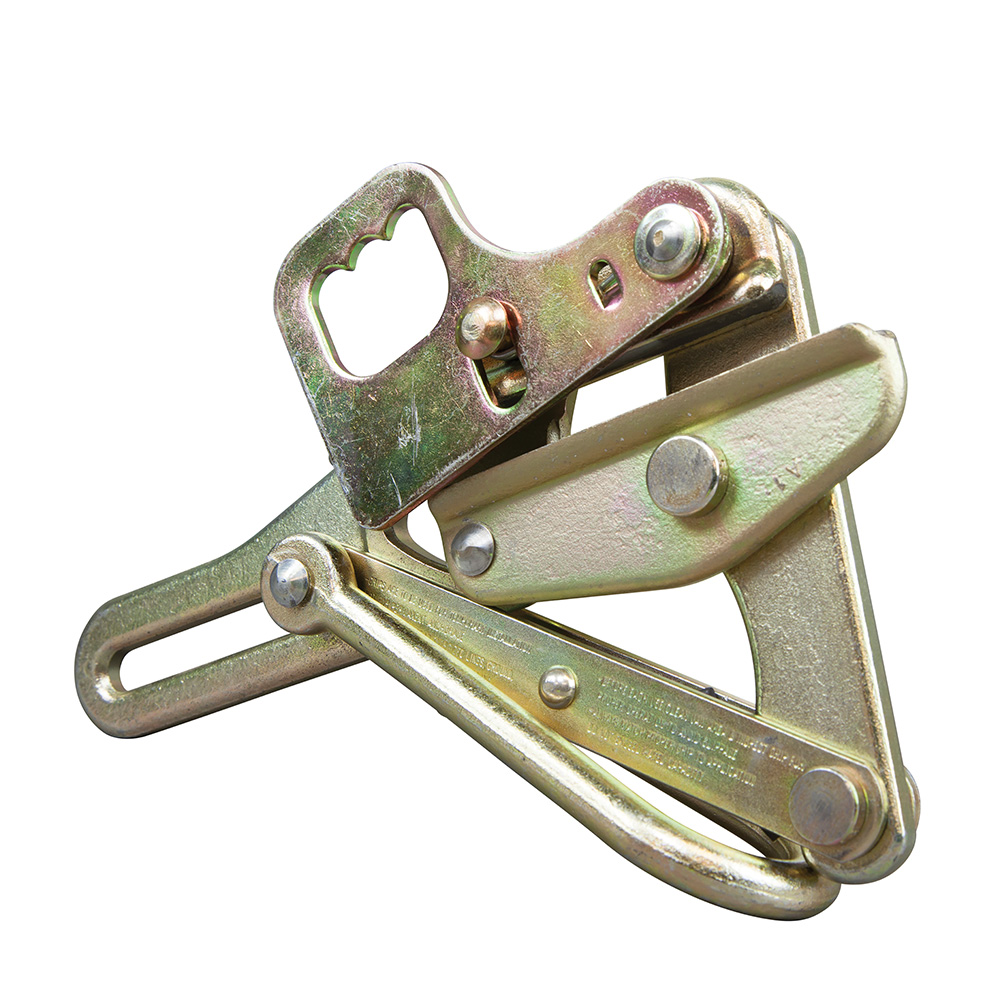

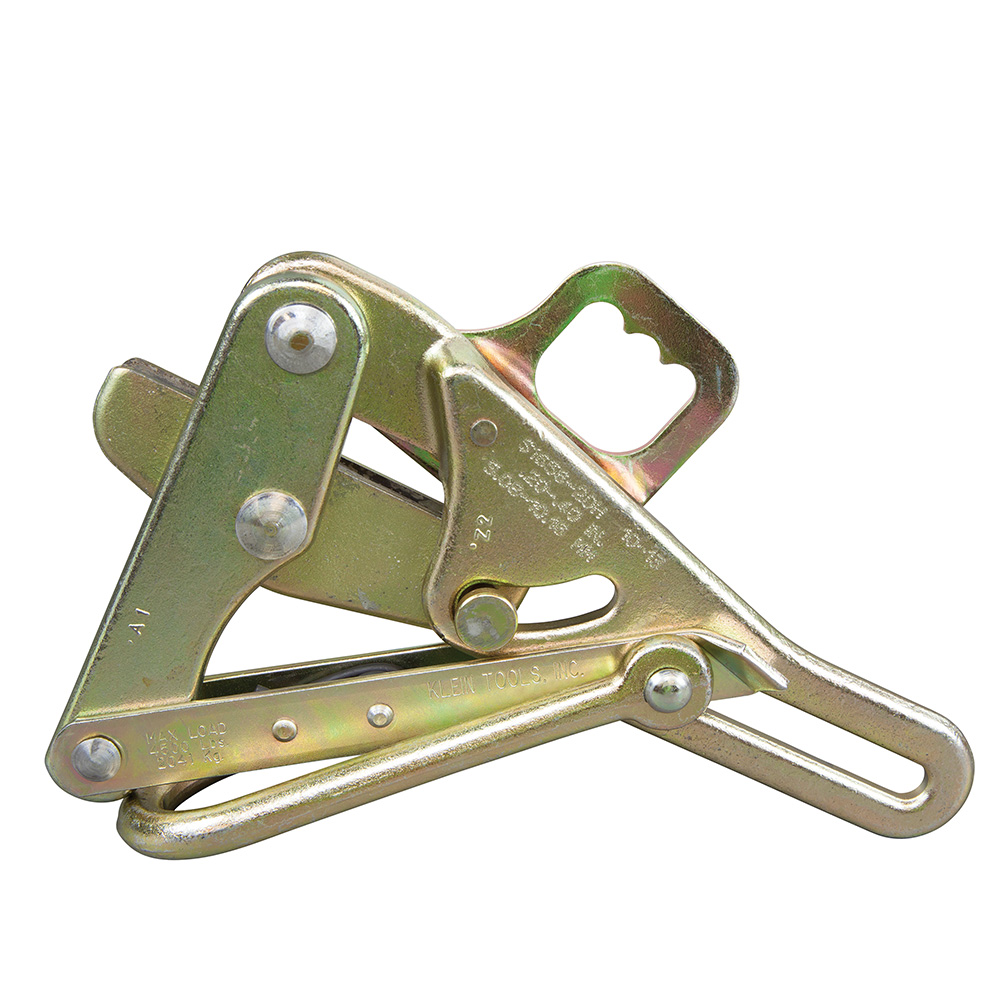

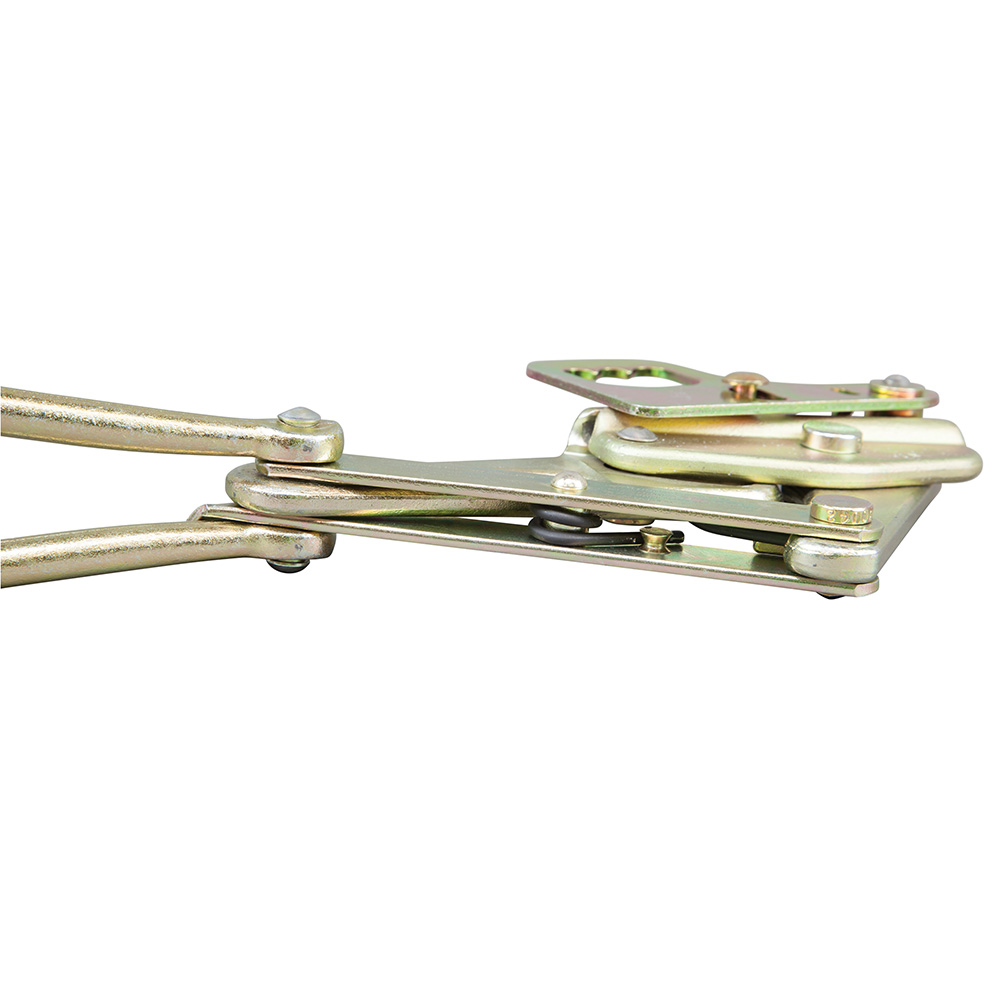

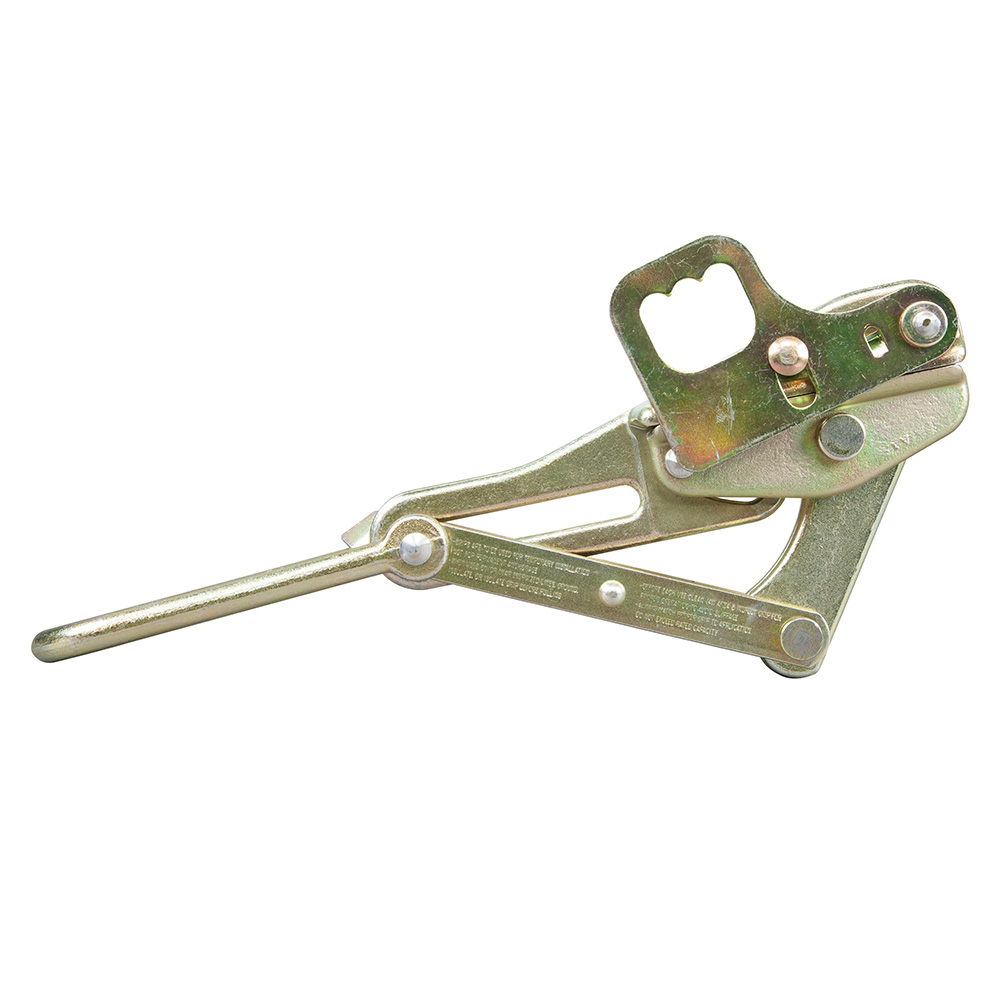

Klein Tools, S1656-20H, Chicago Grip, Hot-Line Latch, Jaw Length 4 in, Cable Diameter 0.2 to 0.4 in, Maximum Safe Load 4500 lb

The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors is for both bare and insulated conductors. The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire.

Features

• Jaw length: 4-3/16-Inch
• The Klein S1656-20H Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
• Made in USA
• Standard hot-line grips are not supplied with springs or lock-open features
• Maximum safe load of 4,500 pounds
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.2 to 0.4 in (5.08 to 10.16 mm)
• Overall Length: 12.5 in (31.8 cm)
• Overall Width: 2.13 in (5.4 cm)
• Depth: 8 in
• Height: 2 in
• Width: 6 in
• Jaw Length: 4 in (10.2 cm)
• Weight: 0.1 lb
• Material: Steel
• Cable Type: Copper, ACSR, AAC
• Type: Chicago Grip
• Application: Wire Pulling
• Hot Latch: Yes
• Swing Latch: No
• Spring: Yes
• Locking Handle: Yes
• Jaw Type: Round
• Teeth Type: Smooth
