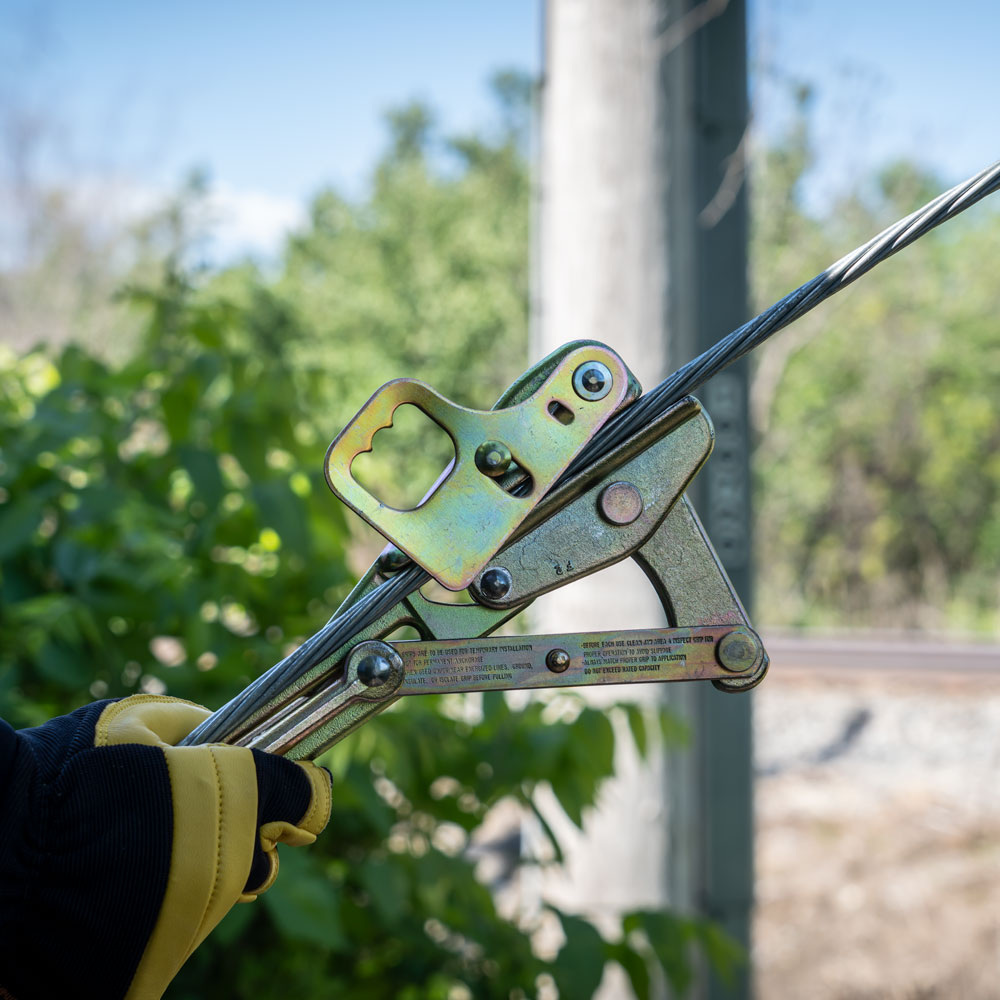

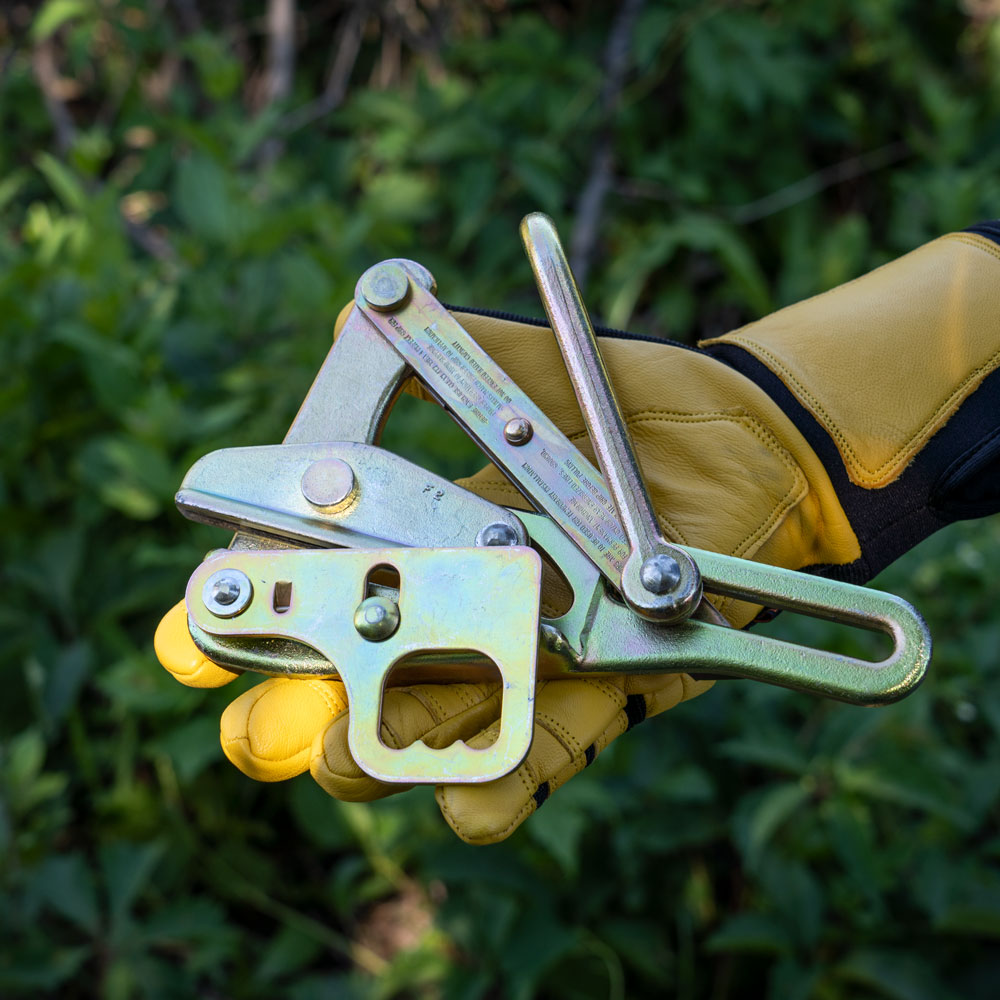

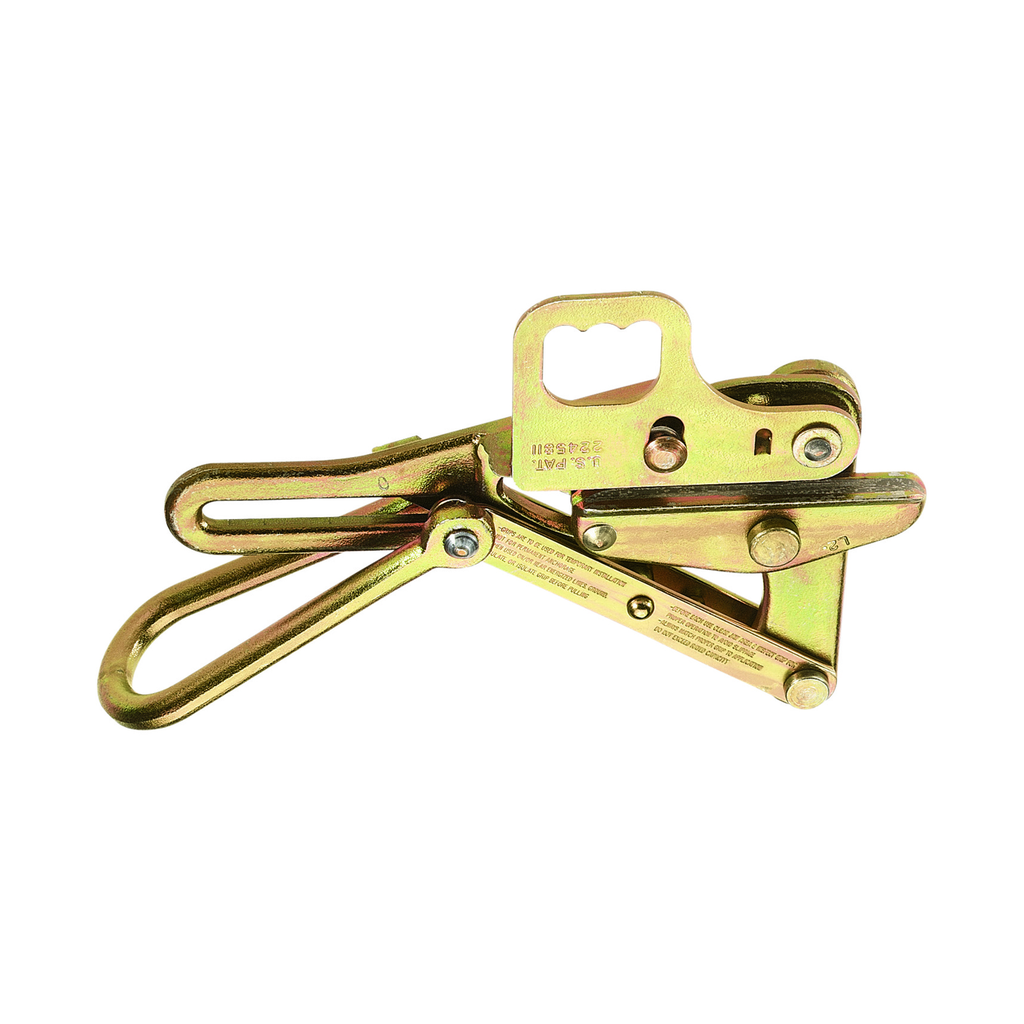

Klein Tools, S1613-40H, Chicago Grip, Hot Latch, 0.12 to 0.37 in Cable Diameter, 4500 lb Max Load, 4-3/16 in Jaw Length

Klein Tools hard hats are designed and engineered for optimal safety, comfort and fit. Unique features allow the user to comfortably work in a wide variety of applications and demanding environments. Patent pending accessory mounts on front and back ensure optional Klein headlamps attach securely - no straps needed.

Features

• Grip has a hot latch and can be used with a hot-line stick
• Designed for EHS (Extra-High-Strength)
• Made in USA
• Cable diameter range 0.12 to 0.37-Inch (3.05 to 9.40 mm)
• Messenger and Guy Strand Cable
• Has Double V inside-jaw contour
• 4500-Pound maximum safe load
• Locking handle keeps jaw open while grip is placed on cable with a hot stick
• 4-3/16-Inch jaw length

Warnings

• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.12 in to 0.37 in (3.05 to 9.4 mm)
• Weight: 3.2 lb (1.4 kg)
• Application: Wire Pulling
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Type: Chicago Grip
• Hot Latch: Yes
• Swing Latch: No
• Spring: Yes
• Locking Handle: Yes
• Jaw Type: Double V
• Teeth Type: Smooth
• Jaw Length: 4.188 in (10.6 cm)
• Material: Steel
• Origin: USA

Downloads

Instructions
