Klein Tools, NCVT5KIT, Electrical Test Kit, Dual-Range Non-Contact AC Voltage Tester, 12-1000V AC, GFCI Receptacle Tester, Laser Pointer

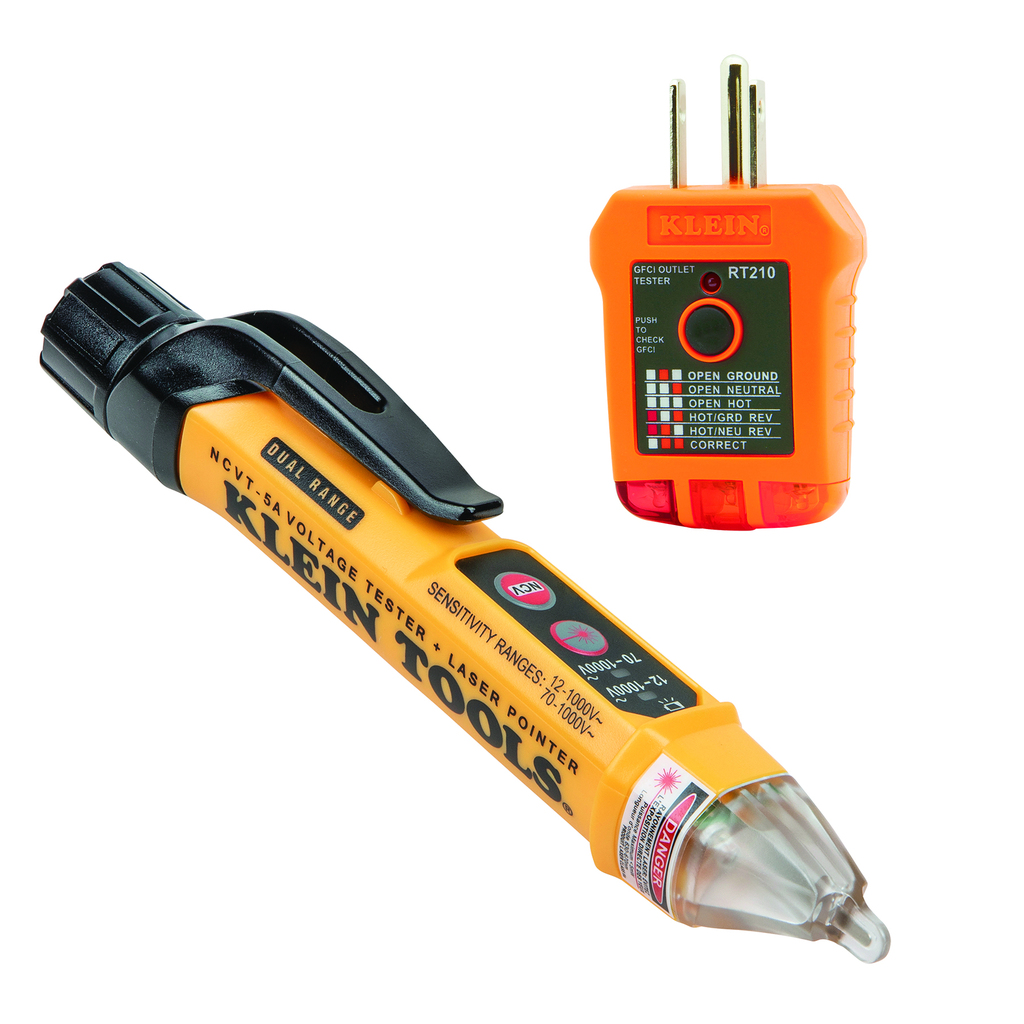

The NCVT5KIT includes a dual-range non-contact voltage tester with laser pointer featuring a Class IIIa laser (21CFR1040.10 and 1040.11 - IEC60825-1 Ed.3) with an output power of less than or equal to 5mW at 630-670nm, and a GFCI receptacle tester. The NCVT-5A automatically detects and indicates voltage (12 - 1000V) allowing broad application. The RT210 will troubleshoot the most common wiring problems in standard and GFCI receptacles.

Features

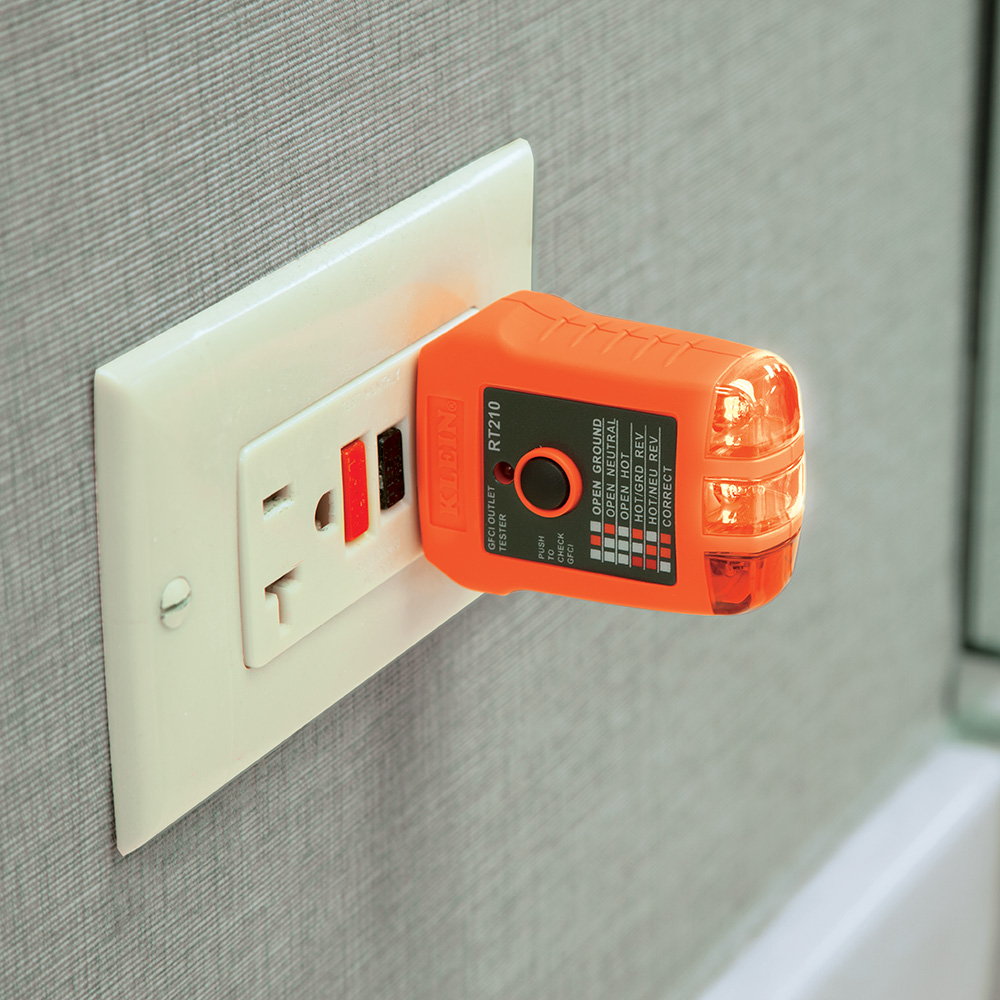

• Works on GFCI outlets and confirms operation of the ground fault protective device

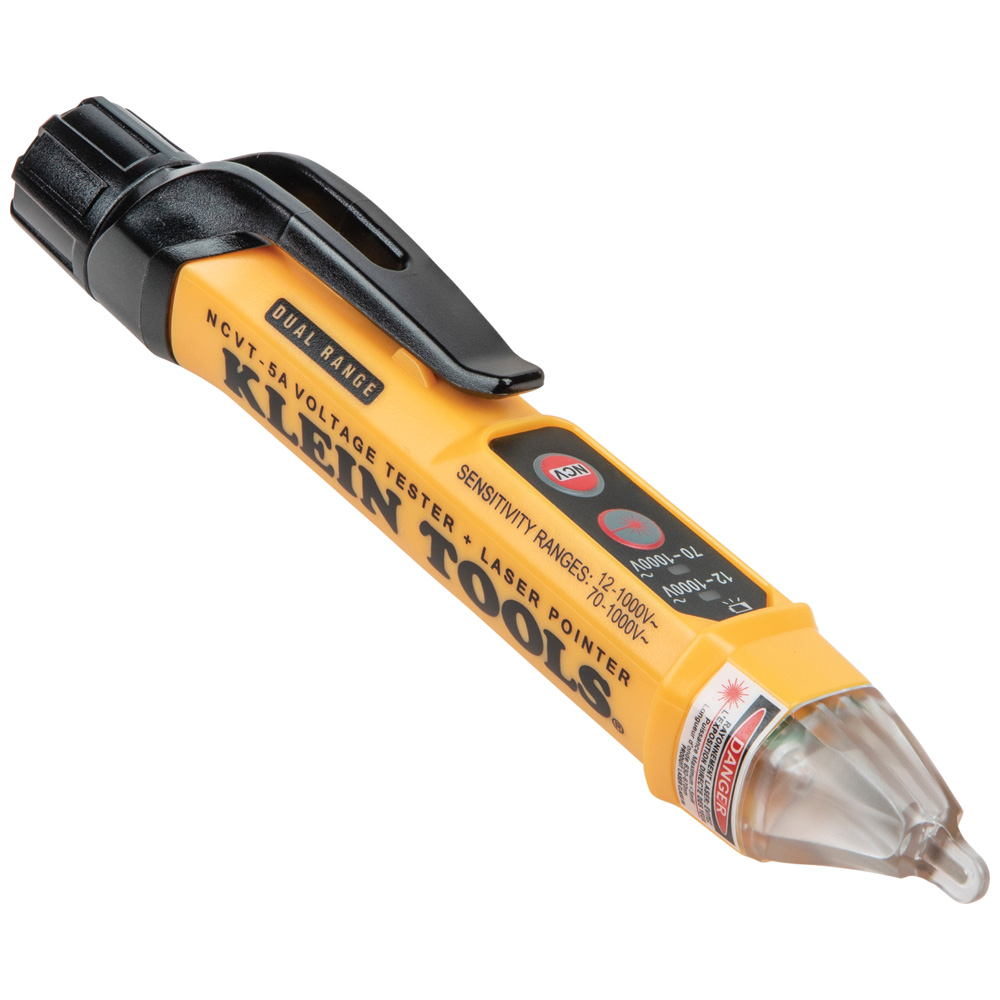

• NCVT-5A delivers simultaneous visual and audible voltage indicators when AC voltage is detected
• Class IIIa laser (21CFR1040.10 and 1040.11 - IEC60825-1 Ed.3) with an output power of less than or equal to 5mW at 630-670nm

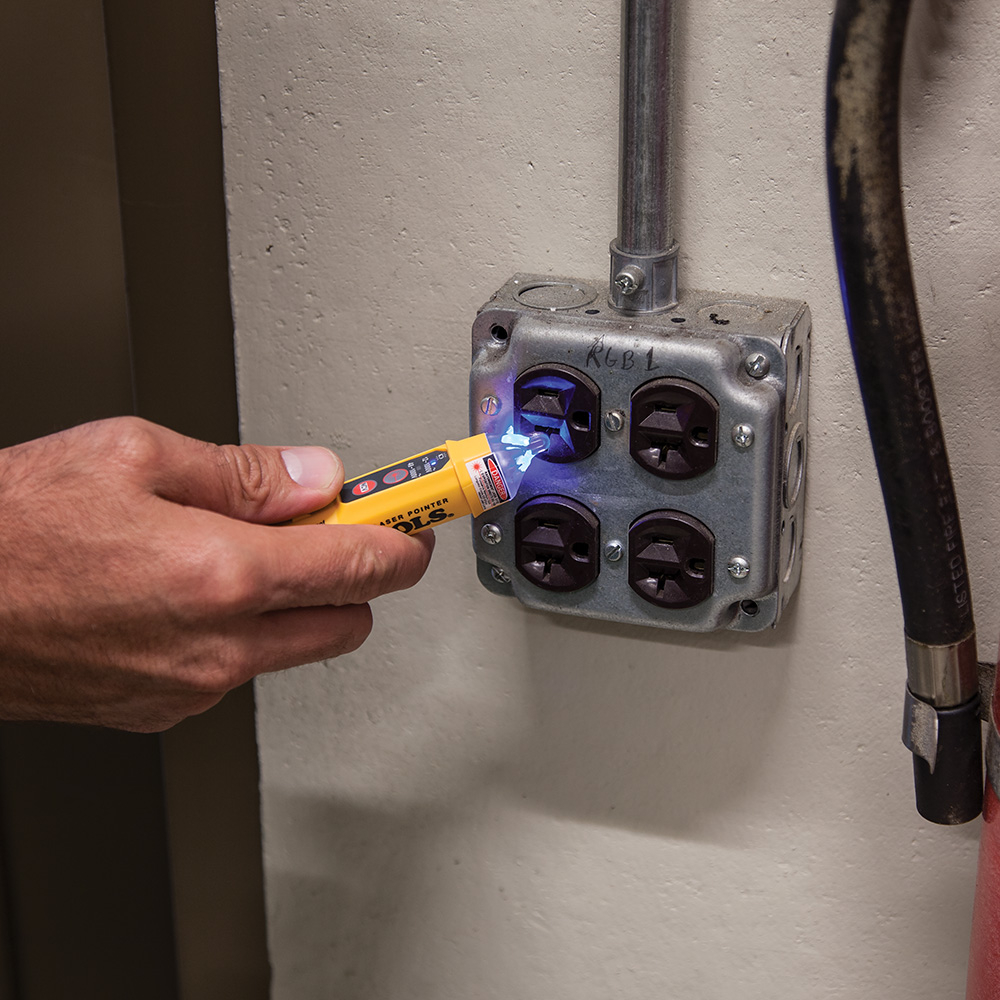

• NCVT-5A provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
• Dual-range testing: select 12 to 1000V AC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems, or select 70 to 1000V AC which is perfect for detecting systems such as electrical mains supply
• Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985

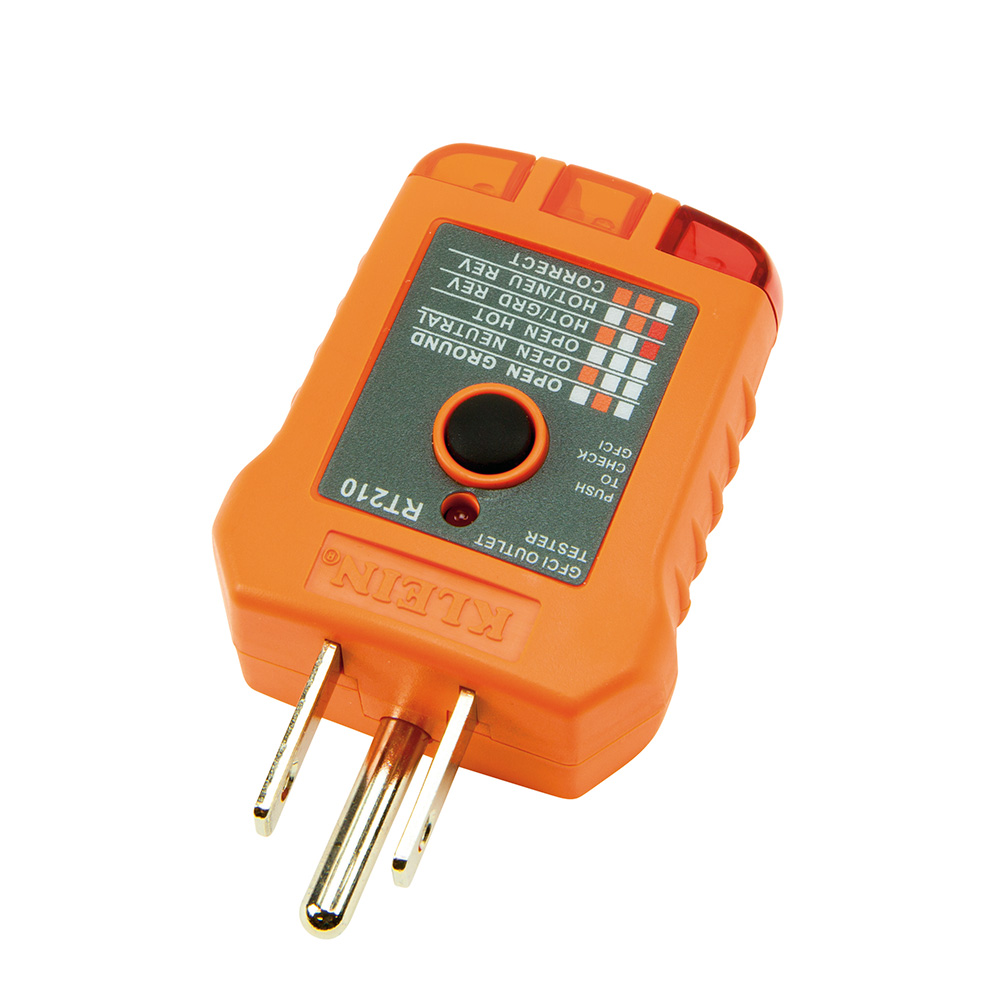

• Conditions the RT210 indicates: open ground, reverse polarity, open hot, open neutral, hot/ground reversed

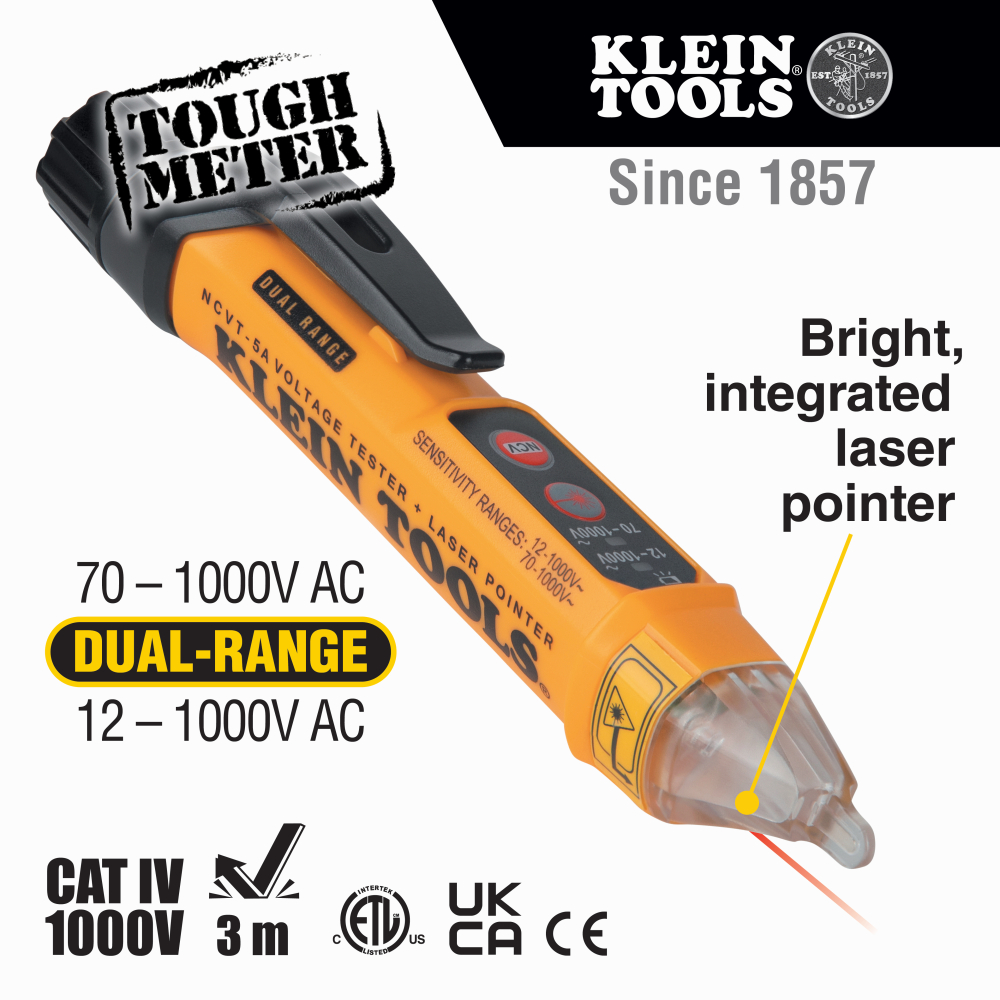

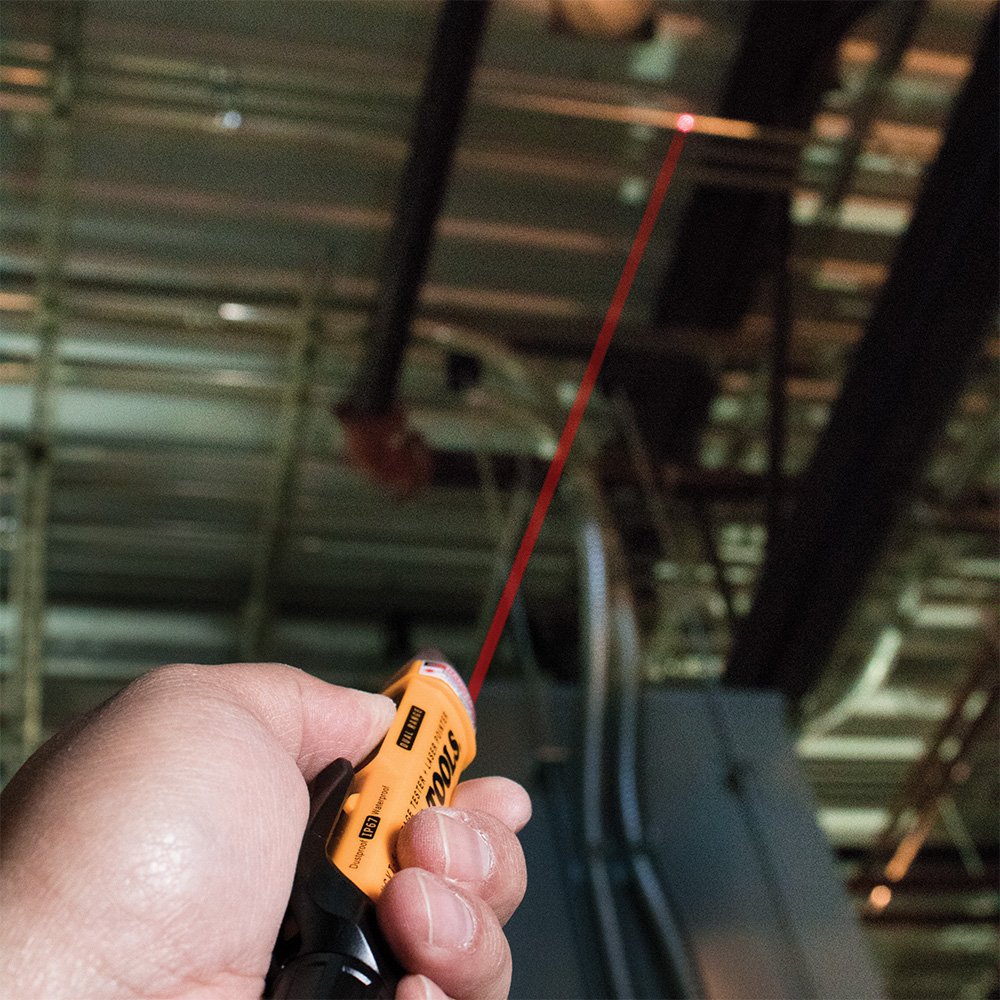

• Bright integrated laser pointer for identifying objects of interest at distance on the jobsite

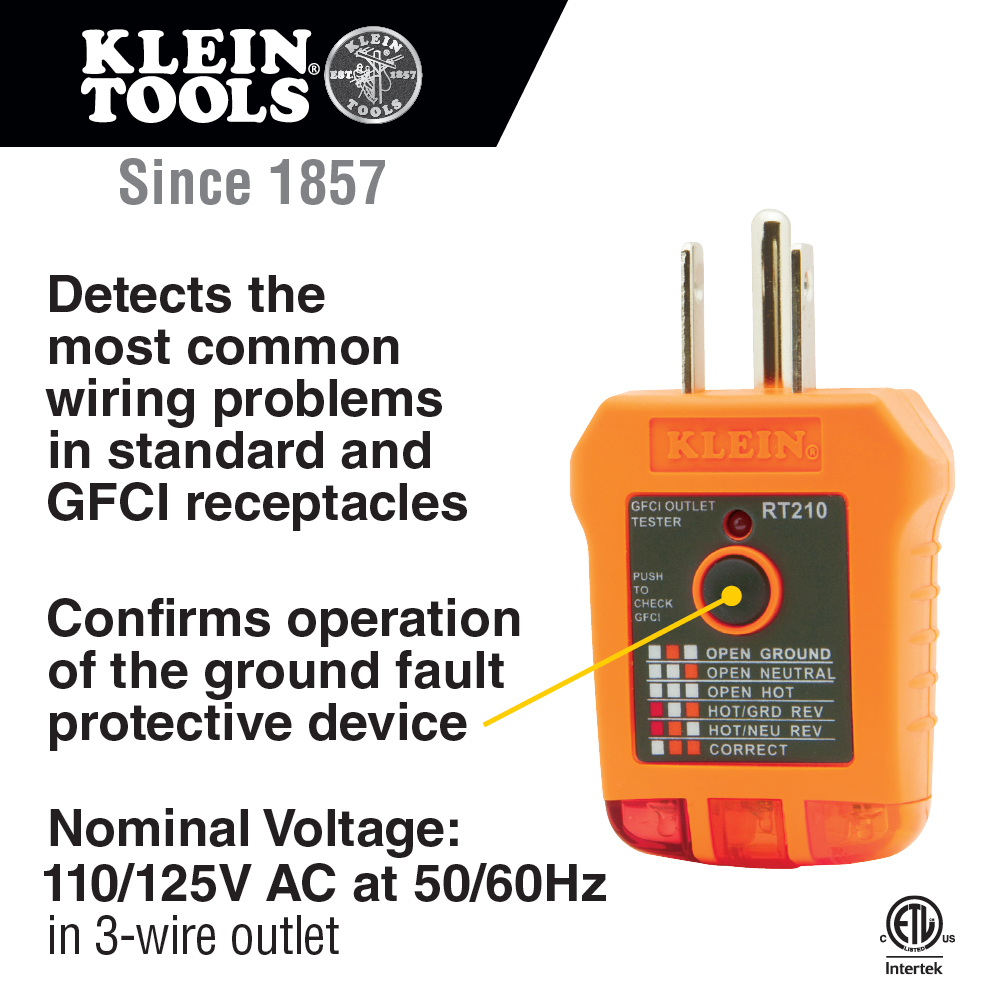

• RT210 detects the most common wiring problems in standard and GFCI receptacles
• Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source it is

Warnings

• LASER RADIATION, Class 3a laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Use of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death

• Voltage: 12 to 1000 VAC
• Frequency: 50 to 500 Hz
• Category Rating: CAT IV 1000V
• Voltage Detection: Non-contact AC Voltage Detection
• Type: Non-Contact AC Voltage Tester, GFCI Receptacle Tester
• GFCI Tester Functions: Detects open ground, reverse polarity, open hot, open neutral, hot/ground reversed; confirms GFCI operation
• Laser Pointer: Integrated Red Laser Pointer, Class 3a, 630-670nm, Max Power <5mW
• Audible Indicator Behavior: Beeps frequency increases with voltage level or proximity
• Battery Life: Laser On - 31 hr; NCV On with Visual and Audible Alerts - 25 hr

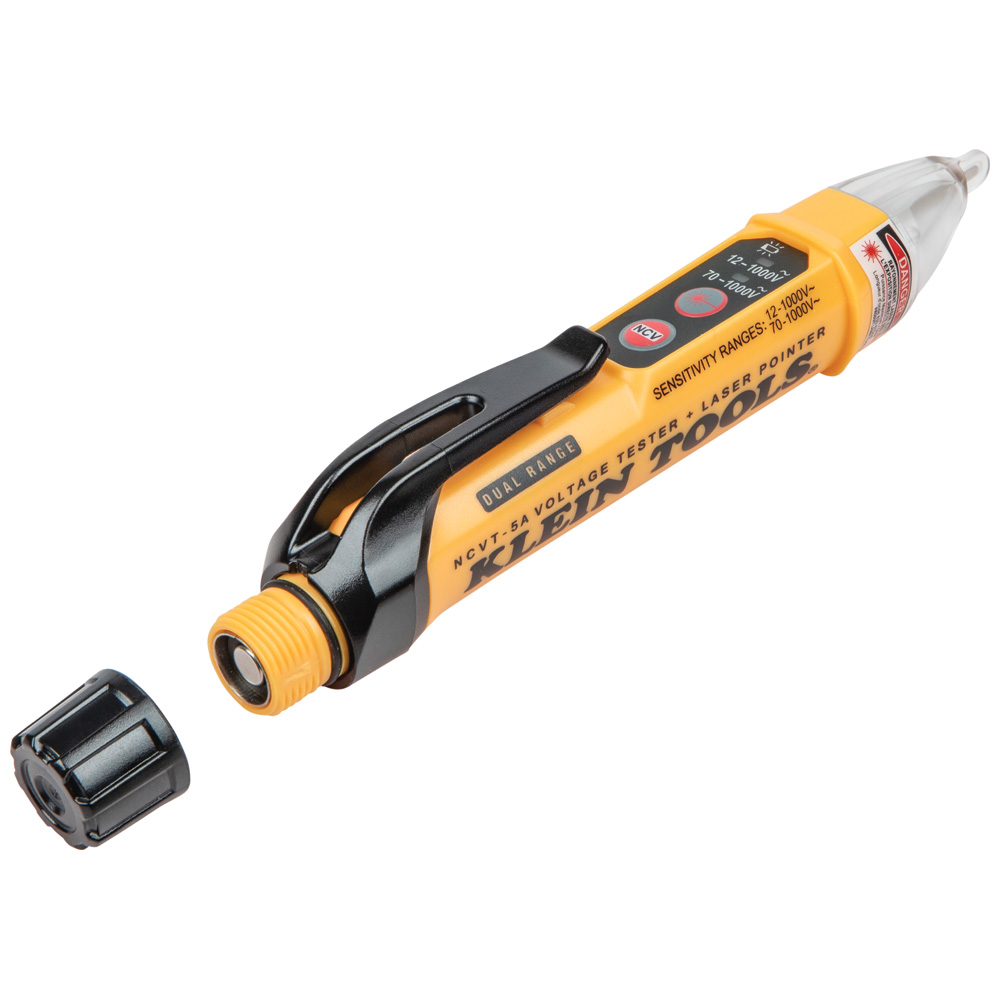

• Power Source: 2 x AAA batteries
• Overall Length: 6 in (15.2 cm)
• Width: 4.6 in
• Overall Height: 0.96 in (2.4 cm)
• Height: 1.5 in
• Depth: 9.6 in
• Weight: 0.288 lbs
• Material: Plastic and Electronic Assemblies
• Pollution Degree: 2
• Drop Protection: 9.8 ft (3 m)
• Auto Power Off: Yes
• Pocket Clip: Included
