Klein Tools, NCVT1XT, Voltage Tester Pen, 70 - 1000V AC, CAT IV 1000V, IP67, 9.8' Drop Protection

Klein Tools Non-Contact Voltage Tester detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires. This tester is dustproof and waterproof with an IP67 rating. The 9.8-Foot (3 m) drop protection provides durability. A bright green LED illuminates to indicate the tester is powered on. It changes to bright red and an audible tone sounds when voltage is detected. CAT IV 1000V safety rating.

Features

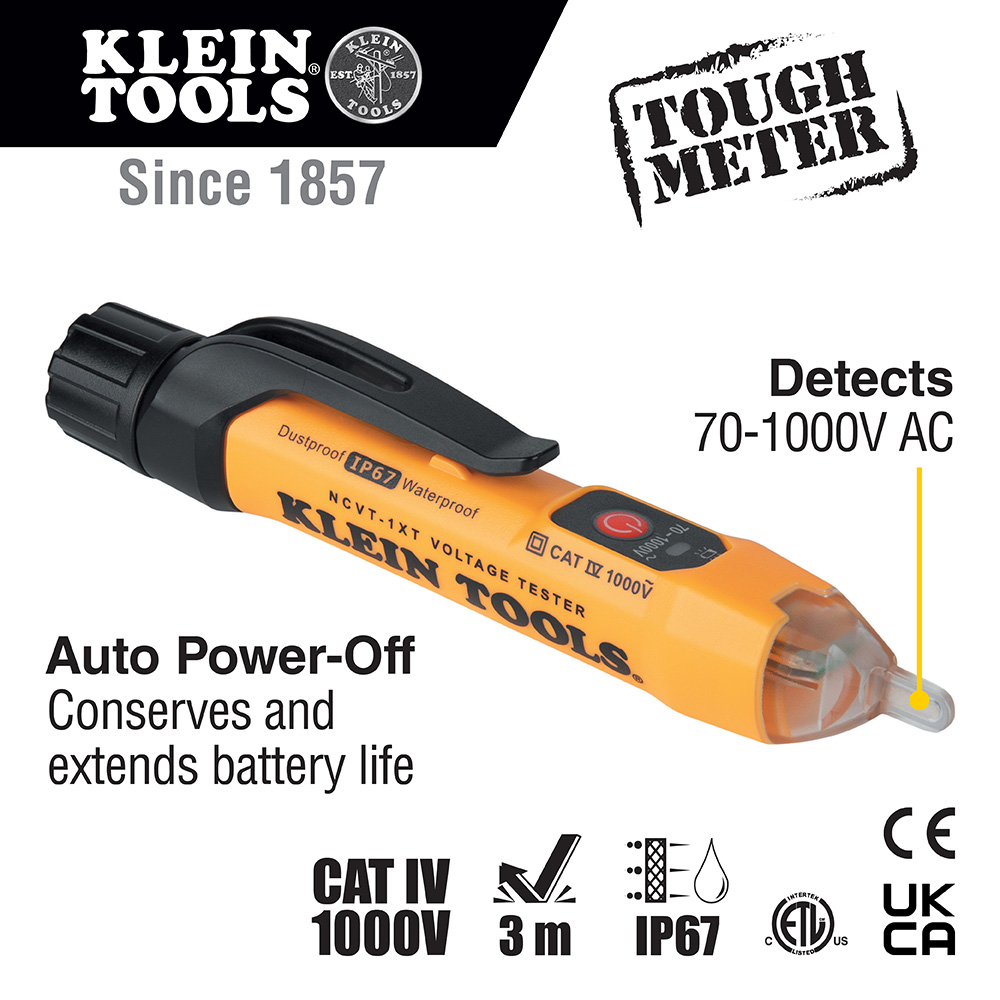

• Durable tester is dustproof and waterproof with an IP67 rating and 9.8-Foot (3 m) drop protection
• Volt Pen with high intensity, bright green LED indicates the tester is powered on

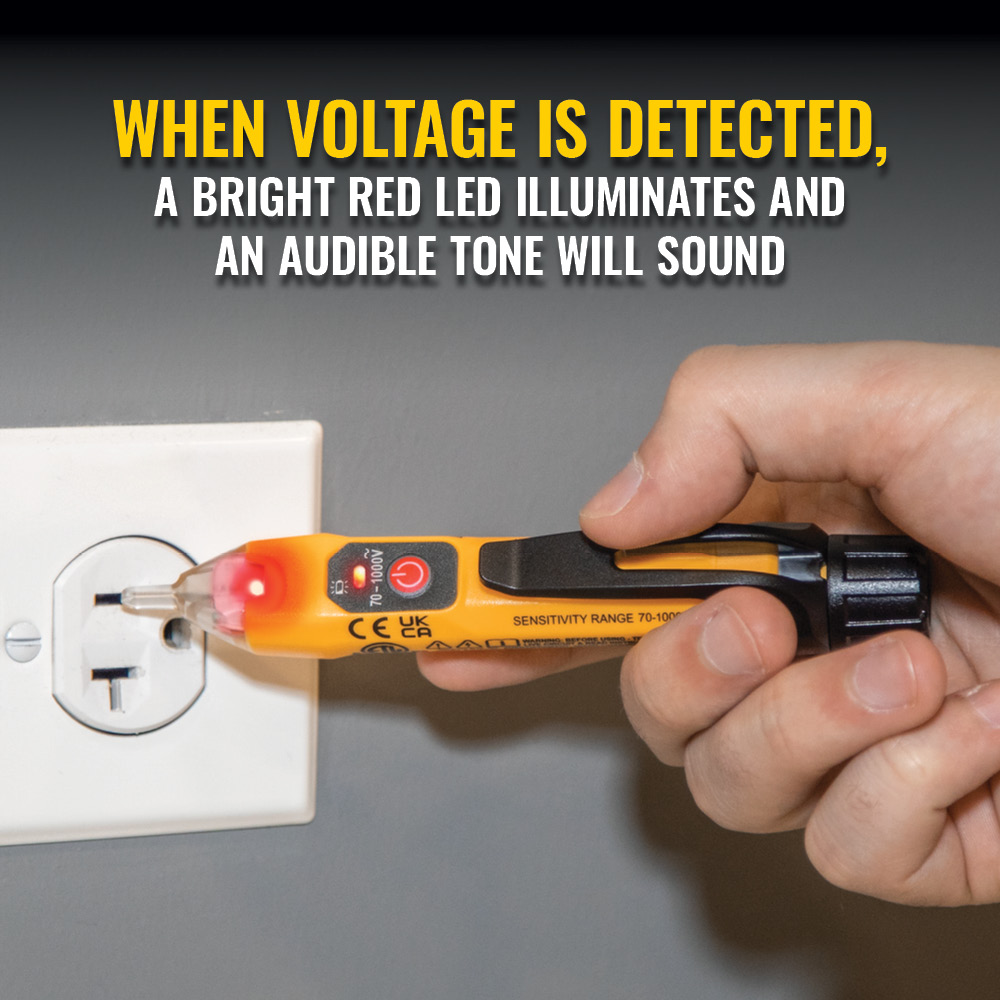

• When voltage is detected, a high intensity, bright red LED illuminates and an audible tone will sound
• LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
• CAT IV 1000V safety rating
• Lightweight compact design with a convenient clip to fit securely in your pocket
• Includes instructions and 2 x AAA 1.5 volt batteries
• Voltage Tester provides non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires
• Product not recommended for testing tamper-resistant outlets; use Cat. Nos. NCVT-2P or NCVT-3P in low voltage mode
• Low battery indicator and easy access to battery compartment
• Auto power-off feature conserves and extends battery life

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

• Voltage: 70 - 1000V AC
• Accuracy: Detection > 70 V
• Standard: CAT IV 1000V
• Frequency: 50 - 500 Hz
• Drop Protection: 9.8 ft (3 m)
• Weight: 0.052 lbs
• Overall Length: 5.34 in (13.6 cm)
• Width: 1.08 in (2.8 cm)
• Height: 0.87 in (2.5 cm)
• Depth: 5.34 in
• Material: Polymer Body and Electronic Components
• Ingress Protection: IP67
• Pollution Degree: 2

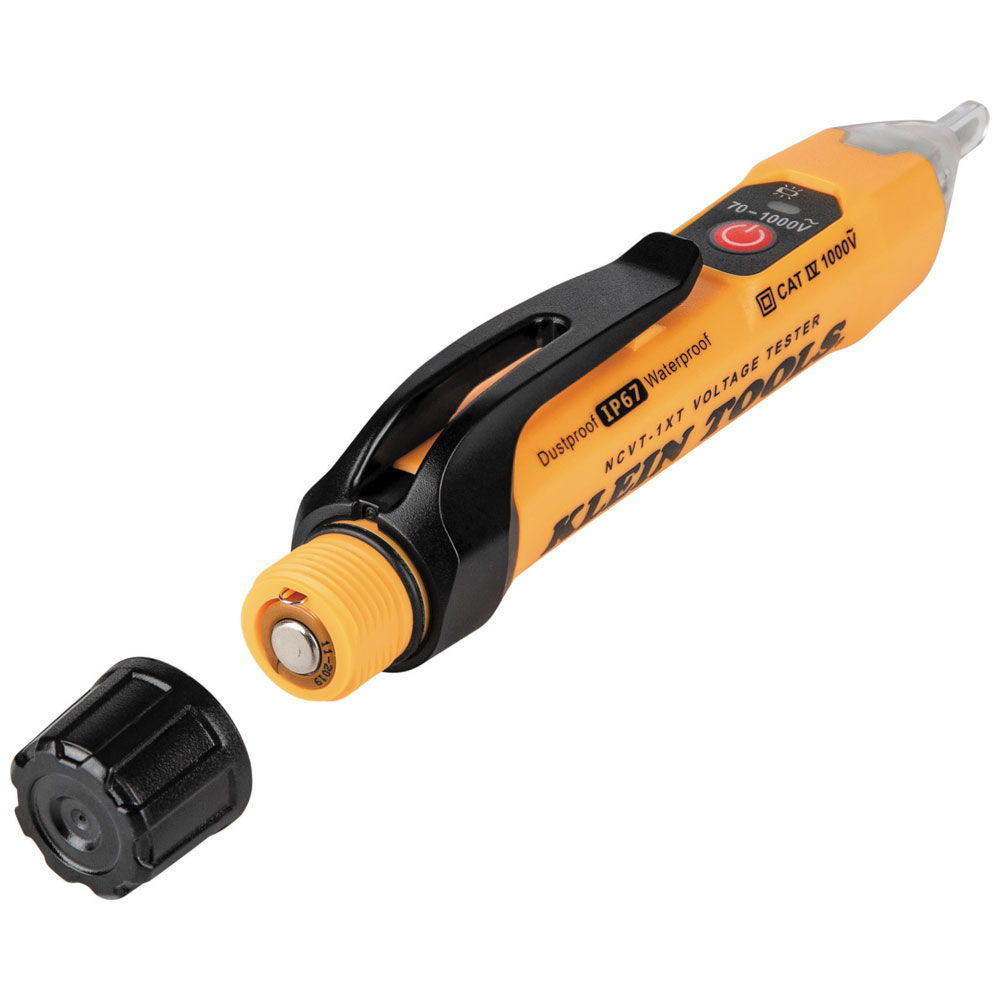

• Battery Type: 2 x AAA 1.5V
• Country of Origin: China

Downloads

Instructions
