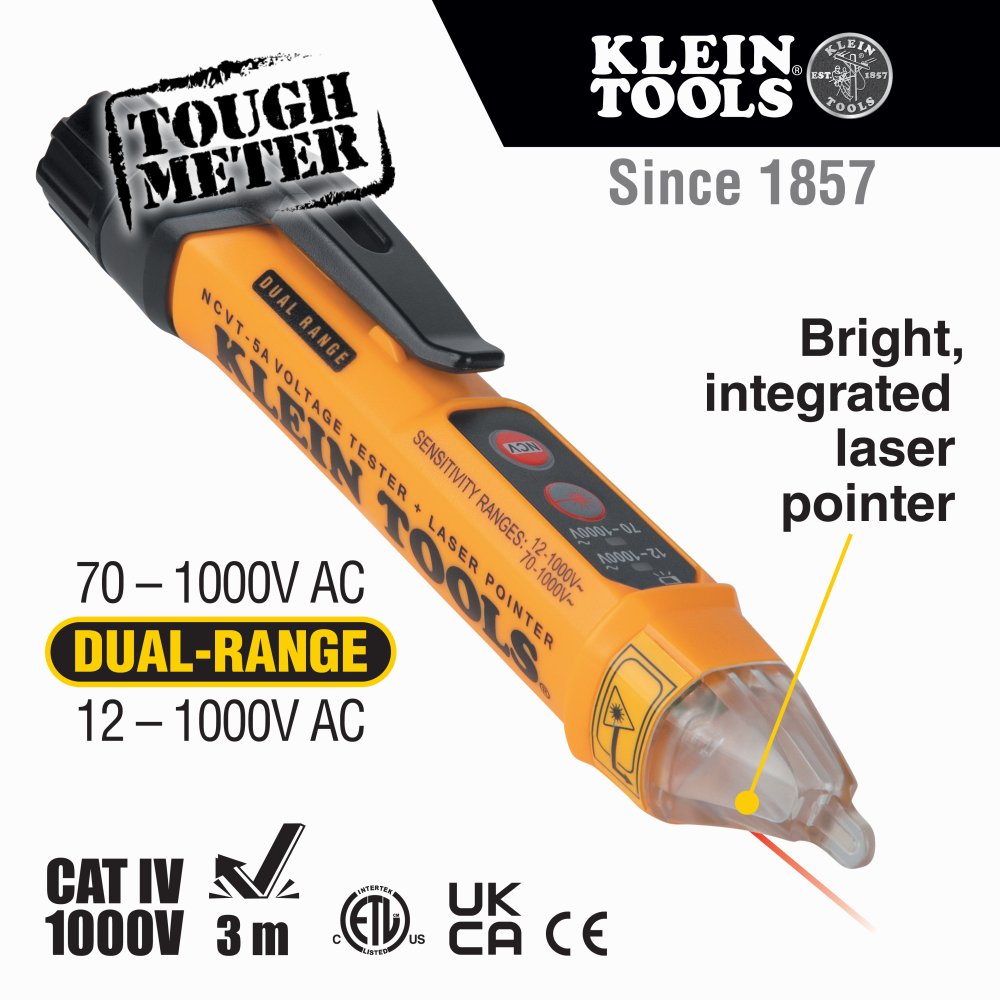

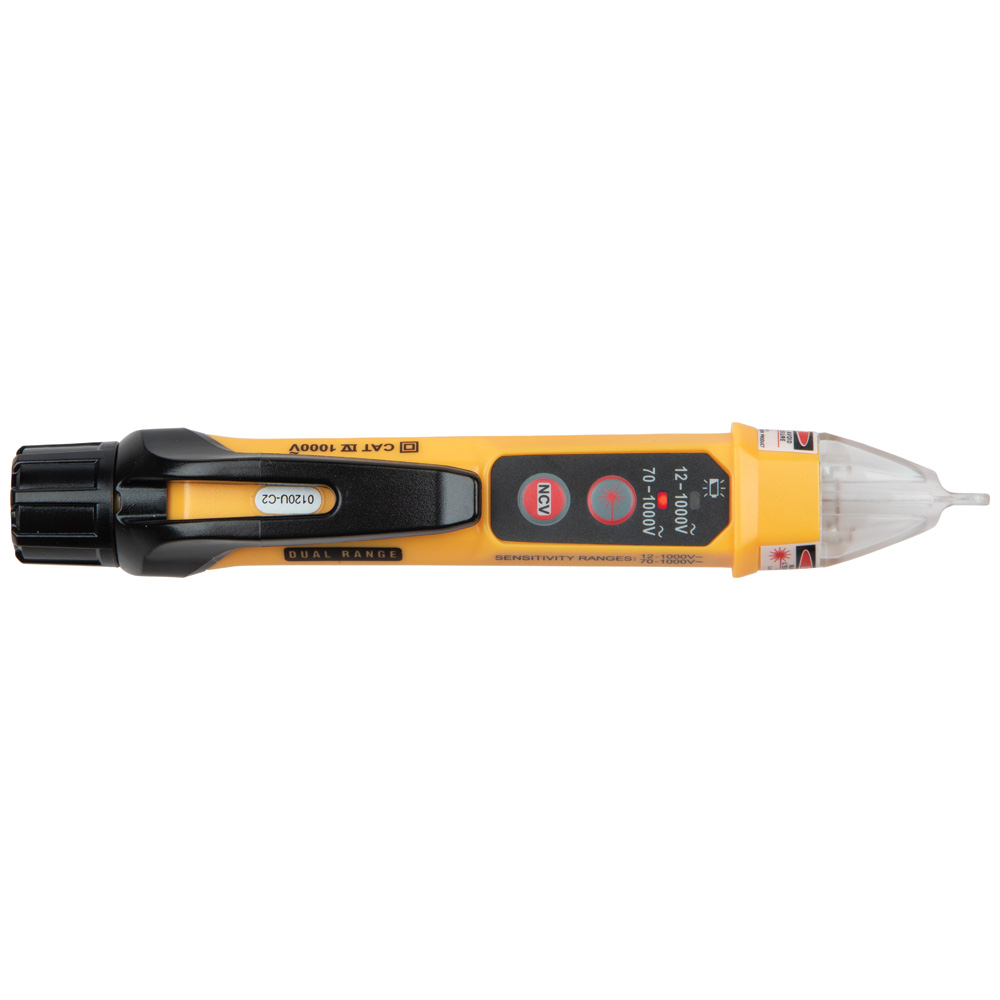

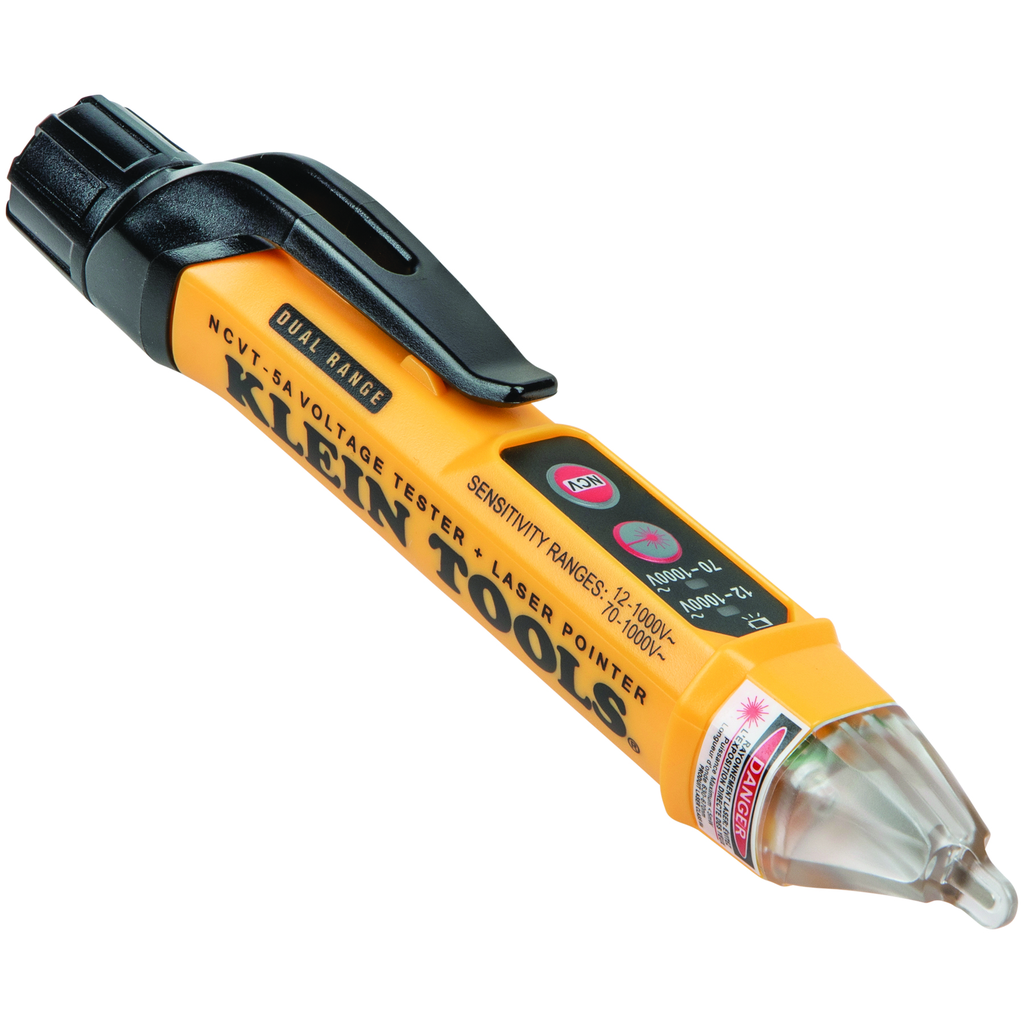

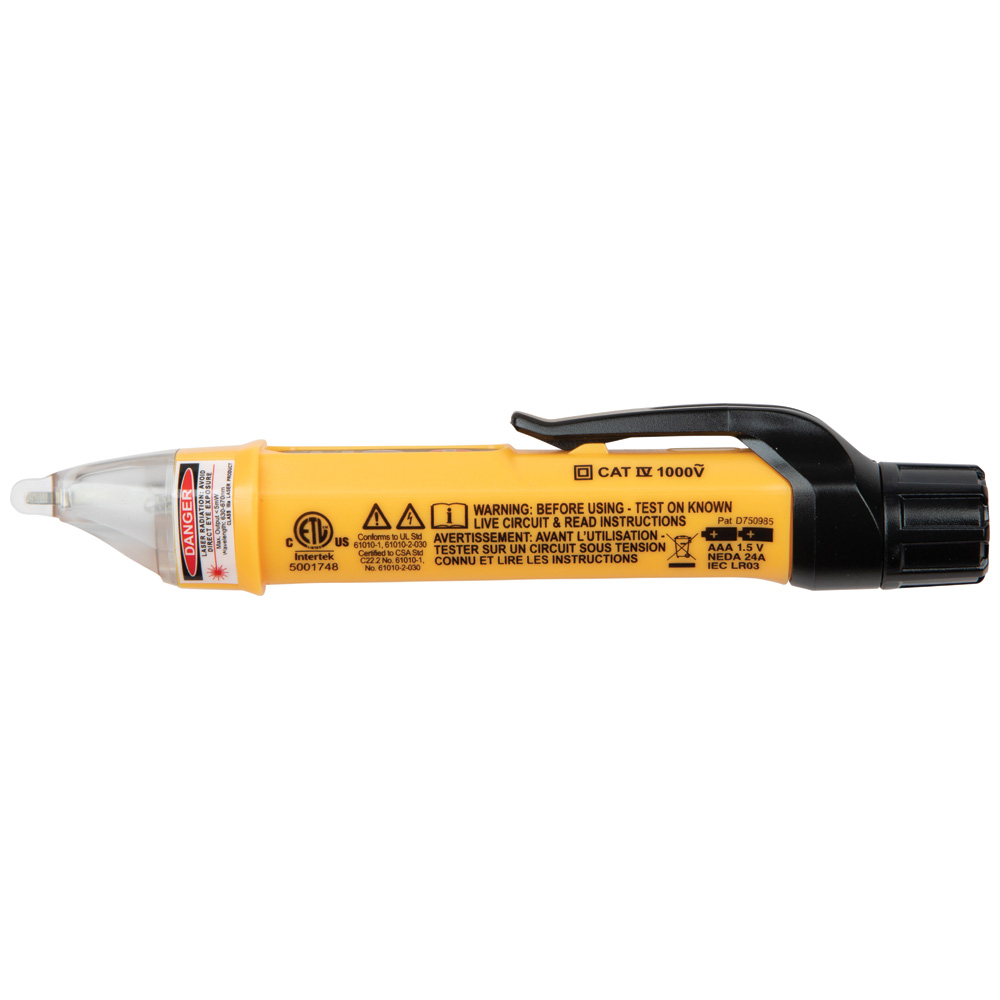

Klein Tools, NCVT-5A, Non-Contact Voltage Tester, Dual-Range, 12-1000V AC; CAT IV 1000V, Laser Pointer

Klein Tools NCVT-5A Dual-Range Non-Contact Voltage Tester with integrated laser pointer detects 70 to 1000V AC (Mode 1) or 12 to 1000V AC Mode 2). Audible alerts increase in frequency as voltage level rises or as you move closer to the source. Laser operates independently or with voltage detection. Class IIIa laser (21CFR1040.10 and 1040.11 - IEC60825-1 Ed.3) with an output power of less than or equal to 5mW at 630-670nm. CAT IV 1000V safety rating.

Features

• Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source

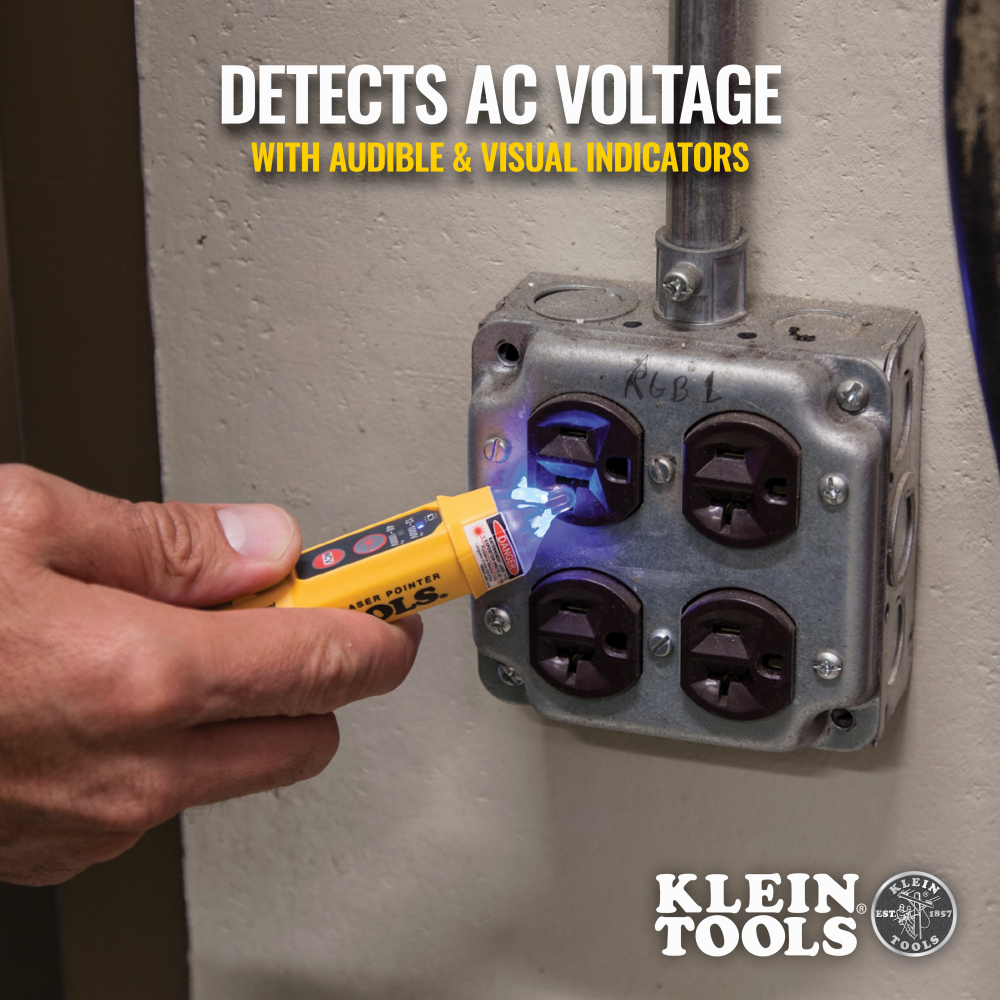

• Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
• Lightweight, compact tool with pocket clip provides convenient storage and quick access
• Simple to use intuitive interface is easy to change between voltage detection ranges and easy to determine the currently active range

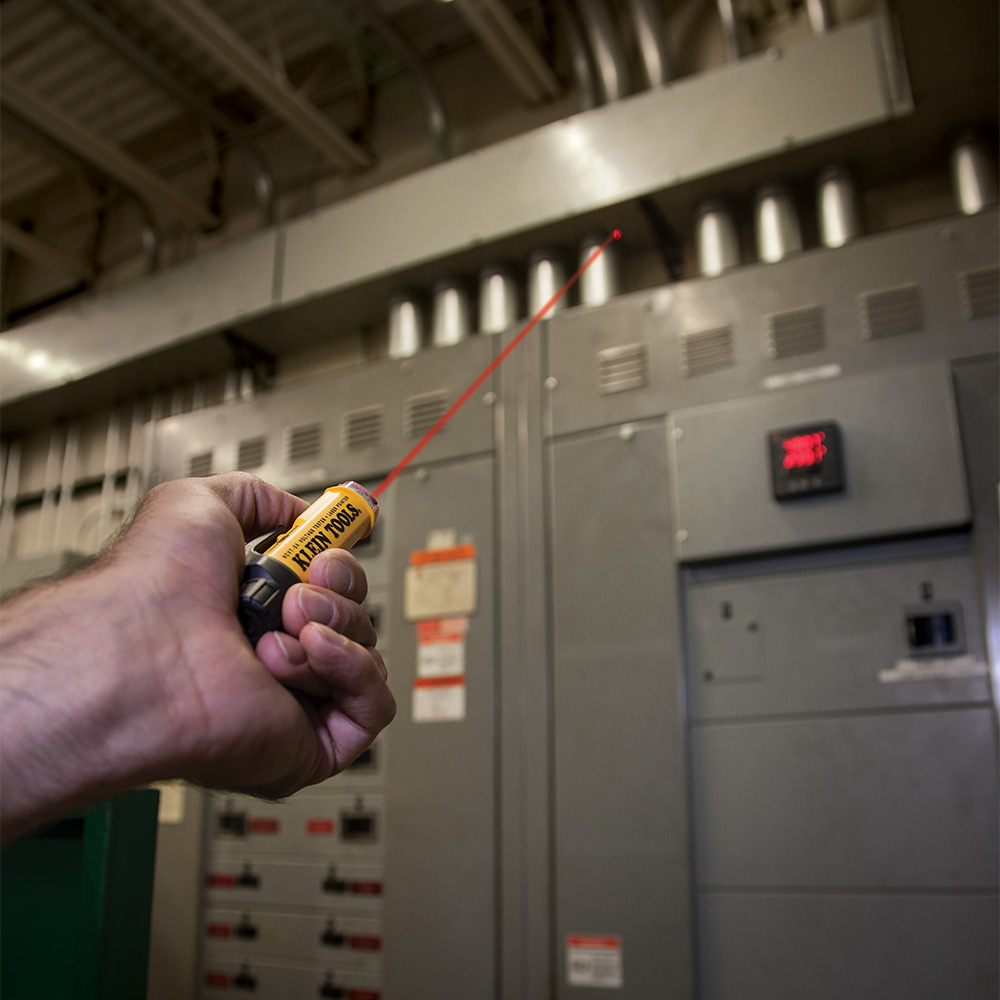

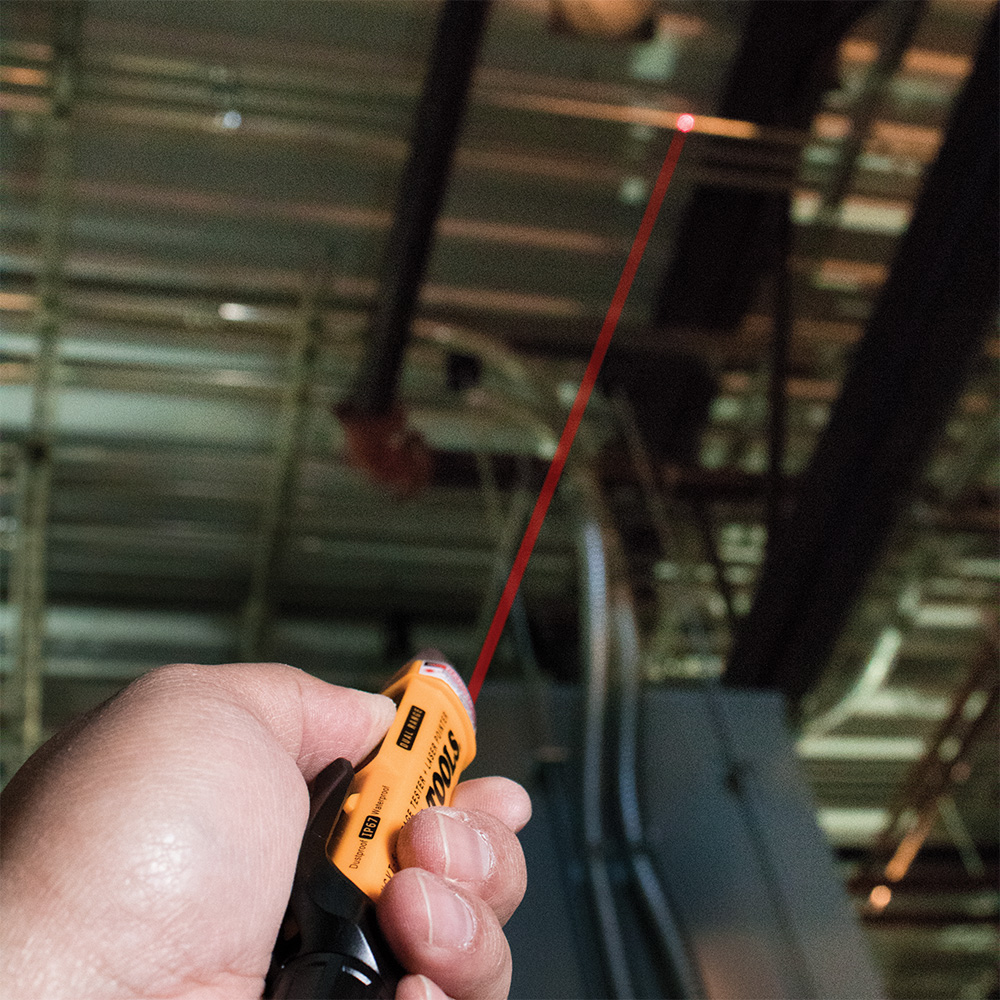

• Bright integrated laser pointer for identifying objects of interest at distance on the jobsite
• Built to withstand a 9.9-Foot / 3-meter drop
• CAT IV 1000V safety rating

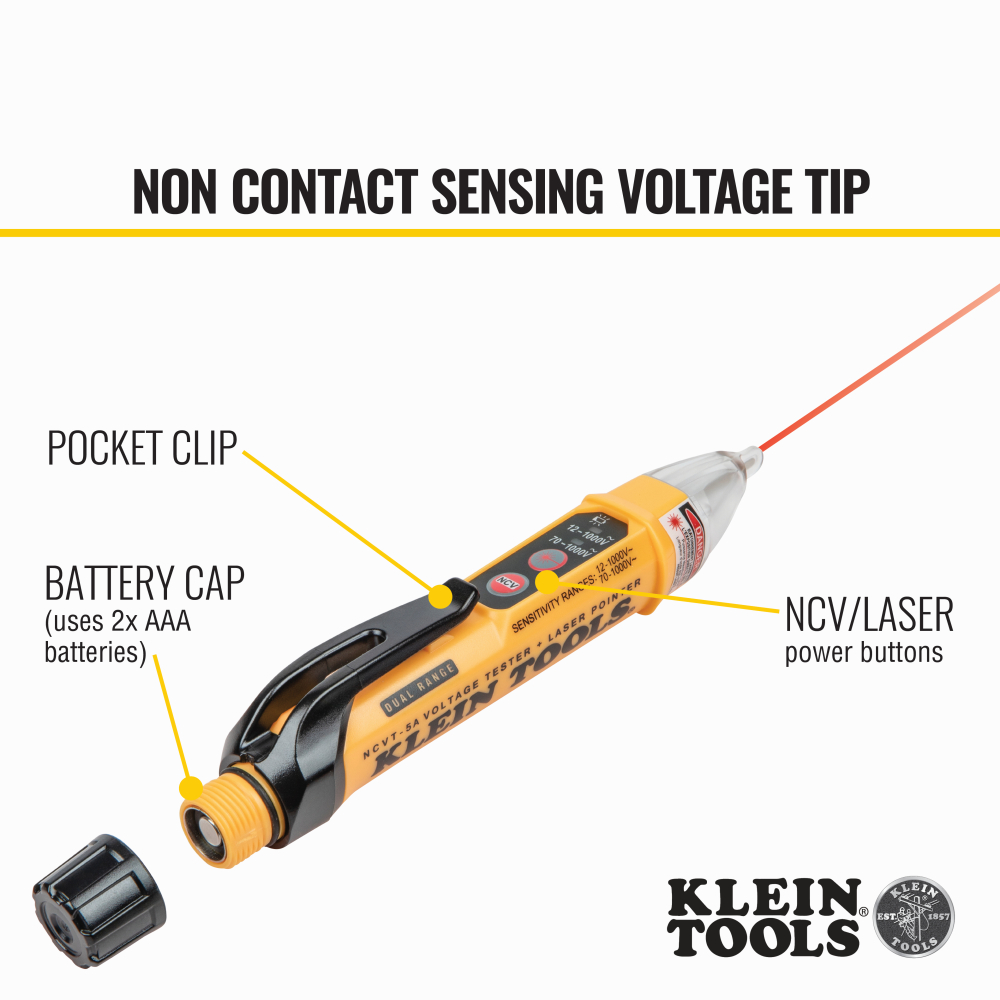

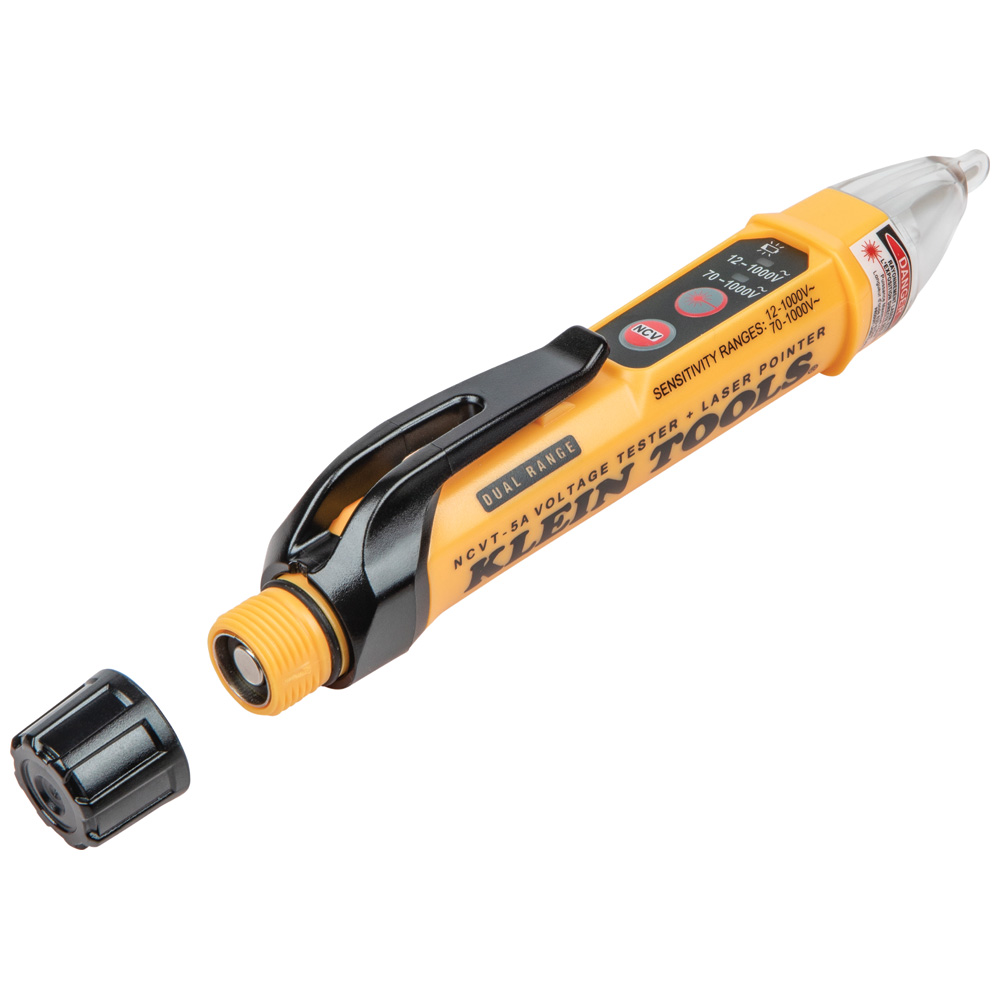

• Screw-thread battery cap
• Auto Power-Off conserves battery life
• Dual-range testing: select 12 to 1000V AC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems, or select 70 to 1000V AC which is perfect for detecting systems such as electrical mains supply
• Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985
• Class IIIa laser (21CFR1040.10 and 1040.11 - IEC60825-1 Ed.3) with an output power of less than or equal to 5mW at 630-670nm
• Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
• US Patent No. D750985

Warnings

• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
• LASER RADIATION, Class IIIa laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Use of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death

• Voltage: 12 1000V AC; 70 1000V AC
• Frequency: 50 to 500 Hz
• Testing Mode: Dual Range (Mode 1 and Mode 2)
• Voltage Detection Type: Non-Contact
• Safety Standard: CAT IV 1000V; Laser: Class IIIa, 630-670nm, Max Power <5mW
• Overall Length: 6 in (15.2 cm)
• Overall Width: 0.96 in (2.4 cm)
• Overall Height: 1.16 in (2.9 cm)
• Width: 1.15 in
• Height: 0.96 in
• Depth: 6 in
• Weight: 0.093 lbs
• Material: Plastic and Electronic Assemblies
• Battery Type: 2 x AAA
• Battery Life: Laser On - 31 hr; NCV On with Visual and Audible Alerts - 25 hr
• Audible Indicator: Beep frequency varies with voltage level and proximity
• Visual Indicator: Voltage detection LEDs inside tip
• Laser Pointer: Integrated high strength red laser pointer
• Drop Protection: Withstands 3 m (9.8 ft) drop
• Pollution Degree: 2
