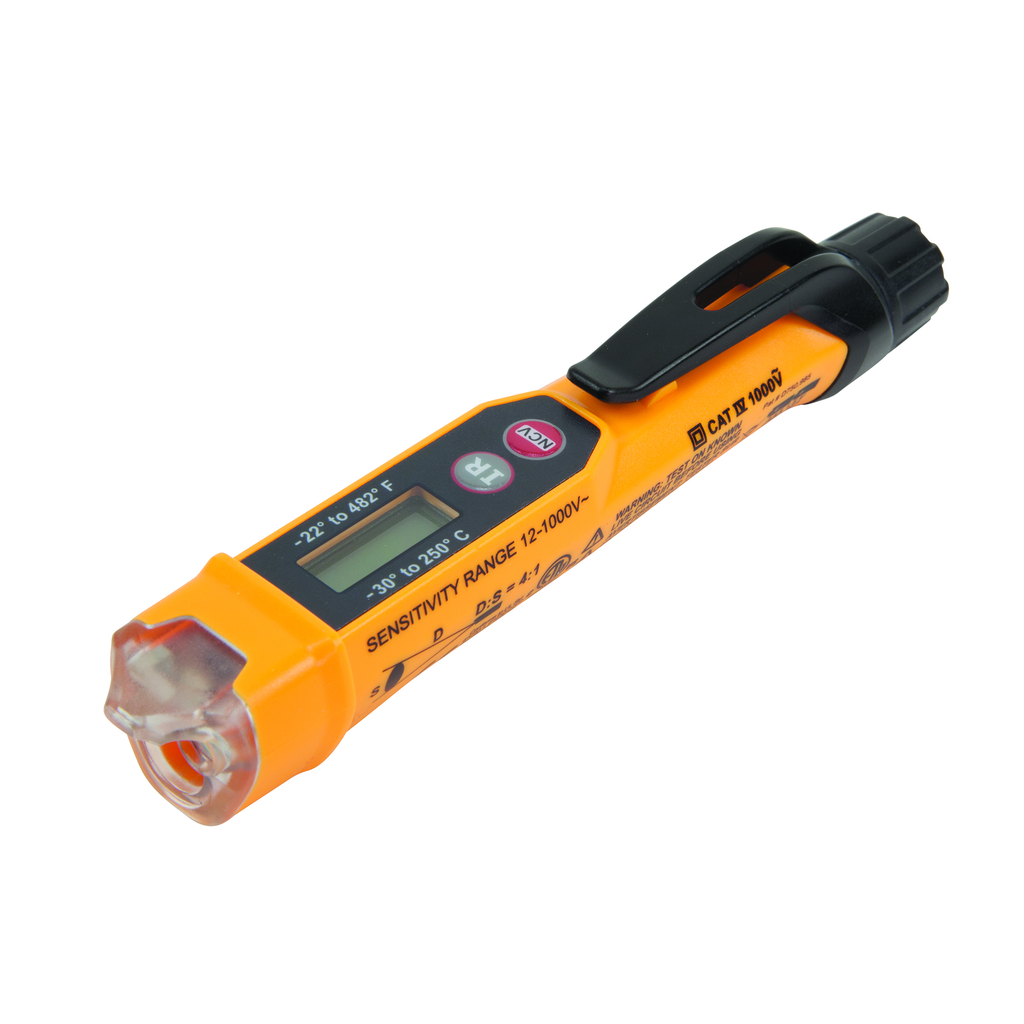

Klein Tools, NCVT-4IR, Non-Contact Voltage Tester with IR Thermometer, 12 to 1000V AC, HVAC Application, IP54

Klein Tools NCVT-4IR is a voltage tester that provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires; as well as infrared (IR) thermometer measurements, making it the perfect choice for HVAC professionals.

Features

• Lightweight, compact tool with pocket clip provides easy storage and quick access
• Screw-thread battery cap with O-ring ensures dust and water resistance
• Convenient laser pointer to target measurement area for temperature measurement
• IR Thermometer, Laser Pointer, LCD, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
• Voltage Tester designed specifically for HVAC applications
• Detects AC voltage from 12 to 1000V with visual and audible indicators
• Backlit LCD display with 0.1-Degree resolution
• Non-Contact Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, and AC voltage in security, entertainment, communications, environmental control, and irrigation systems
• 4:1 distance-to-spot ratio IR thermometer with user selectable Degrees Fahrenheit or Degrees Celsius from -22 to 482-Degree Fahrenheit (-30 to 250-Degree Celsius)
• Auto power-off conserves and extends battery life

Warnings

• Thermometer is NOT intended for use on people or animals.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all Test & Measurement devices before each use.
• Do not direct laser beam into eyes, as this can cause permanent eye damage.

• Voltage: 12 - 1000V AC
• Frequency: 50 - 500 Hz
• Battery Life: Average 134 hr; Continuous IR 64 hr
• Type: Non-Contact
• Standard: CAT IV 1000V
• Temperature Range: -22 to 482°F (-30 to 250°C)
• Distance to Spot Ratio: 4:1
• Drop Protection: 6.6 ft (2 m)
• Ingress Protection: IP54
• Overall Length: 6.25 in (15.9 cm)
• Overall Width: 1.25 in (3.2 cm)
• Overall Height: 1.19 in (3 cm)
• Weight: 0.112 lbs (50.8 g)
• Batteries: 2 x AAA
• Display: Backlit LCD with 0.1-degree resolution
• Indicators: Visual and audible for voltage detection

Downloads

Instructions
