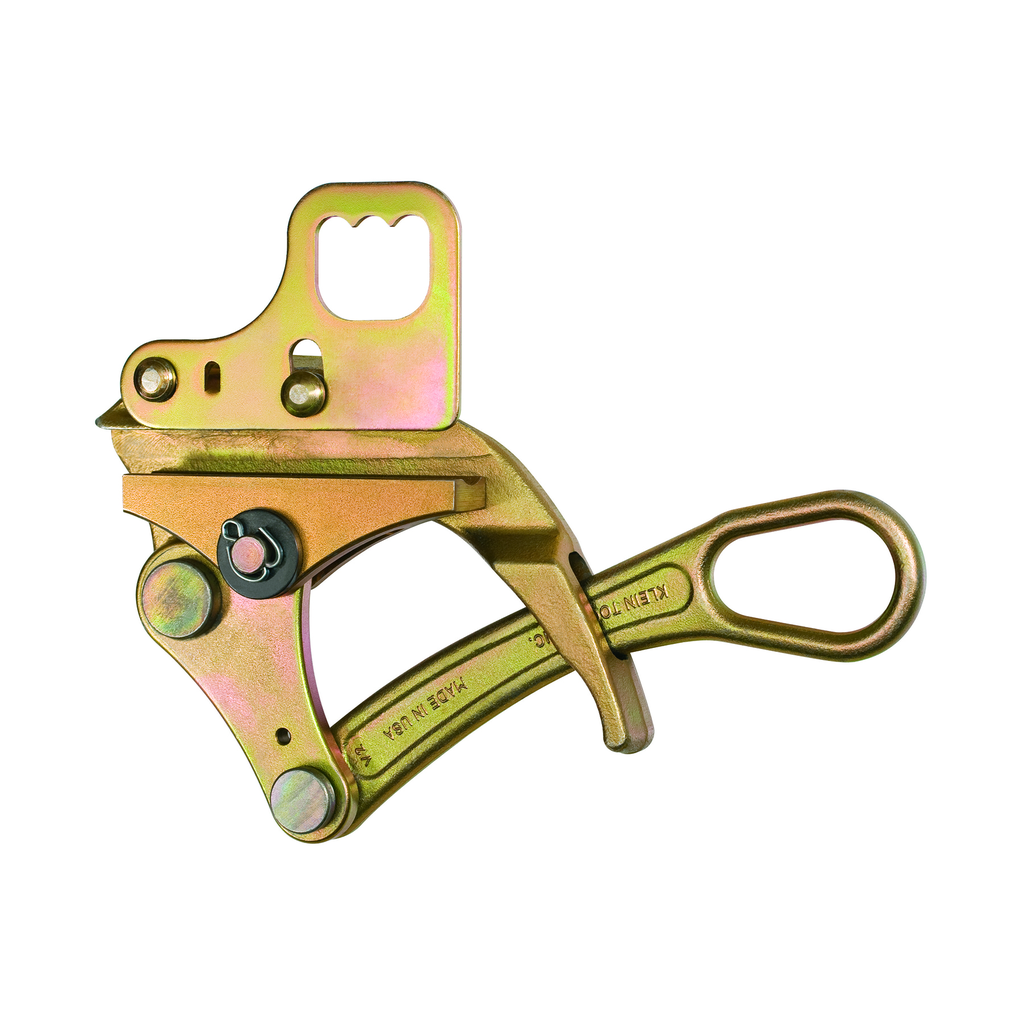

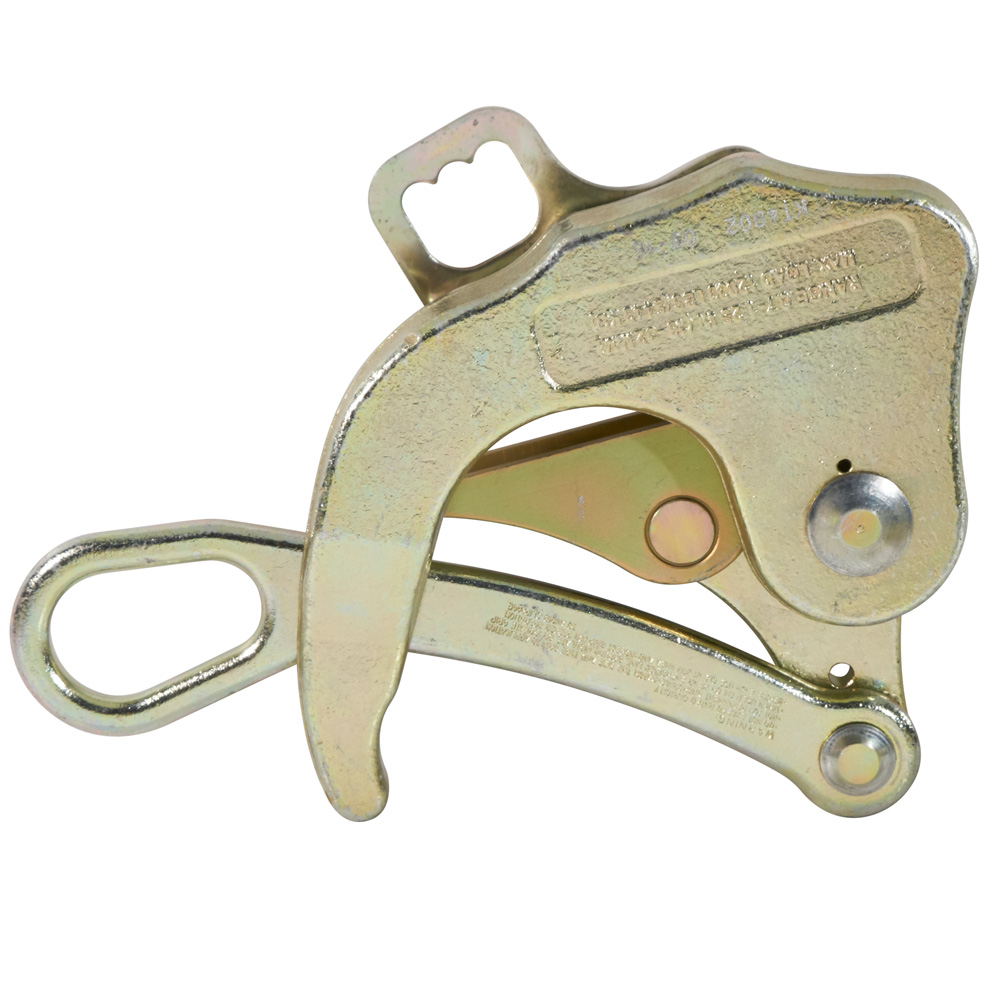

Klein Tools, KT4802, Parallel Jaw Grip, 0.7" to 1.25" Diameter, 12,000 lb Capacity, Round Jaw, Hot Latch

The Klein KT4802 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4802 has a jaw length of 5-1/8 - Inches.

Features

• Hot latch closes automatically to guard against grip accidently disengaging from wire
• Round jaw provides maximum contact with the cable minimizing deformation
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
• Hot Latch
• Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
• Maximum Safe Load of 12,000-pounds (5443 kg)
• Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Made in USA

Warnings

• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 12,000 lb (5443 kg)
• Cable Diameter: 0.7" to 1.25" (17.78 to 31.75 mm)
• Jaw Length: 5.125" (13 cm)
• Overall Length: 13.4" (34 cm)
• Width: 7.5 in
• Overall Height: 7.6" (19.3 cm)
• Height: 2.25 in
• Depth: 13.5 in
• Weight: 9 lbs
• Type: Parallel Jaw Grip
• Material: Steel
• Cable Type: ACSR, AAC, Copper
• Hot Latch: Yes
• Jaw Type: Round
• Teeth Type: Coarse
• Swing Latch: No
• Locking Handle: No
• Spring: Yes
• Application: Wire Pulling
• Material Origin: Made in USA
• Handle Eyelet Opening: Large
