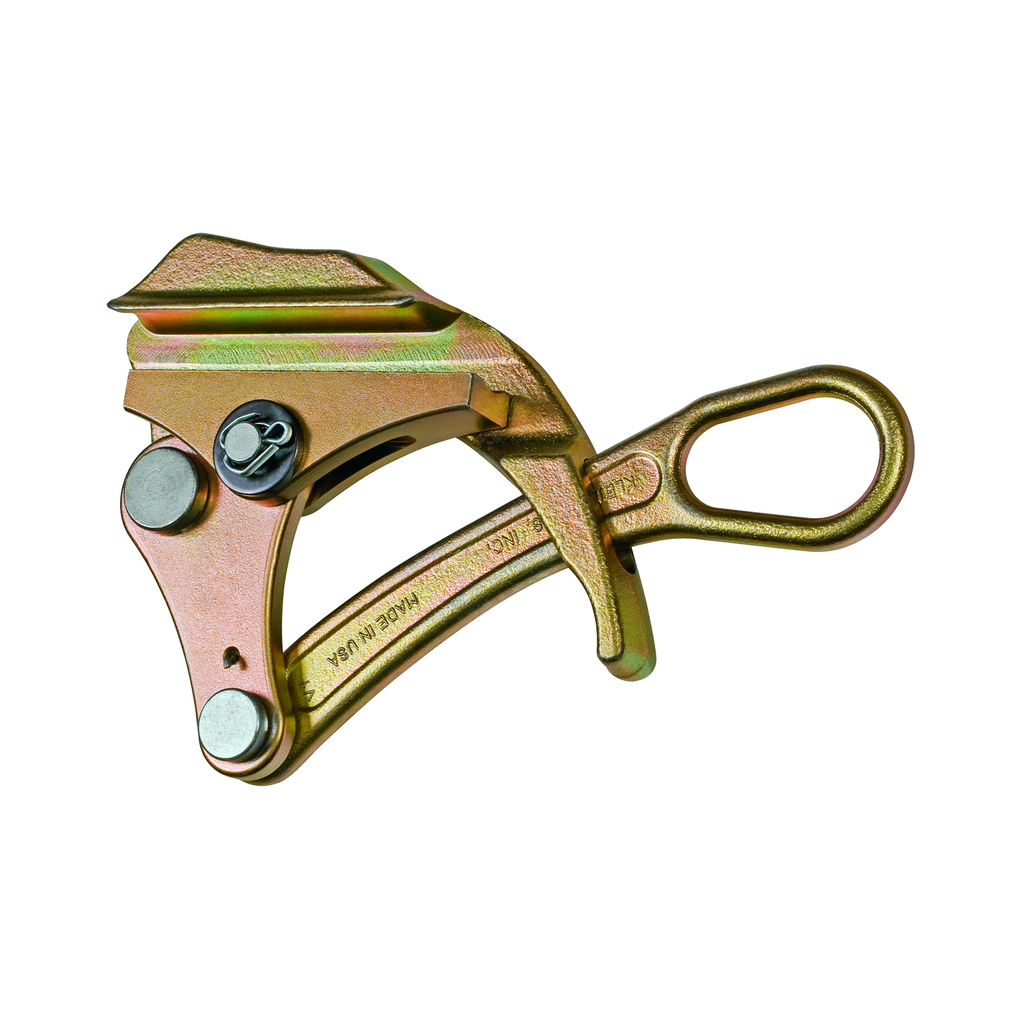

Klein Tools, KT4600, Parallel Jaw Grip, Round Jaw, 0.3 to 0.8 in Cable Diameter, 10,000 lb Max Load, Steel, 13 in Length

Lightweight, compact grips pull an exceptionally wide range of cable sizes and types. Designed with a round serrated jaw to firmly grip insulated cables and conductors. A hot latch closed automatically to guard against grip accidently disengaging from wire. A large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks.

Warnings

• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Features

• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Spring
• Made in USA
• Max Safe Load of 10,000-Pound (4536 kg)
• Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks

• Maximum Safe Load: 10,000 lb (4536 kg)
• Cable Diameter Range: 0.3 to 0.8 in (7.62 to 20.3 mm)
• Overall Length: 13 in (33 cm)
• Overall Width: 5 in (12.7 cm)
• Overall Height: 1.5 in (3.8 cm)
• Jaw Length: 5 in (12.7 cm)
• Weight: 7 lbs
• Material: Steel
• Jaw Type: Round serrated
• Grip Type: Spring
• Application: Wire Pulling
• Cable Type: ACSR, AAC, Copper
• Teeth Type: Coarse
• Type: Parallel Jaw Grip
• Swing Latch: No
• Hot Latch: No
• Locking Handle: No
• Height: 1.5 in
• Width: 5 in
• Depth: 13 in
• Country of Origin: United States
