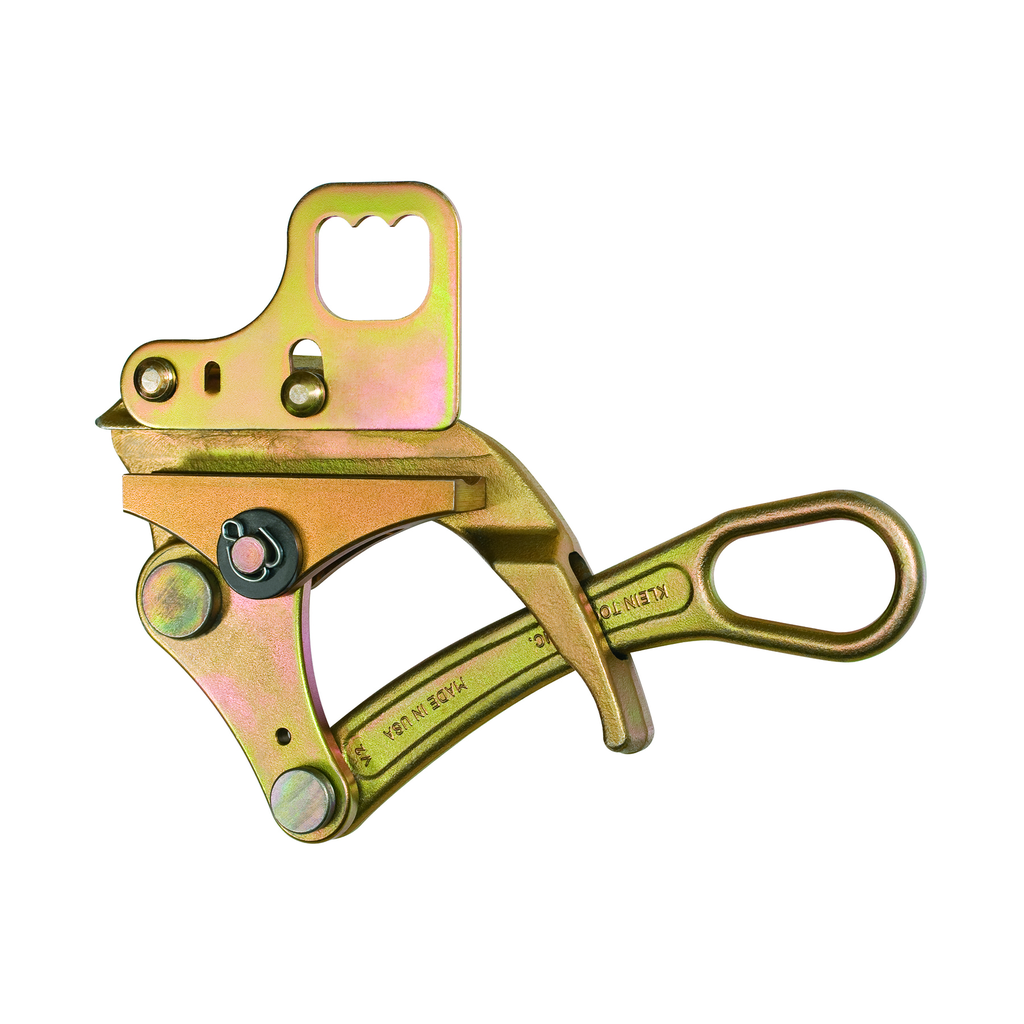

Klein Tools, KT4502, Parallel Jaw Grip, 5000 lb Max Load, Round Jaw, 0.18 to 0.60 in Cable Diameter

The Klein KT4502 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4502 has a jaw length of 3-Inches.

Features

• Max Safe Load of 5000-Pound (2268 kg)
• Weight: 3.75 pounds
• Made in USA
• Hot Latch
• Round jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
• Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

• Maximum Safe Load: 5,000 lb (2,268 kg)
• Cable Diameter Range: 0.18 to 0.6 in (4.57 to 15.2 mm)
• Jaw Length: 4 in (10.2 cm)
• Overall Length: 11 in (27.9 cm)
• Overall Width: 4 in (10.2 cm)
• Overall Height: 1.5 in (3.8 cm)
• Weight: 3.75 lbs
• Material: Steel
• Cable Type: ACSR, AAC, Copper
• Spring: Yes
• Locking Handle: No
• Swing Latch: No
• Hot Latch: Yes
• Teeth Type: Coarse
• Jaw Type: Round
