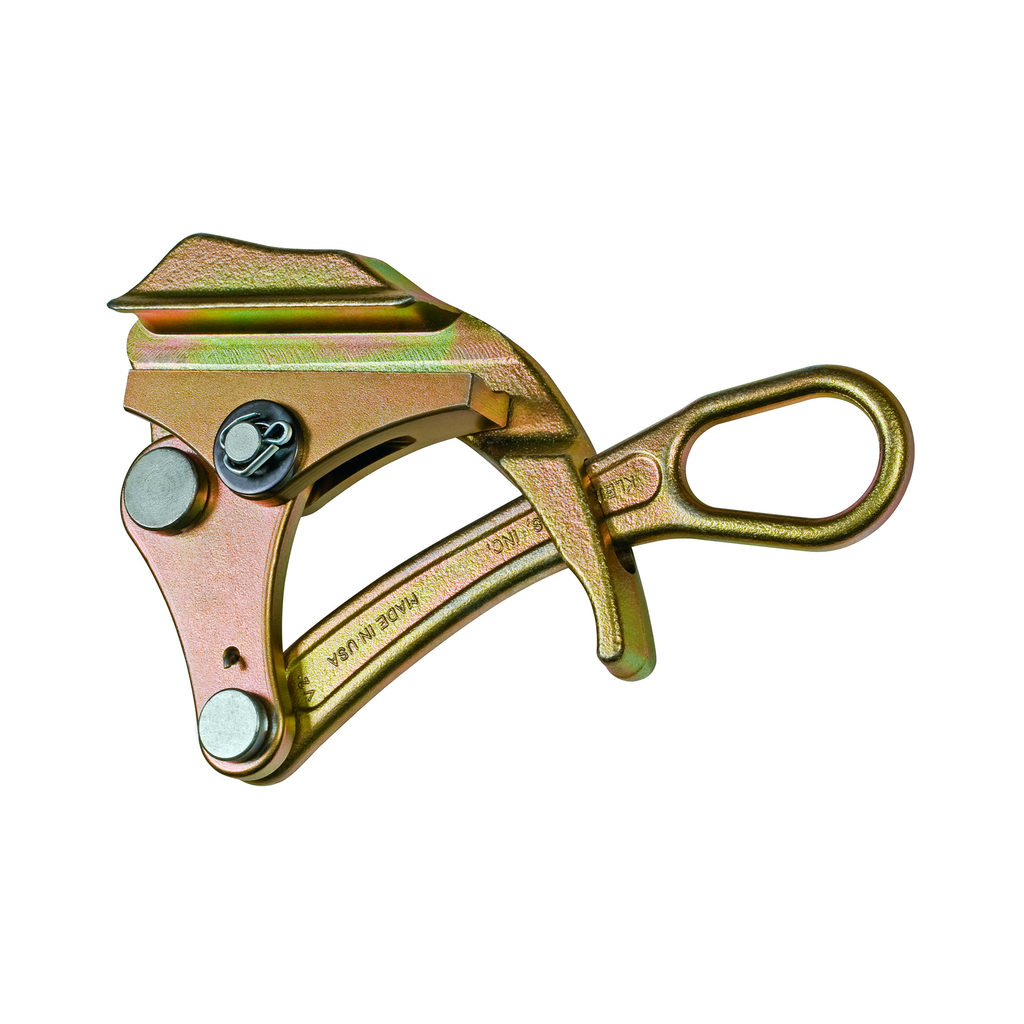

Klein Tools, KT4500, Parallel Jaw Grip, 0.18 to 0.60 in; 5000 lb Max Safe Load, Steel

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 - 0.60-inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.

Features

• Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
• Made in USA
• Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
• Sawtooth Jaw Profile Resists Build-up
• Spring closes grip on cable to hold the initial position
• Max Safe Load of 5000-Pound (2268 kg)
• Spring‐loaded for easy one‐handed operation
• Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks

• Maximum Safe Load: 5000 lb (2268 kg)
• Cable Diameter: 0.18 to 0.6 in (4.57 to 15.2 mm)
• Jaw Type: Round, serrated sawtooth profile
• Spring: Yes
• Overall Length: 10.9 in (27.7 cm)
• Jaw Length: 4 in (10.2 cm)
• Overall Height: 4.6 in (11.7 cm)
• Width: 5 in
• Depth: 8 in
• Overall Width: 1.9 in (4.8 cm)
• Teeth Type: Coarse
• Height: 1 in
• Cable Type: ACSR, AAC, Copper
• Material: Steel
• Swing Latch: No
• Locking Handle: No
• Hot Latch: No
• Operation: Spring-loaded, one-handed
• Material Origin: Made in USA
• Application: Wire Pulling
• Type: Parallel Jaw Grip
