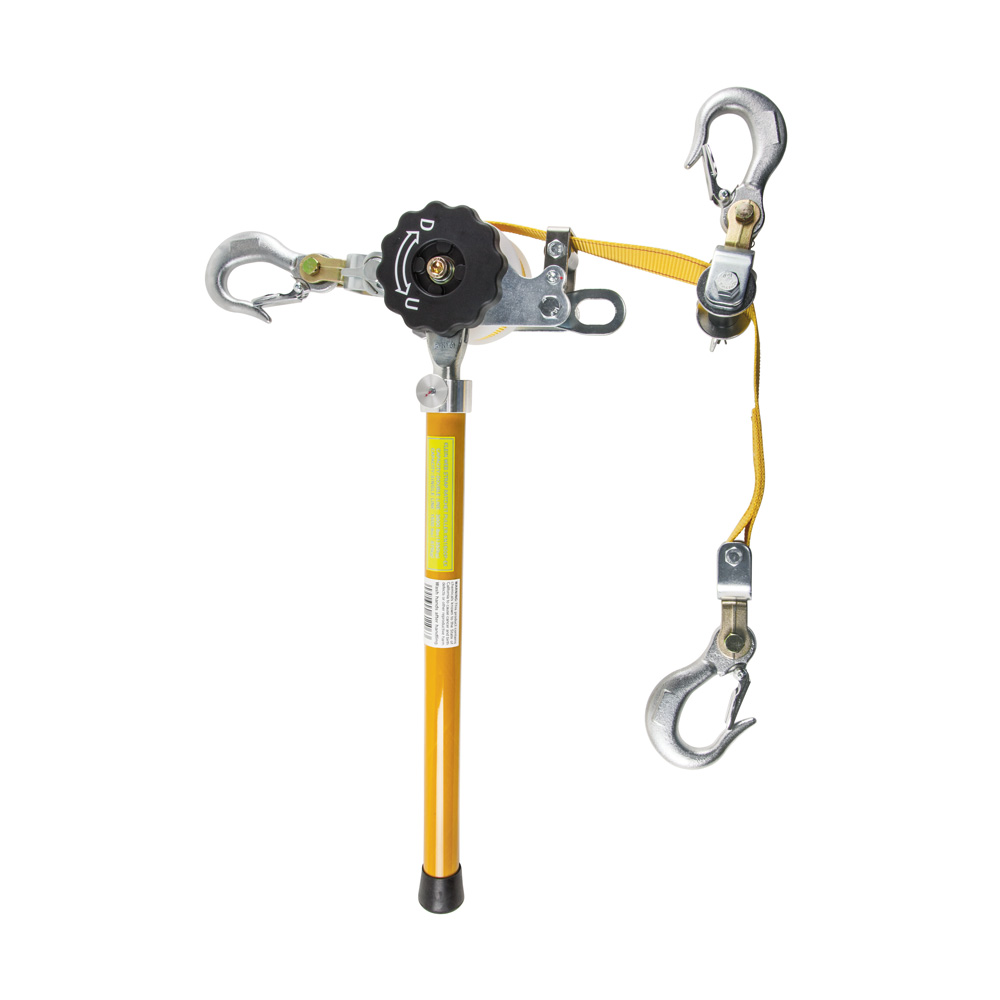

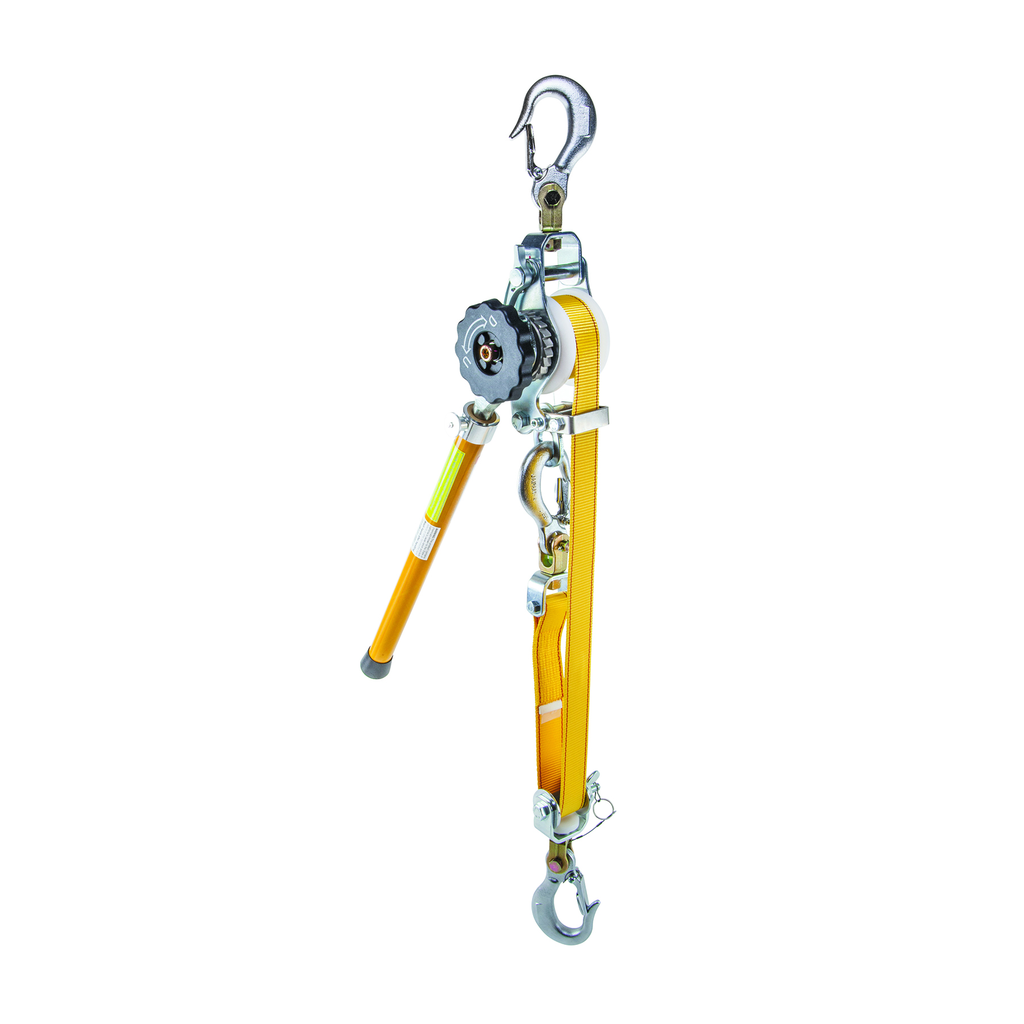

Klein Tools, KN1600PEX, Hoist, 3/4 ton single line; 1-1/2 ton double line; 33 in length

The Web Strap Hoist Deluxe has new features to make work easy and efficient. The handle can be removed for less obstruction when working near the hoist and less storage space needed. The deep V-notch in the hook latches for secure closure. Tighter ratcheting mechanism means less work, less fatigue. The handle and non-conductive drum knob allow you to safely control the tension release to avoid free wheeling. 360 degree handle rotation easily works from any angle for added flexibility on the job.

Features

• 3/4 ton single line and 1-1/2 ton double line load rating
• Deep V-notch in hook reduces lateral movement

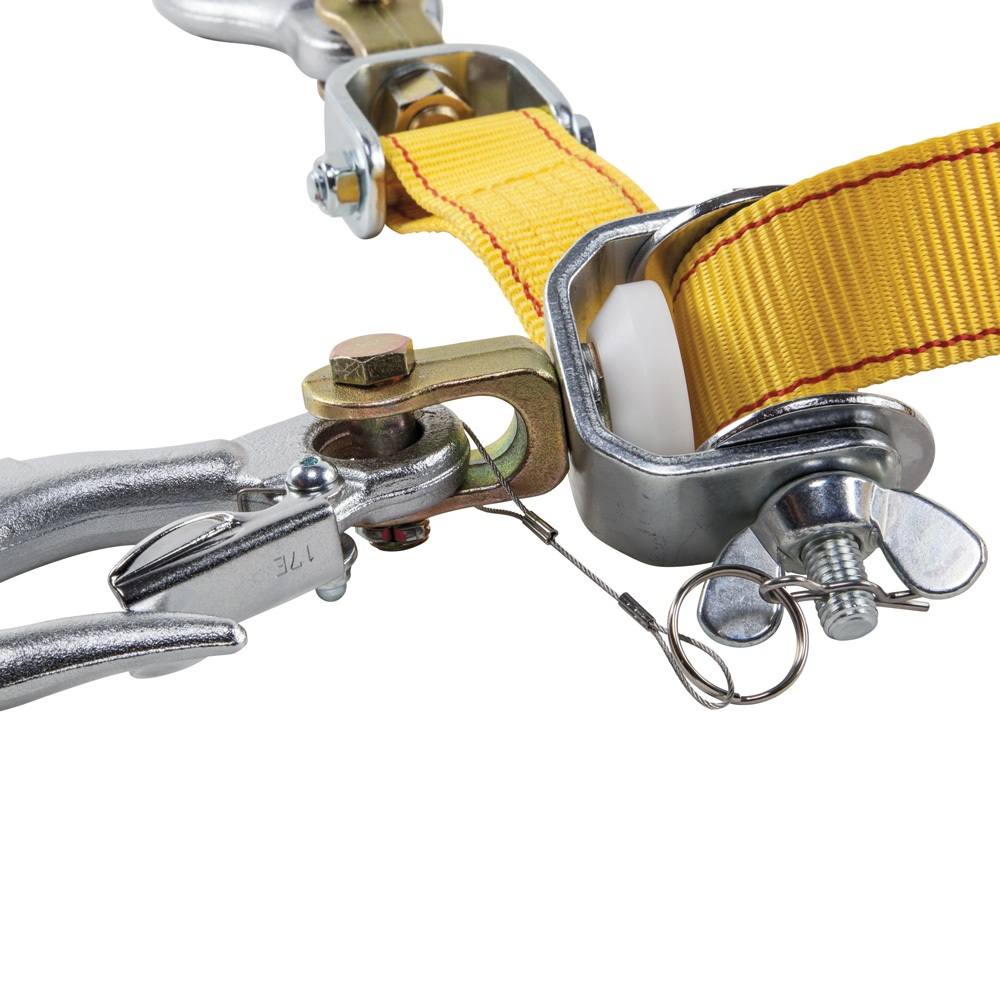

• Wing nut and cotter pin assembly for easy removal of the floating hook
• 360 degree handle rotation easily works from any angle
• Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
• Removable Handle; Deep V-Notch in the Hook; Tight Ratcheting Mechanism; Non-Conductive Drum Knob; 360 Degree Handle Rotation

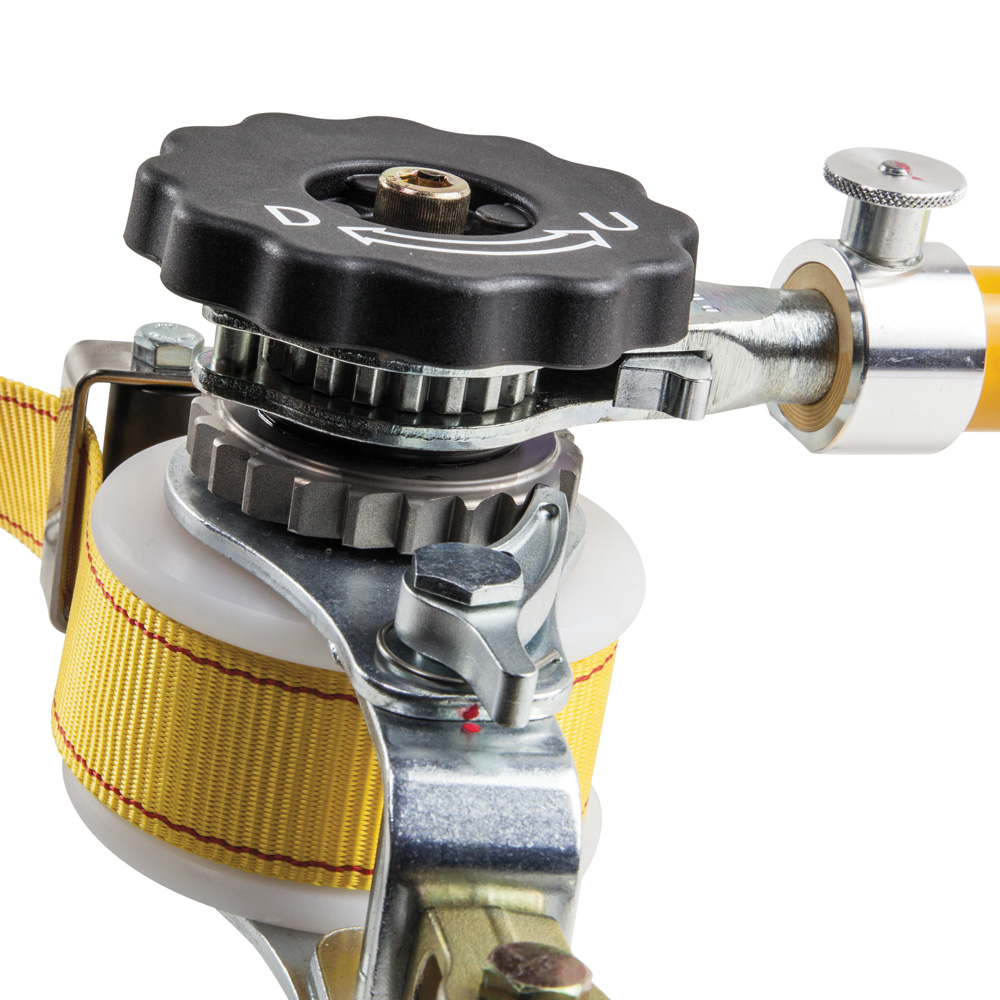

• Controlled tension release for safety
• Tight ratcheting for less work and less fatigue

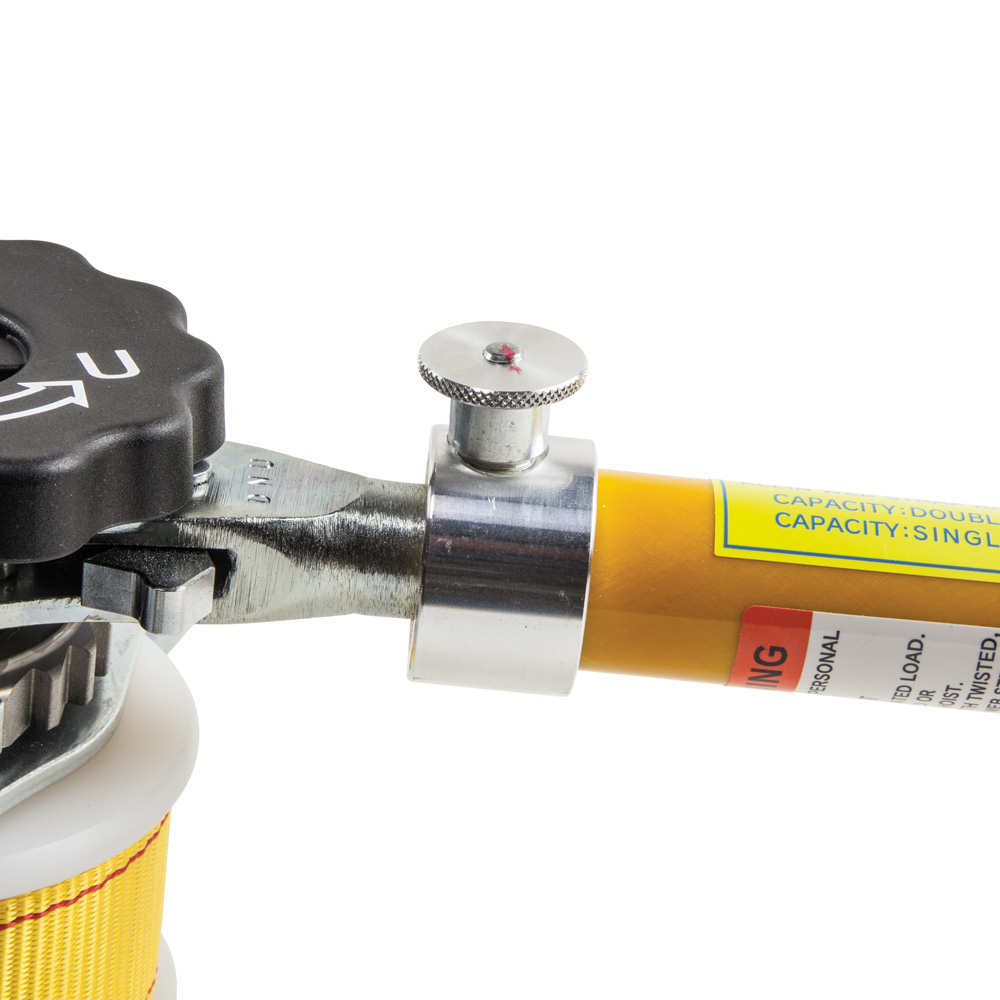

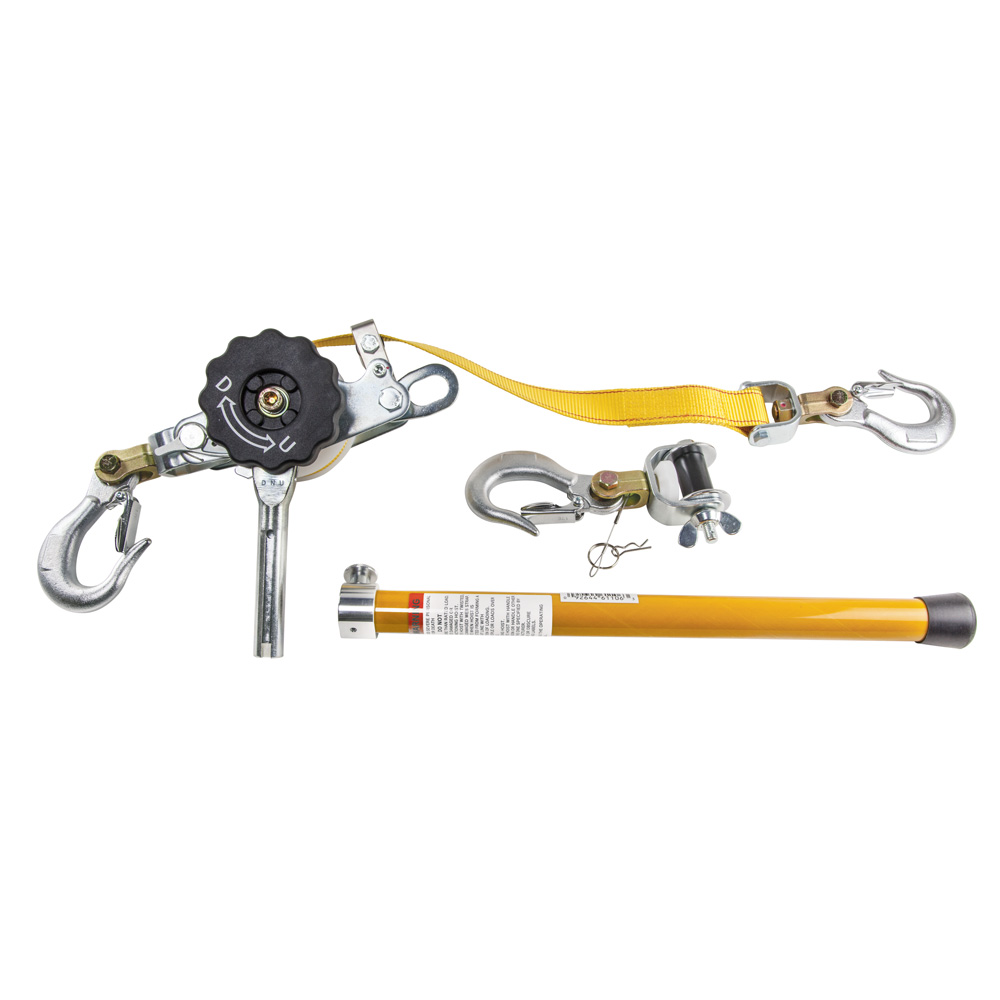

• Removable handle for less obstruction when working near the hoist; requires less space for storage

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.

• Load Rating (Single Line): 1500 lb (680 kg)
• Load Rating (Double Line): 3000 lb (1361 kg)
• Single Line Pulling Distance: 20" to 138" (50.5 to 350.5 cm)
• Double Line Pulling Distance: 26" to 79" (66.0 to 200.6 cm)
• Weight: 13 lbs (5.9 kg)
• Overall Length: 33" (83.8 cm)
• Depth: 33"
• Overall Height: 5" (12.7 cm)
• Overall Width: 4" (10.2 cm)
• Width: 4"
• Height: 5"
• Type: Hoists
• Application: Lifting
• Standards Compliance: ANSI/ASME B30.21-2014, B30.10-2014
