Klein Tools, KN1500PEXH, Web-Strap Ratchet Hoist, 1-1/2 ton Double Line; 3/4 ton Single Line; 20 in to 138 in Pulling Distance

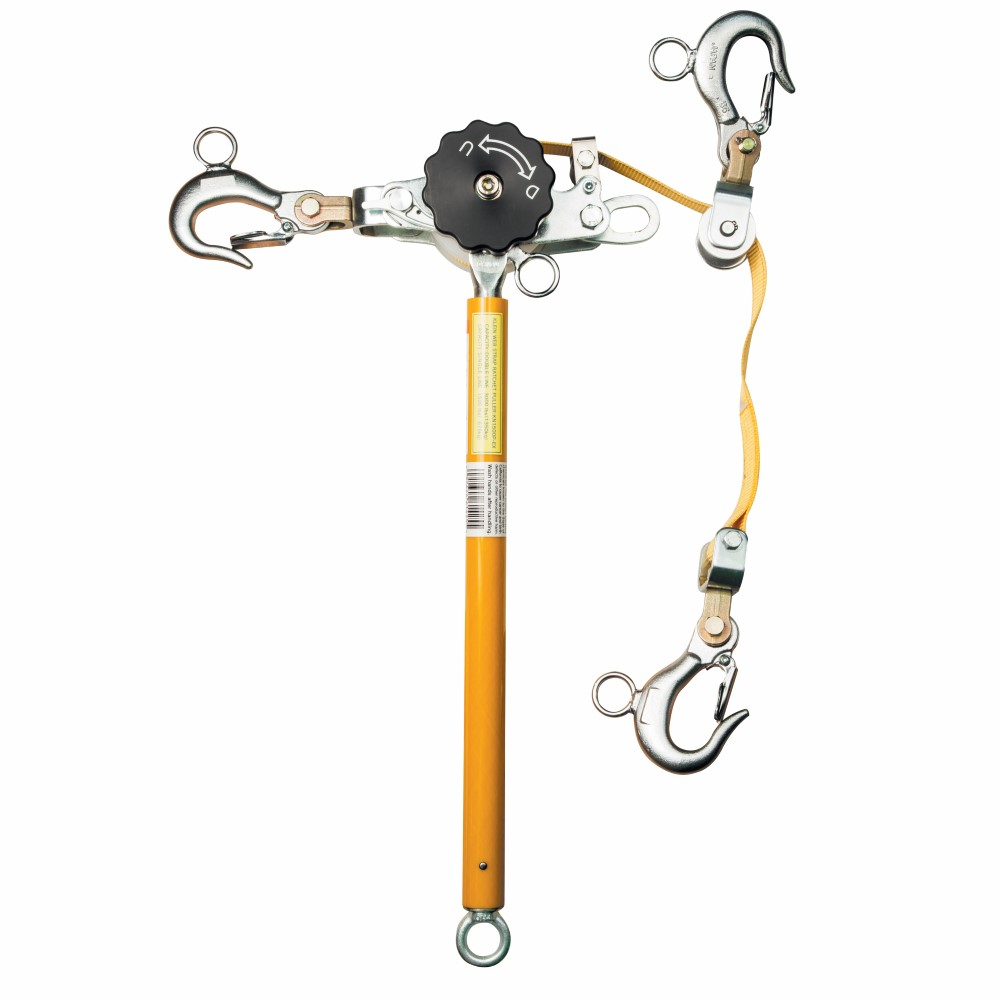

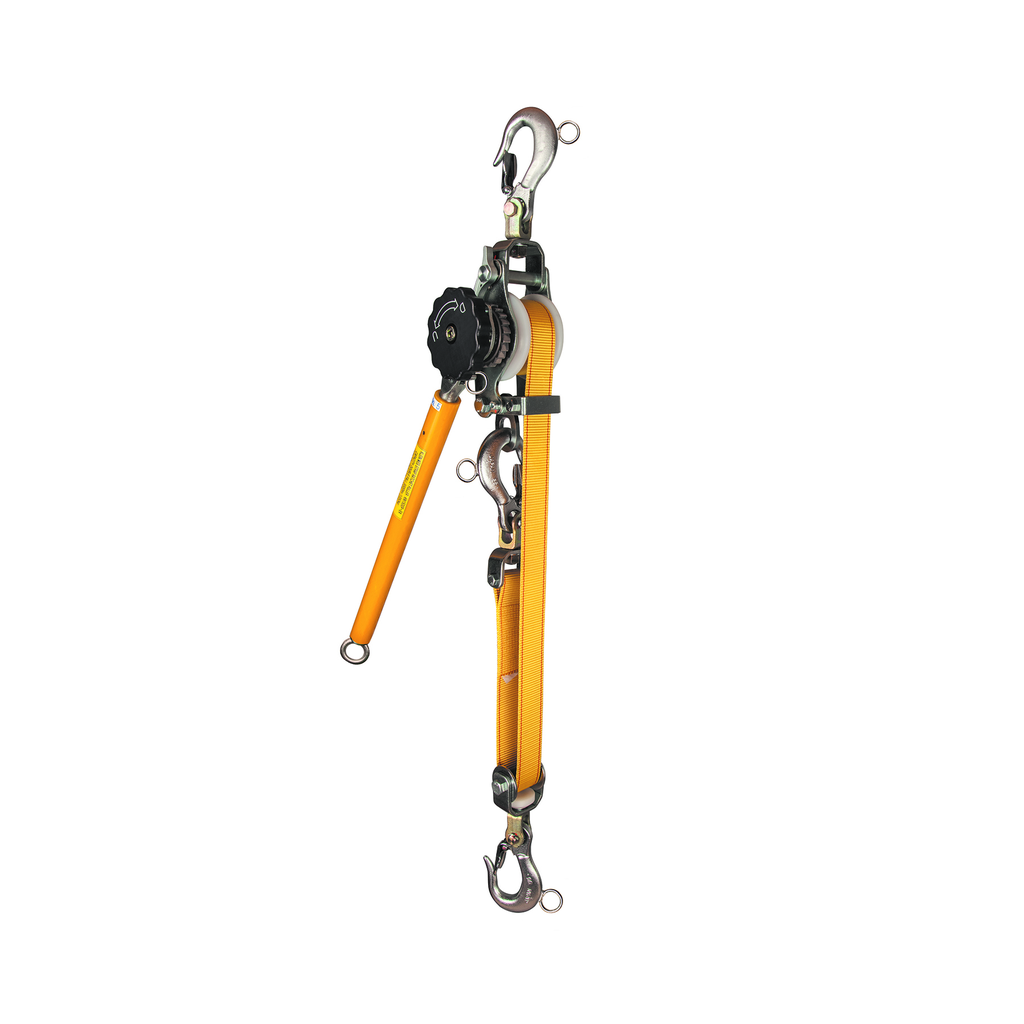

Klein Tools' Web-Strap Ratchet Hoist with hot rings to accommodate hotsticks. The hoist features a tighter ratchet to reduce work and fatigue. The handle and drum knob allow you to safely control the tension release to avoid free wheeling. The hoist can be used in both a single line and double line configuration. The handle provides a 360-degree range of motion for easier adjustment from any angle.

Features

• Hot rings on hooks, switch and end of handle enable use with hotstick
• Non-conductive dial allows web slack to be adjusted with ease
• Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
• Single line pulling distance is 20-Inches to 138-Inches (50.5 to 350.5 cm)
• Tight ratcheting mechanism allows precise tensioning with less work and fatigue
• 360-degree handle rotation allows for use from any angle
• 1-1/2-ton double line, 3/4-ton single line load rating

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.

• Load Rating Single Line: 1500 lb (680 kg)
• Load Rating Double Line: 3000 lb (1361 kg)
• Single Line Pulling Distance: 20 in to 138 in (50.5 to 350.5 cm)
• Double Line Pulling Distance: 26 in to 79 in (66.0 to 200.6 cm)
• Height: 4.2750 in
• Width: 6.7500 in
• Depth: 27.4500 in
• Weight: 13.6000 lbs
• Hot Rings: On hooks, switch, and handle
• Compliance: ANSI/ASME B30.21-2014, B30.10-2014
