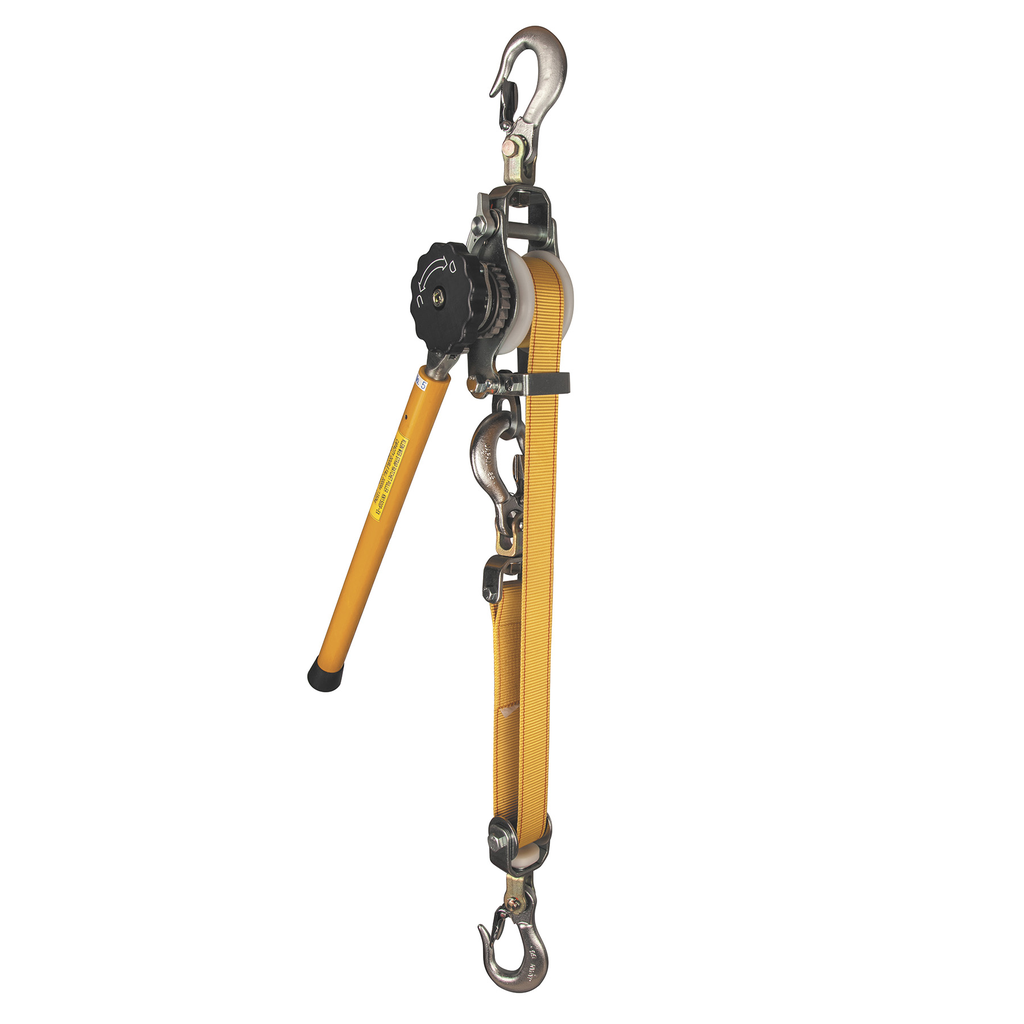

Klein Tools, KN1500PEX, Web-Strap Ratchet Hoist, Single Line Load Rating 1500 lb, Double Line Load Rating 3000 lb, Pulling Distance 20\" to 138\"

Klein Tools' Web-Strap Ratchet Hoist features a tighter ratchet to reduce work and fatigue. The handle and drum knob allow you to safely control the tension release to avoid free wheeling. The hoist can be used in both a single line and double line configuration. The handle provides a 360 degree range of motion for easier adjustment from any angle.

Features

• Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
• Has a single line pulling distance of 20-Inches to 138-Inches (50.5 to 350.5 cm)
• 360-degree handle rotation
• Hoist can be used with either a single line or a double line
• Tight ratcheting mechanism allows precise tensioning
• Large, non-conductive dial (drum knob) allows web slack to be adjusted with ease
• 3/4-ton single line and 1-1/2-ton double line load rating

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.

• Single Line Load Rating: 1500 lb (680 kg)
• Double Line Load Rating: 3000 lb (1361 kg)
• Single Line Pulling Distance: 20 in to 138 in (50.5 to 350.5 cm)
• Double Line Pulling Distance: 26 in to 79 in (66.0 to 200.6 cm)
• Width: 6.75 in
• Height: 4.05 in
• Depth: 26.1 in
• Weight: 12.5 lb
• Handle Rotation: 360°
• Compliance: ANSI/ASME B30.10-2014, B30.21-2014

Downloads

Instructions
