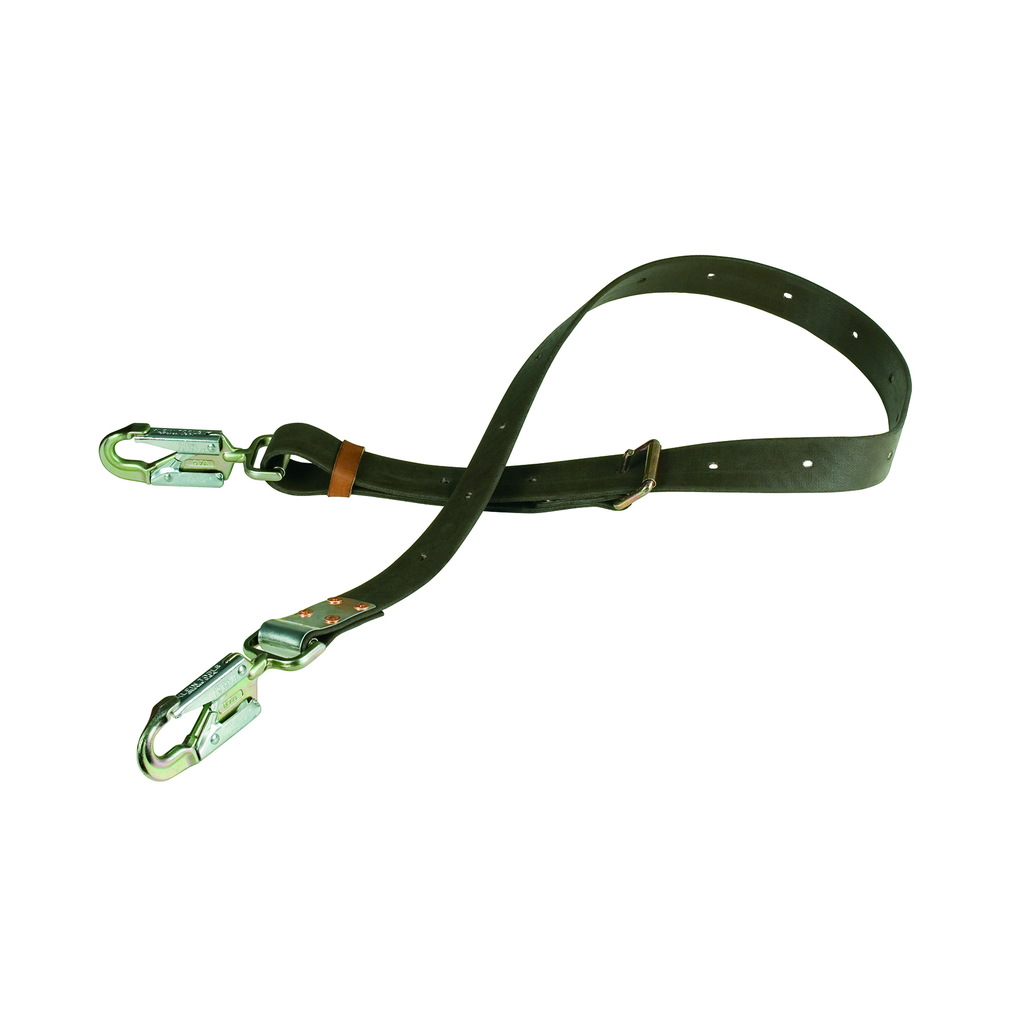

Klein Tools, KG5295-6L, Positioning Strap, 6 ft, 6-Ply Klein-Kord®, Snap Hook, 5000 lb Rating

Klein's positioning straps work with Klein's climbing equipment for linemen. Made with exceptionally strong and long-lasting Klein-Kord, the straps are adjustable within a 2' range. Features a Gard snap hook with 5000 lb. (2268 kg) gate strength. The drop-forged, single tongue adjustment buckle has a corrosion-resistant finish. Depending on the application, choose a positioning strap that allows you to work at arm's length from the pole or other positioning anchorage.

Warnings

• Never allow a positioning strap to become twisted before engaging D-ring.
• Always attach snap hooks to positioning D-rings on both sides of the belt or harness with keepers facing outward.
• Never attach multiple snap hooks onto a D-ring.

Features

• Red wear indicator in center of strap alerts user when strap needs to be replaced
• Snap hook has 5000-pound (2268 kg) proof-loaded rating
• Maximum length up to 6-Feet
• Made of 6-ply, 1-3/4-Inch (44 mm) wide Klein-Kord®, an exceptionally strong, flexible fabric
• Internal lock mechanism
• Depending on the application, choose a positioning strap that allows you to work at arm's length from the pole or other positioning anchorage

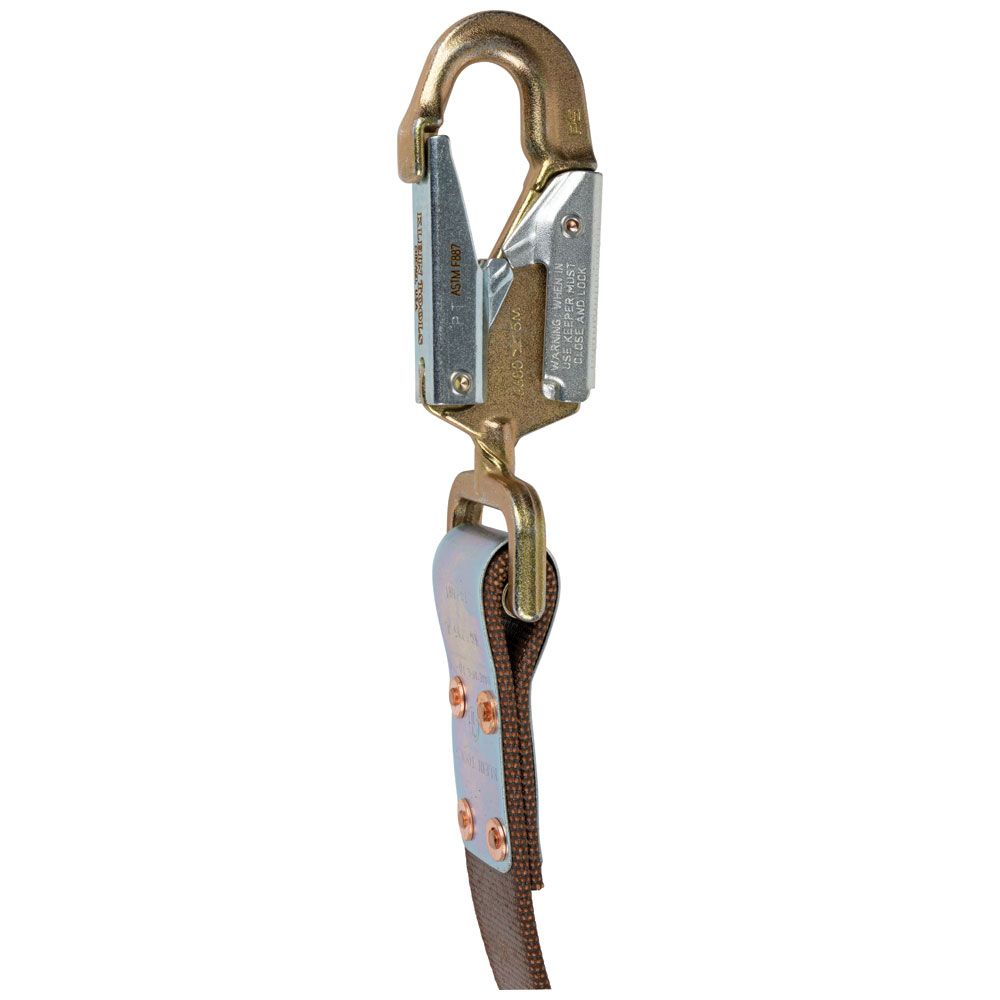

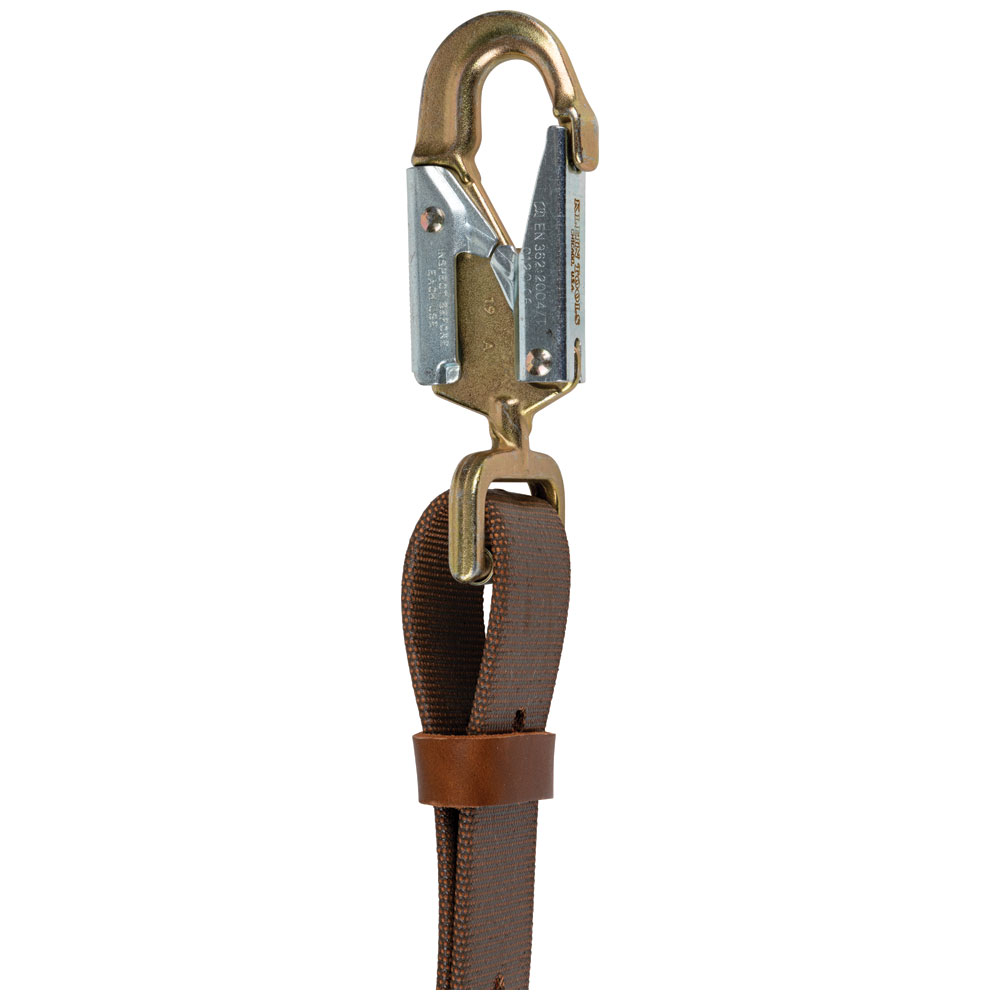

• Elongated 6-1/2-Inch (165 mm) snap hook is easy to use with even the thickest gloves
• Elongated 6-1/2" (16.5 cm) Snap Hook; 6-ply neoprene coated nylon construction; Built in red wear indicator layer

• Maximum Length: 6 ft (1.8 m)
• Minimum Length: 4 ft 3 in (1.3 m)
• Adjustable Range: 1 ft 9 in (0.5 m)
• Snap Hook Size: 6.5 in
• Snap Hook Strength: 5000 lb (2268 kg)
• Width: 8.73 in
• Depth: 72 in
• Height: 4.41 in
• Weight: 3.276 lb (1.5 kg)
• Pole Diameter: 8.5 to 18 in (20.3 to 45.7 cm)
• Material: 6-Ply Klein-Kord®

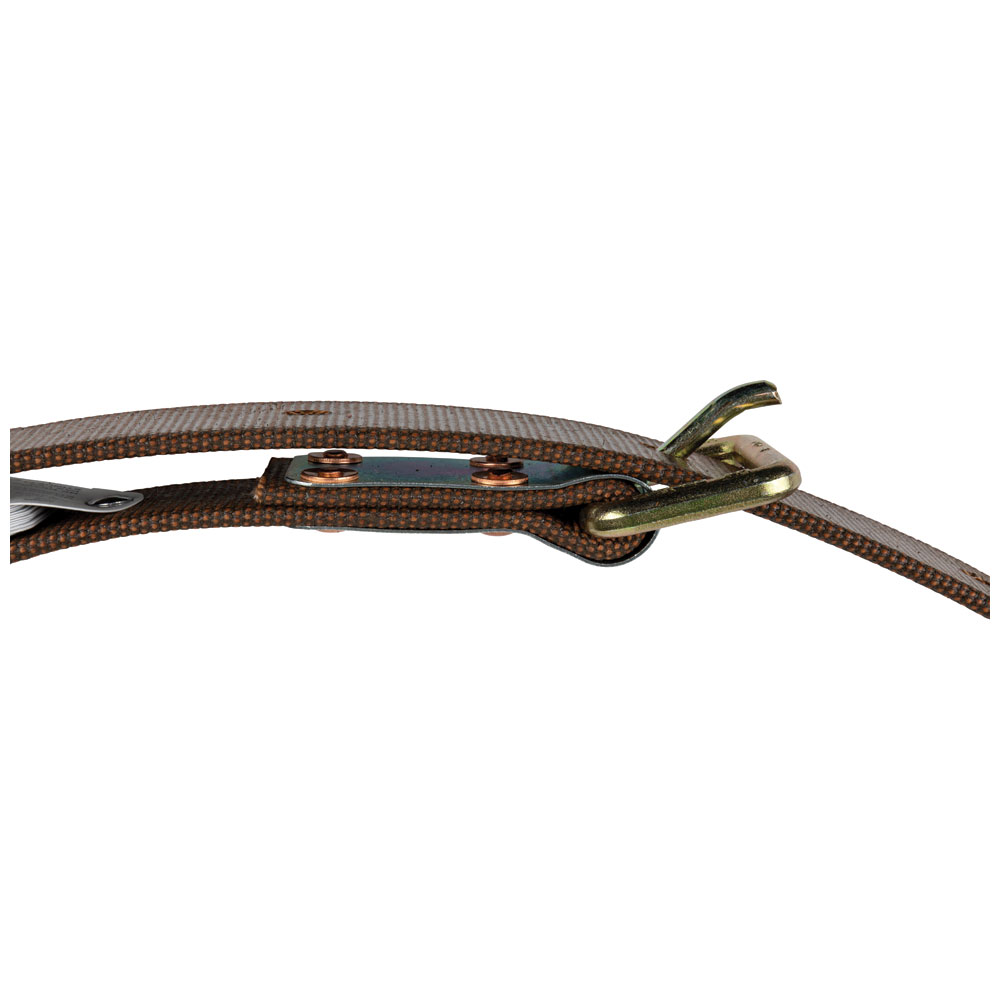

• Buckle Type: Drop-forged, Single Tongue Adjustment Buckle
• Number of Plies: 6
• Standard: 29 CFR 1910.268, 1910.269, 1926.954
• Color: Brown
