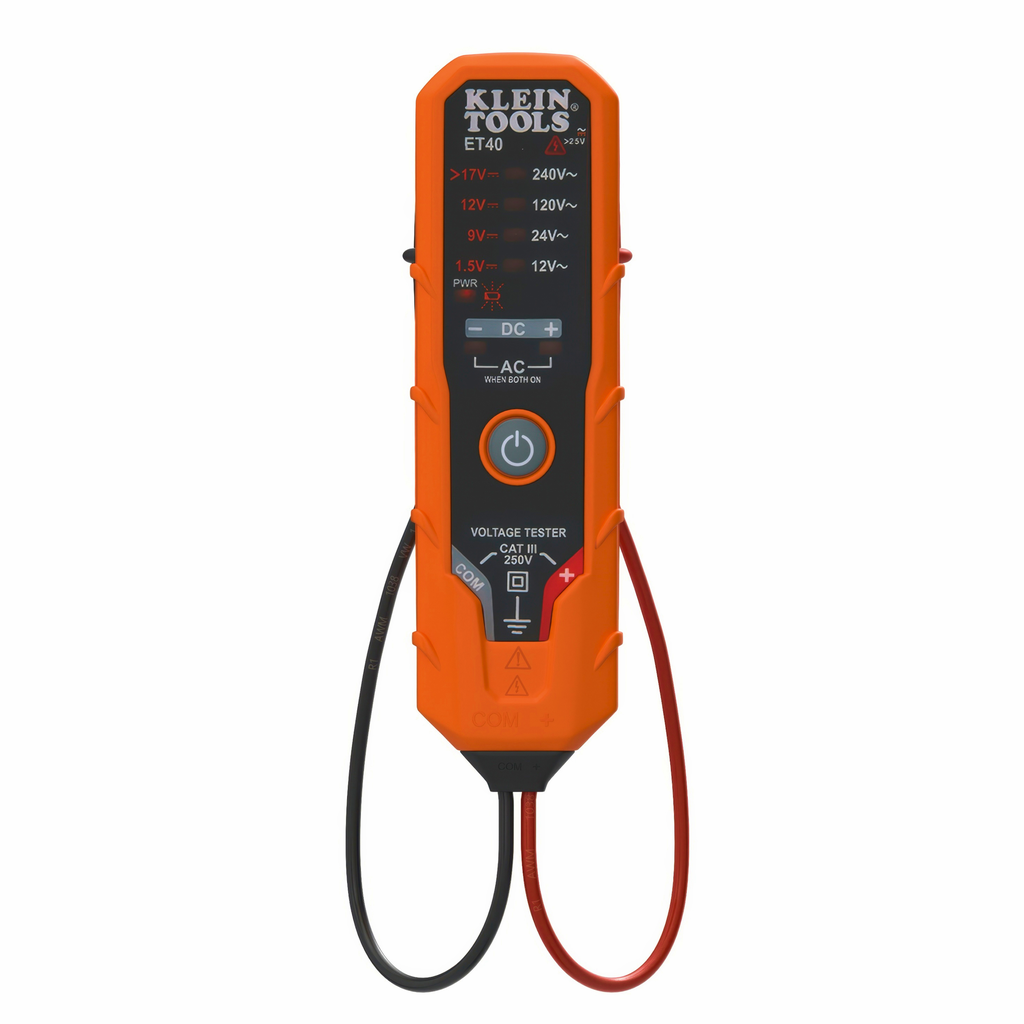

Klein Tools, ET40, Voltage Tester, AC 12-240V; DC 1.5-24V; CAT III 250V; IP41, 9.8 ft Drop Protection

Klein Tools ET40 is an Electronic AC/DC Voltage Tester. It measures AC voltages from 12V to 240V and DC voltages as low as 1.5V up to 24V. Tester also indicates positive and negative DC polarity.

Features

• DC Polarity Indicators for DC Positive, DC Negative, and Both Illuminated for AC. Tests Low DC Voltage to 1.5V. Built in Test Lead Holders on Sides of Tester.

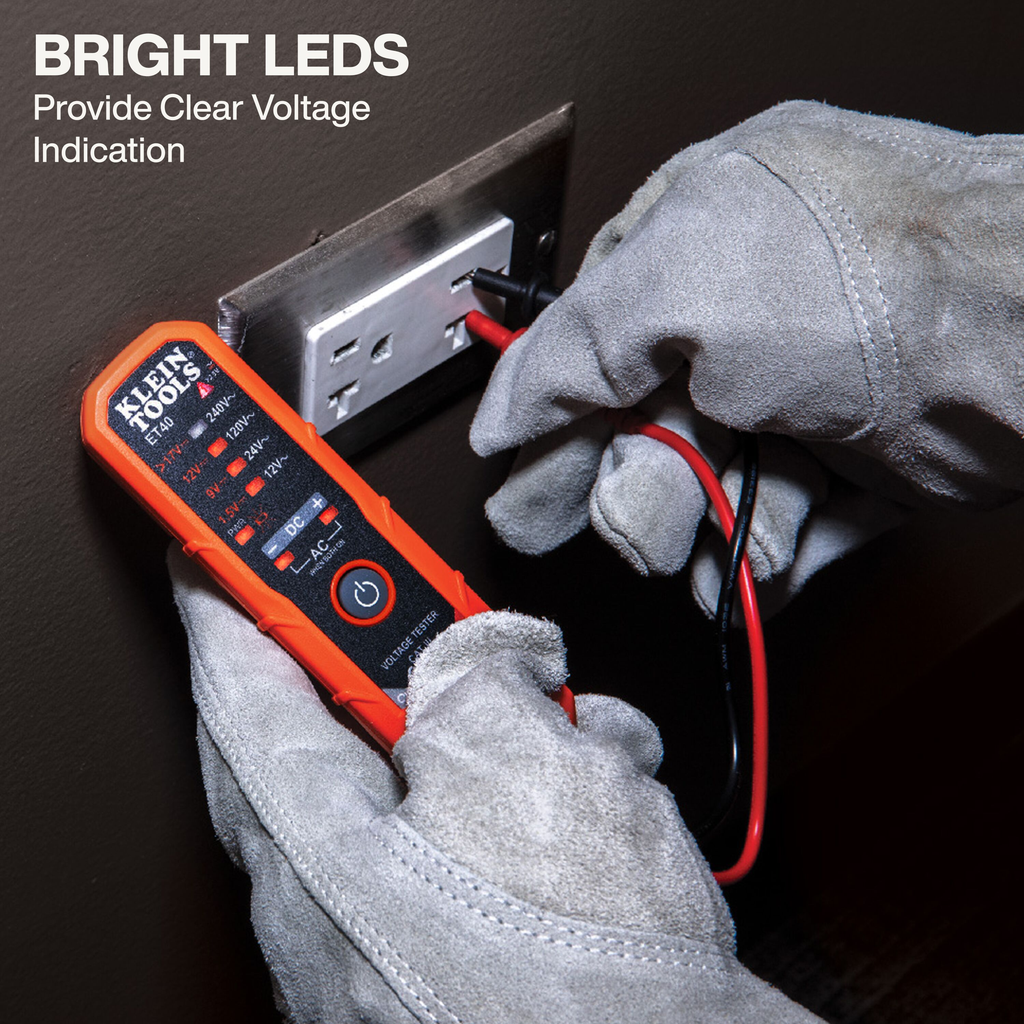

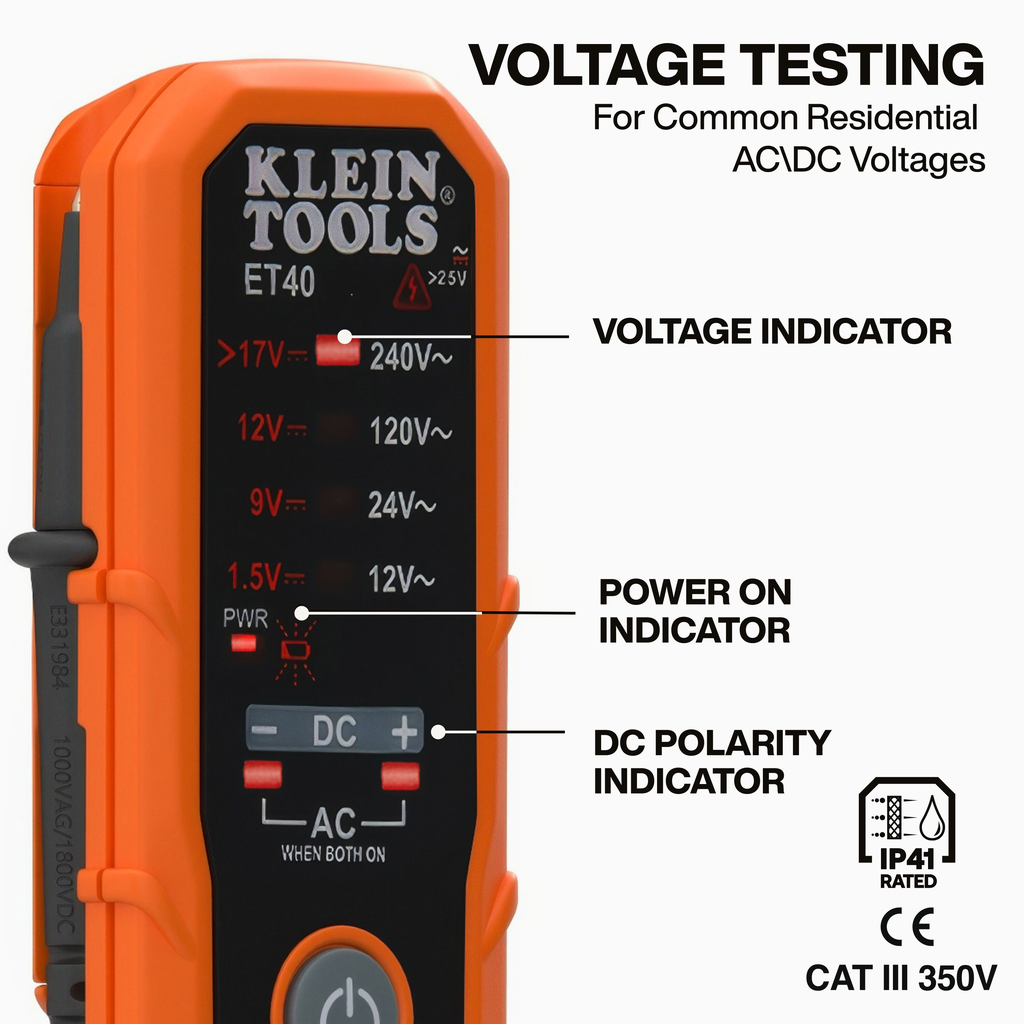

• Bright LEDs illuminate to indicate the type and level of voltage detected
• Identifies and distinguishes between AC or DC voltage
• Voltage Tester for AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages
• Tests DC voltages from 1.5V to greater than 17 to 24V at four useful levels aligned with commonly used DC voltages

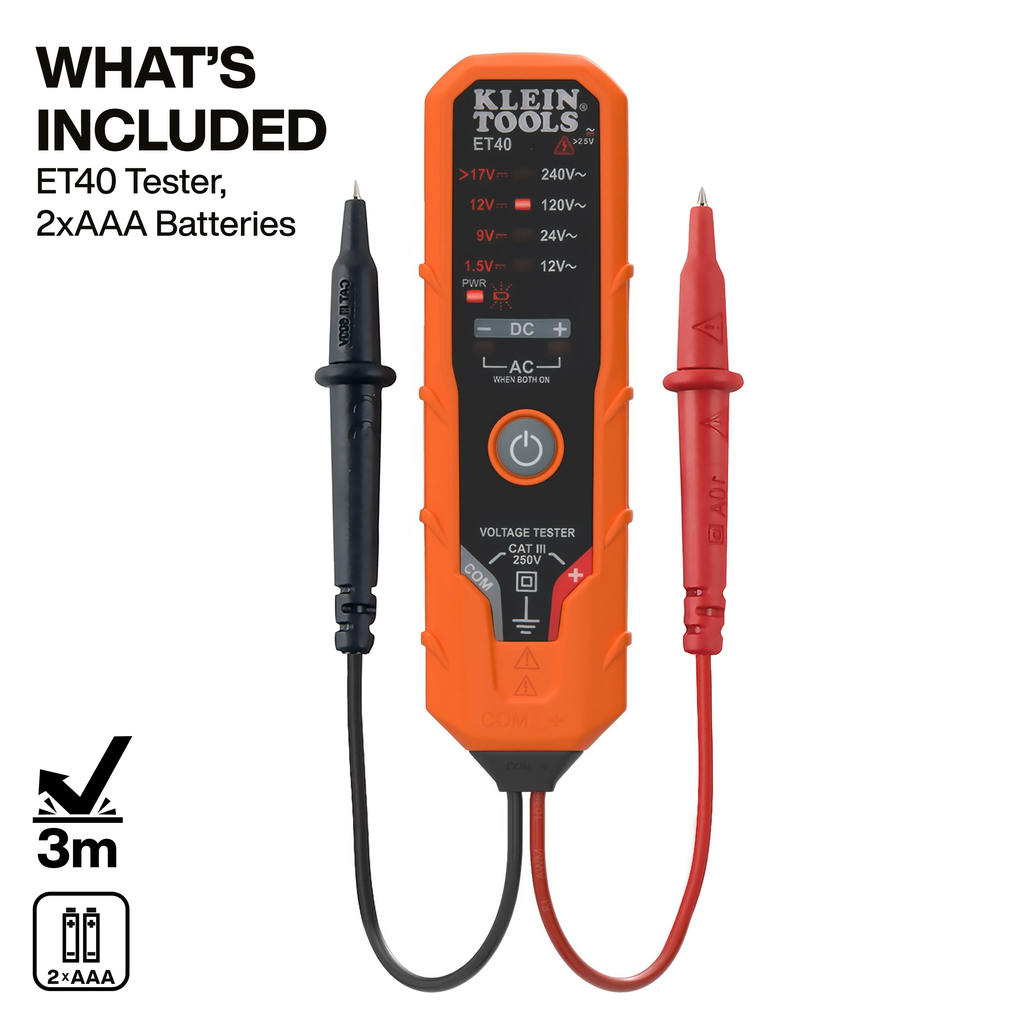

• Uses 2 x AAA batteries (included)
• Ingress protection IP41 dust and water resistant
• Built to withstand a 9.8-Foot (3 m) drop
• CAT III 250V, Class 2, Double insulation
• Powers off automatically after approximately 2 minutes of non-use to conserve battery life

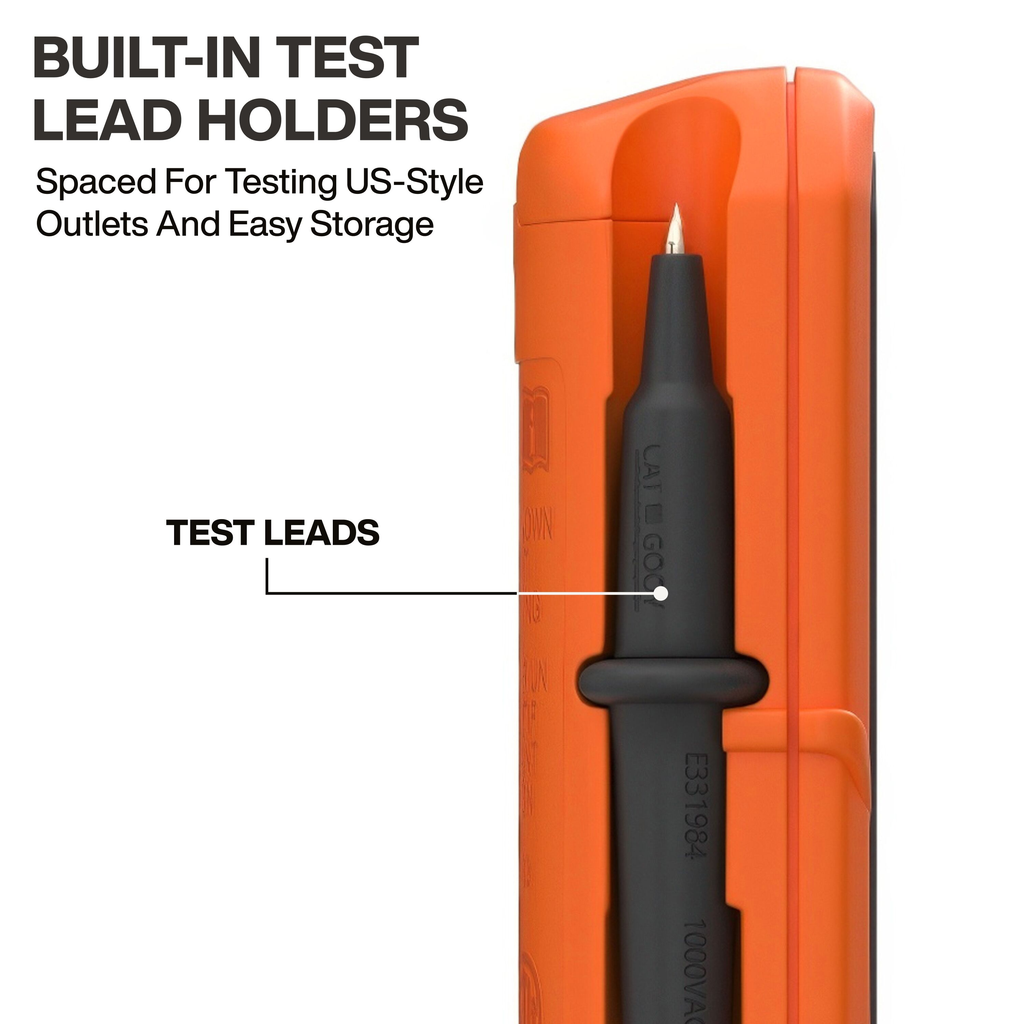

• Built-in test lead holders on sides of tester
• Low battery indicator with easily accessible battery compartment
• Indicates polarity when measuring DC voltages

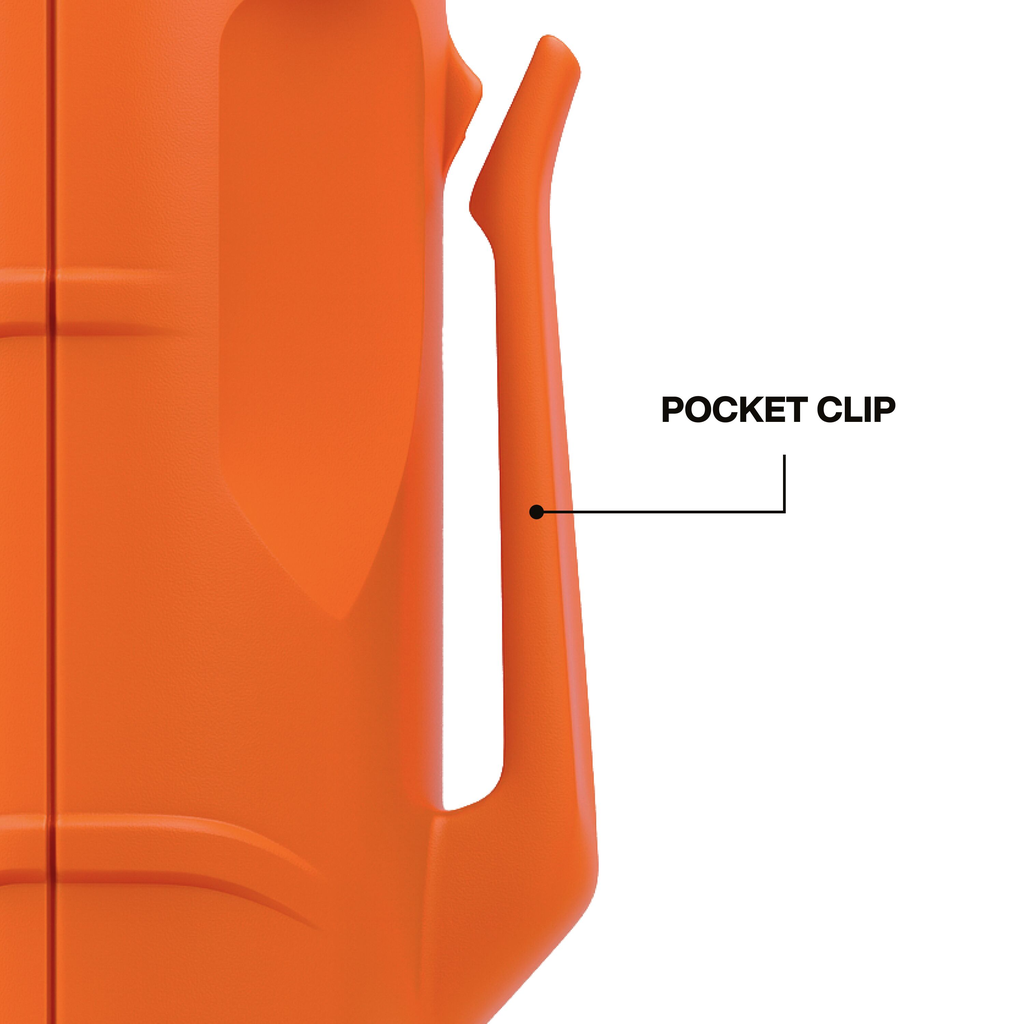

• Pocket clip secures tester to pocket for reliable everyday carrying

Warnings

• Never use the tester on a circuit with voltages that exceed the category based rating of this tester.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Before each use, verify tester operation by measuring a known voltage.

• Voltage: AC Level Indicators - 12V, 24V, 120V, 240V; DC Indicators - 1.5V, 9V, 12V, >17-24V
• Accuracy: Approximately 70-100% Indicated Voltage; 2V DC (84-100%); >17V DC (94-100% of 17V)
• Frequency: 50/60 Hz
• Drop Protection: 9.8 ft (3 m)
• Height: 5.24 in (13.3 cm)
• Width: 1.52 in (3.9 cm)
• Depth: 5.24 in (13.3 cm)
• Overall Width: 1.11 in (2.8 cm)
• Overall Length: 5.24 in (13.3 cm)
• Overall Height: 1.52 in (3.9 cm)
• Lead Length: 9 in (22.9 cm)
• Weight: 0.268 lbs (121 g)
• Material: Plastic Housing, PCB with Electronic Components
• Ingress Protection: IP41
• Compliance: CAT III 250V, CE
• Pollution Degree: 2
• Batteries: 2 x AAA
