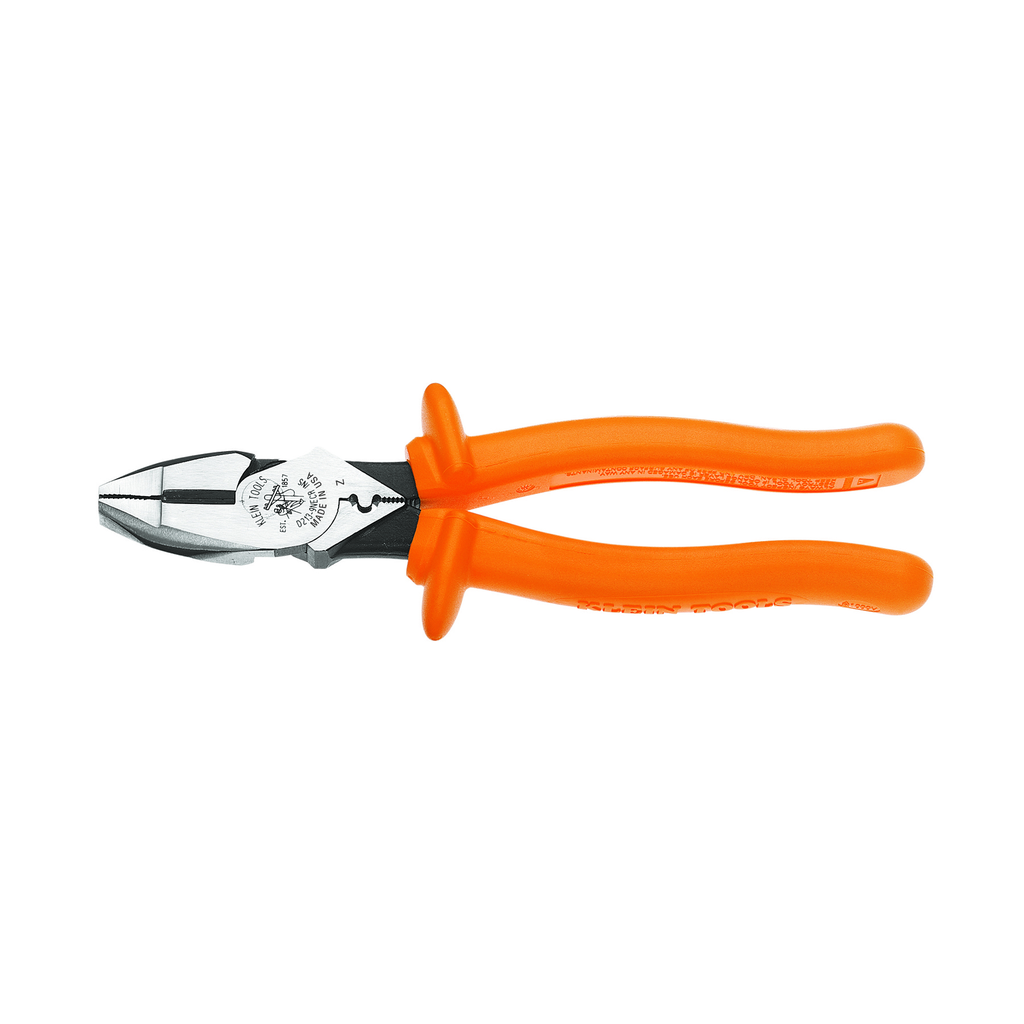

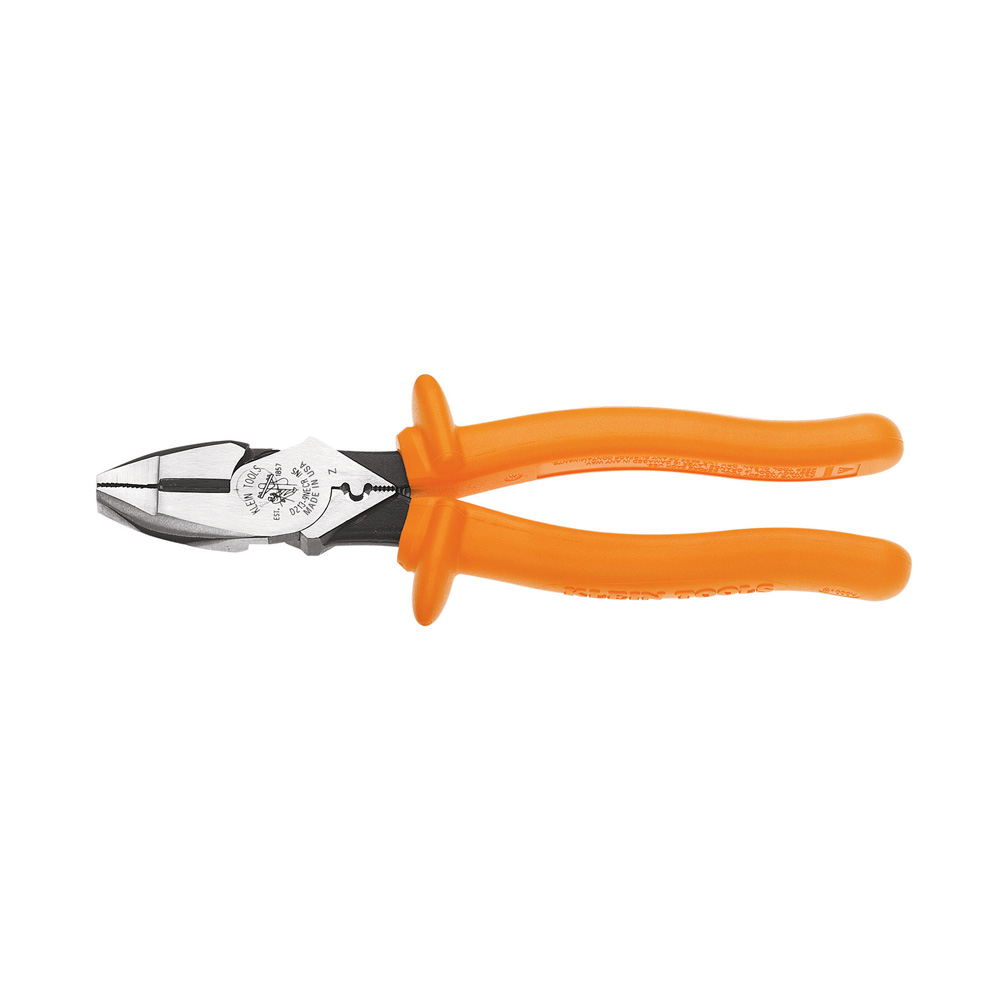

Klein Tools, D213-9NE-CR-INS, High-Leverage Insulated Crimping Pliers, 9 in; 1000V Rated; Induction Hardened Steel

These Klein Tools 9-Inch Insulated Side-Cutting Crimping Pliers offer protection against electric shock up to 1000 volts. The pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol. The pliers offer maximum strength with their forged-steel construction and a crimping die helps provide increased leverage.

Features

• Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
• Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line
• Crimping die behind hinge for superior leverage
• A flame retardant, impact-resistant, bright orange outer coating
• High-leverage design provides 46-Percent greater cutting and gripping power than other plier designs
• Made in USA
• Integral Guards Help Prevent Hand Contact With Conductive Parts

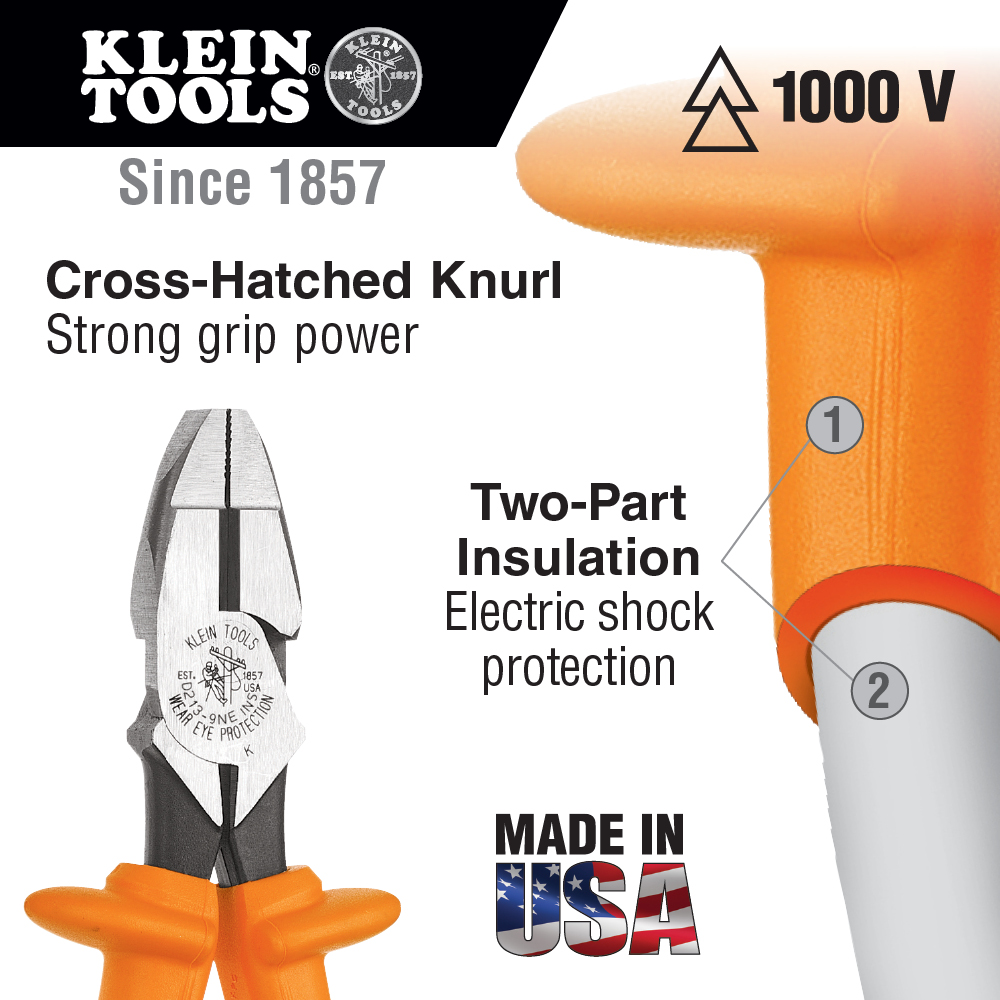

• Two layers of insulation provide protection against electric shock
• High-leverage design provides 46-percent greater cutting and gripping power than other plier designs
• Two layers of insulation provide protection against electric shock while the integral guards help prevent hand contact with conductive parts
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
• Integral guards help prevent hand contact with conductive parts

Warnings

• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

• Voltage Rating: 1000V
• Overall Length: 9.68 in (24.6 cm)
• Jaw Capacity: 1.375 in (3.5 cm)
• Jaw Length: 1.91 in (4.9 cm)
• Handle Length: 5.73 in (14.6 cm)
• Jaw Width: 1.25 in (3.2 cm)
• Jaw Thickness: 0.62 in (1.6 cm)
• Height: 0.625 in
• Width: 1.00 in
• Depth: 9.625 in
• Material: Induction Hardened Steel
• Handle Finish: 2-Layer Insulation
• Cutting Knives: 1
• Cut Style: Side-Cutting
• Joint Type: Hot-Riveted
• Connector Crimping: Yes
• Crimps: Yes
• Cuts: Yes
• Strips and Cuts AWG Solid: No
• Strips and Cuts AWG Stranded: No
• Screw Shearing: No
• Tether Capable: No
• Bolt Thread Holding: No
• Fish Tape Pulling: No
• Insulated: Yes
• Standards: IEC 60900, ASTM F1505
• Country of Origin: United States
• Handle Color: Orange
• Nose Type: New England
• Type: High-Leverage Connector Crimping Pliers
• Item: Diagonal-Cutting
• Style Name: With Crimping
