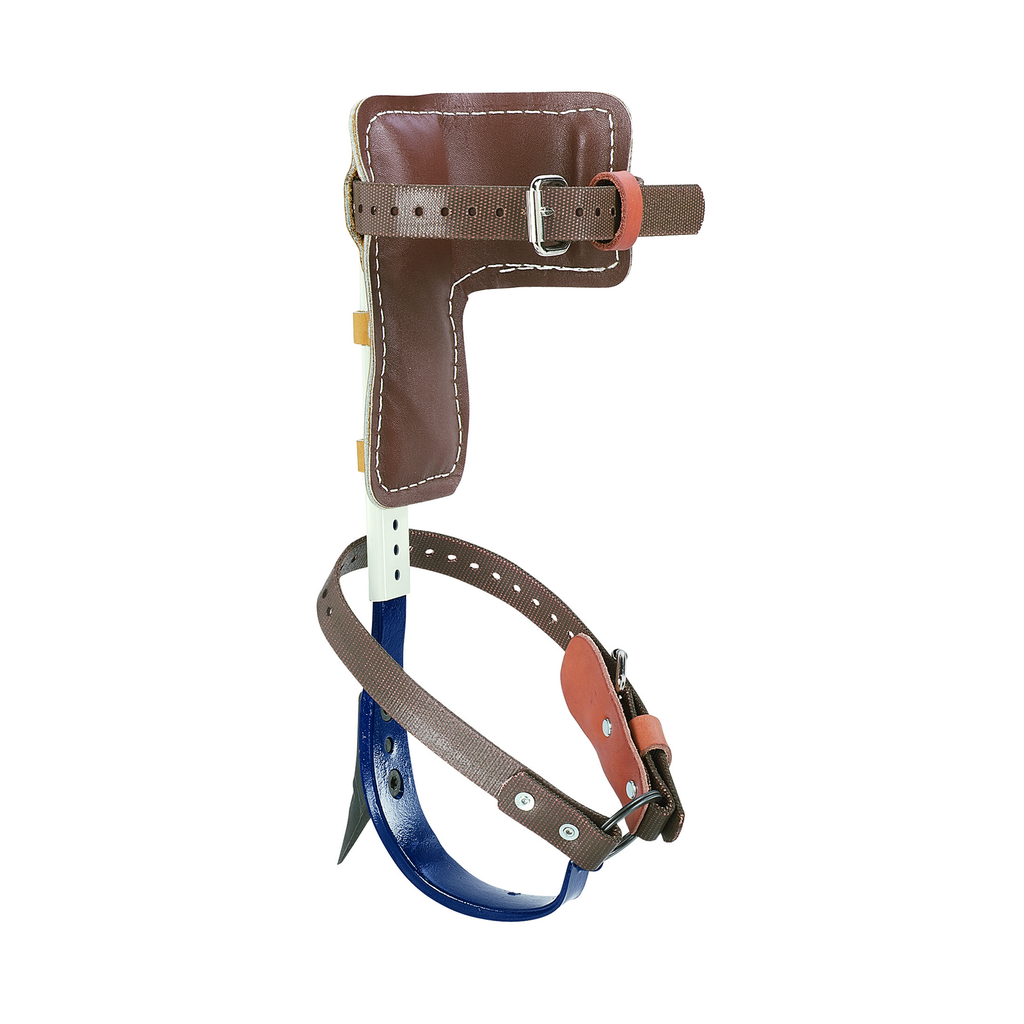

Klein Tools, CN1986AR, Pole Climbers, 1-9/16 in Gaffs; Adjustable Length 15" to 19"; High-Grade Leather Pads

Klein's Pole Climber set includes the pads, steel sleeves, leg irons, gaffs, split rings and nylon calf and ankle straps. The secure sleeve and leg iron connections are adjustable. Contoured leg irons help position gaffs securely and comfortably. The replaceable gaffs firmly attach to the leg iron with a center pin and two TORX® screws. High-grade leather climber pads are cushioned for maximum comfort.

Features

• Neoprene-impregnated nylon climber straps for long-lasting life
• Gaffs are longer in length and wider in angle than 1-1/2-Inch (38 mm) gaffs for exceptional resistance to cutouts
• 8-Inch (203 mm) x 8-Inch (203 mm) cushioned, high-grade leather climber pads for maximum comfort
• Secure sleeve and leg iron connection: two slotted hex-head bolts with lock washers and barrel-type nuts join the steel sleeve and leg iron together
• Contoured leg irons help position gaffs securely and comfortably
• Replaceable gaff firmly attaches to the leg iron with a center pin and two TORX® screws
• To determine size needed, measure from instep to 1-Inch (25 mm) below knee
• Sold in pairs only
• 4-7/16-Inch (113 mm) wide stirrup provides greater foot support
• Steel split ring secures ankle strap in place and allows for quick replacement

• Adjustable Length: 15 in to 19 in (38.1 to 48.3 cm)
• Weight: 6.0 lb (2.7 kg)
• Height: 3.42 in
• Width: 8.82 in
• Depth: 15 in
• Gaff Length: 1-9/16 in
• Gaff Width and Angle: Wider and longer than 1-1/2 in (38 mm) gaffs
• Stirrup Width: 4-7/16 in (113 mm)
• Climber Pad Size: 8 in x 8 in (203 mm x 203 mm)
• Climber Strap Material: Neoprene-impregnated nylon
• Climber Pad Material: High-grade leather
• Leg Iron Connection: Two slotted hex-head bolts with lock washers and barrel-type nuts
• Gaff Attachment: Center pin and two TORX screws
