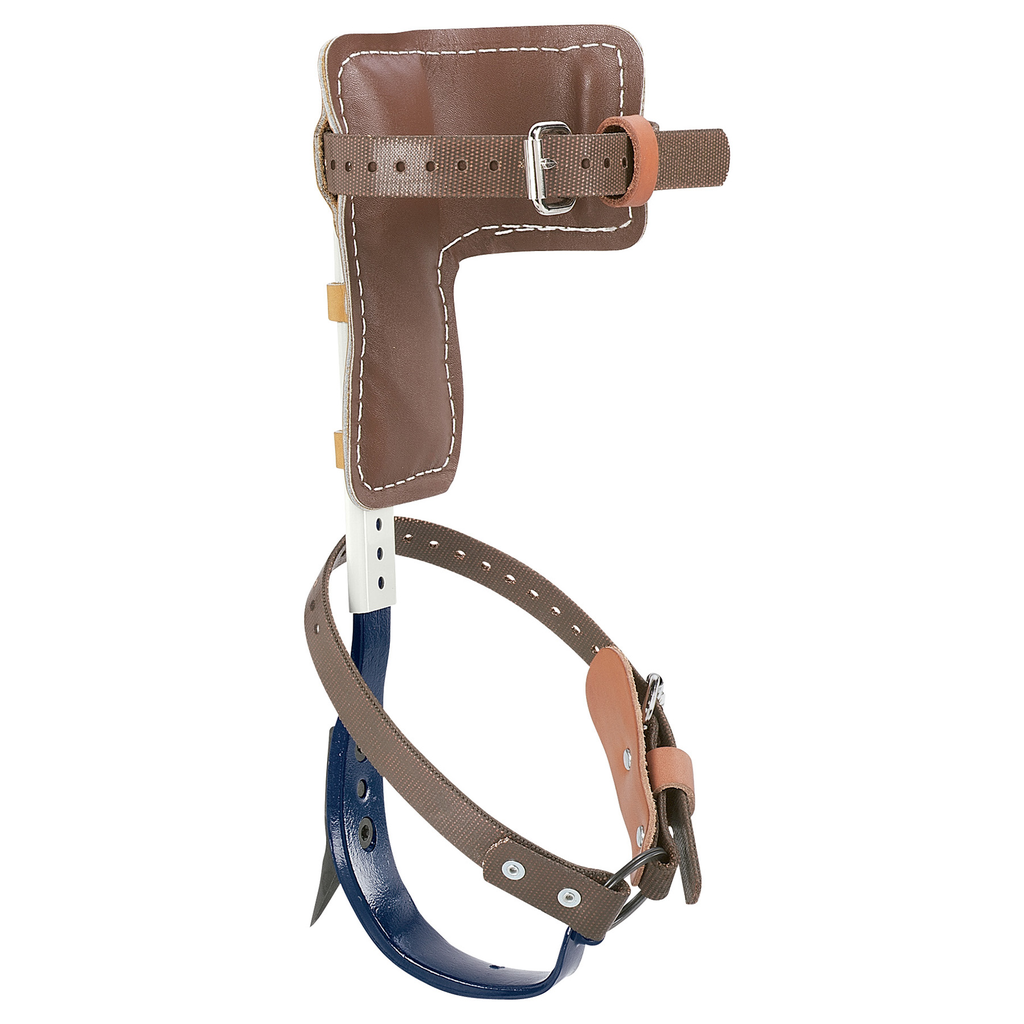

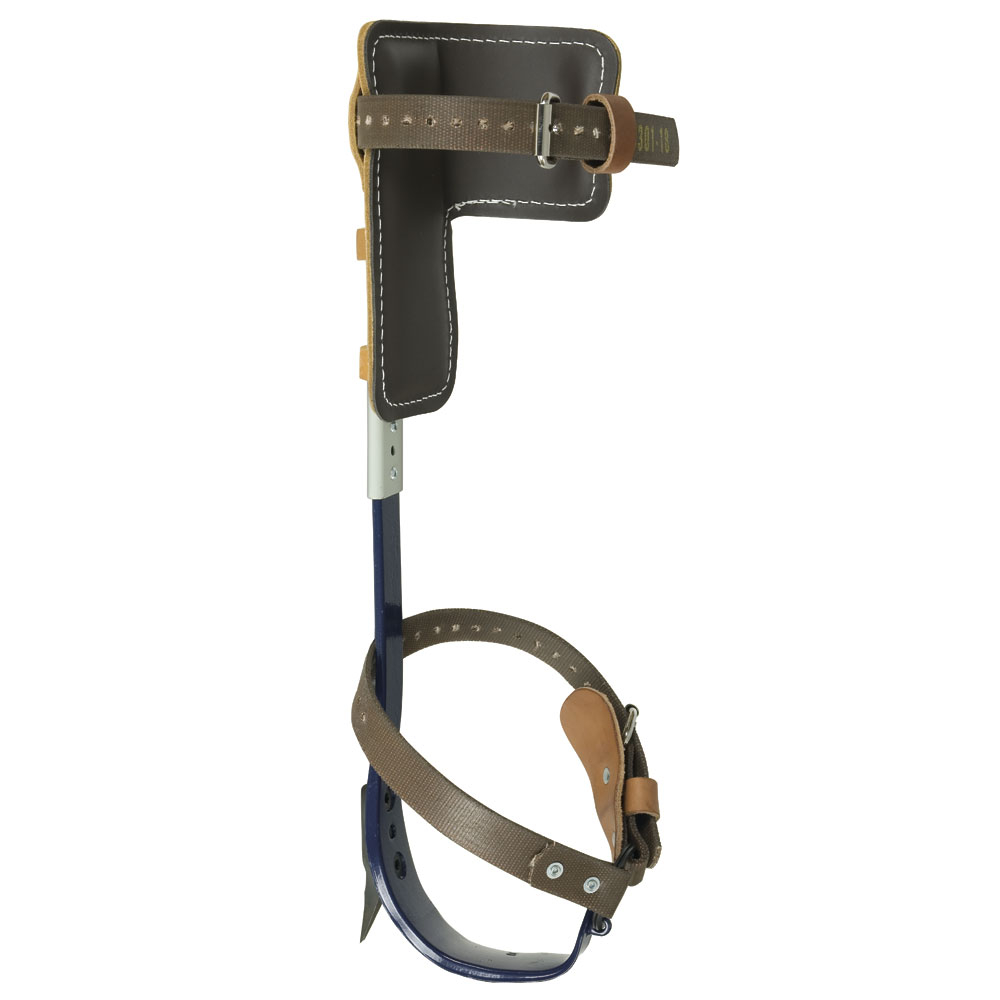

Klein Tools, CN1972AR, Pole Climbers, 1-1/2 in Gaffs, Adjustable Length 15 to 19 in, Leather Pads 8 x 8 in

Klein's Pole Climber set includes the pads, steel sleeves, leg irons, 1-1/2-Inch gaffs, split rings and nylon calf and ankle straps. The secure sleeve and leg iron connections are adjustable in 1/4-Inch (0.6 cm) increments. Contoured leg irons help position gaffs securely and comfortably. The replaceable gaffs firmly attach to the leg iron with a center pin and two TORX® screws. High-grade leather climber pads are cushioned for maximum comfort. Klein Tools has been providing occupational protective equipment to linemen since the first telegraph poles were strung. Klein components should not be interchanged with components made from other manufacturers because Klein cannot guarantee that those components are properly designed or are free of defects in materials or workmanship.

Features

• Secure sleeve and leg iron connection. Two slotted hex-head bolts with lock washers and barrel-type nuts join the steel sleeve and leg iron together
• 4-7/16-Inch (113 mm) wide stirrup provides greater foot support
• To determine size needed, measure from instep to 1-Inch (2.5 cm) below knee
• Replaceable gaff firmly attaches to the leg iron with a center pin and two TORX® screws
• C.C.A. pole gaffs designed to penetrate the hardest salt-treated poles
• Steel split ring secures ankle strap in place and allows for quick replacement
• To determine size needed, measure from instep to 1-Inch (25 mm) below knee
• 4-7/16-Inch (11.3 cm) wide stirrup provides greater foot support
• Neoprene-impregnated nylon climber straps for long-lasting life
• Sold in pairs only
• Contoured leg irons help position gaffs securely and comfortably
• 8 x 8-Inch (20.3 x 20.3 cm) cushioned, high-grade leather climber pads for maximum comfort
• To determine size needed, measure from instep to 1'' (25 mm) below knee
• 8-Inch x 8-Inch (203 x 203 mm) cushioned, high-grade leather climber pads for maximum comfort

• Adjustable Length: 15 in to 19 in (38.1 to 48.3 cm)
• Weight: 6.0 lb
• Depth: 15 in
• Width: 3 in
• Height: 3 in
• Gaff Size: 1-1/2 in
• Stirrup Width: 4-7/16 in
• Climber Pads Size: 8 in x 8 in
• Climber Pads Material: Leather
• Climber Straps Material: Neoprene-impregnated nylon
• Connection Adjustment Increment: 1/4 in
• Attachment Type: Center pin and two TORX screws
• Split Ring Material: Steel
• Country of Origin: United States
