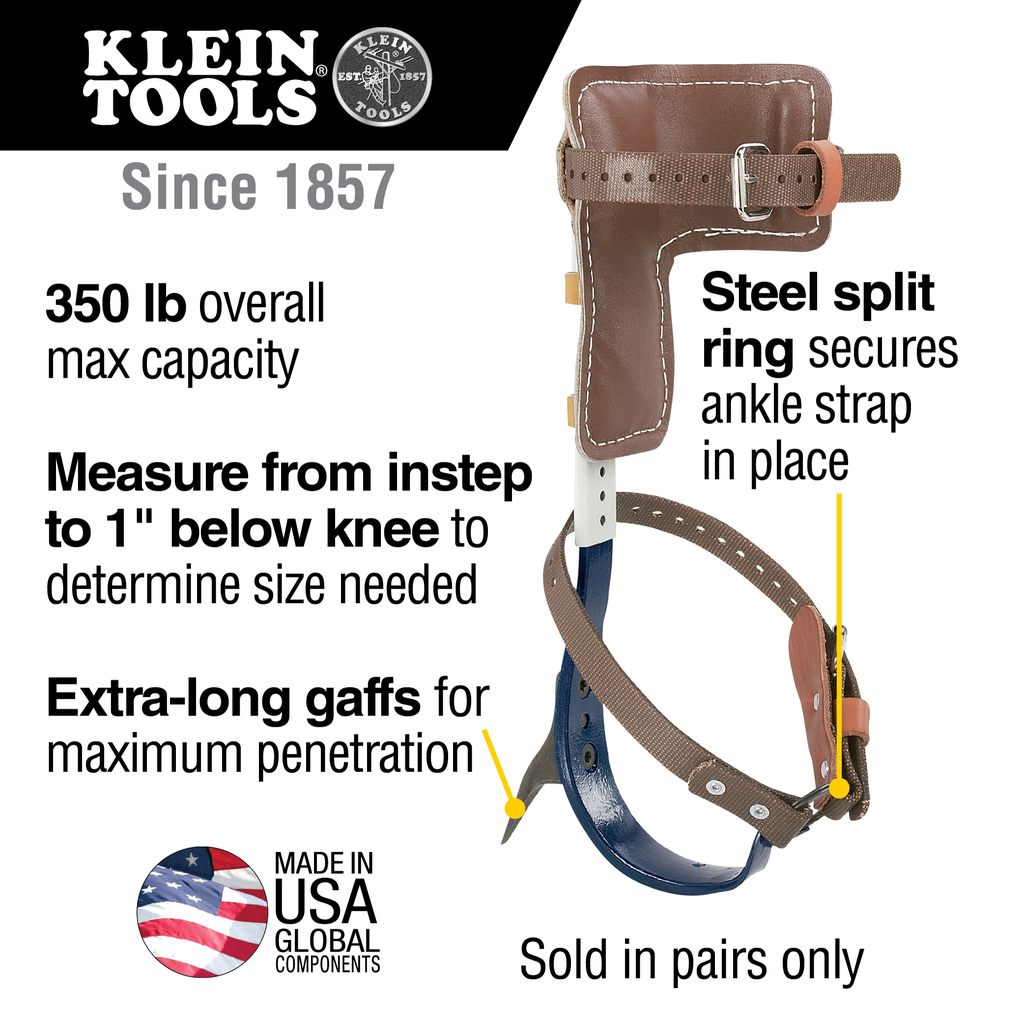

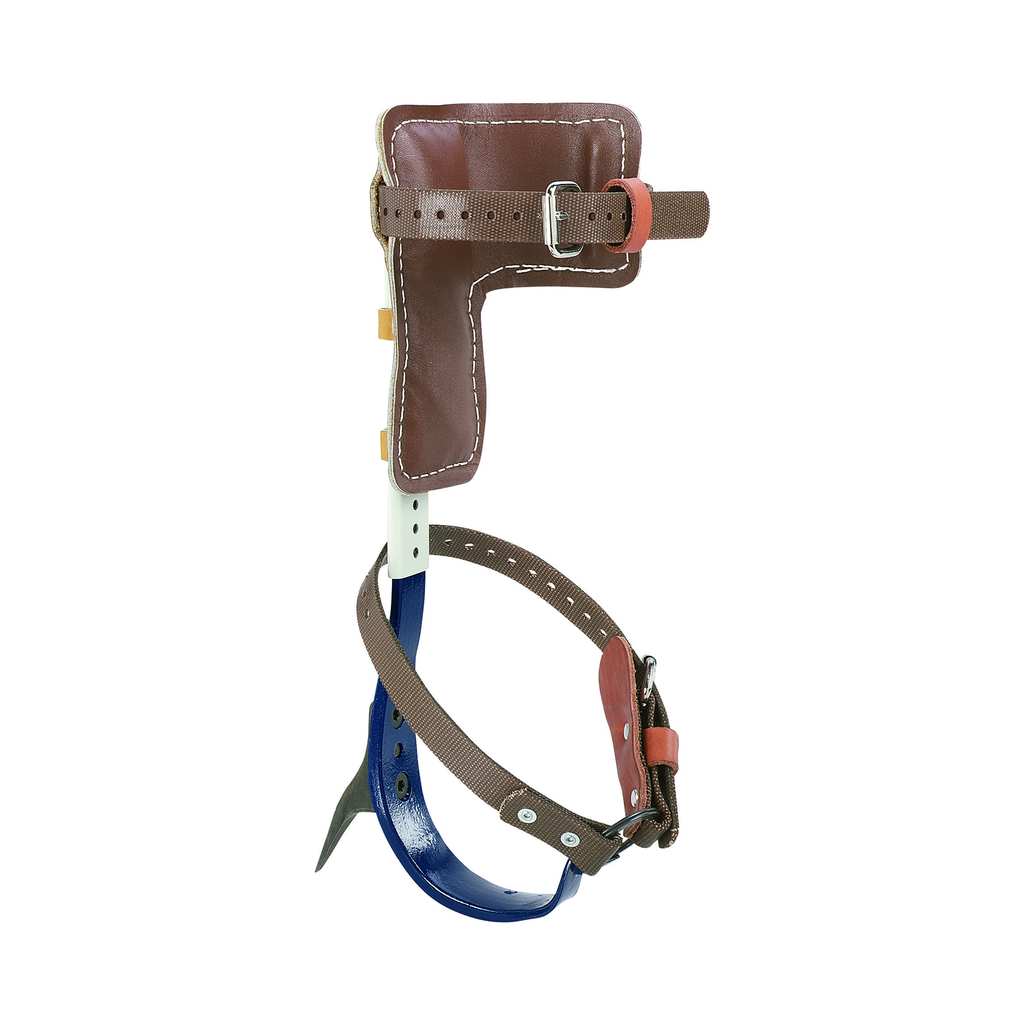

Klein Tools, CN1907ARL, Tree Climber Set, 17 to 21 in; 2-3/4 in Gaffs, Leather Pads, Steel Leg Irons

Klein's Tree Climber set includes the pads, straps, leg irons, stirrups and 2-3/4-Inch gaffs. The secure sleeve and leg iron connections are adjustable in 1/4-Inch (0.6 cm) increments. Contoured leg irons help position gaffs securely and comfortably. The replaceable gaffs firmly attach to the leg iron with a center pin and two TORX® screws. High-grade leather climber pads are cushioned for maximum comfort. Klein Tools has been providing occupational protective equipment to linemen since the first telegraph poles were strung. Klein components should not be interchanged with components made from other manufacturers because Klein cannot guarantee that those components are properly designed or are free of defects in materials or workmanship.

Features

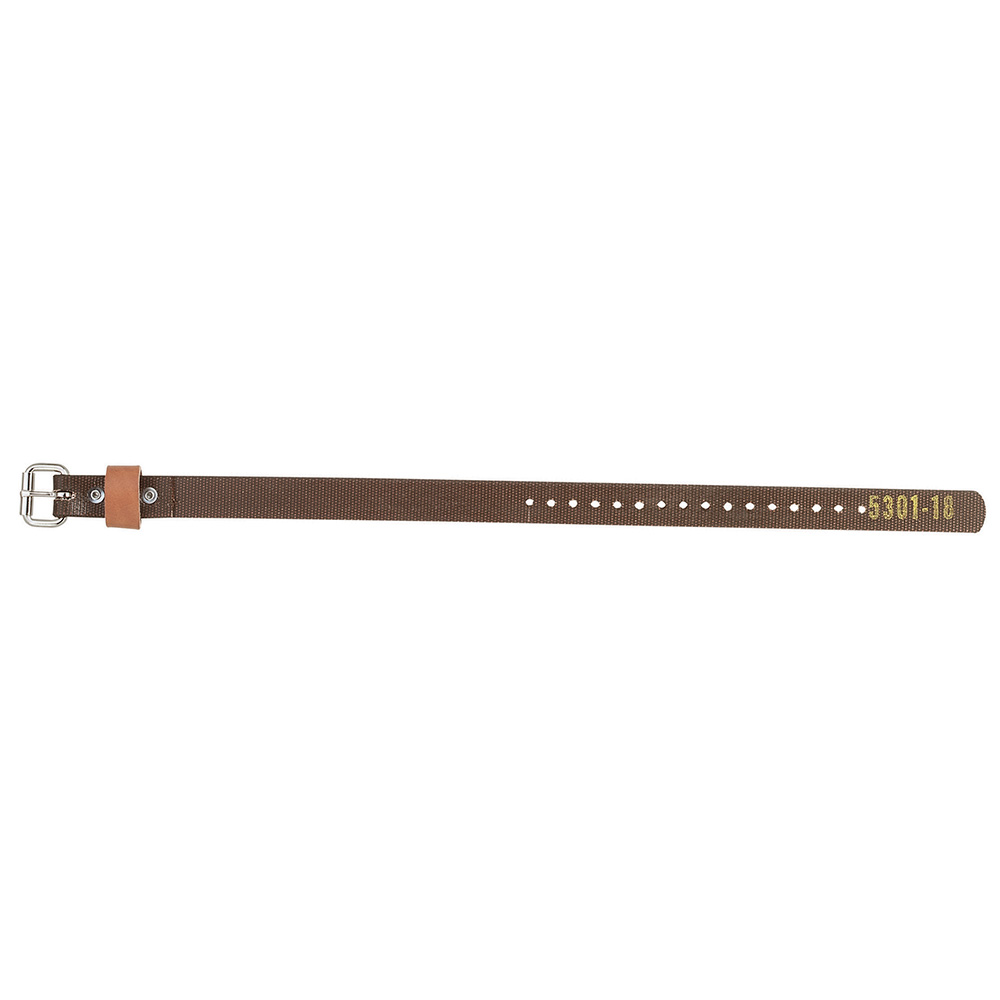

• Neoprene-impregnated nylon climber straps for long-lasting life
• Extra-long gaffs for maximum penetration when climbing trees
• Secure sleeve and leg iron connection: two slotted hex-head bolts with lock washers and barrel-type nuts join the steel sleeve and leg iron together
• To determine size needed, measure from instep to 1-Inch (2.5 cm) below knee

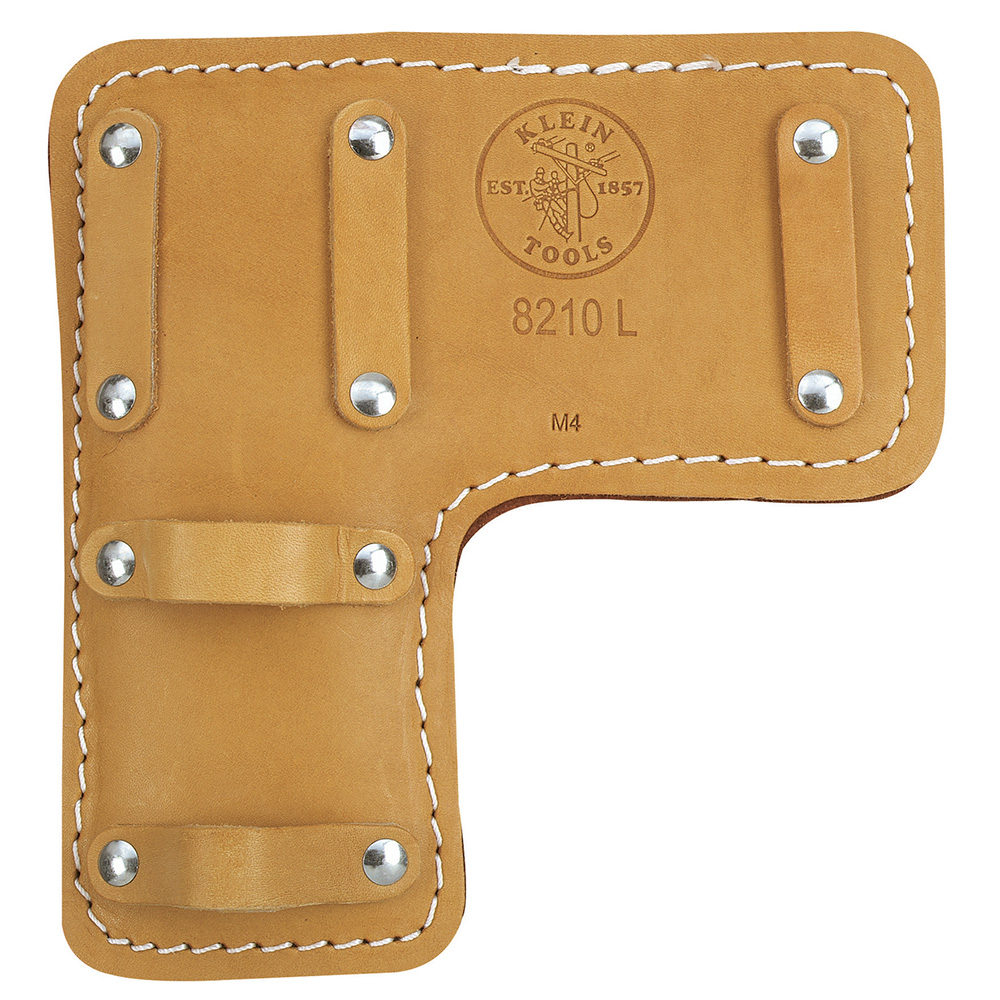

• 8-Inch x 8-Inch (203 mm x 203 mm) cushioned, high-grade leather climber pads for maximum comfort
• Overall Maximum Weight Capacity 350 Lb (136.1 kg)
• 4-7/16-Inch (113 mm) wide stirrup provides greater foot support
• Contoured leg irons help position gaffs securely and comfortably
• Sold in pairs only

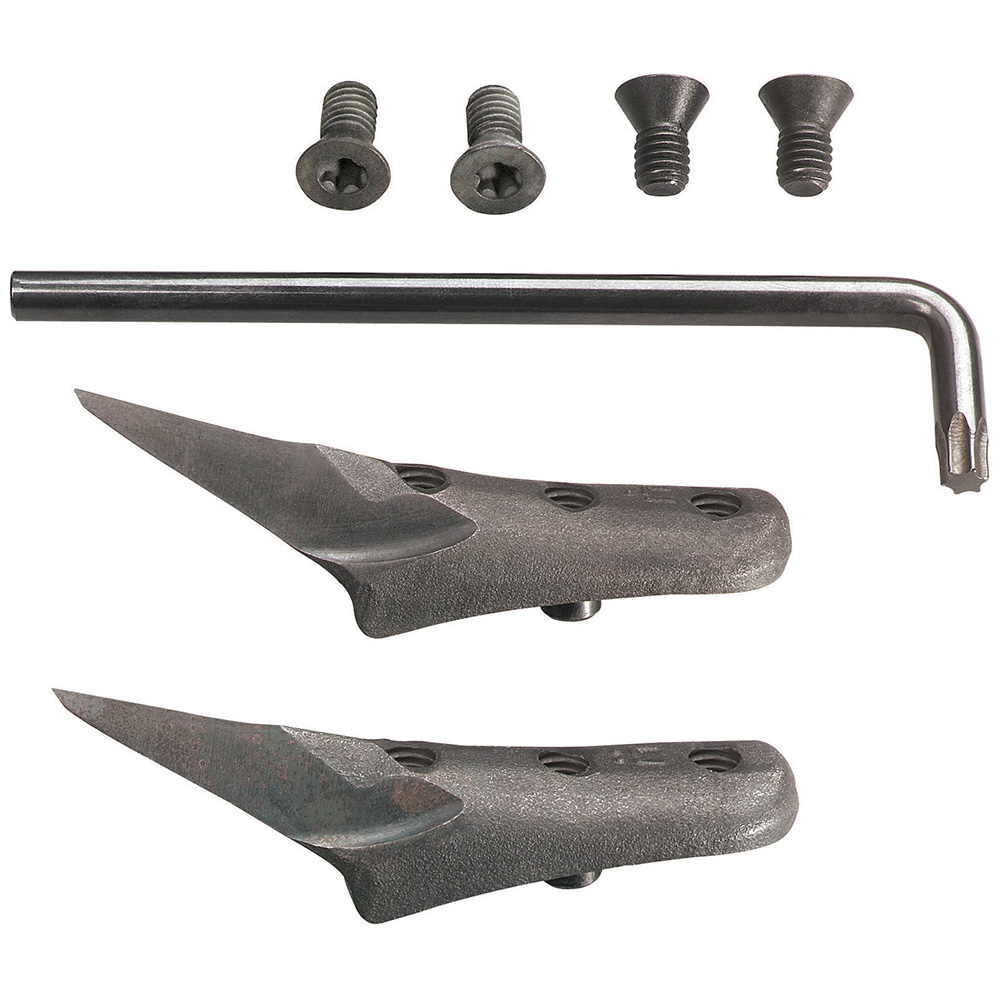

• Replaceable gaff firmly attaches to the leg iron with a center pin and two TORX® screws
• Steel split ring secures ankle strap in place and allows for quick replacement

• Weight Capacity: 350 lb (136.1 kg)
• Application Size Range: 17 in to 21 in (43.2 to 53.3 cm)
• Weight: 6.0 lb (2.7 kg)
• Gaff Size: 2-3/4 in
• Stirrup Width: 4-7/16 in (113 mm)
• Leg Iron Adjustment Increment: 1/4 in (0.6 cm)
• Climber Pads Size: 8 in x 8 in (203 mm x 203 mm)
• Depth: 17 in
• Height: 3.42 in
• Width: 8.82 in
• Material: High-grade leather, Steel, Neoprene-impregnated nylon
• Country of Origin: United States
