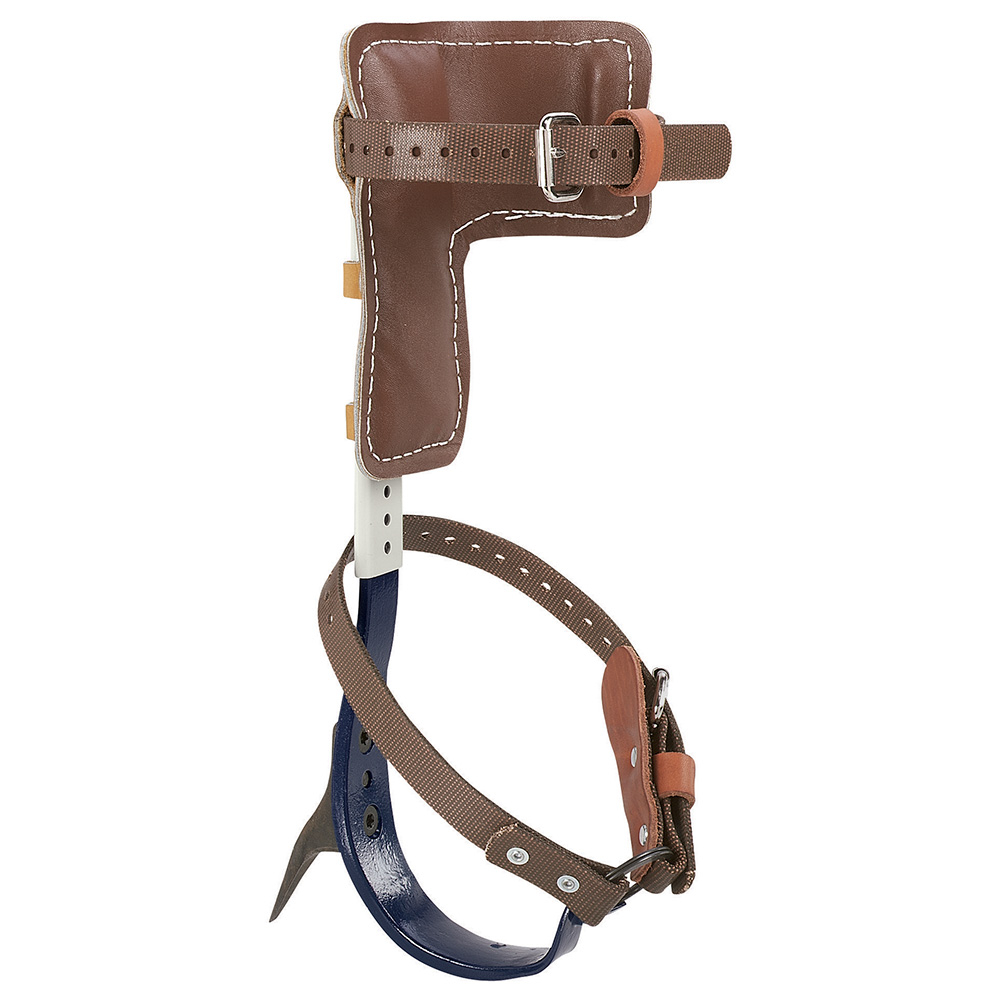

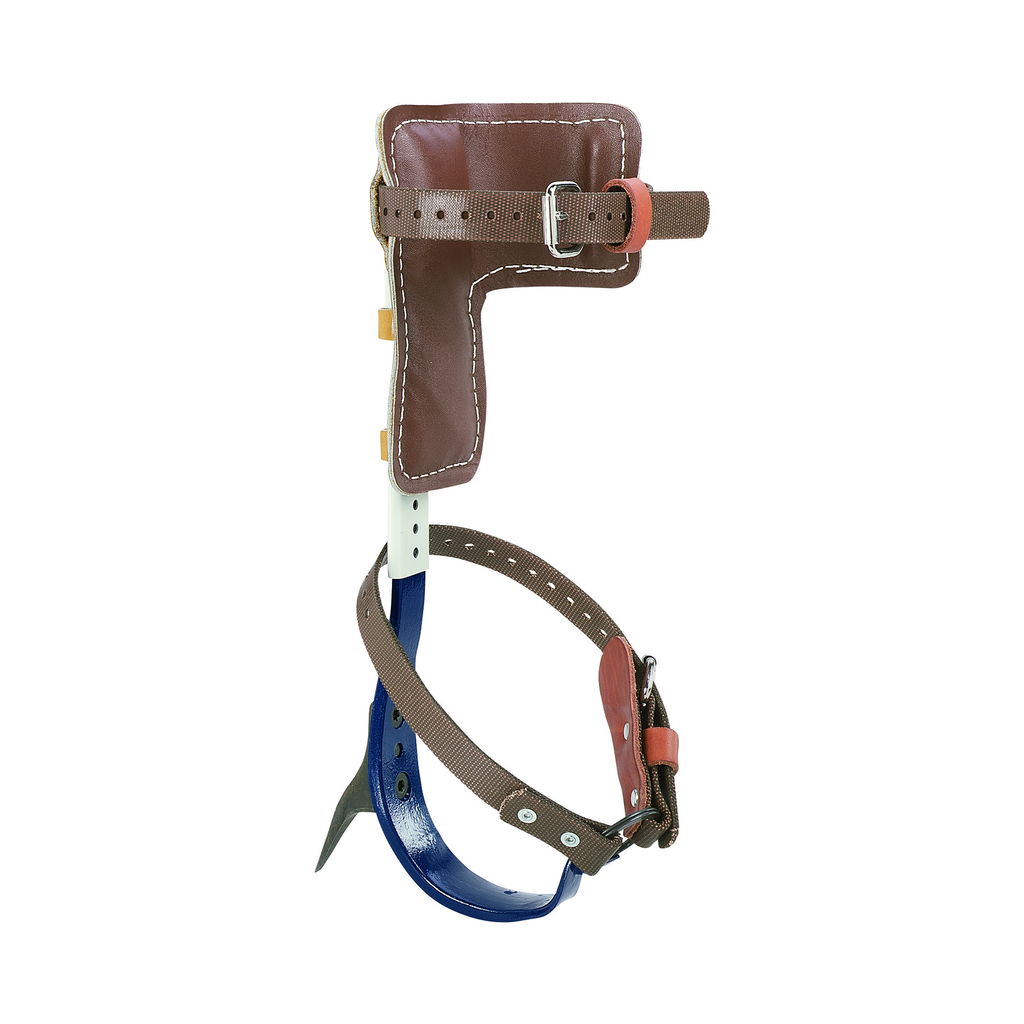

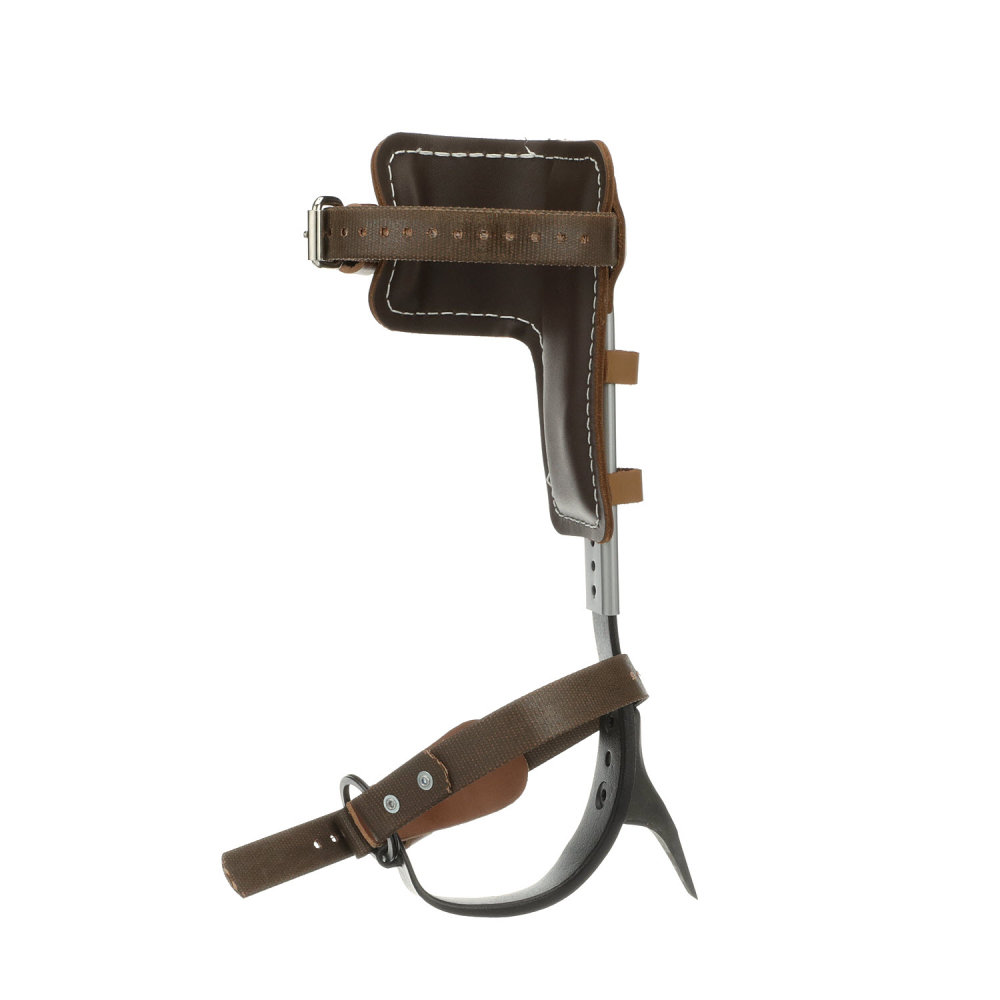

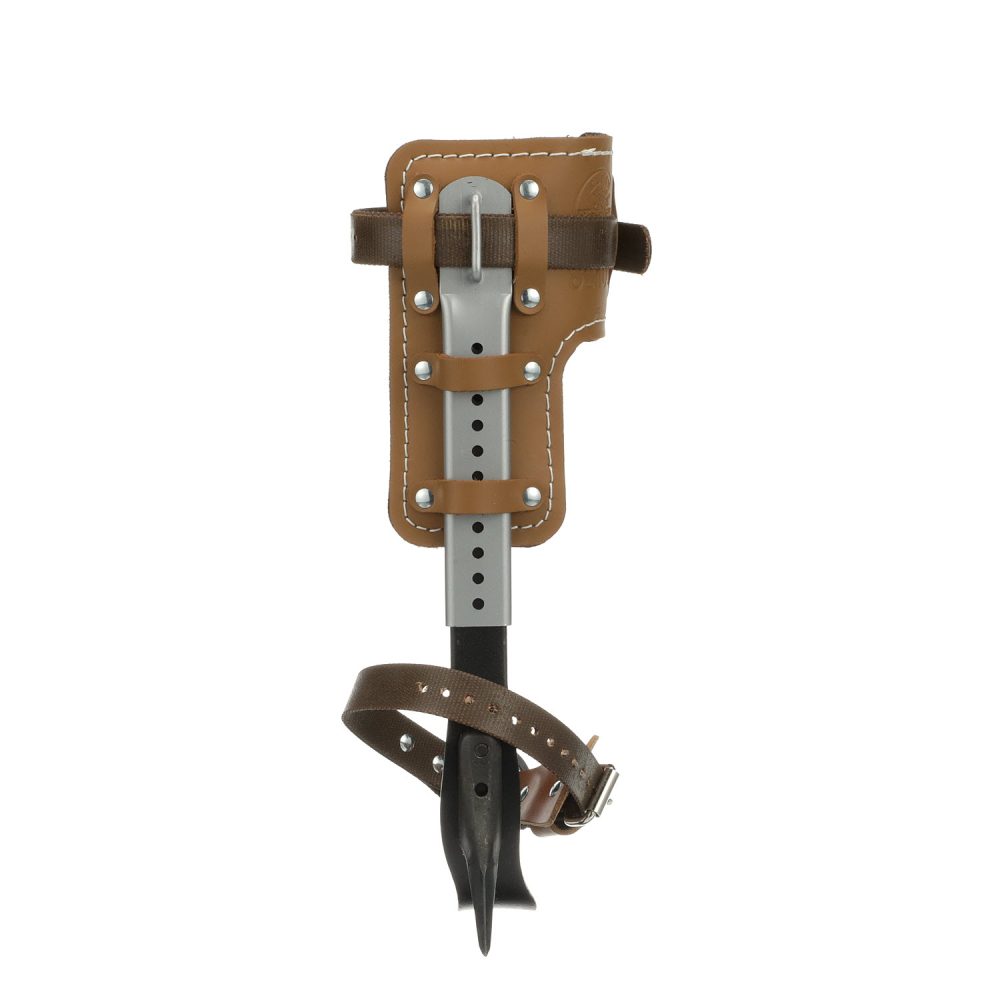

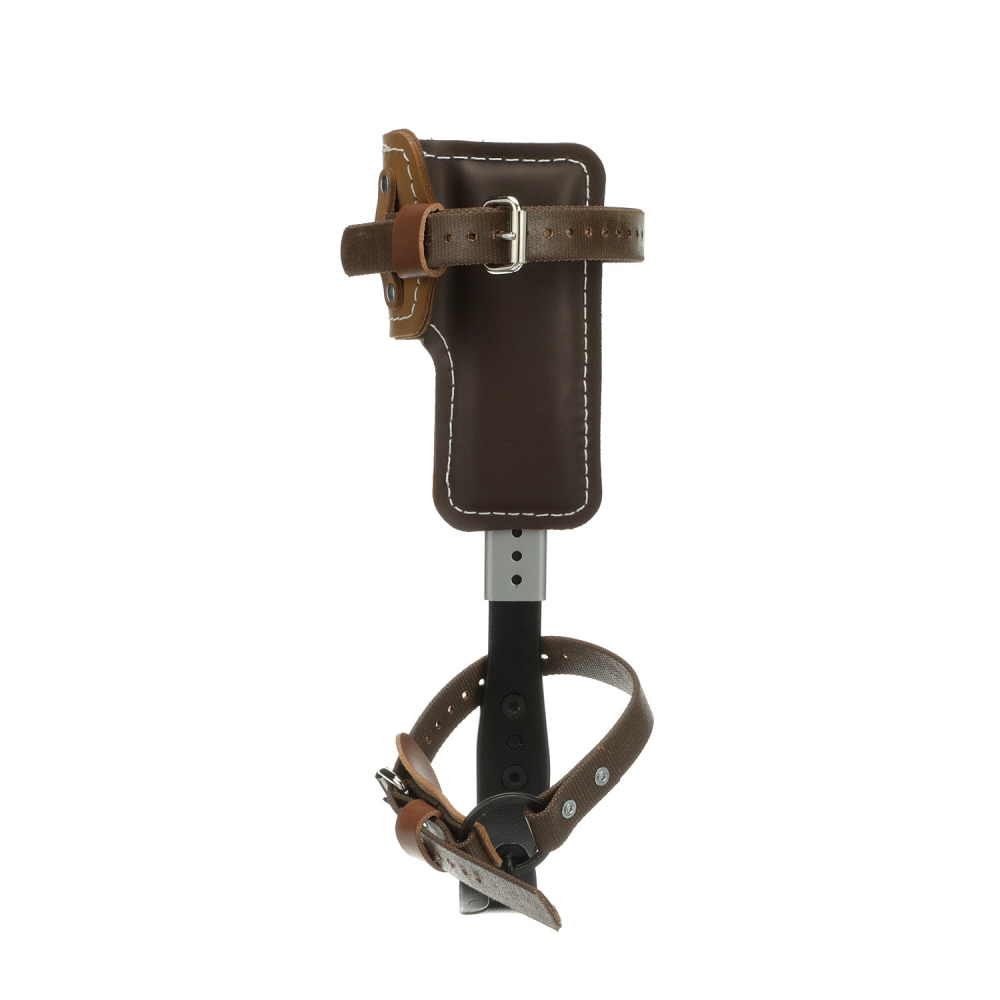

Klein Tools, CN1907AR, Tree Climber Set, 2-3/4-Inch Gaffs, 15 to 19-Inch, High-Grade Leather Pads

Klein's Tree Climber set includes the pads, straps, leg irons, stirrups and 2-3/4-Inch gaffs. The secure sleeve and leg iron connections are adjustable in 1/4-Inch (0.6 cm) increments. Contoured leg irons help position gaffs securely and comfortably. The replaceable gaffs firmly attach to the leg iron with a center pin and two TORX® screws. High-grade leather climber pads are cushioned for maximum comfort. Klein Tools has been providing occupational protective equipment to linemen since the first telegraph poles were strung. Klein components should not be interchanged with components made from other manufacturers because Klein cannot guarantee that those components are properly designed or are free of defects in materials or workmanship.

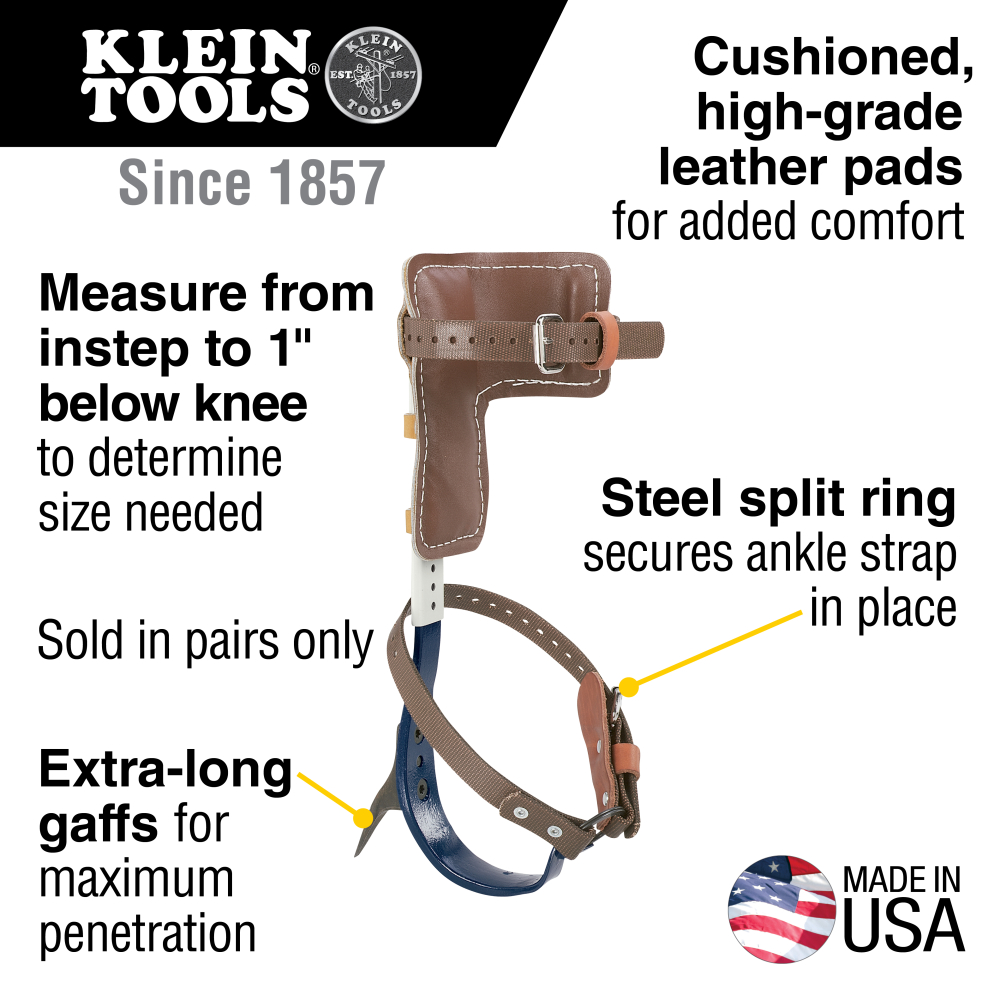

Features

• Contoured leg irons help position gaffs securely and comfortably
• 4-7/16-Inch (113 mm) wide stirrup provides greater foot support
• Sold in pairs only
• 8-Inch x 8-Inch (203 mm x 203 mm) cushioned, high-grade leather climber pads for maximum comfort
• Steel split ring secures ankle strap in place and allows for quick replacement
• Replaceable gaff firmly attaches to the leg iron with a center pin and two TORX® screws
• 8-Inch x 8-Inch (20.3 x 20.3 cm) cushioned, high-grade leather climber pads for maximum comfort
• Extra-long gaffs for maximum penetration when climbing trees
• To determine size needed, measure from instep to 1-Inch (2.5 cm) below knee
• Secure sleeve and leg iron connection; two slotted hex-head bolts with lock washers and barrel-type nuts join the steel sleeve and leg iron together
• 4-7/16-Inch (11.3 cm) wide stirrup provides greater foot support
• Neoprene-impregnated nylon climber straps for long-lasting life
• To determine size needed, measure from instep to 1'' (25 mm) below knee

• Weight: 6.0 lb
• Size Range: 15 in to 19 in
• Height: 3.42 in
• Width: 8.82 in
• Depth: 15.0 in
• Gaff Length: 2.75 in
• Leg Iron Adjustment Increment: 0.25 in
• Stirrup Width: 4.44 in
• Climber Pad Size: 8 in x 8 in
• Climber Pad Material: High-grade leather
• Climber Strap Material: Neoprene-impregnated nylon
• Gaff Attachment: Center pin and two TORX screws
• Leg Iron Connection: Two slotted hex-head bolts with lock washers and barrel-type nuts
• Replacement Calf Strap Cat. No.: 5301-18
• Replacement Ankle Strap Cat. No.: 5301-20
• Replacement Gaff Cat. No.: 07
• Country of Origin: United States
• Style Name: Set
