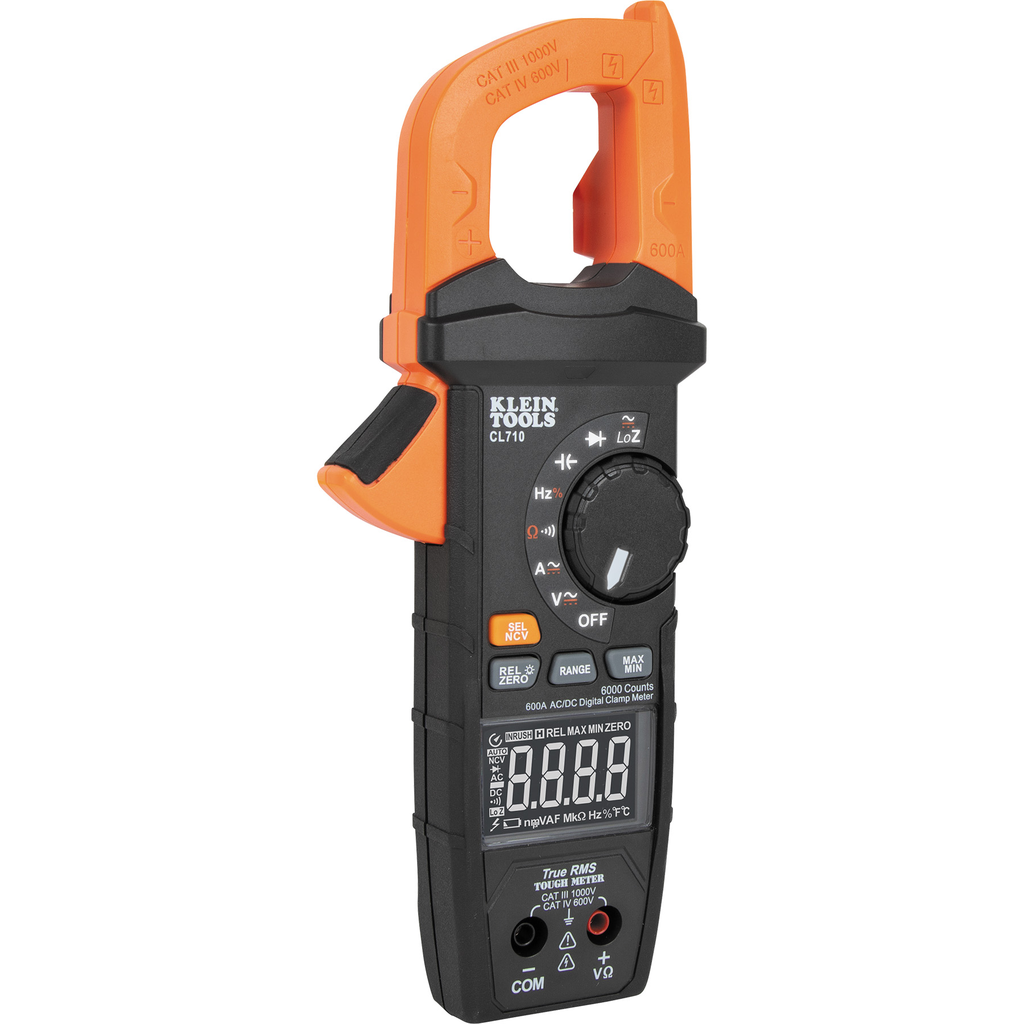

Klein Tools, CL710, Clamp Meter, 600A, True RMS, AC/DC Voltage 1000V, Low Impedance Mode, Transflective Display

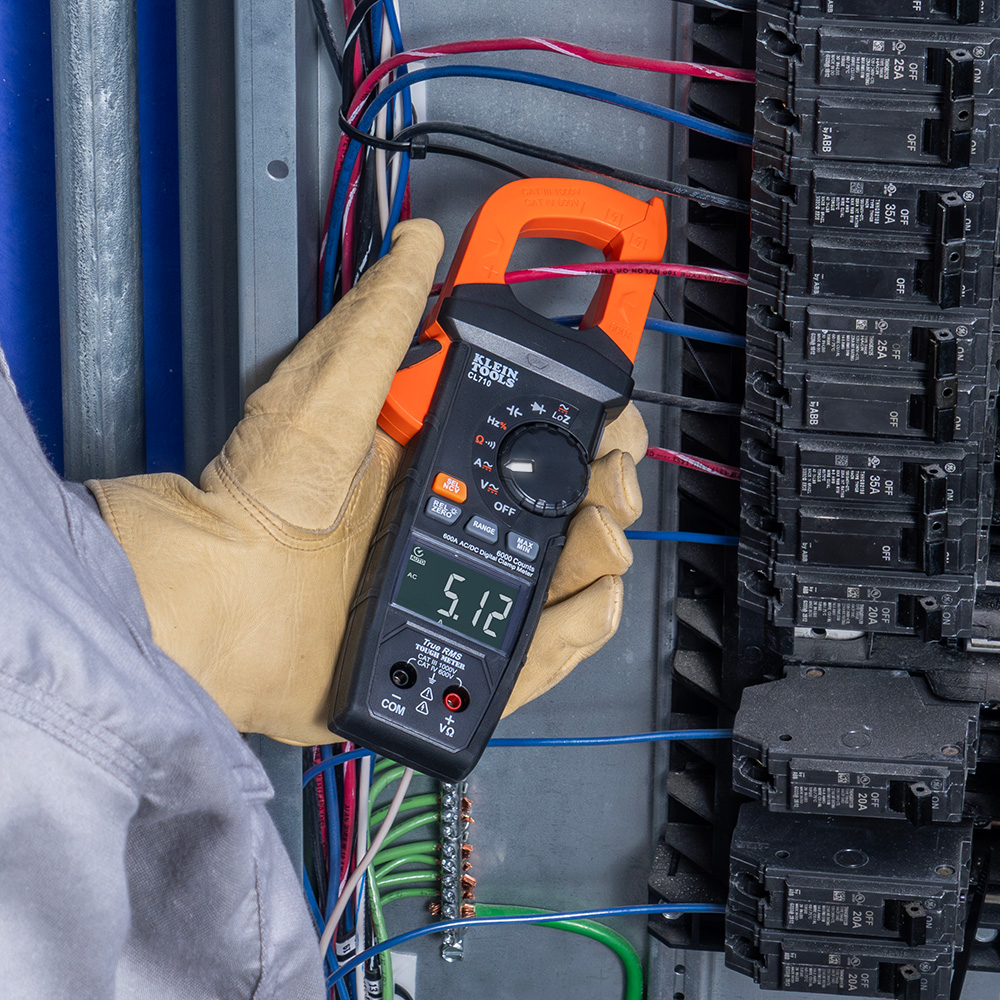

Klein Tools CL710 Clamp Meter delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, and capacitance, all with True RMS precision. It features diode testing and a Low Impedance (LoZ) mode to eliminate ghost voltages. The clamp features NCV detection with escalating audio-visual alerts the closer to the voltage source. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.

Features

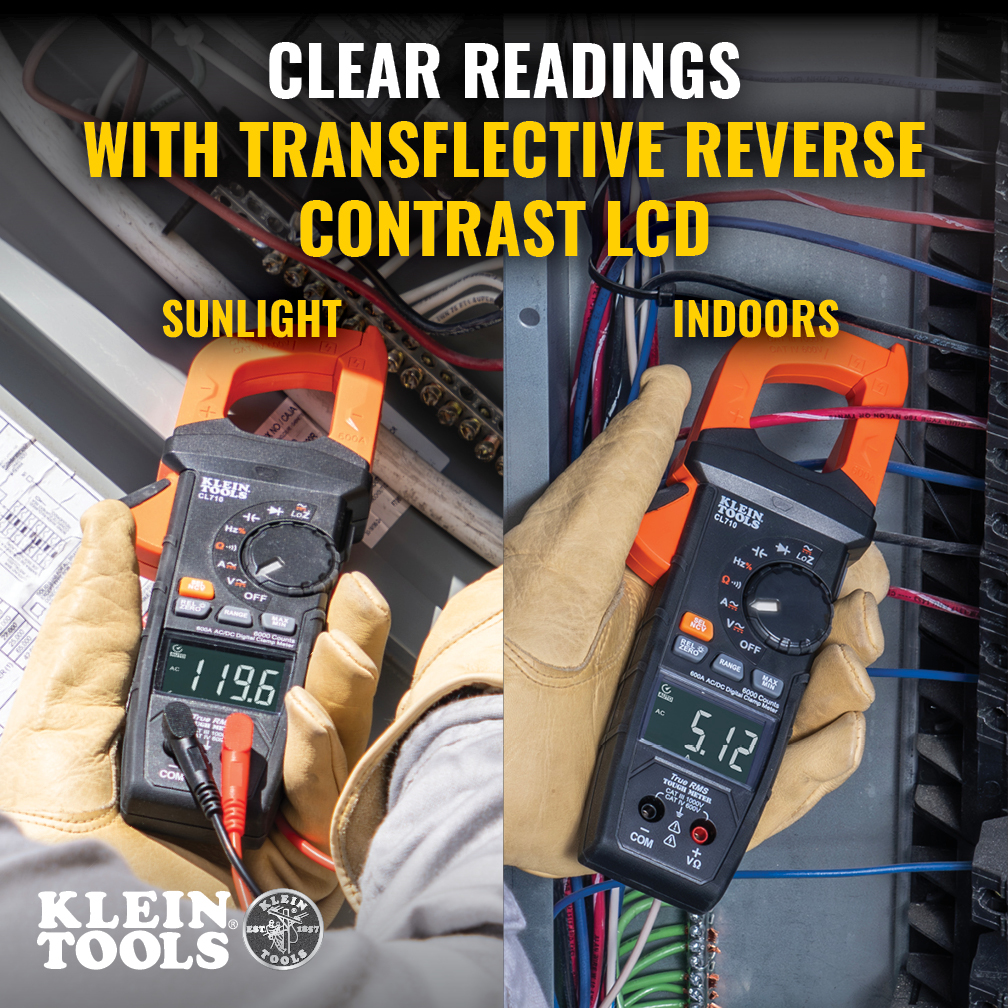

• Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments

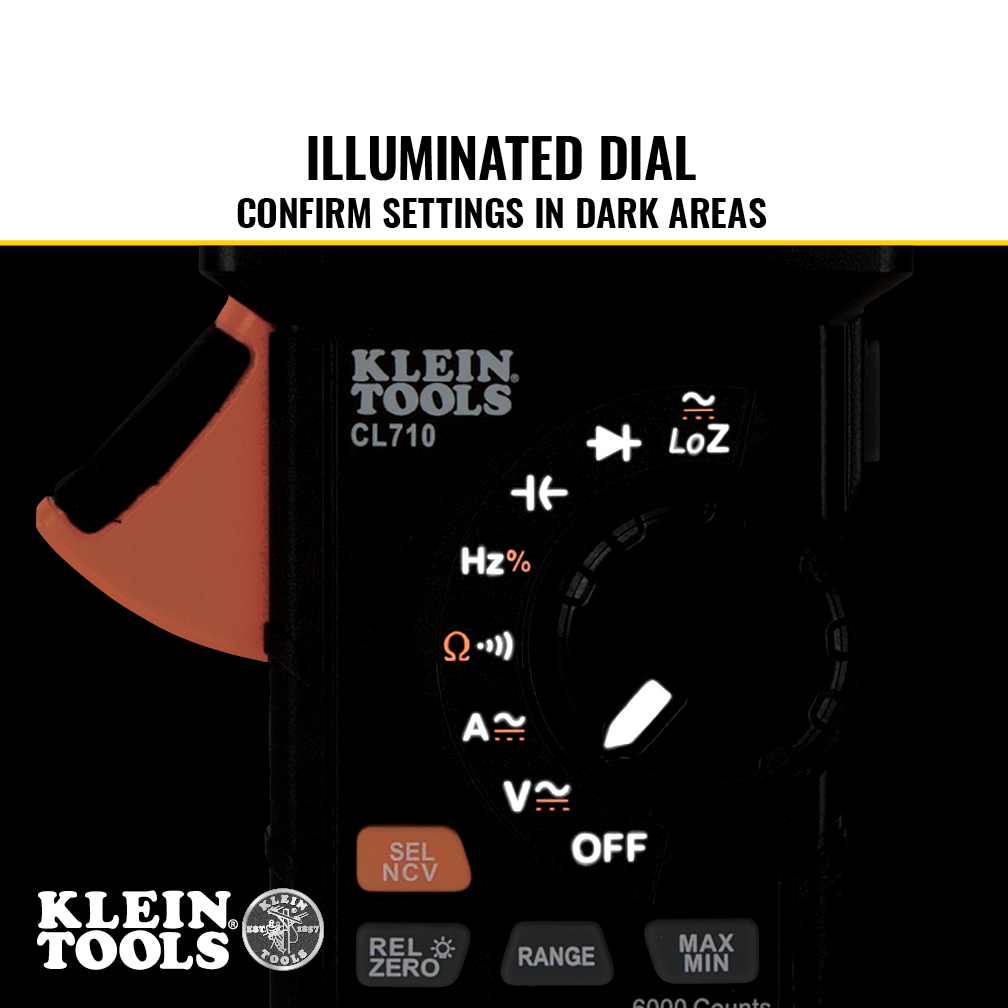

• Illuminated dial ensures clear visibility and easy reading, even in low-light environments
• Clamp meter with True RMS provides accurate and reliable measurements across various applications
• Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)

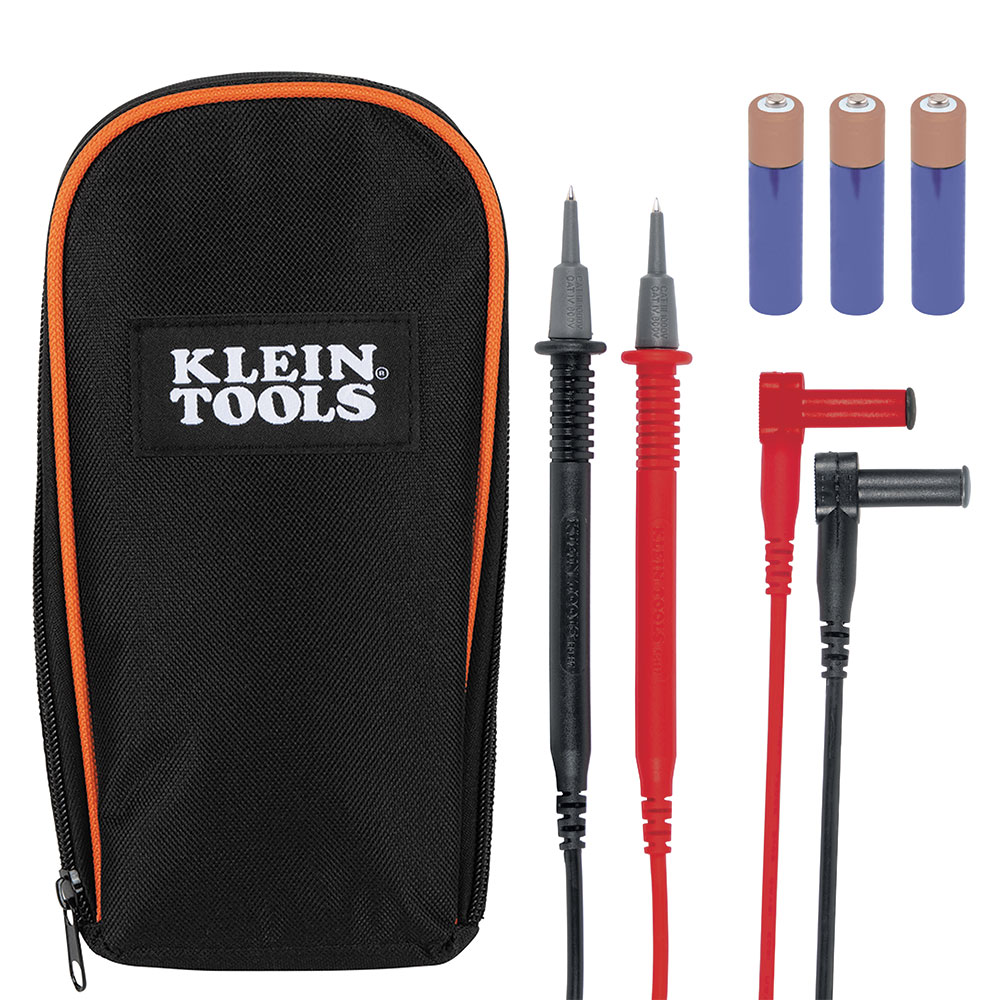

• Includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
• Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
• Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle
• Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
• Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

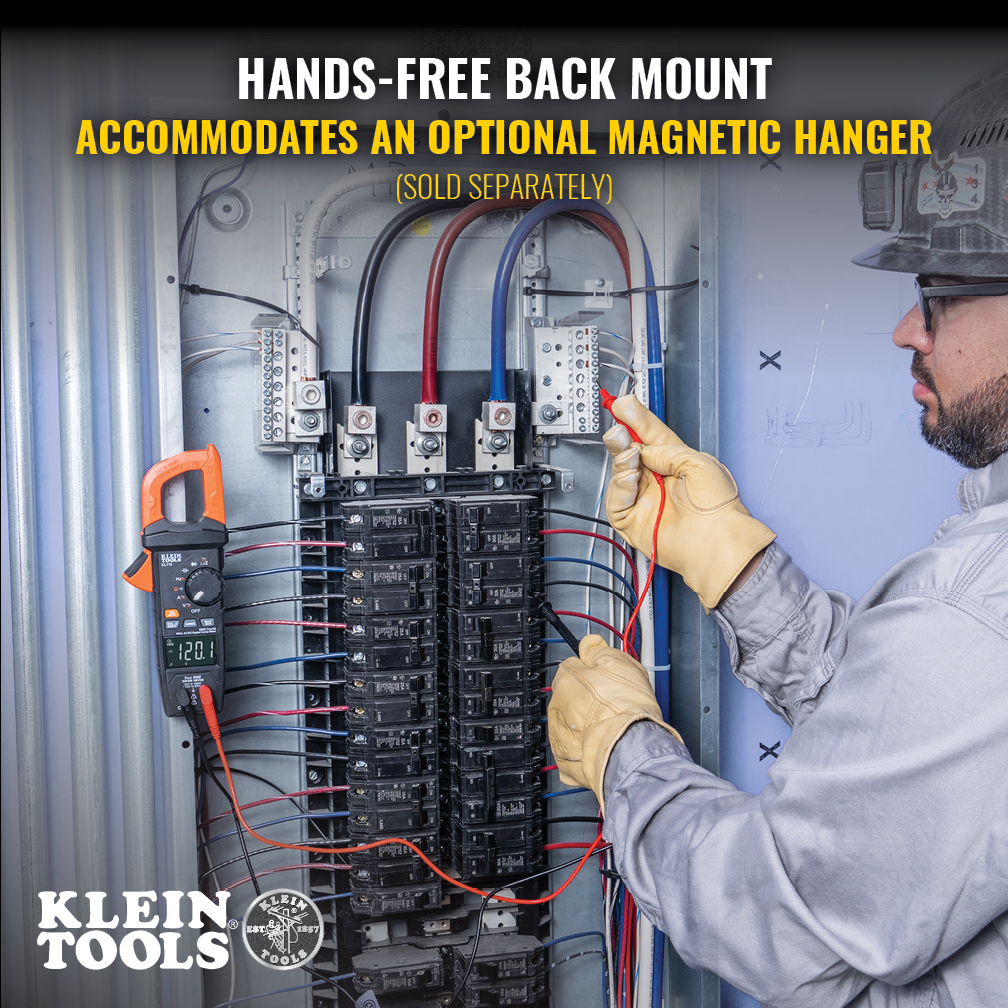

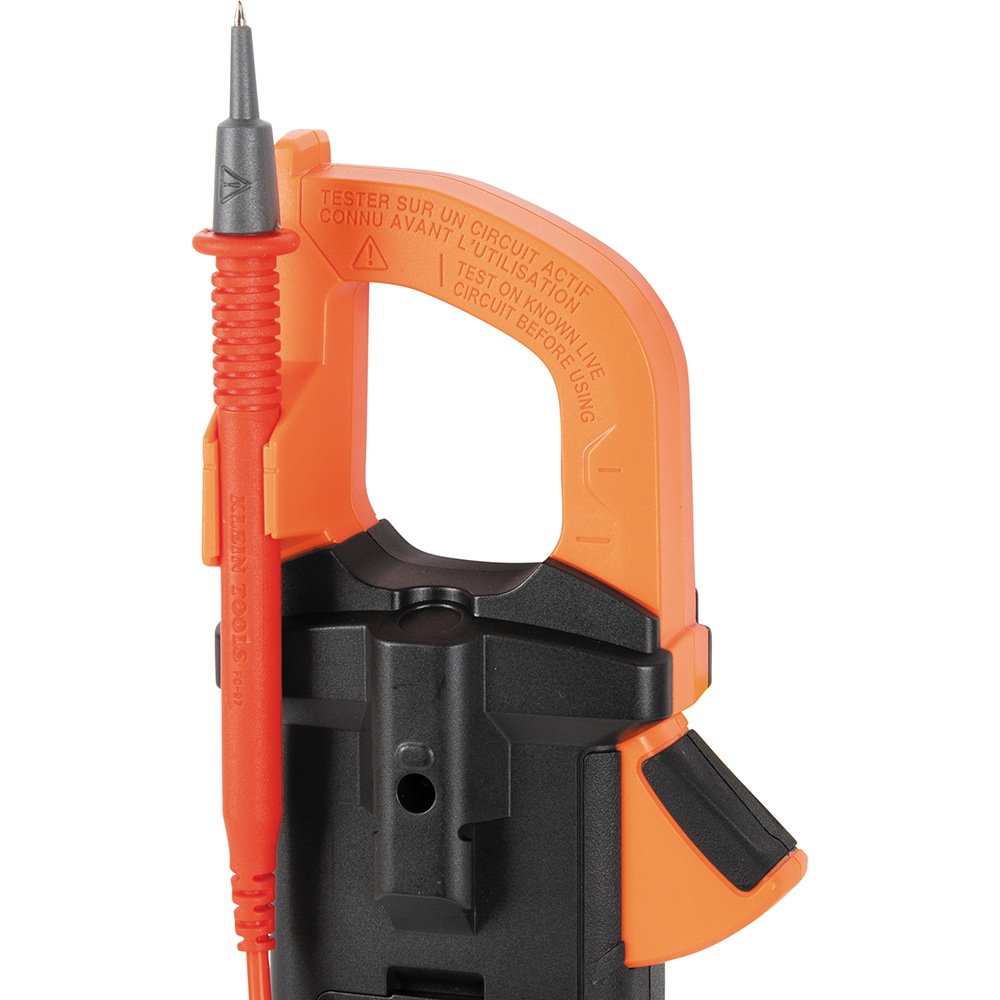

• Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
• Transflective Reverse-Contract Display; Lighted Dial; Built-in Lead Holder

Warnings

• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Before each use verify meter operation by measuring a known voltage or current.
• Do not attempt to measure resistance or continuity on live circuits.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.

• Current: 600A
• Voltage: 1000V AC; 1000V DC
• Resistance: 60M
• Capacitance: 6000b5F
• Frequency: 1Hz - 500kHz
• Auto Ranging: Yes
• True RMS: Yes
• Non-Contact Voltage: Yes, with audible and visual indicators
• Low Impedance Mode: Yes
• Diode Test: Yes
• Continuity Test: Yes
• Drop Protection: 6.6 ft (2 m)
• Ingress Protection: IP40
• Type: Pro Clamp Meter
• Depth: 9.01 in
• Overall Length: 9.06 in
• Width: 3.47 in
• Overall Width: 3.47 in
• Height: 1.18 in
• Overall Height: 1.65 in

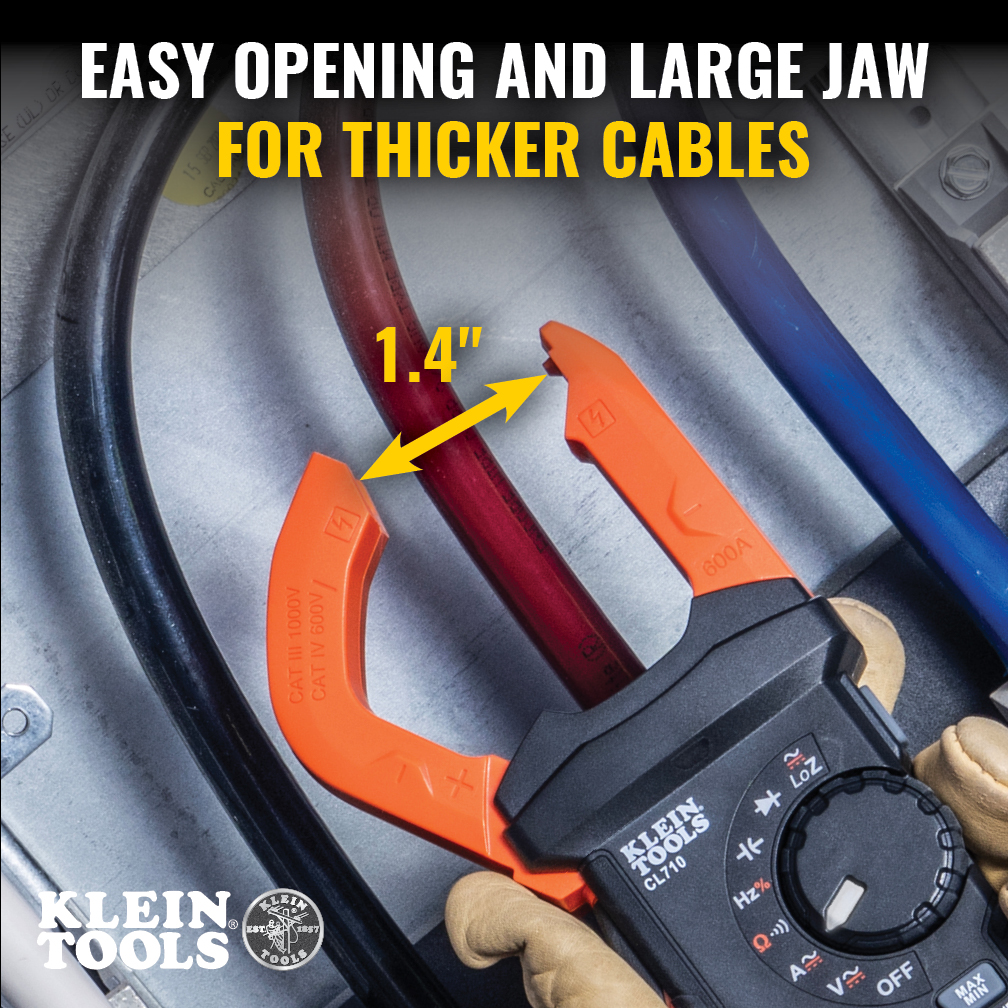

• Jaw Size: 1.4 in
• Weight: 0.8 lbs
• Material: ABS/Electronics
• Accuracy: See instructions
• DC Polarity Indicator: Yes
• DC Micro-Amp: No
• Auto-Power Off: Yes
• Standard: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
• DC Voltage: 1000V
• AC Voltage: 1000V
• Batteries: 3 x AAA
