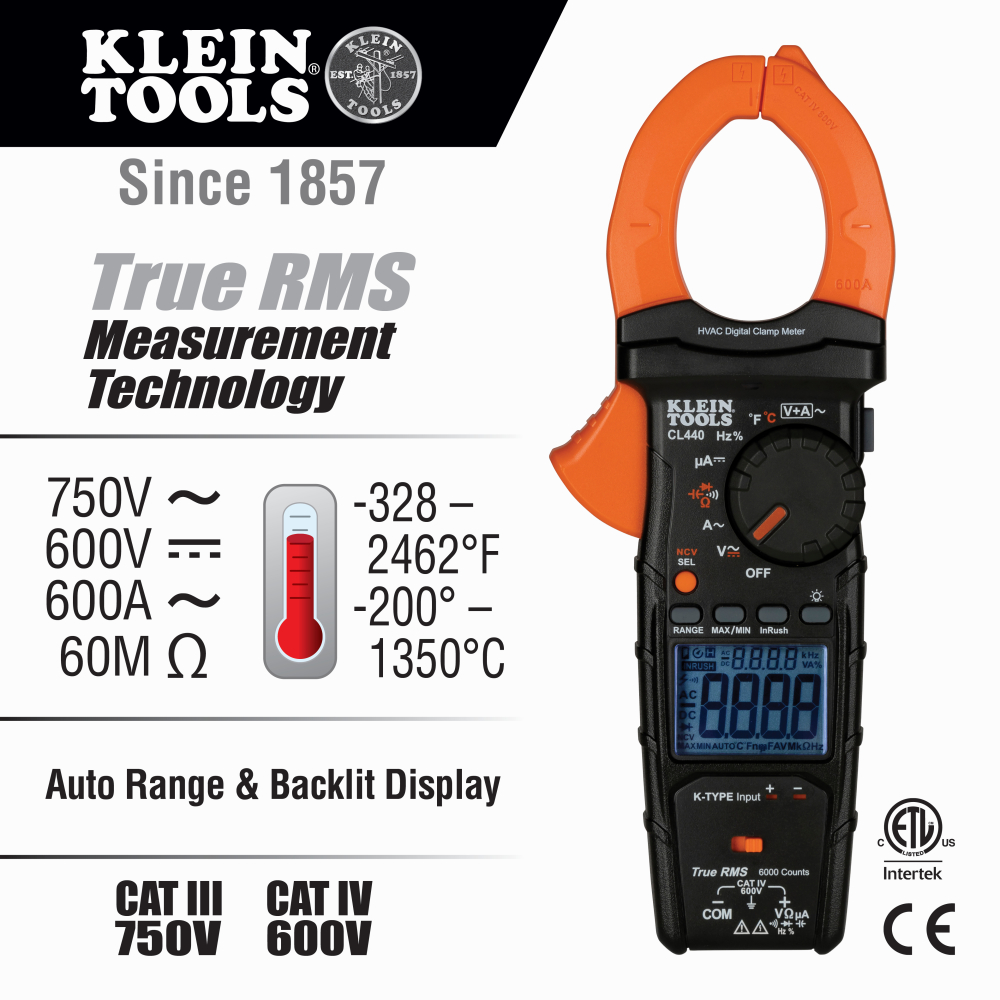

Klein Tools, CL440, HVAC TRMS Clamp Meter, 600A AC Current, 750V AC/600V DC, -328°F to 2462°F Temperature Range

Klein Tools CL440 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.

Features

• CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

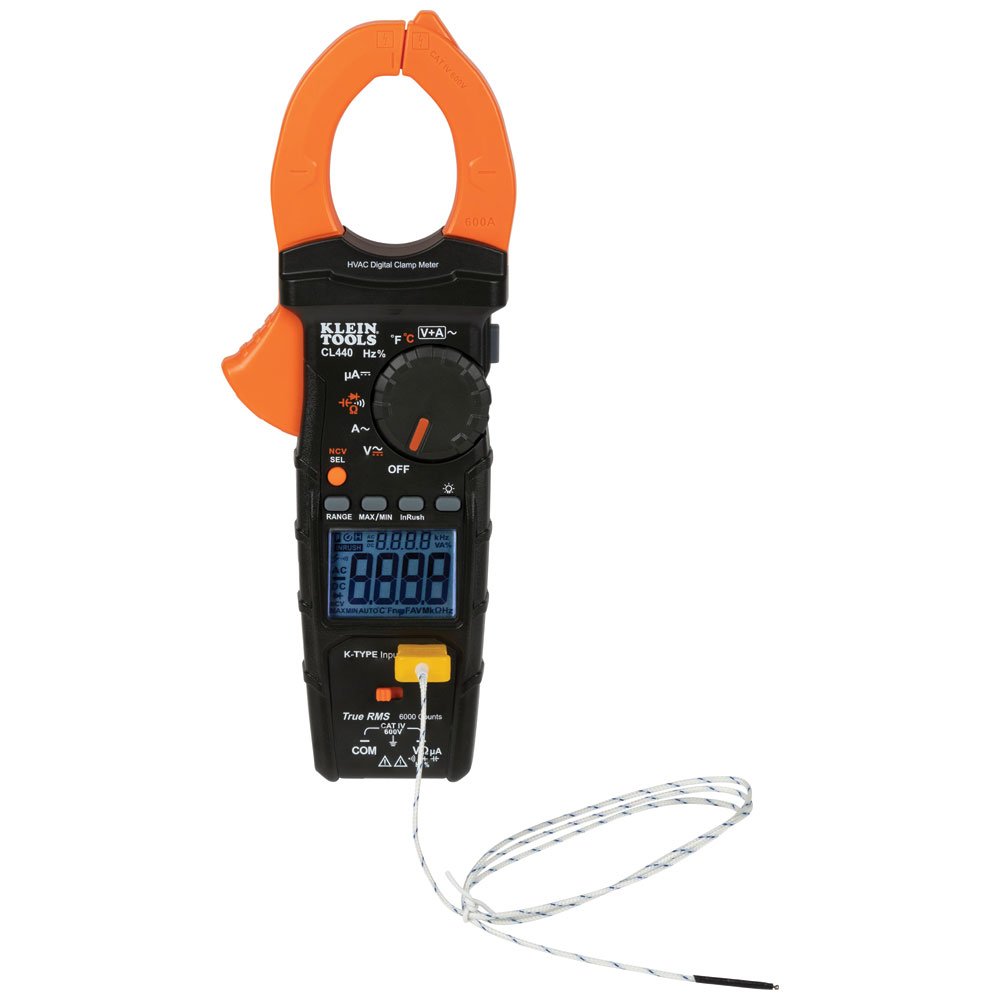

• K-Type thermocouple port for measuring temperature from -328 to 2462 Degrees Fahrenheit (-200 to 1400 Degrees Celsius)
• Digital clamp measures 600.0 A AC current and inrush current

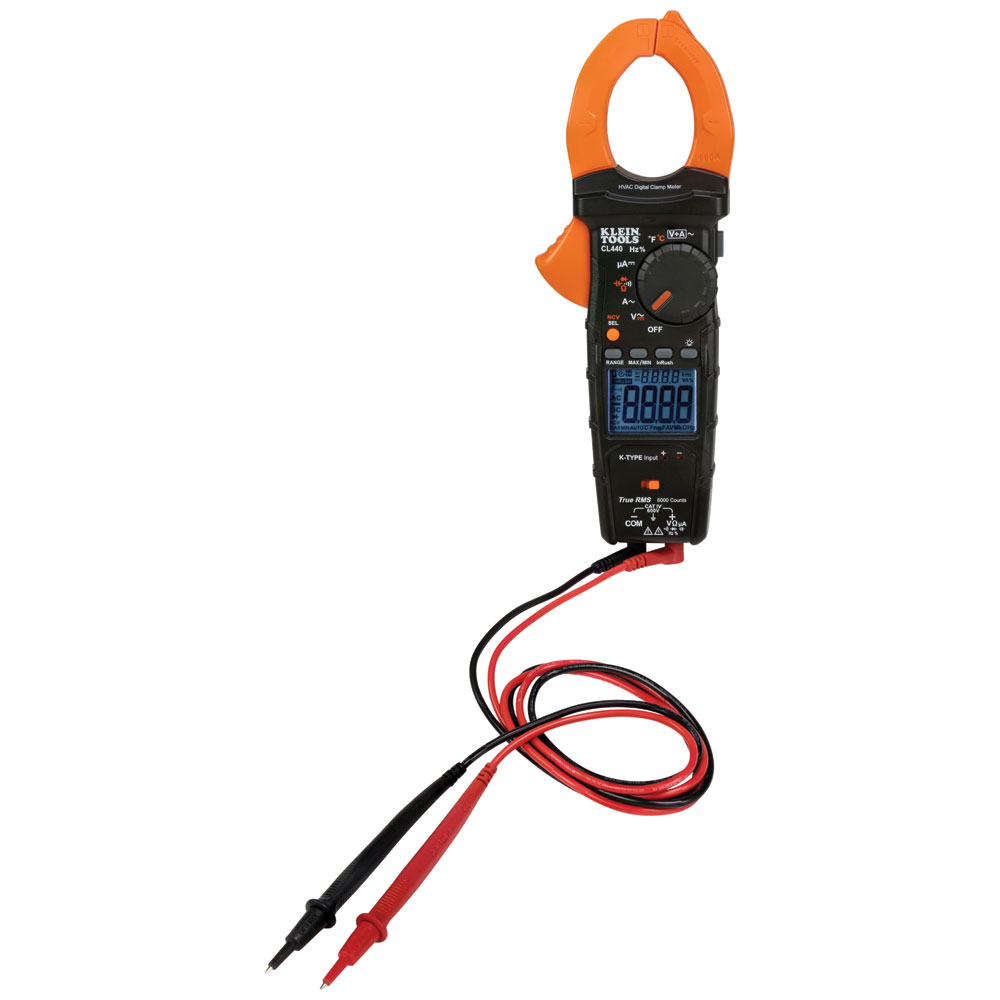

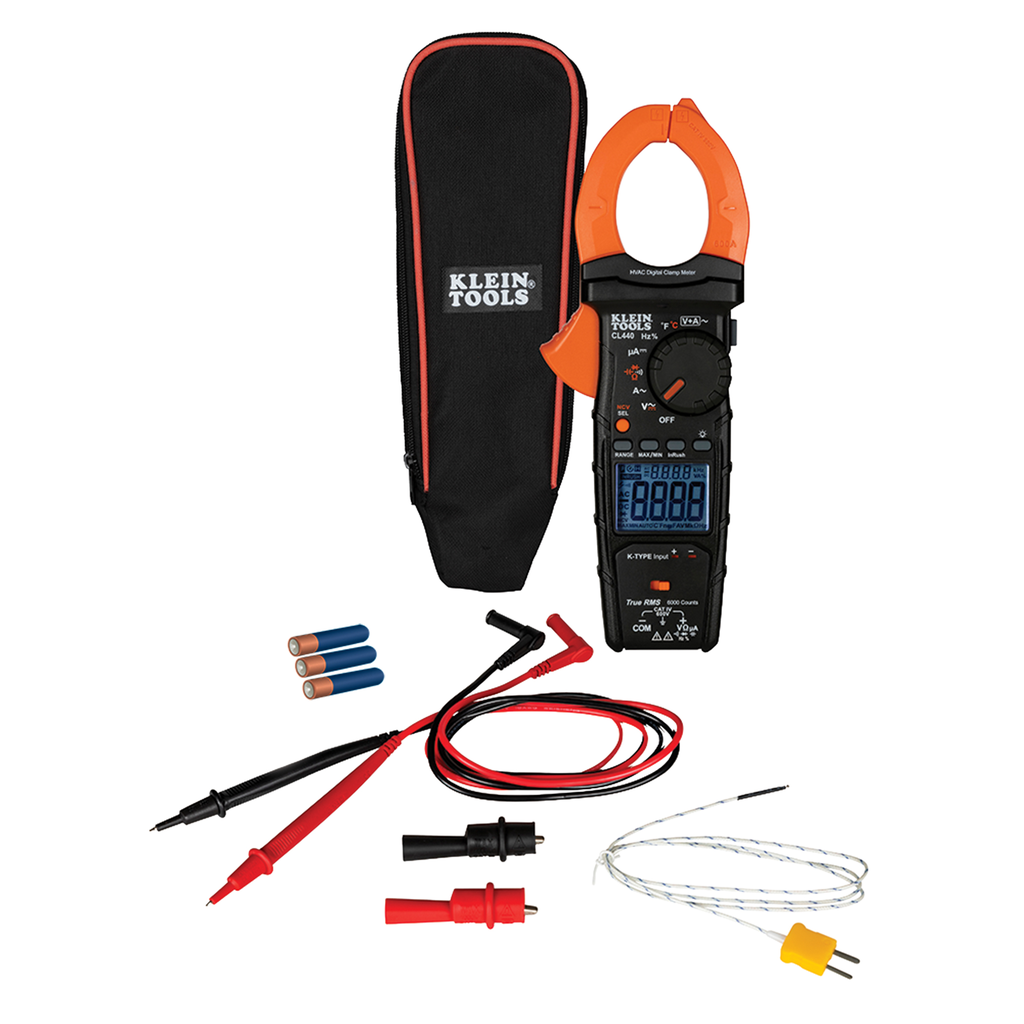

• Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
• Detect AC current with non-contact voltage tester integrated into the clamp jaw
• Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature

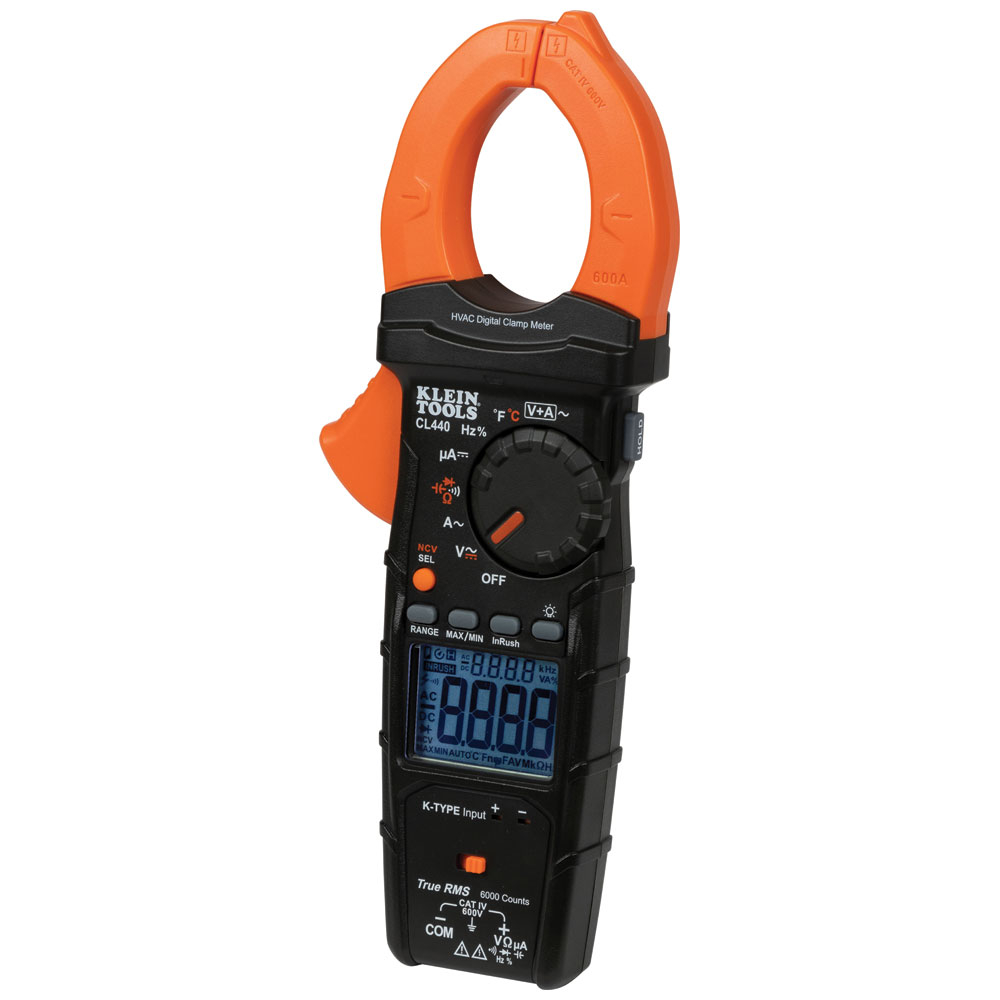

• CL440 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
• Can be used with Magnetic Hanger Cat. No. 69417 (sold separately) for hands free operation
• Dedicated mode for capturing DC micro amp and inrush current

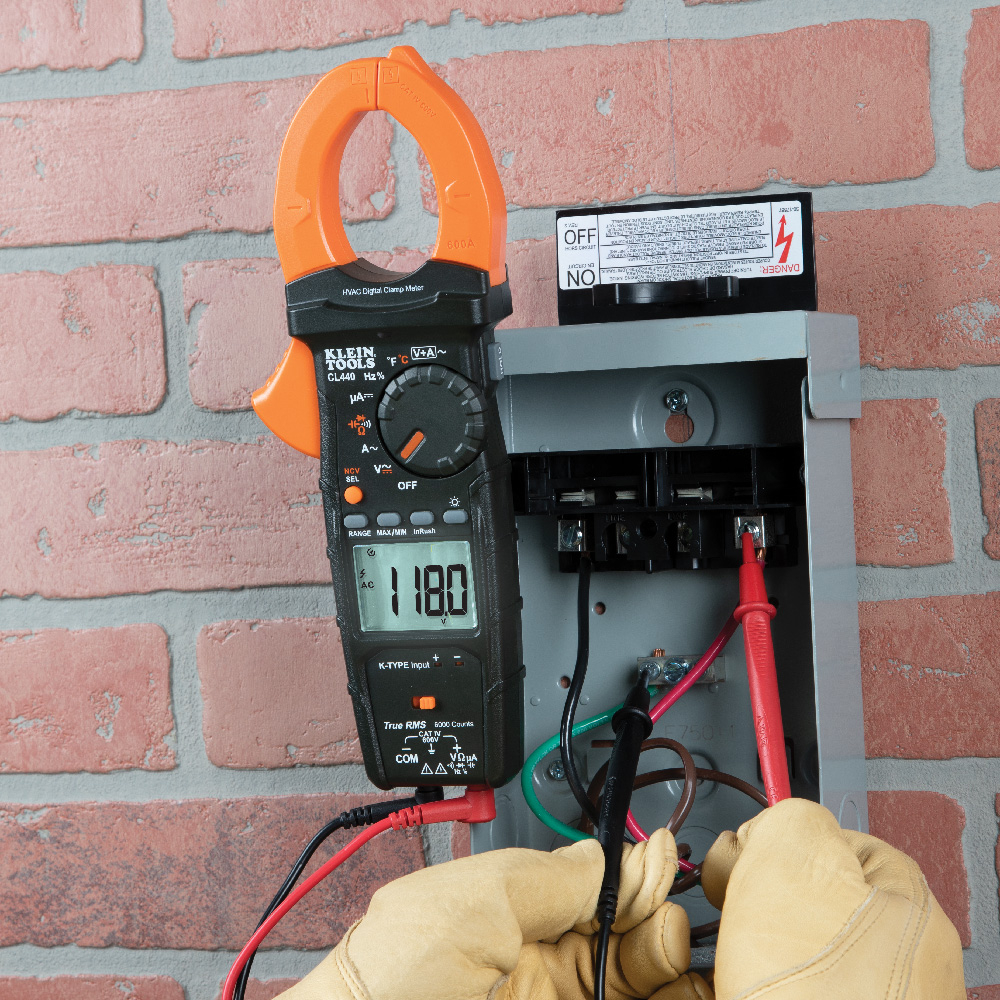

• Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests
• Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Before each use verify meter operation by measuring a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

• Safety Rating: CAT IV 600V, CAT III 750V, Class 2, Double Insulation
• AC Current: 600A
• Voltage: 750V AC; 600V DC
• Resistance: 60M Ω
• Temperature Range: -328B0 to 2462B0F (-200B0 to 1350B0C)
• Capacitance: 6.000mF
• DC Micro-Amp: 600B5A

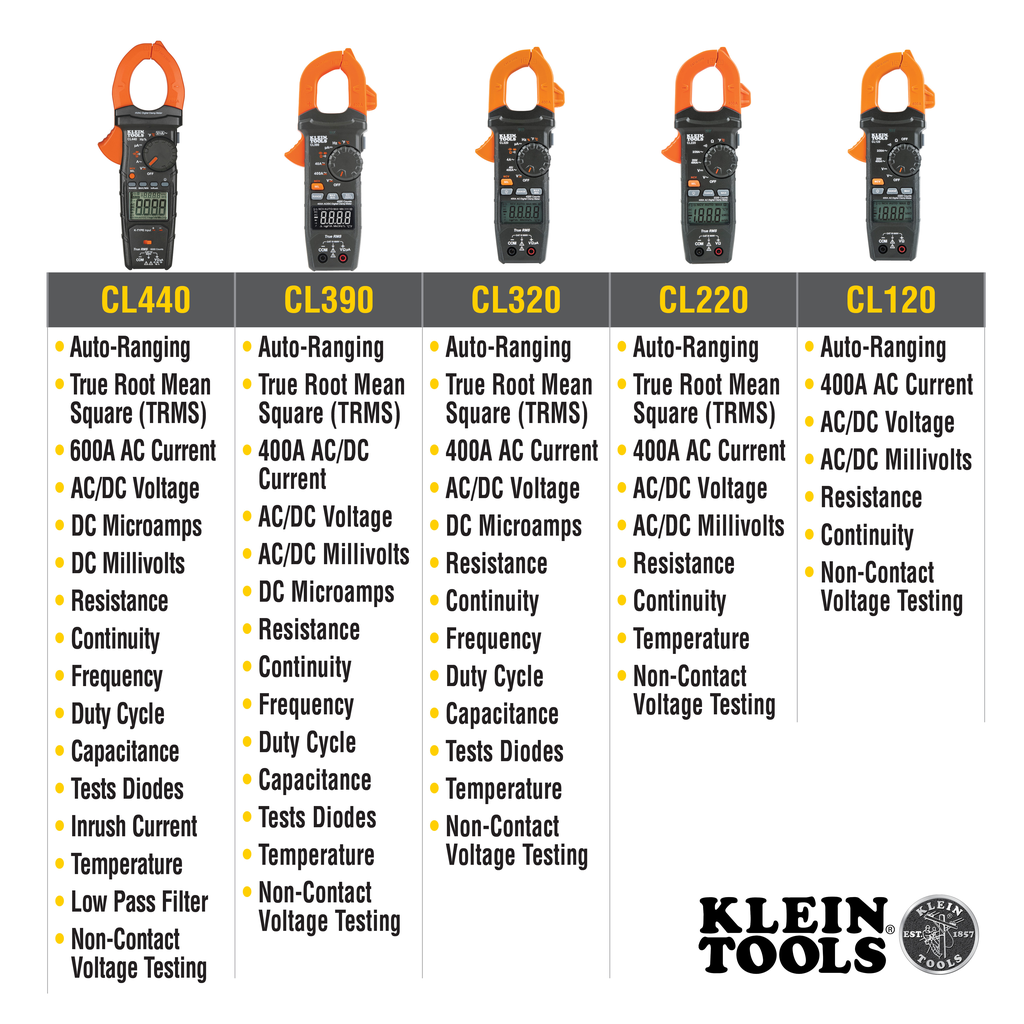

• Functions: TRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability
• Jaw Size: 2" (5.1 cm)
• Overall Length: 10.04" (25.5 cm)
• Overall Width: 3.77" (9.6 cm)
• Overall Height: 1.57" (4 cm)
• Weight: 0.89 lbs (14.2 oz)
• Drop Protection: 3.3' (1 m)
• Display: 6000 Count LCD with backlight, data hold, range hold, max/min
• Input Jacks: Test lead input jacks and K-Type thermocouple port
• Measurement Technology: True RMS, Auto-Ranging
• Auto Power-Off: Yes
• DC Polarity Indicator: Yes
• Standard: CAT IV 600V, CAT III 750V, Class 2, Double Insulation
• Material: ABS and Electrical Components
• Country of Origin: China
