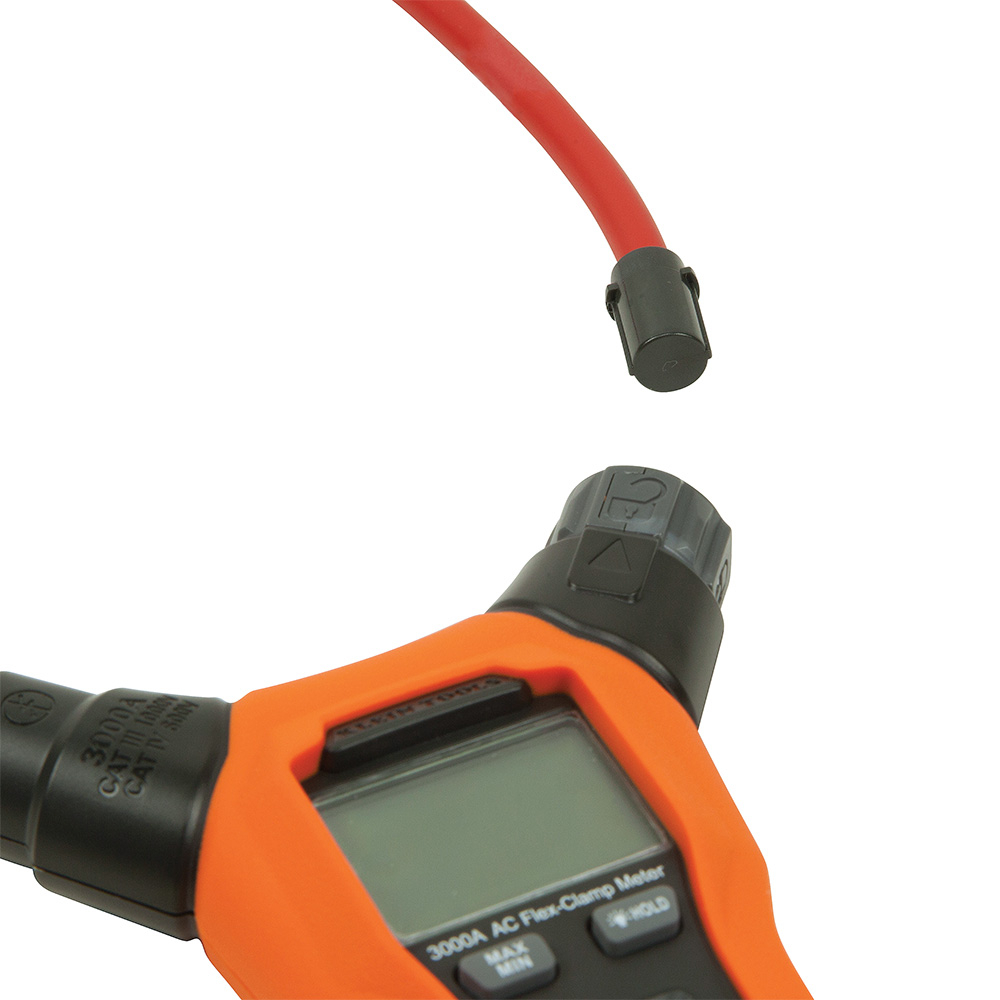

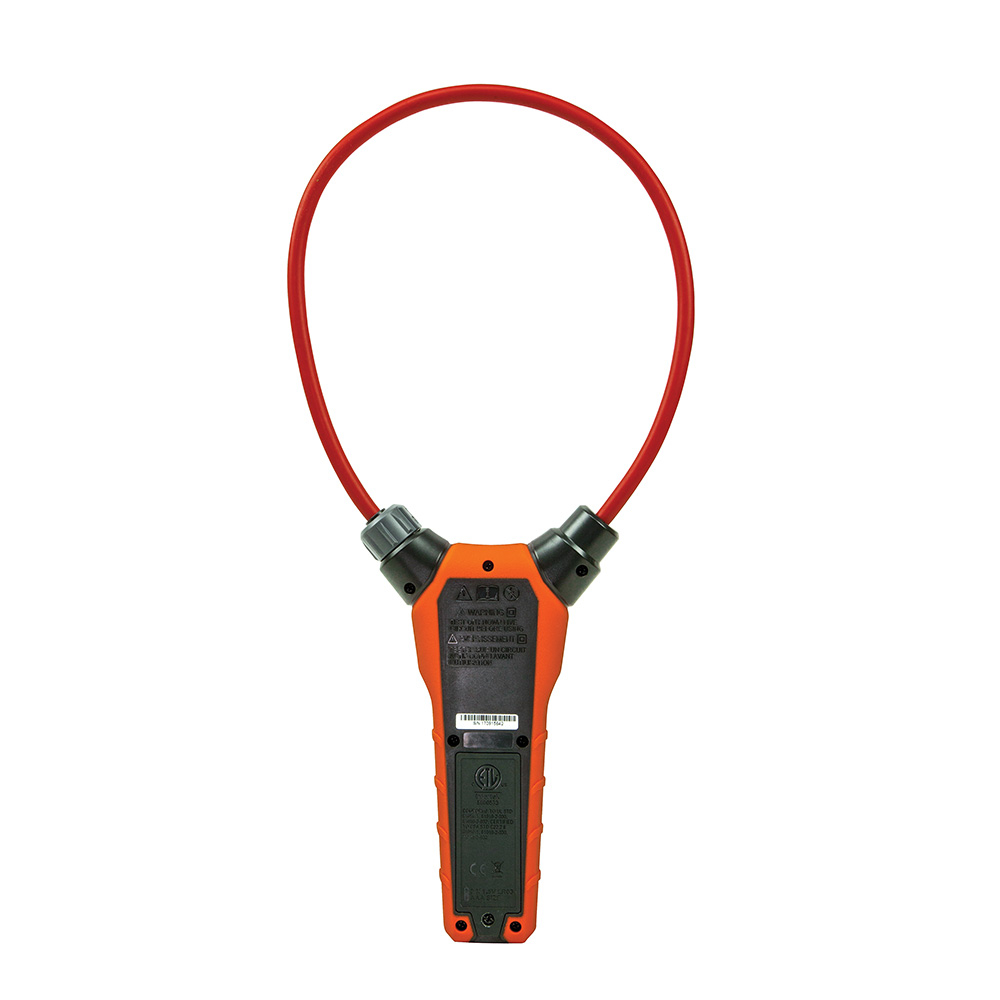

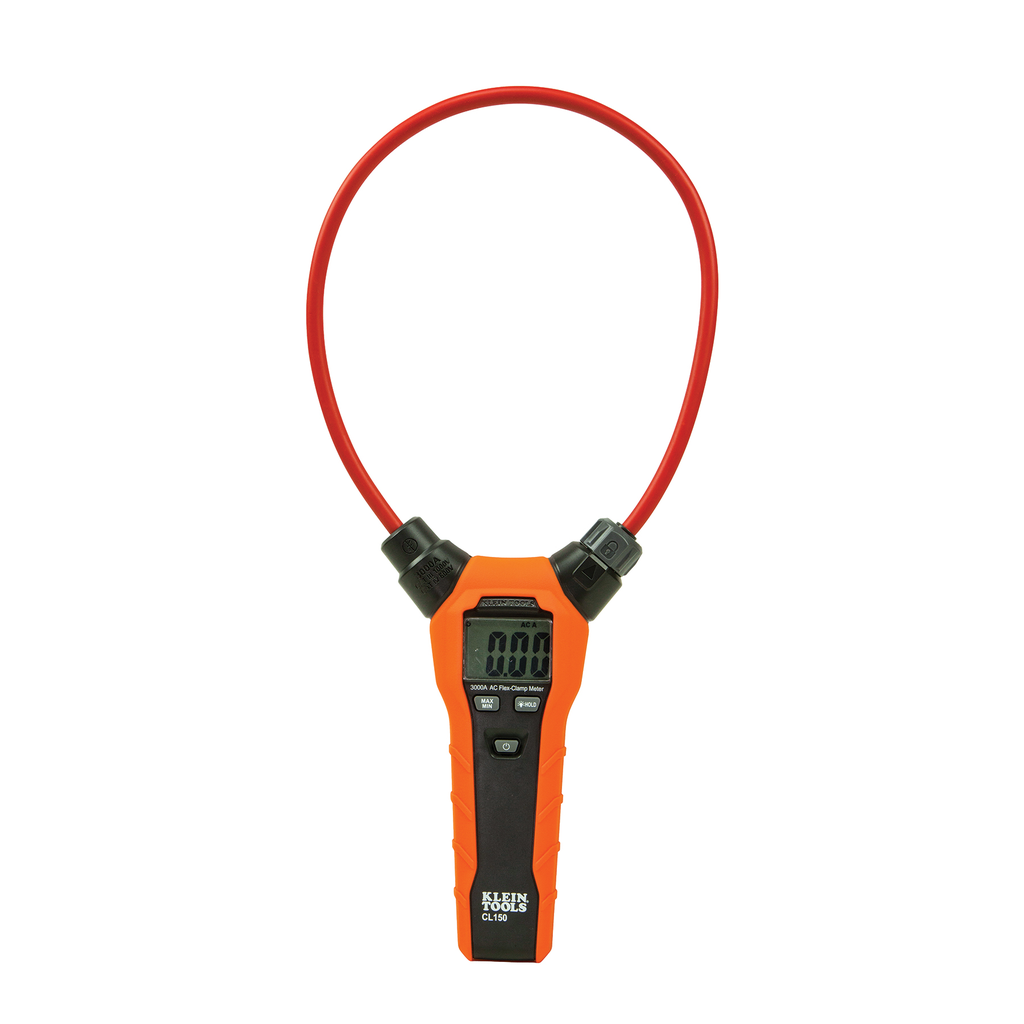

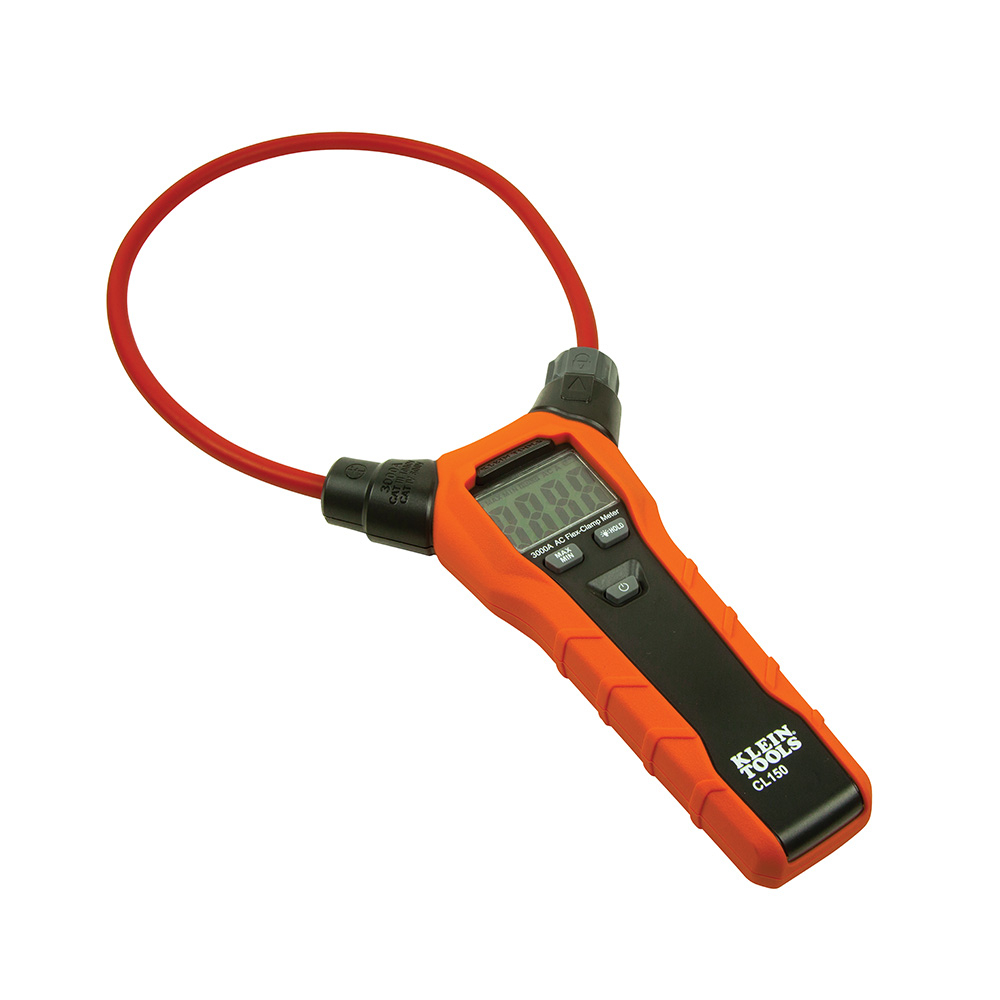

Klein Tools, CL150, Flexible AC Current Clamp Meter, 18 in Jaw Size, True RMS CAT IV 600V, 0.01 to 3000A AC

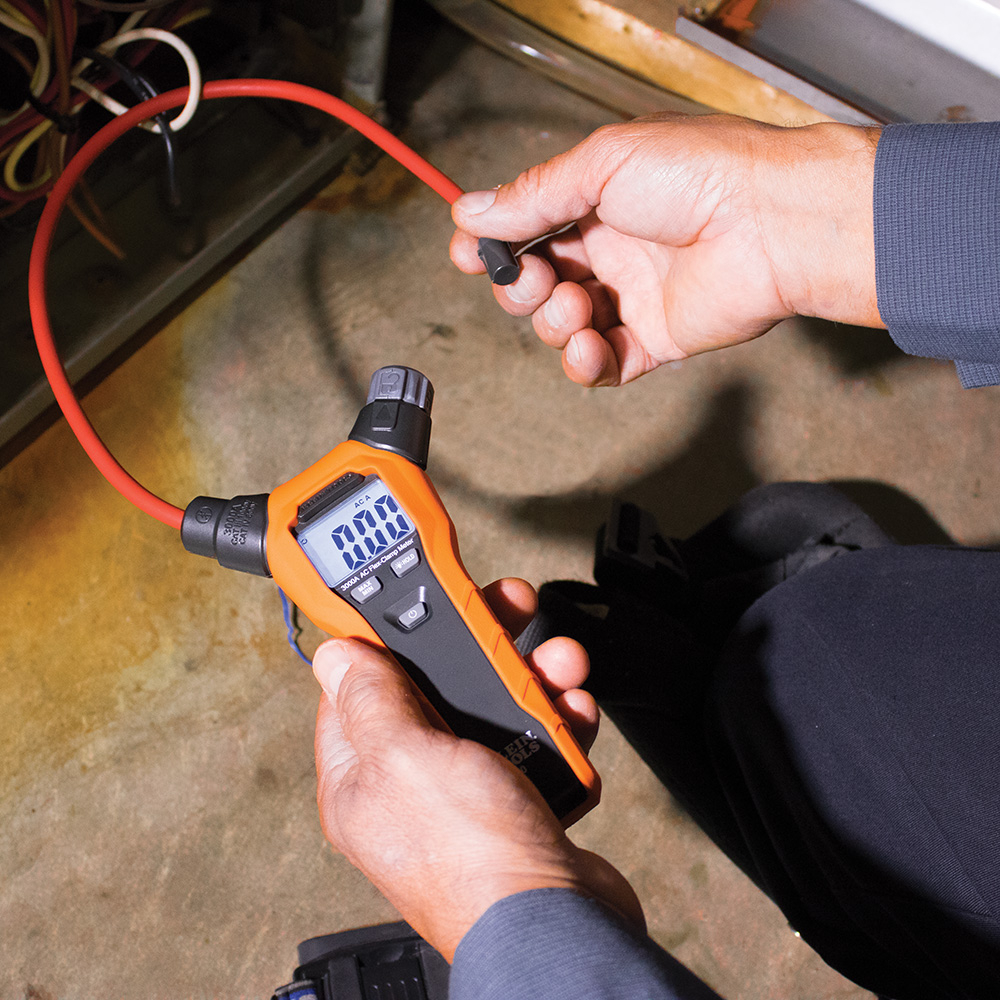

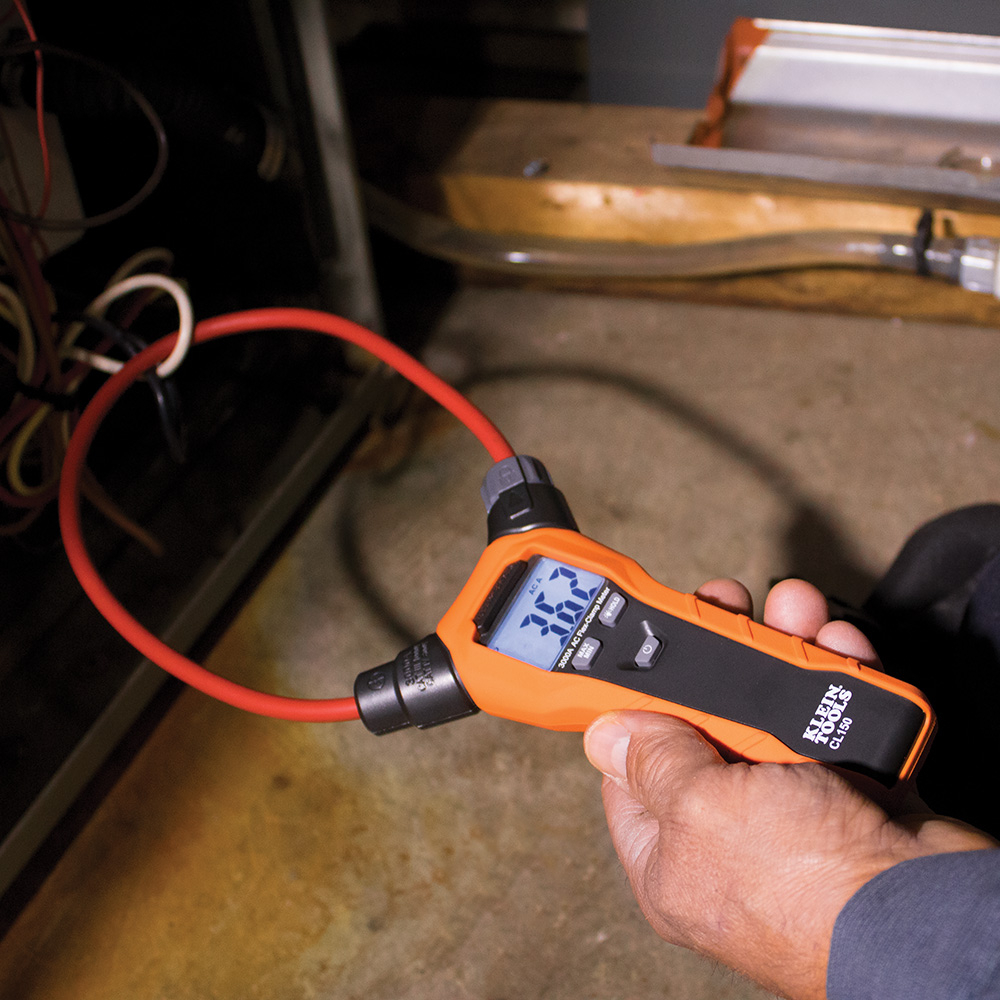

This clamp meter is easy to use, stand-alone, and features an 18-Inch flexible clamp that allows access into panels and hard to reach areas (bundled wires, awkward conductors, and PLC cabinets). True RMS readings with CATIV 600V or CATIII 1000V safety rating. Features backlit LCD display, auto-power off after 15 minutes, Max/Min, Hold, Auto-Ranging and Low Battery icons.

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Before each use verify meter operation by measuring a known voltage or current.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
• Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
• Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

Features

• Auto-power off after 15 minutes of non-usage conserves battery life
• Backlit LCD display for clear readings with 3000 count
• Includes Flexible AC Current Clamp Meter, instruction manual, storage pouch, 2 x AAA batteries
• Clamp meter for measuring AC current
• Low battery indicator and easily accessible battery compartment
• 18-Inch flexible clamp on meter enables measurements in areas that are difficult to access
• True RMS CAT IV 600V, CAT III 1000V meter
• Durable, with drop protection to 6.6-feet (2 m)
• Auto-power Off, Max/Min, Hold, Auto-Ranging and Low Battery Icons

• Current: 0.01 to 3000 A AC
• Jaw Size: 18 in (45.7 cm)
• Display Count: 3000 Count
• Weight: 0.38 lbs (172 g)
• Dimensions: 10.50 in L x 4.12 in W x 1.06 in H
• Material: ABS
• Standard: CAT IV 600V, CAT III 1000V
• Power Source: 2 x AAA batteries
• Drop Protection: 6.6 ft (2 m)
• Type: Flexible AC Current Clamp
• Auto Power-Off: 15 minutes
• Country of Origin: China
