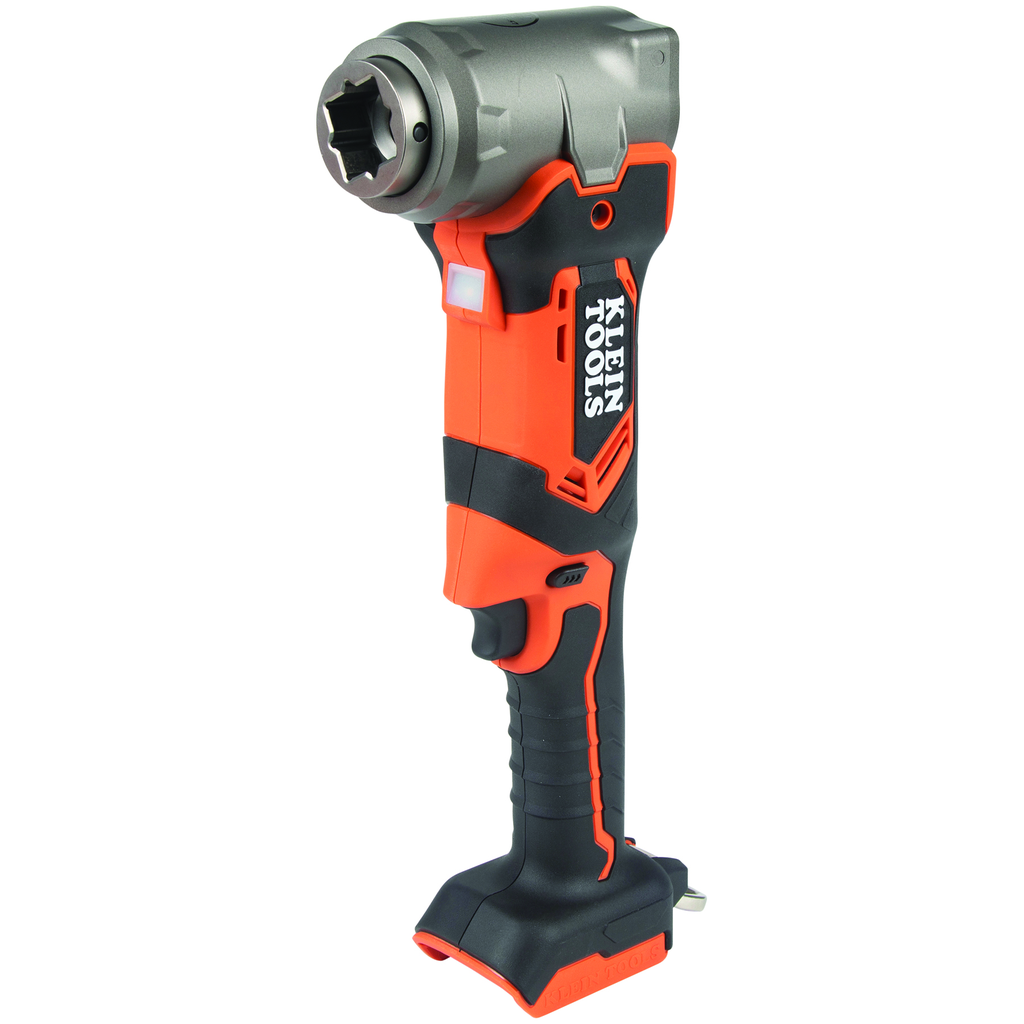

Klein Tools, BAT20LW, 90-Degree Impact Wrench, 300 ft-lb Torque, 20V, 1-1/8"; 1"; 13/16"; 3/4" Square Drive, Battery-Operated

Engineered and designed by Klein Tools in the USA, the patent pending design of the 90-Degree Impact Wrench provides a better, more ergonomic way to fasten in the field. The right angle on this tool allows the user to reach around a utility pole easier for better access with less fatigue. Up to 300 ft-lb of max torque for driving fasteners into wood, metal and concrete. It features a variable speed trigger and a variety of square drives (1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch).

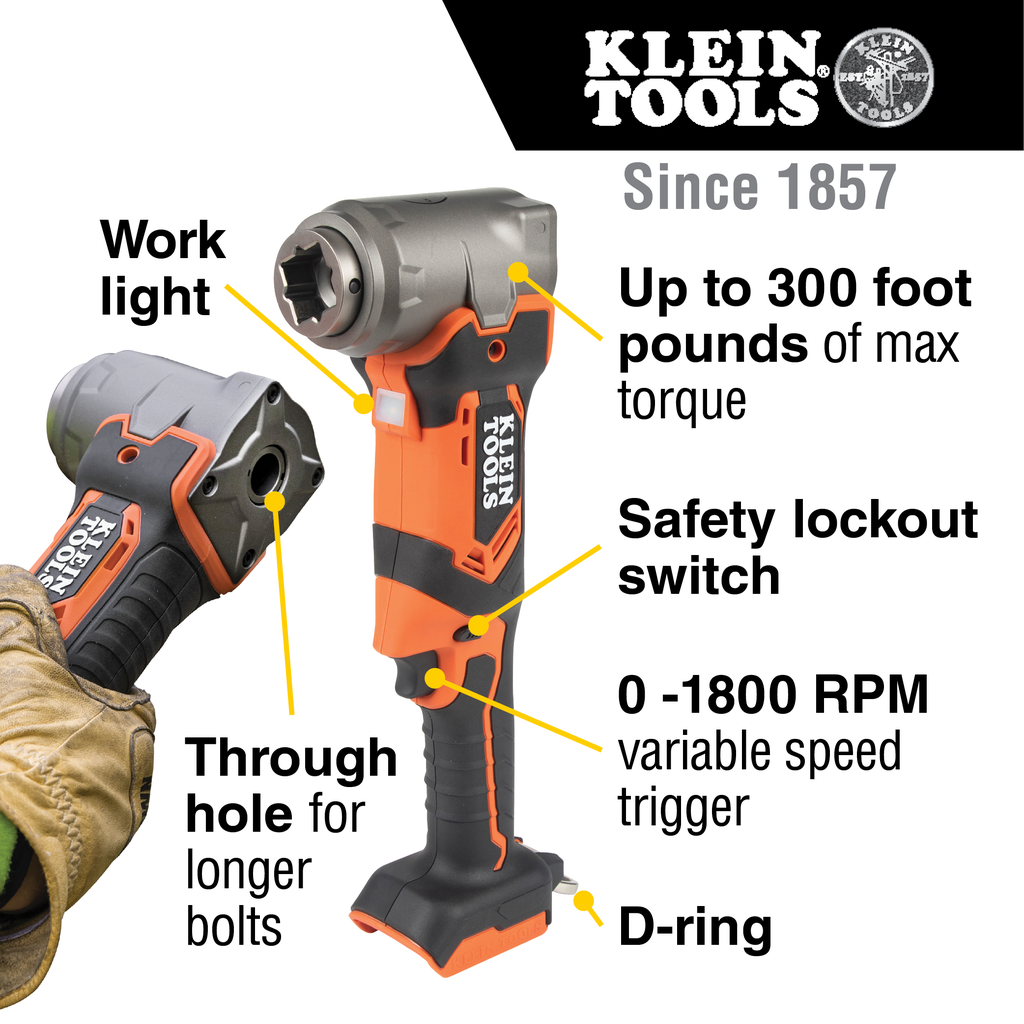

Features

• Delivers 300 ft-lb of max torque for installing fasteners into wood, metal and concrete
• 0 -1800 RPM variable speed trigger for better control
• Work light illuminates darker spaces

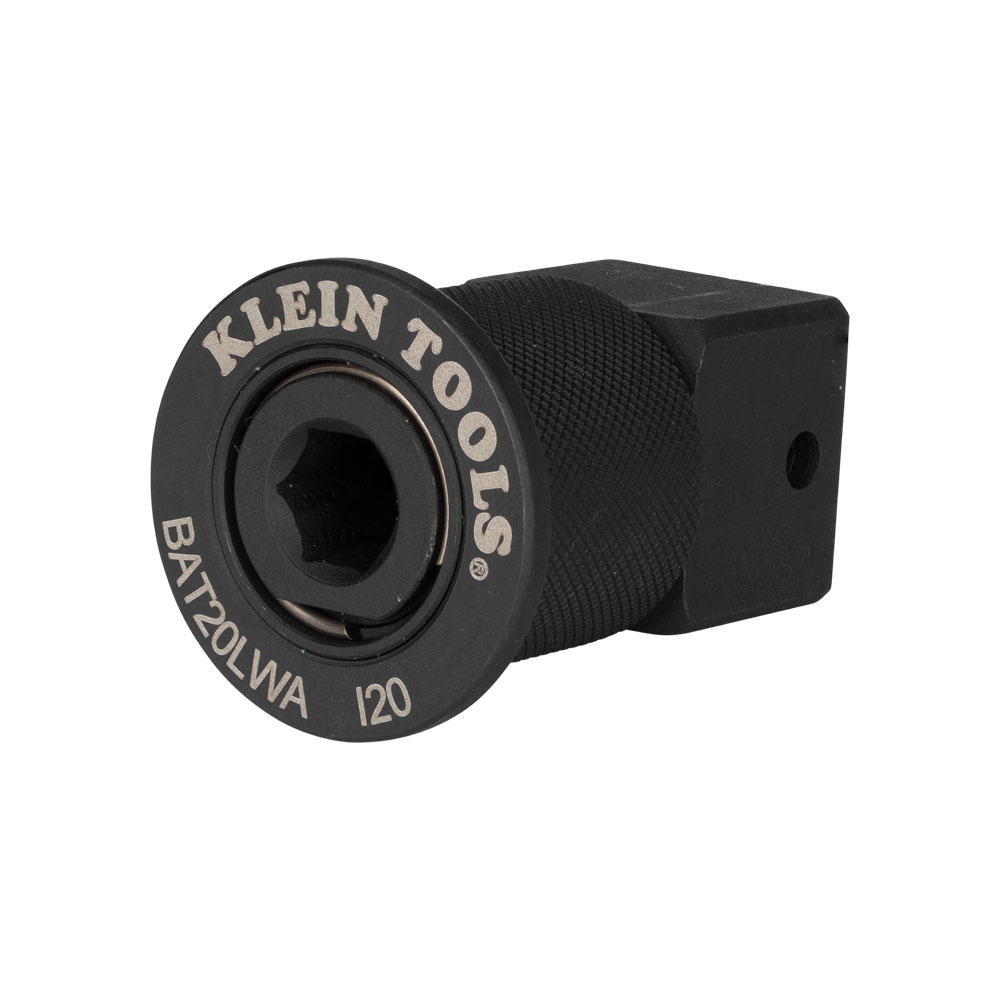

• 7/16-Inch Quick Connect Adapter works with drill bits, sockets and other accessories for added versatility (Cat. No. BAT20LWA)
• Powered by DeWALT 20V lithium-ion batteries (sold separately)
• Safety lockout switch

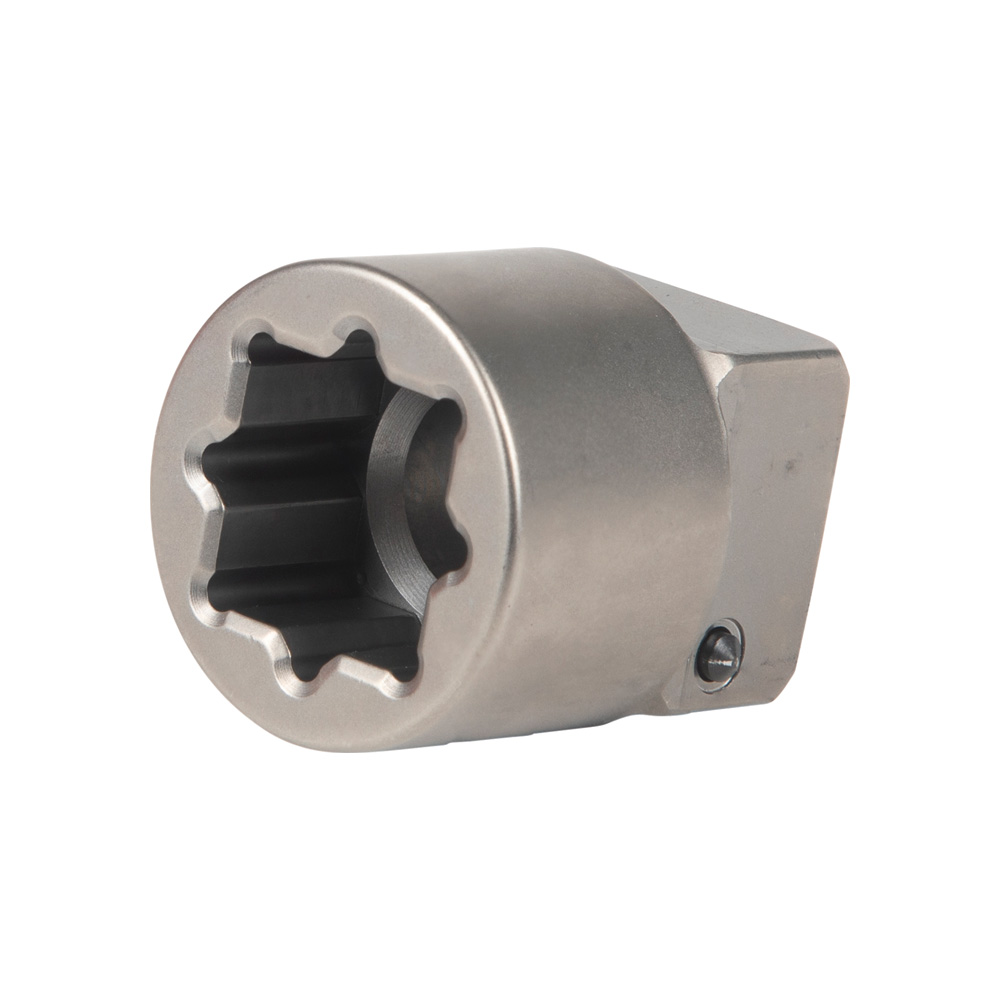

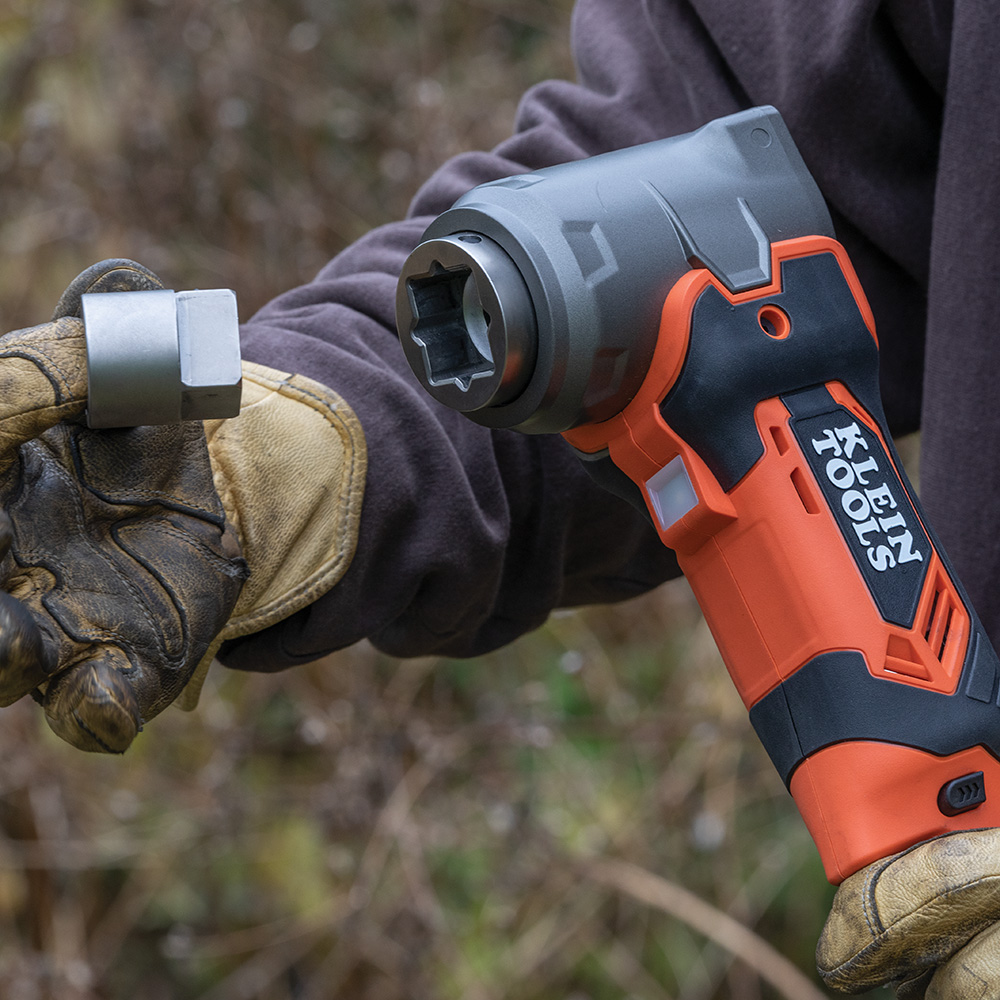

• Insertable socket designed for commonly used 3/4-Inch and 13/16-Inch bolt sizes (Cat. No. BAT20LWS)
• Powered by DeWALT 20V Lithium-ion Batteries

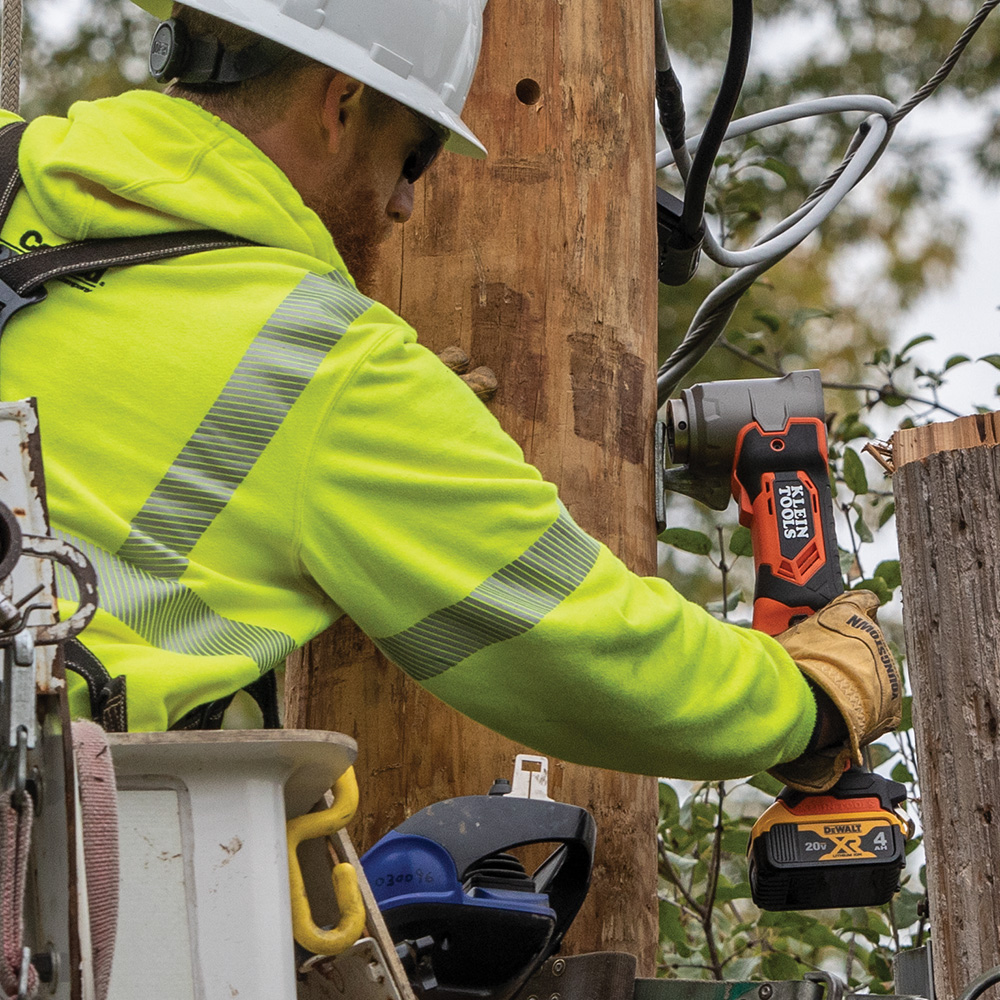

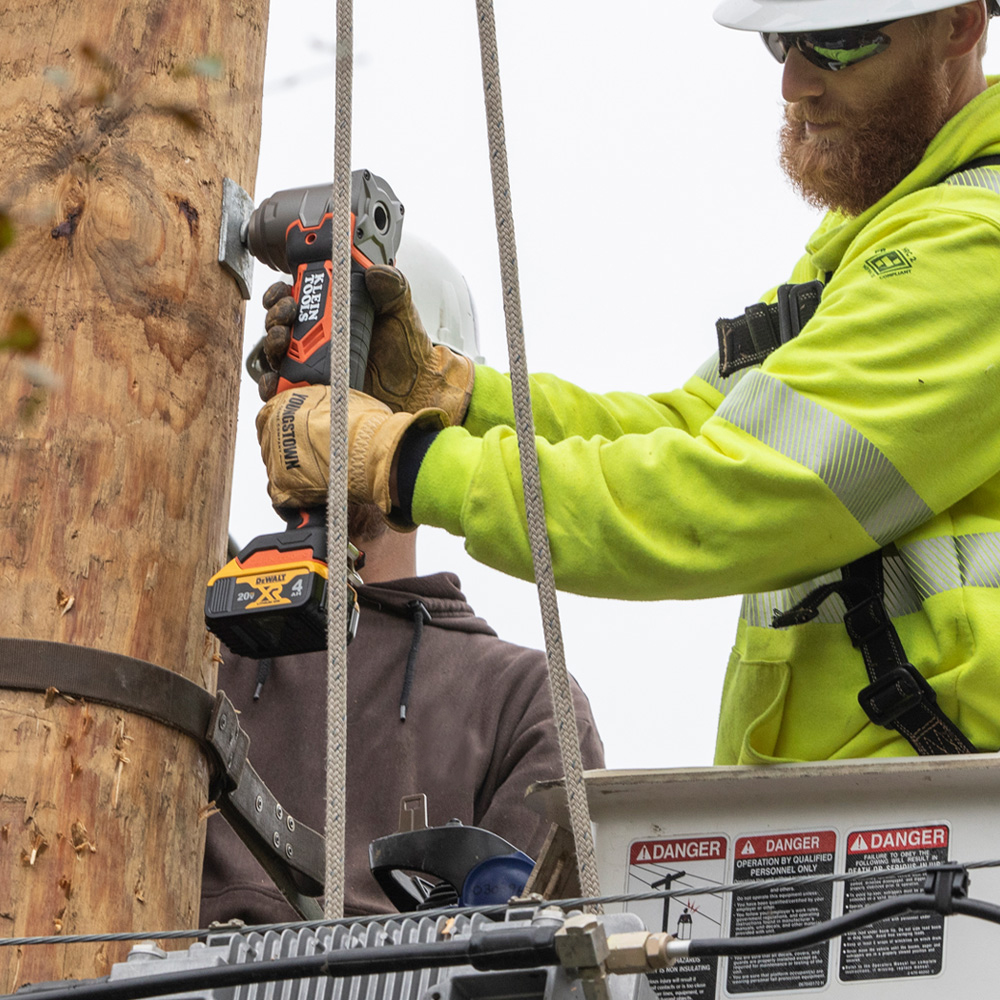

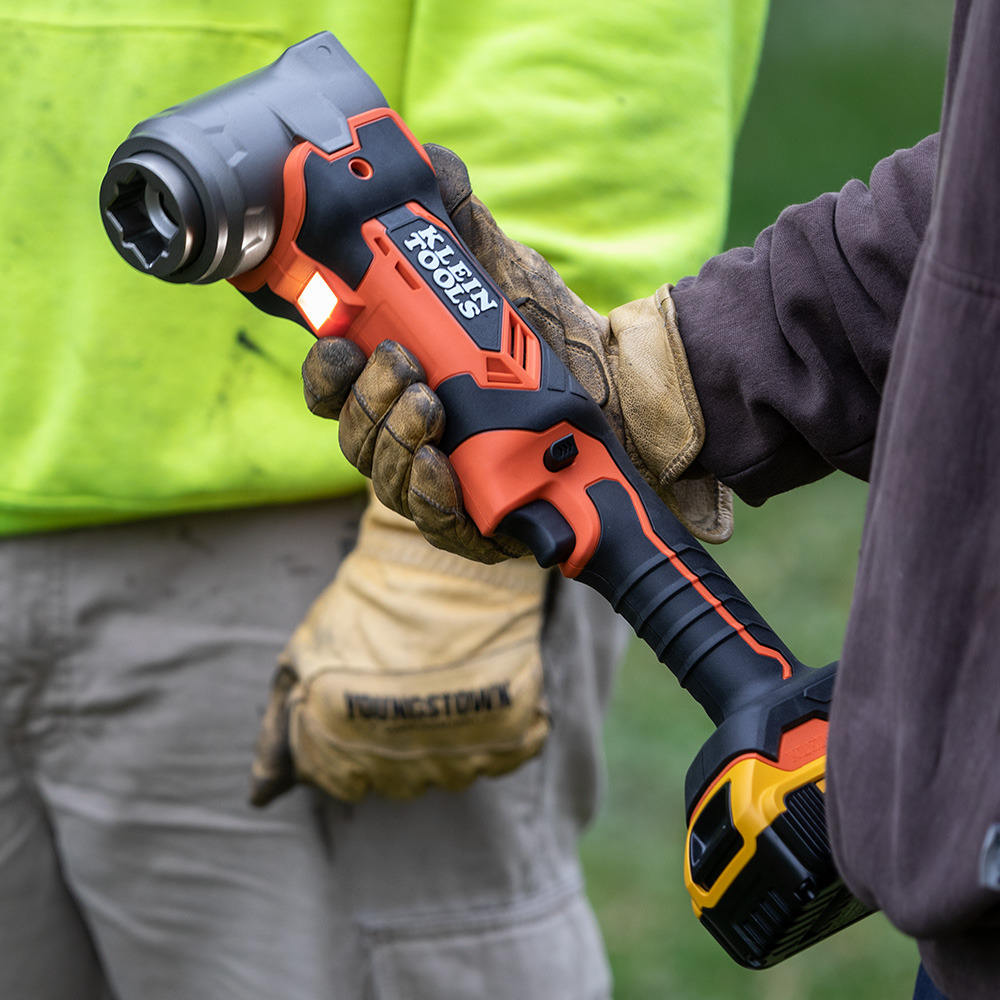

• Right angle impact wrench provides versatility for better reach around a utility pole with less effort

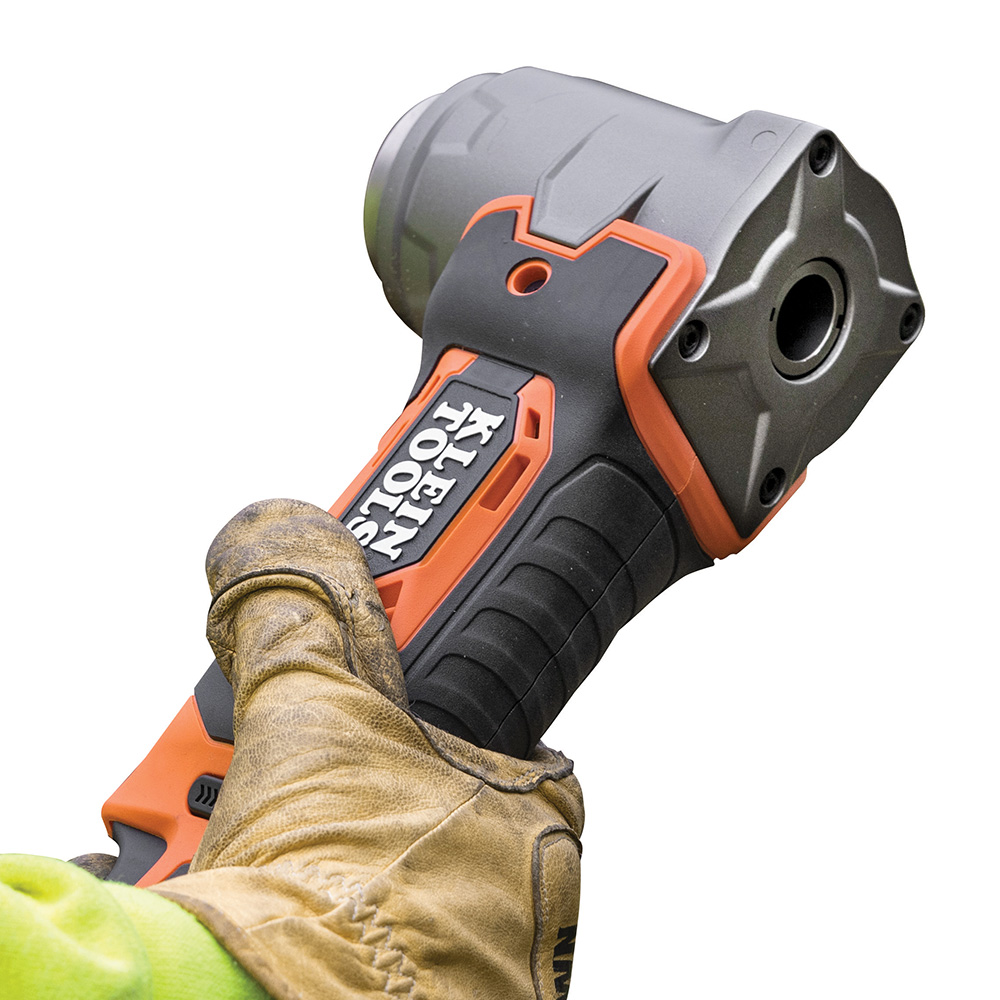

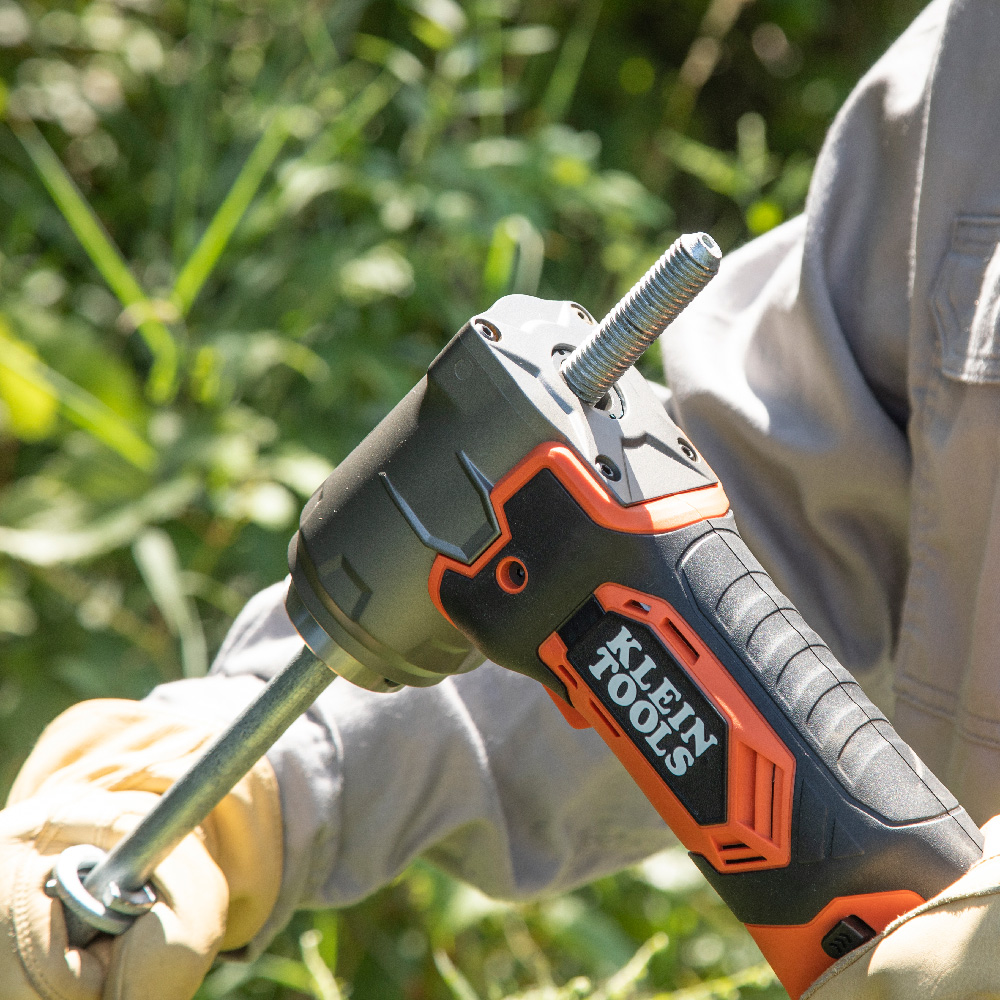

• Patent pending through hole design for longer bolts
• Featuring 1-1/8-Inch, 1-Inch, 13/16-Inch and 3/4-Inch square drives
• Engineered and designed by Klein Tools in the USA
• DeWALT is a registered trademark of the Black & Decker corporation

Warnings

• Not insulated. Will not protect against electrical shock.
• Always use approved eye protection.
• Do not use to pry or chisel.

• Torque Rating: 300 ft-lb
• Speed: 0-1800 RPM variable
• Drive Size: 1-1/8 in, 1 in, 13/16 in, 3/4 in Square
• Voltage: 20V Lithium-Ion
• Height: 4.25 in
• Overall Length: 7.25 in (18 cm)
• Brushless Motor: Yes
• Application: Impact Fastening
• Impacts per Minute: 0-1800
• Handle Type: In-Line
• Weight: 7.5 lbs
• Overall Width: 4.25 in (11 cm)
• Material: ABS, PA6, GF, TPE
• Width: 7.25 in
• Type: Battery-Operated
• Socket Sizes: 3/4 in, 13/16 in Square
• Adapter Size: 7/16 in Quick Connect
• Design: Right angle
• Country of Origin: USA
