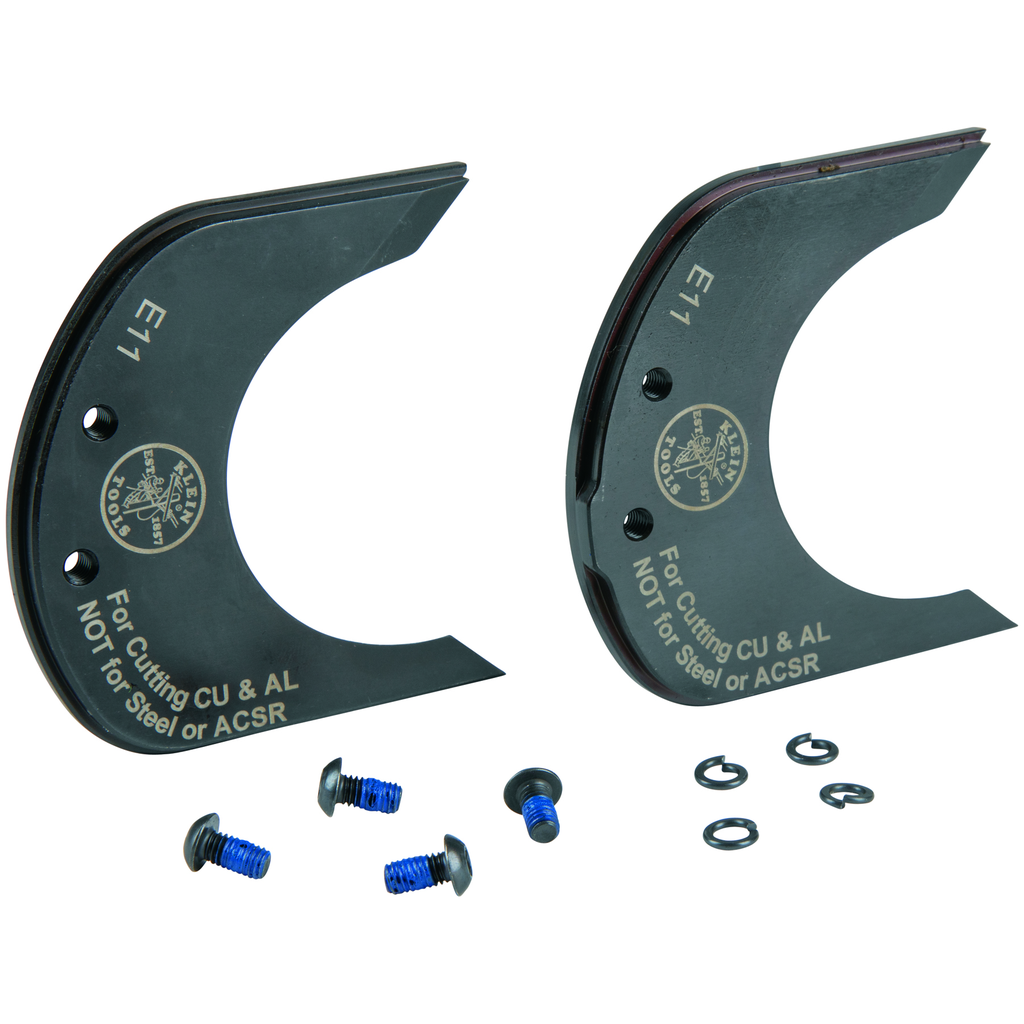

Klein Tools, BAT20GD4BAC, Replacement Blades, Cuts 1000 MCM Copper; 1500 MCM Aluminum; Steel

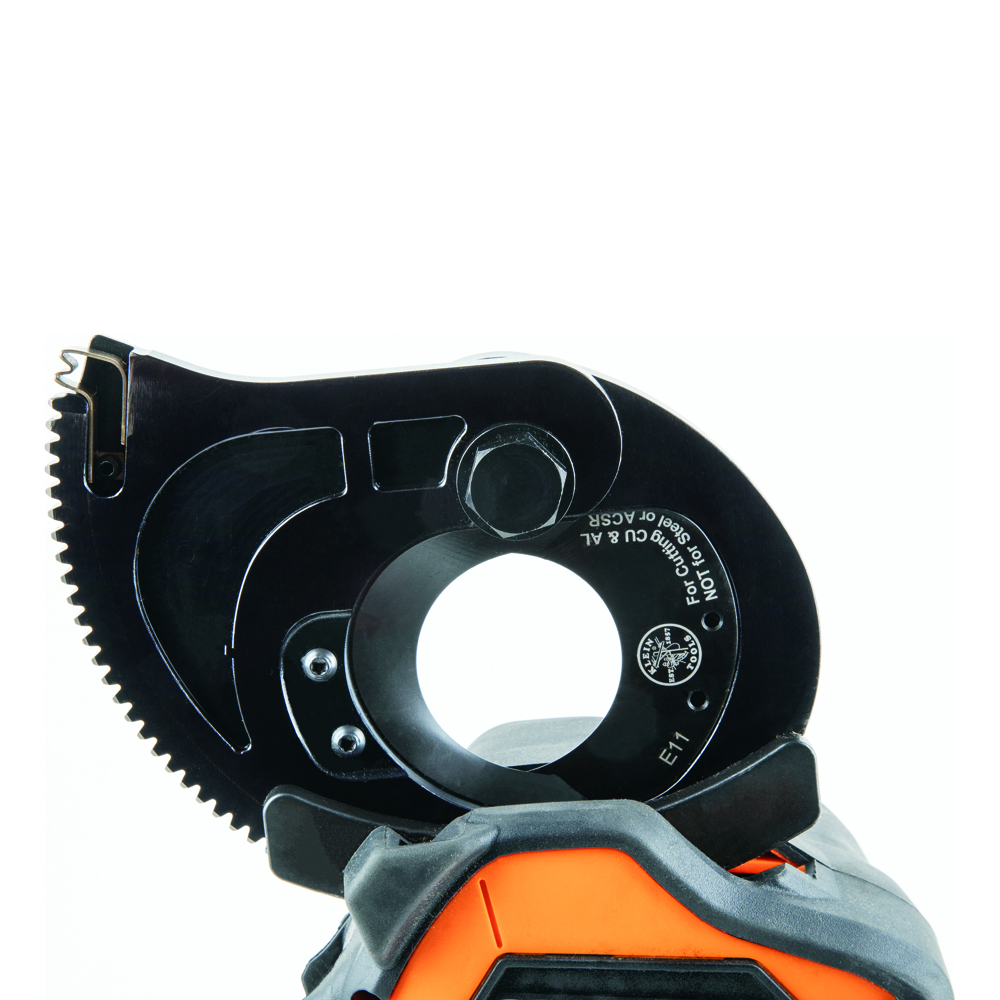

These replacement insert cutting blades work with Klein's Battery-Operated, Closed-Jaw Cable Cutter. Cuts copper and aluminum cable. Replaceable blades provide an easy and economical solution for damaged cutting blades. The blades can be easily replaced using two screws. Experience the quality, durable cutting you expect from Klein Tools.

Features

• 1000 MCM is soft copper grade only

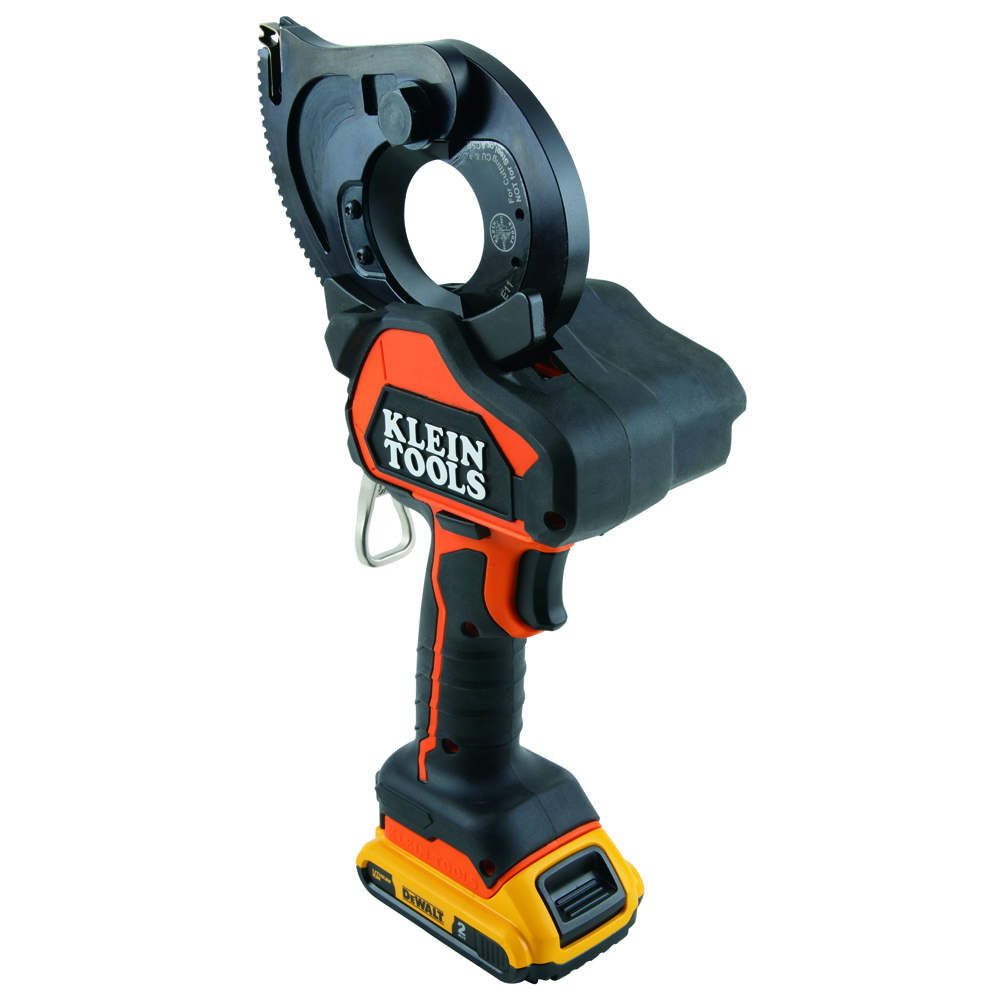

• Replacement blades for Klein Tools' Cu / Al Closed-Jaw Cable Cutter (BAT20GD10)
• Do NOT use to cut ACSR
• Replaceable
• An easy and economical solution for damaged cutting blades save time and money
• Klein brings over 160 years of expertise in hand cutting to battery-operated cutting
• Cuts 1000 MCM Copper
• Cuts 1500 MCM Aluminum

Warnings

• Not insulated. Will not protect against electrical shock.
• Do NOT use to cut ACSR.
• DO NOT use under wet conditions or in presence of flammable liquids or gases.
• Always use approved eye protection.

• Maximum Cable Capacity (Copper): 1000 MCM (soft grade only)
• Maximum Cable Capacity (Aluminum): 1500 MCM
• Cutting Type: Copper, Aluminum
• Overall Length: 4.5 in (11.4 cm)
• Overall Width: 3 in (7.6 cm)
• Overall Height: 0.5 in (1.3 cm)
• Depth: 4.5 in
• Height: 0.5 in
• Width: 3 in
• Weight: 0.41 lbs
• Material: Steel
• For Use With: BAT20GD10
• Type: Replacement Blade
• Blade Type: Replaceable insert blades
• Maximum Cable Capacity (Ground Rod): 5/8 in (1.6 cm)
• Safety: Not insulated, no electrical protection
