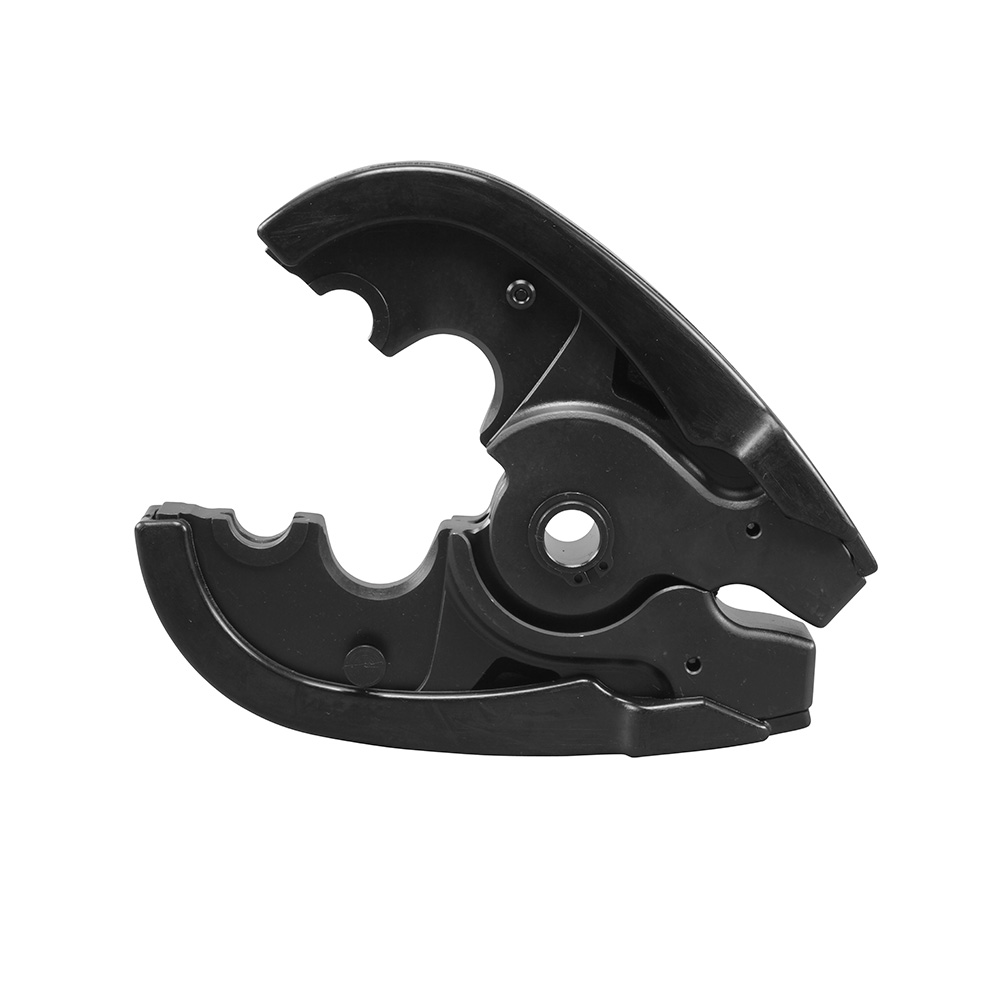

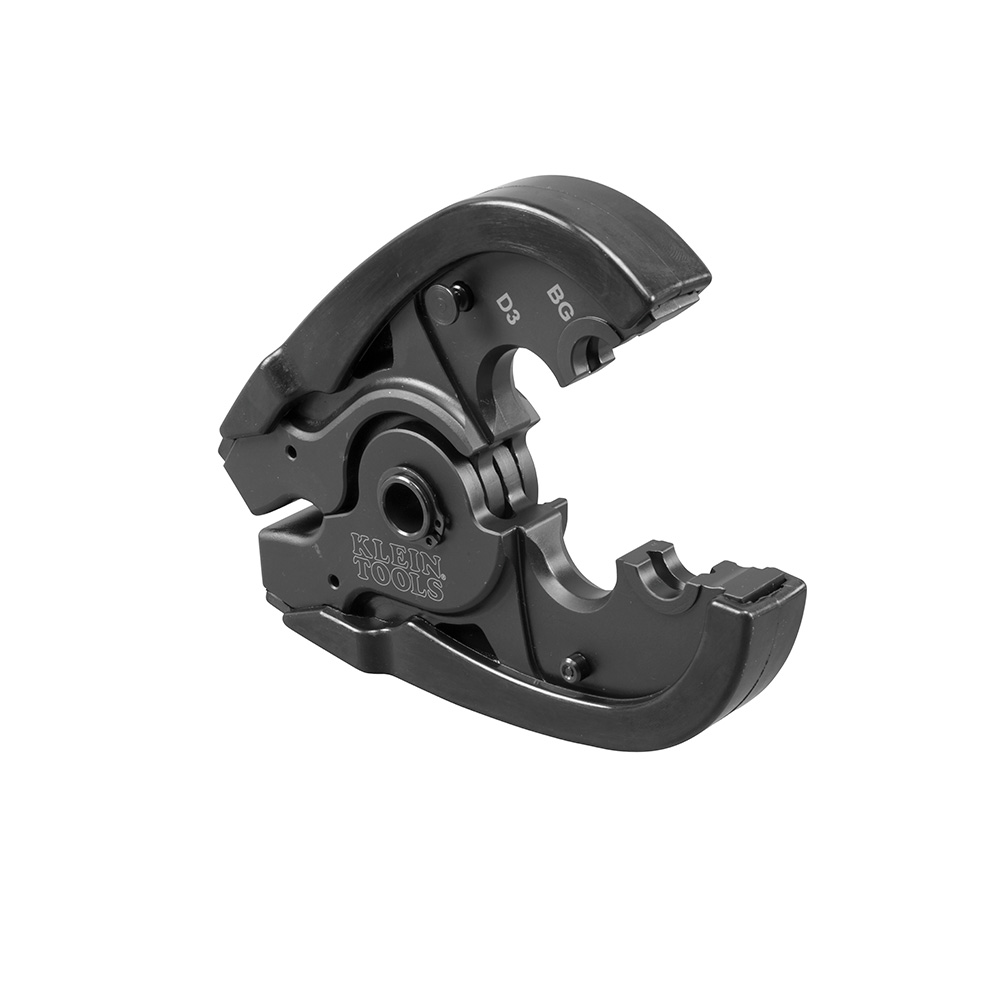

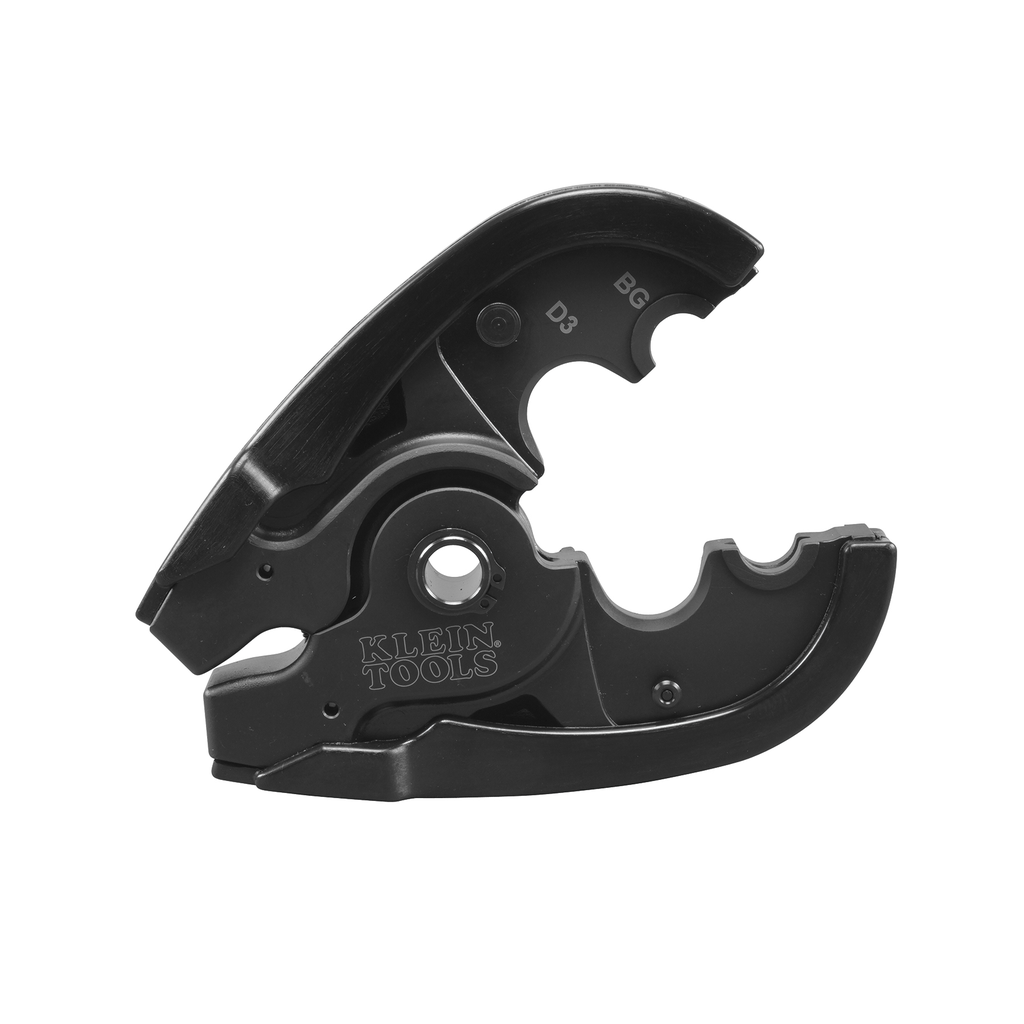

Klein Tools, BAT207T6, Crimping Jaw, Replacement/Alternate, 600 MCM Copper; 350 MCM Aluminum; 477 MCM ACSR

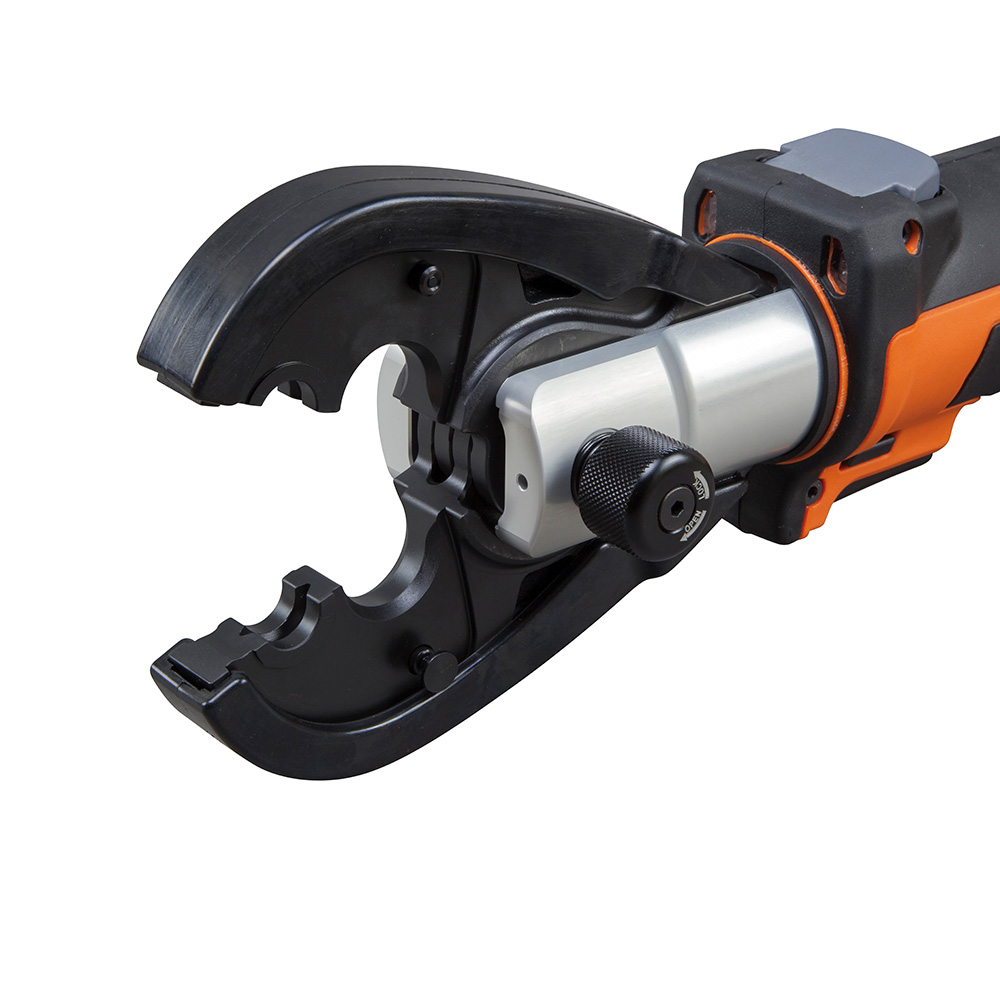

This crimping jaw works with Klein's battery-operated Cable Crimper (BAT20-7T). Crimps 600 MCM copper, 350 MCM aluminum and 477 NCM ACSR cable quickly and efficiently. Features a BG fixed die and D3 groove. Compatible with industry standard W-style dies.

Features

• Replacement crimping jaw for Klein's battery-operated cable crimper (BAT20-7T)
• Crimps 600 MCM copper cable
• 7 ton hydraulic force provides 15-Percent more crimping power
• Crimps 350 MCM aluminum cable
• Features a BG fixed die and D3 groove
• Crimps 477 ACSR cable
• Compatible with industry standard W-style dies

Warnings

• Do not use to pry or chisel.
• Always use approved eye protection.
• Not insulated. Will not protect against electrical shock.

• Maximum Cable Capacity (Copper): 600 MCM
• Maximum Cable Capacity (Aluminum): 350 MCM
• Maximum Cable Capacity (ACSR): 477 MCM
• Force: 7 ton hydraulic
• Overall Length: 6.25 in (15.9 cm)
• Overall Height: 6.5 in (16.5 cm)
• Overall Width: 1.5 in (3.8 cm)
• Weight: 3.23 lbs
• Material: ABS, PA6, GF, TPE
• Type: Replacement/Alternate Jaw
• Die Type: BG fixed die
• Groove Type: D3 groove
• For Use With: Cat. No. BAT207T
• Compatibility: Industry standard W-style dies
• Application: Cable Crimping
