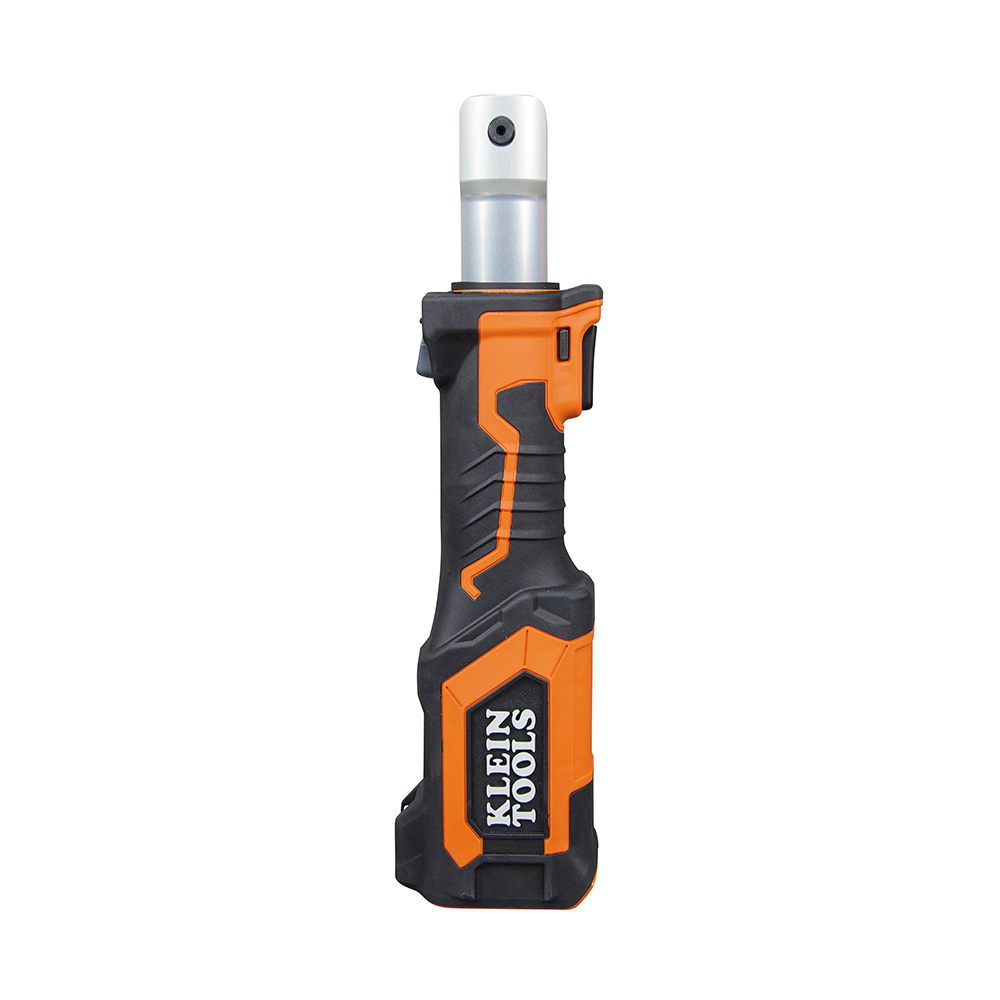

Klein Tools, BAT207T144H, Battery-Operated Cutter/Crimper, 20V, 7 Ton Force, 2 Batteries, Includes 3 Cutting Jaws, 3 Crimping Jaws

Klein's battery-operated cable cutter/crimper is engineered to make linemen's work more efficient by reducing the time and effort needed on the job. Alternate between 6 heads according to what the job requires. 7-tons of hydraulic force cut and crimp a larger capacity faster than similar models on the market. Compatible with industry standard W-style dies. Powered by a DeWALT lithium-ion battery. Includes 3 cutting heads, 3 crimping heads, two 4 Ah batteries, a charger and a bag.

Features

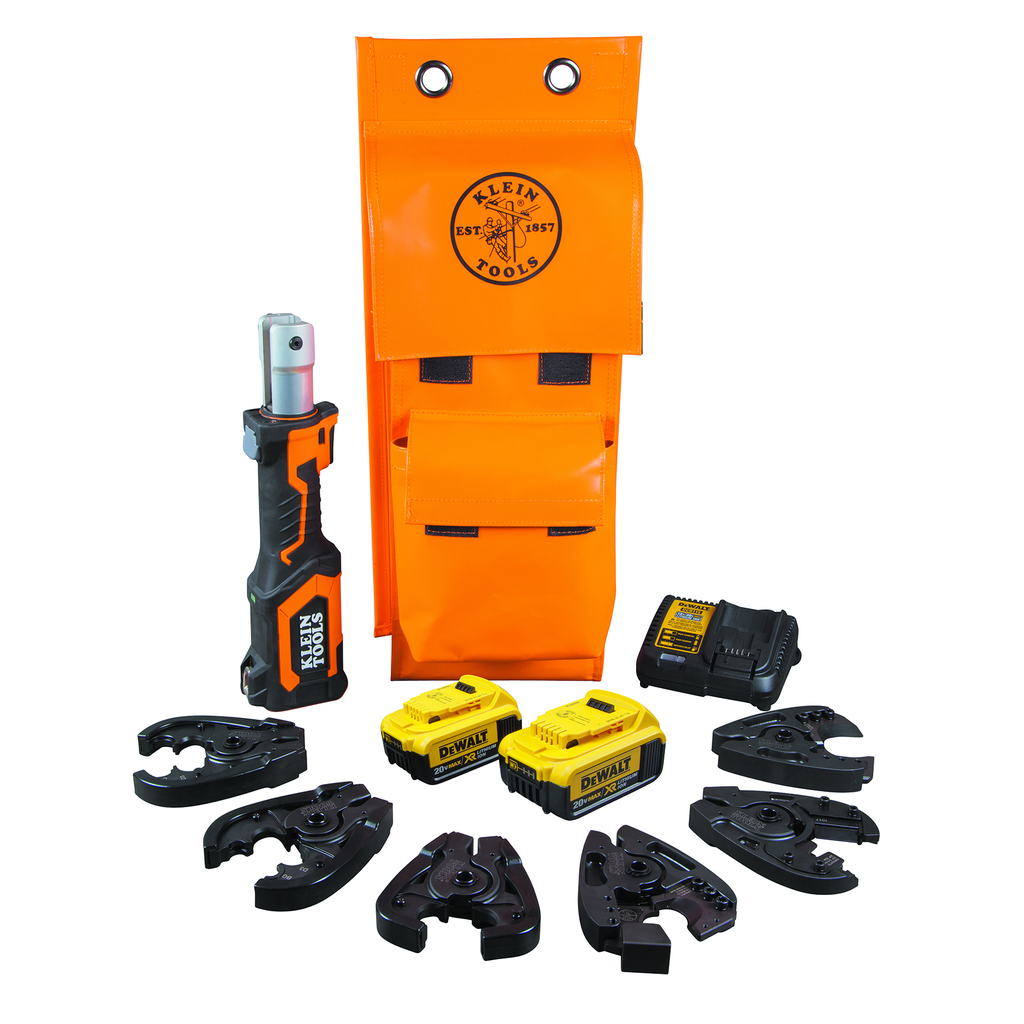

• Includes tool, 3 cutting jaws, 3 crimping jaws, two 4 Ah batteries, charger and bag
• Replacement blades available

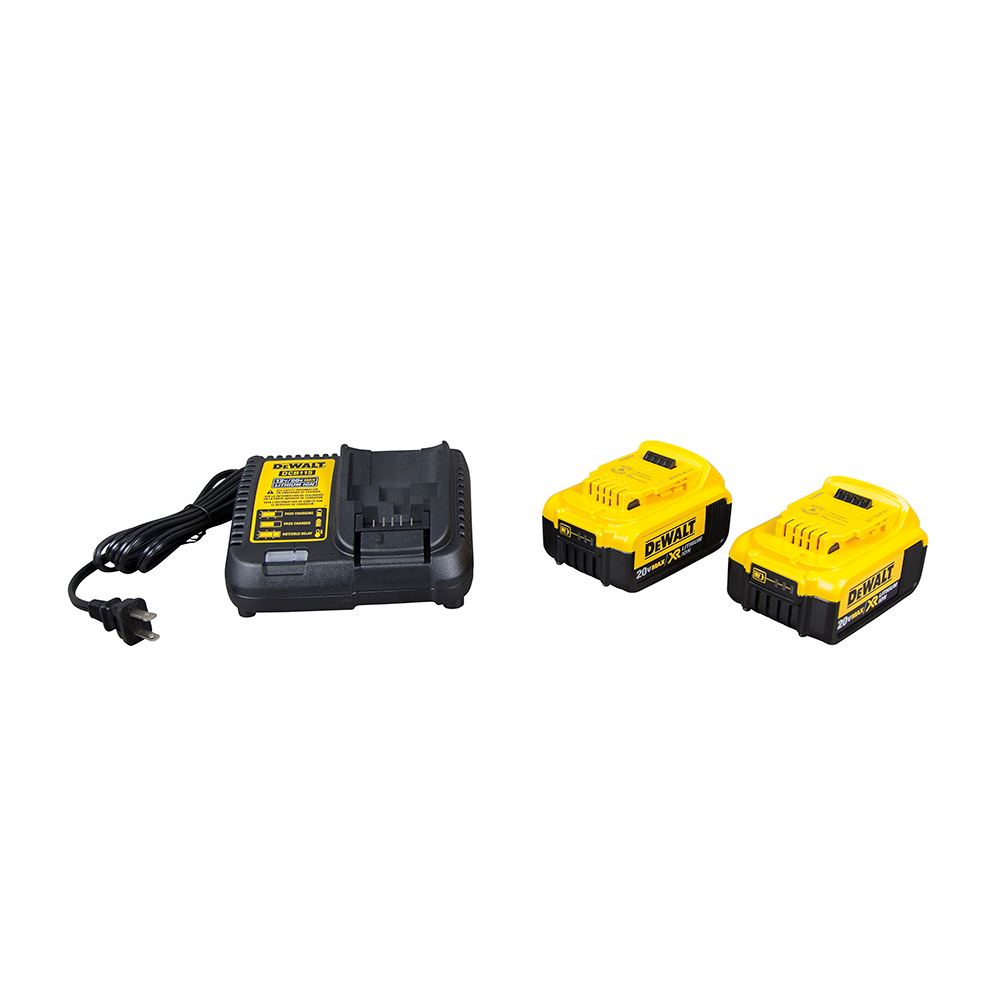

• Powered by DeWALT 20V lithium-ion batteries (4 Ah)
• 7 ton hydraulic force cuts and crimps a larger capacity faster than similar models on the market
• Powered by DeWALT 20V Lithium-ion Batteries (4 Hour)
• Two work lights illuminate darker spaces
• DeWALT is a registered trademark of the Black & Decker corporation
• Cuts and crimps copper, aluminum, ACSR, EHS Guy wire and Grade 8 steel bolts
• Green light indicator confirms a good crimp has been made
• Compatible with industry standard W-style dies

Warnings

• Always use approved eye protection.
• Do not use to pry or chisel.
• Not insulated. Will not protect against electrical shock.

• Hydraulic Force: 7 ton
• Battery Type: DeWALT 20V lithium-ion
• Battery Capacity: 4 Ah
• Voltage: 20V
• Number of Batteries: 2
• Weight: 32.06 lbs
• Overall Length: 26 in. (66 cm)
• Overall Width: 6 in. (15.2 cm)
• Overall Height: 12 in. (30.5 cm)
• Bolt Maximum Capacity: 3/8 in. Grade 8
• Maximum Cable Capacity (Aluminum): 1000 MCM Cut; 350 MCM Crimp
• Maximum Cable Capacity (Copper): 750 MCM Cut; 600 MCM Crimp
• Maximum Cable Capacity (ACSR): 556 MCM Cut; 477 MCM Crimp
• Maximum Cable Capacity (Guy Strand): 7/16 in. EHS
• Material: ABS, PA6 GF, TPE

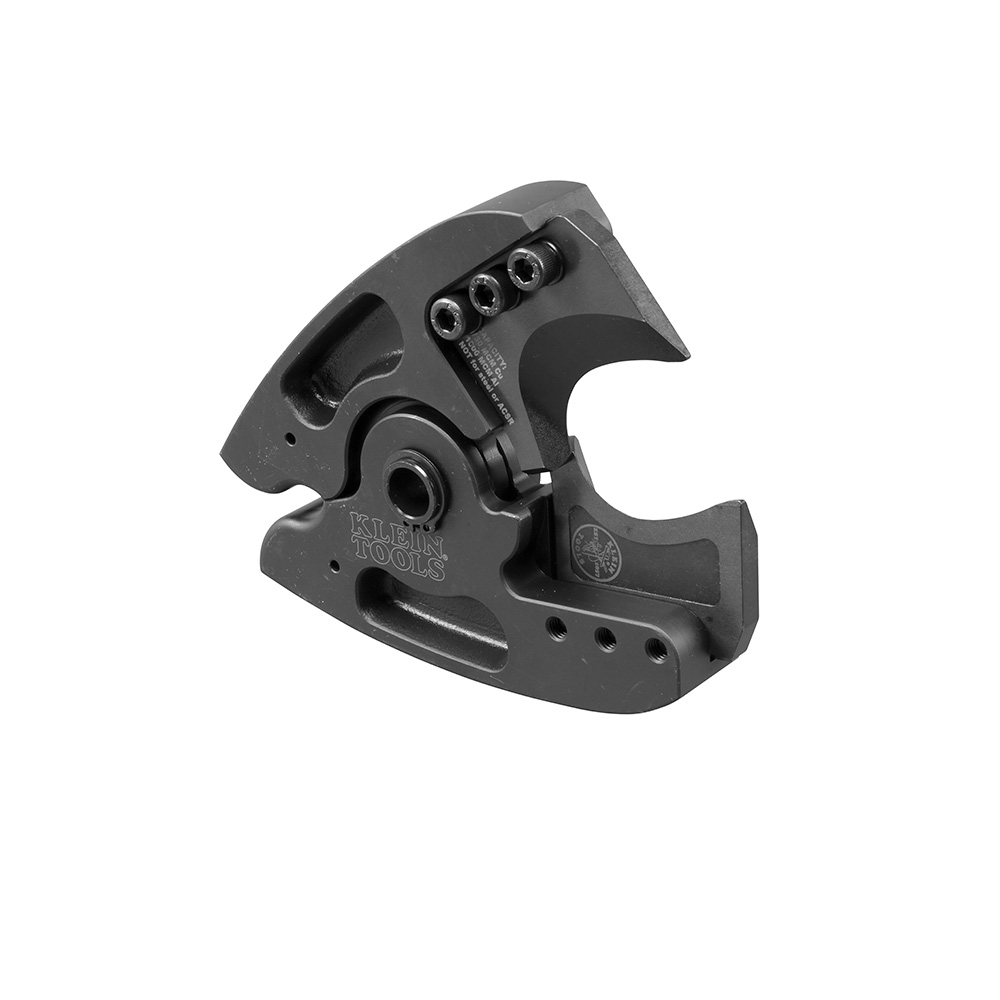

• Cutting Heads Included: 3

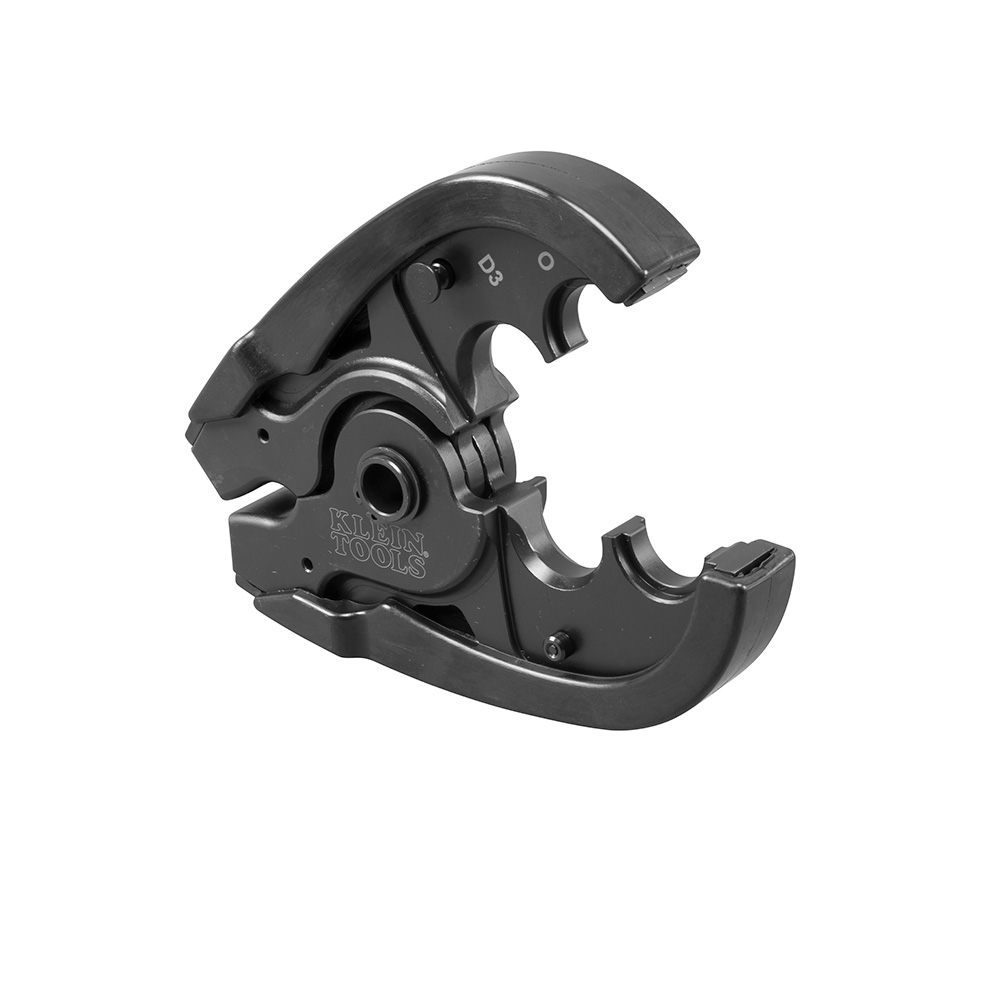

• Crimping Heads Included: 3
• Compatible Dies: Industry standard W-style
• Work Lights: 2
