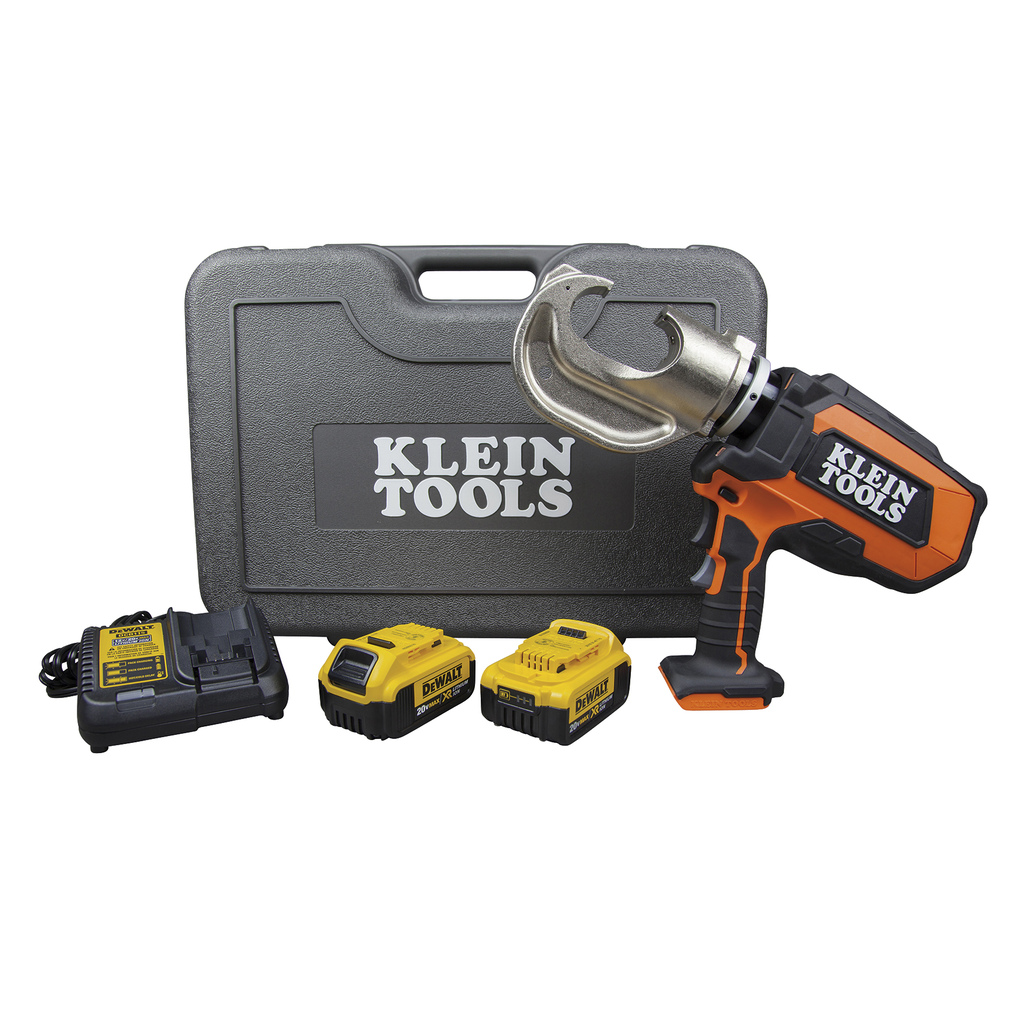

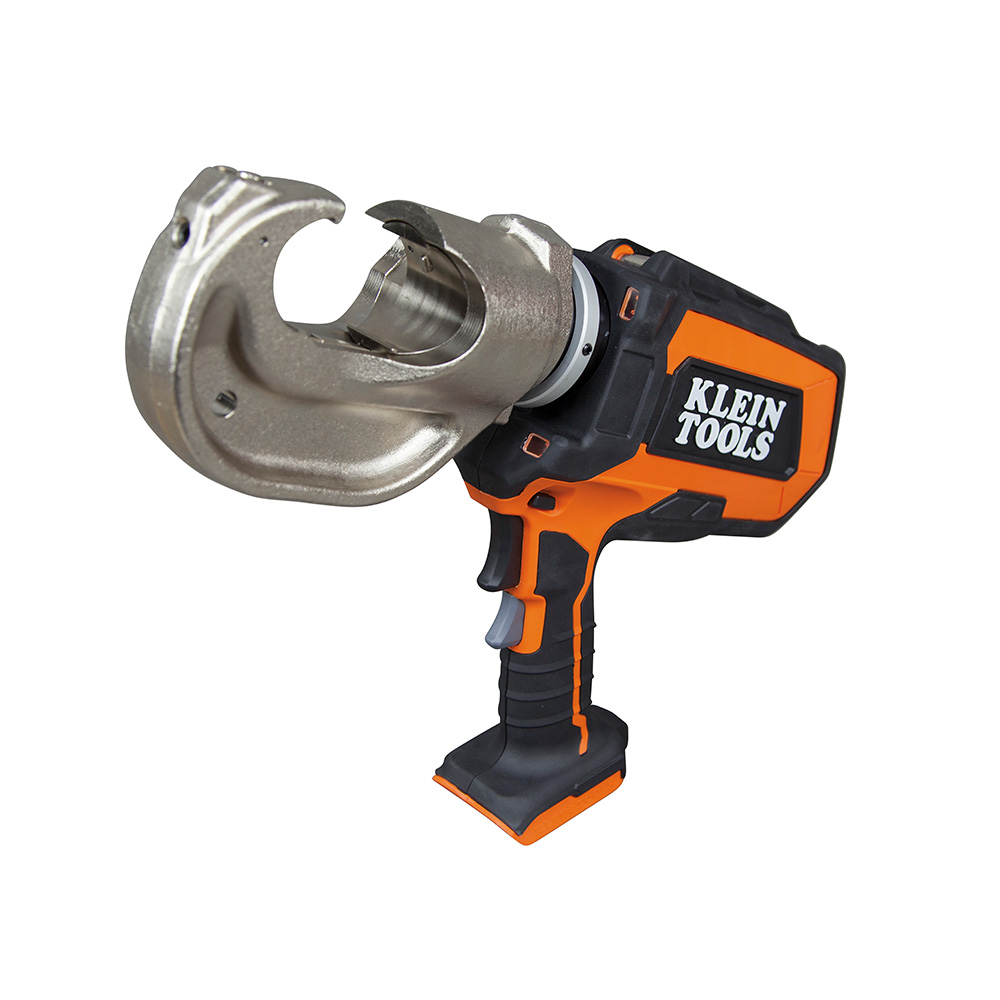

Klein Tools, BAT20-12T1651, 12-Ton Crimper Kit, 20V, Lithium-Ion, Crimps Copper; Aluminum; ACSR, Includes 2 Batteries, Charger, Case

Designed for professional cable crimping applications, this tool provides 12 tons of force to get the job done fast. It crimps copper, aluminum and ACSR. The head rotates 360 degrees for position flexibility. Compatible with industry standard U-style dies. Four working lights illuminate darker spaces. Includes crimper, C-style head, batteries, charger and a carrying case.

Warnings

• Do not use to pry or chisel.
• NEVER operate without dies.
• Not insulated. Will not protect against electrical shock.
• Always use approved eye protection.

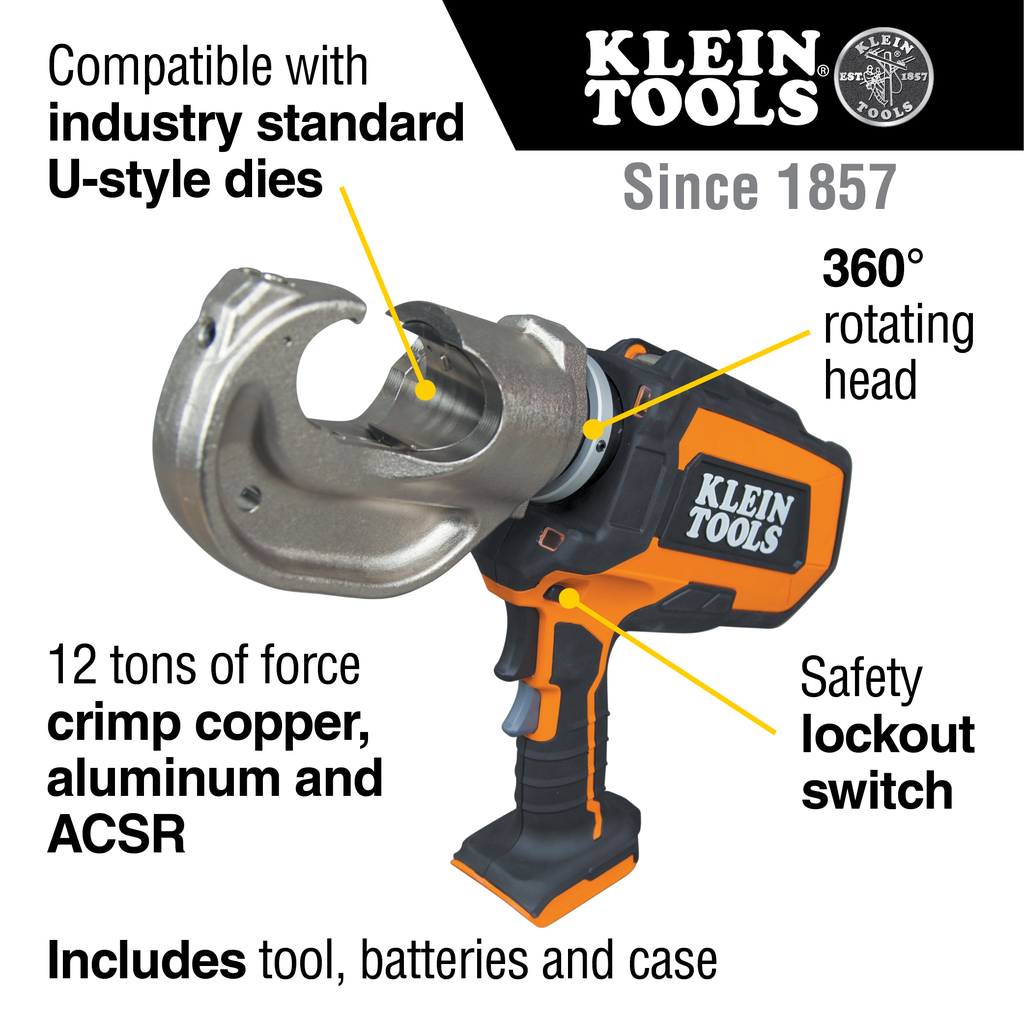

Features

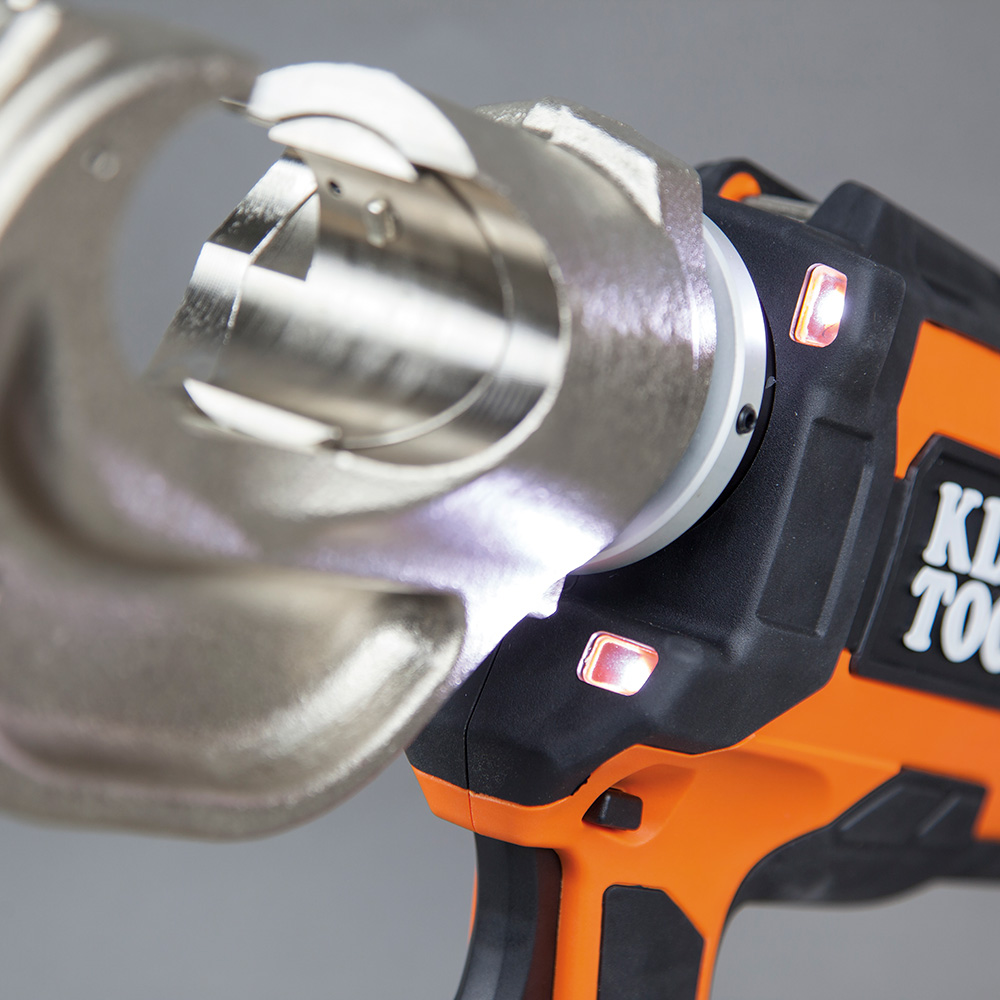

• Four working lights for dark spaces
• 360-degree rotating head for flexibility in positioning
• Green light indicates full pressure confirming a good crimp has been made

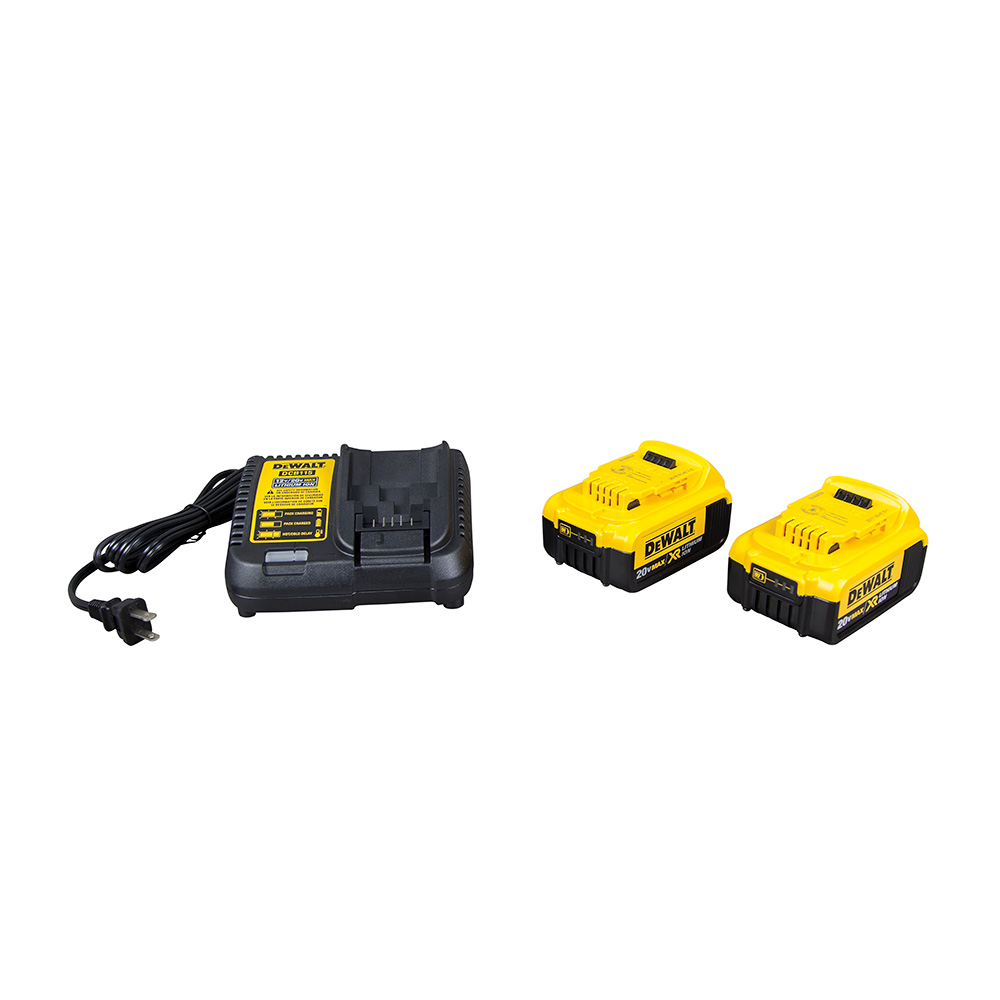

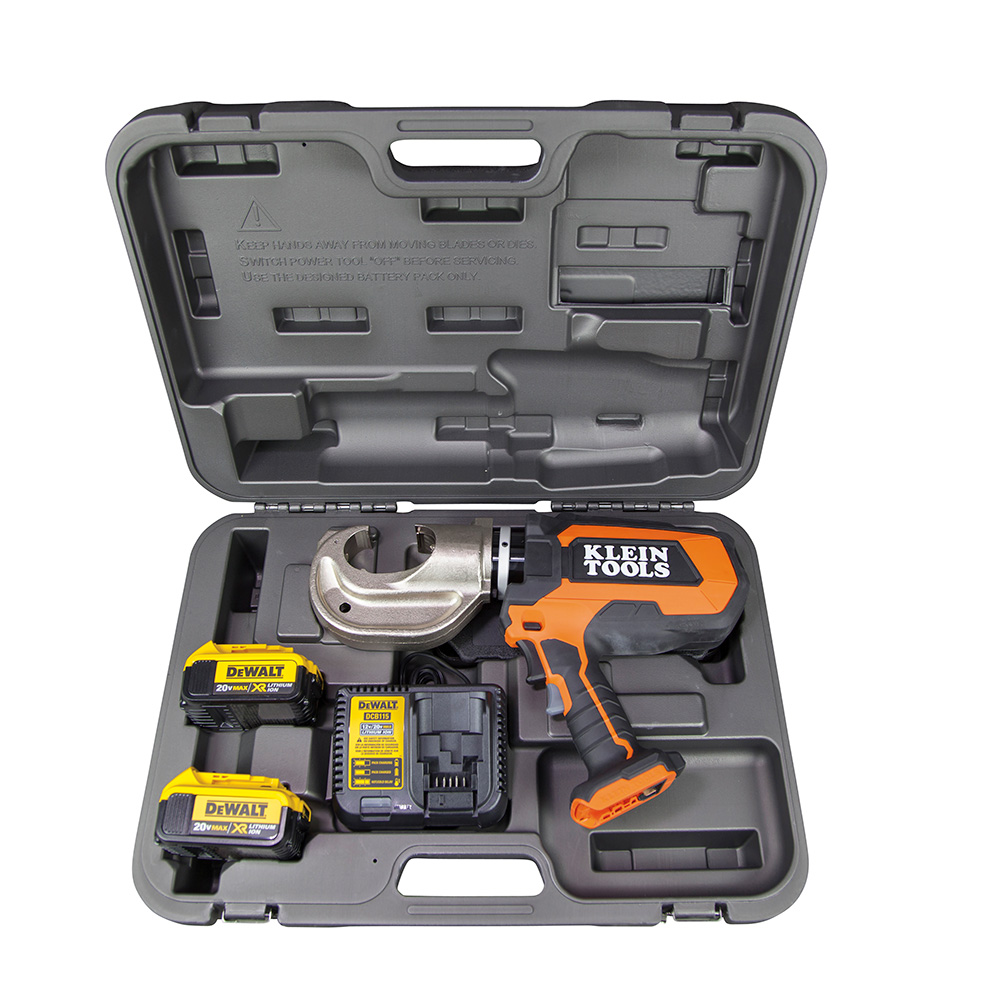

• Includes tool, two 4 Ah batteries, charger and case
• Compatible with industry standard U-style dies

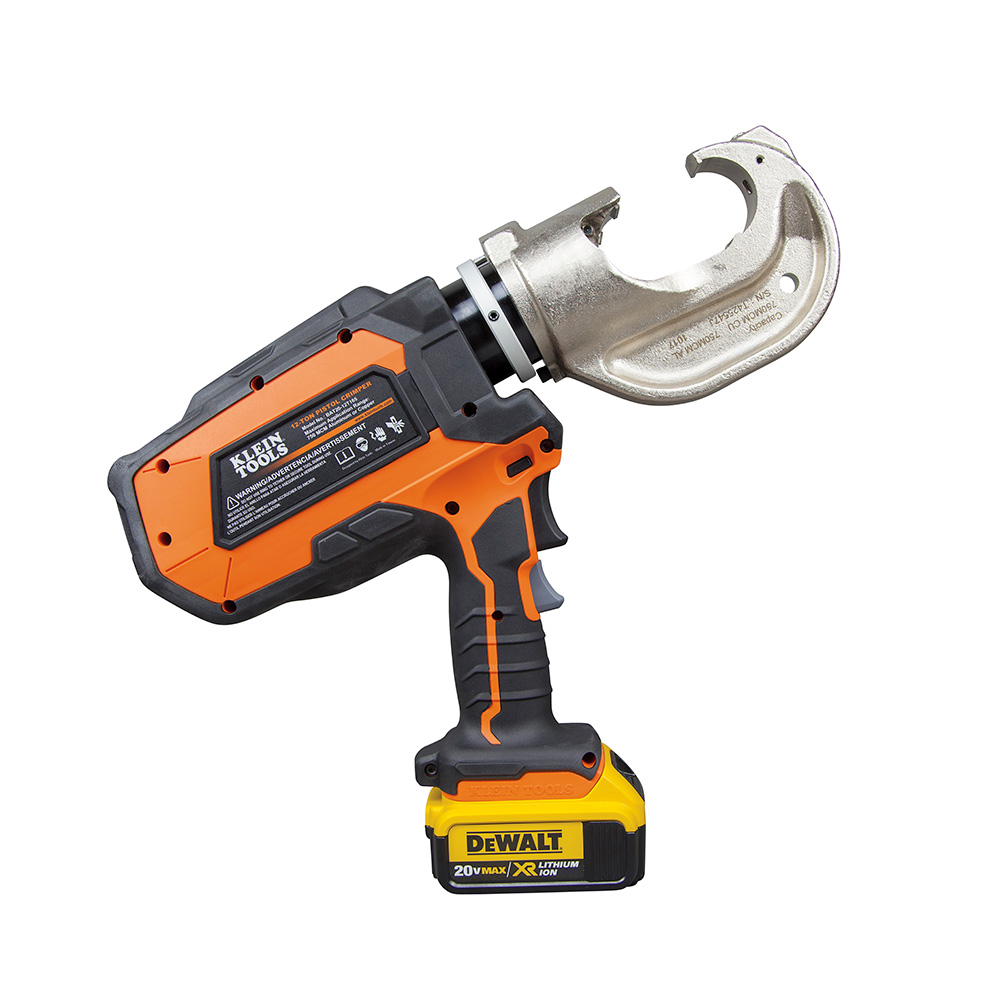

• Powered by a DeWALT 20V lithium-ion battery
• 12 tons of force crimps copper, aluminum and ACSR
• Powered by DeWALT 20V Lithium-ion Batteries
• Safety lockout switch
• DeWALT is a registered trademark of the Black & Decker corporation

• Force: 12 tons
• Battery: Two 2 Ah 20V Lithium-Ion batteries
• Voltage: 20V
• Type: Battery Operated
• Maximum Cable Capacity (Copper): 8 AWG to 750 MCM
• Maximum Cable Capacity (Aluminum): 8 AWG to 750 MCM
• Maximum Cable Capacity (ACSR): 556 MCM
• Compatible Dies: U-style
• Material Compatibility: Copper, Aluminum, ACSR
• Overall Length: 22.63 in (57.5 cm)
• Overall Width: 17.06 in (43.3 cm)
• Overall Height: 6.58 in (16.7 cm)
• Depth: 22.63 in
• Height: 6.69 in
• Width: 17.06 in
• Weight: 28.2 lbs
• Material: ABS, PA6, GF, TPE
• Head Rotation: 360 degrees
• Lighting: Four working lights
• Safety Feature: Safety lockout switch
• Compliance: Not insulated (no electrical shock protection)

Downloads

Instructions
