Klein Tools, 9416R, Insulated Tool Kit, 1000V Rated, 3-Piece, Hardened Steel, Orange/Light Gray

This Made in the USA 3-Piece Tool Kit includes the must-have insulated tools any professional tradesperson needs including two pairs of pliers and a wire stripper. The pliers and wire stripper feature a multi-color, sleek design with small thumb guards for ease of handling and easy storage in your tool belt. All of the tools are 1000V Rated for safety on the job.

Features

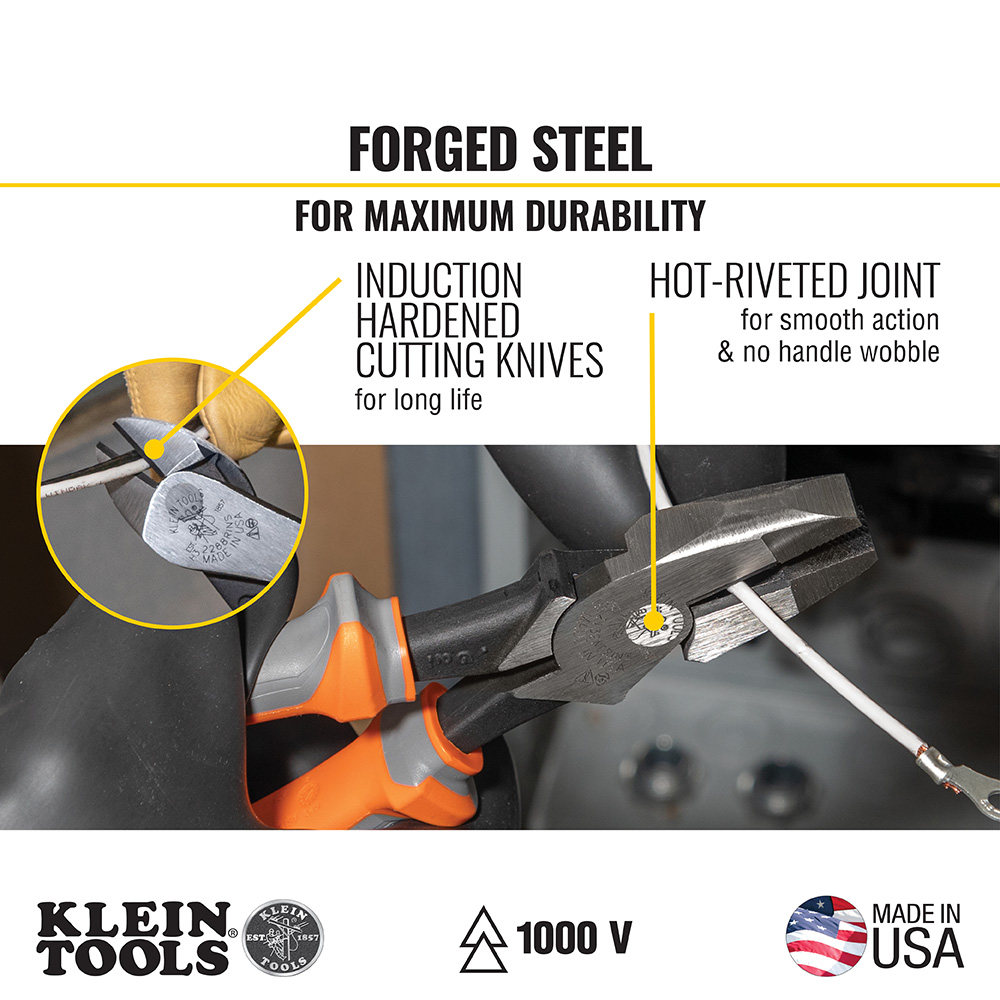

• Pliers feature induction hardened cutting knives for long life
• Cleanly shear 6-32 and 8-32 screws

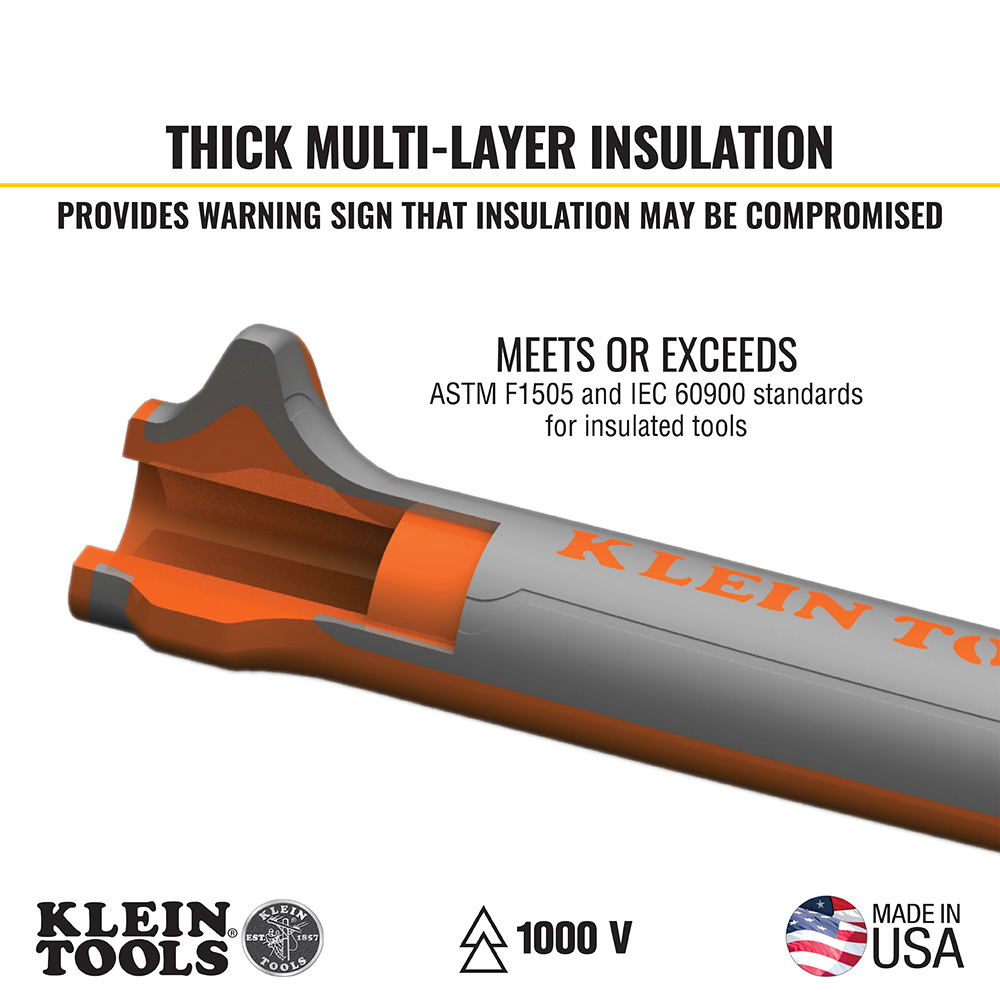

• Thick multi-layer grip design provides protection against electric shock
• Induction Hardened Cutting Blades and 1000V Rated
• Made in the USA

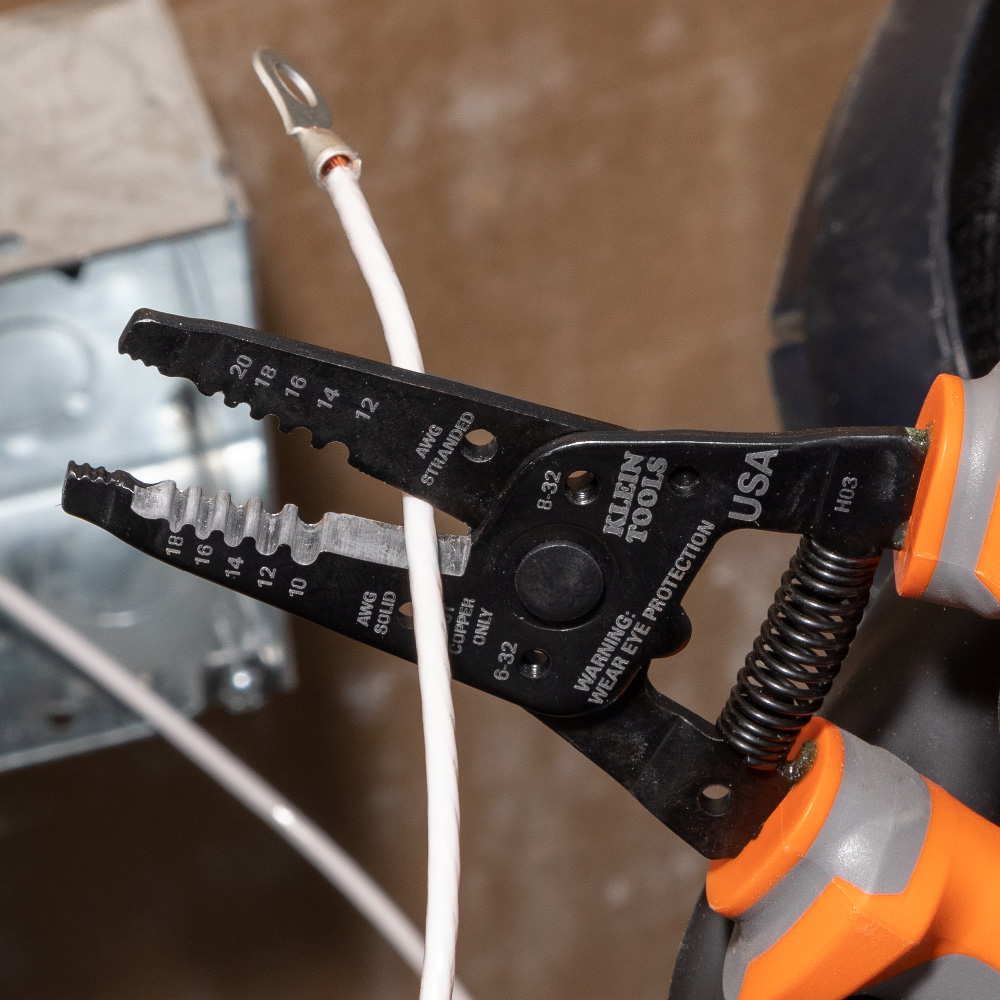

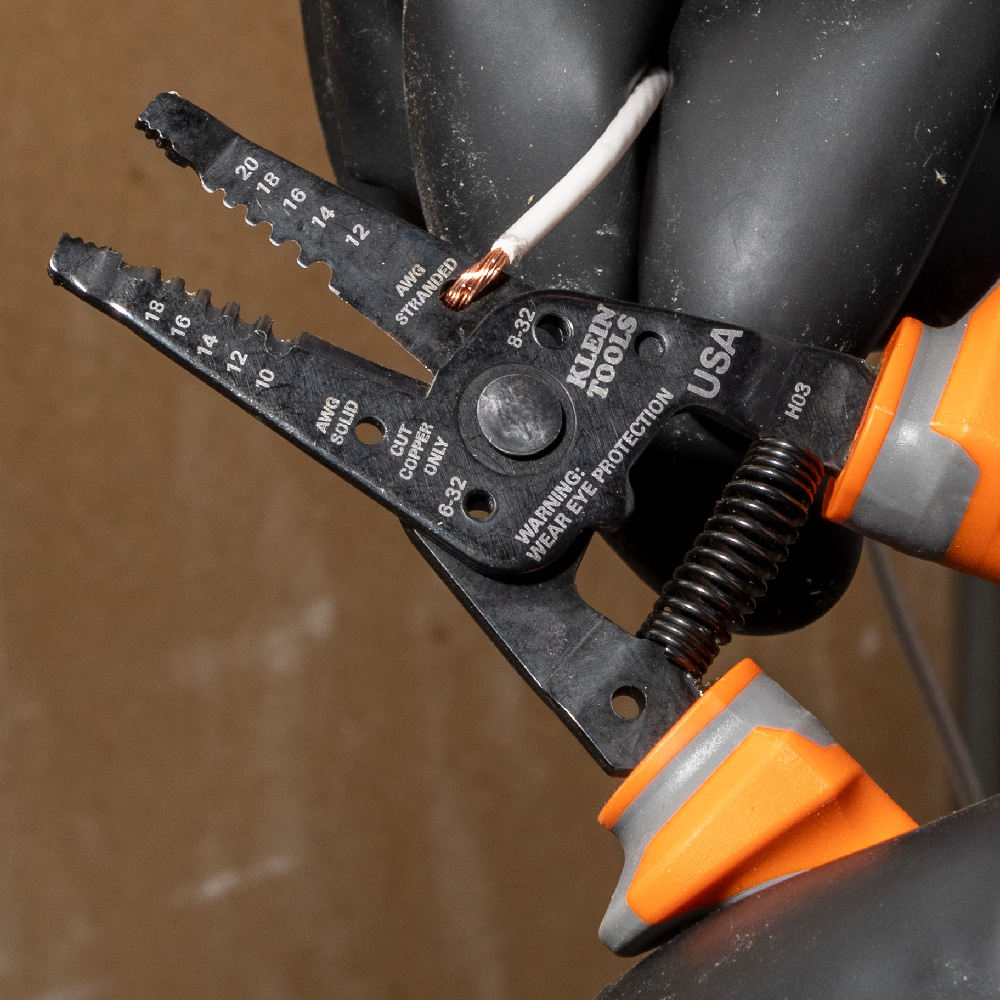

• Wire Stripper/Cutter cuts, strips, loops, bends, and gauges 10-18 AWG solid and 12-20 AWG stranded wire
• Durable molded insulation meets or exceeds ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools

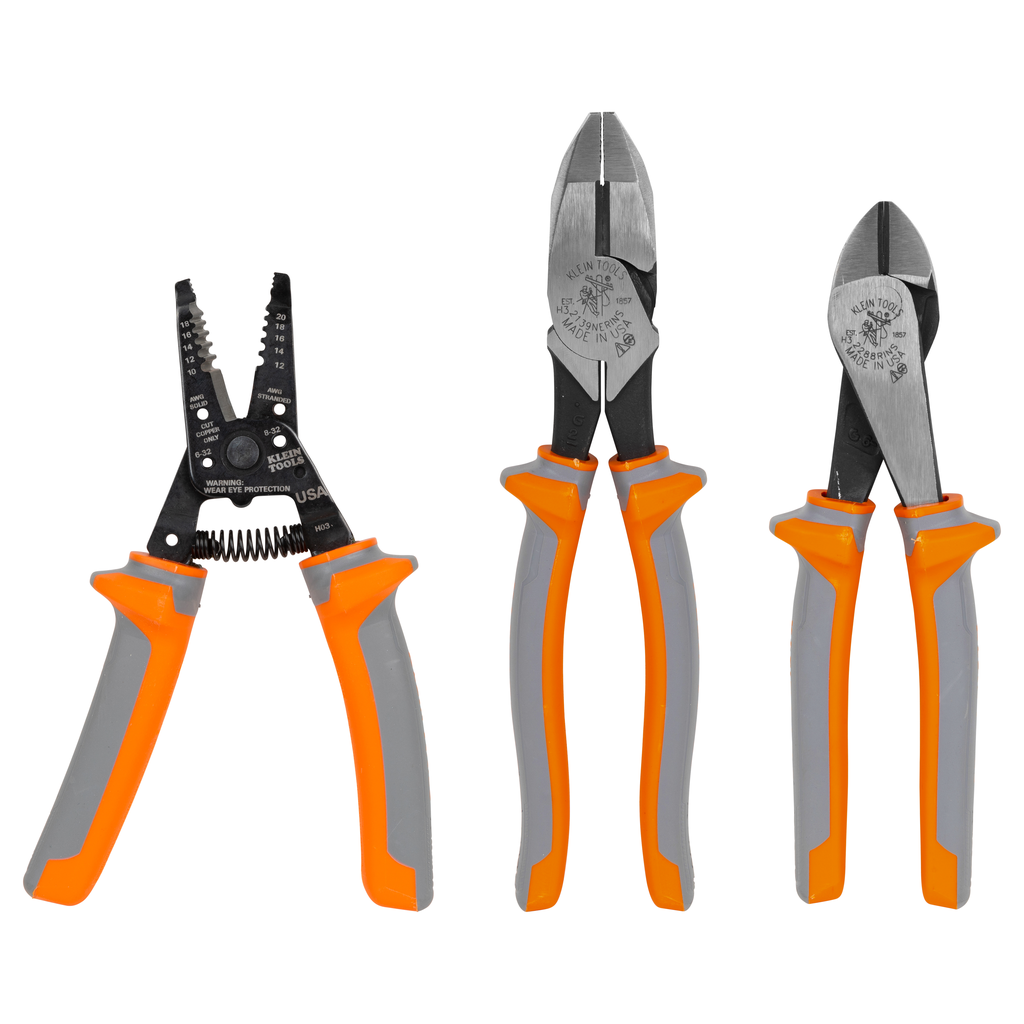

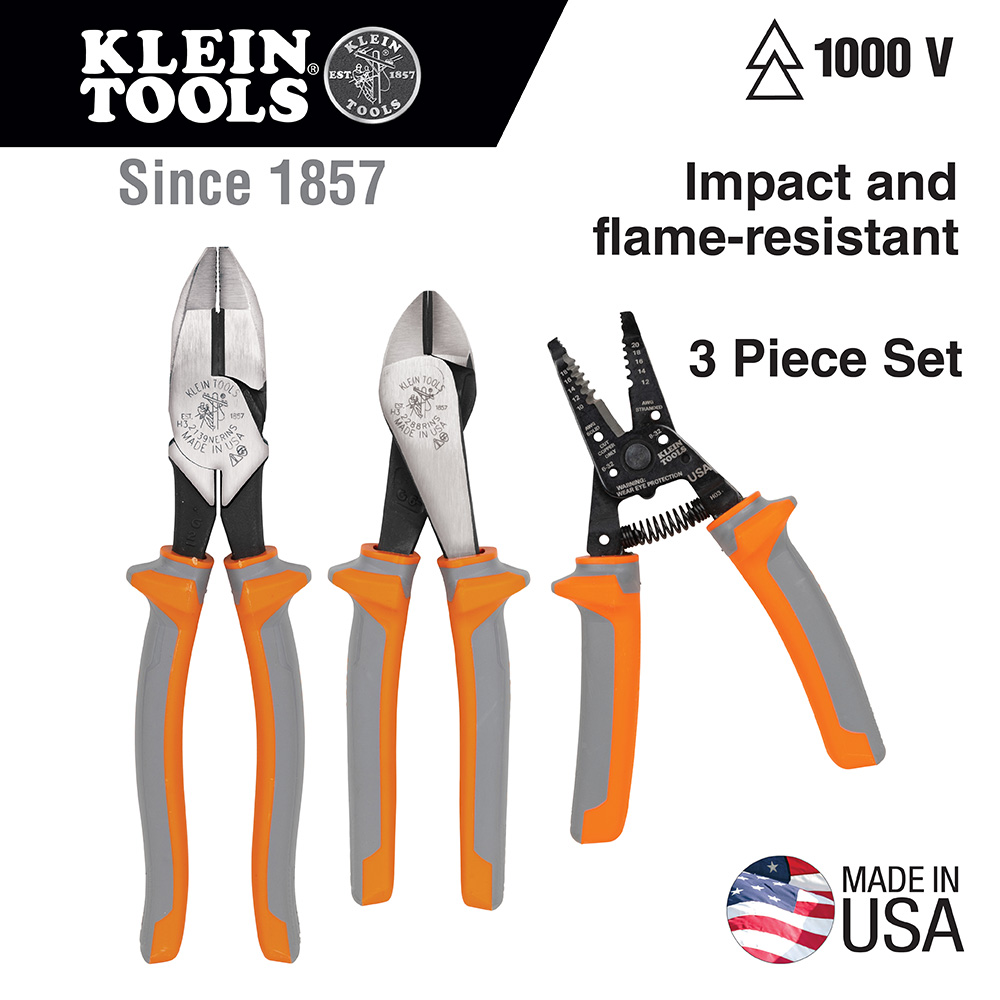

• 3-Piece Kit includes a Side-Cutter (Cat. No. 2139NERINS), Diagonal-Cutter (Cat. No. 2288RINS) and Wire Stripper (Cat. No. 11055RINS)
• All tools meet or exceed ASTM F1505 and IEC 60900 standards for insulated tools

Warnings

• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Do NOT use to pry or chisel.

• Voltage: 1000 V
• Wire Gauge Range: 10-18 AWG solid, 12-20 AWG stranded
• Screw Size Range: 6-32, 8-32
• Number of Pieces: 3
• Overall Length: 10.25 in (26 cm)
• Overall Height: 13.75 in (34.9 cm)
• Overall Width: 1.5 in (3.8 cm)
• Handle Length: 5.14 in (13.7 cm); 4.26 in (10.8 cm); 3.75 in (9.5 cm)
• Handle Diameter: 0.75 in (1.9 cm)
• Depth: 13.75 in
• Weight: 2.5 lbs
• Material: Hardened Steel, Forged Steel
• Handle Material: Plastic
• Insulation: Durable molded, multi-layer grip
• Insulated: Yes
• Standard: IEC 60900, ASTM F1505
• Type: Pliers and Wire Stripper Kit
• Color Code: Orange
• Handle Color: Orange/Light Gray
• Magnetic: No
• Country of Origin: United States
