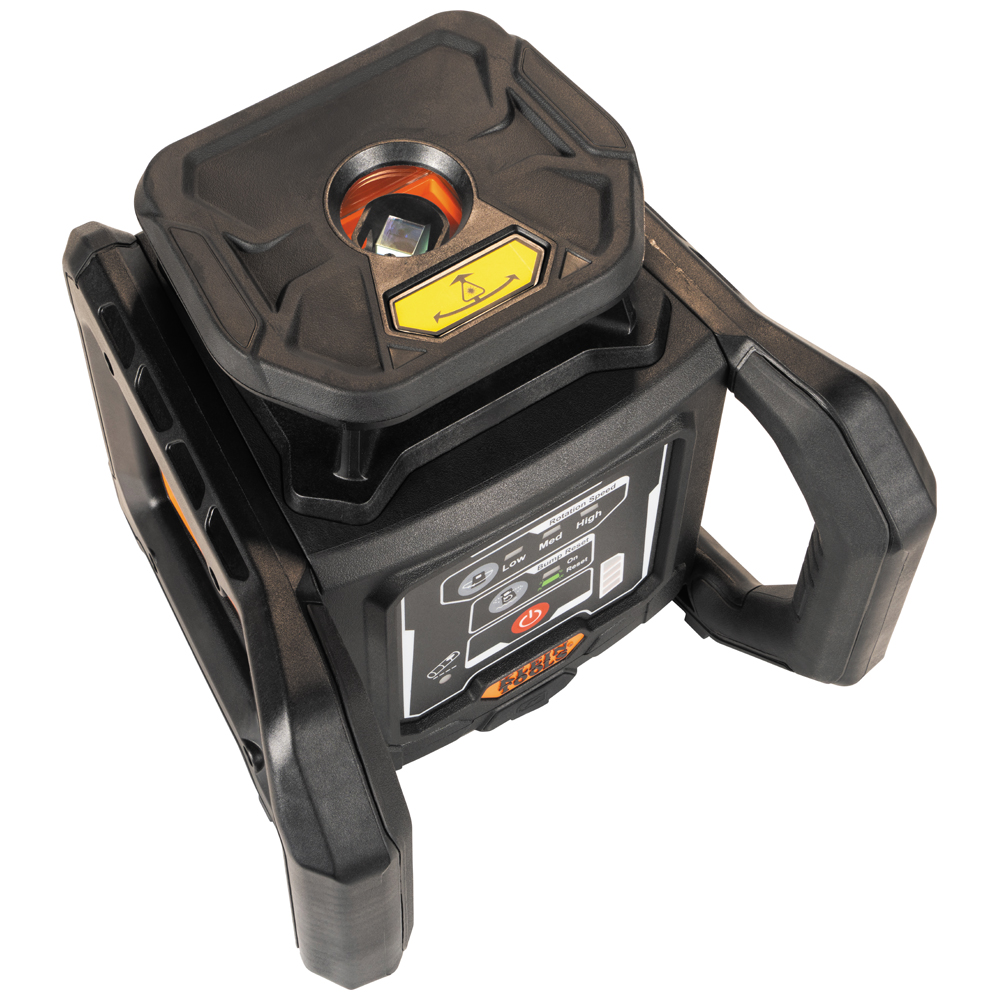

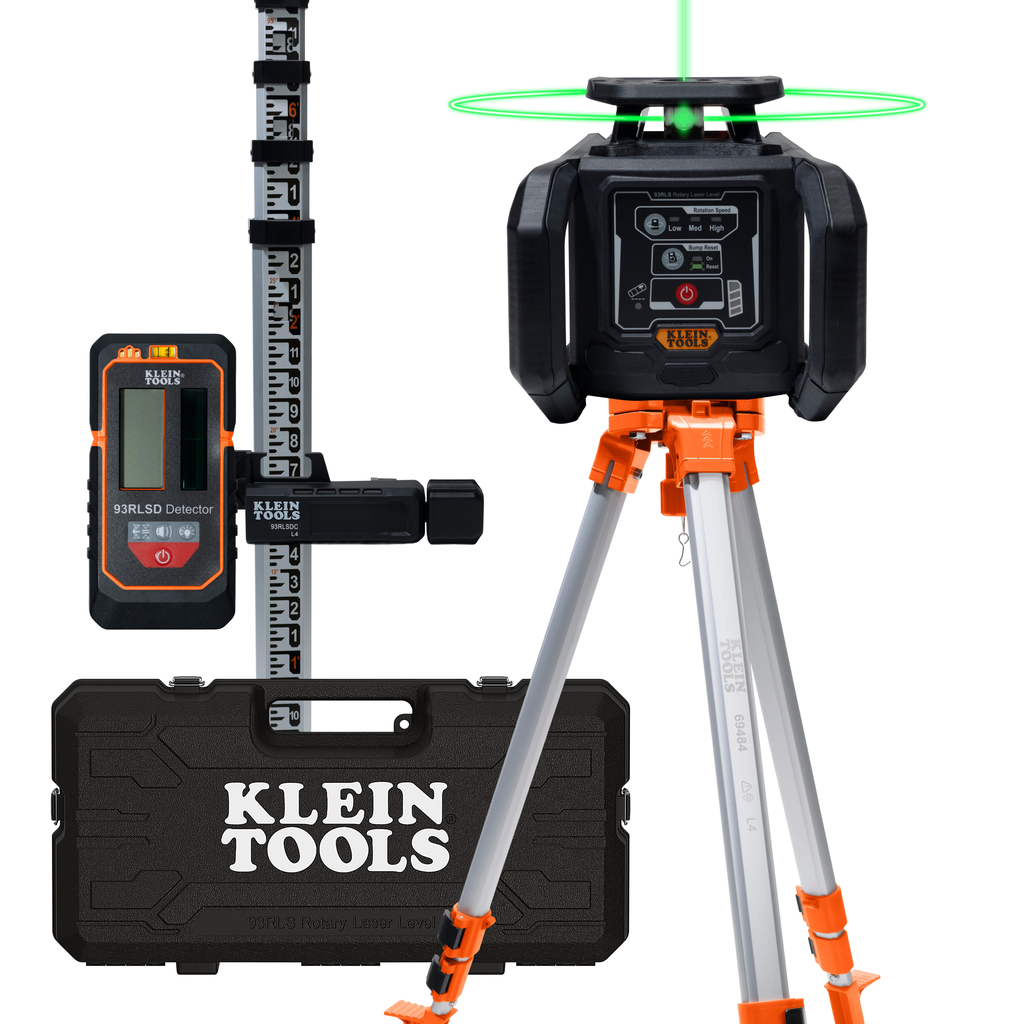

Klein Tools, 93RLS, Rotary Laser Level, Self-Leveling, Green, 1150 ft Range, IP66 Rated

The Klein Tools Green Rotary Laser Level is the package for all leveling projects with a bright green laser that has a range of up to 1150 feet when used with the detector. The green vertical plumb spot is excellent for locating on ceilings, and the rechargeable battery provides over 24 hours of runtime. The product is IP66 rated and operates in all jobsite conditions. Mount both horizontally and vertically to project either a level or plumb line with the included 5/8-Inch survey tripod mounts.

Warnings

• Exposing eyes to laser radiation can result in severe and permanent eye injuries.
• Do not use the instrument if it appears to be damaged.
• See instruction manual for additional warnings.
• Do not modify the instrument in any way, as to do so could result in emission.

Features

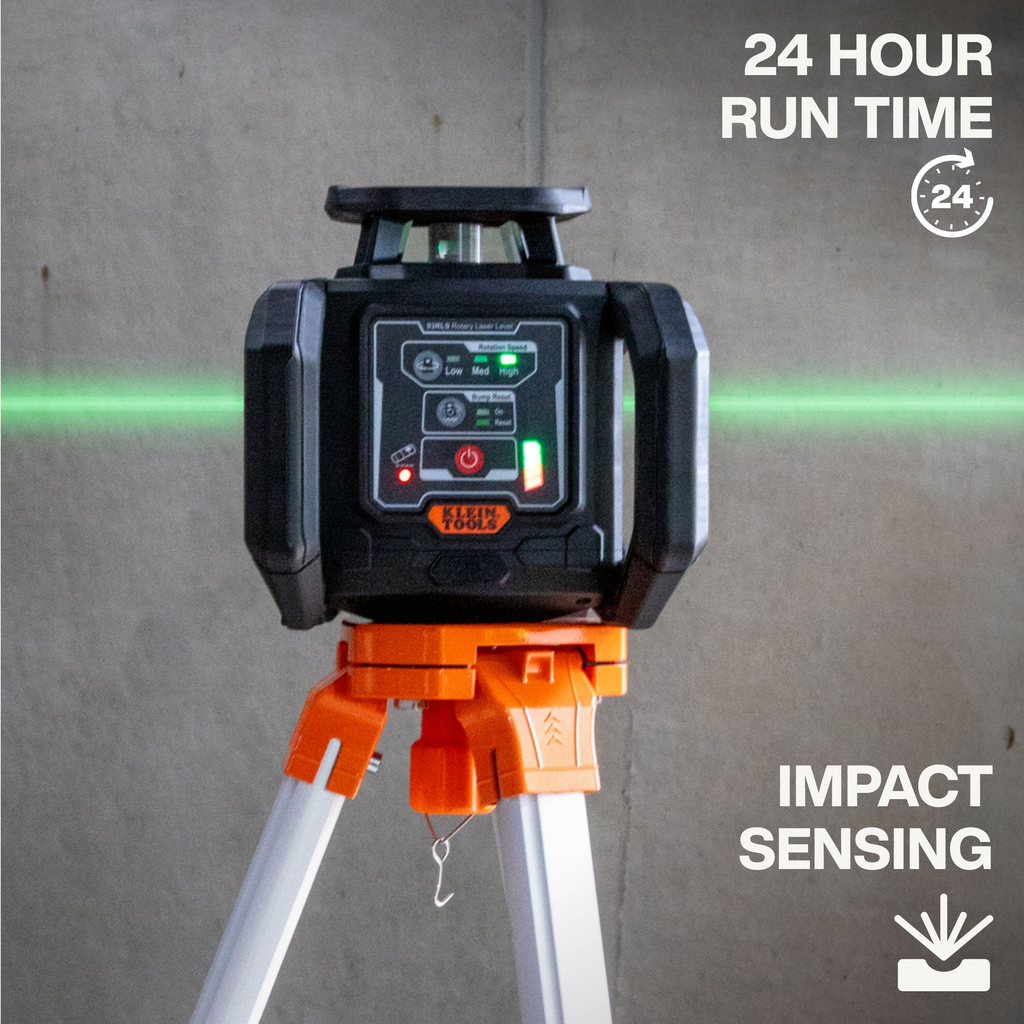

• Over 24-Hour runtime to ensure continuous access to leveling on the jobsite
• Self Leveling, Plumb Spot, Rechargeable, Variable Speed

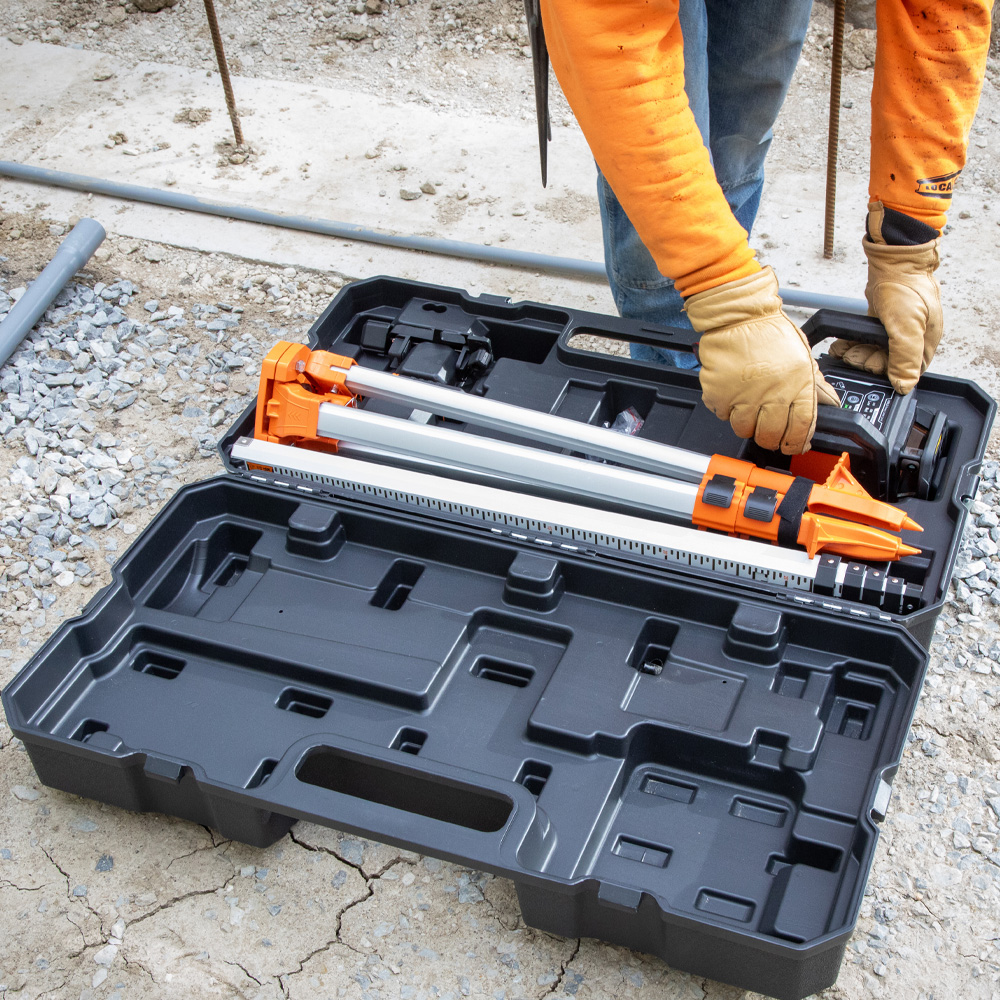

• Comprehensive kit includes a heavy-duty tripod, easy-to-use detector, durable 9-Foot grade rod, and carrying case, all designed for portability and quick setup, making it easy to carry from job to job

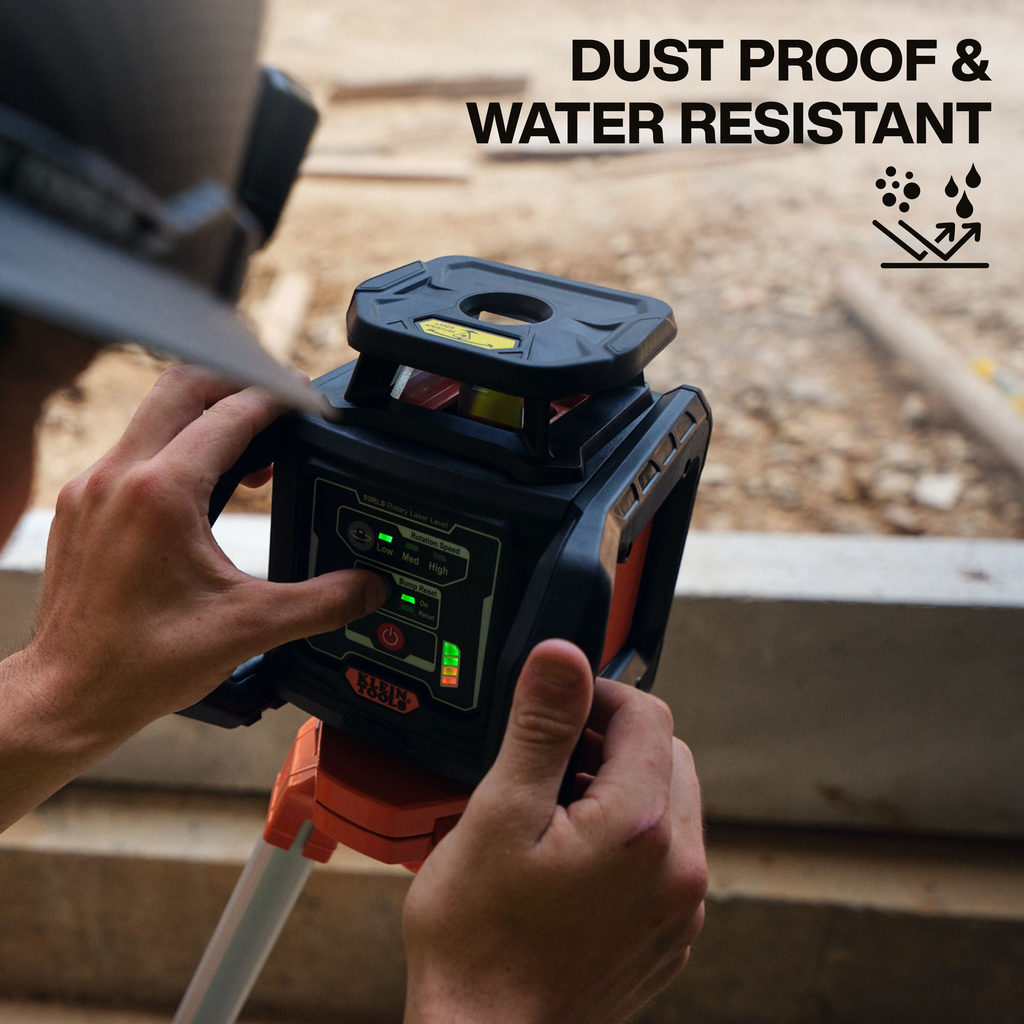

• IP66 rated to protect against dust and water, ensuring reliable performance and durability in tough jobsite conditions

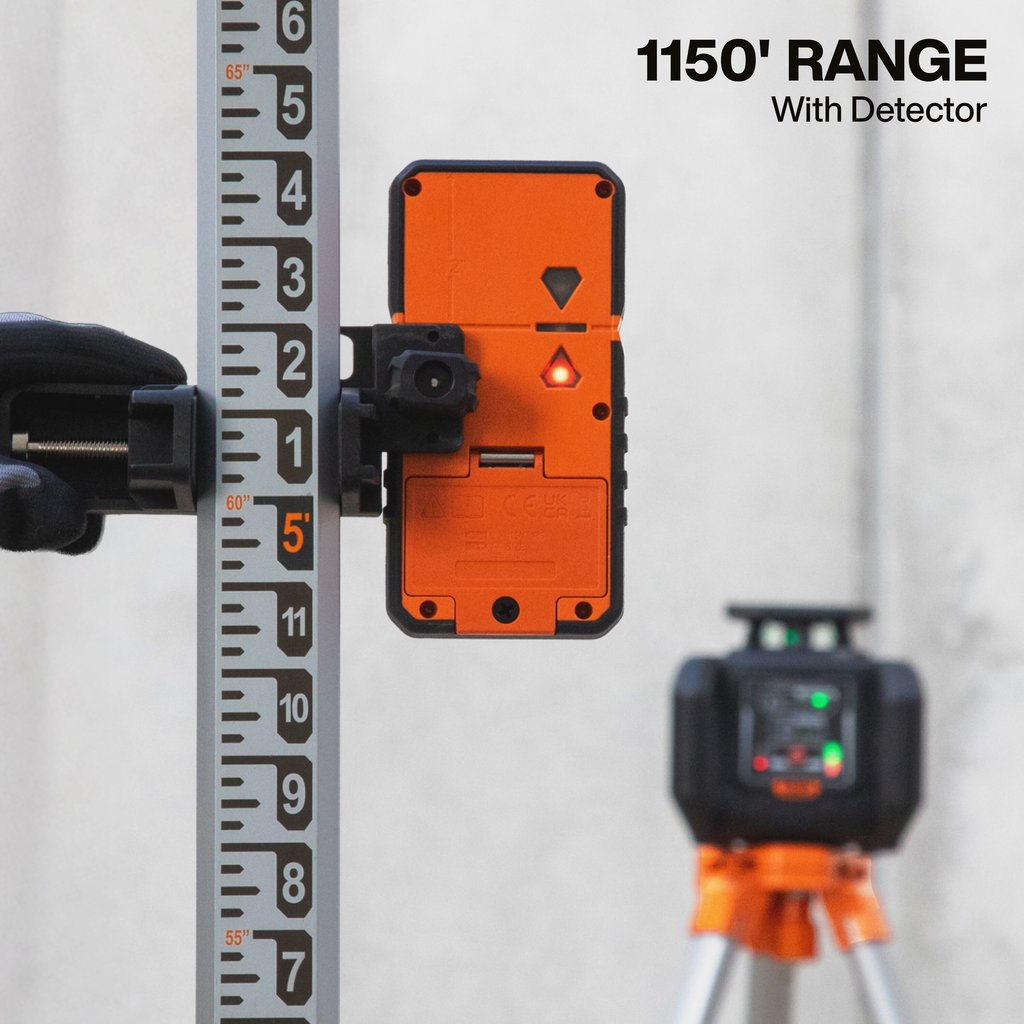

• Green self-leveling rechargeable laser level with a range of up to 1150 feet using the detector, ideal for leveling work in warehouses, outdoor construction sites, grading, and more

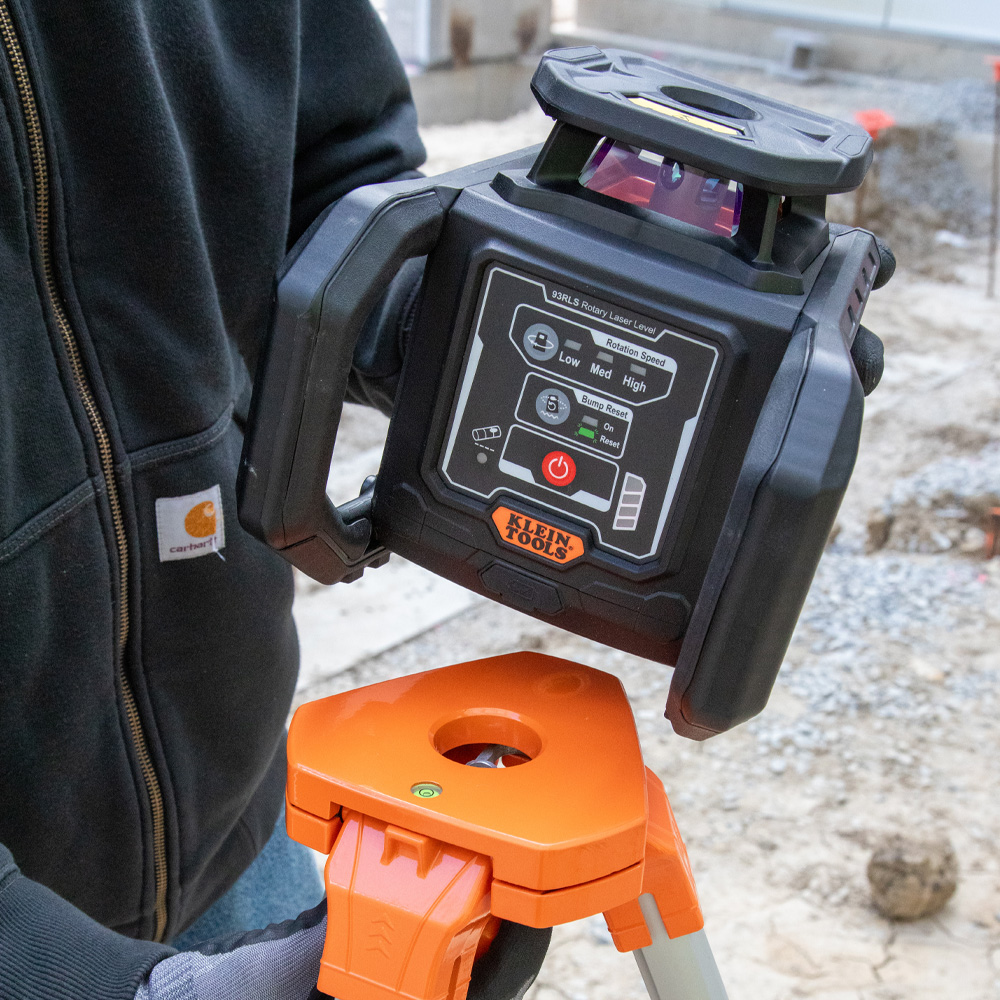

• Unit mounts horizontally and vertically, with 5/8-Inch thread for secure tripod attachment and precise laser line projection

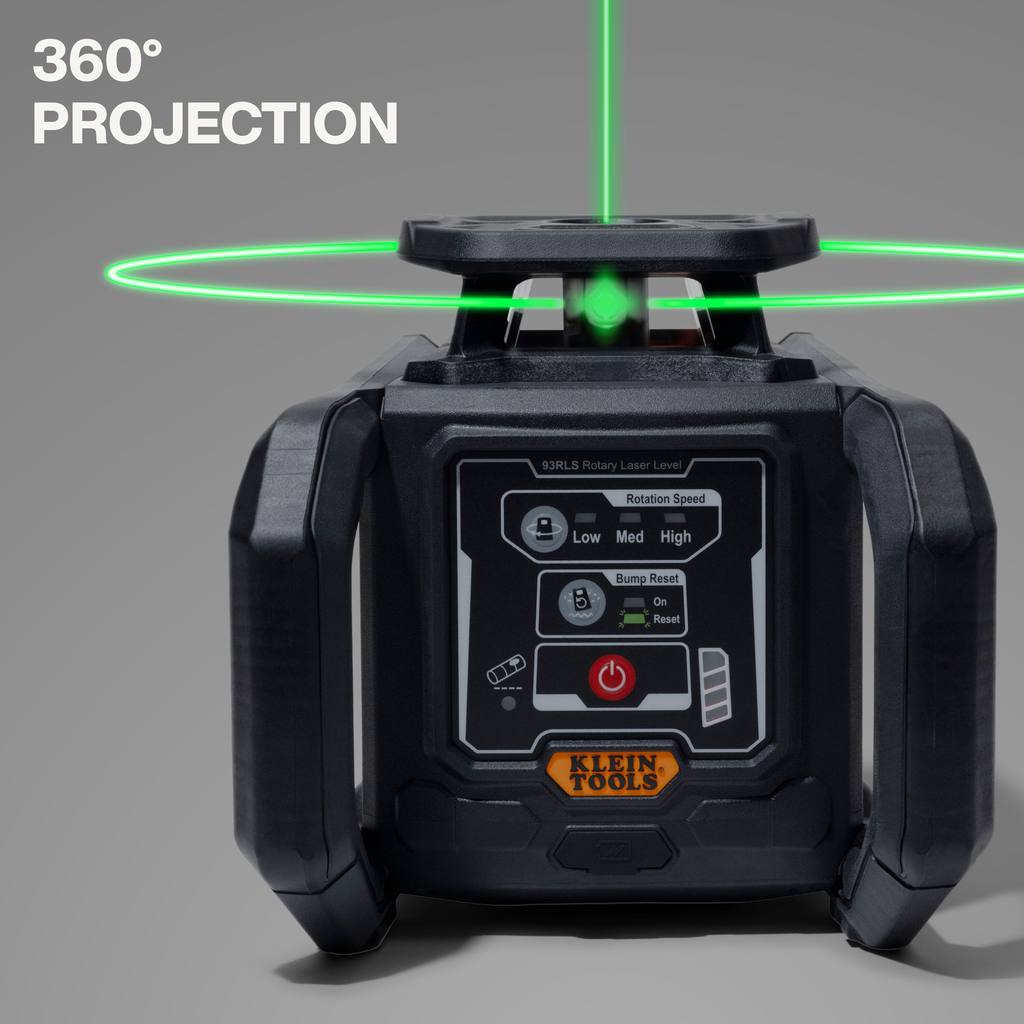

• Green horizontal laser projection and integrated plumb spot provide full 360-Degree coverage for precise leveling and alignment
• Rotary laser level has built-in impact sensing to automatically pause if bumped or moved to keep the laser accurately positioned

• Laser Wavelength: 515-530 nm
• Accuracy: +/- 1 mm per 10 m
• Maximum Distance: 1150 ft with Detector
• Laser Power: ≤ 5 mW
• Laser Class: Class 3R
• Laser Color: Green
• Self Leveling: Yes
• Plumb Laser: Yes
• Plumb Spot: Vertical
• Runtime: Over 24 hours
• Battery Type: Internal Rechargeable Li-Ion
• Low Battery Indicator: Yes
• Low Battery Alarm: Yes
• Ingress Protection: IP66
• Drop Protection: 1 m with Hard Case
• Mount Thread Size: 5/8 in
• Mounting Type: (2) 5/8" Threads for Vertical and Horizontal Mounting
• Speed Control: Variable Speed
• Impact Sensing: Built-in automatic pause if bumped
• Laser Projection Coverage: 360 degrees
• Number of Beams: (1) Rotary, (1) Plumb
• Type: Self Leveling Rotary Level

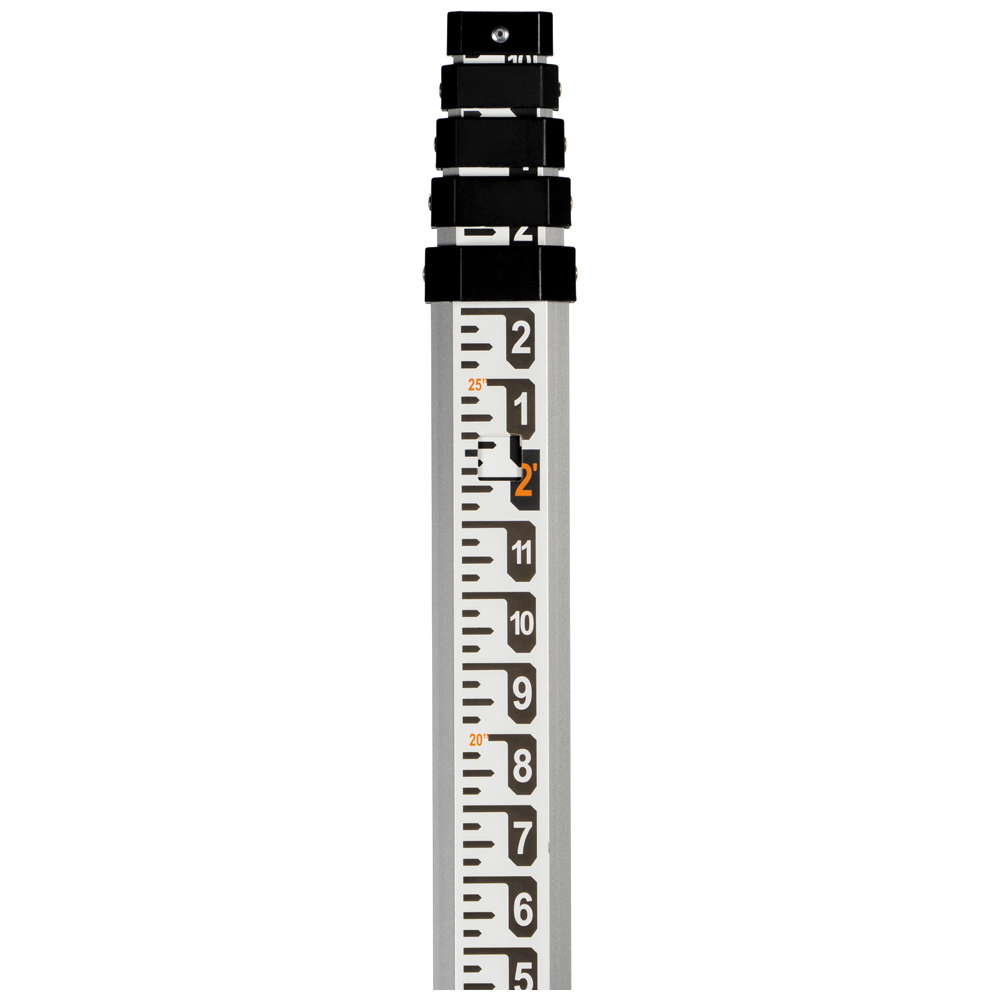

• Grade Rod Length: 9 ft
• Weight: 4.36 lbs
• Overall Dimensions: 43.31" L x 8.66" W x 20.02" H (110 cm x 22 cm x 50.8 cm)
• Material: ABS+PC

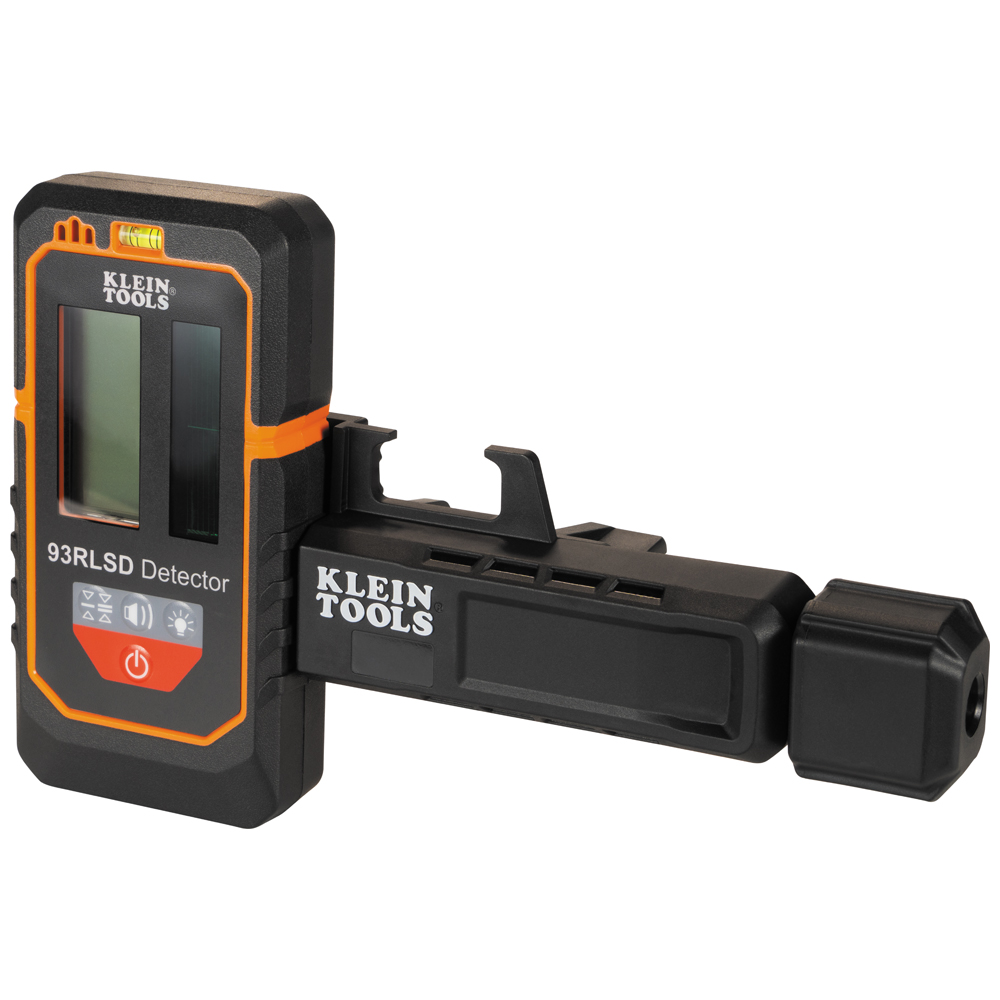

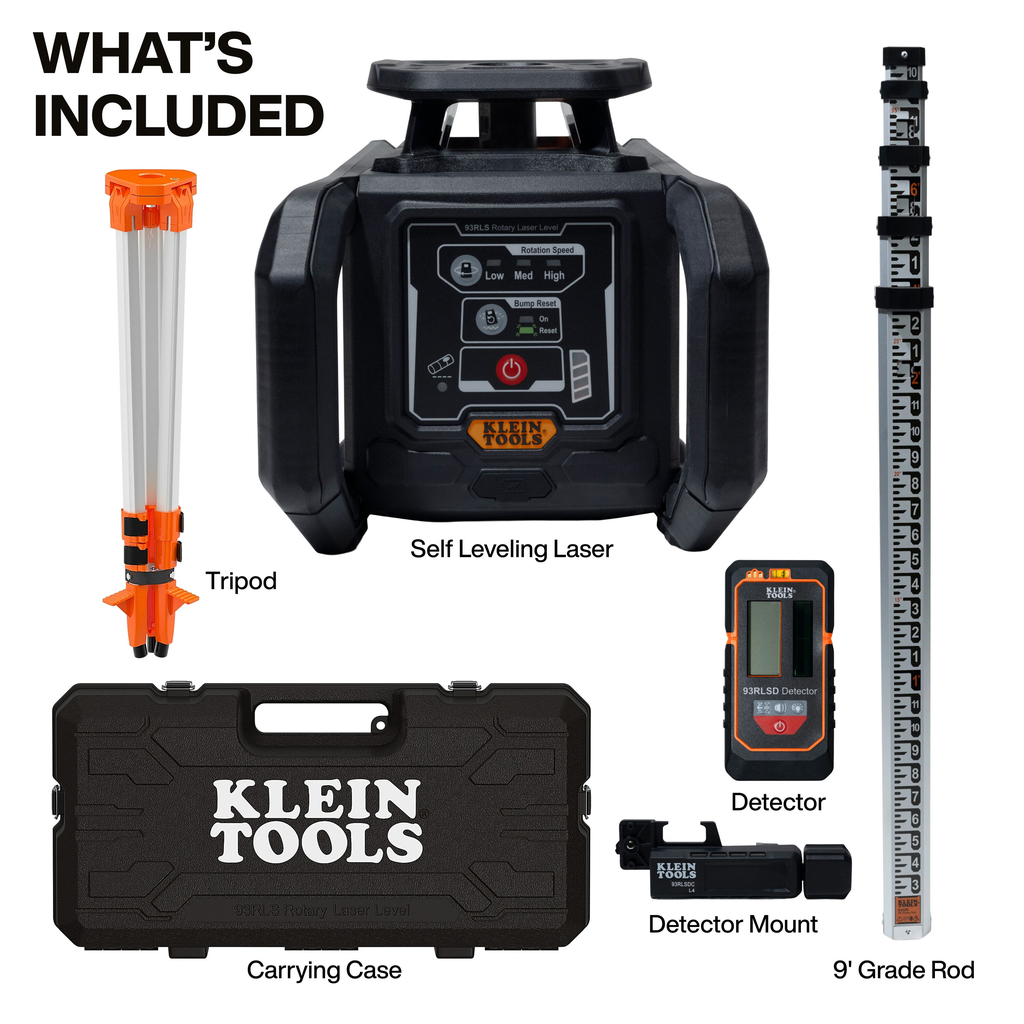

• Included Accessories: Accuracy Detector, Grade Rod with Clamp, Tripod, All Required Batteries, Manual
