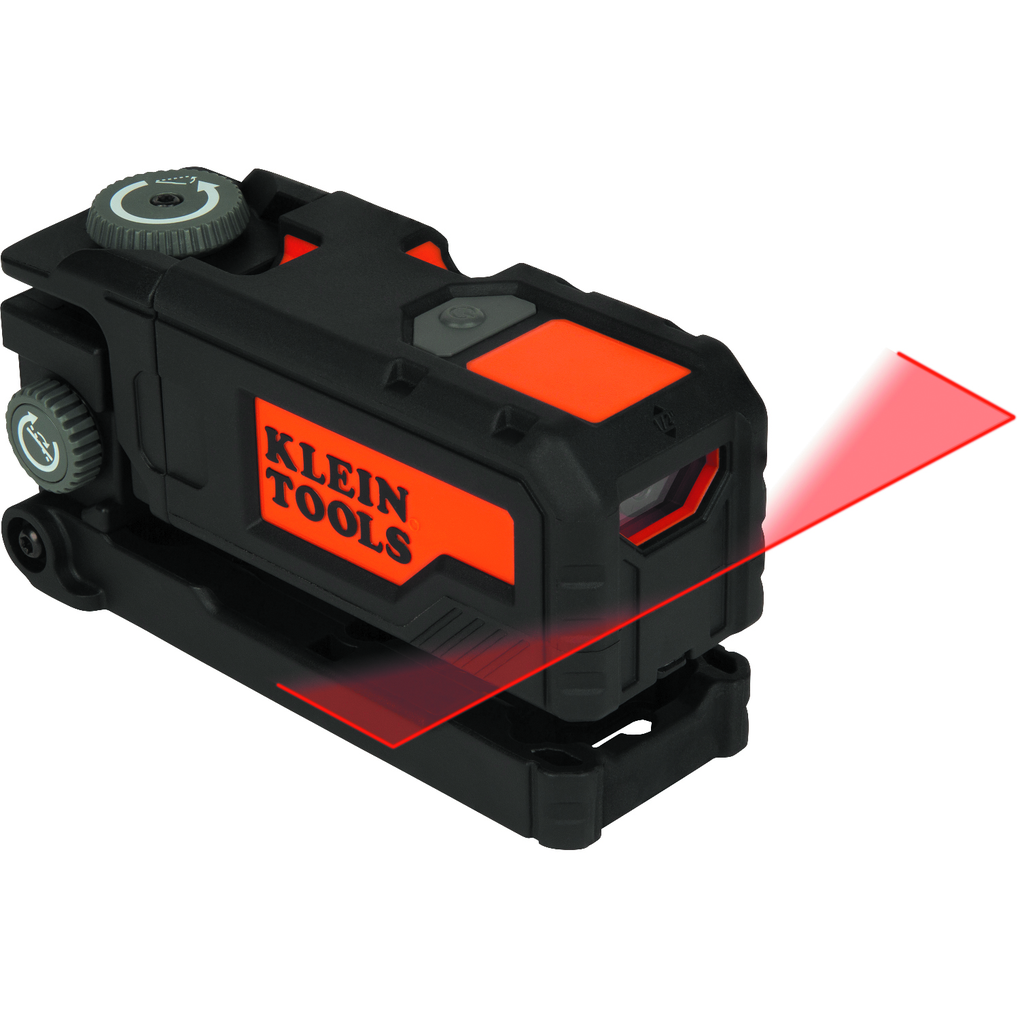

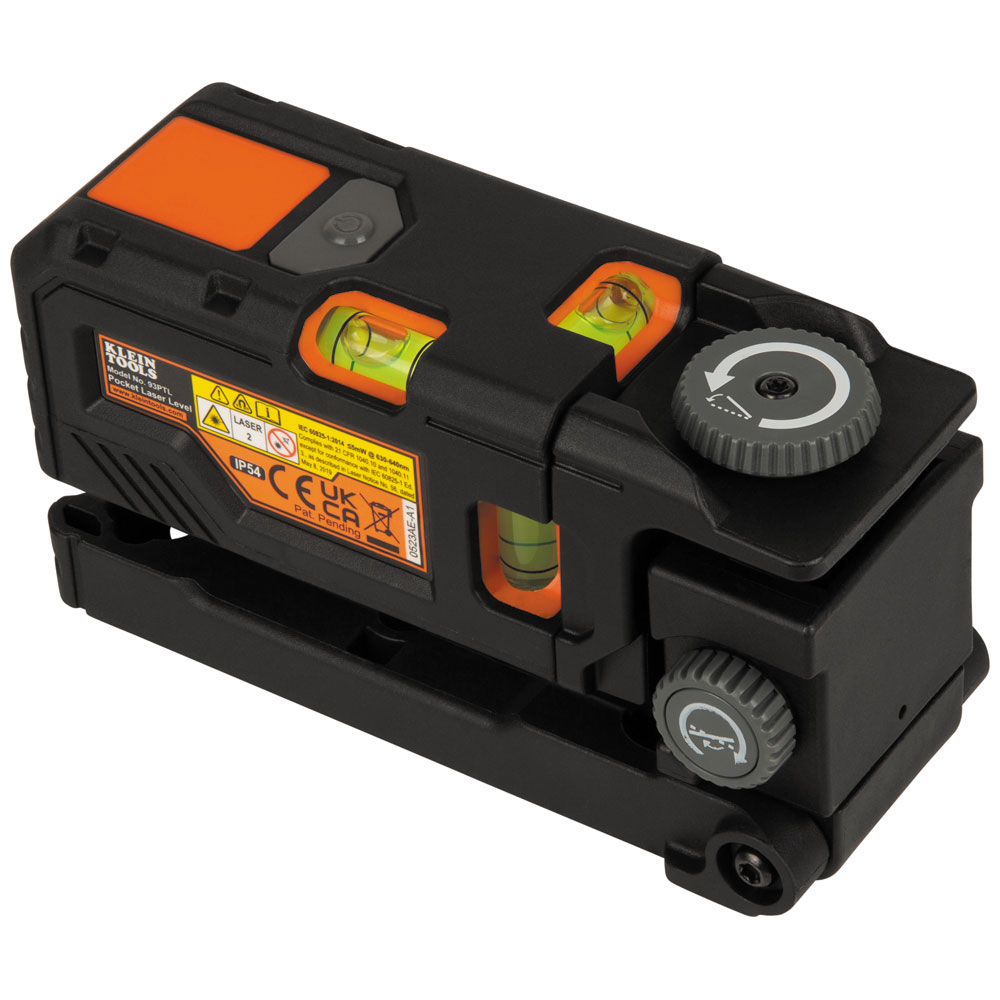

Klein Tools, 93PTL, Pocket Laser Level, Red Laser; 30 ft, Adjustable; Lighted Bubble Vials, 3 Vials

The Klein Tools Red Pocket Laser Level is a high-performance laser leveling and alignment tool for DIY'ers and professionals alike with a Class 2 laser (IEC/EN 60825-1:2014) with an output power of less than or equal to 1mW at 630-640nm. The powerful red laser line is easy to see in indoor lighting conditions and is perfect for applications like hanging pictures or shelving. The adjustable body and three-axis lighted bubble vials allow a user to project laser lines at any angle the user needs.

Warnings

• Do not use the instrument if it appears to be damaged.
• Exposing eyes to laser radiation can result in severe and permanent eye injuries.
• See instruction manual for additional warnings.
• Do not modify the instrument in any way, as to do so could result in emission of hazardous laser radiation than could result in severe eye injuries.
• Strong magnetic field.

Features

• Projects single red laser line up to 30 feet (9.1 m) indoors, providing ample coverage for a wide range of applications,optimized for indoor lighting conditions
• Over 12-Hour runtime with 2 AAA alkaline batteries and low battery warning

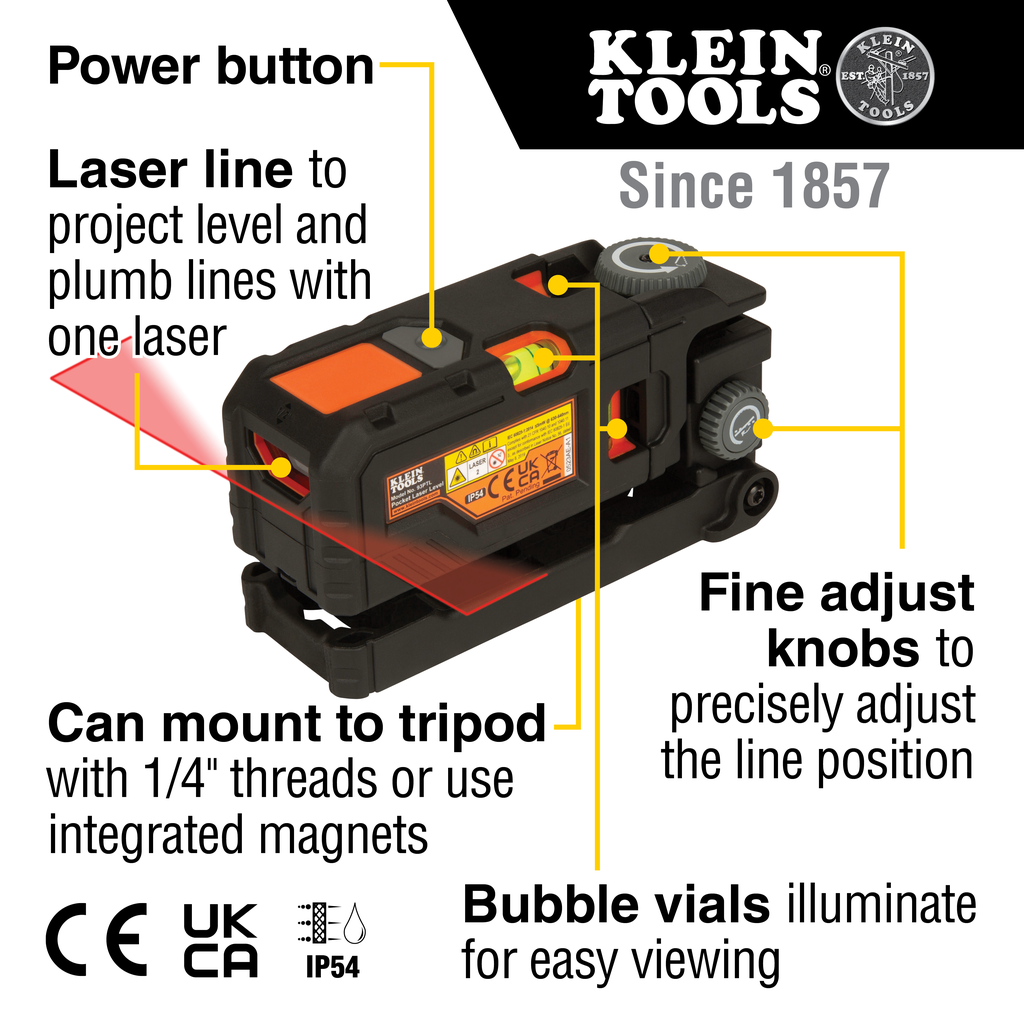

• Embedded Kickstand, 3-Axis Vials, Fine Adjust Knobs

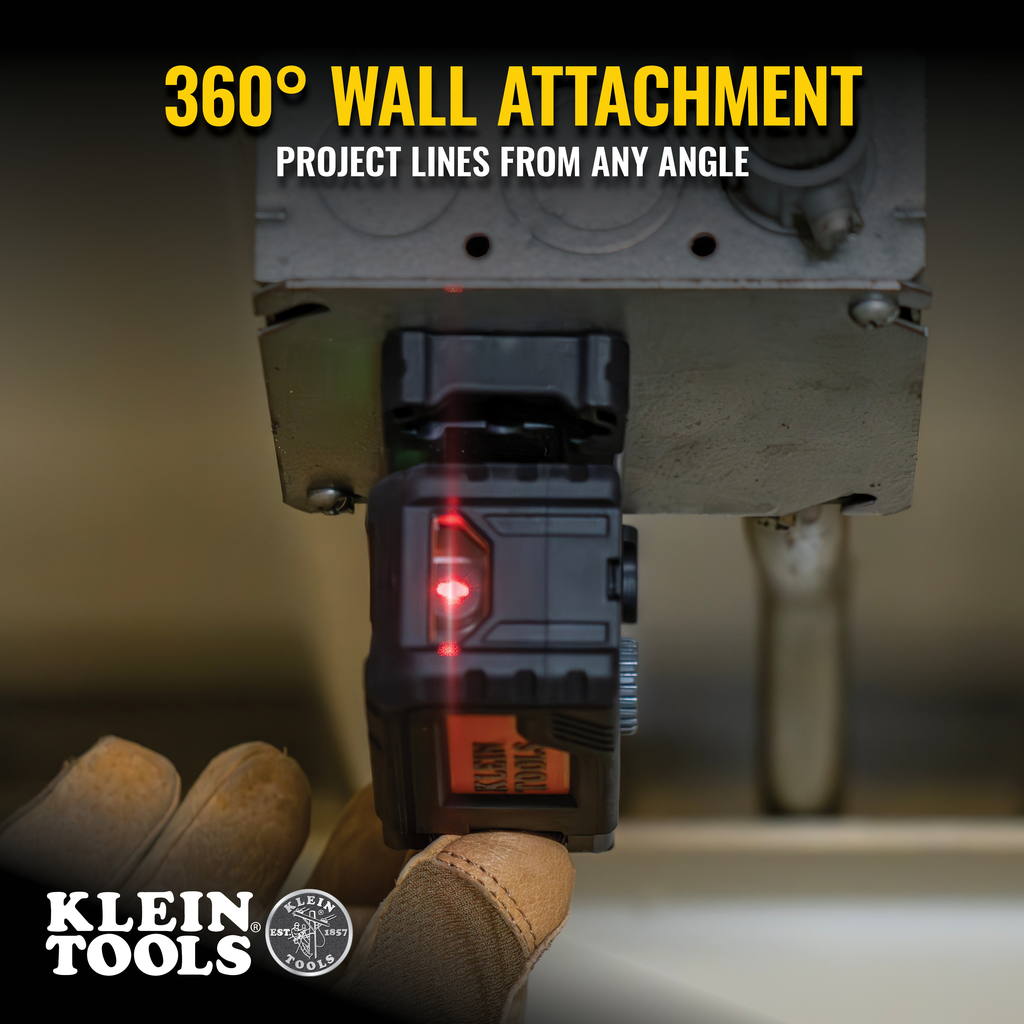

• Laser body has a 360-Degree rotation for projecting lines at any angle

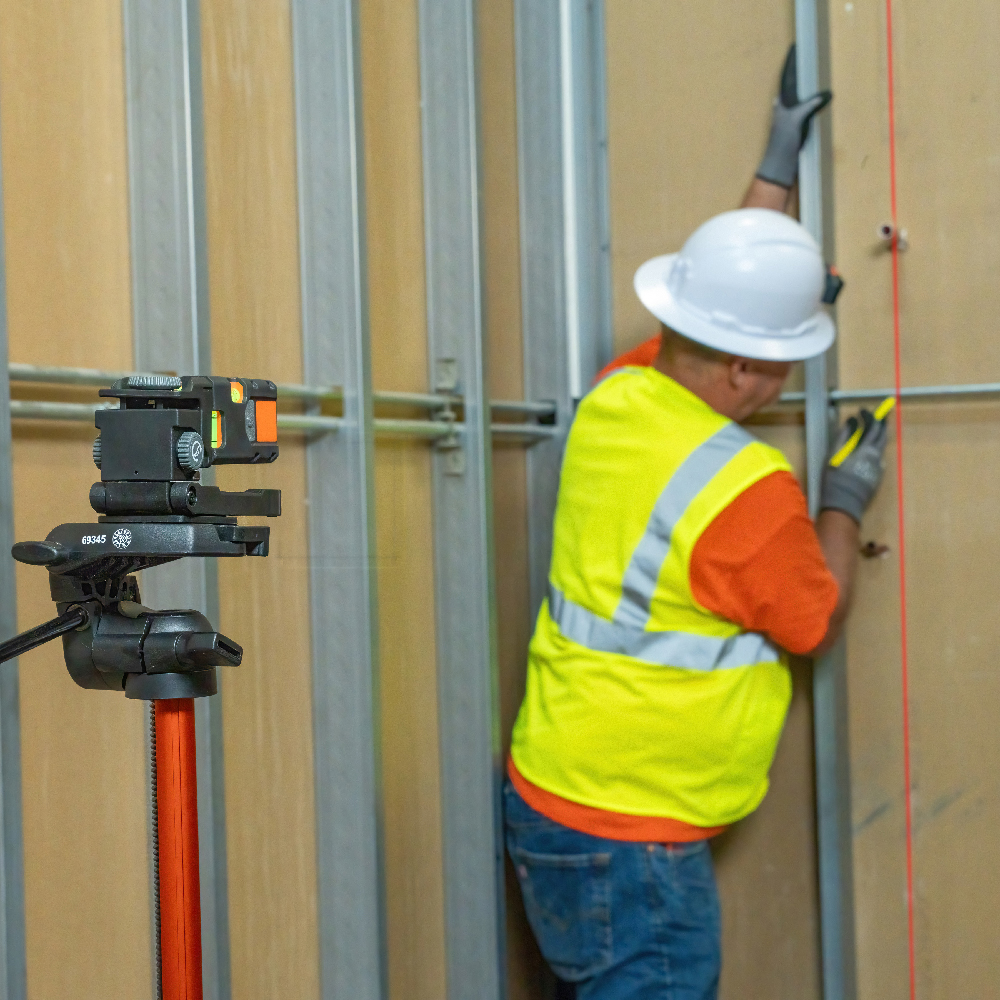

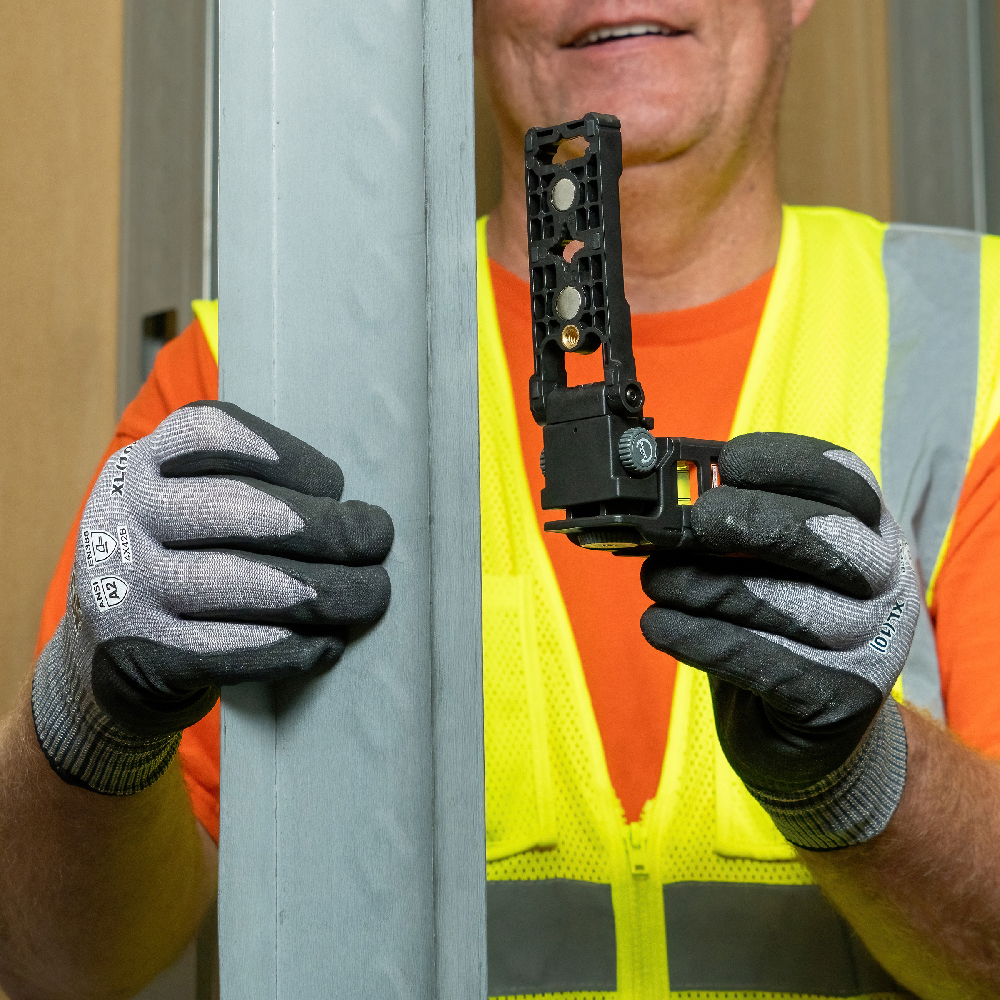

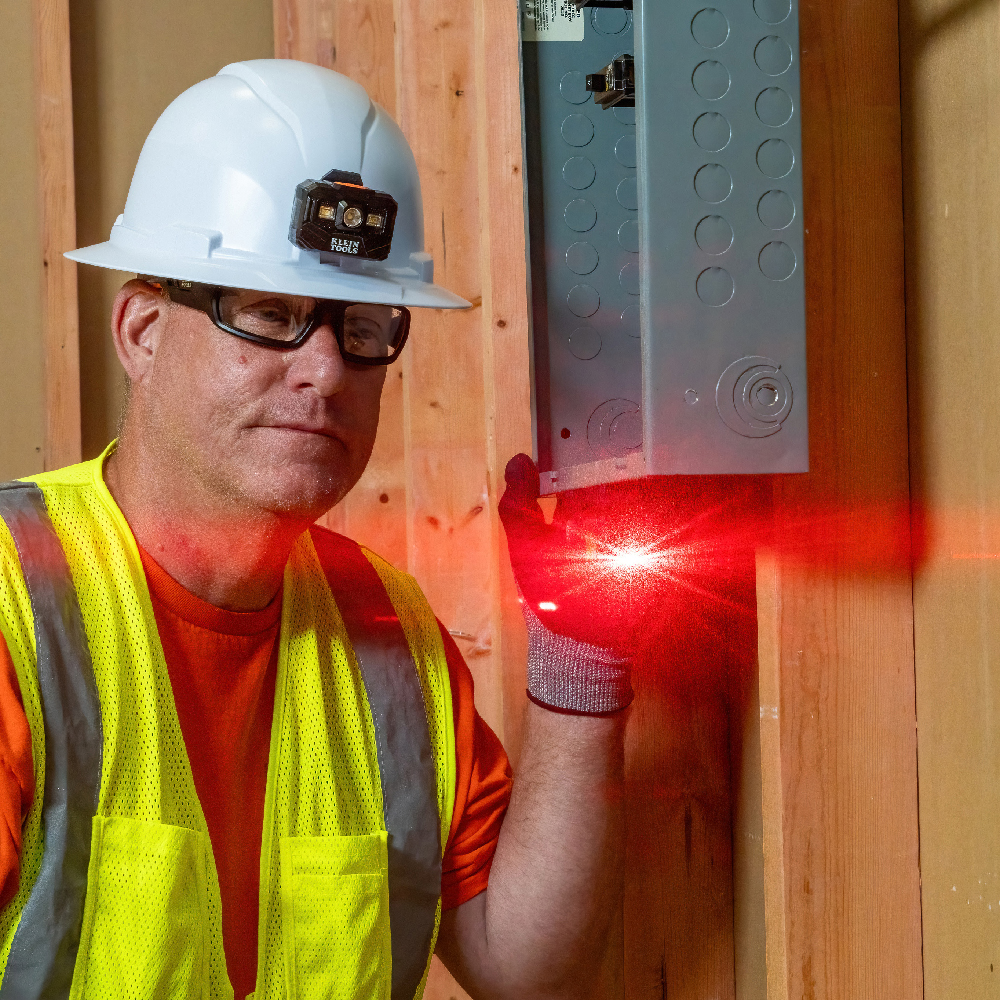

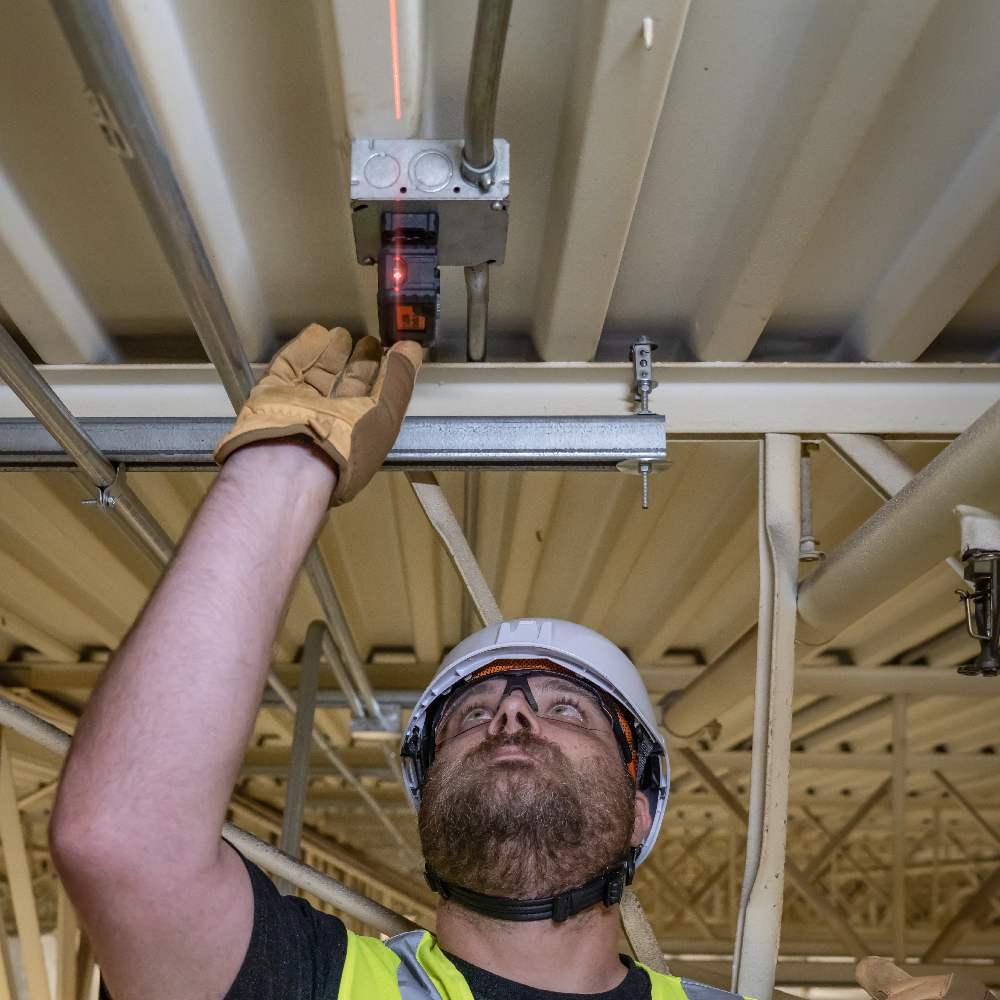

• Two powerful magnets, 1/4-Inch-20 thread tripod mounting, a hang hole, and built-in kickstand give a variety of mounting options
• 3-axis bubble vials illuminate for enhanced viewing and leveling
• Horizontal and vertical fine adjust knobs allow for easier precision adjustment of the laser line without having to move the unit

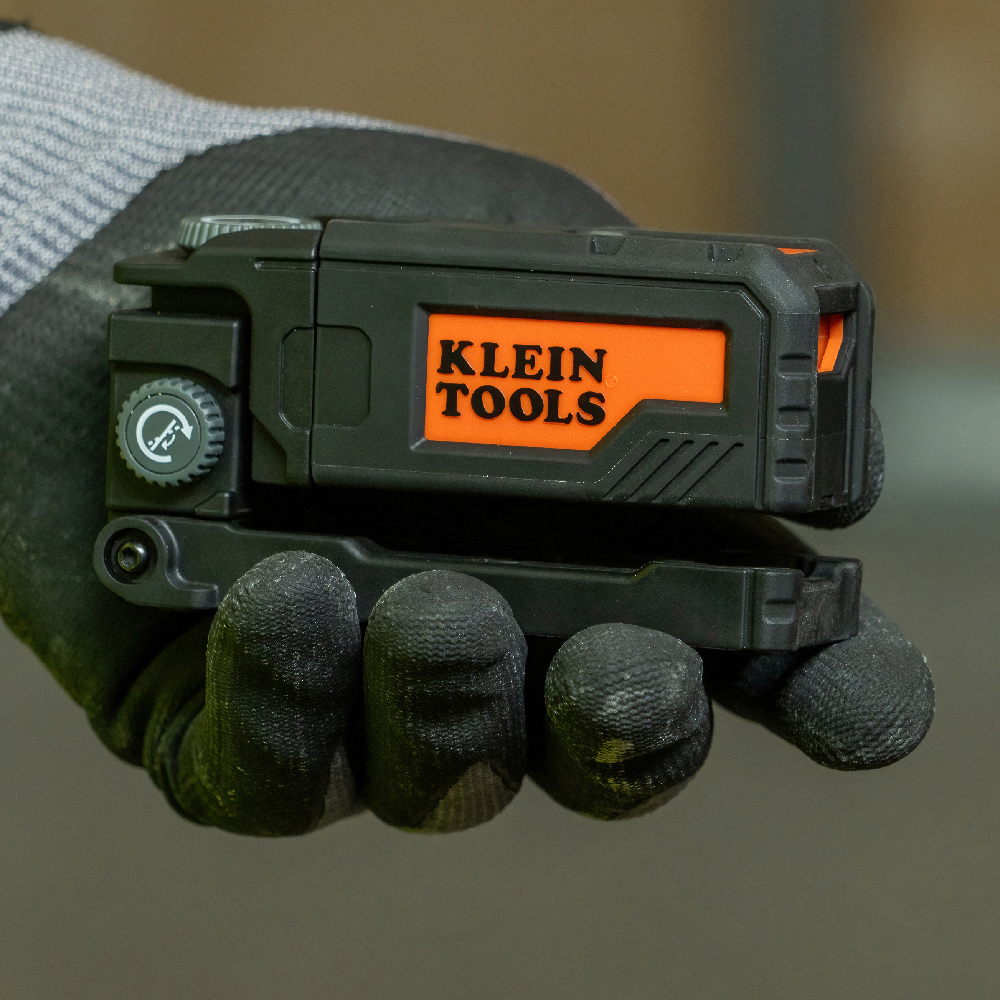

• Compact design is easy to use and transport at home, on the job, or anywhere in between

• Laser Color: Red
• Maximum Distance: 30 ft (9.1 m)
• Laser Class: Class 2 (≤ 1 mW)
• Accuracy: 0.043° (0.75 mm/m)
• Bubble Vials: 3-axis illuminated
• Battery Life: Over 12 hr
• Power Source: 2 x AAA alkaline batteries
• Mounting Type: Magnetic Bracket, 1/4 in-20 tripod thread, magnets, hang hole, built-in kickstand
• Height: 2.3 in (5.8 cm)
• Width: 1.76 in (4.5 cm)
• Depth: 4.3 in (10.8 cm)
• Weight: 0.41 lbs
• Material: Resins, Elastomers, Metallic
• Ingress Protection: IP54
• Drop Protection: 3 ft (1 m)
• Low Battery Alarm: Yes
• Low Battery Indicator: Yes
• Magnet Type: Rare Earth - Neodymium
• Laser Safety: IEC 60825-1 -2014/A11 -2021, EN 50689 -2021
• Standard: Prop 65 Compliant
