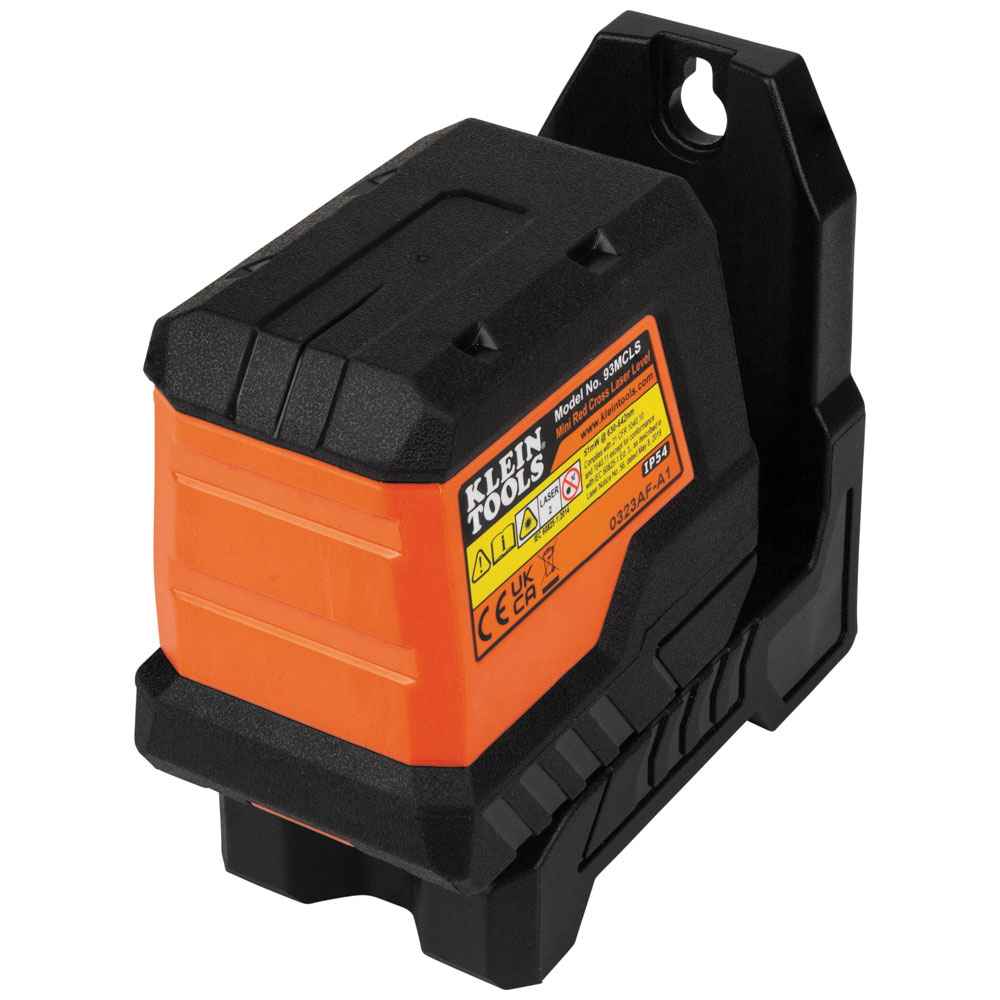

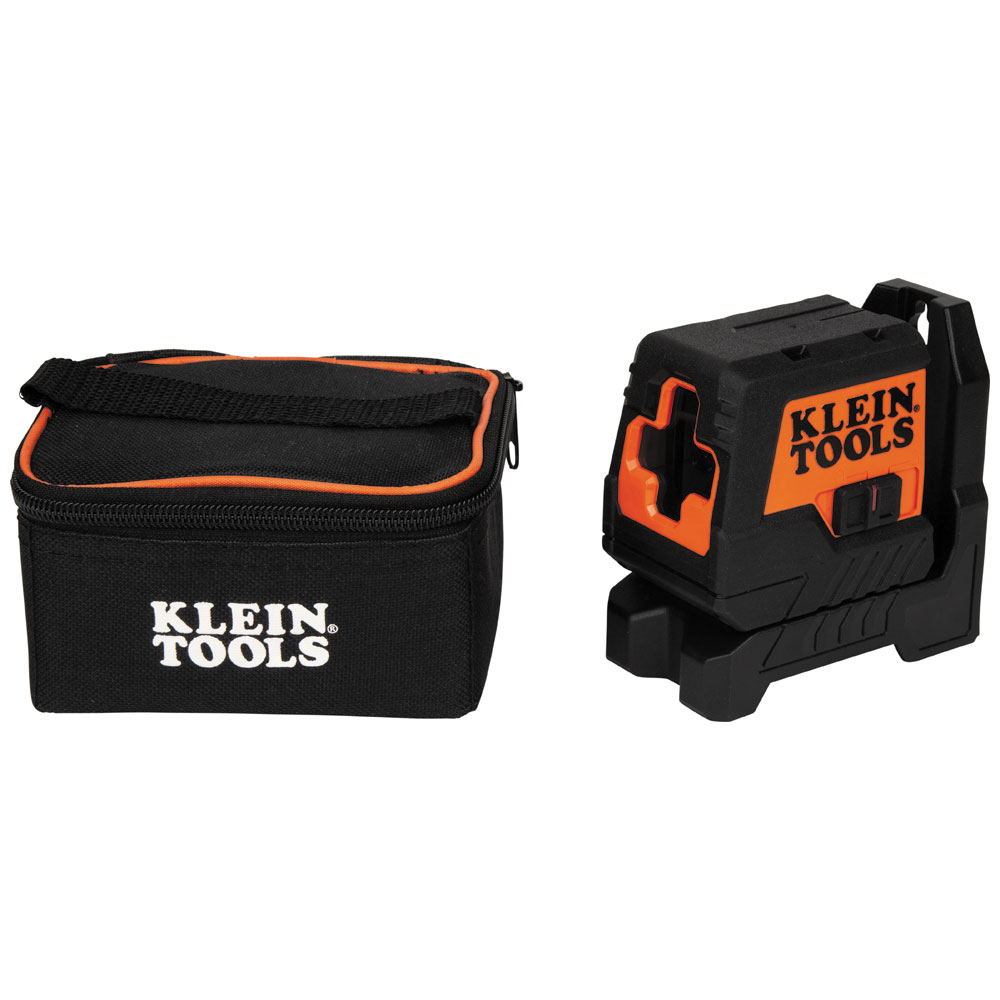

Klein Tools, 93MCLS, Cross-Line Laser Level, Red, Self-Leveling, 35 ft Range, IP54, 18 hr Battery Life

The Klein Tools Mini Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals with over 18 hours of runtime with a Class 2 laser (IEC 60825-1 Ed. 3.) with an output power of less than or equal to 1mW at 630-642 nm. This level provides a reliable pendulum self-leveling system with red laser level lines. Equipped with a magnetic mounting bracket and overmold design that protects from water and dust

Features

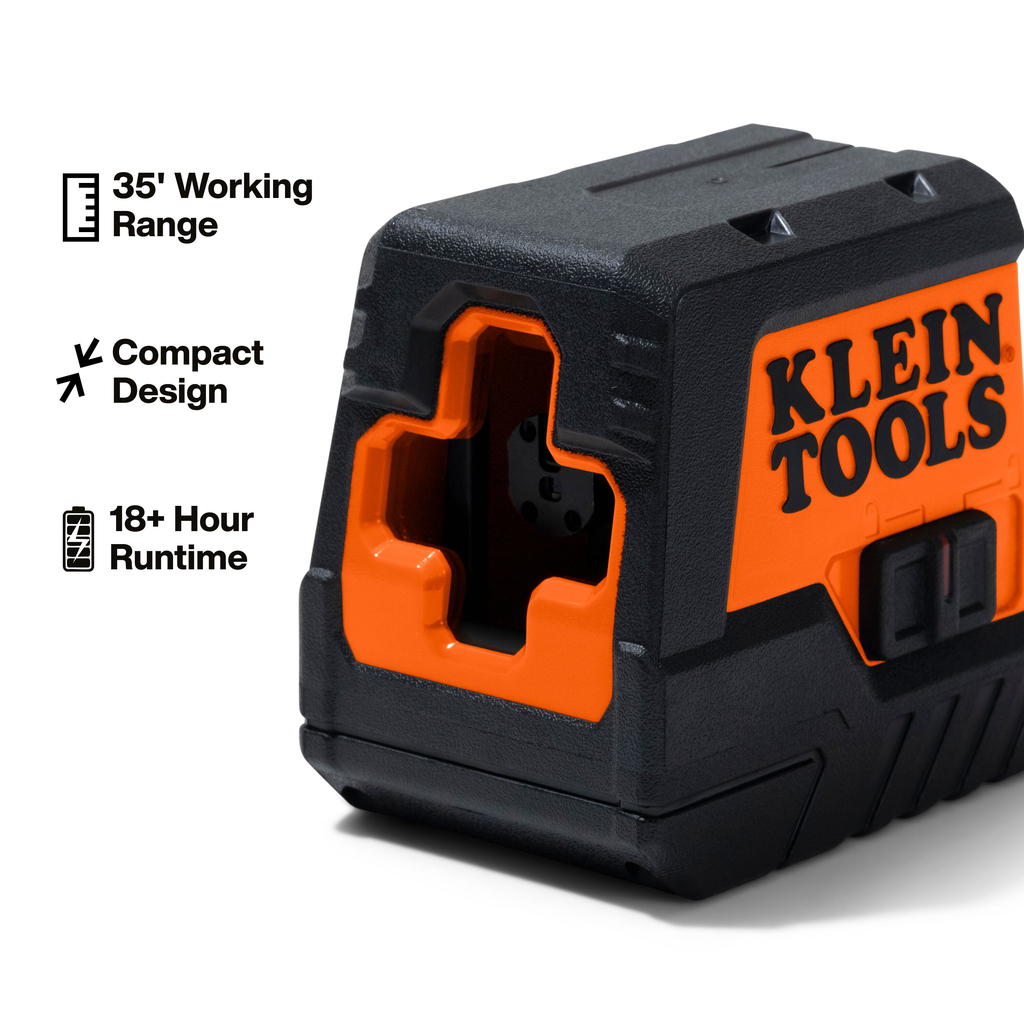

• Compact and lightweight design is easy to use in tight areas and to store when not in use

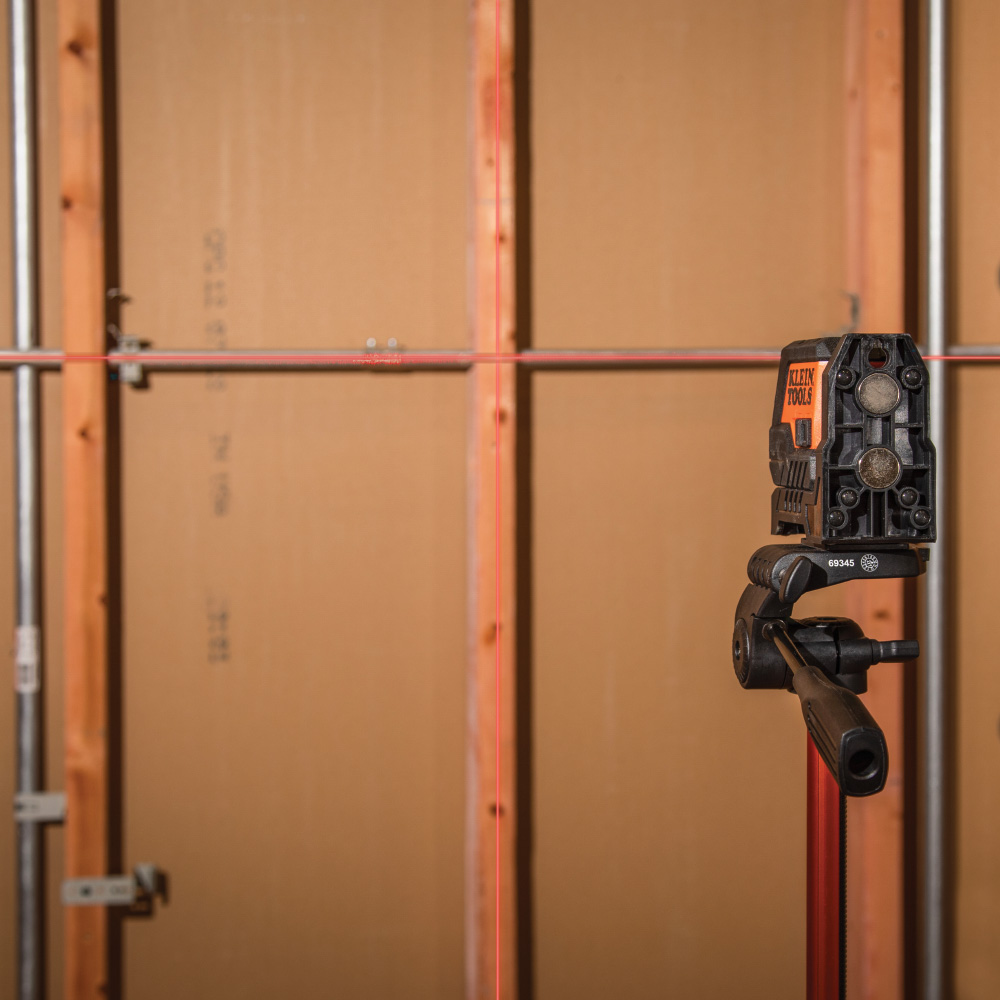

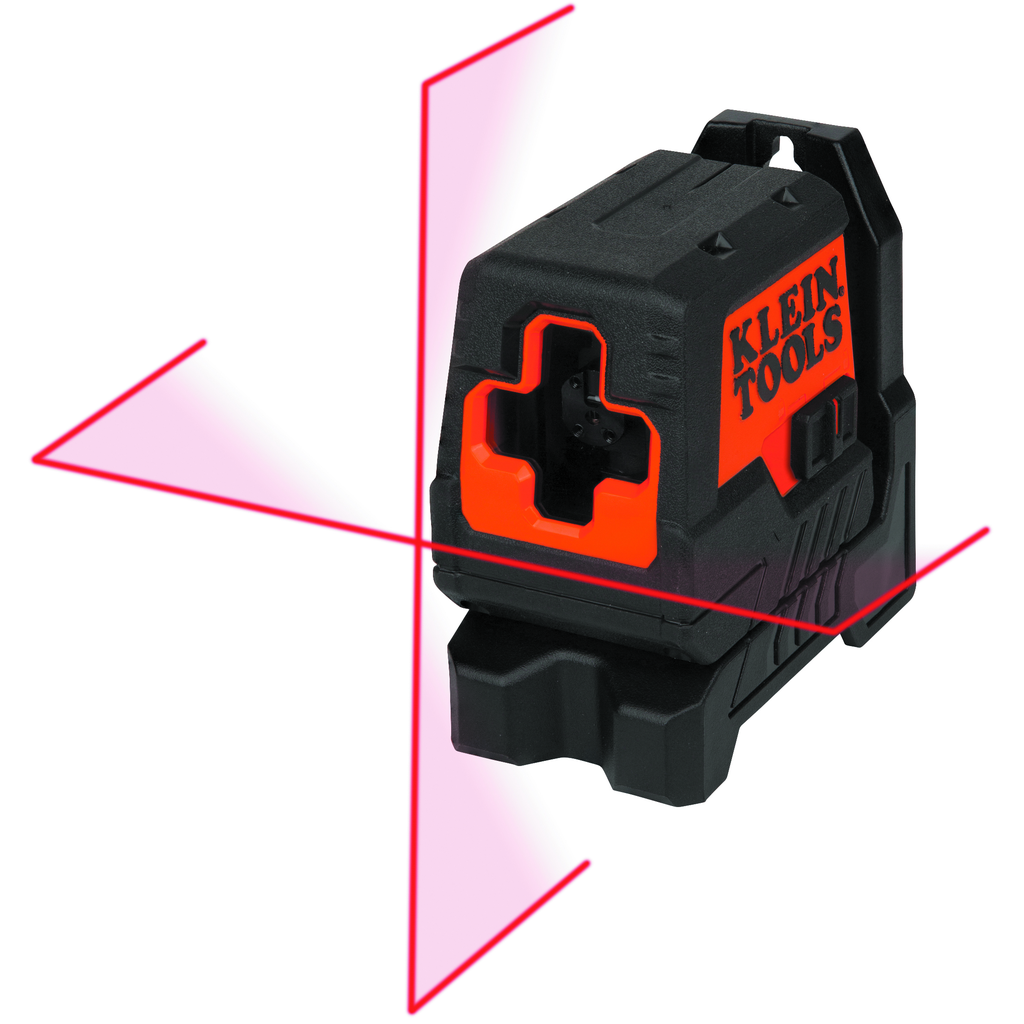

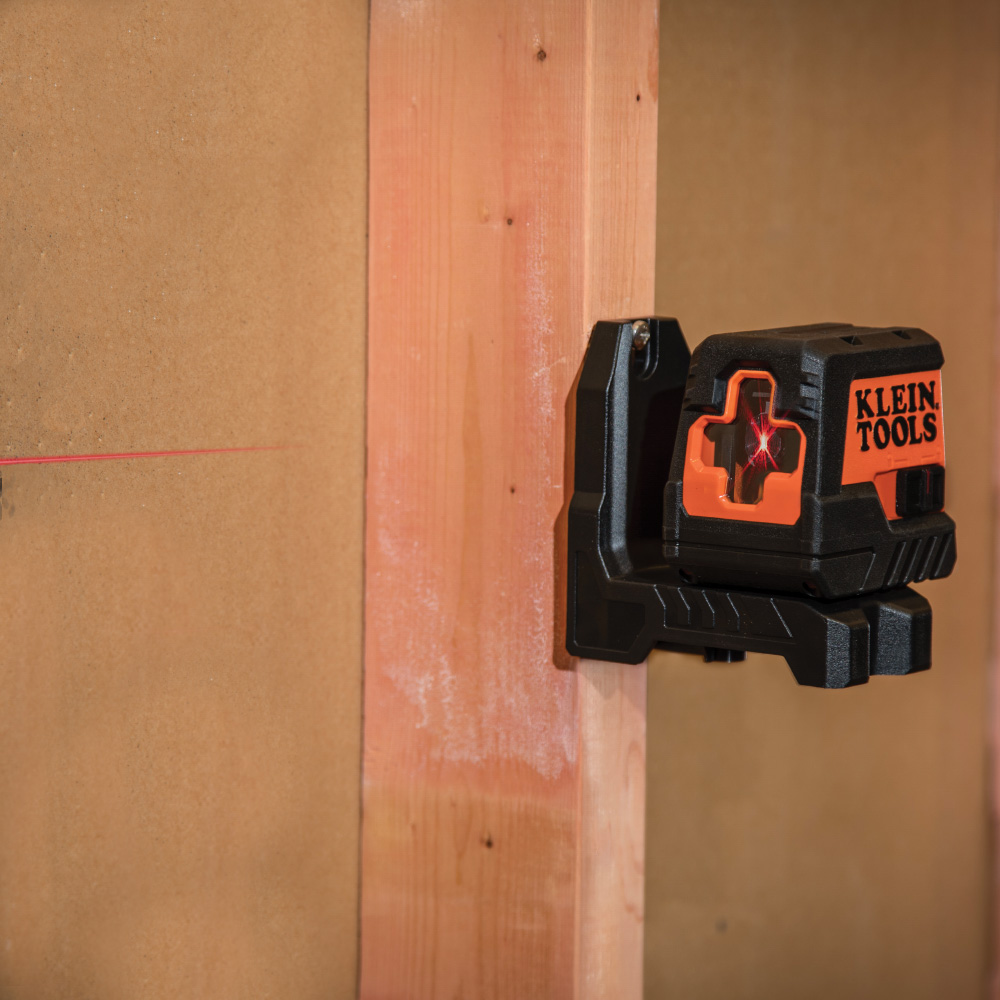

• Projects horizontal and vertical lines to address various alignment tasks
• Over 18 hours of runtime provides enough laser power to ensure extended all day use
• Self-Leveling Red Laser Level has easy-to-read, horizontal and vertical lines, optimized for indoor lighting conditions with a working range of 35 feet (10.7 m)
• Durable overmold design that is IP54 rated protects the laser level from water and dust

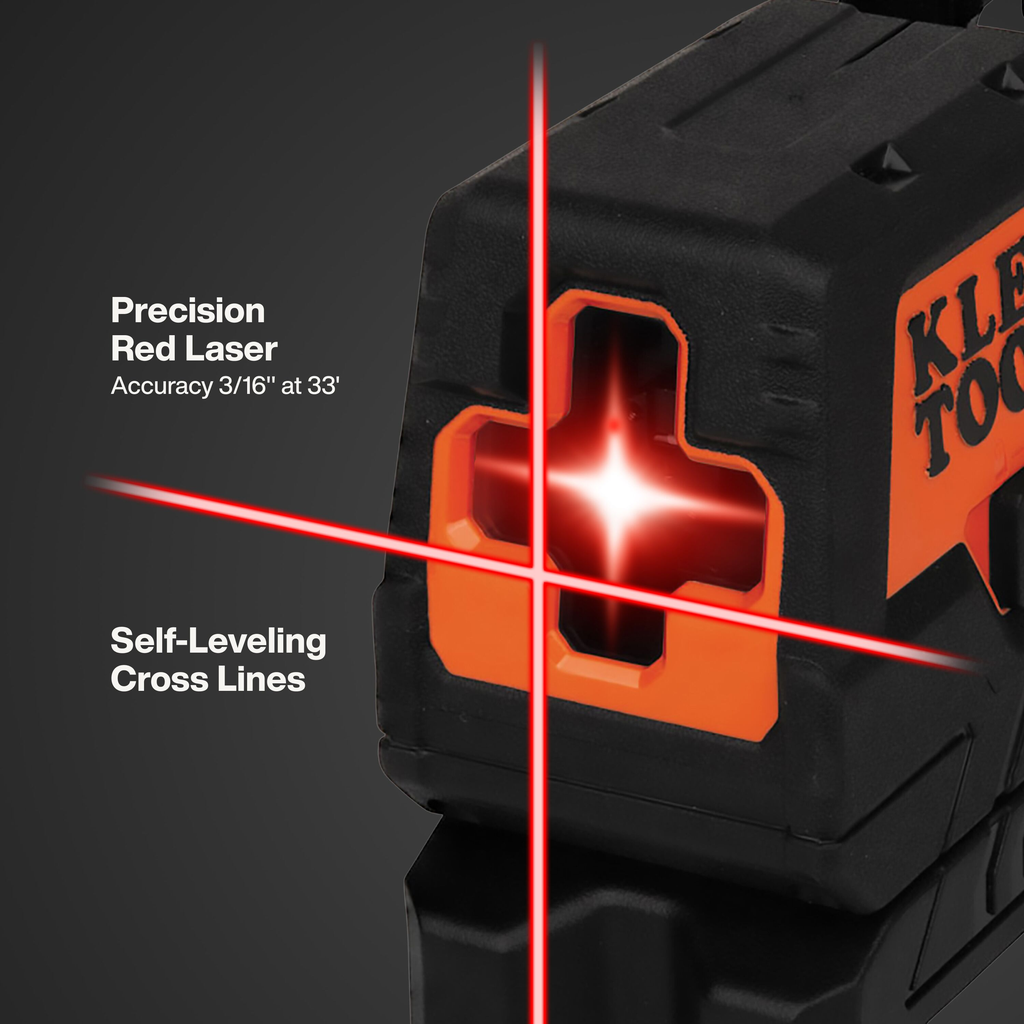

• High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level

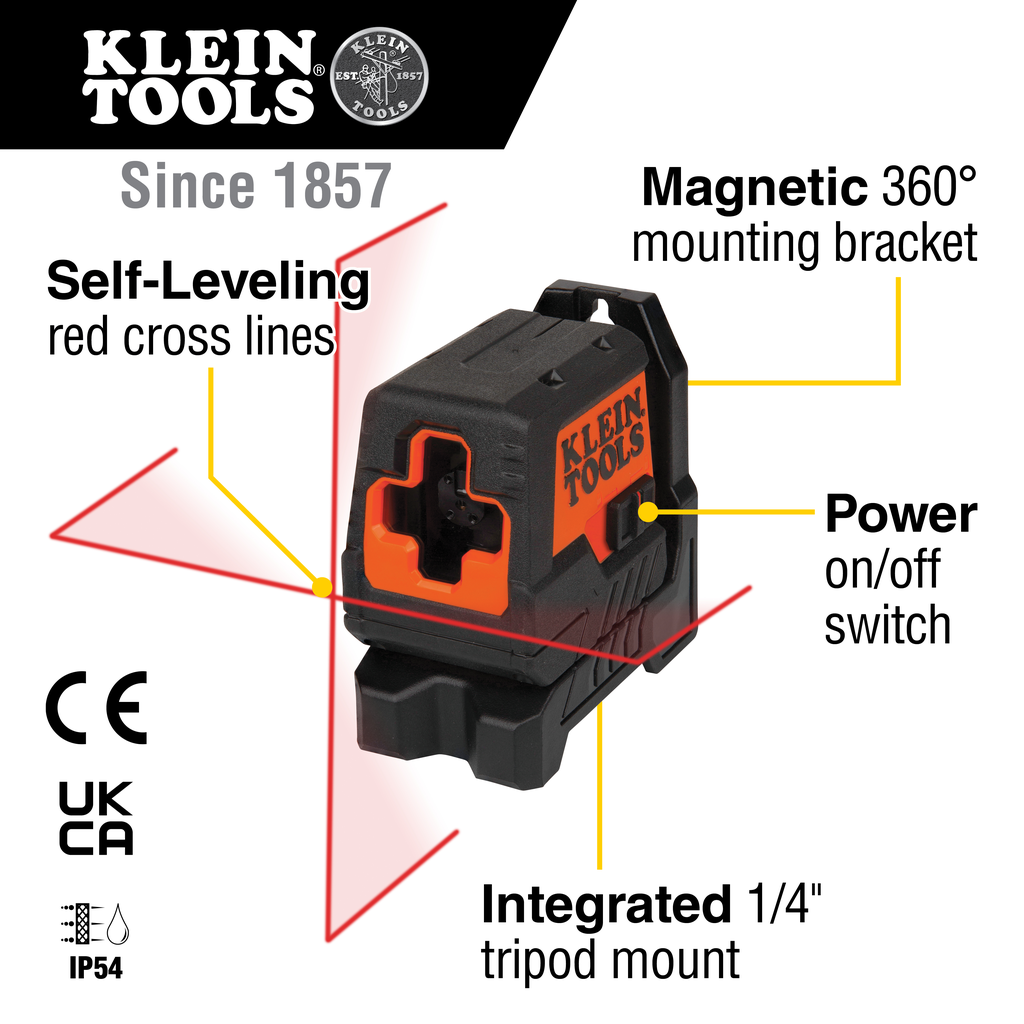

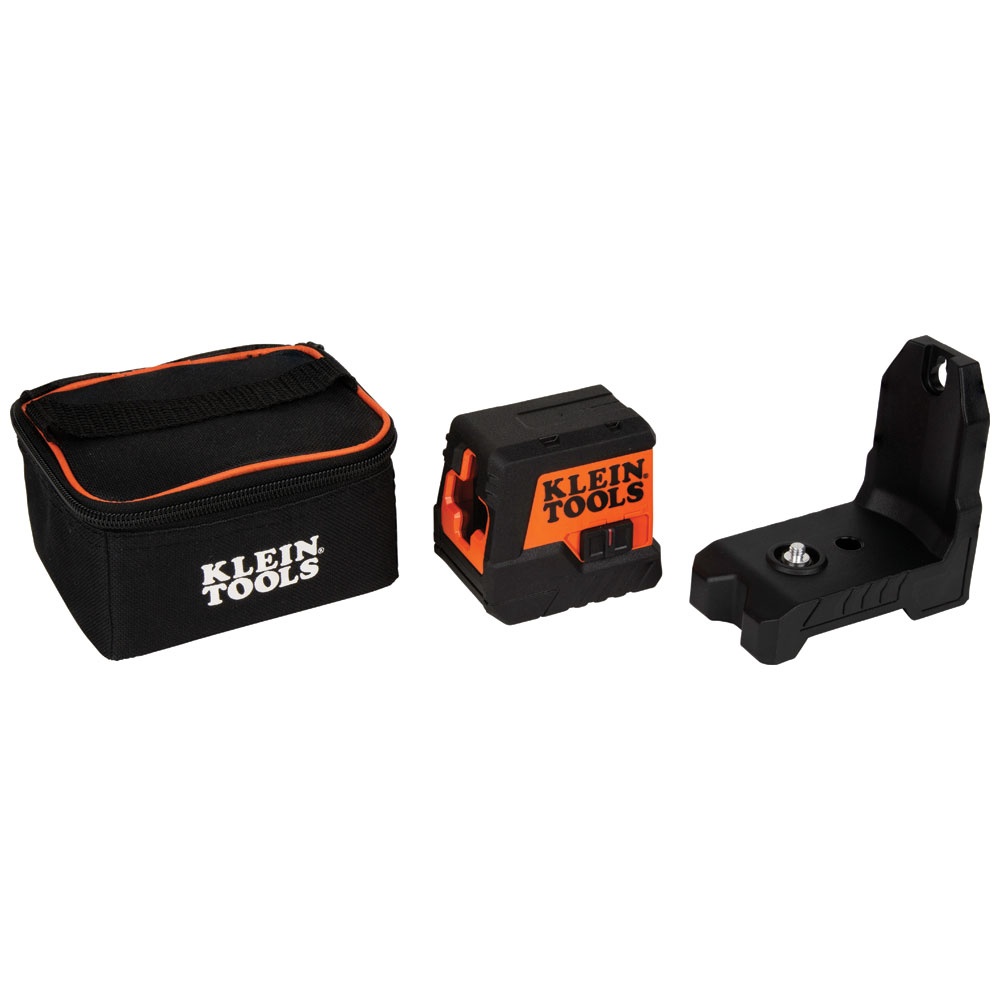

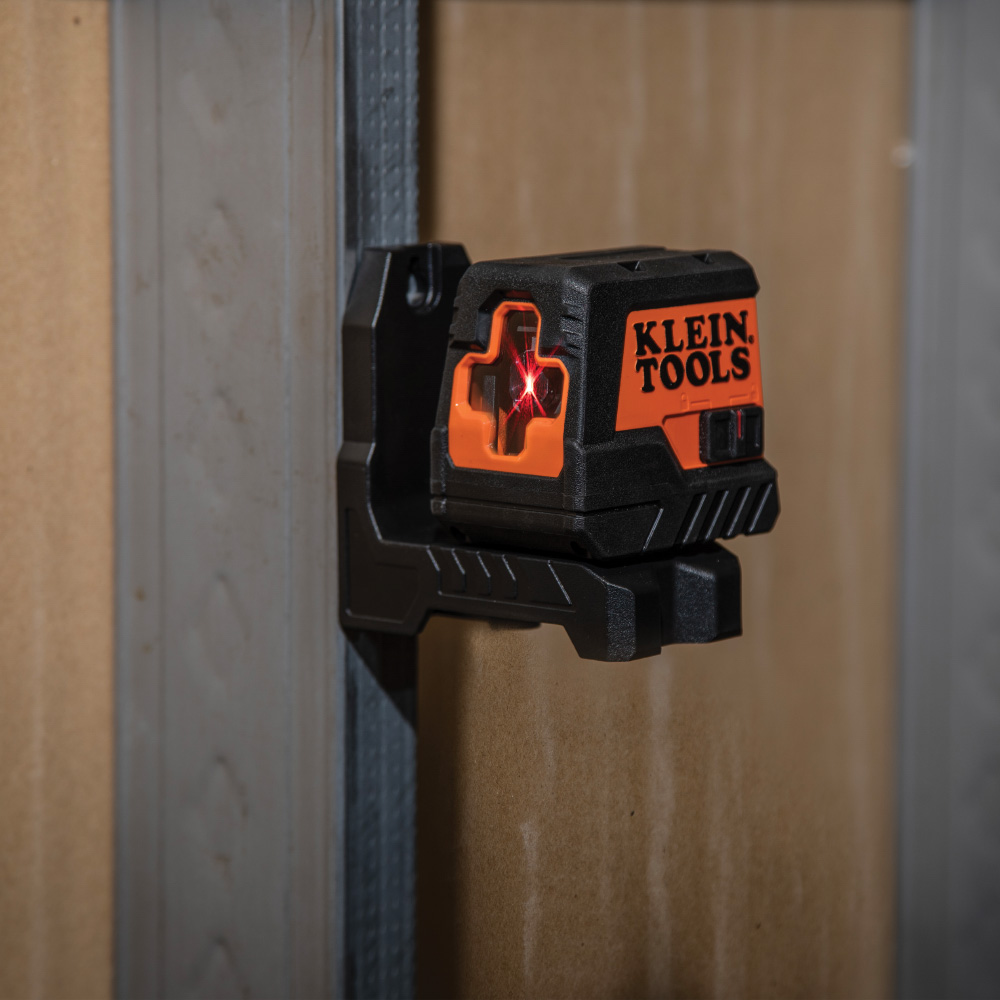

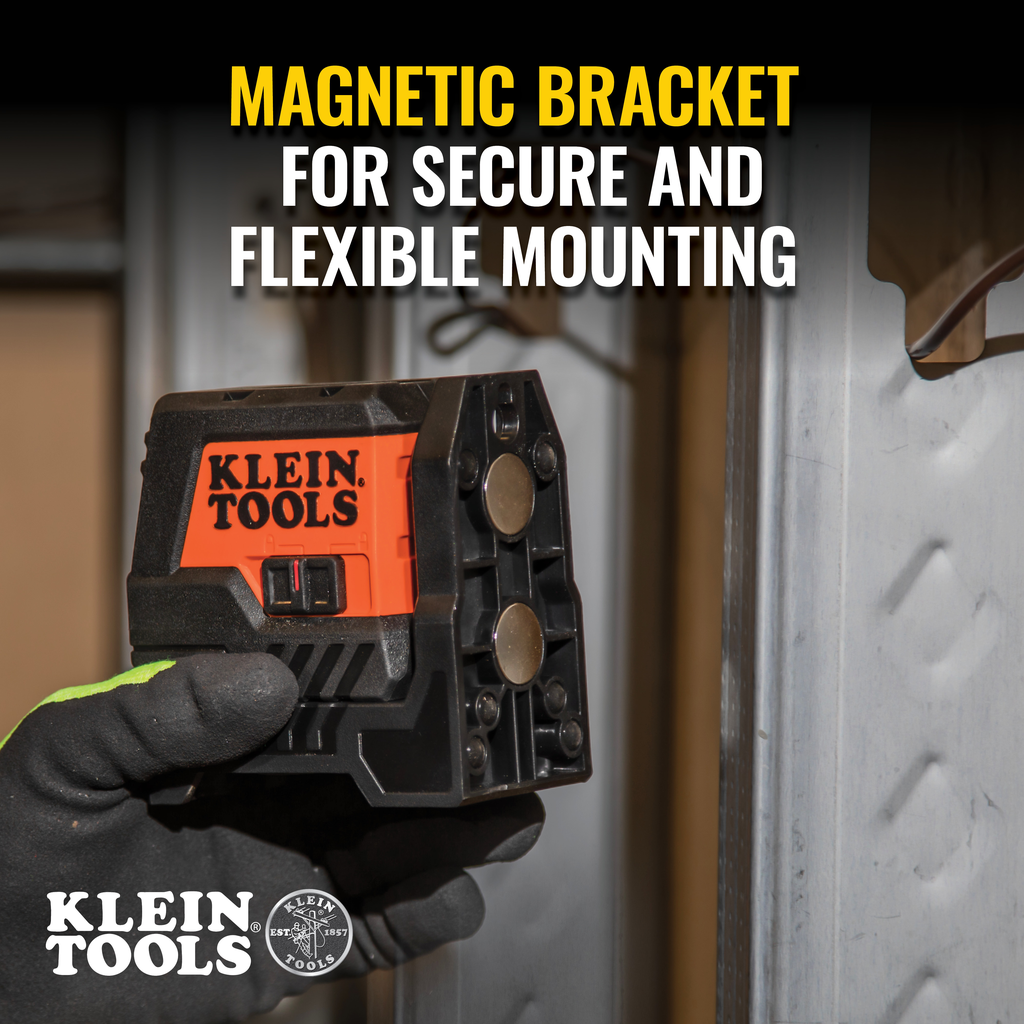

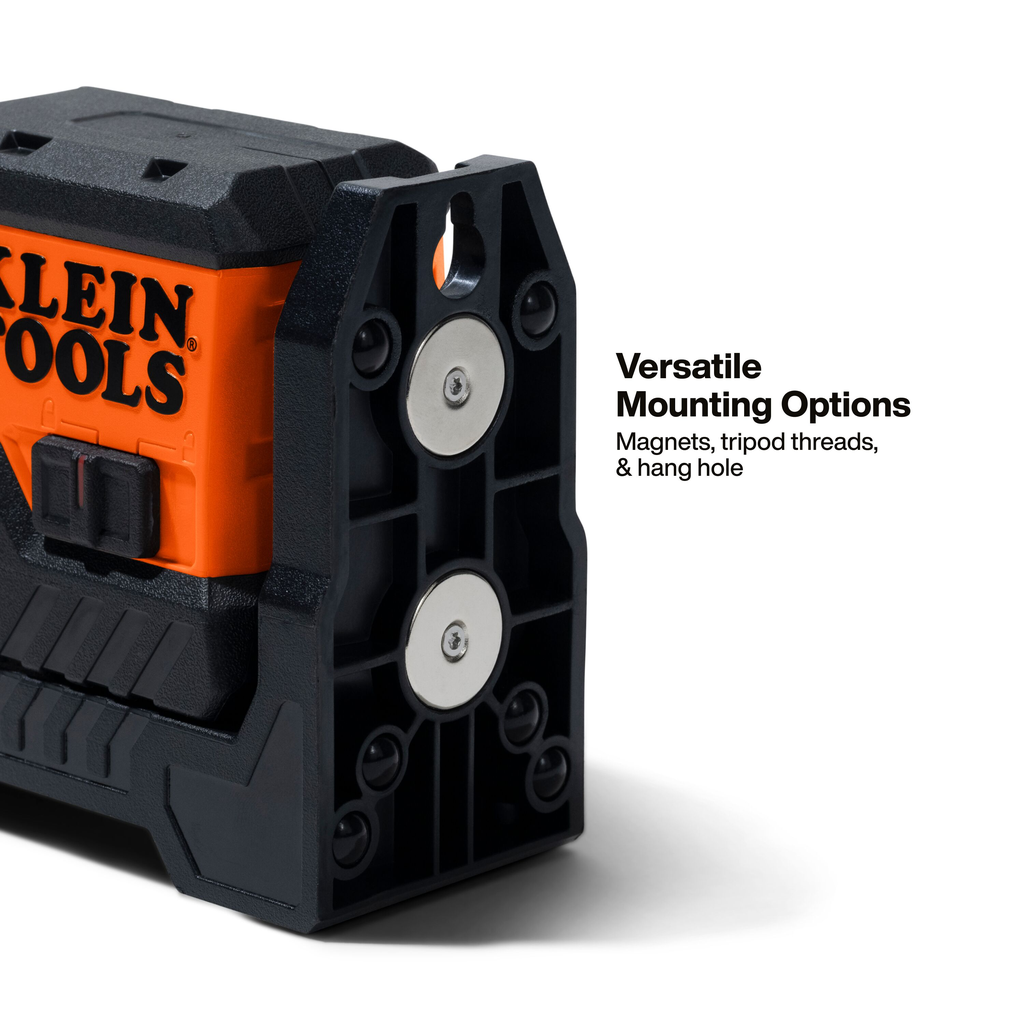

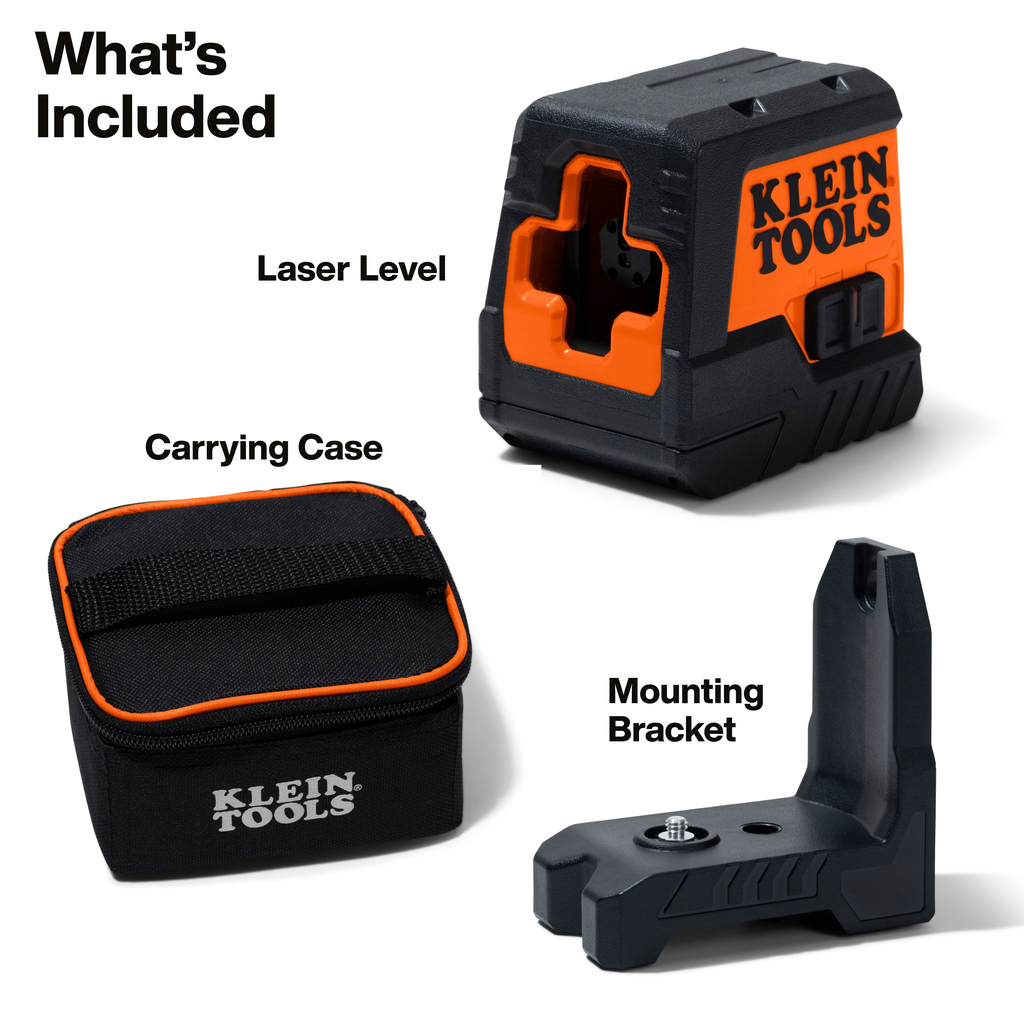

• Magnetic Mounting Bracket with 1/4'' Tripod Mount; Mounting Clamp Attachment; Out-of-Level Detection, Low Battery Indicator

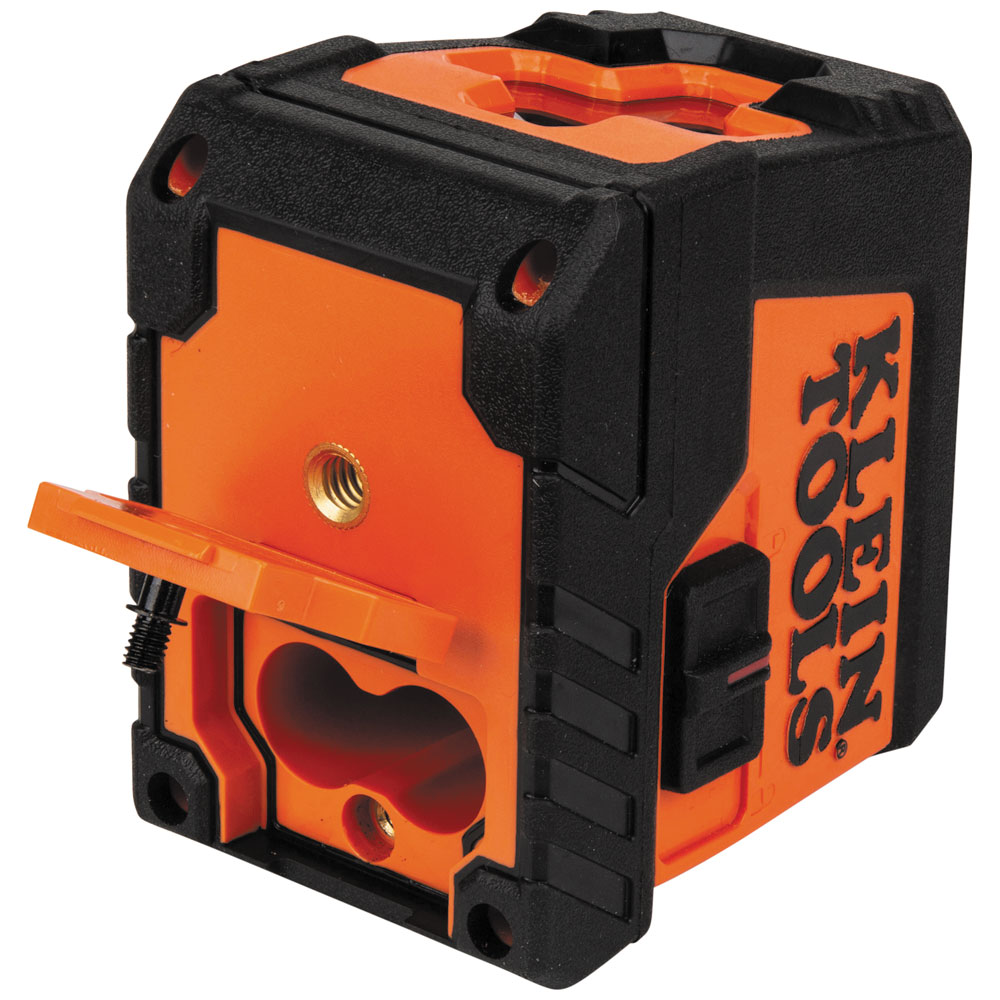

• Magnetic mounting bracket screws into integrated 1/4-Inch-20 tripod mount

Warnings

• Class II Laser Product.
• Laser Radiation - Do Not Stare Into Beam.
• See instruction manual for additional warnings.

• Battery Life: 18 hr
• Laser Wavelength: ≤ 1mW 630 - 642 nm
• Laser Class: Class 2
• Laser Color: Red
• Maximum Distance: 35' (10.7 m)
• Accuracy: +/- 3/16" per 33' (10 m)
• Self-Leveling: Pendulum system
• Out-of-Level Indicator: Yes, auto flash laser when not level
• Mounting Type: Magnetic bracket, 1/4-20 tripod mount
• Material: PC, ABS, TPE durable overmold
• Weight: 0.4600 lbs
• Overall Length: 4.2" (10.7 cm)
• Overall Width: 3.2" (8.1 cm)
• Overall Height: 4" (10.2 cm)
• Drop Protection: 3' (1 m)
• Ingress Protection: IP54 - Water and Dust Resistant
• Low Battery Indicator: Yes
• Low Battery Alarm: Yes
• Transit Locking Mechanism: Yes
• Number of Beams: 2
• Number of Vials: 0
• Receiver: No
• Type: Laser
• Laser Safety: Complies with 21 CFR 1040.10 and 1040.11, IEC 60825-1 Ed. 3
