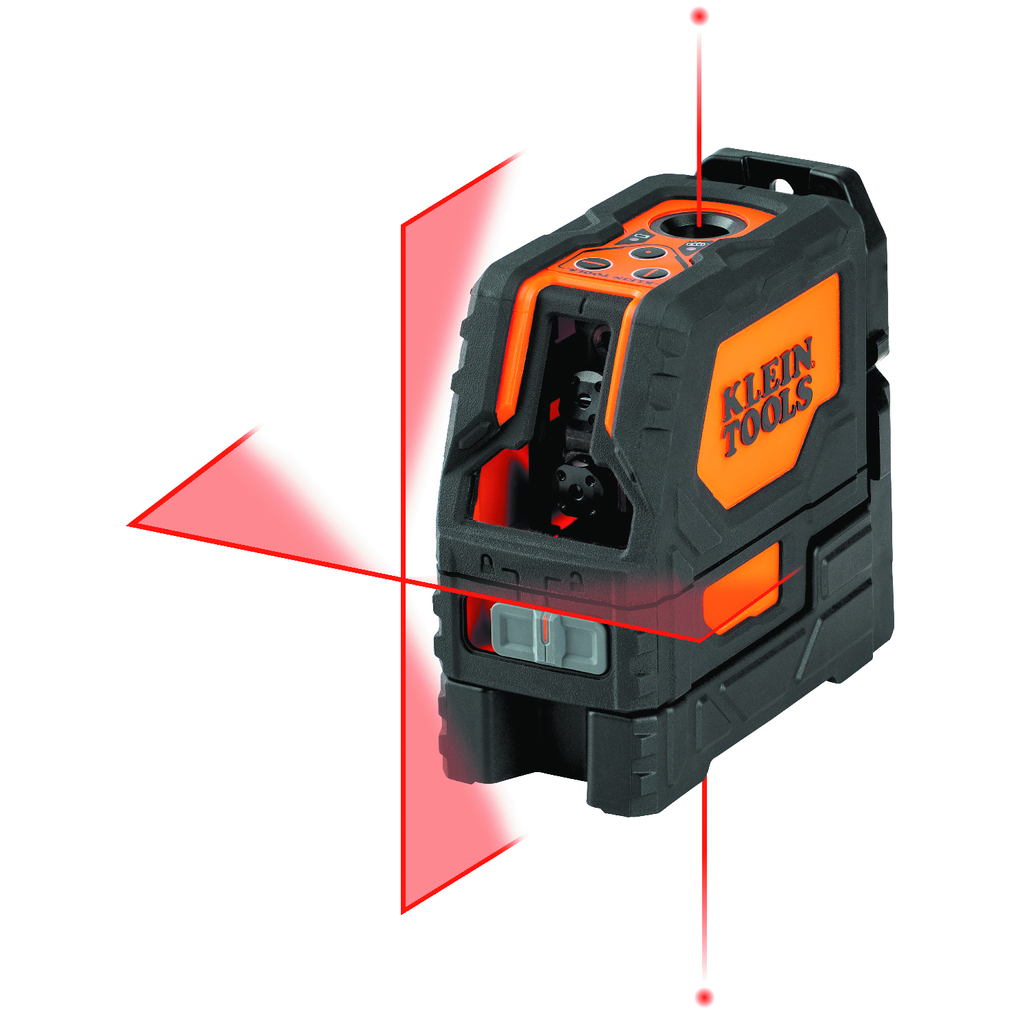

Klein Tools, 93LCLS, Self-Leveling Laser Level, Red Cross-Line; Plumb Spot; IP54 Dust/Water Resistant; 150 ft Range

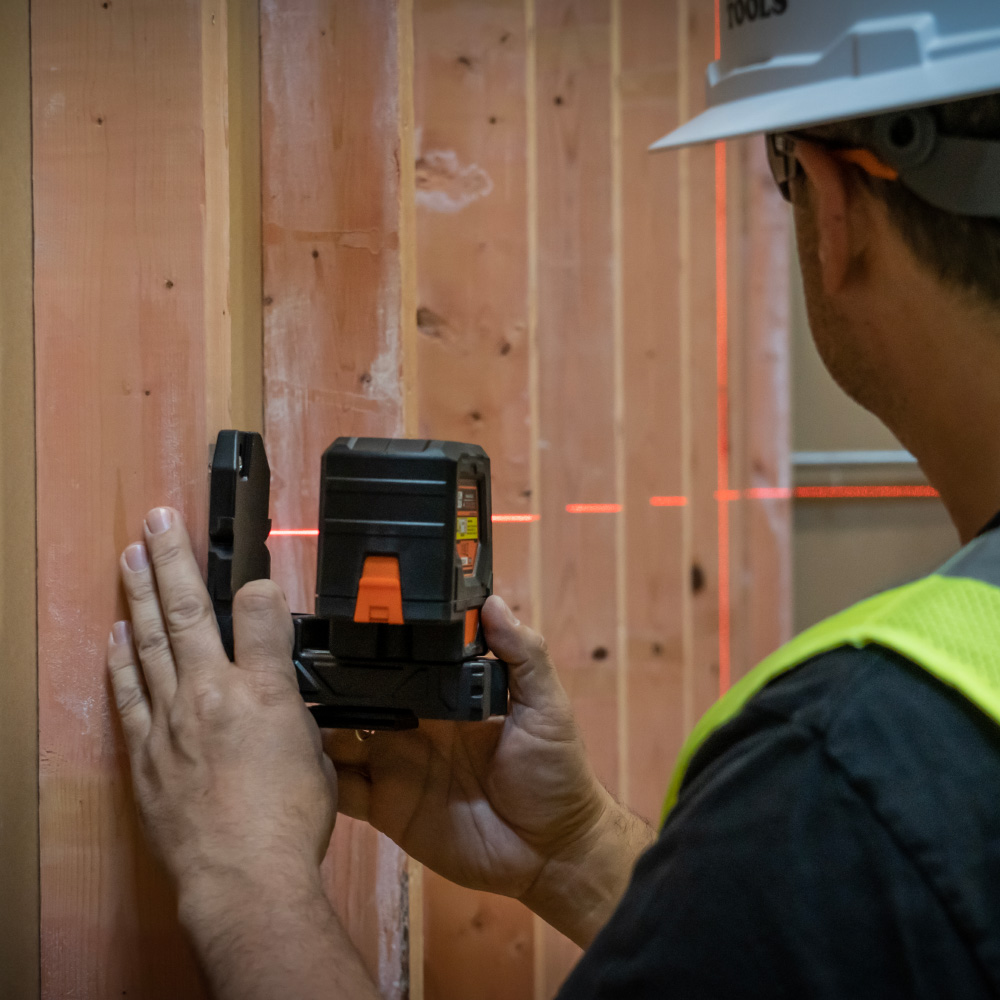

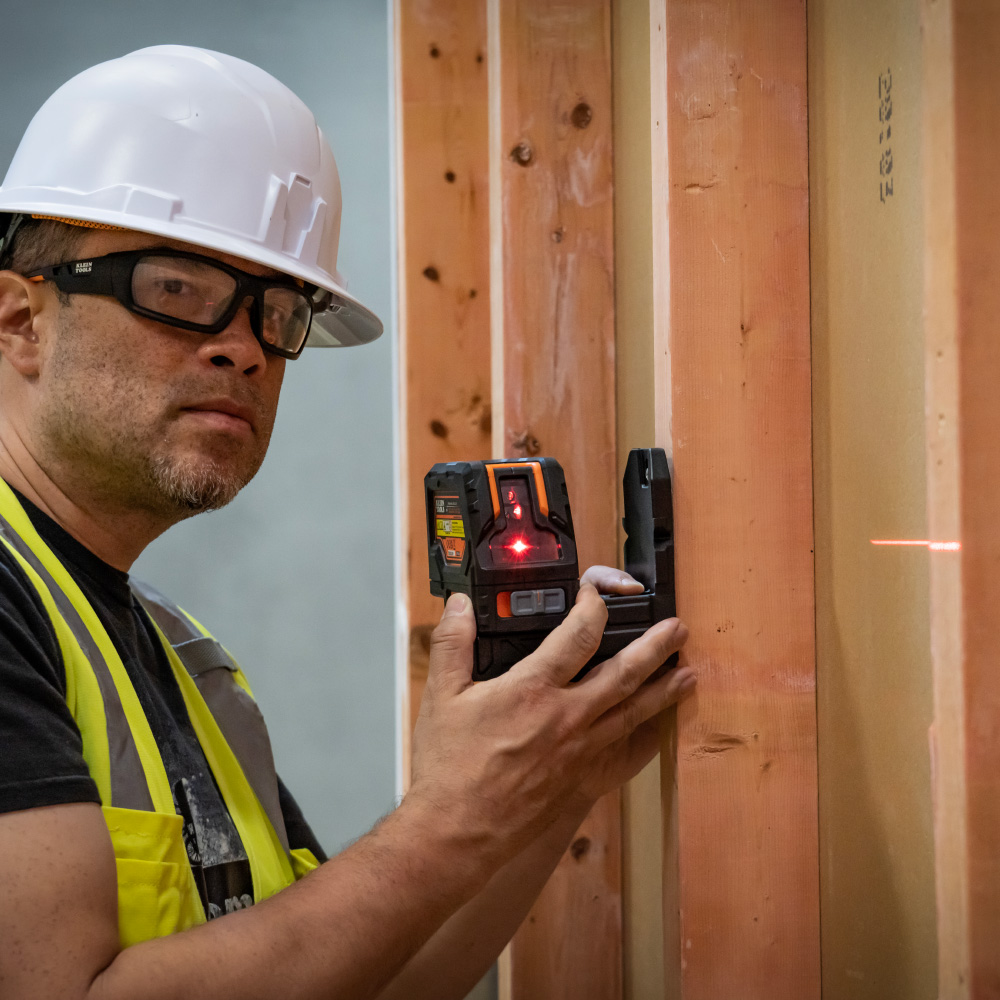

The Klein Tools Self-Leveling Cross-Line Laser Level is a professional-grade tool with a pendulum self-leveling system for accurate measurements. Its Class II (≤ 1mW) laser projects clear lines for tasks like picture hanging or concrete alignment. Precise plumb bobs outperform traditional string bobs. With a magnetic mount and ceiling clip, it supports various applications, including conduit runs and electrical panel installations.

Warnings

• See instruction manual for additional warnings
• Class 2 Laser Product
• Laser Radiation - Do Not Stare Into Beam

Features

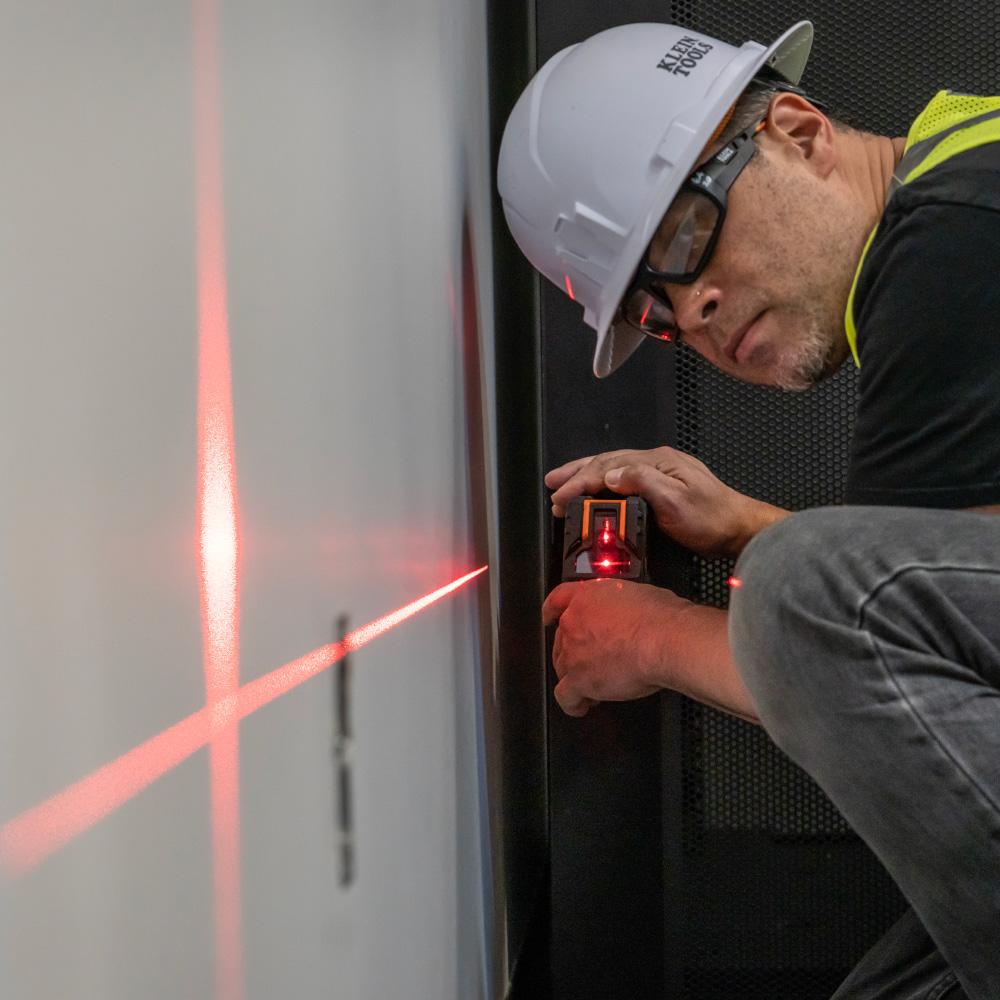

• Level projects horizontal and vertical lines independently or together for various alignments
• Low battery indicator and easily accessible battery compartment

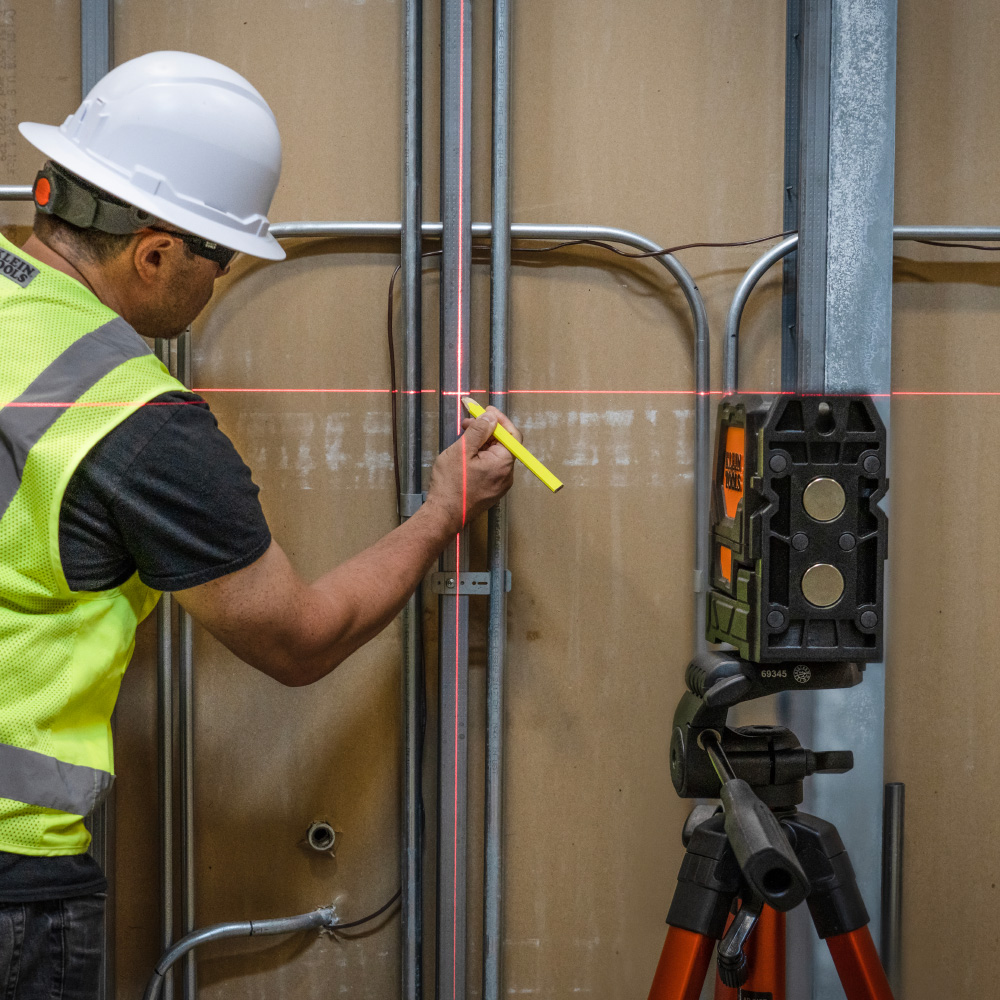

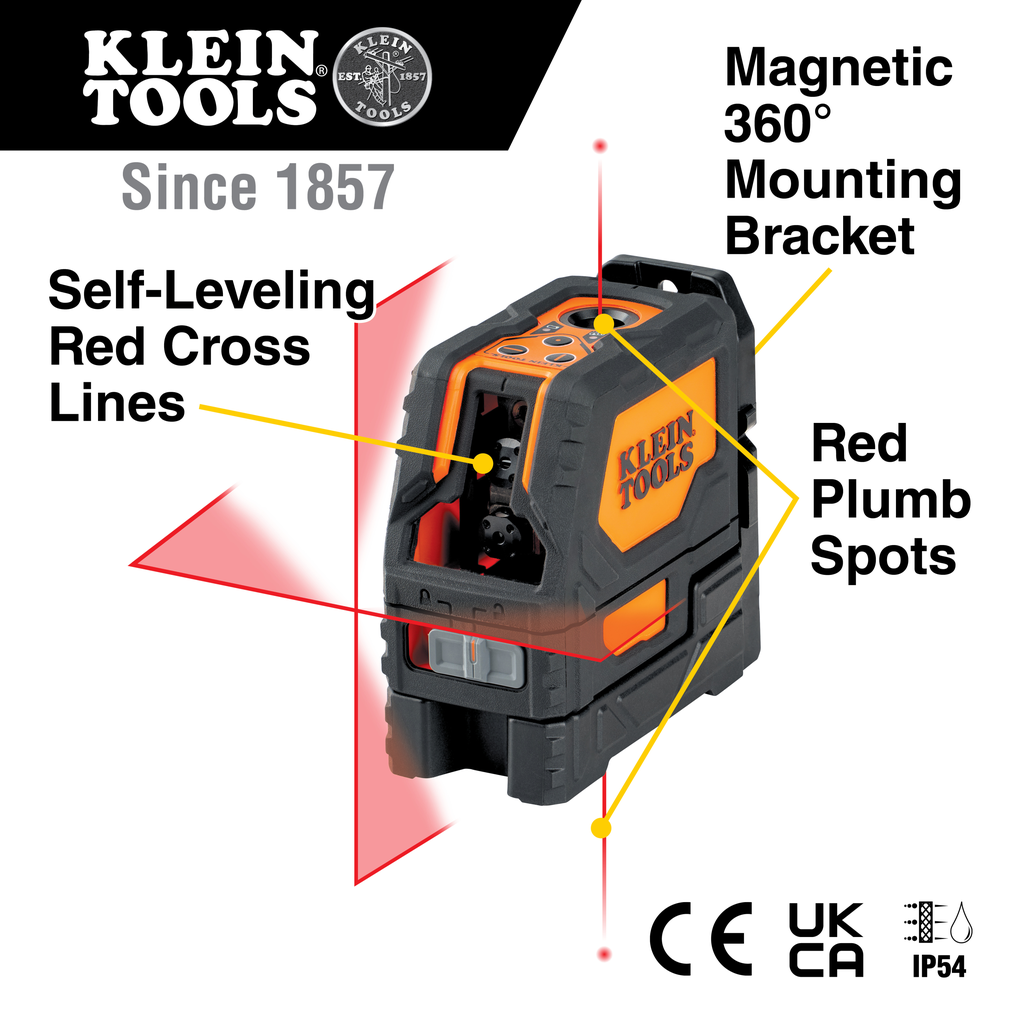

• Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads
• Water and dust resistant (IP54)
• Rugged body provides IP54 water and dust resistance; hard plastic carrying case included

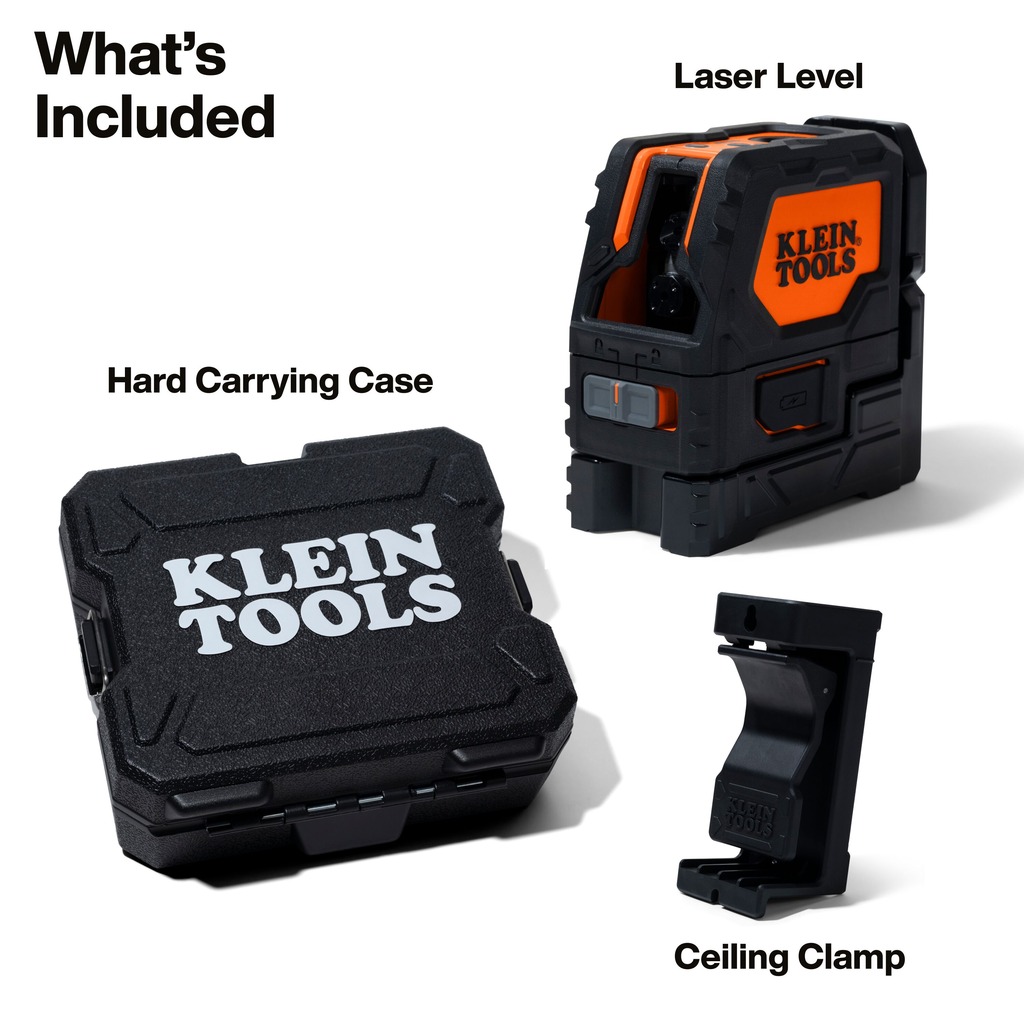

• Additional mounting clamp attachment for use on ceiling grid applications

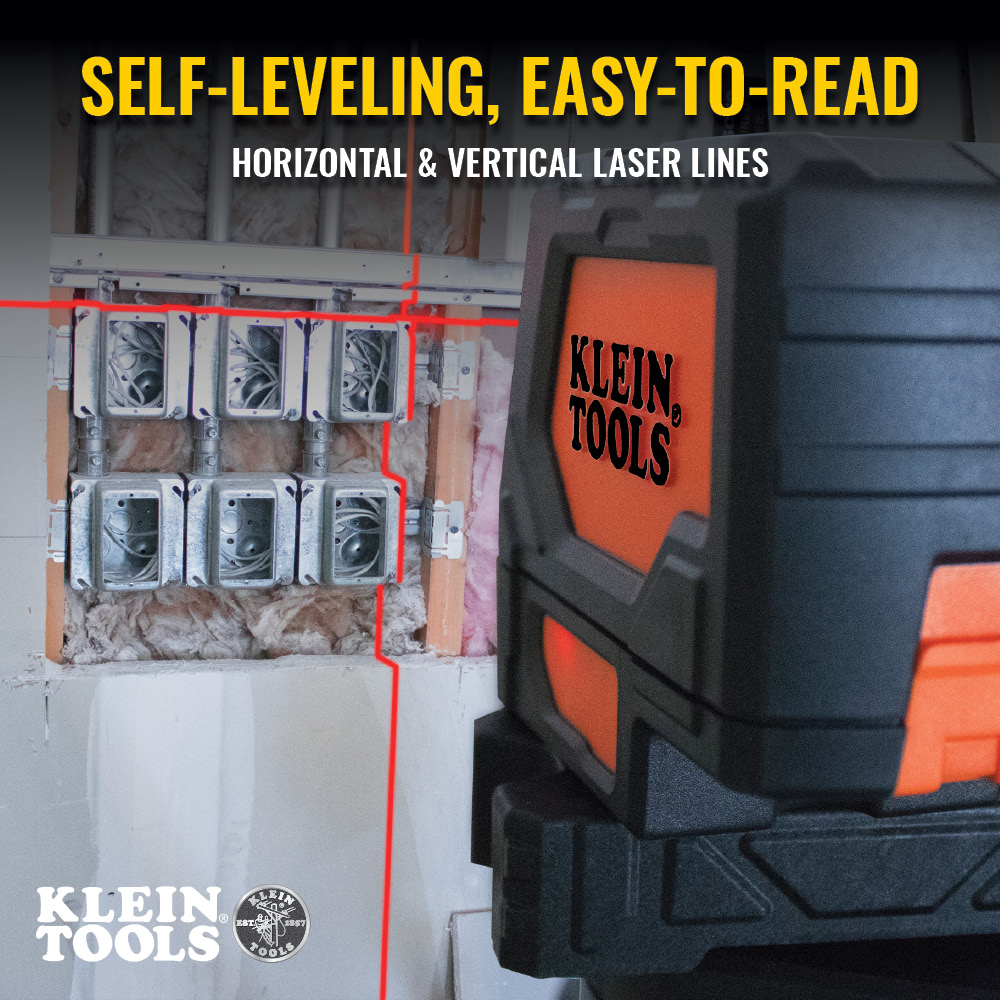

• Self-Leveling Class II (≤ 1mW) Red Laser Level has easy-to-read, horizontal and vertical lines, optimized for indoor lighting conditions with a working range of 150 feet

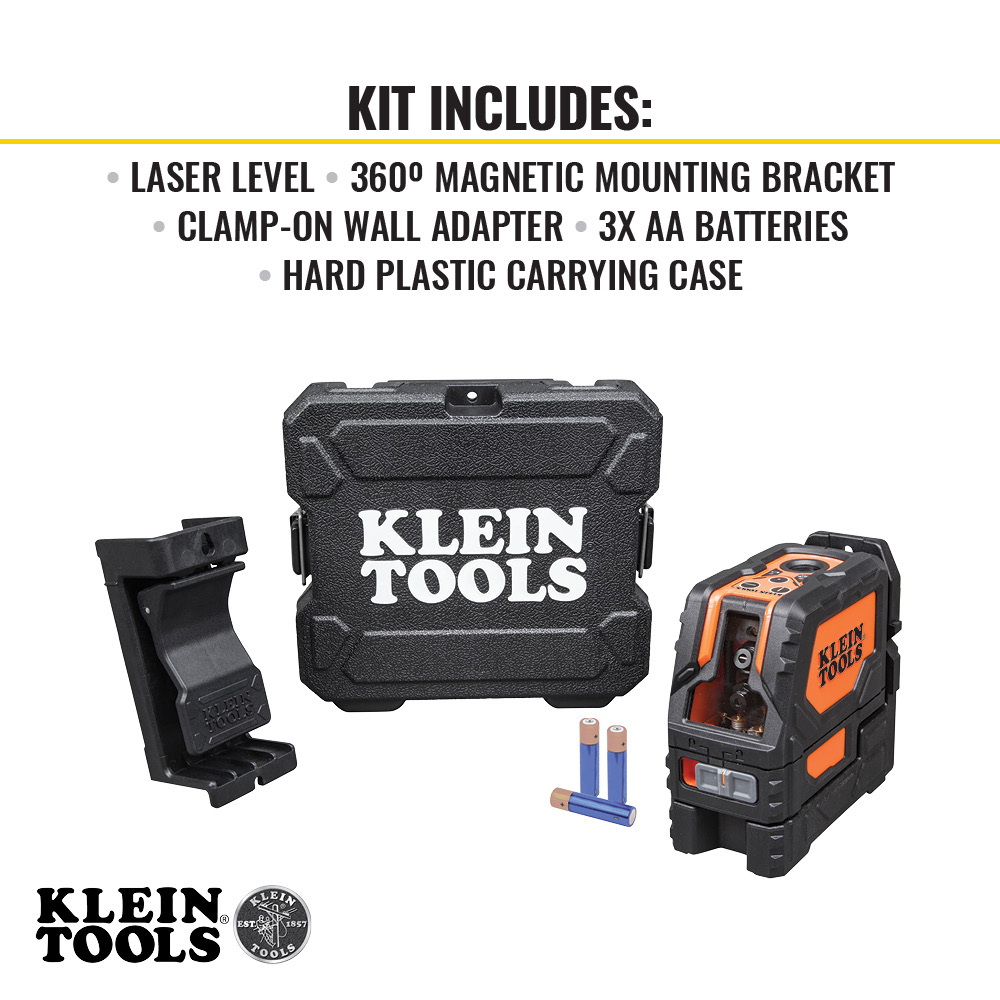

• Hard plastic carrying case included
• Laser: 630-680nm

• Laser Power: ≤ 1 mW Each Beam
• Laser Class: Class II (Class 2), ≤ 1 mW
• Laser Color: Cross Line Red; Plumb Red

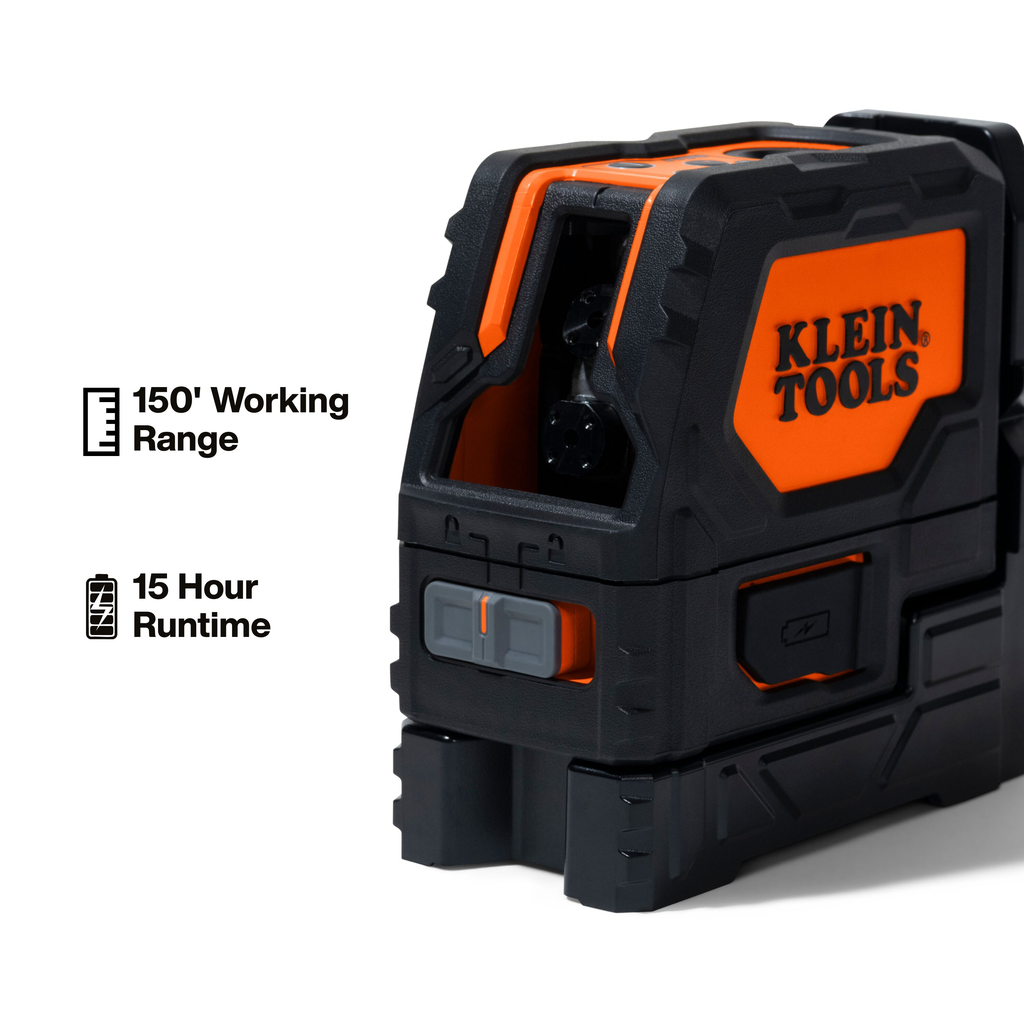

• Working Range: 150 ft (45.7 m)

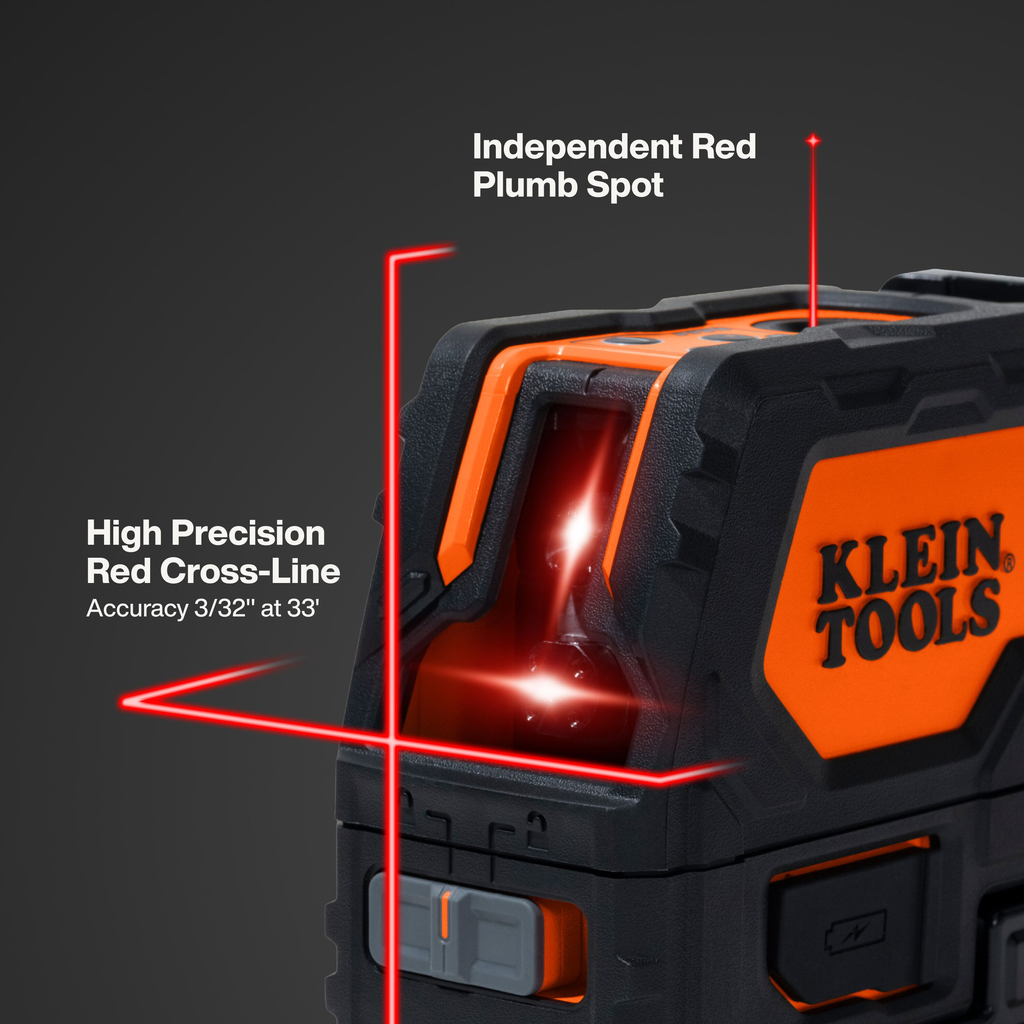

• Accuracy: ±3/32 in per 33 ft (±2 mm per 10 m) Horizontal/Vertical, ±1/8 in per 33 ft (±3 mm per 10 m) Plumb Up, ±5/32 in per 33 ft (±4 mm per 10 m) Plumb Down
• Number of Beams: Four - Horizontal, Vertical, Plumb Up, Plumb Down

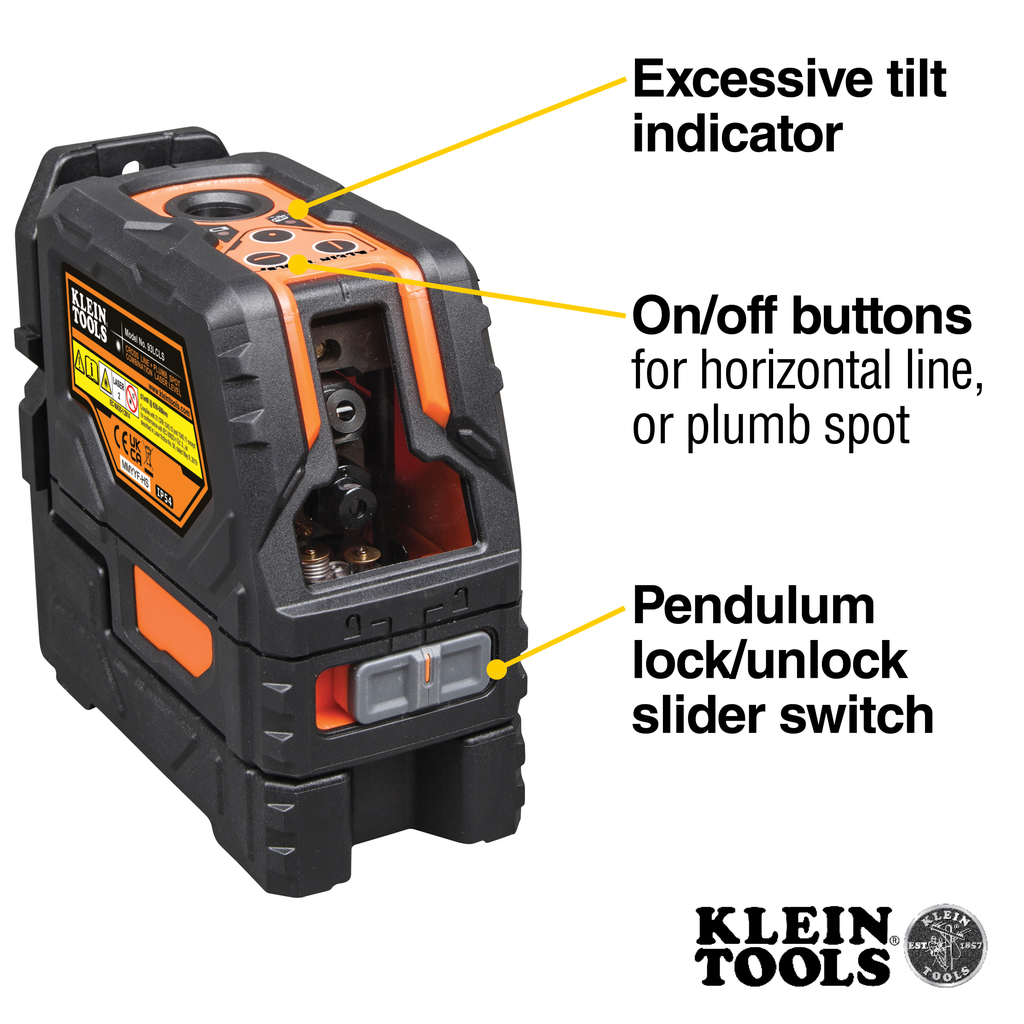

• Self-Leveling: Pendulum system
• Drop Resistance: 3.3 ft (1 m)
• Ingress Protection: IP54 Water and Dust Resistant
• Overall Dimensions: 2.6 x 5.3 x 5.0 in (6.6 x 13.5 x 12.7 cm)
• Weight: 1.79 lbs
• Material: ABS Housing, Electronic Components

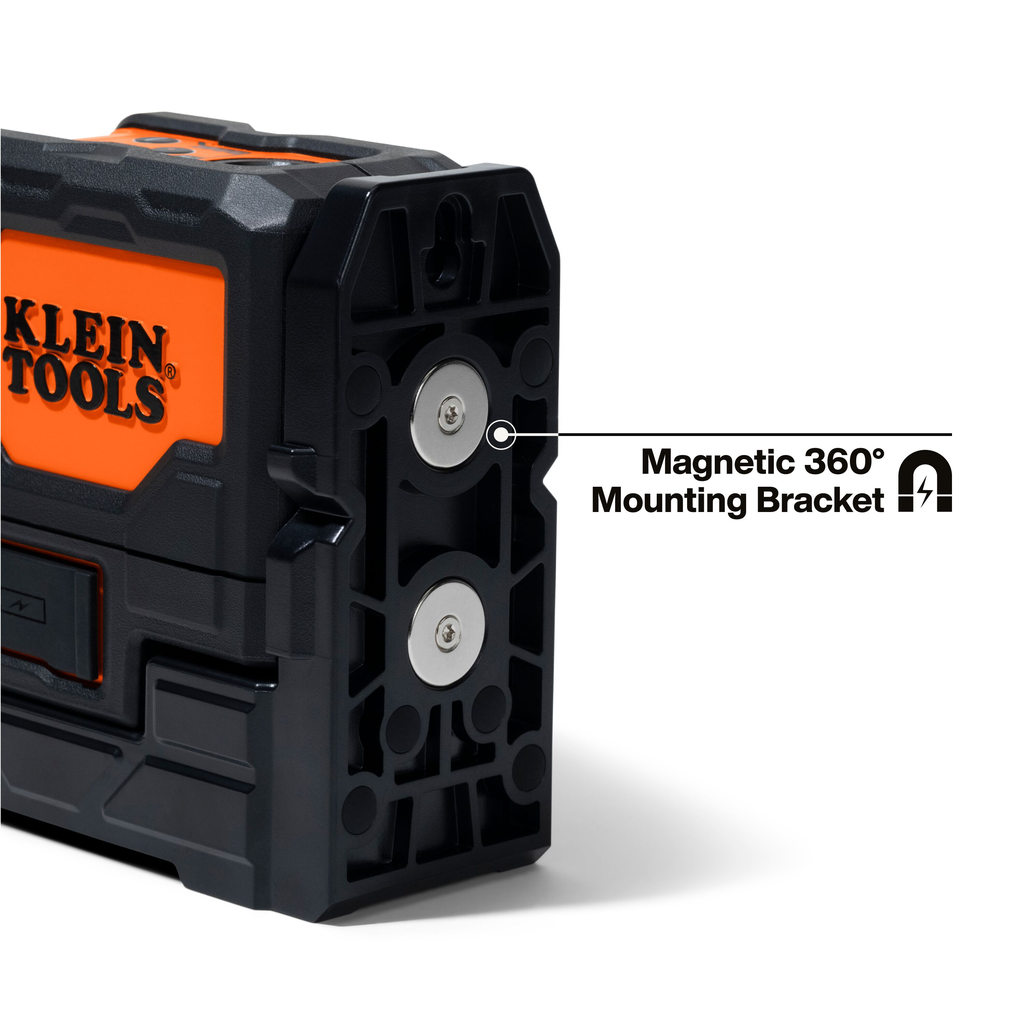

• Mounting: Integrated magnetic 360°, Permanent Rare Earth magnet

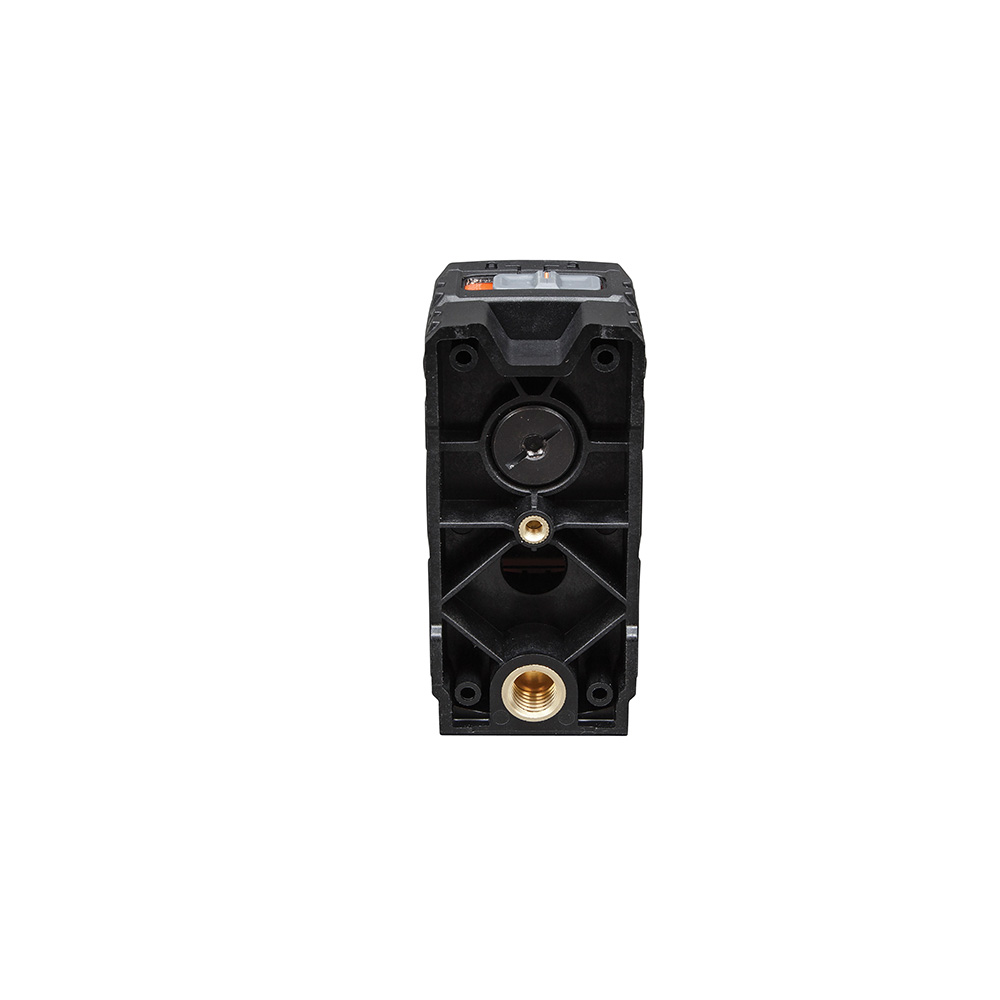

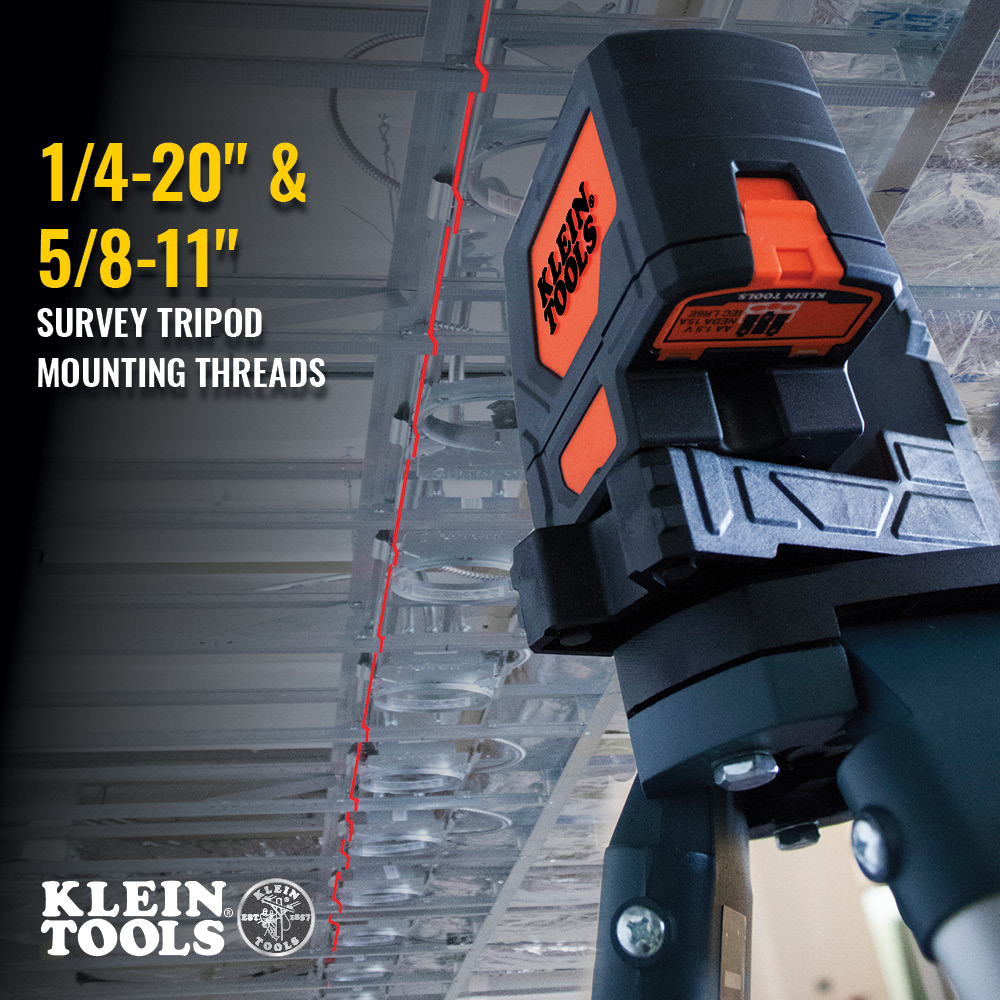

• Tripod Mounting Threads: 1/4 in and 5/8 in
• Battery Type: 3 x AA Alkaline
• Transit Locking Mechanism: Yes
• Low Battery Indicator: Yes
• Country of Origin: China
